Features:
- Double column structure, vertical lifting, high stability.
- Cutting speed adopts hydraulic control, variable speed.
- Hydraulic clamping, easy for operation.
- Hydraulic clamping system with three positions. (Optional)
Specification:
271201|
|
|
|
Model |
TGK-08 |
|
Max. cutting capacity |
Round 200mm (7.8 ") Rectangular 200x200mm (7.8 "x7.8") |
|
Cutting speed |
28-45 m/min (91-147 SFM) |
|
Blade size |
2650x27x0.9mm (1 "x0.035" x104 ") |
|
Workpiece clamping |
Hydraulic |
|
Blade tensioning |
Mechanical |
|
Main motor power |
1.3/1.8 kW |
|
Oil pump motor power |
0.55 kW |
|
Coolant pump motor power |
0.04 kW |
|
Drive |
Gear |
|

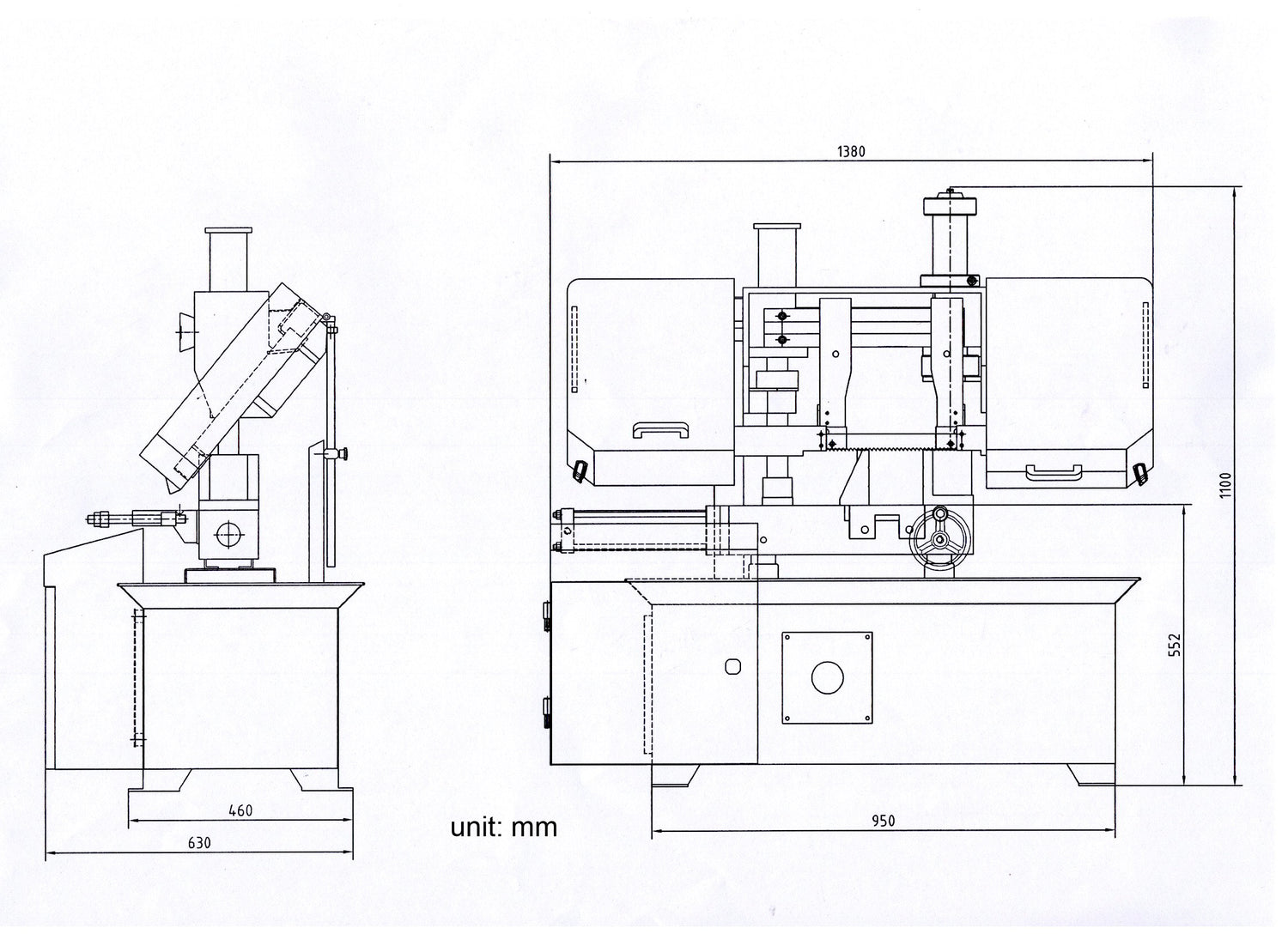

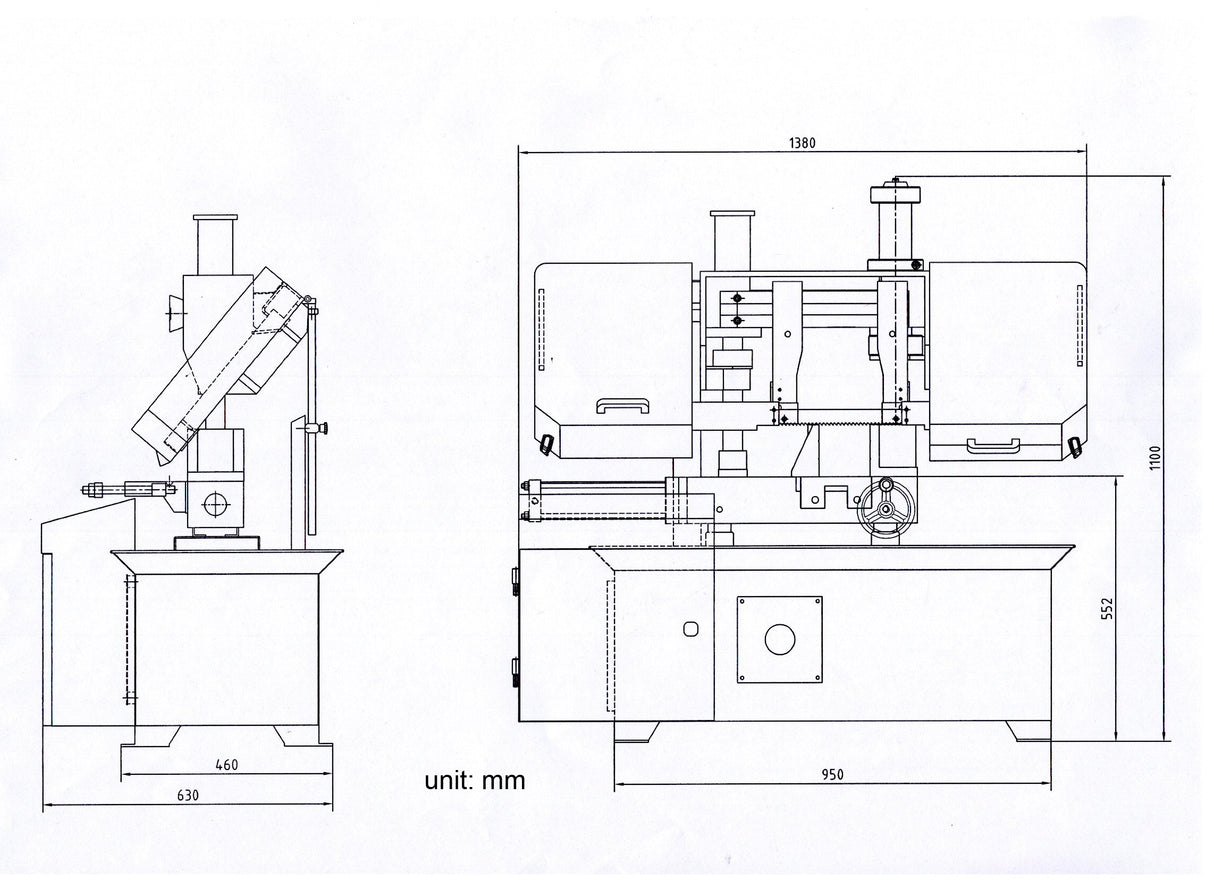

Overall dimension |
66"x35"x51" |
|
G.W./N.W. |
792/1000 lbs |
Standard accessories:
Blade,
Optional accessories:
Hydraulic clamping system with three positions
User manual
