SR-12 , 12"X16GA Manual Slip Roll Machine
  • Customer Service

  • 778-379-8688

  • info@kakaindustrial.ca

  • Contact Us

KAKA INDUSTRIAL LTD.  |  SKU: 174008

SR-12 , 12"X16GA Manual Slip Roll Machine

C$449.99 CAD
Shipping calculated at checkout.

Care information

Delivery and Shipping

  1. If the item weighs less than 145 lbs, it will be delivered by UPS, Purolator, FedEx Ground, Canpar, Canada Post and other couriers to the address you provided as the 'shipping address' when you placed the order. You will receive the tracking number once the carrier picks up.
  2. If the item weights over 145lbs normally will be delivered by LTL Freight. Please note you may need the optional services if you order these items. For example, if you don’t have a forklift or similar equipment to offload the package, you may need to book the lift gate delivery service when checkout.

SHIPPING OPTIONS:

KAKA INDUSTRIAL  uses UPS, Purolator ,Fedex Ground, Canpar, Canada post ,etc and  truck freight lines to ship your orders.

KAKA INDUSTRIAL  makes every effort to process orders within 24hrs of being placed. You will receive a shipping confirmation email that will confirm which carrier is used for your products.

If your order is less than 145lbs, it could be delivered byUPS, Purolator ,Fedex Ground, Canpar, Canada post and other courier to the address you provided as 'shipping address' when you placed the order. If your order is above 145lbs, it will be delivered by Freight company that has been picked to minimize the cost of delivery to your area.  In this case, your delivery address must be accessible by tractor-trailer , and In some cases your shipping fee may be different than displayed online.

Truck drivers are not required to assist with unloading. You are responsible for unloading your freight and for moving it into your shop. For residential delivery and shops without a loading dock, liftgate delivery is available for an additional charge.

You can also arrange to pick up your freight at the carrier's terminal. The carrier will load the item onto your vehicle. If you choose this option, please make sure your vehicle is capable of handling the weight and bring plenty of tie-downs to secure the load properly .

Extra Shipping Service Charges:

1. Residential delivery, includes power lift gate service, call before delivery service Extra charge $120

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/extra-shipping-charge

2. Power tailgate service for  business address $50

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/lift-gate-shipping-service

3. Call before delivery for business address

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/appointment-service



REDELIVERY OF FREIGHT

When, through no fault of carrier and after reasonable effort, redelivery is requested, a charge of $99.00 will be assessed against the shipment in addition to accrued charges.

DELIVERY TIMES:

Delivery times are expected, not guaranteed. If payment authorization is delayed, in order to confirm payment or prevent fraud, Kaka Industrial reserves the right to delay shipments. Every effort will be made to ship at the soonest possible time.

THINGS TO KNOW:

  • Weather delays and other circumstances may impact delivery time. Estimated arrival dates are not guaranteed.
  • Deliveries to New Brunswick, Prince Edward Island, Nova Scotia and Newfoundland/Labrador will take longer.
  • All shipping timeframes and/or shipping methods/providers listed on www.kakaindustrial.ca are to be considered estimates and are not guaranteed.



 ***We automatically email your tracking number when your order ships***

Payment & Security

Payment methods

  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

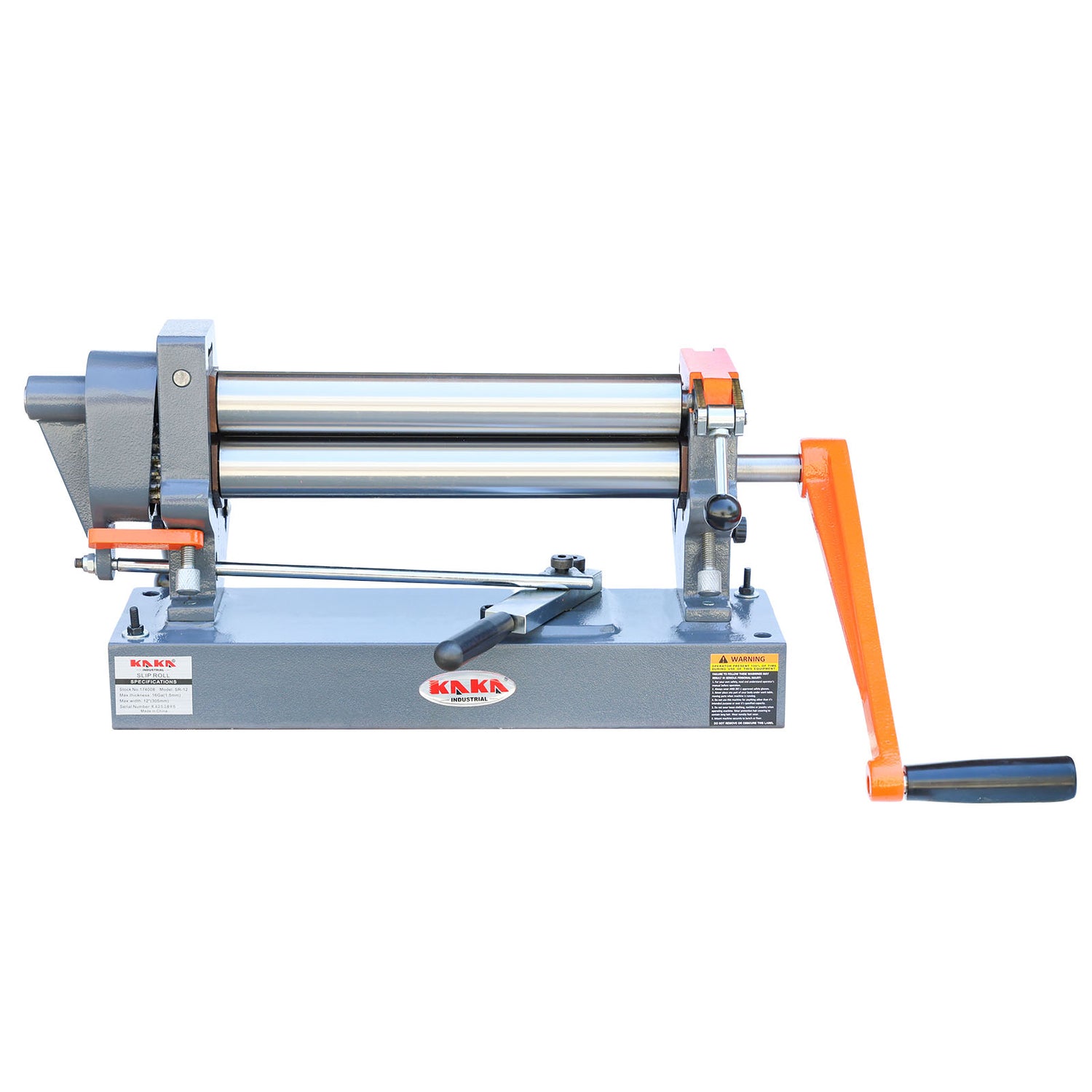

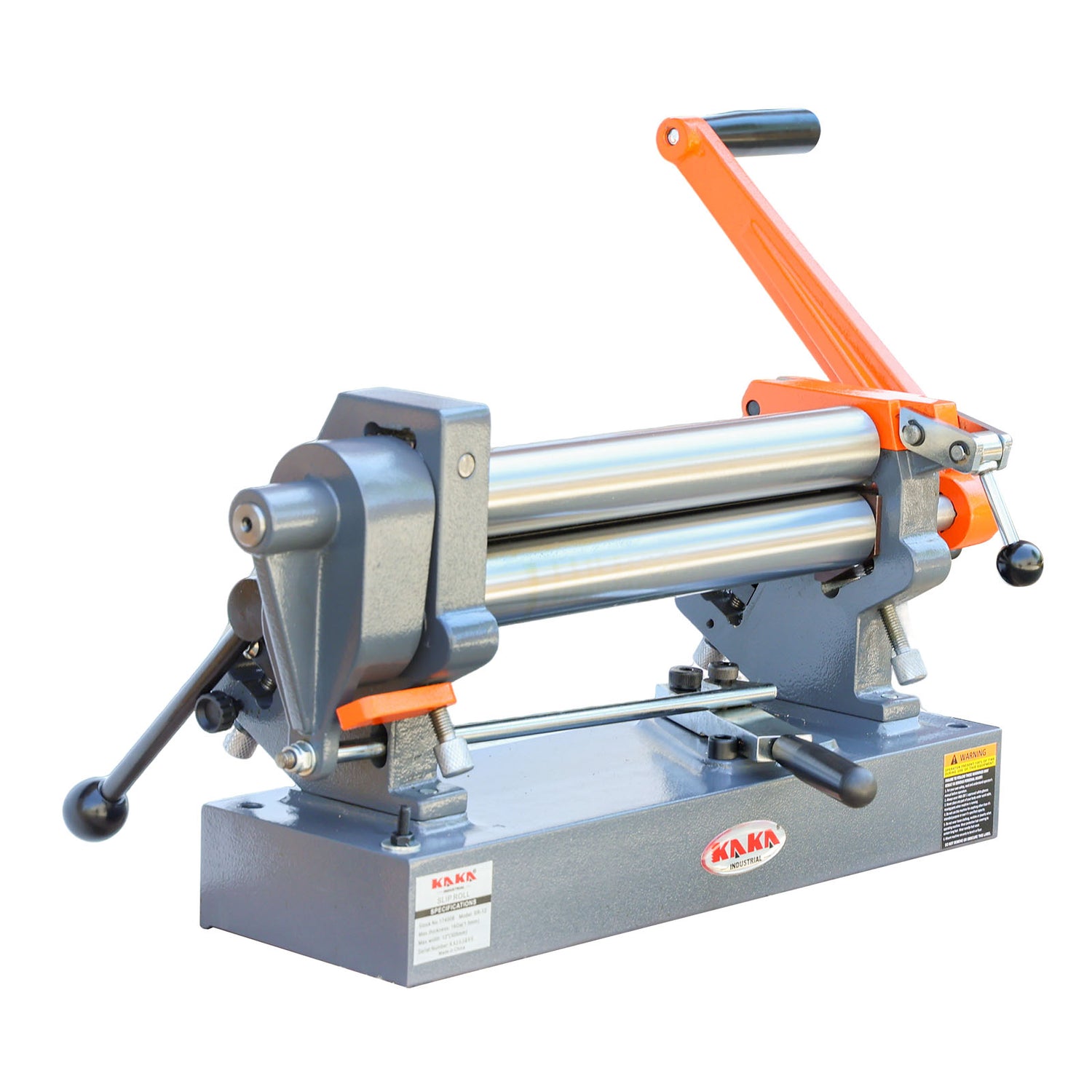

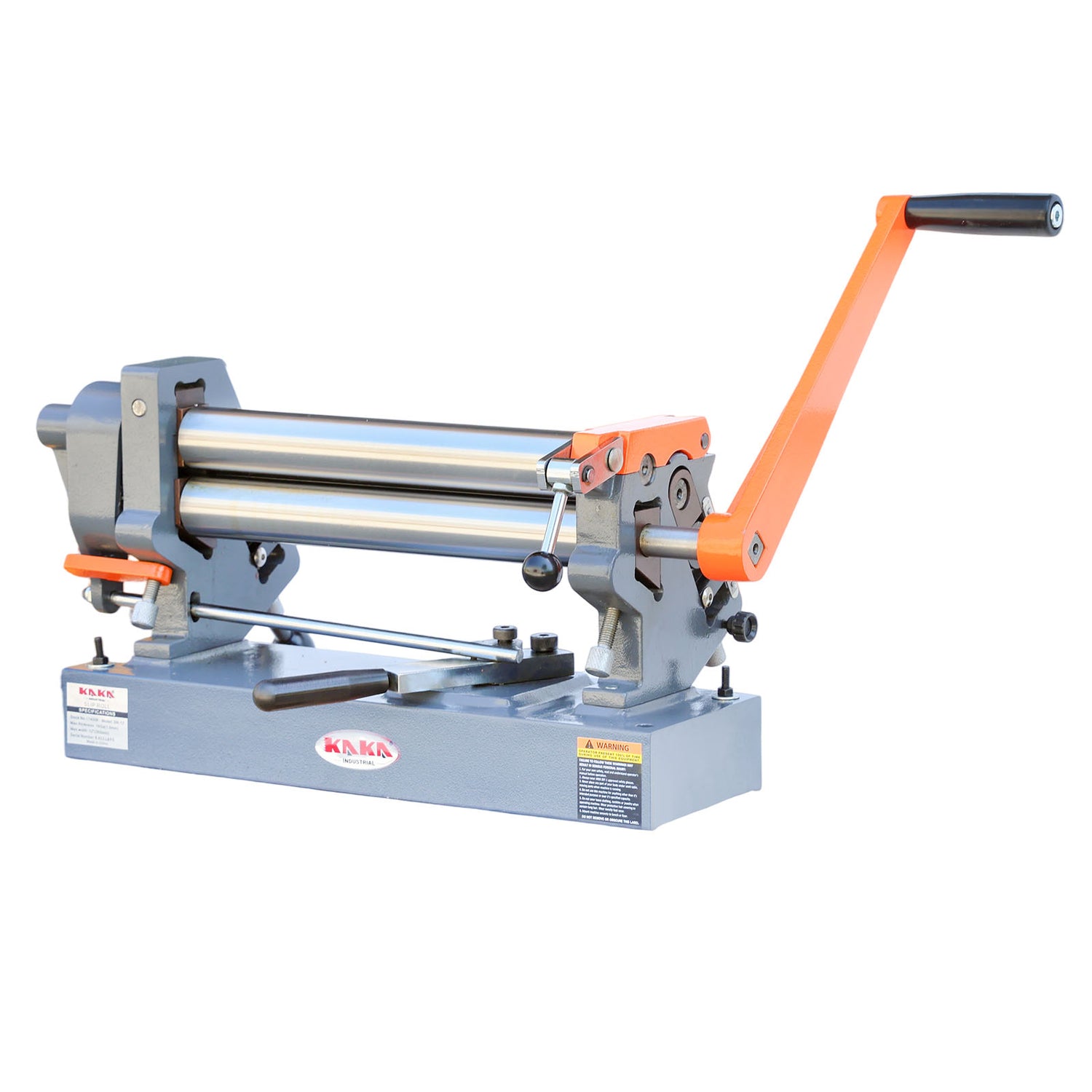

KAKA Industrial SR-12 Slip Roll

SR-12 Features

SR-12 Machine Details

SR-12 Applications

KAKA INDUSTRIAL SR-12 HEAVY-DUTY MANUAL SLIP ROLL

12" × 16 Gauge Manual Sheet Metal Rolling Machine
SKU: 174008

PRECISION ROLLING • HEAVY-DUTY CONSTRUCTION • MANUAL CONTROL

The KAKA INDUSTRIAL SR-12 Heavy-Duty Manual Slip Roll is designed for rolling sheet metal into cylinders, curves, and circular forms with smooth, consistent results.

With a full 12-inch forming width and a maximum mild-steel capacity of 16 gauge (0.059"), the SR-12 is an excellent choice for small fabrication shops, maintenance departments, HVAC work, automotive projects, and general sheet-metal forming.

Its 1:1 gear-driven design provides strong and consistent roller movement, while the adjustable rear roll and integrated position indicator allow accurate, repeatable setups. The eccentric idler roll helps reduce flat spots at the leading edge of the workpiece for improved forming quality.


KEY FEATURES

12" Full-Width Rolling Capacity

Rolls material up to 12 inches wide across the full working length.

16-Gauge Mild Steel Capacity

Handles mild steel up to 0.059 inches thick at the full rated width.

Powerful 1:1 Gear Ratio

Provides smooth, consistent power transfer for controlled manual rolling.

Minimum 2" Forming Diameter

Produces circles and cylindrical forms with diameters as small as 2 inches (50.8 mm).

Adjustable Rear Roll

Allows precise control of the forming radius for different rolling applications.

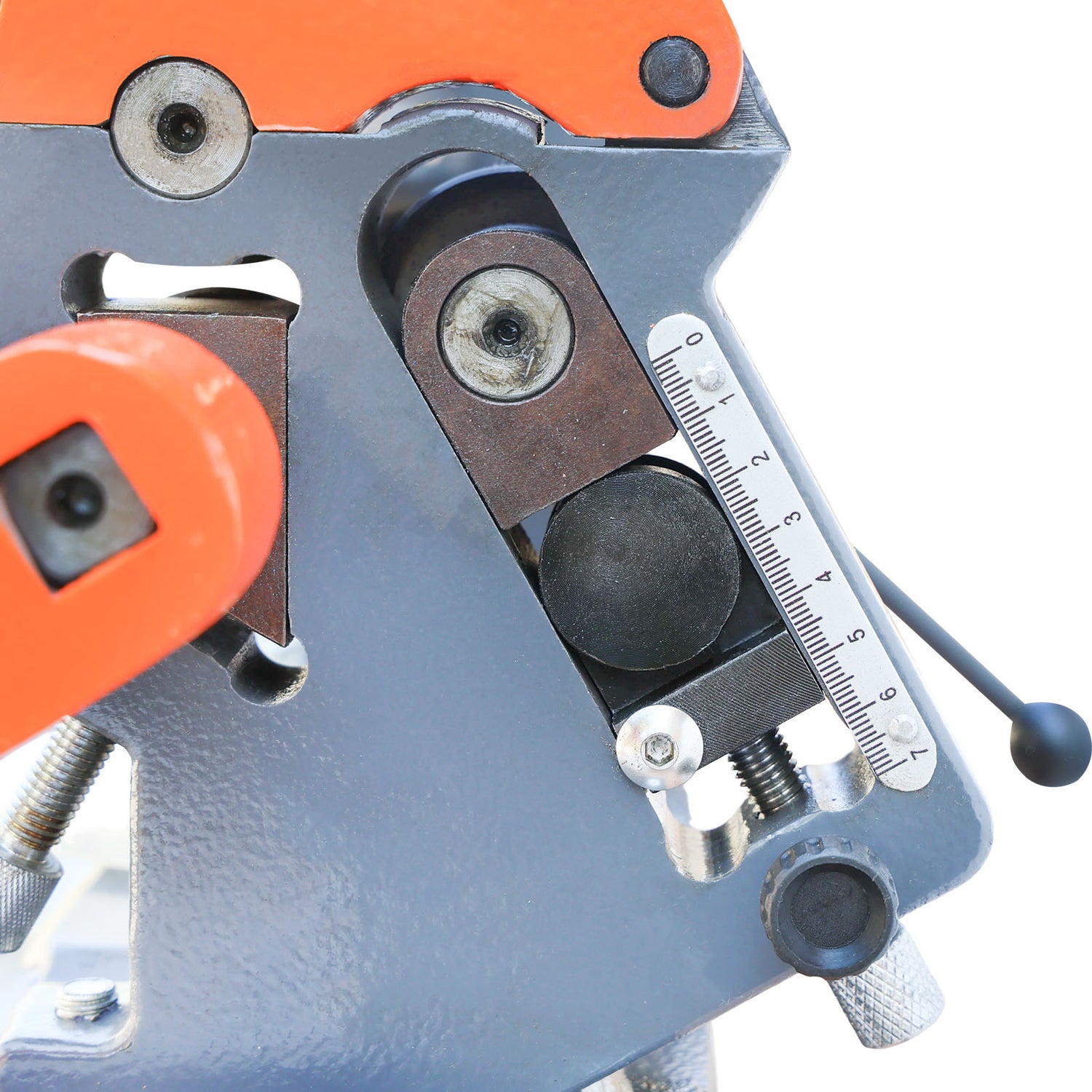

Rear Roll Position Indicator

Supports accurate setup and repeatable forming results.

Eccentric Idler Roll Design

Helps minimize flat spots at the leading edge of the sheet.

Optional Roller Grooves

Optional machining is available for round, flat, and square grooves at an additional charge.

Heavy-Duty Manual Operation

Provides reliable performance without requiring electrical power.


TECHNICAL SPECIFICATIONS

Specification Value
Model SR-12
SKU 174008
Maximum Capacity – Mild Steel 0.059" / 16 Gauge
Maximum Capacity – Stainless Steel 0.035"
Maximum Forming Width 12"
Roll Diameter 1.65"
Minimum Forming Diameter 2"
Rear Roll Lift 1"
Gear Ratio 1:1
Packing Dimensions 24" × 10" × 16"
Net Weight 77.2 lbs
Gross Weight 89 lbs

APPLICATIONS

  • Sheet-metal cylinder forming
  • HVAC duct and ventilation fabrication
  • Automotive body and restoration work
  • Metal tanks, covers, and curved panels
  • Small fabrication shop projects
  • Maintenance and repair operations
  • Custom metalworking and prototype production

WHY CHOOSE THE SR-12?

  • Rolls 16-gauge mild steel across the full 12-inch width
  • Forms circles as small as 2 inches in diameter
  • Gear-driven operation provides smooth and consistent rolling
  • Rear roll indicator supports repeatable setup
  • Eccentric idler roll helps reduce unwanted flat sections
  • Heavy-duty construction for long service life
  • Compact design is ideal for smaller workshops
  • Manual operation requires no electricity
  • Suitable for professional shops and experienced metalworking users

1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
