Description

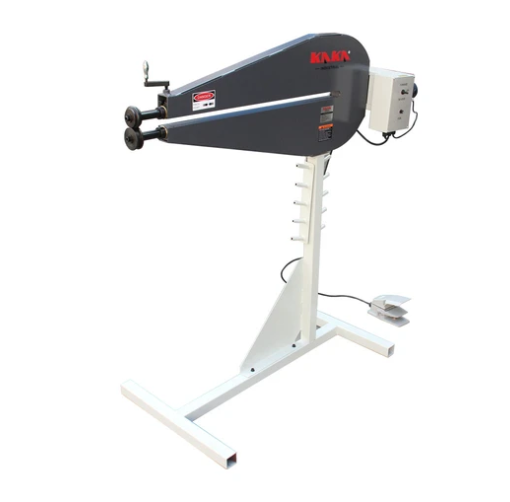

1. The Bead bending machine makes swaged plates, connections and so on of circular pipes, which refer to crushing the thin plates into the ribs in certain shapes.
2. The rigidity of the plates, pipes or metal components is strengthened.
3.Rated for up to 16 gauge mild steel and 14 gauge aluminum
4. Heavy-duty all fabricated plate steel construction
5. Adjustable depth of the bead

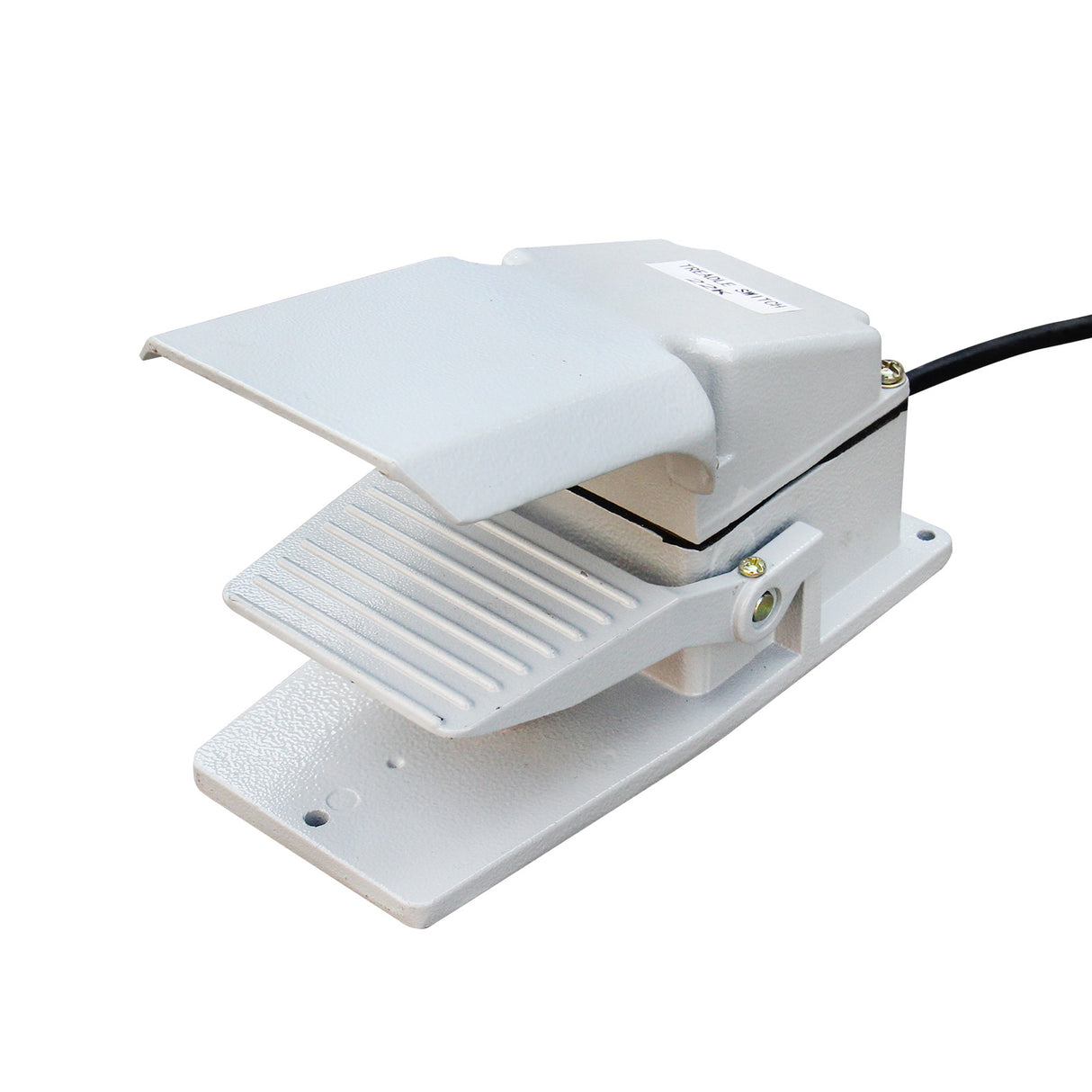

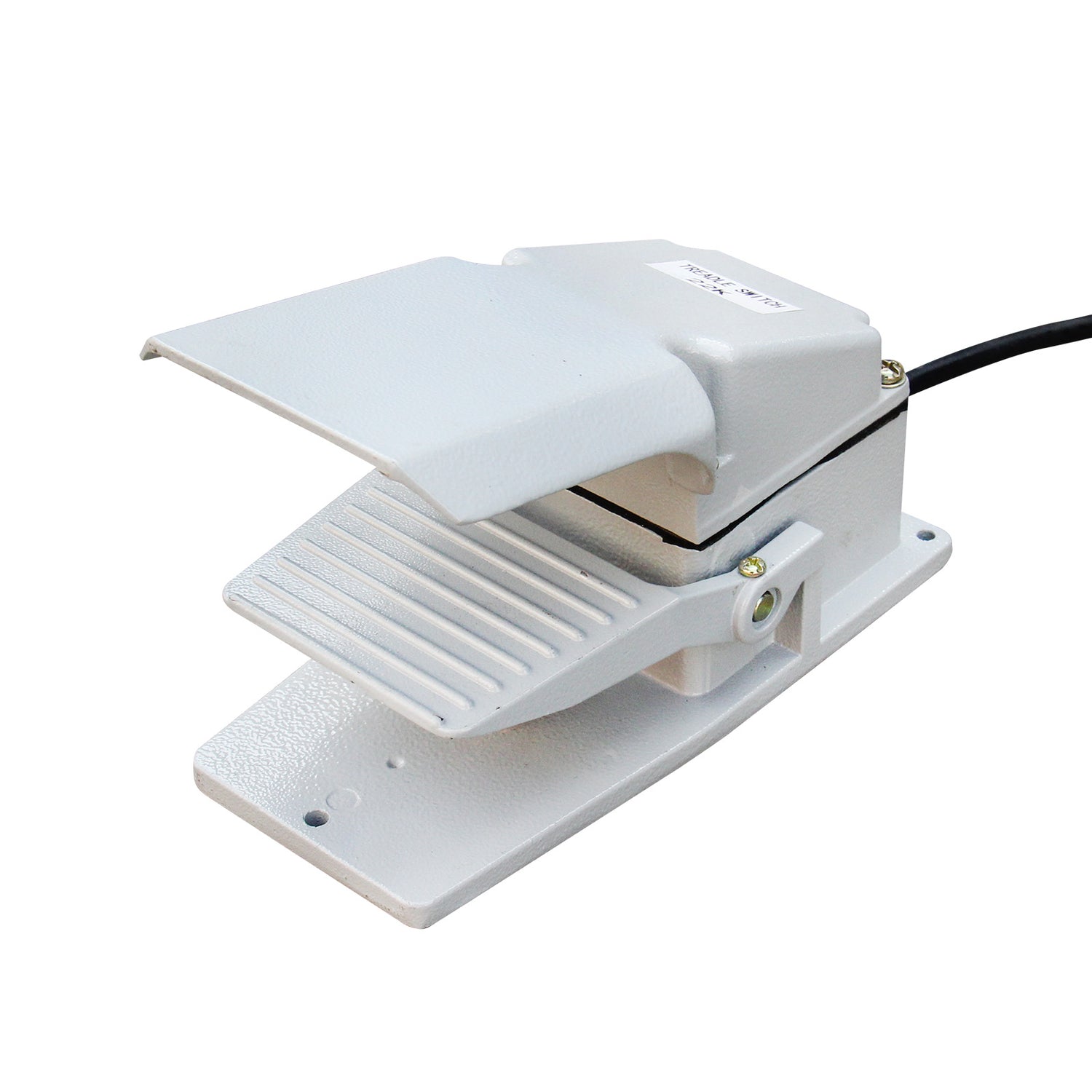

6. Variable speed foot control for hands-free operation

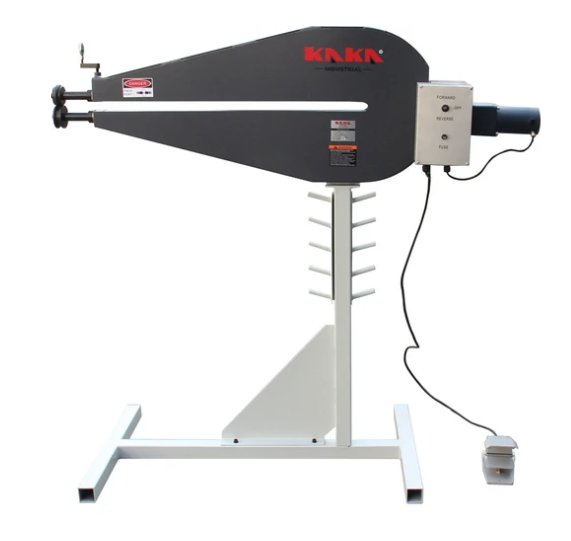

7. Oilite bushing at all rotation points for long life
8. Forwarder and reverse switch for left or right side operation
9. Heat-treated gears for years of trouble-free operation
10. Industrial finish for good looks and durability

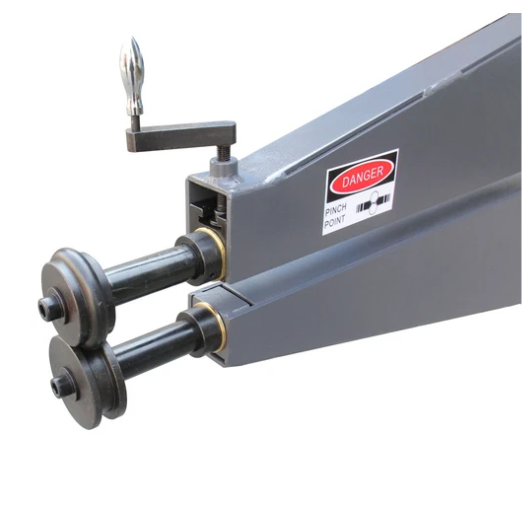

11. With one set 1/2” round bead steel roller (standard)
12. Largest selection of heat-treated rollers to choose
13. Optional roller holder and stand
The shaft size for optional die sets is 3/4" in diameter.
|
Item No. |
173806 |
|
Model |
RM36 |
|

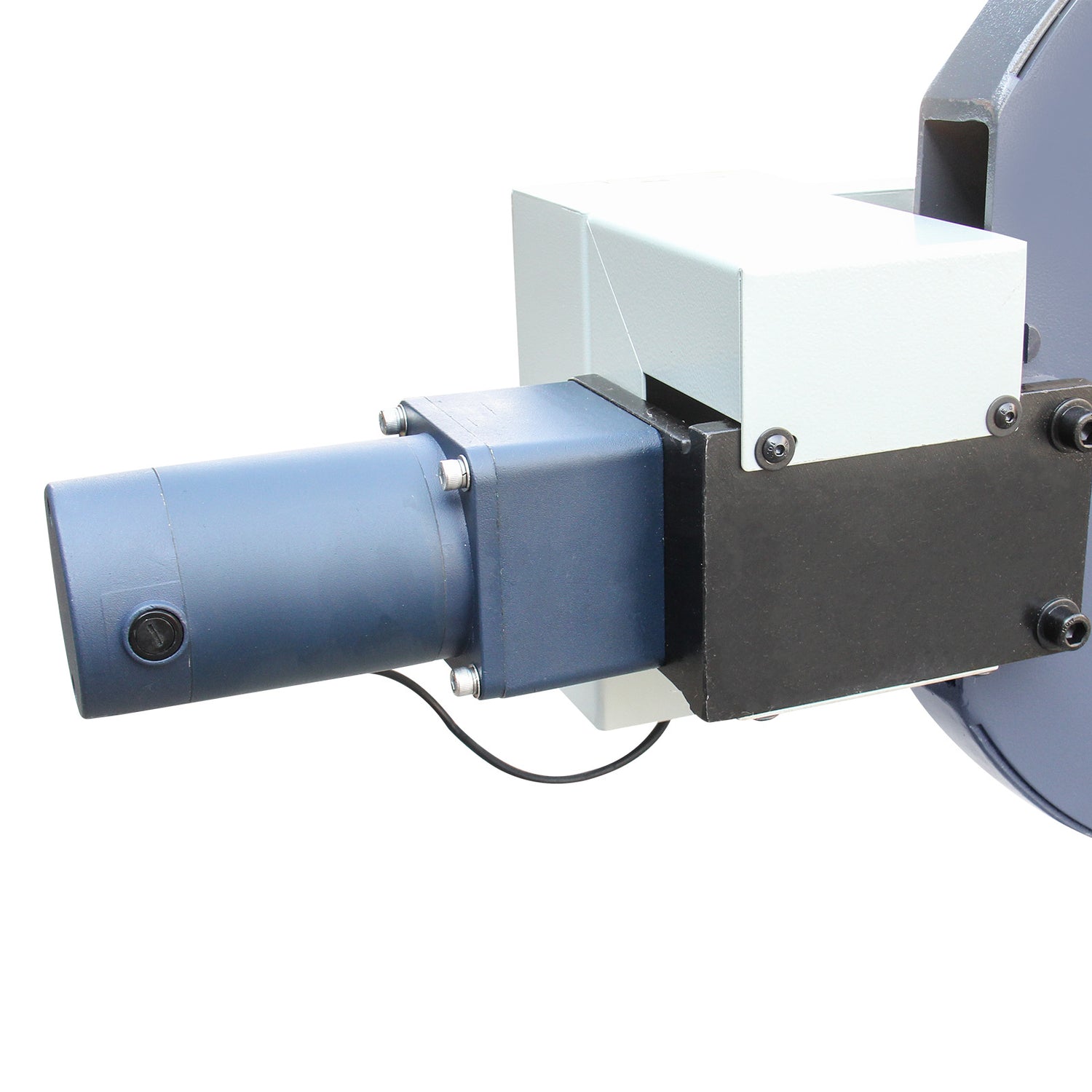

Motor Horsepower |
1/6 |
|
Capacity |
16Ga |
|
Throat dept |
910mm/36” |
|
Packing size (in) |
60"x 28"x 11" |
|
N.W./G.W. |
74/90kg |
|
163/198 lb |
Optional dies :
Click on the links below for optional available die sets.
Round Bead Die Sets for 173806 RM-36Step Roll Die Sets for 173806 RM-36
Flat Bead Steel Die Sets for 173806 RM-36
Spoiler Roll Die Set for 173806 RM-36
