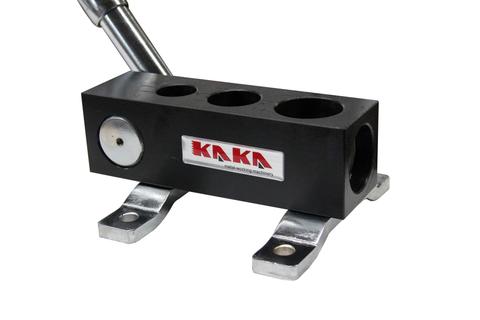

Manual Tube Notcher RA8 for 22mm, 30mm,35 mm (Outside diameter)tube
Manual Tube Notcher RA8 for 22mm, 30mm,35 mm (Outside diameter)tube is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
FAQ
Q1: What the size on the machine house stands for?
A1: It stands for the inner diameter of pipe. RA1, RA2, RA3 indicates in both the metric and the imperial.
Q2: What is the max. outer diameter of pipe I can insert?

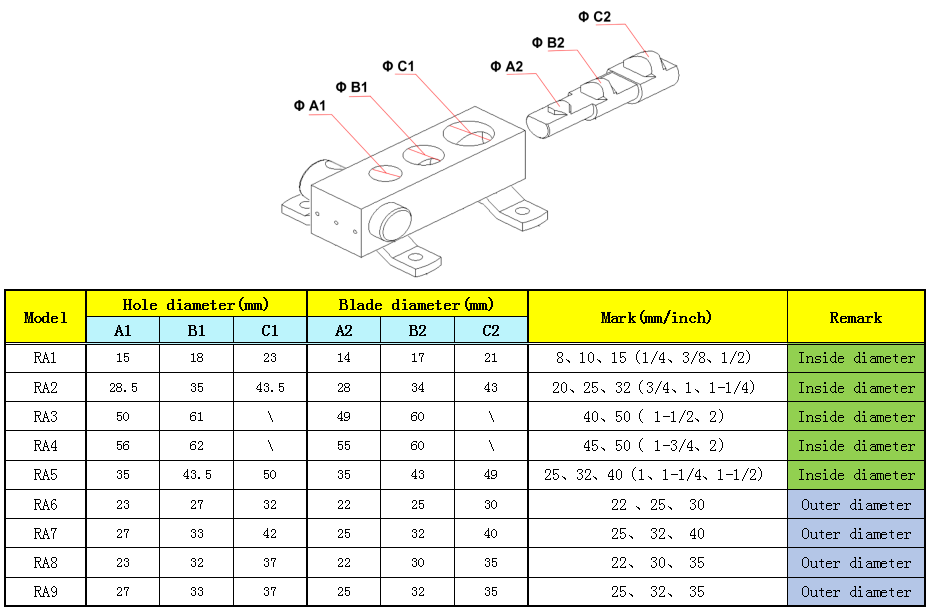

A2: Please refer to the hole diameter data.You can insert the pipe diameter smaller than hole diameter (at least 1mm).
Q3: What is the hardness of the RA pipe notcher inner cutter?
A3: The inner cutter hardness between HRC46-50.
Features:
1. The tube notcher RA8 is used for arc port cutting, and is easy for jointing.
2. The manually operated tube notcher can be used both vertically and horizontally and features light weight and easy operation.
Specification:
ITEM NO. |
176216 |
Model |
RA-8 |
Capacity |
7/8”, 1-1/4", 1-3/8" |
Packing dimension (in) |
20x8x7 |
N.W./G.W.(lb) |
18/20 |
