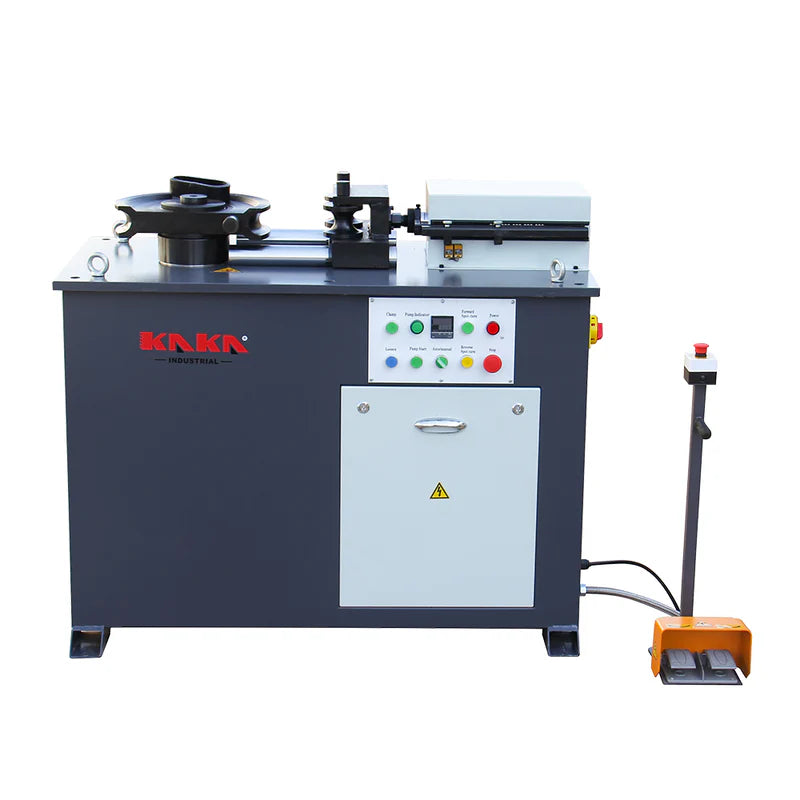

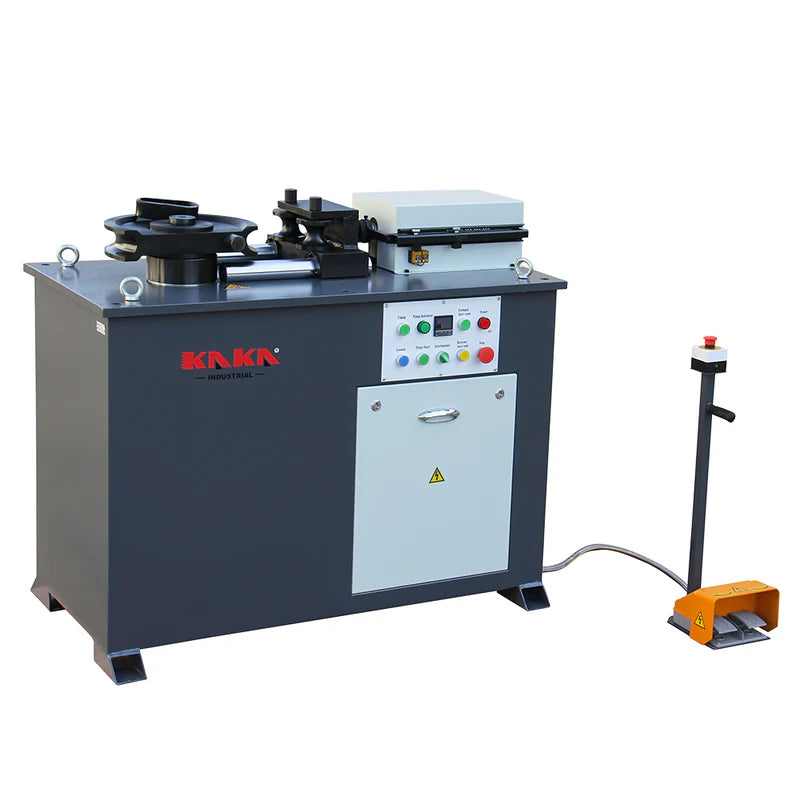

JTB-50 Mandrel-Free Tube and Profile Bender: Precision Bending Without a Mandrel
The JTB-50 Mandrel-Free Tube Bender is an industrial-grade machine designed for high-precision bending of steel tubes and closed profiles without the need for an internal mandrel. Equipped with a precise hydraulic clamping system and digital controls, it delivers exceptional accuracy and repeatability for serial production, pipe prefabrication, and metal workshops.
Key Features & Benefits
-
Mandrel-Free Bending Technology: Effortlessly bend steel tubes and solid profiles from 25mm to 48.3mm without collapse or deformation, saving time and tooling costs.
-

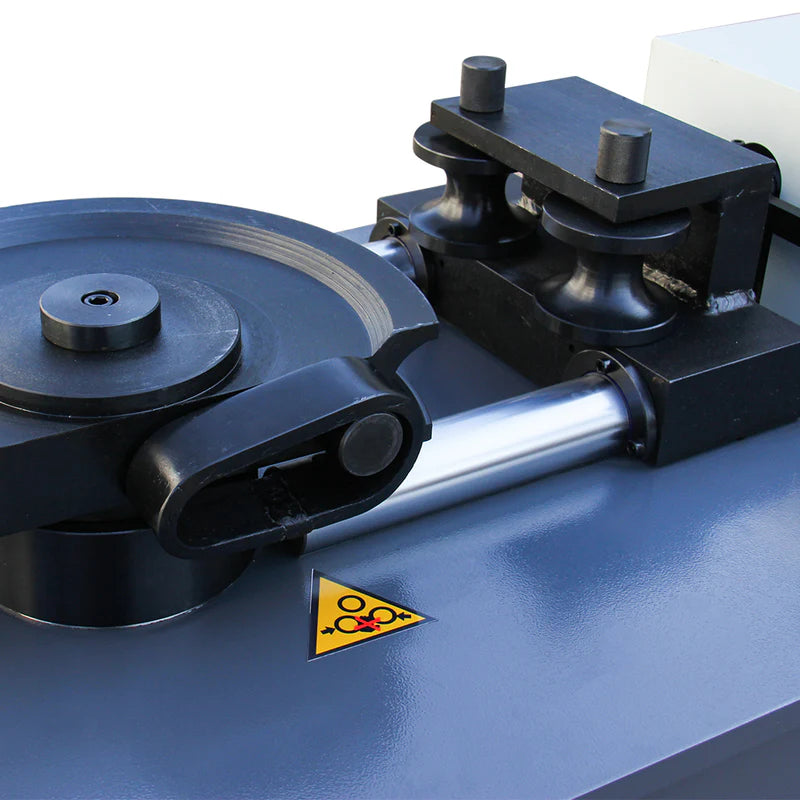

Precise Hydraulic Clamping: An automatic hydraulic pressure shoe system adjusts the clamping force for each tube diameter, ensuring a perfect grip and superior bend quality every time.
-
Automatic & Manual Operating Modes: Switch between fully programmable automatic mode for batch production and manual mode for custom, one-off bends.
-

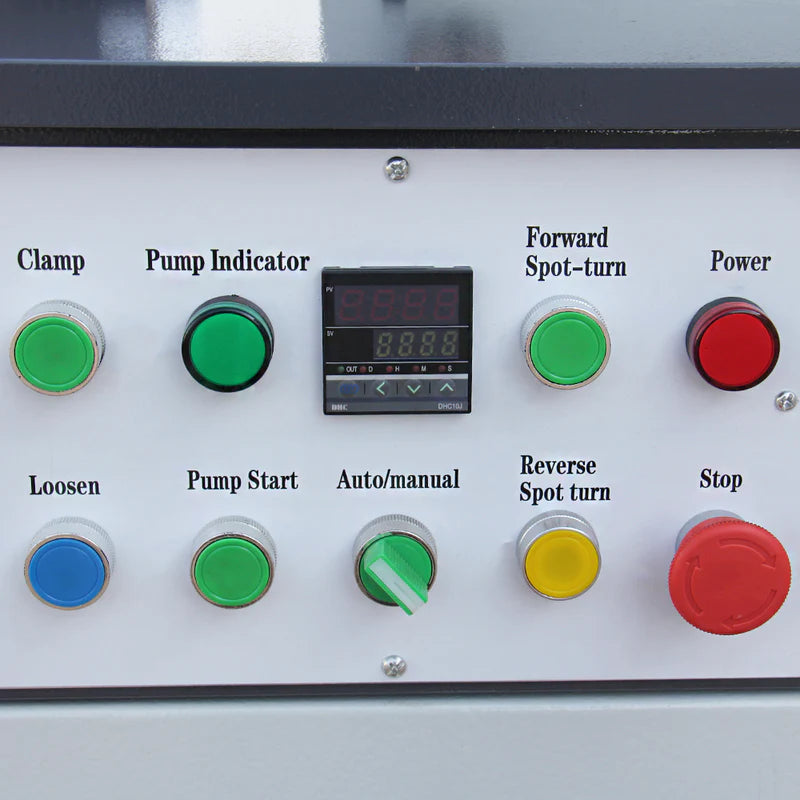

Digital Bending Angle Display: The intuitive control panel provides real-time feedback, showing both the target and actual bending angle for unmatched precision up to 180°.
-
Powerful & Reliable Drive System: A robust 2.2 kW main motor guarantees consistent die rotation, even for larger diameter tubes, ensuring stable and reliable operation.
Technical Specifications
Item No. ：191063
Model ： JTB-50
Dimensions of Workpieces：
Round pipe： Max. 2” Min. ：5/8”
Stainless steel pipe： Max.1-1/2” Min. ：5/8”
Square pipe： Max. 2"x2" Min. ：5/8”x 5/8”
Angle of Bending：180°
Rate of Main Shaft Rotation r/min : 5
Performance of Motor : 2.2 kW 1400 r/min
Hydraulic Motor for Specific Purpose ：1.1kW 1400 r/min
Packing Size ：57x27x46 in
N.W./G.W. : 1212 kgs / 1366 lbs

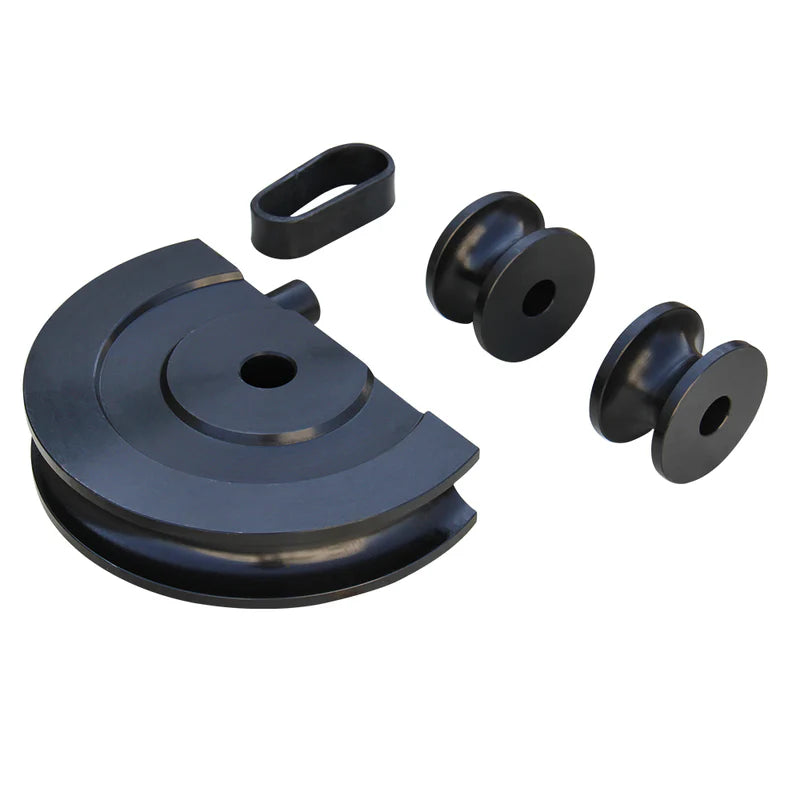

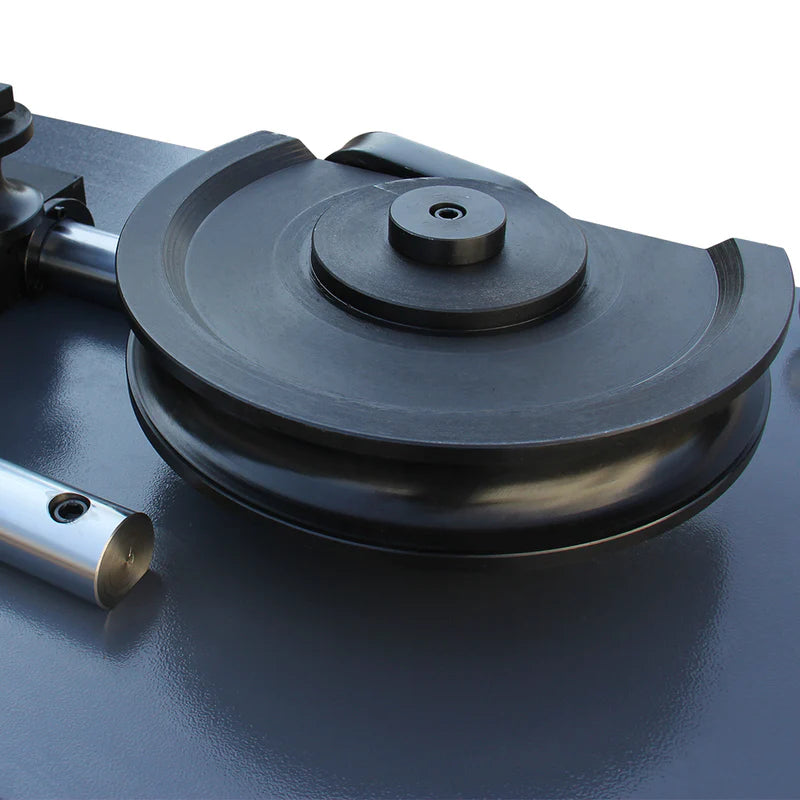

Standard Equipment & Tooling
The JTB-50 comes ready for work with a digital angle display and a set of standard dies for the most common steel tube sizes:
-
1" dia. x 3 1/2" Radius
-
1 1/2" dia. x 4 1/2" Radius
-
1 1/4" dia. x 5 1/2" Radius
- 1 7/8" dia. x 6 1/2" Radius
Ideal Applications
The JTB-50 is the perfect bending solution for a wide range of industries and tasks, including:
-
Pipe Fabrication: Prefabrication for sanitary, heating, and industrial piping systems.
-
Architectural Metalwork: Creating balustrades, handrails, and structural frames.
-
Metal Furniture & Decor: Manufacturing frames for chairs, tables, and decorative architectural elements.
-
General Metalworking: Serial bending of steel components in construction and fabrication workshops.
Why Choose the JTB-50 Bender?
For workshops seeking a powerful, precise, and easy-to-use bender for medium to large-diameter steel tubes, the JTB-50 eliminates the complexity of mandrel tools. Its combination of hydraulic precision, flexible operation, and robust construction makes it an indispensable tool for improving efficiency and quality in your metal bending processes.
