KAKA INDUSTRIAL | SKU: 173903

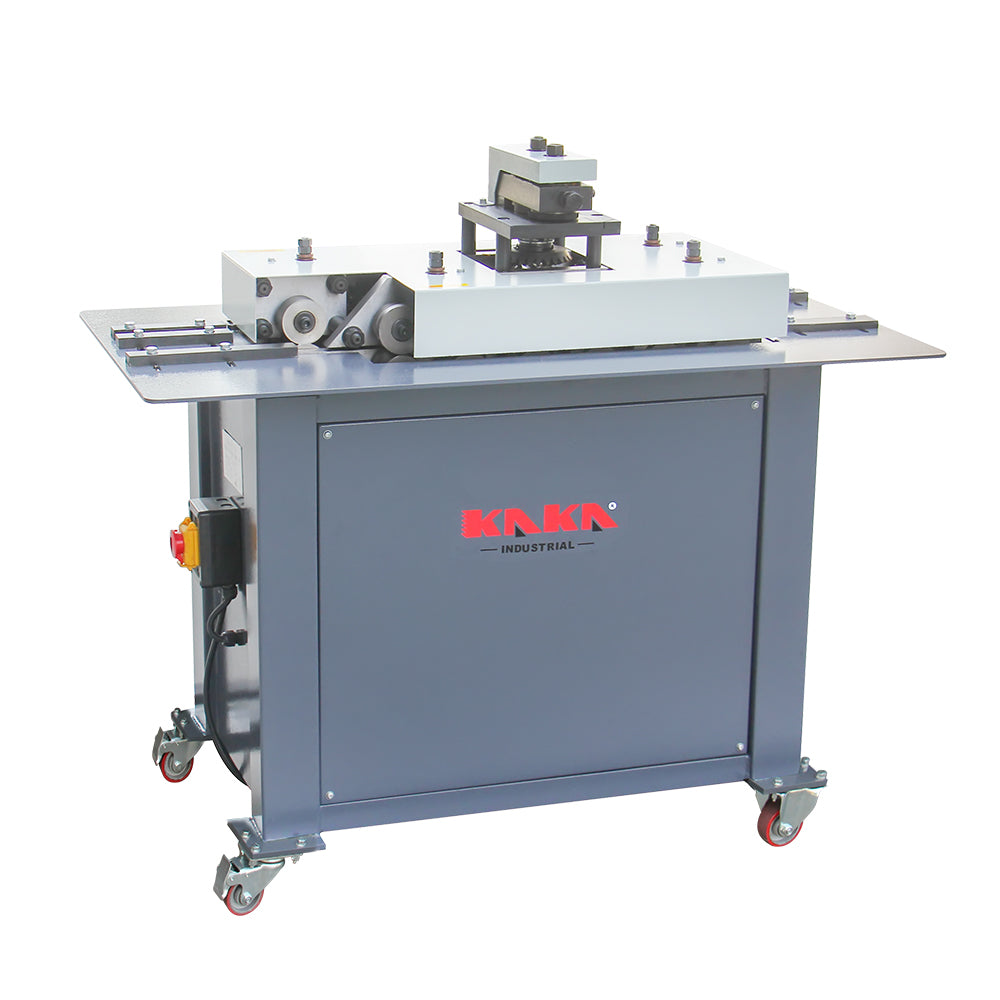

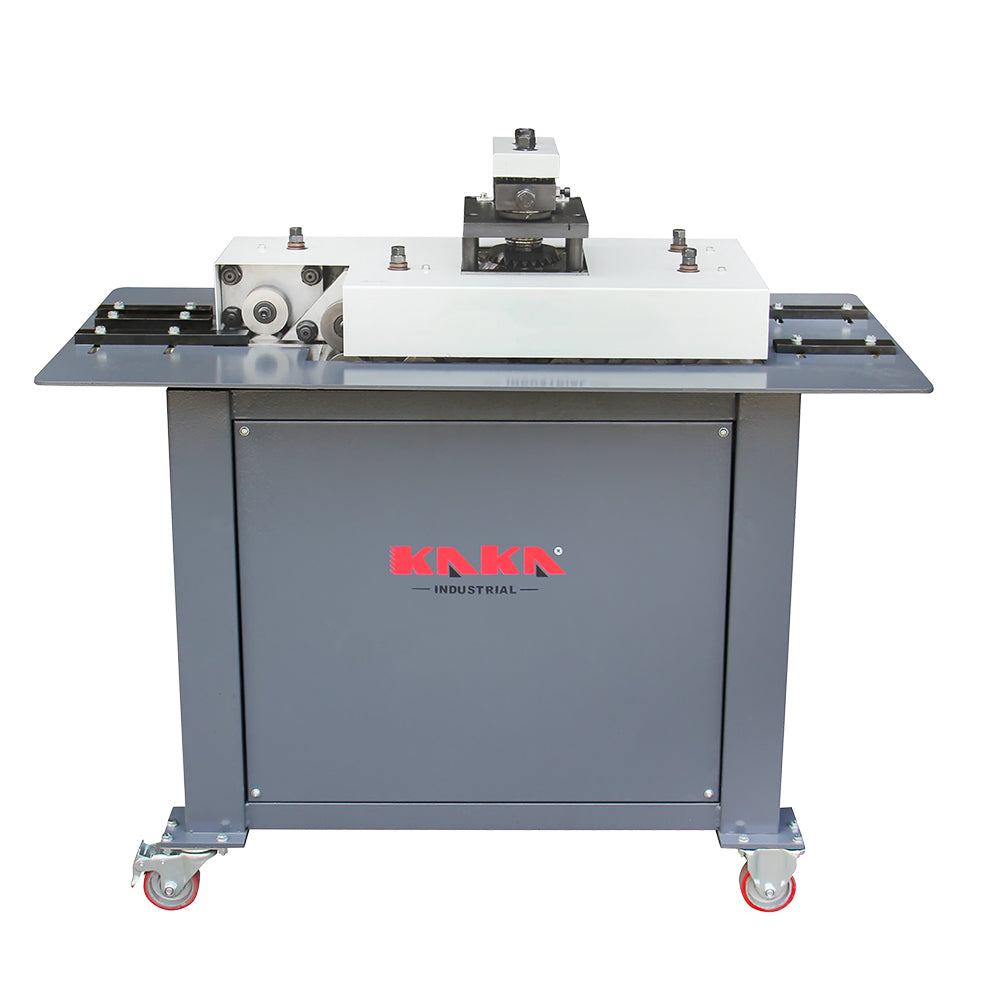

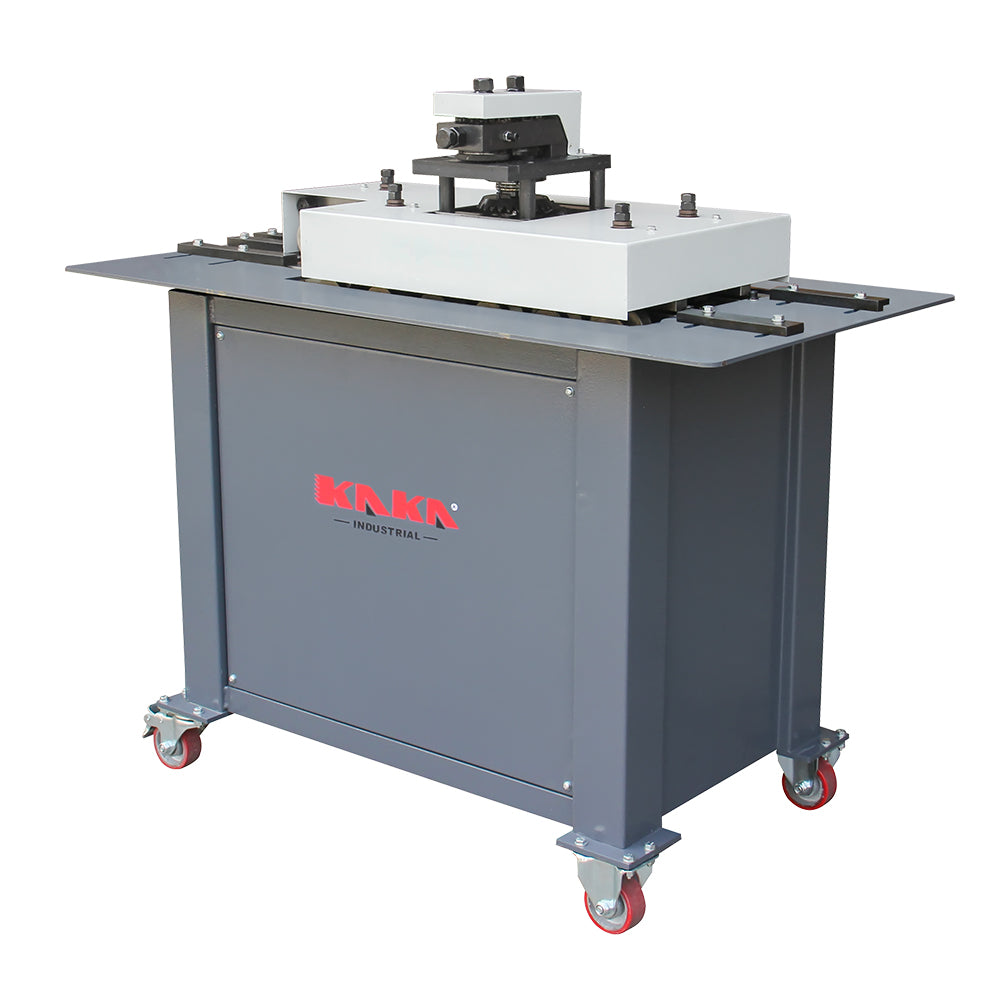

PF16G Pittsburgh LOCK FORMING MACHINE

Name: PF16G Pittsburgh LOCK FORMING MACHINE
Brand: KAKA INDUSTRIAL
SKU: 173903
Price: 5199.99 CAD
Availability: InStock

C$5,199.99 CAD

Shipping calculated at checkout.

Care information

Delivery and Shipping

If the item weighs less than 145 lbs, it will be delivered by UPS, Purolator, FedEx Ground, Canpar, Canada Post and other couriers to the address you provided as the 'shipping address' when you placed the order. You will receive the tracking number once the carrier picks up.
If the item weights over 145lbs normally will be delivered by LTL Freight. Please note you may need the optional services if you order these items. For example, if you don’t have a forklift or similar equipment to offload the package, you may need to book the lift gate delivery service when checkout.

SHIPPING OPTIONS:

KAKA INDUSTRIAL uses UPS, Purolator ,Fedex Ground, Canpar, Canada post ,etc and truck freight lines to ship your orders.

KAKA INDUSTRIAL makes every effort to process orders within 24hrs of being placed. You will receive a shipping confirmation email that will confirm which carrier is used for your products.

If your order is less than 145lbs, it could be delivered byUPS, Purolator ,Fedex Ground, Canpar, Canada post and other courier to the address you provided as 'shipping address' when you placed the order. If your order is above 145lbs, it will be delivered by Freight company that has been picked to minimize the cost of delivery to your area. In this case, your delivery address must be accessible by tractor-trailer , and In some cases your shipping fee may be different than displayed online.

Truck drivers are not required to assist with unloading. You are responsible for unloading your freight and for moving it into your shop. For residential delivery and shops without a loading dock, liftgate delivery is available for an additional charge.

You can also arrange to pick up your freight at the carrier's terminal. The carrier will load the item onto your vehicle. If you choose this option, please make sure your vehicle is capable of handling the weight and bring plenty of tie-downs to secure the load properly .

Extra Shipping Service Charges:

1. Residential delivery, includes power lift gate service, call before delivery service Extra charge $120

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/extra-shipping-charge

2. Power tailgate service for business address $50

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/lift-gate-shipping-service

3. Call before delivery for business address

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/appointment-service

REDELIVERY OF FREIGHT

When, through no fault of carrier and after reasonable effort, redelivery is requested, a charge of $99.00 will be assessed against the shipment in addition to accrued charges.

DELIVERY TIMES:

Delivery times are expected, not guaranteed. If payment authorization is delayed, in order to confirm payment or prevent fraud, Kaka Industrial reserves the right to delay shipments. Every effort will be made to ship at the soonest possible time.

THINGS TO KNOW:

Weather delays and other circumstances may impact delivery time. Estimated arrival dates are not guaranteed.
Deliveries to New Brunswick, Prince Edward Island, Nova Scotia and Newfoundland/Labrador will take longer.
All shipping timeframes and/or shipping methods/providers listed on www.kakaindustrial.ca are to be considered estimates and are not guaranteed.

***We automatically email your tracking number when your order ships***

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description
Warranty
Summary of Return Policy

Click here for the PF-16G manual

PF16G Lock Forming Machine

Pittsburgh, Flange, Right Angle, Z Shape, Drive Cleat & Double Seam Roll Forms
16 Gauge Max Capacity | Heavy-Duty HVAC Duct Fabrication Tool

✅ Key Features

Efficient Material Use
• Uses approximately 1” of material per Pittsburgh joint
Adjustable Auto-Guides
• Ensures consistent alignment and precision
All-Steel Hardened Forming Head
• Ground shafts and hardened steel head for extended durability
Case-Hardened Forming Rolls
• Precision-matched gears and needle bearings for smooth operation
Multi-Form Capability
• Equipped for Pittsburgh, right angle, flange, Z-shape, drive cleat, and double seam forms
Perfect for HVAC Duct Fabrication
• Widely used to create custom ductwork with secure and professional joints
Includes Flange Attachment
• Aids in creating flanges for faster and easier Pittsburgh joint assembly

📐 Specifications

Item No.	173903
Model	PF16G
Capacity (Mild Steel)	Max: 16 Ga (1.5 mm) / Min: 19 Ga (1.0 mm)
Speed	24 FPM (feet per minute)
Motor Power	2.2 kW
Packing Size (in)	46" x 25" x 43"
Net / Gross Weight (lbs)	660 / 757

Standard Accessories Included

4 Rubber Casters for easy mobility
Forming Rolls for the following profiles:

(For 1 , 3, 4, 6 Roll Forms, the best processing results are achieved using sheet thicknesses between 1.2mm and 1.5mm. When using 1.0mm sheets, wrinkling tends to occur, which affects the quality)

1. Roll form: Pittsburgh (Max. 16 gauge mild steel - Min 18 gauge ) 1.2mm-1.5mm

2. Roll form: Flange attachment (Max. 20 gauge mild steel /1 mm mild steel)

Sheets that are thinner or thicker than this range result in poor processing performance.

3. Roll form: Right angle (Max. 16 gauge mild steel - Min 18 gauge ) 1.2mm-1.5mm

4. Roll form: double seam (Max. 16 gauge mild steel - Min 18 gauge ) 1.2mm-1.5mm

5. Roll form: Drive cleat (Max. 20 gauge mild steel /1 mm mild steel)

Sheets that are thinner or thicker than this range result in poor processing performance.

6. Roll form: Z shape (Max. 16 gauge mild steel - Min 18 gauge ) 1.2mm-1.5mm

🚚 SHIPPING INFO

Standard delivery to a business address with a dock or forklift.

🛠️ Shipping Policy
Shipping includes only delivery to a public business address with dock or forklift access.

💼 Optional Services Available (Extra Cost):

👉Residential Delivery – Includes liftgate + call before delivery
→ Add to cart

👉Liftgate for Business Addresses
→ Add to cart

1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.

1.10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted after this time.
2.You must obtain a Kaka Industral issued RGA number PRIOR to returning any materials.
3.Returned materials must be received at Kaka Industrial in new condition and in original packaging.
4.Altered items are not eligible for return.
5.Buyer is responsible for all shipping charges.
6.A 15% re-stocking fee applies to all returns.
