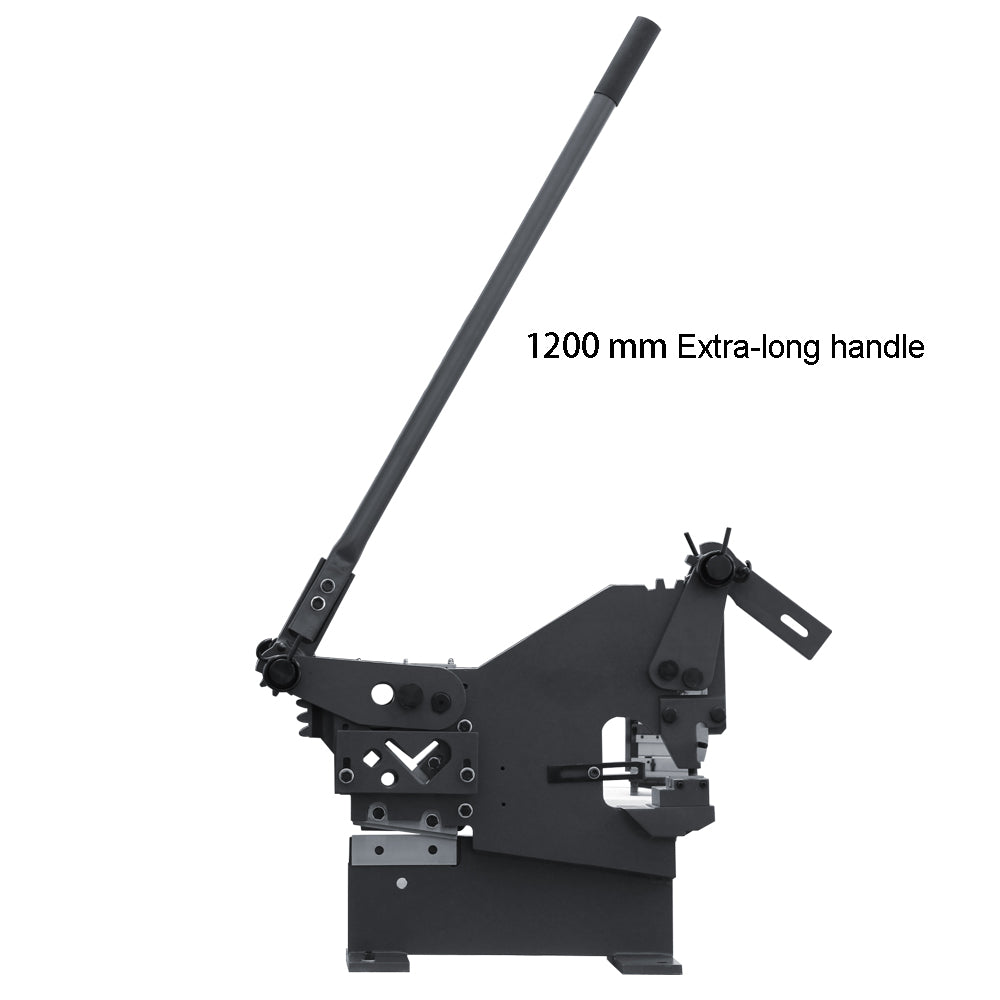

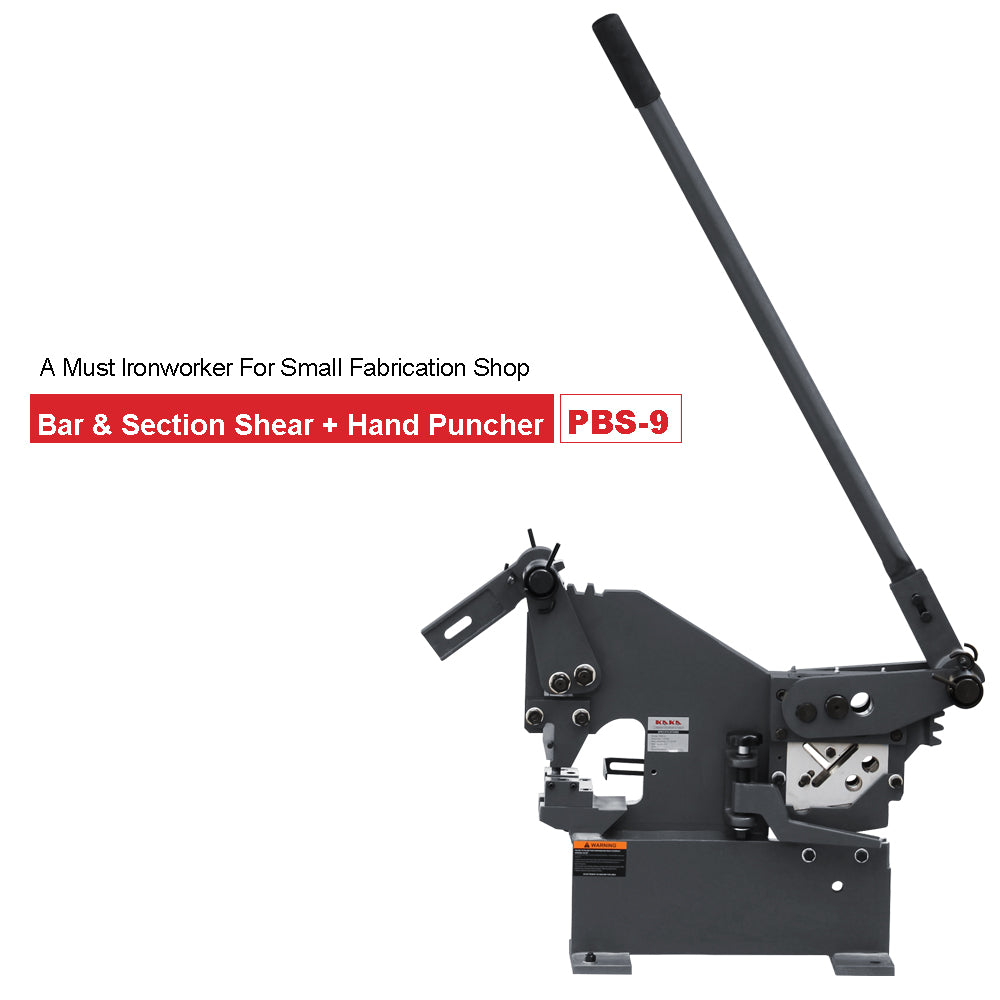

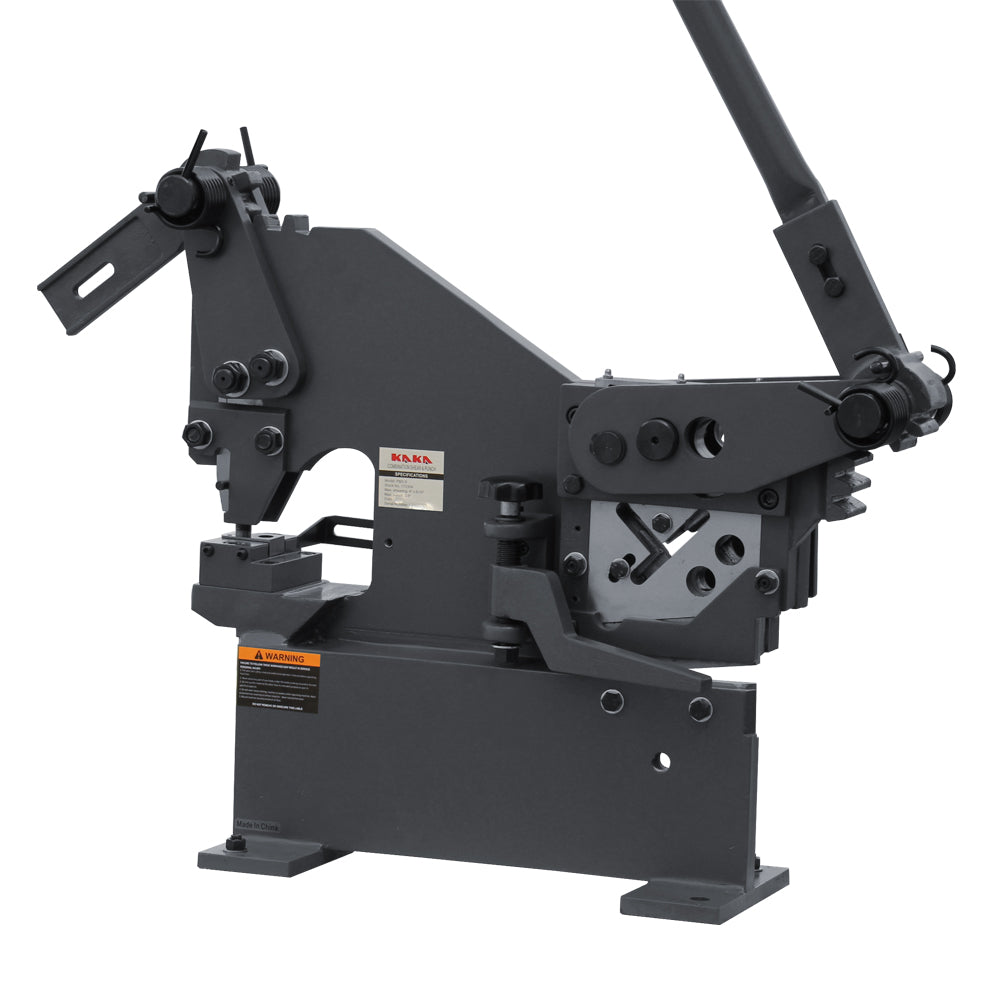

PBS-9 Bar and Section Shear, Metal Working Machine

  • Sale
  • Regular price C$1,119.99


1. Double functions for cutting & punching

2. Round deep-hole, square or similar stamps

3. A good choice for sheet-metal users

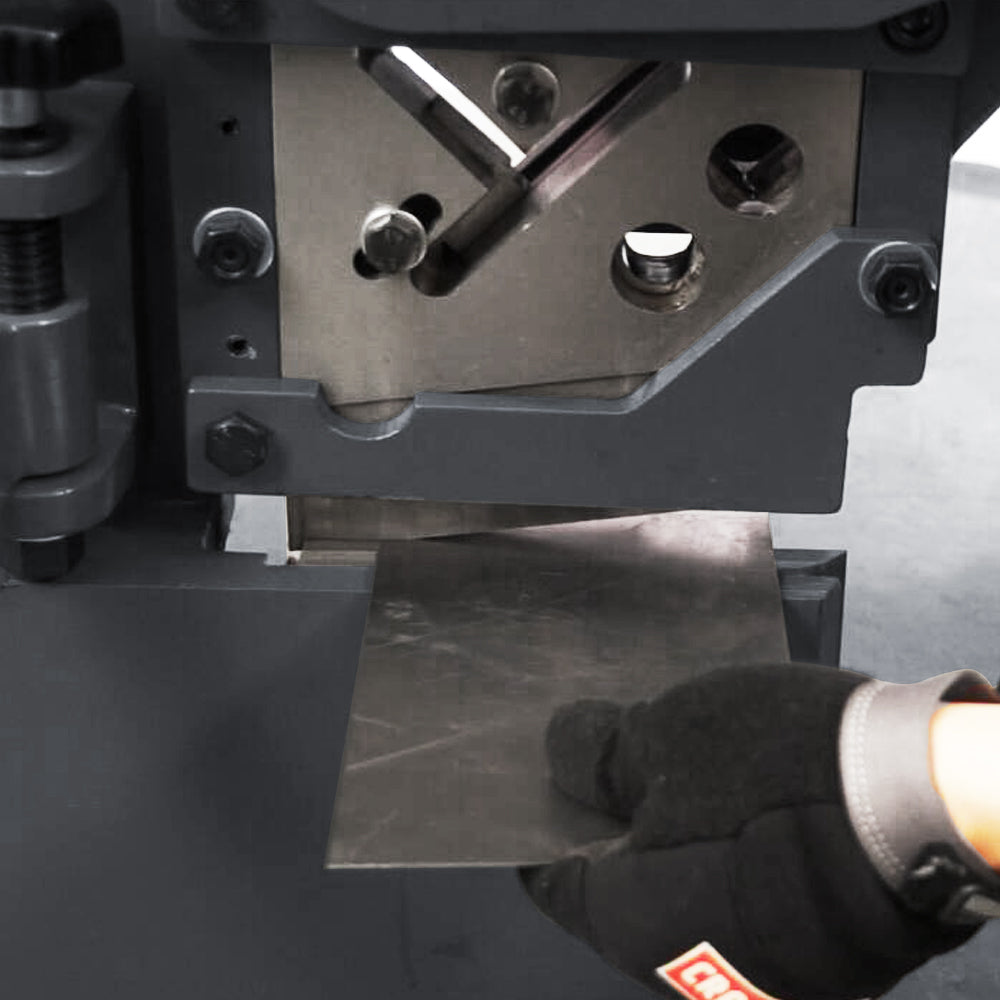

4. Rigid cutter for sheet metals, flat steel and round/square/angular steel

5. Our bar and section shear is used for shearing various metal plates, flat steel, round bar steel and so on.

6. Comes with 1 set 16mm round hole punching dies

Technical Specifications

Item No.1

172304

Model

PBS-9

Throat Depth
6.25"

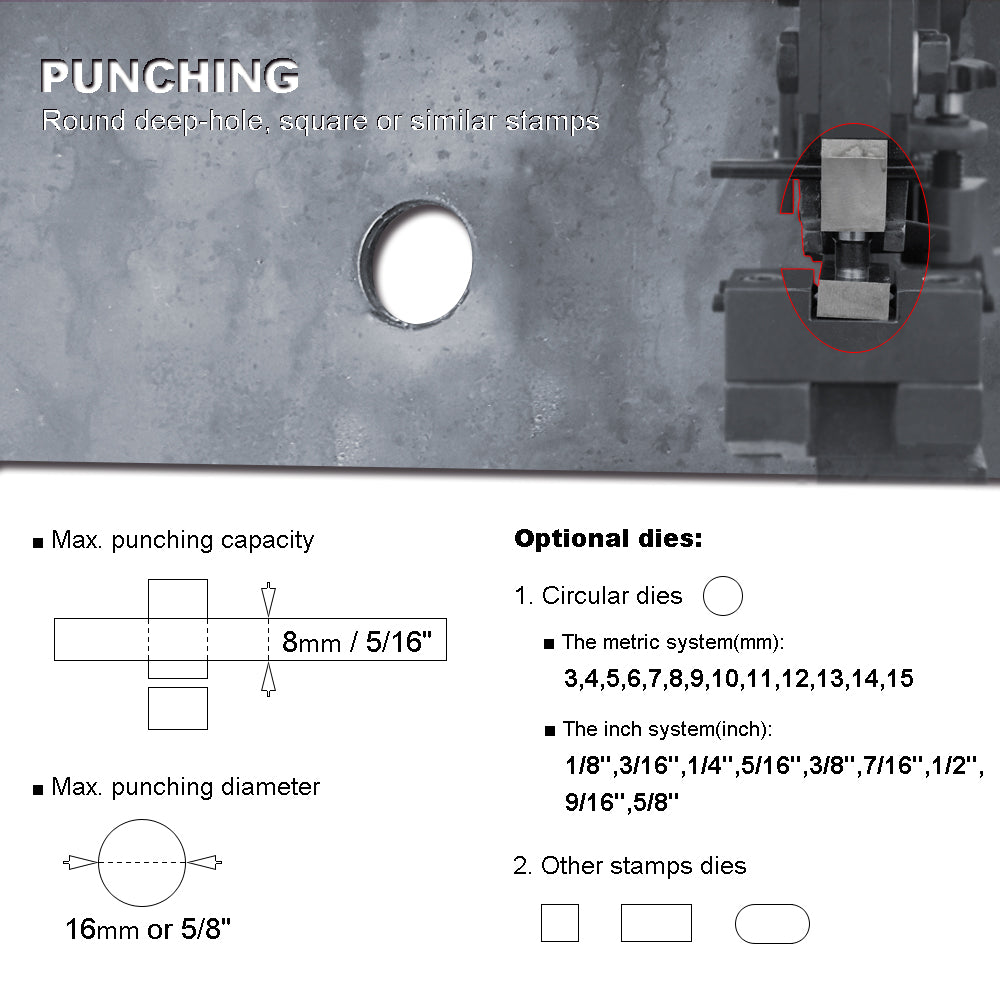

Max. Punching Capacity





0.137” mild steel/0.196” Aluminum

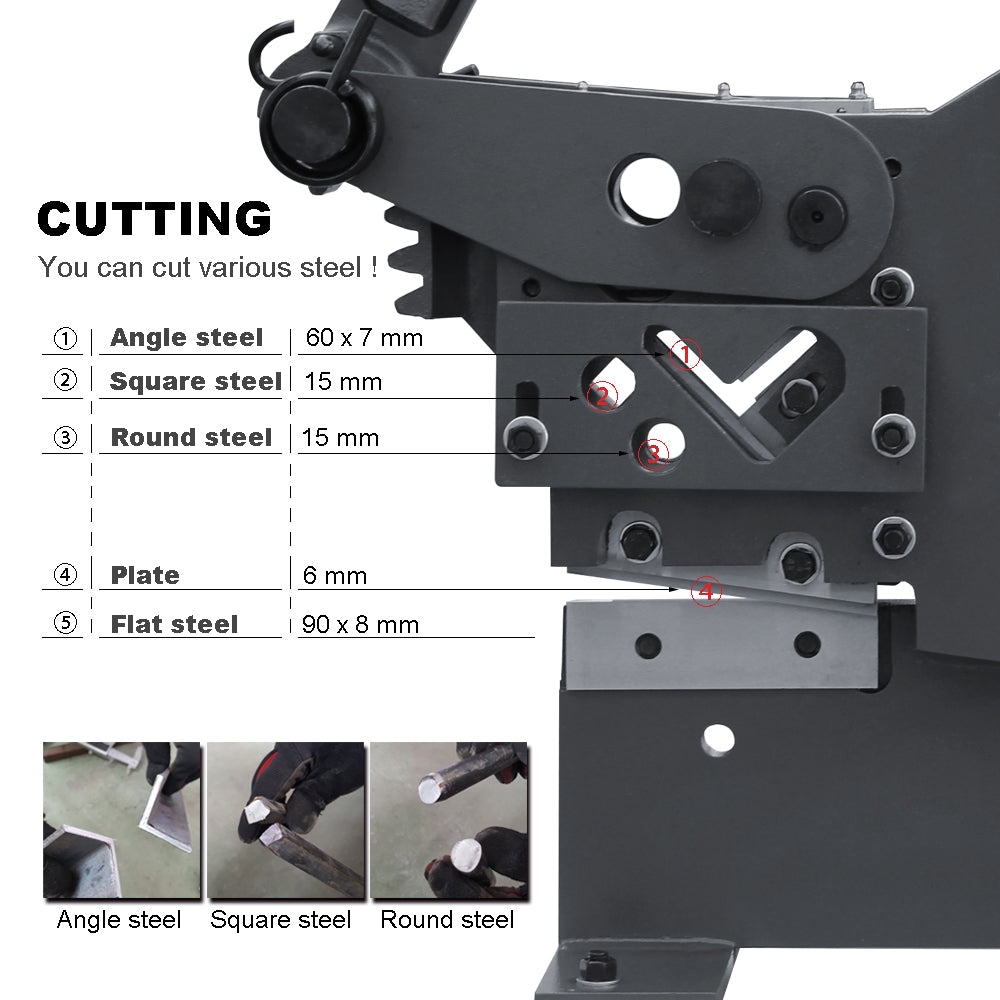

Shearing Capacity

(mild steel)

Round steel

5/8"

Square steel

5/8"

Flat steel

4" x 5/16"

Angle steel

2-3/8" x 1/4"

T-steel

2-3/8" x 1/4"

Plate steel

1/4"

Body packing size(Inch)

44X15X37

N.W./G.W.(lbs)

289/351



Optional punch dies :

Metric system round hole punch dies :

https://www.kakaindustrial.ca/products/metric-system-round-hole-punching-dies-for-pbs-9?_pos=1&_sid=33694d93c&_ss=r

Imperial system round hole punch dies :

https://www.kakaindustrial.ca/products/imperial-system-round-hole-punching-dies-for-pbs-9?_pos=2&_sid=33694d93c&_ss=r

Square hole punch dies :

https://www.kakaindustrial.ca/products/square-hole-punching-dies-for-manual-ironworker-pbs-9?_pos=3&_sid=33694d93c&_ss=r
