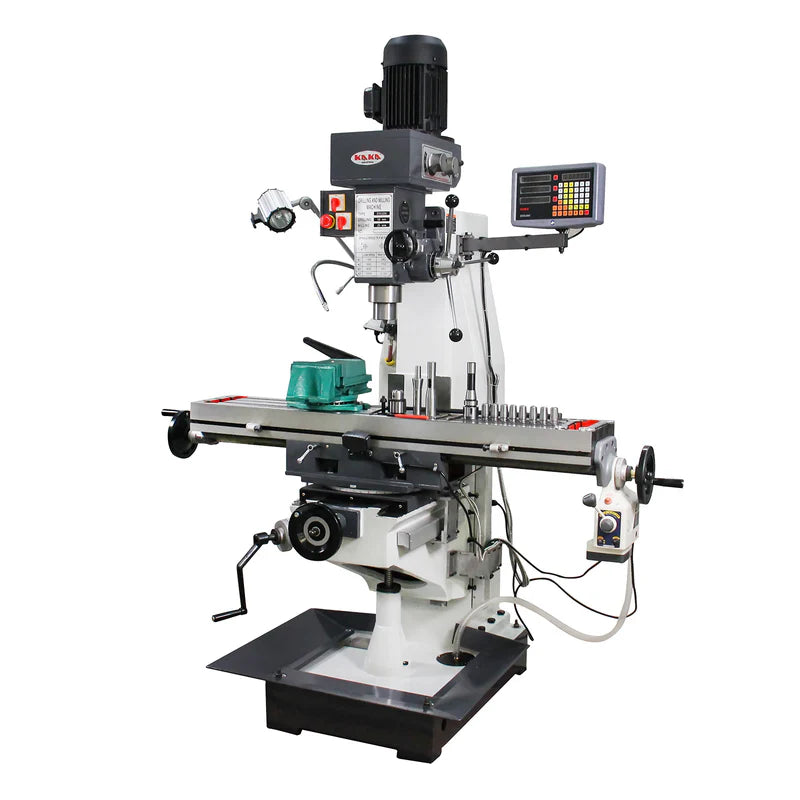

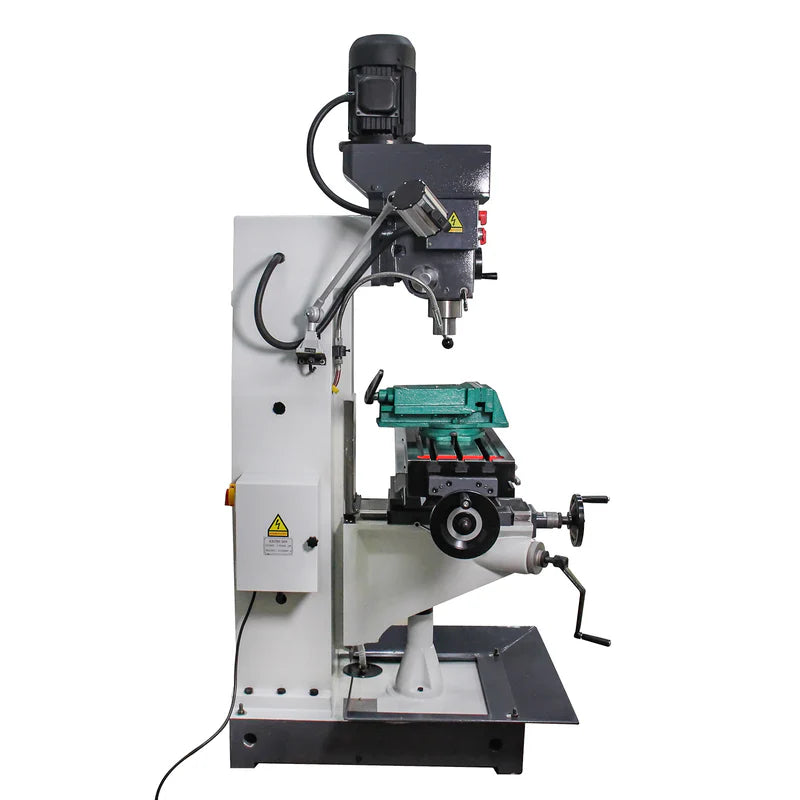

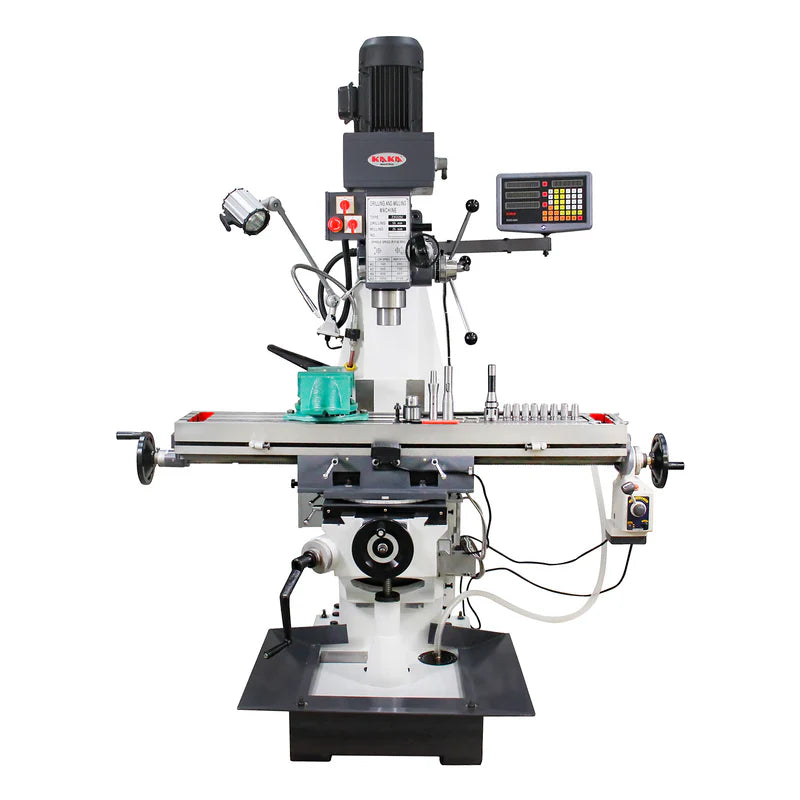

ZX5325C MILLING & DRILLING MACHINE WITH 3-AXIS DRO
1.96" Drilling Capacity • R8 Spindle • Gear-Driven Mill Drill
🟦 POWERFUL • PRECISION • INDUSTRIAL-GRADE
The ZX5325C Milling & Drilling Machine is a versatile metalworking solution designed for drilling, milling, boring, reaming, and tapping operations in machine shops, maintenance departments, fabrication facilities, and educational environments.
Powered by a robust 1.5 kW three-phase motor and equipped with a gear-driven milling head, this machine delivers reliable performance and excellent cutting capability. The swiveling milling head, adjustable worktable, integrated coolant system, and 3-axis DRO provide the precision and flexibility required for a wide range of machining applications.
Designed for both productivity and accuracy, the ZX5325C is capable of performing vertical milling, hole-making operations, and complex machining tasks on steel, aluminum, brass, and other machinable materials.
⚙️ KEY FEATURES
🔹 Powerful 1.5 kW Motor
Industrial-duty three-phase motor delivers reliable performance for demanding machining operations

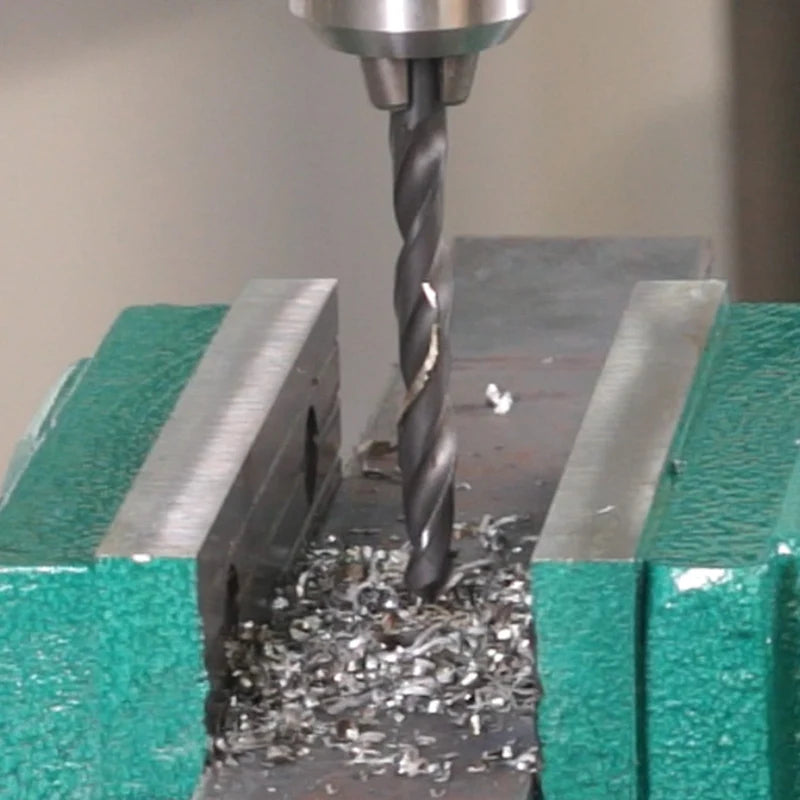

🔹 Large 1.96" Drilling Capacity
Handles drilling, boring, reaming, and tapping operations with ease

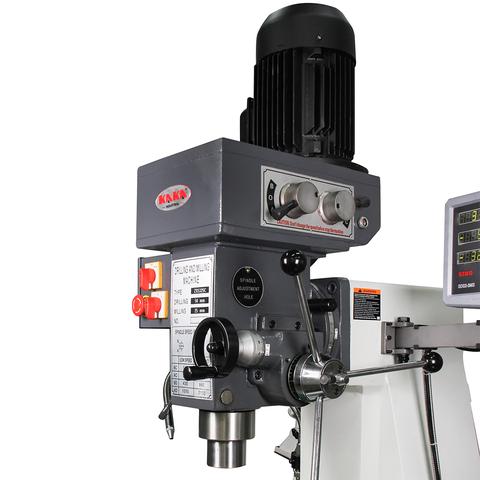

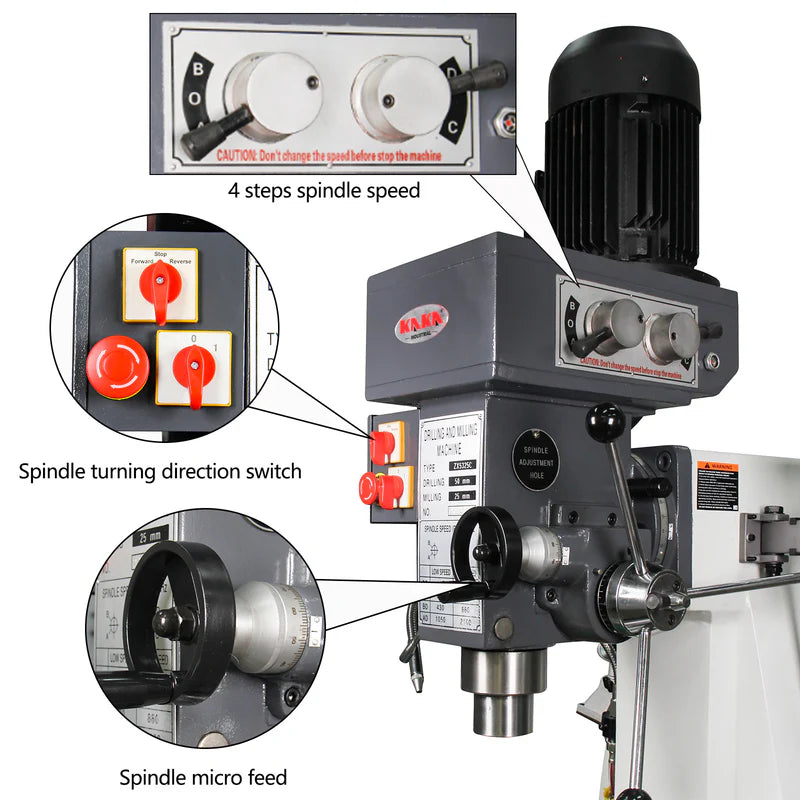

🔹 Gear-Driven Milling Head
Provides efficient power transmission, increased durability, and consistent machining performance

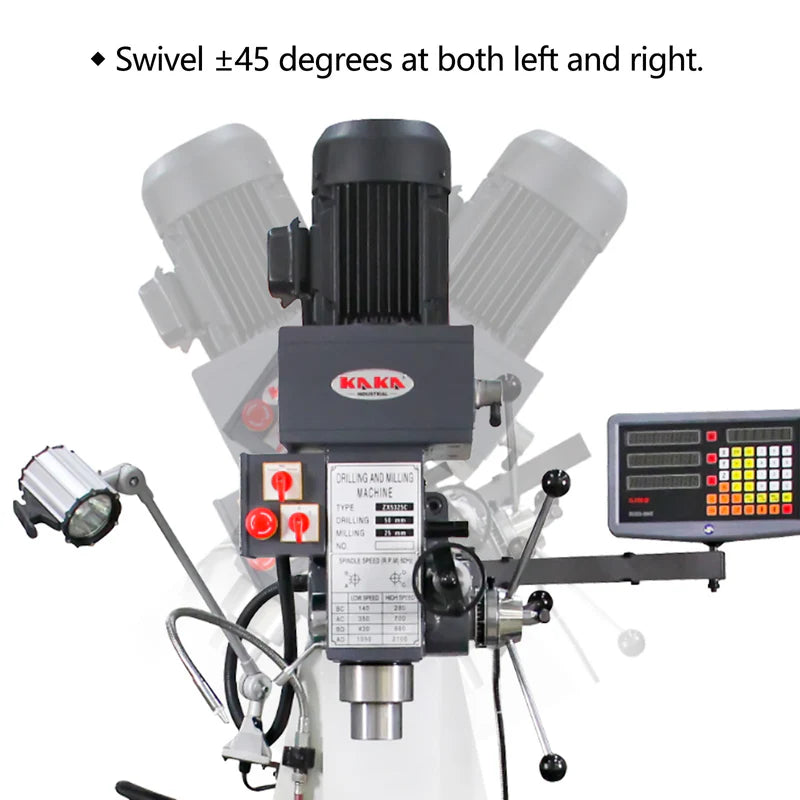

🔹 Swiveling Milling Head (±45°)
Milling head rotates 45° left and right for angled machining applications
🔹 Tilting Work Table (±45°)
Adjustable table increases flexibility for complex setups and precision machining

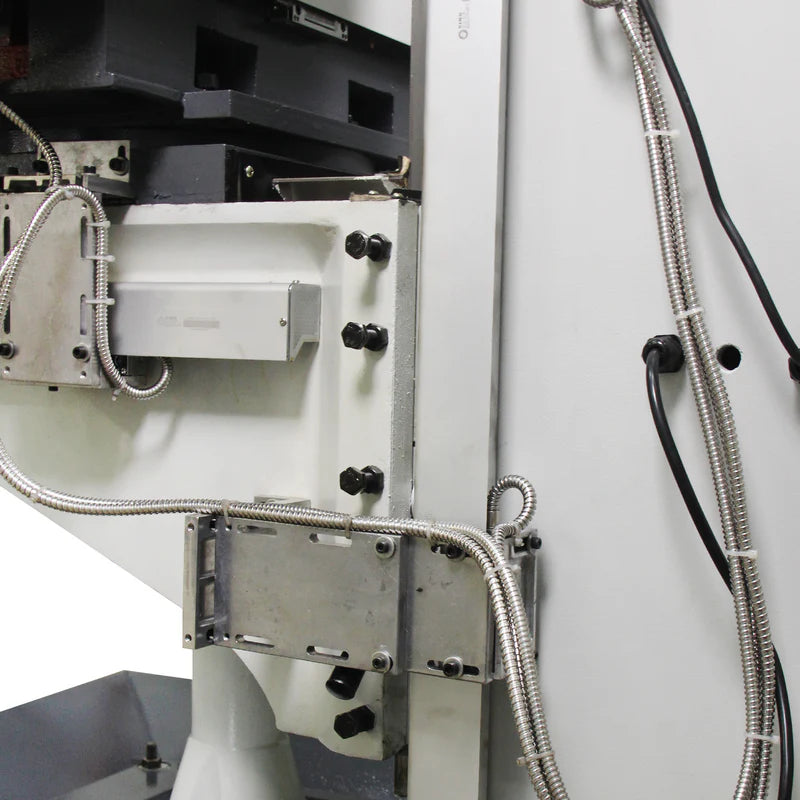

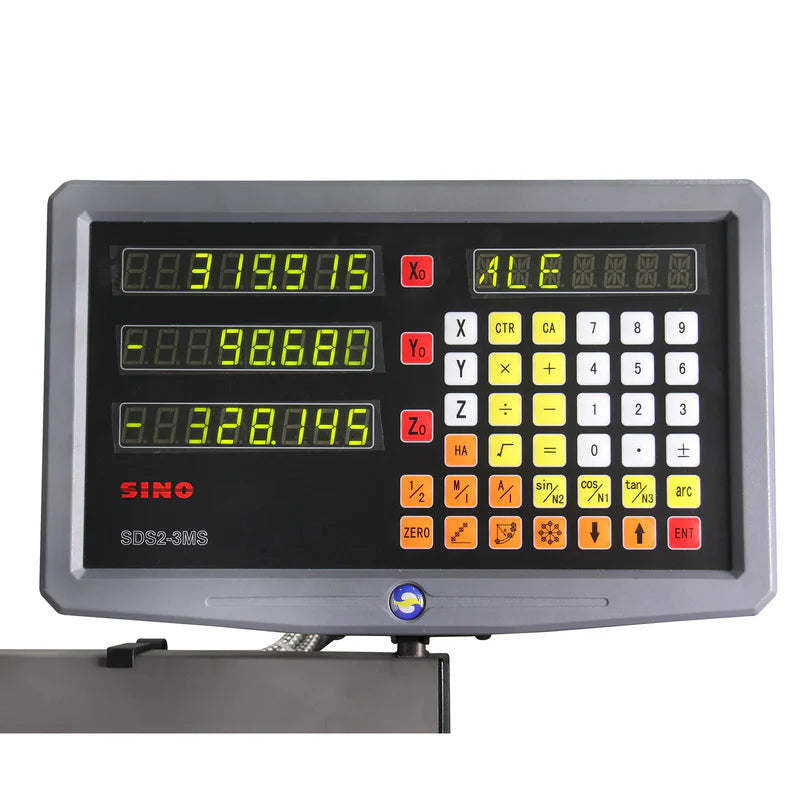

🔹 3-Axis Digital Readout (DRO)
Provides accurate X, Y, and Z-axis positioning for improved productivity and machining precision
🔹 Integrated Coolant System
Helps extend tool life, improve cutting performance, and maintain operator comfort
🔹 Heavy-Duty Spindle Bearing Design
Tapered roller bearings provide high load capacity, stable operation, and reliable braking performance
🔹 Built-In Work Light
Improves visibility, accuracy, and workplace safety
🔹 Multiple Machining Functions

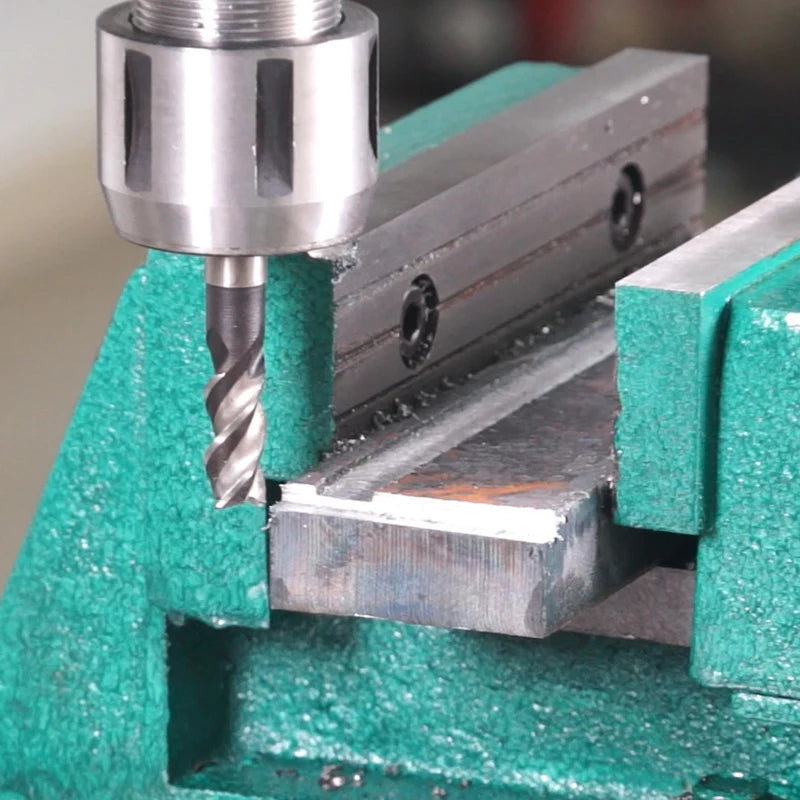

Suitable for drilling, tapping, boring, reaming, face milling, groove milling, angle milling, and surface machining
📊 SPECIFICATIONS
| Model | ZX5325C |
|---|---|
| Item No. | 183013 |
| Max. Drilling Capacity | 1.96" |
| Max. Horizontal Milling Capacity | 3.9" |
| Max. Vertical Milling Capacity | 1.2" |
| Max. Tapping Capacity | M16 |
| Spindle Taper | R8 |
| Spindle Speeds | 280, 700, 860, 2100 RPM |
| Spindle Travel | 4.9" |

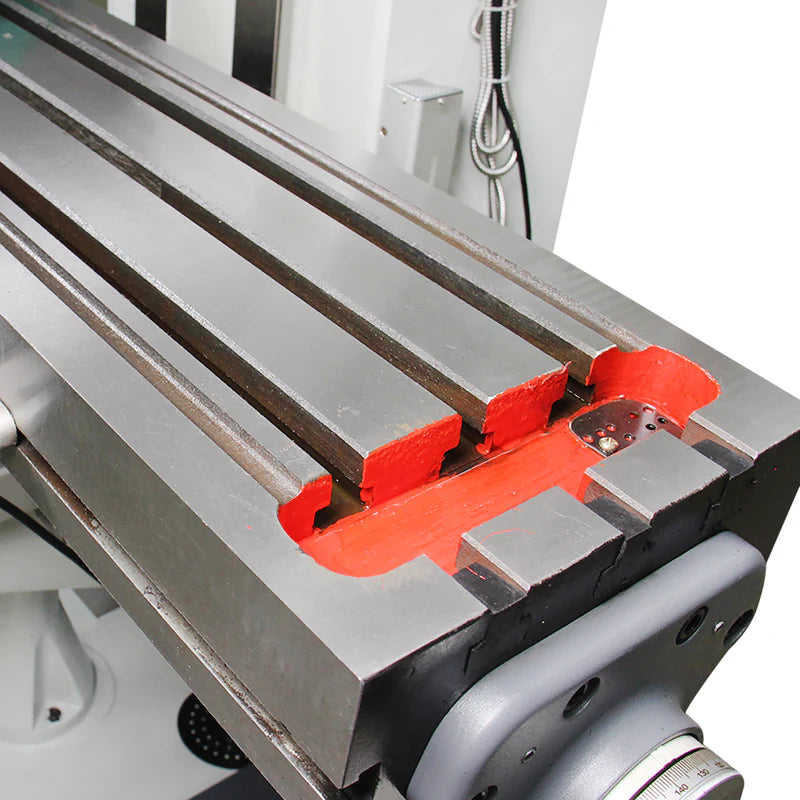

| Table Size | 50" × 10" |
| Table Travel (X × Y × Z) | 31.5" × 11" × 15" |
| Milling Head Swivel | ±45° |
| Table Tilt | ±45° |
| Main Motor Power | 0.85 / 1.5 kW |
| Power Supply | 230V / 460V, 3 Phase |
| Drive Type | Gear Drive |
| Packing Size | 44" × 44" × 87" |
| Net / Gross Weight | 1,918 / 2,359 lbs |
🛠 APPLICATIONS
🏭 Machine Shops & Tool Rooms
🔩 Precision Metal Fabrication
🚗 Automotive Repair & Manufacturing
🏗 Maintenance & Repair Facilities
🎓 Technical Schools & Training Centers
⚙️ Drilling, Milling, Tapping & Boring Operations
📦 WHY CHOOSE ZX5325C?
✔ Powerful gear-driven milling head for demanding applications
✔ Large-capacity drilling and milling performance
✔ Precision 3-axis DRO for accurate positioning
✔ Swiveling head and tilting table for versatile machining setups
✔ Integrated coolant system and work light for enhanced productivity
✔ Industrial-grade construction designed for long-term reliability
✔ Ideal for professional machine shops, fabrication facilities, and educational programs
