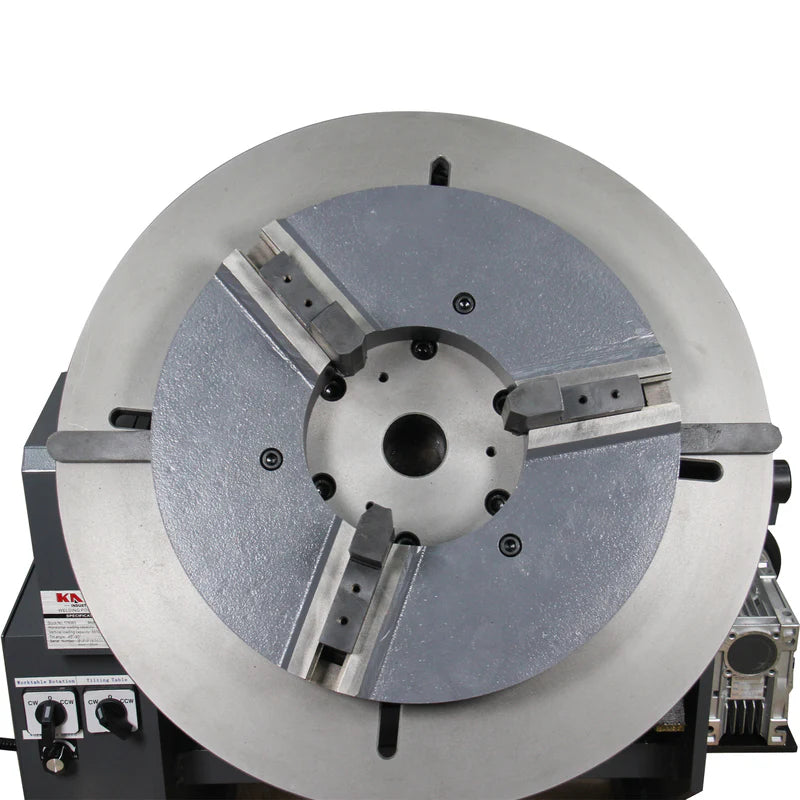

Kaka Industrial WPC-400 Welding Positioner Chuck (For WP-500B/WP-500TB welding positioner)
Kaka Industrial WPC-400 Welding Positioner Chuck (For WP-500B/WP-500TB welding positioner) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- If the item weighs less than 145 lbs, it will be delivered by UPS, Purolator, FedEx Ground, Canpar, Canada Post and other couriers to the address you provided as the 'shipping address' when you placed the order. You will receive the tracking number once the carrier picks up.
- If the item weights over 145lbs normally will be delivered by LTL Freight. Please note you may need the optional services if you order these items. For example, if you don’t have a forklift or similar equipment to offload the package, you may need to book the lift gate delivery service when checkout.
SHIPPING OPTIONS:
KAKA INDUSTRIAL uses UPS, Purolator ,Fedex Ground, Canpar, Canada post ,etc and truck freight lines to ship your orders.
KAKA INDUSTRIAL makes every effort to process orders within 24hrs of being placed. You will receive a shipping confirmation email that will confirm which carrier is used for your products.
If your order is less than 145lbs, it could be delivered byUPS, Purolator ,Fedex Ground, Canpar, Canada post and other courier to the address you provided as 'shipping address' when you placed the order. If your order is above 145lbs, it will be delivered by Freight company that has been picked to minimize the cost of delivery to your area. In this case, your delivery address must be accessible by tractor-trailer , and In some cases your shipping fee may be different than displayed online.
Truck drivers are not required to assist with unloading. You are responsible for unloading your freight and for moving it into your shop. For residential delivery and shops without a loading dock, liftgate delivery is available for an additional charge.
You can also arrange to pick up your freight at the carrier's terminal. The carrier will load the item onto your vehicle. If you choose this option, please make sure your vehicle is capable of handling the weight and bring plenty of tie-downs to secure the load properly .
Extra Shipping Service Charges:
1. Residential delivery, includes power lift gate service, call before delivery service Extra charge $120
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/extra-shipping-charge
2. Power tailgate service for business address $50
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/lift-gate-shipping-service
3. Call before delivery for business address
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/appointment-service
REDELIVERY OF FREIGHT
When, through no fault of carrier and after reasonable effort, redelivery is requested, a charge of $99.00 will be assessed against the shipment in addition to accrued charges.
DELIVERY TIMES:
Delivery times are expected, not guaranteed. If payment authorization is delayed, in order to confirm payment or prevent fraud, Kaka Industrial reserves the right to delay shipments. Every effort will be made to ship at the soonest possible time.
THINGS TO KNOW:
- Weather delays and other circumstances may impact delivery time. Estimated arrival dates are not guaranteed.
- Deliveries to New Brunswick, Prince Edward Island, Nova Scotia and Newfoundland/Labrador will take longer.
- All shipping timeframes and/or shipping methods/providers listed on www.kakaindustrial.ca are to be considered estimates and are not guaranteed.
***We automatically email your tracking number when your order ships***
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
WPC-400 3-JAW SELF-CENTERING WELDING CHUCK
4.7"–15" Clamping Range | 770 lb Clamping Force | Heavy-Duty Welding Positioner Chuck
🟦 SELF-CENTERING • HIGH CLAMPING FORCE • HEAVY-DUTY

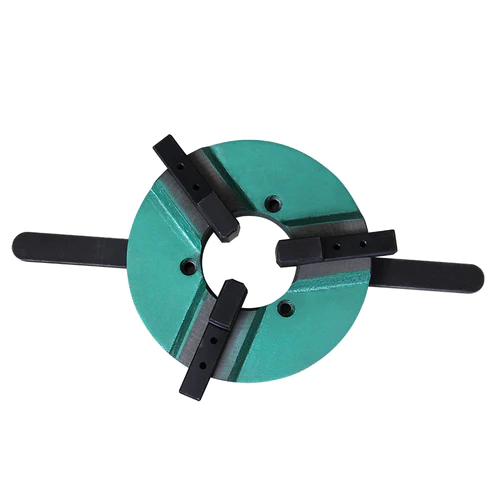

The KAKA INDUSTRIAL WPC-400 is a heavy-duty 3-jaw self-centering welding chuck designed for use with compatible KAKA welding positioners, including the WP-500B / WP-500TB.
Its self-centering three-jaw design automatically centers the workpiece during clamping, simplifying setup and improving positioning accuracy. The stable three-jaw configuration provides strong, balanced holding force to help reduce workpiece movement and vibration during rotation and welding.
With a maximum clamping force of 770 lbs, a horizontal loading capacity of 529 lbs, and clamping ranges up to 15 inches, the WPC-400 is designed for larger pipes, tubes, flanges, cylinders, and other round or irregularly shaped workpieces.
The chuck also features a large Ø6.7" center hole, providing added flexibility for oversized workpieces and welding applications.
⚙️ KEY FEATURES
🔹 3-Jaw Self-Centering Design
Automatically centers the workpiece for faster setup and improved positioning accuracy.
🔹 Powerful 770 lb Clamping Force
Provides up to 770 lbs of clamping force for secure holding of larger and heavier workpieces.
🔹 Dual Clamping Ranges

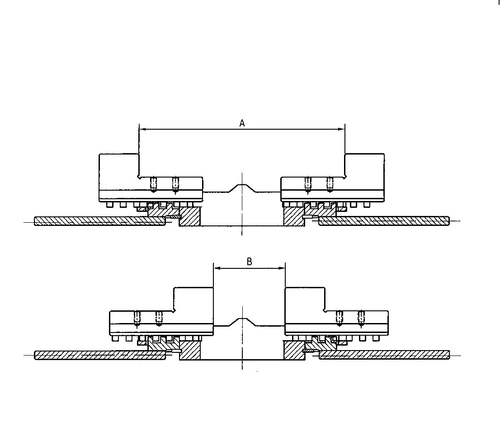

Two clamping configurations accommodate a wide variety of workpiece diameters from approximately 4.7" to 15".
🔹 Heavy-Duty Loading Capacity
Supports up to 529 lbs horizontally and 260 lbs vertically when used in the appropriate welding positioner setup.
🔹 Large Ø6.7" Center Hole
The large 6.7" (170 mm) center opening provides additional clearance for pipes, tubes, and specialized welding applications.
🔹 Stable Workpiece Holding
Three-jaw construction delivers balanced gripping force and helps reduce unwanted movement and vibration during rotation.
🔹 Accurate & Repeatable Positioning
Designed for repeatable clamping and positioning in production, fabrication, and rotary welding applications.
🔹 Versatile Workpiece Compatibility
Suitable for pipes, tubes, flanges, cylinders, round stock, and various irregularly shaped components.
🔹 Heavy-Duty Welding Positioner Accessory
Designed for larger KAKA welding positioners where increased clamping capacity and workpiece support are required.

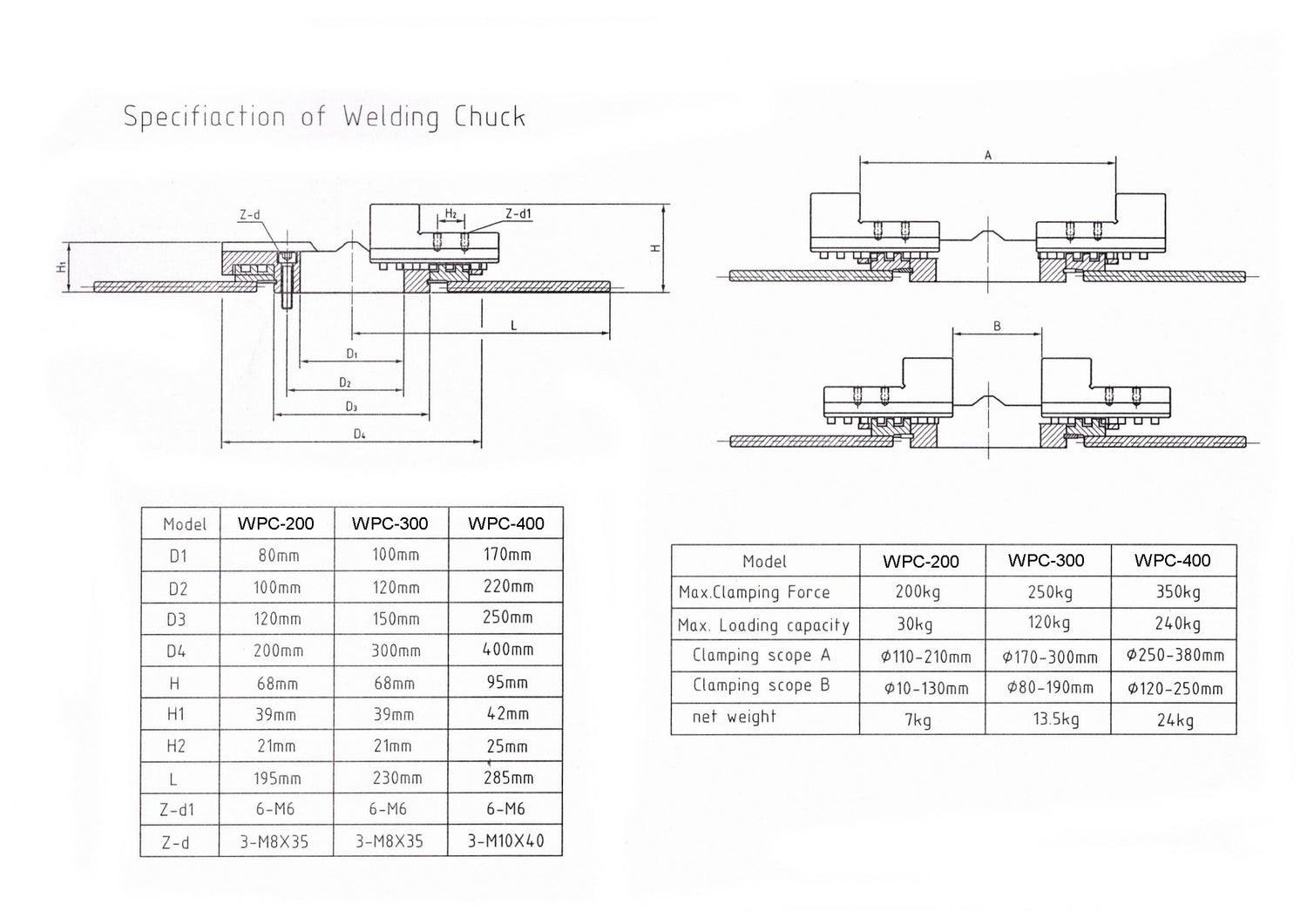

📊 SPECIFICATIONS
| Specification | Details |
|---|---|
| SKU | 178453 |
| Model | WPC-400 |
| Chuck Type | 3-Jaw Self-Centering |
| Maximum Clamping Force | 770 lbs |
| Maximum Loading Capacity — Horizontal | 529 lbs |
| Maximum Loading Capacity — Vertical | 260 lbs |
| Center Hole Diameter | Ø6.7" (170 mm) |
| Clamping Range A | Ø9.8"–15" (250–380 mm) |
| Clamping Range B | Ø4.7"–9.8" (120–250 mm) |
| Packing Size | 21" × 21" × 4" |
| Net Weight | 53 lbs |
| Gross Weight | 55 lbs |
🛠 APPLICATIONS
🔩 Pipe & Tube Welding
🛢 Flange Welding
⚙️ Cylinder & Round Workpiece Welding
🏭 Heavy-Duty Metal Fabrication
🔧 Rotary Welding & Positioning
🛠 Production & Repetitive Welding
🏗 Large Workpiece Welding Applications
🔧 COMPATIBLE WELDING POSITIONERS
✔ Designed for use with compatible KAKA welding positioners
✔ Suitable for WP-500 / WP-500B Welding Positioners
✔ Ideal for large-diameter pipe, flange, and cylindrical workpiece clamping
✔ Helps improve welding accuracy, stability, and repeatability
📦 WHY CHOOSE THE WPC-400?
✔ 3-jaw self-centering design for fast and accurate setup
✔ Up to 770 lbs clamping force
✔ Large 4.7"–15" overall clamping range
✔ 529 lb horizontal loading capacity
✔ 260 lb vertical loading capacity
✔ Large Ø6.7" center hole for greater workpiece flexibility
✔ Stable three-jaw grip helps reduce movement during rotation
✔ Heavy-duty 53 lb construction for professional fabrication use
✔ Ideal companion chuck for the WP-500 / WP-500B/ WP-500TB welding positioner
