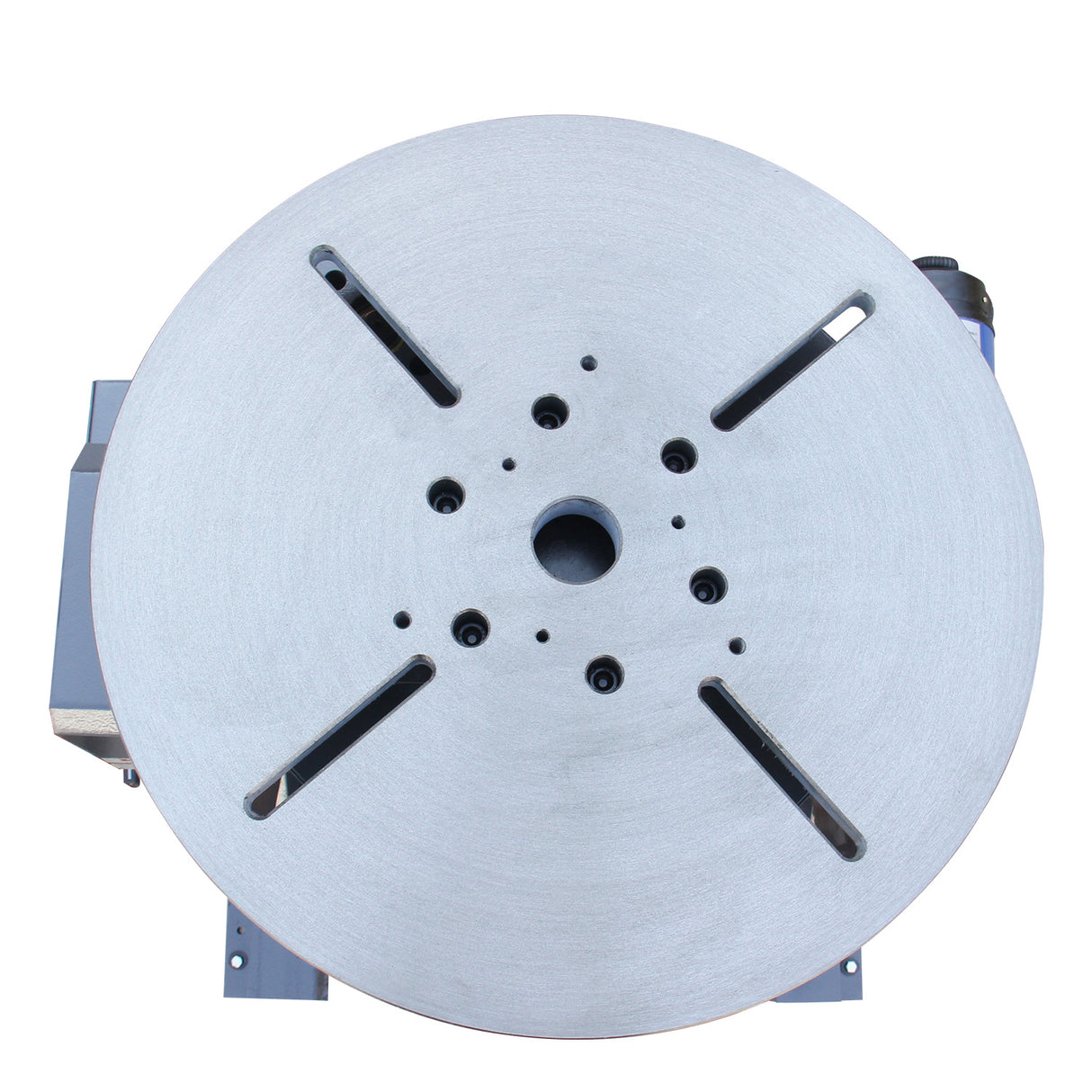

Kaka Industrial WP-500 Welding Positioner, 1102lb Tilt angle -45°-90º, Rotation motor 400W ,Rotation speed 0-5 RPM Stepless Speed Control Welder Positioning Machine 110V-60HZ-1PH
Kaka Industrial WP-500 Welding Positioner, 1102lb Tilt angle -45°-90º, Rotation motor 400W ,Rotation speed 0-5 RPM Stepless Speed Control Welder Positioning Machine 110V-60HZ-1PH is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- If the item weighs less than 145 lbs, it will be delivered by UPS, Purolator, FedEx Ground, Canpar, Canada Post and other couriers to the address you provided as the 'shipping address' when you placed the order. You will receive the tracking number once the carrier picks up.
- If the item weights over 145lbs normally will be delivered by LTL Freight. Please note you may need the optional services if you order these items. For example, if you don’t have a forklift or similar equipment to offload the package, you may need to book the lift gate delivery service when checkout.
SHIPPING OPTIONS:
KAKA INDUSTRIAL uses UPS, Purolator ,Fedex Ground, Canpar, Canada post ,etc and truck freight lines to ship your orders.
KAKA INDUSTRIAL makes every effort to process orders within 24hrs of being placed. You will receive a shipping confirmation email that will confirm which carrier is used for your products.
If your order is less than 145lbs, it could be delivered byUPS, Purolator ,Fedex Ground, Canpar, Canada post and other courier to the address you provided as 'shipping address' when you placed the order. If your order is above 145lbs, it will be delivered by Freight company that has been picked to minimize the cost of delivery to your area. In this case, your delivery address must be accessible by tractor-trailer , and In some cases your shipping fee may be different than displayed online.
Truck drivers are not required to assist with unloading. You are responsible for unloading your freight and for moving it into your shop. For residential delivery and shops without a loading dock, liftgate delivery is available for an additional charge.
You can also arrange to pick up your freight at the carrier's terminal. The carrier will load the item onto your vehicle. If you choose this option, please make sure your vehicle is capable of handling the weight and bring plenty of tie-downs to secure the load properly .
Extra Shipping Service Charges:
1. Residential delivery, includes power lift gate service, call before delivery service Extra charge $120
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/extra-shipping-charge
2. Power tailgate service for business address $50
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/lift-gate-shipping-service
3. Call before delivery for business address
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/appointment-service
REDELIVERY OF FREIGHT
When, through no fault of carrier and after reasonable effort, redelivery is requested, a charge of $99.00 will be assessed against the shipment in addition to accrued charges.
DELIVERY TIMES:
Delivery times are expected, not guaranteed. If payment authorization is delayed, in order to confirm payment or prevent fraud, Kaka Industrial reserves the right to delay shipments. Every effort will be made to ship at the soonest possible time.
THINGS TO KNOW:
- Weather delays and other circumstances may impact delivery time. Estimated arrival dates are not guaranteed.
- Deliveries to New Brunswick, Prince Edward Island, Nova Scotia and Newfoundland/Labrador will take longer.
- All shipping timeframes and/or shipping methods/providers listed on www.kakaindustrial.ca are to be considered estimates and are not guaranteed.
***We automatically email your tracking number when your order ships***
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

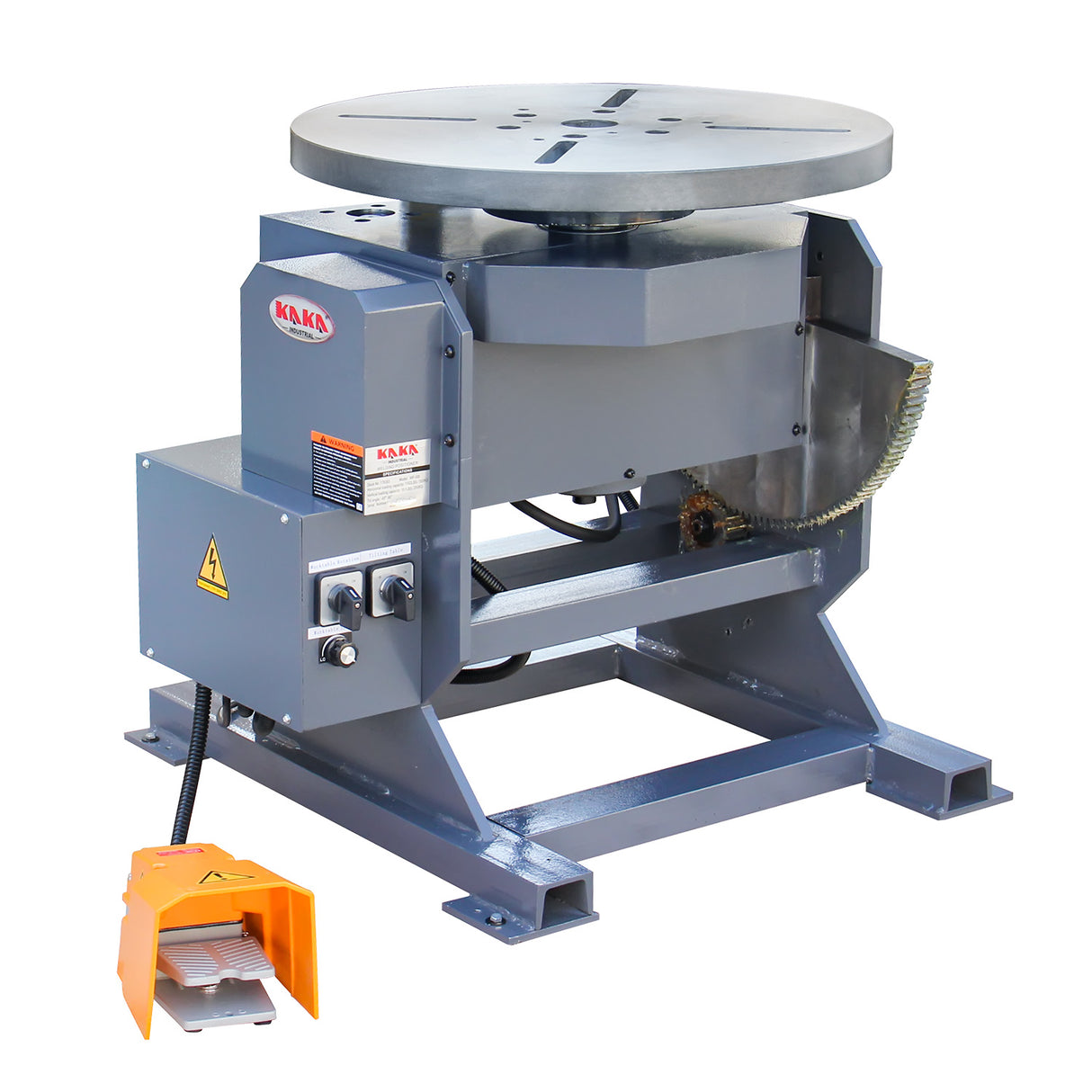

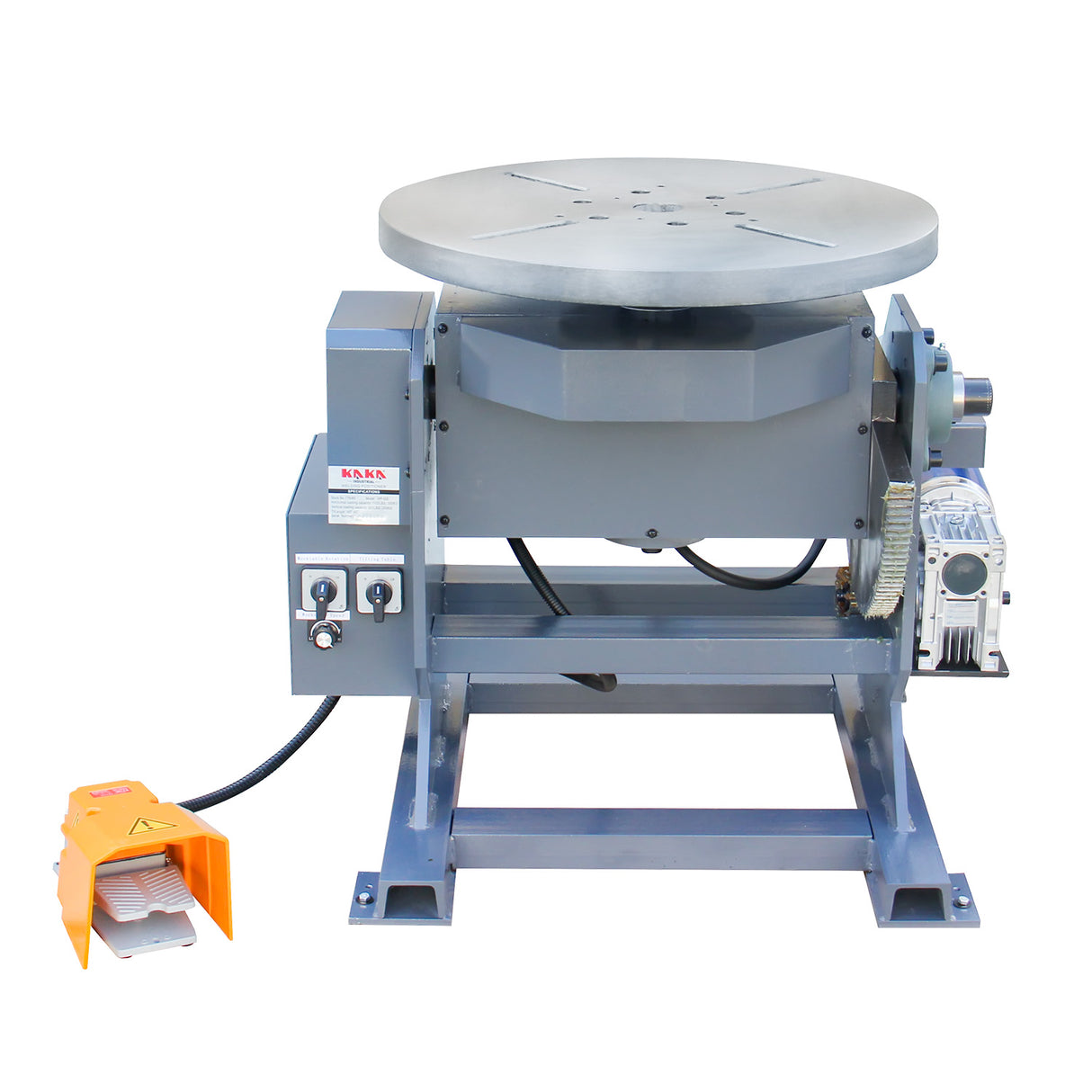

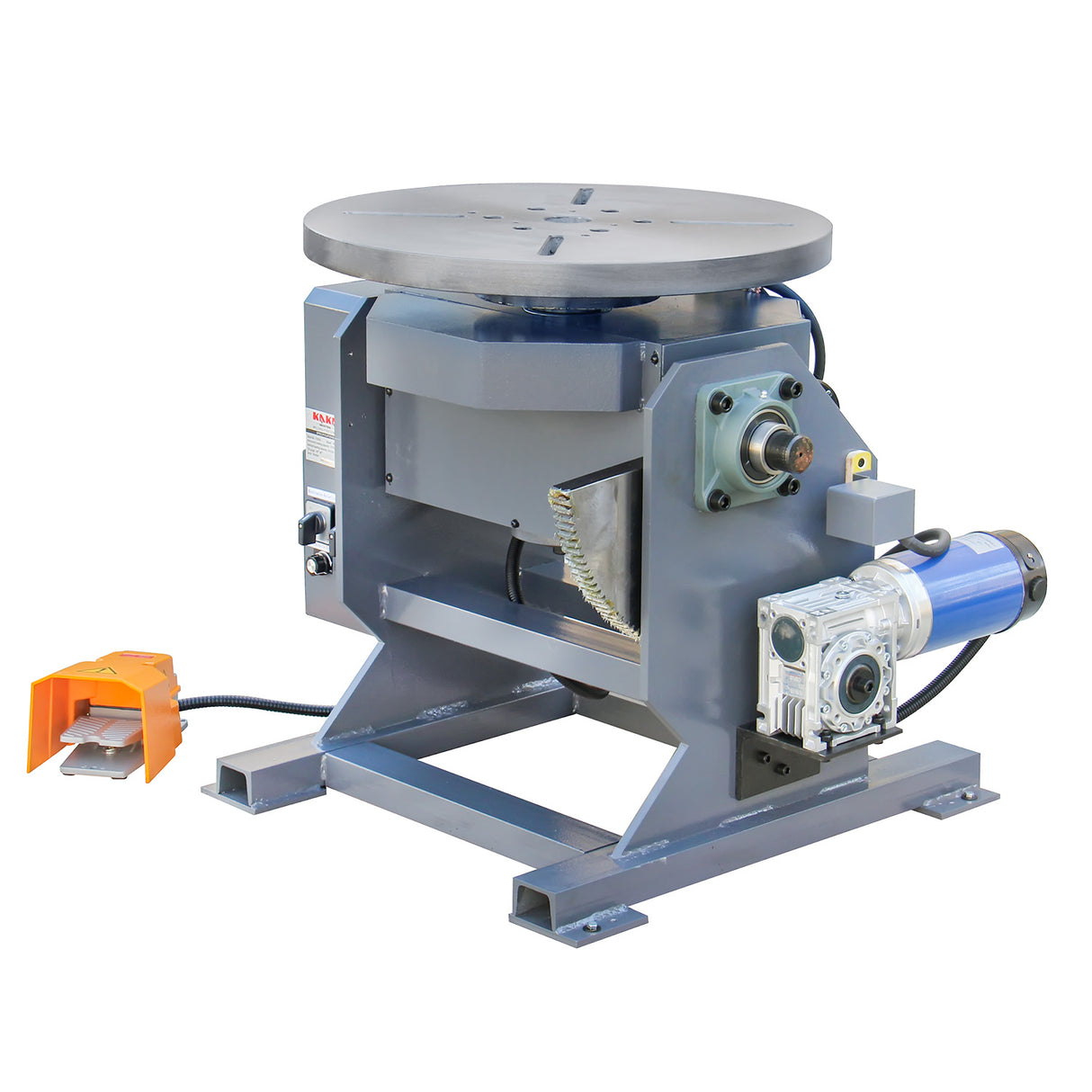

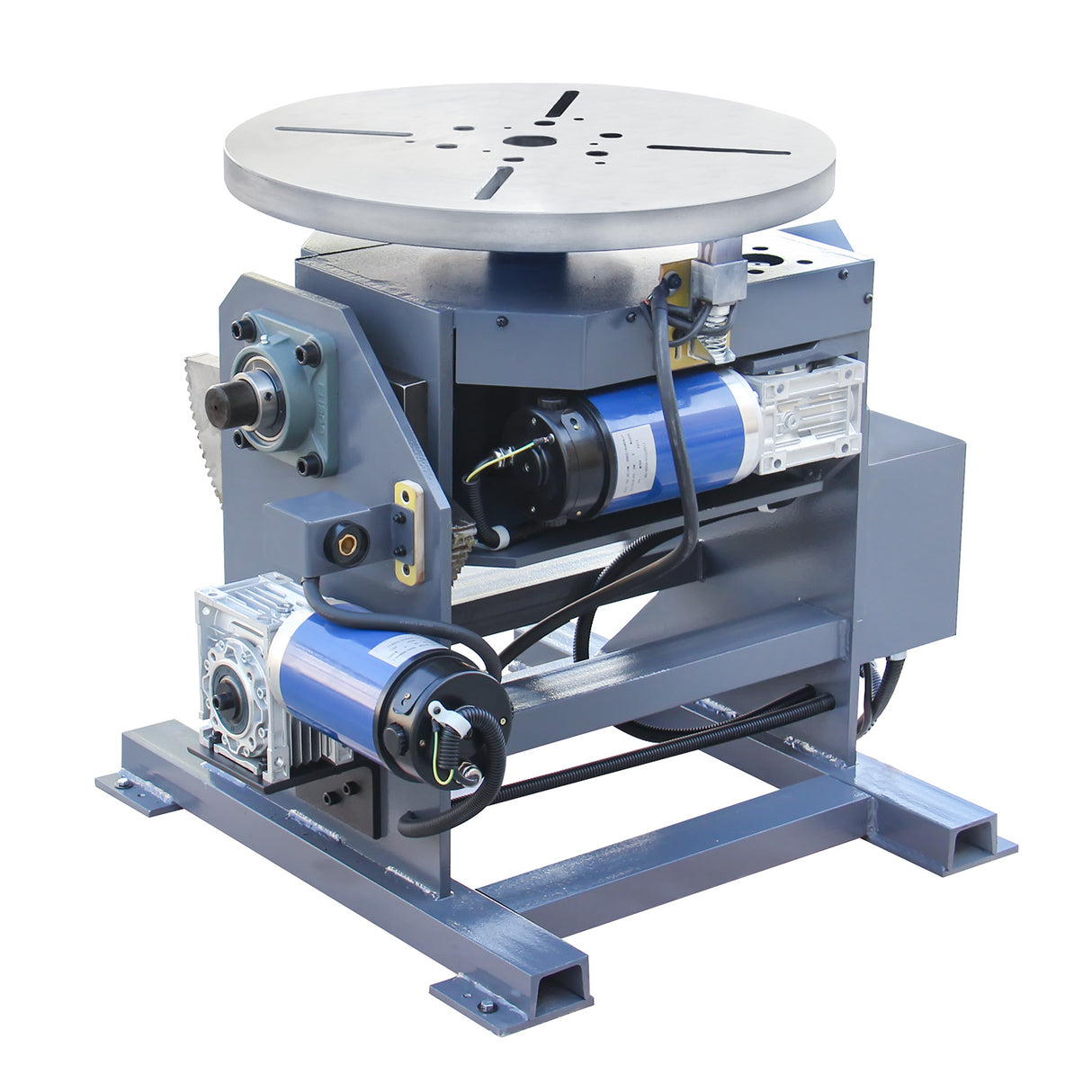

🔧 KAKA Industrial WP500 Welding Positioner
Motorized Tilt | Variable Speed | Heavy-Duty Welding Support
The WP500 Welding Positioner is a reliable and robust solution for rotating and tilting heavy workpieces during welding, cutting, and assembly. Designed with motorized tilt and variable rotation speed, this positioner boosts efficiency, precision, and safety in industrial and fabrication applications.
✅ Key Features
-
Structural Rigidity & High Load Capacity – Built for strength and stability under heavy workloads.
-

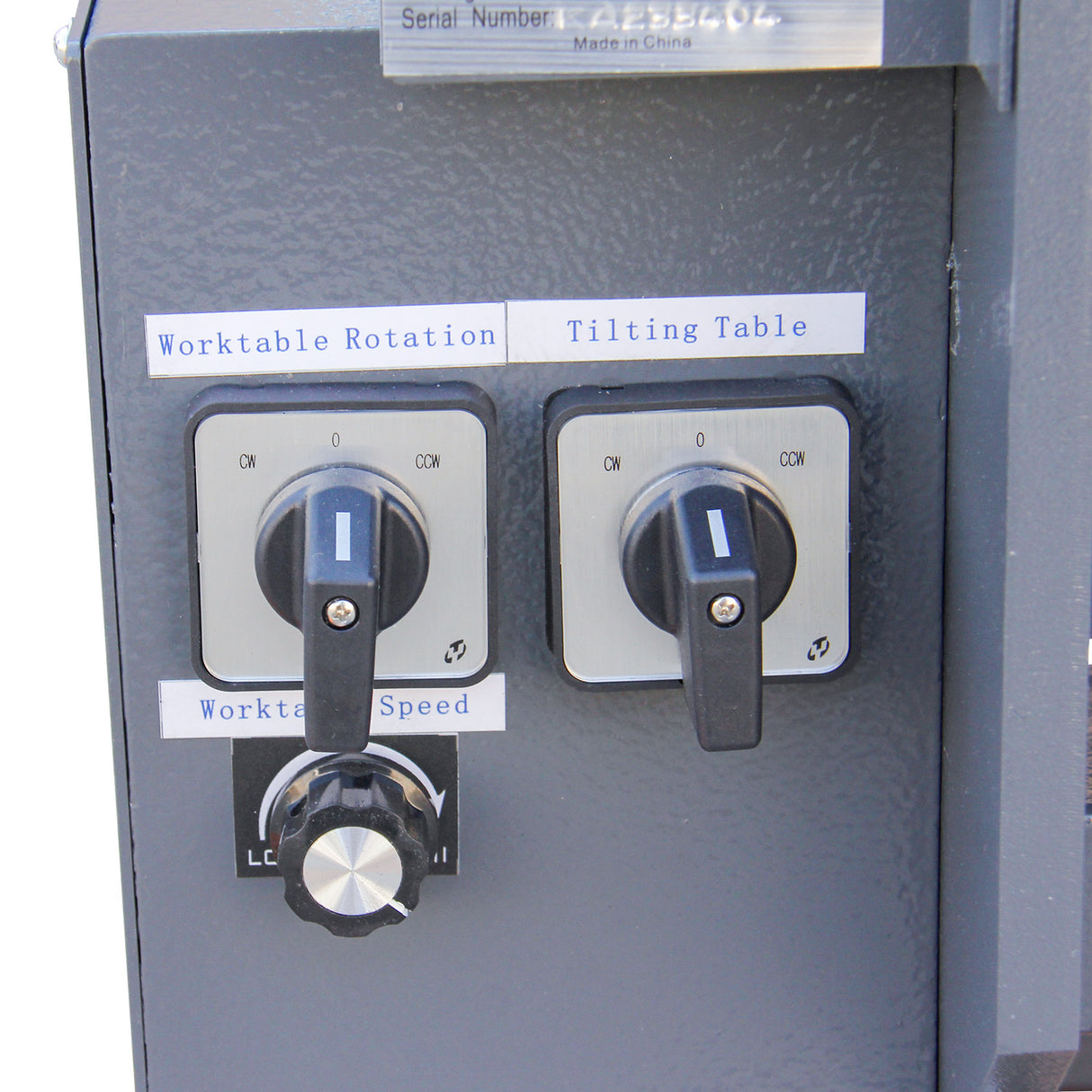

Variable Rotation Speed – Adjust the speed to suit your project’s requirements (0–5 RPM).
-
Ideal for Heavy-Duty Tasks – Perfect for welding, cutting, and packing large or irregular parts.
-

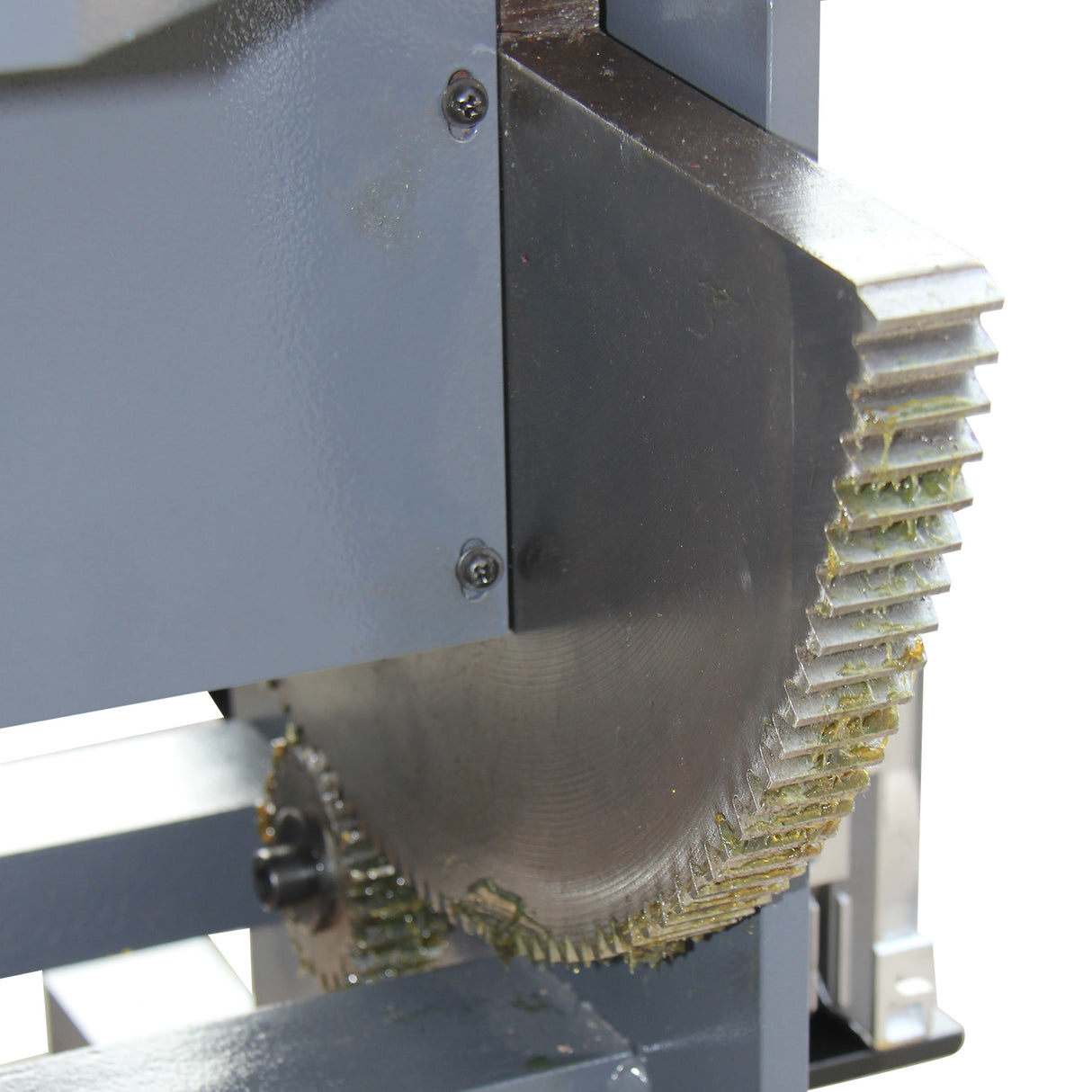

Motorized Tilting Function – Smoothly tilts the worktable from -45° to 90° with powered control.

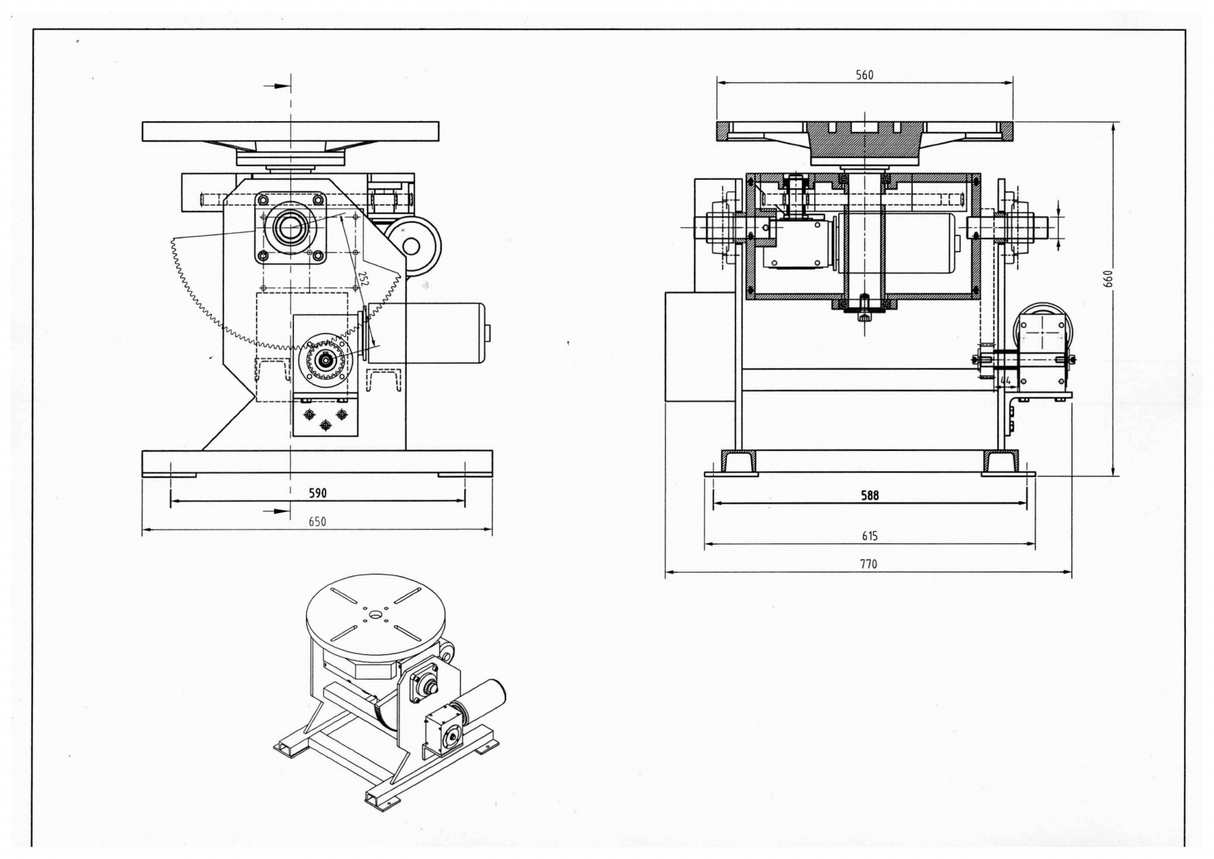

Specification:
|
Item No. Model Horizontal loading capacity Vertical loading capacity Table dia. Table height Rotation speed Tilt angle Tilt by Rotation motor Packing size N.W/G.W |

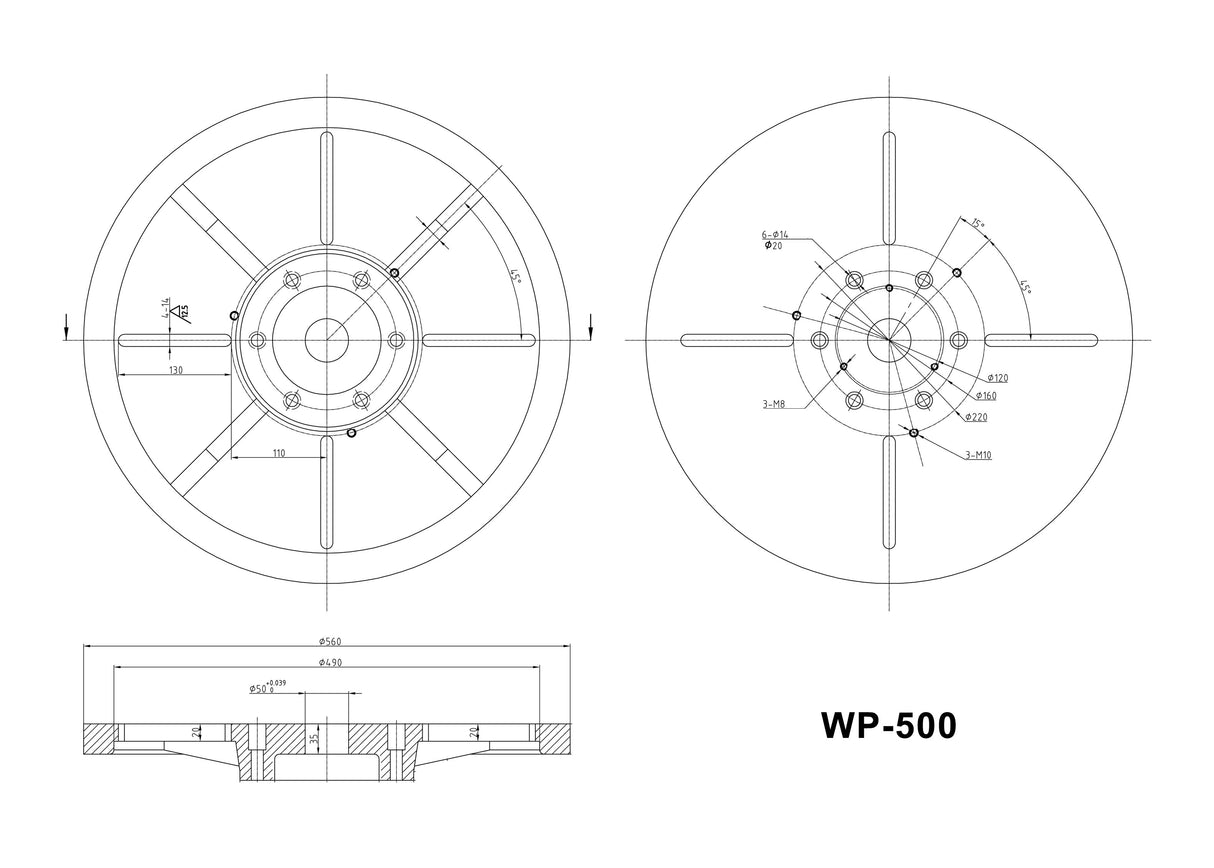

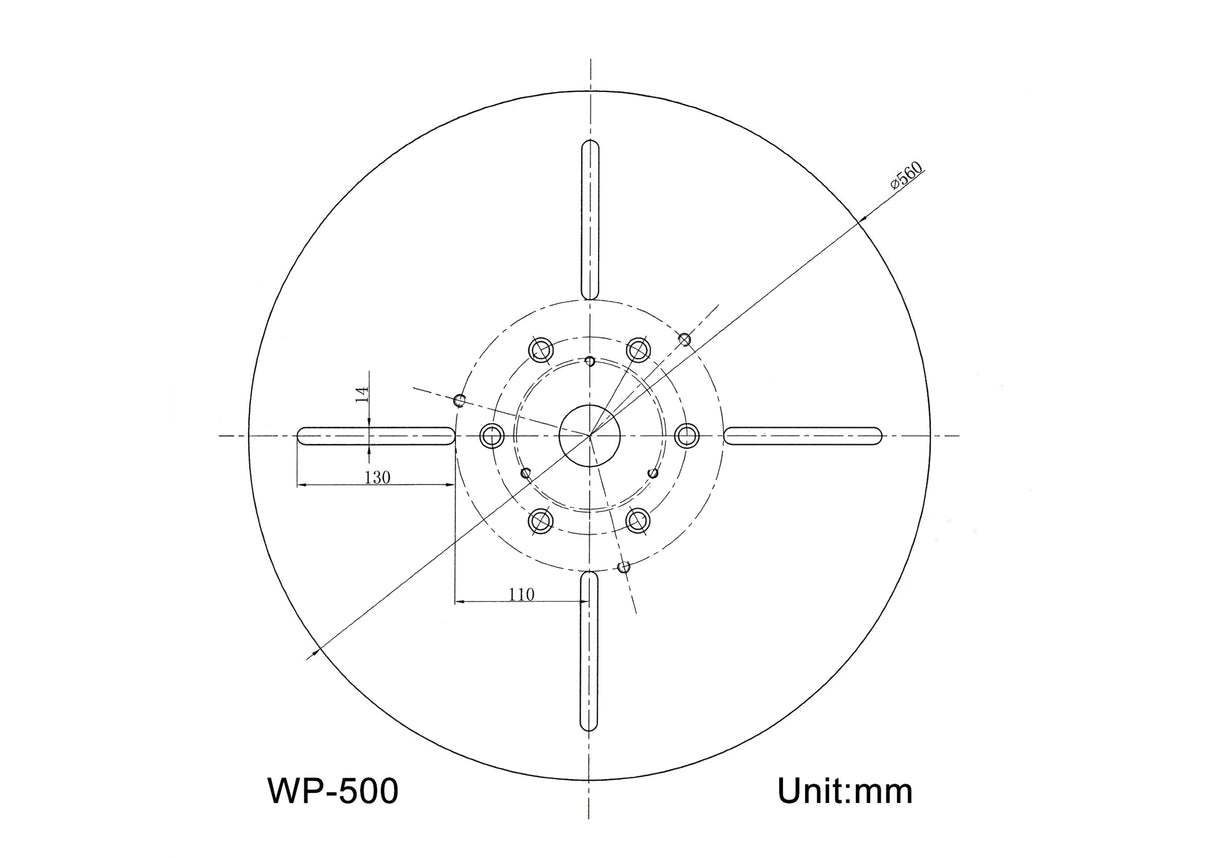

178383 WP500 500 kg (1100lbs) 250 kg (550 lbs) 21.6” (550 mm) 26” (660 mm) 0-5 rpm -45°- 90° Motor 400 W 32x28x28 in 485/540 lbs |
🧰 Optional Accessories (Sold Separately)
-
🔩 WPC-400 Welding Positioner Chuck
-
Designed specifically for the WP500
-
Enhances clamping and holding for round or irregular parts
-
