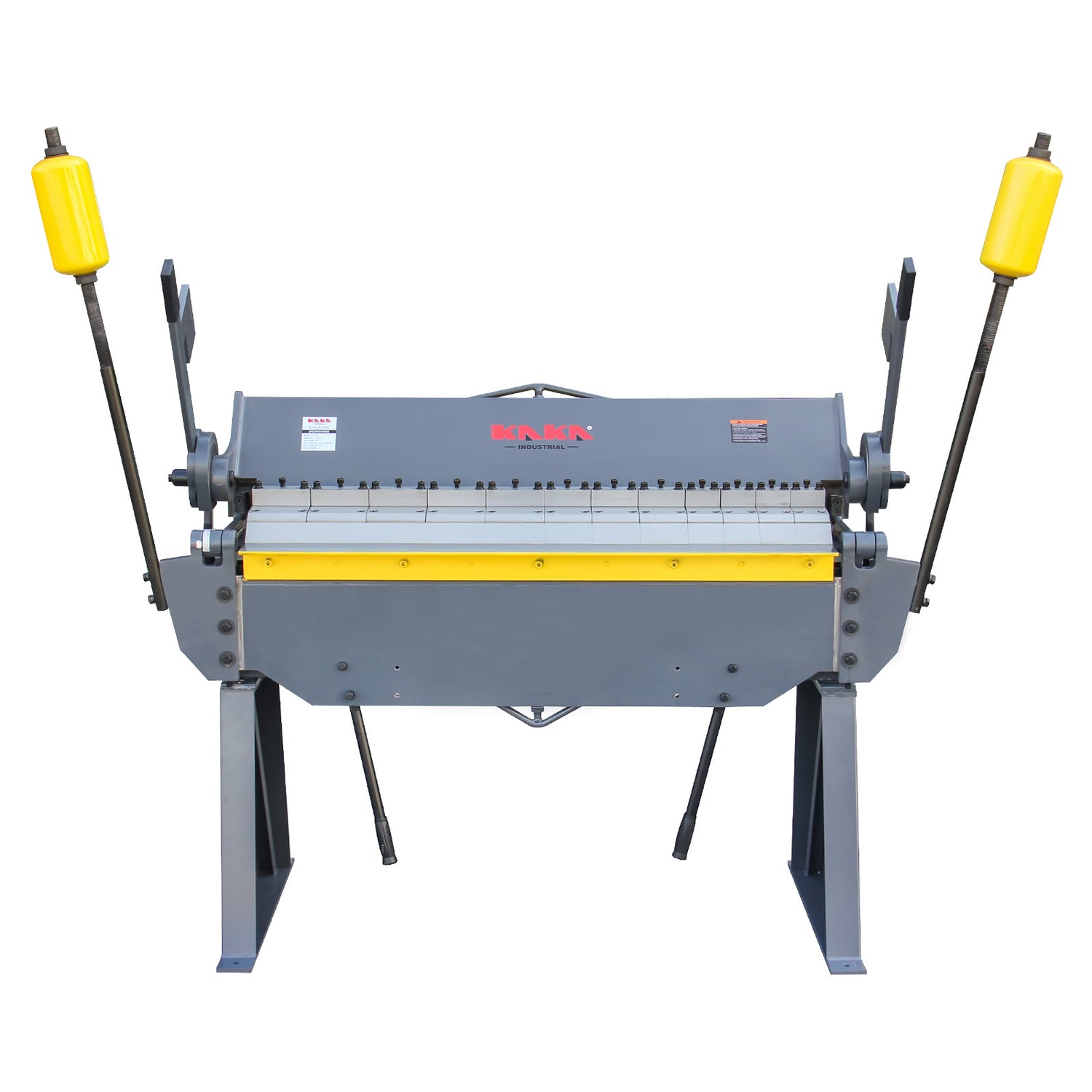

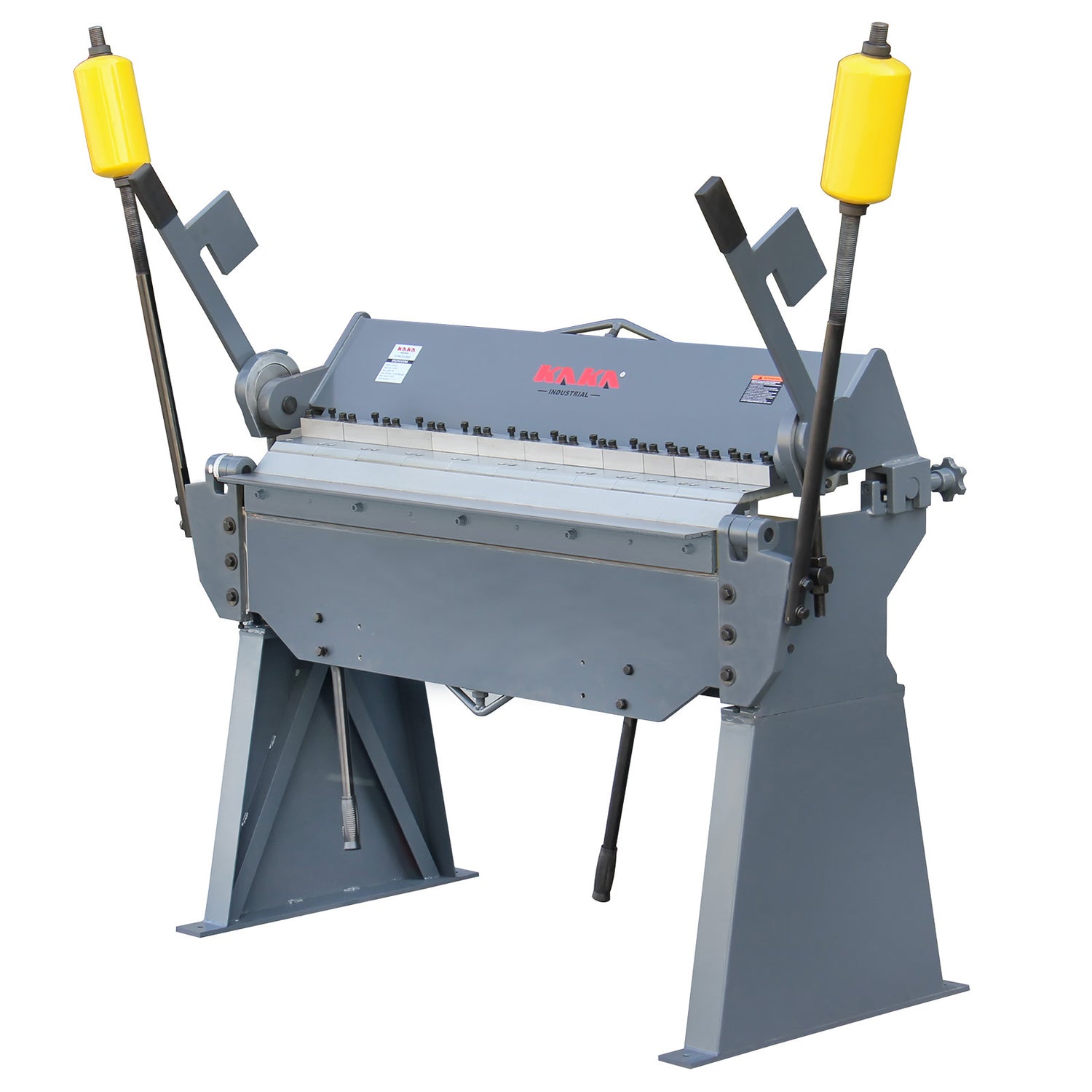

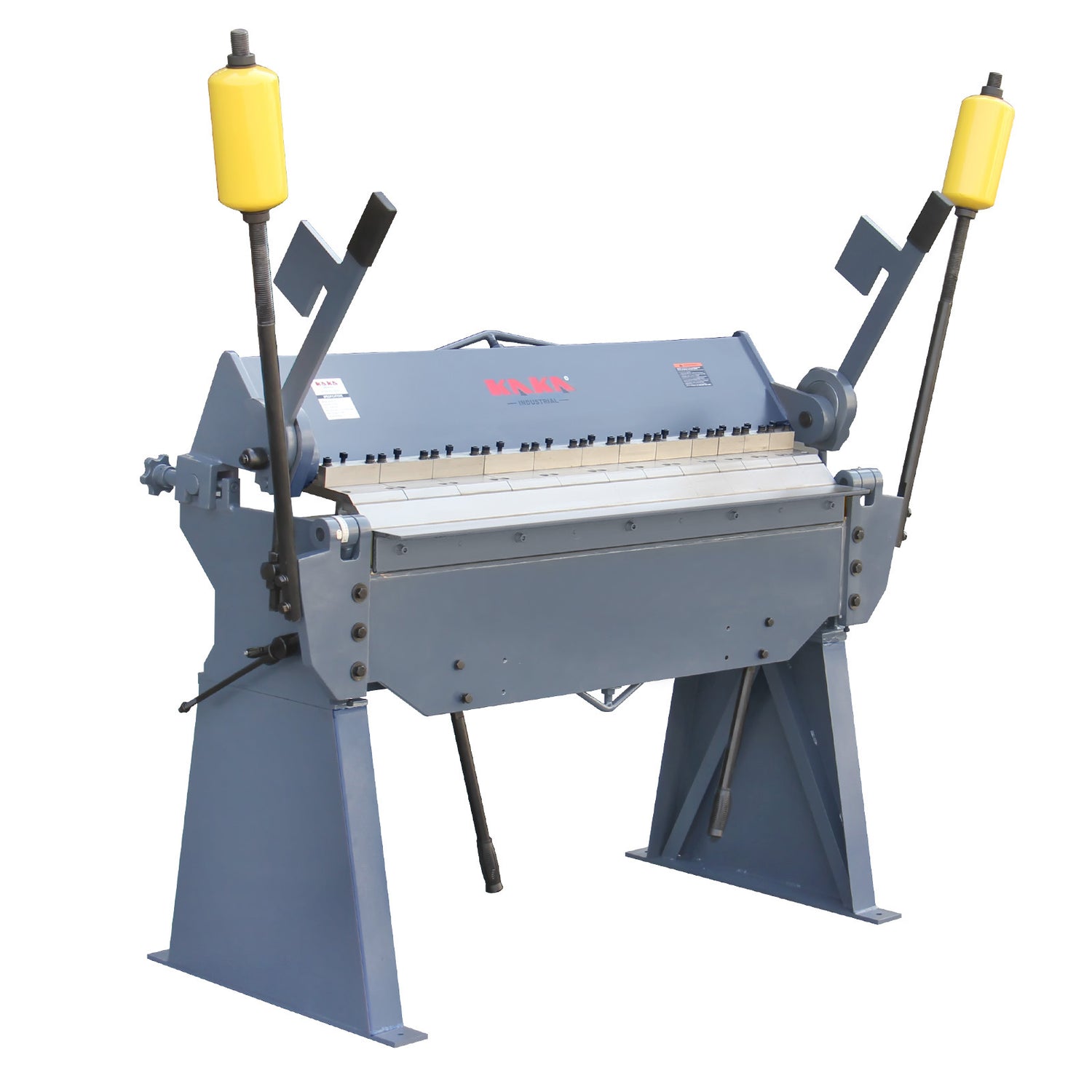

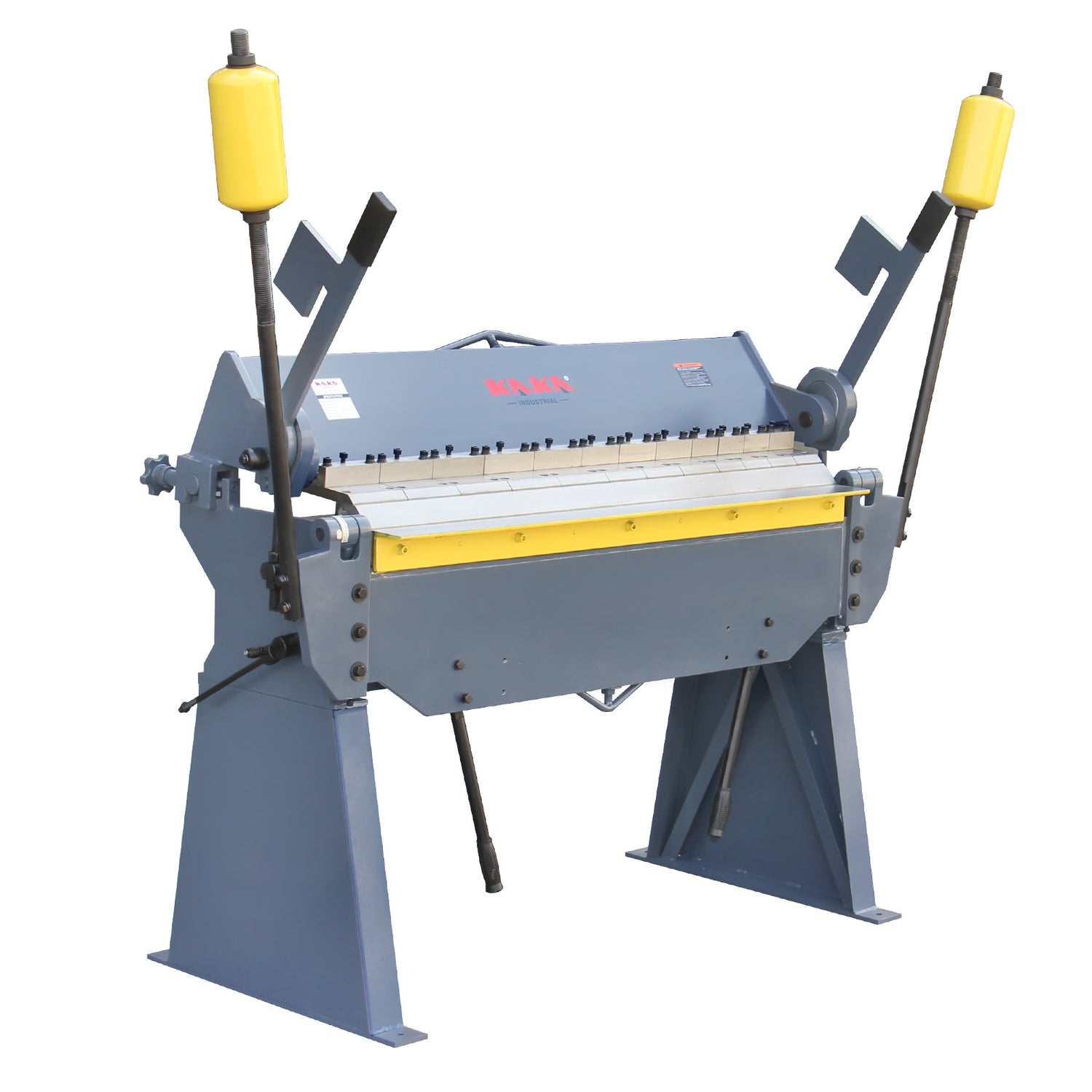

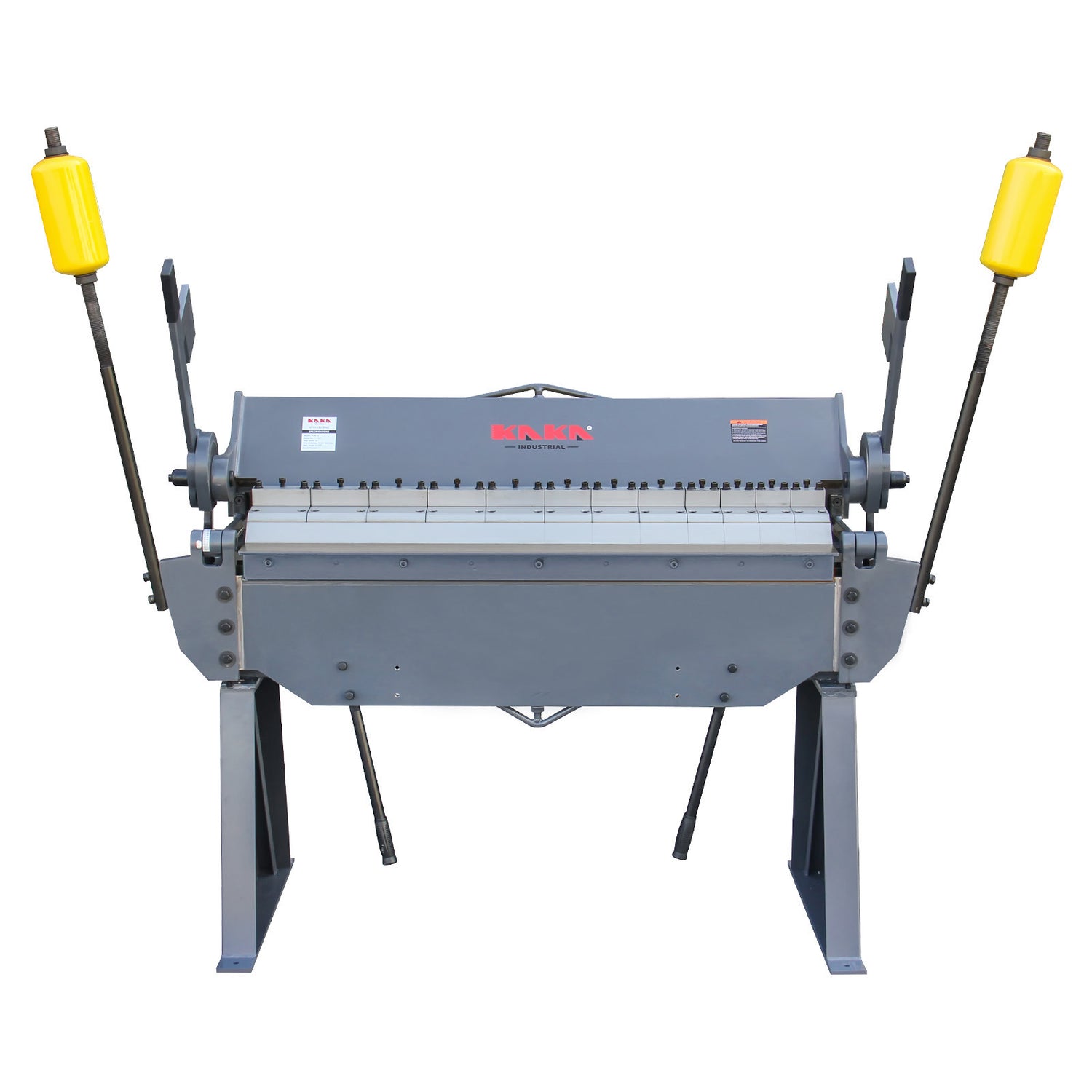

KAKA Industrial W-4812 48" 12 Gauge Heavy Duty Sheet Metal Pan & Box Brake

  • Sale
  • Regular price $2,989.99


FLOOR MODEL BOX AND PAN BRAKES

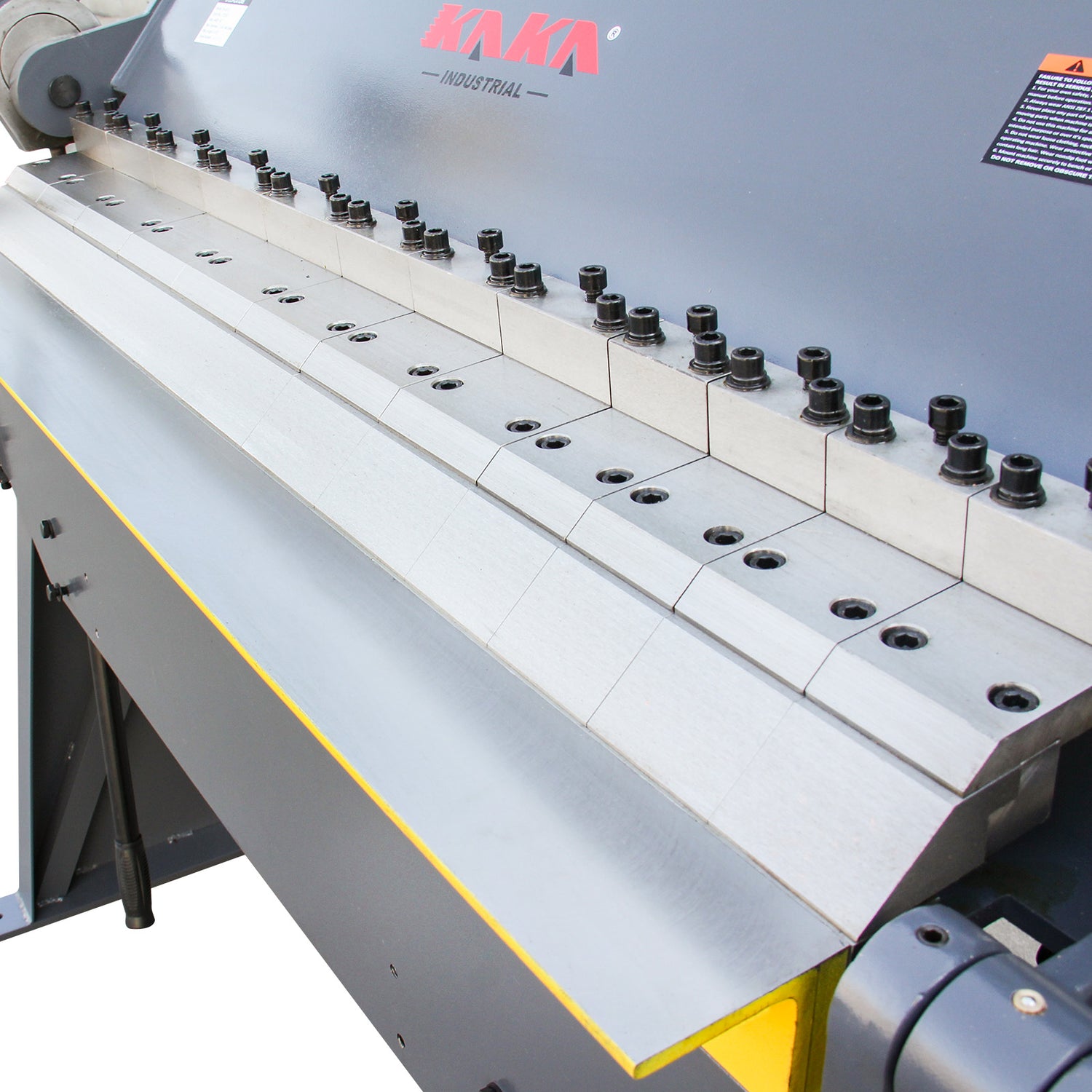

Wide assortment of finger widths allow greater versatility in the shop

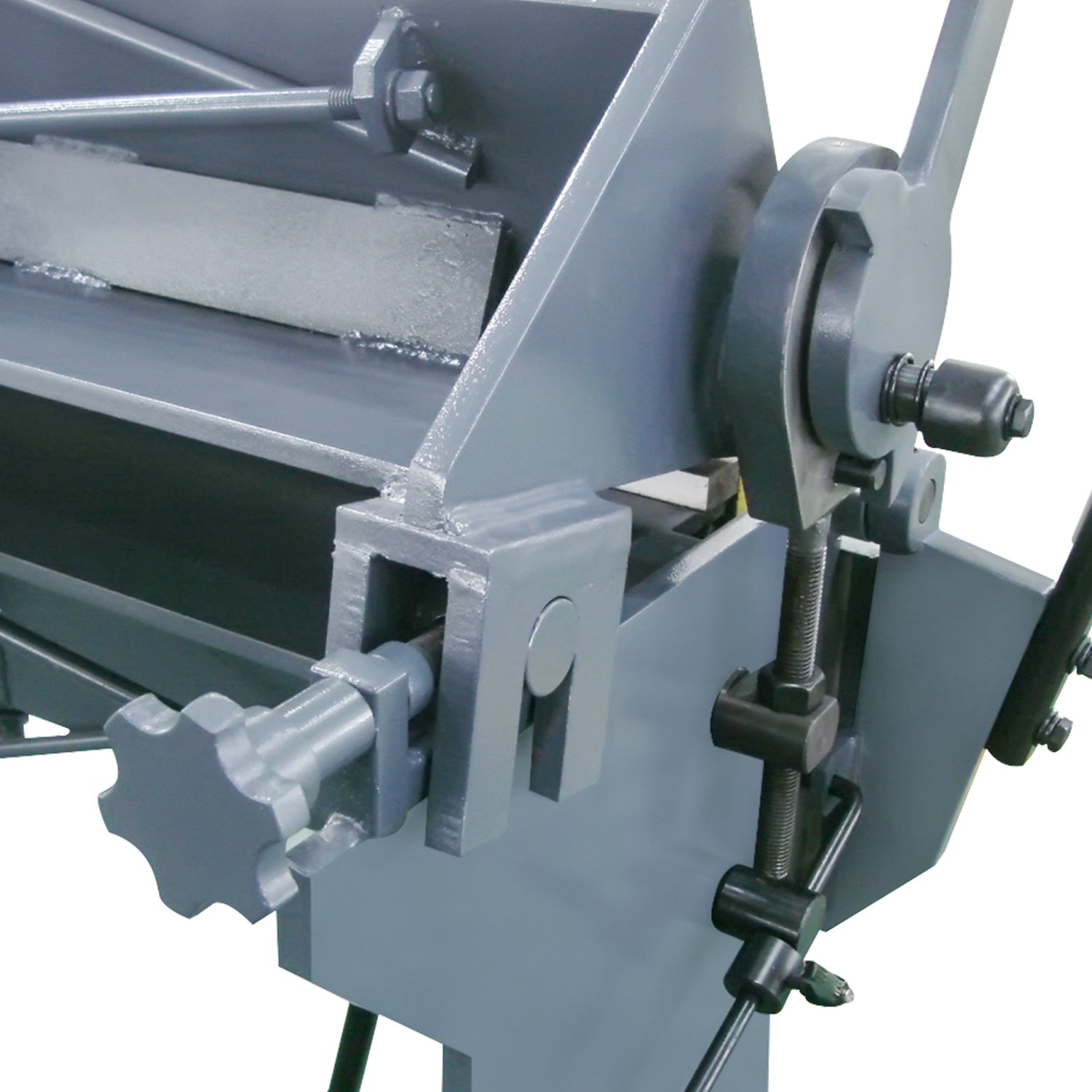

Easy Adjust Counterweights help to ease the effort bending the thick workpieces

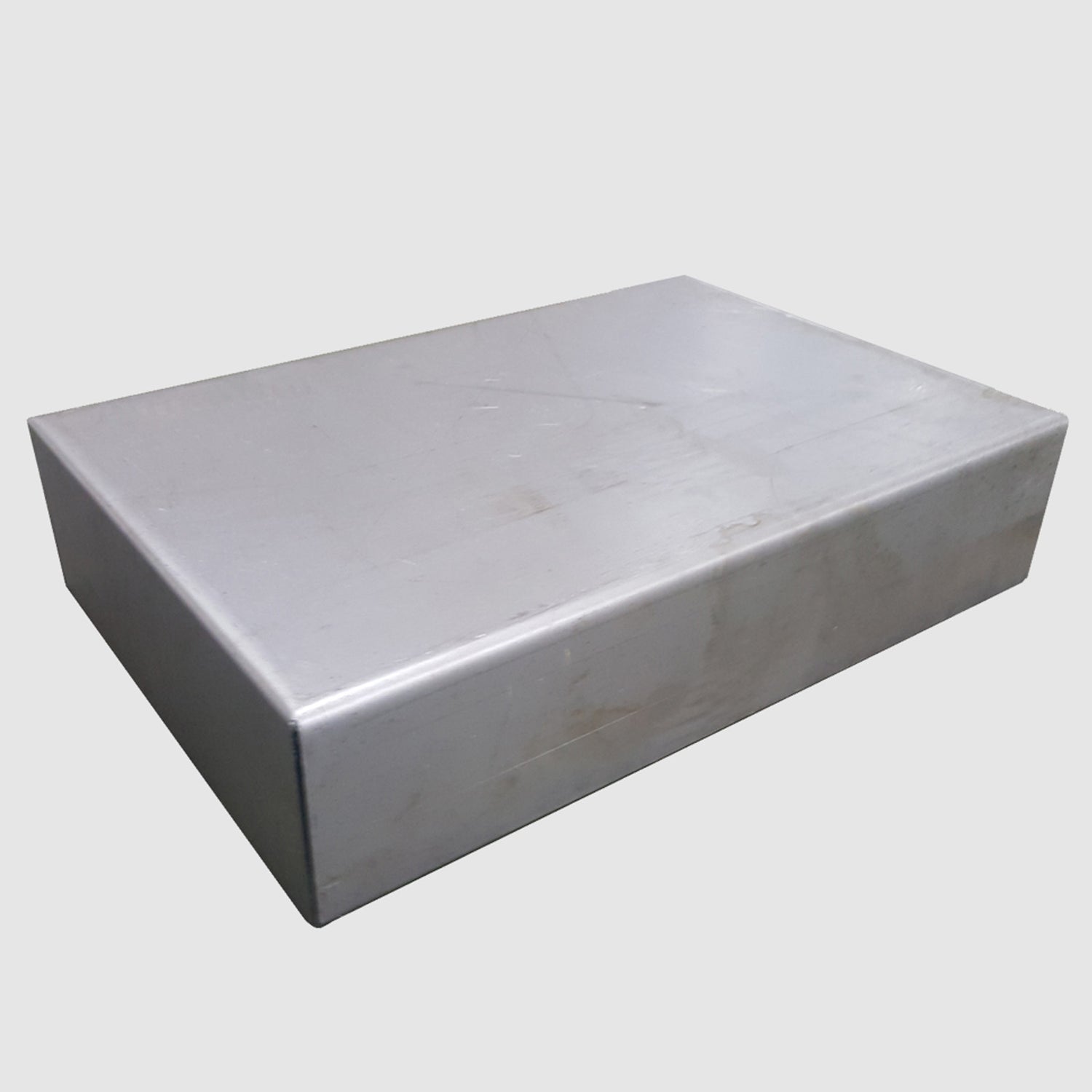

Ideal equipment for fabricating more complicated brackets, gussets, boxes, and fixtures.

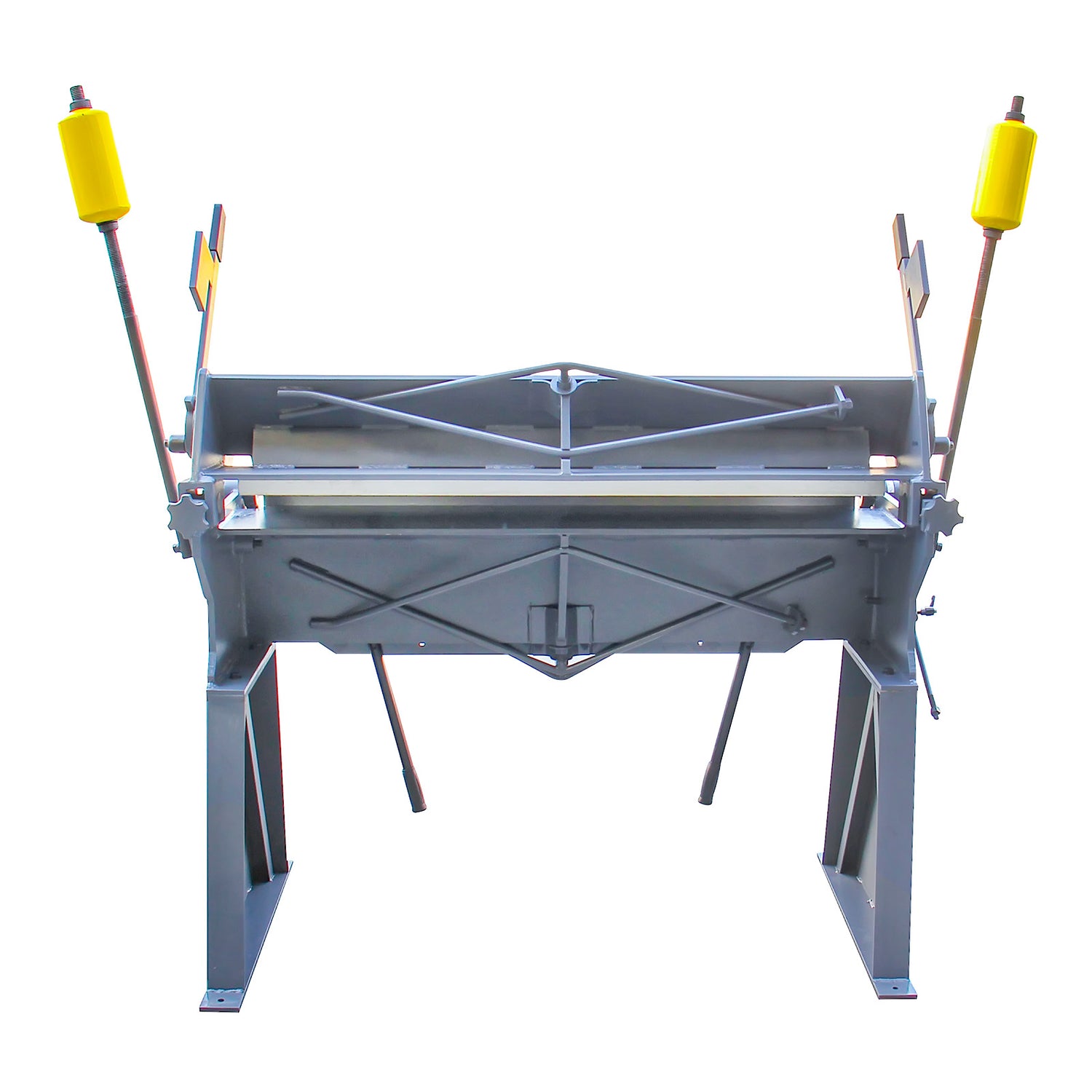

All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability

Both the bed and apron are bored in line to assure the utmost accuracy

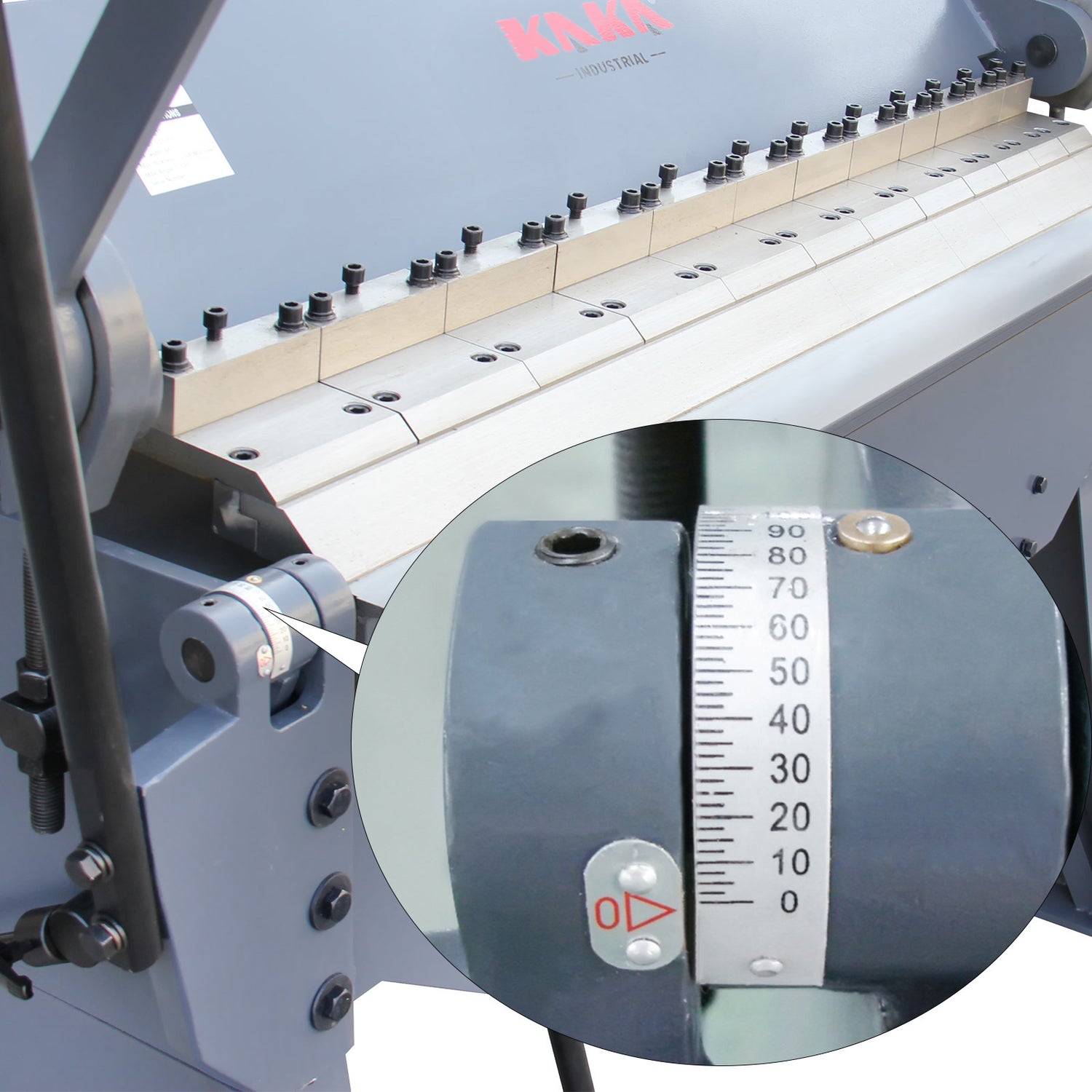

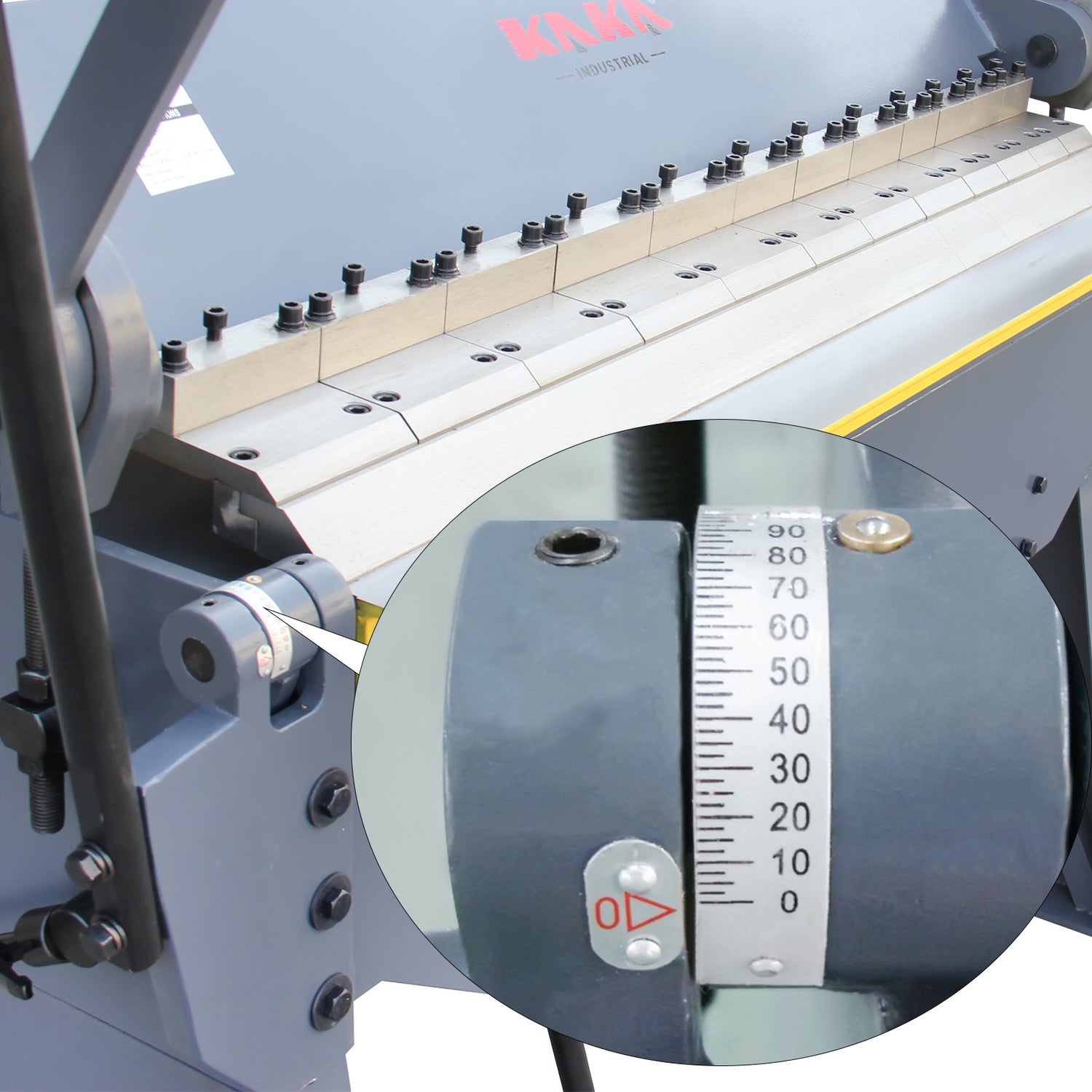

Maximum capacity is 12 gauge (.105") mild steel and angle range 0-135 Degrees

Below is an equivalency chart for use when working with materials other than mild steel:

EQUIVALENCY CHART

Mild steel: .105"

Stainless steel: .060"

SAE 1050 cold-rolled steel .060"

Aluminum .200"

Soft brass .135"

Annealed phosphor bronze .120"

Soft copper .135"

Hard copper .120"

ABS plastic .250"

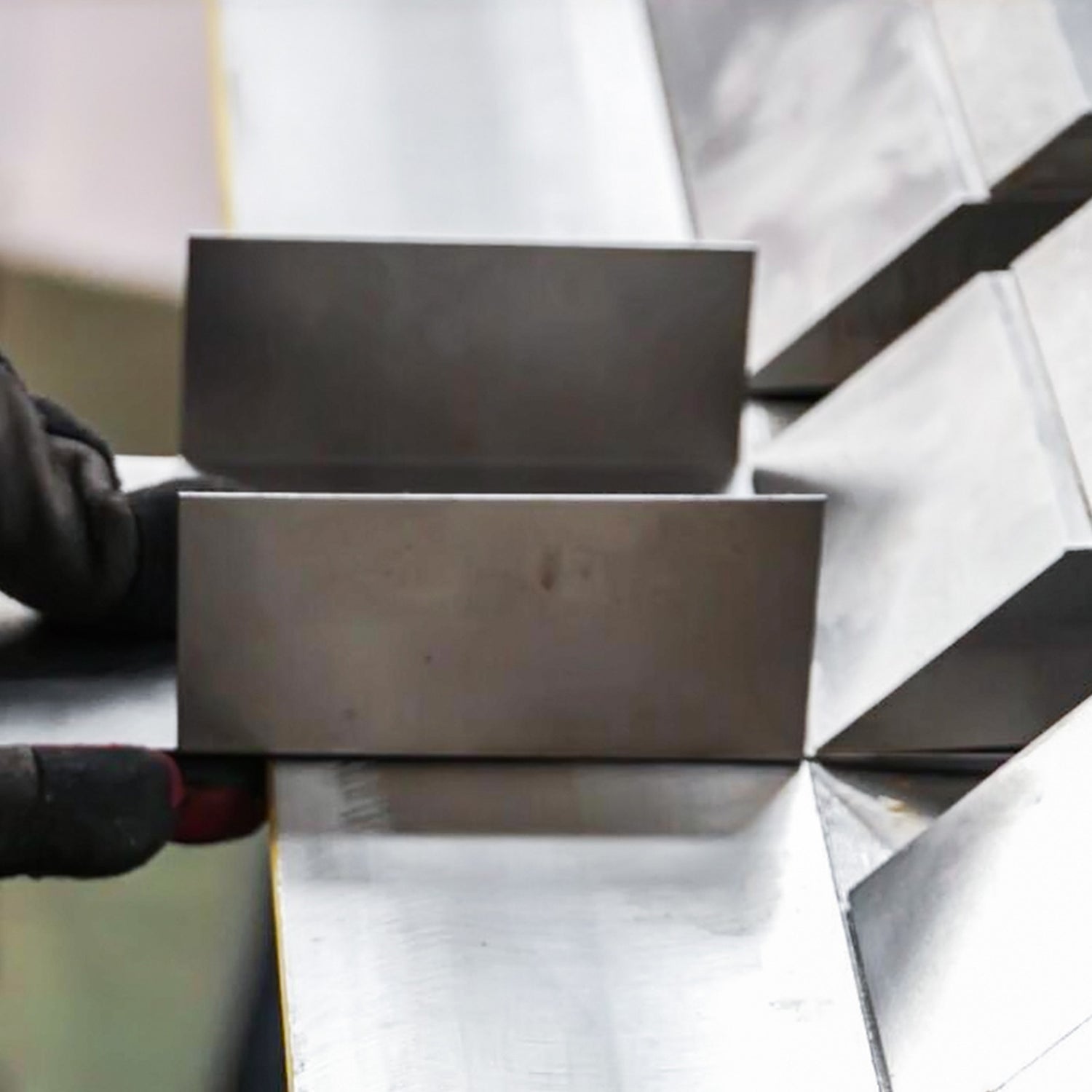

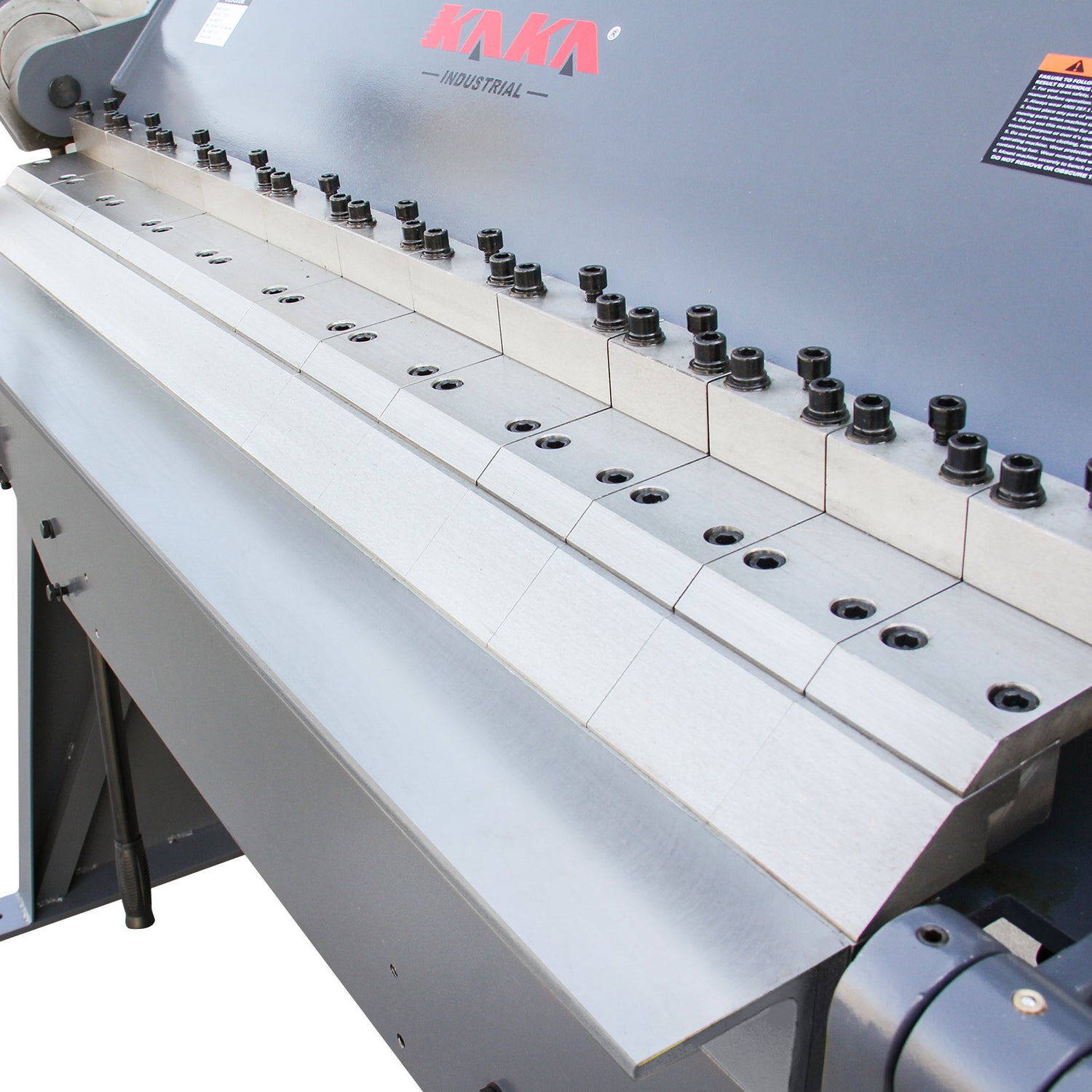

  1. Width segment bending blade for the bending of box section
  2. Various widths segment shiftable setup
  3. With balanced hammer, it can easy to operate and easy for folding

Specification:



Item No.

Model

Capacity(mm)

Packing size(in)

N.W./G.W.(lbs)

Length(in)

Thickness

Angle

173107

W-4812

48

12Ga

0-135°

70X30X36

1146/1270



IMPORTANT NOTICE
Shipping covers only Public Business Address with dock or forklift.
Optional shipping charge:
Following Value Added Service in the transportation is at extra charge. Please contact us before you place order. Thanks.
1. Residential delivery, includes power liftgate service, call before delivery service Extra charge $99
2. Repeat-delivery Extra charge $100
