Features:

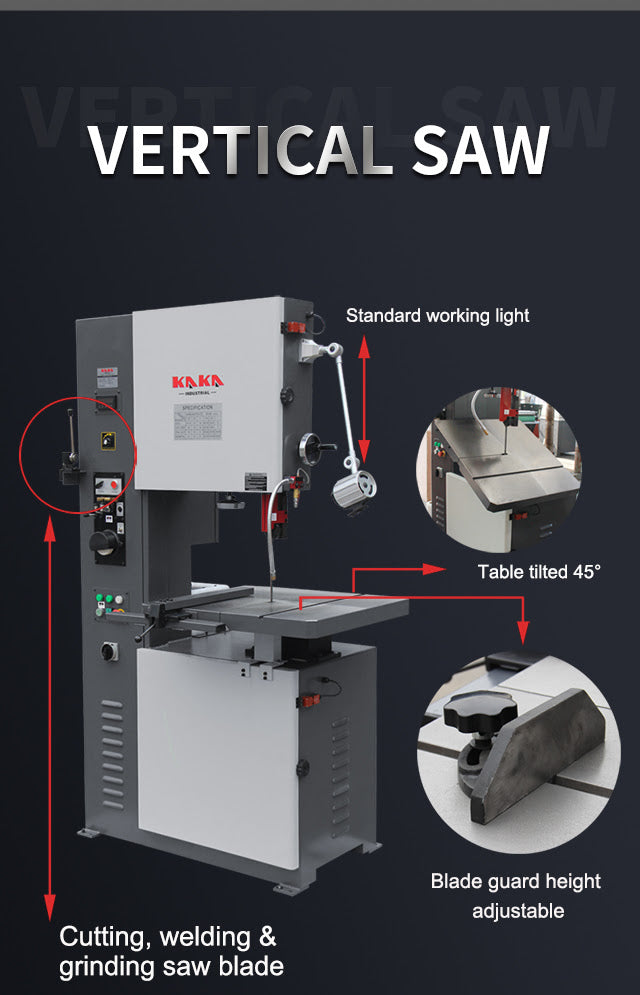

- Table gauge available
- Table tilted 45°
- Blade guard height adjustable
- Standard working light

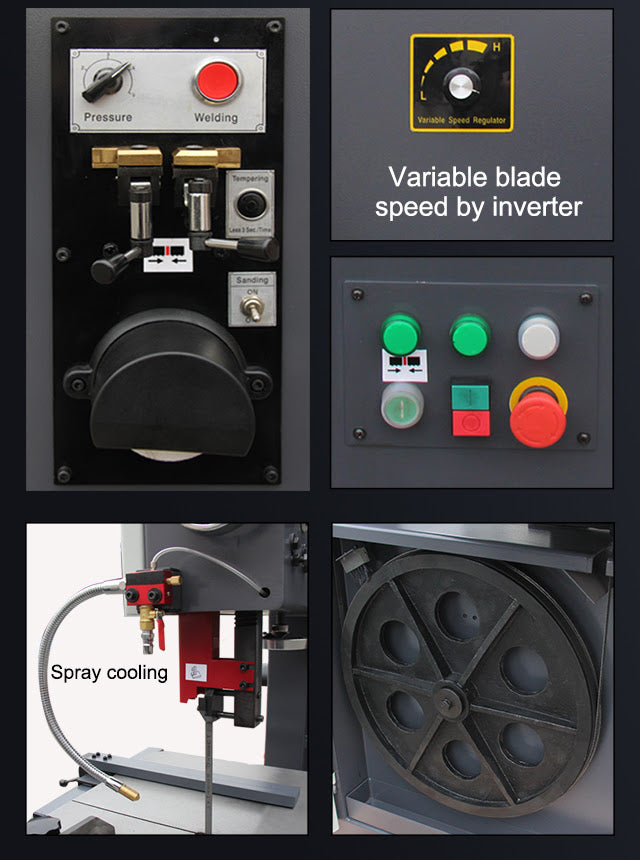

- Variable blade speed by programming inverter
- 3-16 mm blade width can be chosen for VS-500
- Can make various kinds of cutting such as beveling, shaping, contour, slicing etc.
- With variable speed can make various material cutting such as metal, plastic, wood, rubber, etc.
- Servo motor is optional
Specification:
|
Item No. |
188202 |
|
Model |
VS-2012 |
|
Max. cutting capacity height |
310 mm 12.2" |
|
Max. cutting capacity width |
500 mm 19.7" |
|
Table size |
660x700 mm 26"x27.6" |
|
Blade speed @50Hz |
0-1400 rpm |
|
Length of saw blade |
156-159 in |
|
Width of saw blade |
0.1-0.6 in |
|
Table tilt |
R-30°, L-15° |
|
Main motor |
1.5 kW 2PH |
|
Grinder motor |
0.09 kW, 1/8 HP |
|
Electric welder |
2.4 KVA |
|
Packing size |
55x35x86 in |
|
N.W./G.W. |
903/1036 lbs |
Accessories:
Standard accessories:
Blade
Working light
Optional accessories:
Servo motor
