KAKA INDUSTRIAL  |  SKU: 161902V110

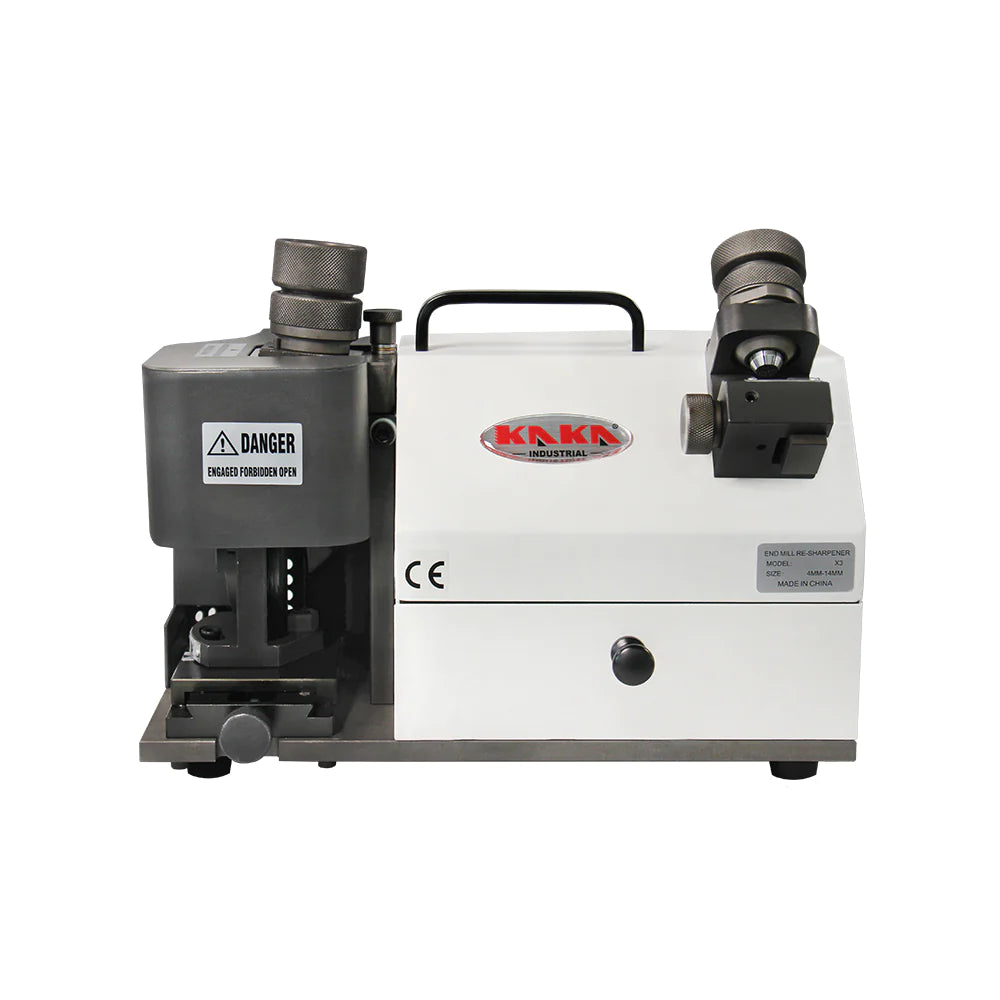

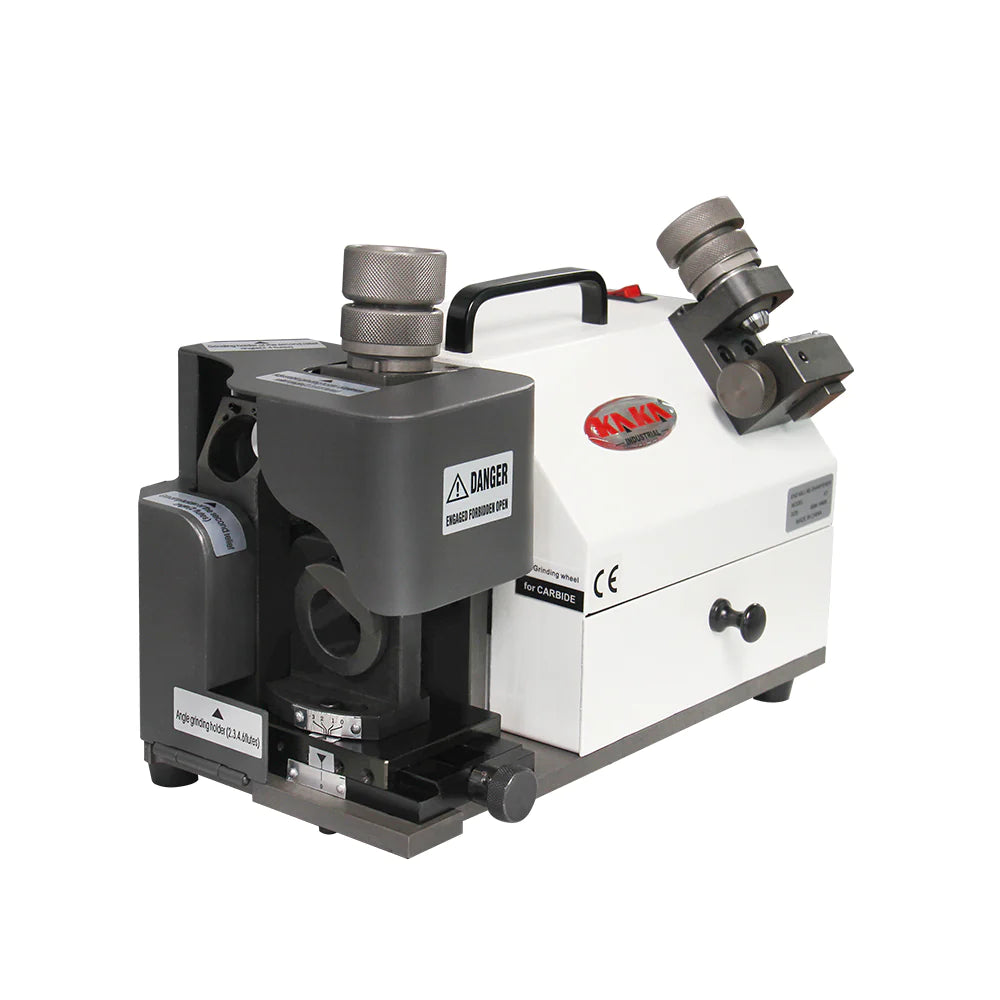

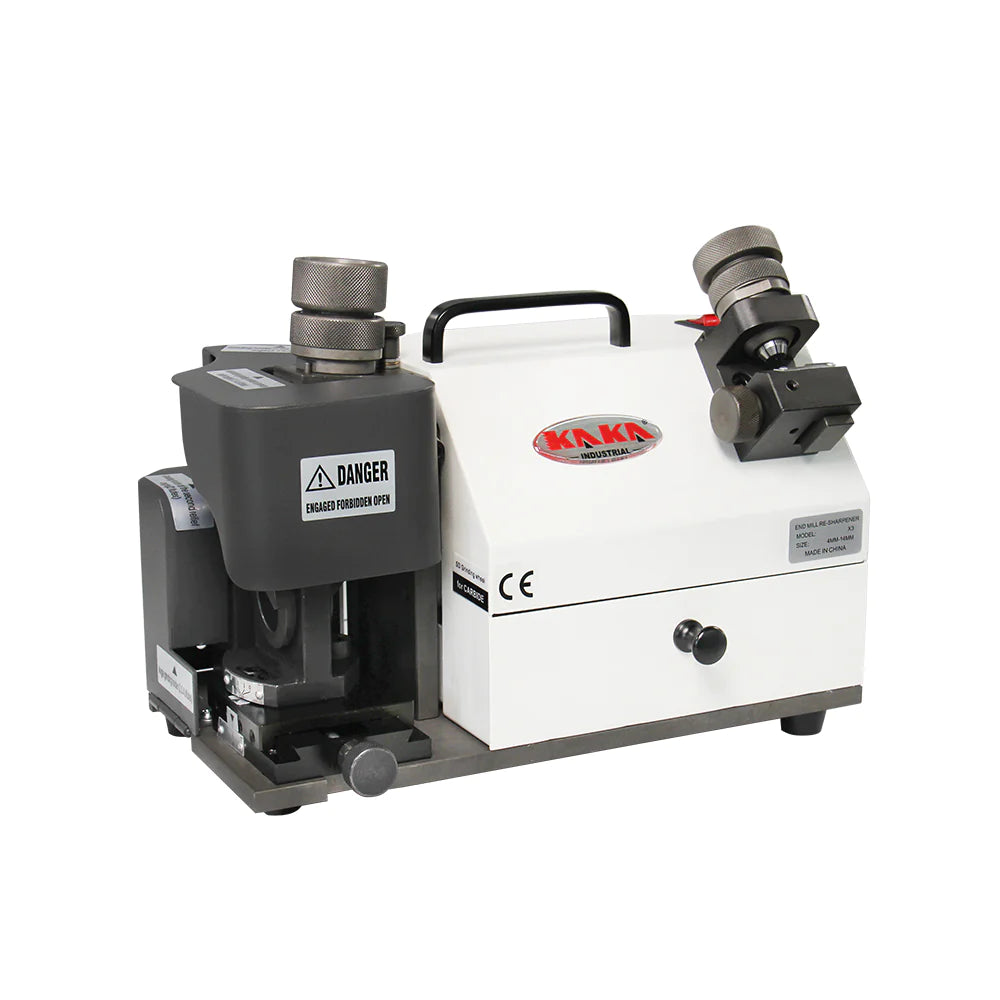

Kaka Industrial TX-X3 Drill Bits 4-14 mm Sharpener and Grinder, 6 Collects End Mill Re-Sharpener,Portable Grinding Sharpening Machine, CNC Router Bit Sharpener with Adjustable Angle (110V-60HZ-1PH)

C$1,149.99
Shipping calculated at checkout.

Kaka Industrial TX-X3 Drill Bits 4-14 mm Sharpener and Grinder, 6 Collects End Mill Re-Sharpener,Portable Grinding Sharpening Machine, CNC Router Bit Sharpener with Adjustable Angle (110V-60HZ-1PH) is backordered and will ship as soon as it is back in stock.

Care information

Delivery and Shipping

Payment & Security

Payment methods

  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

▲PRODUCT INSTRUCTION

  1. Portable idiot end mill sharpener can grind 2-flute, 3-flute, 4-flute end mill.
  2. Grinding is accurate and rapid, easy operation with no skill to grind.
  3. It can be equipped direy with an accurate angle and long service life.

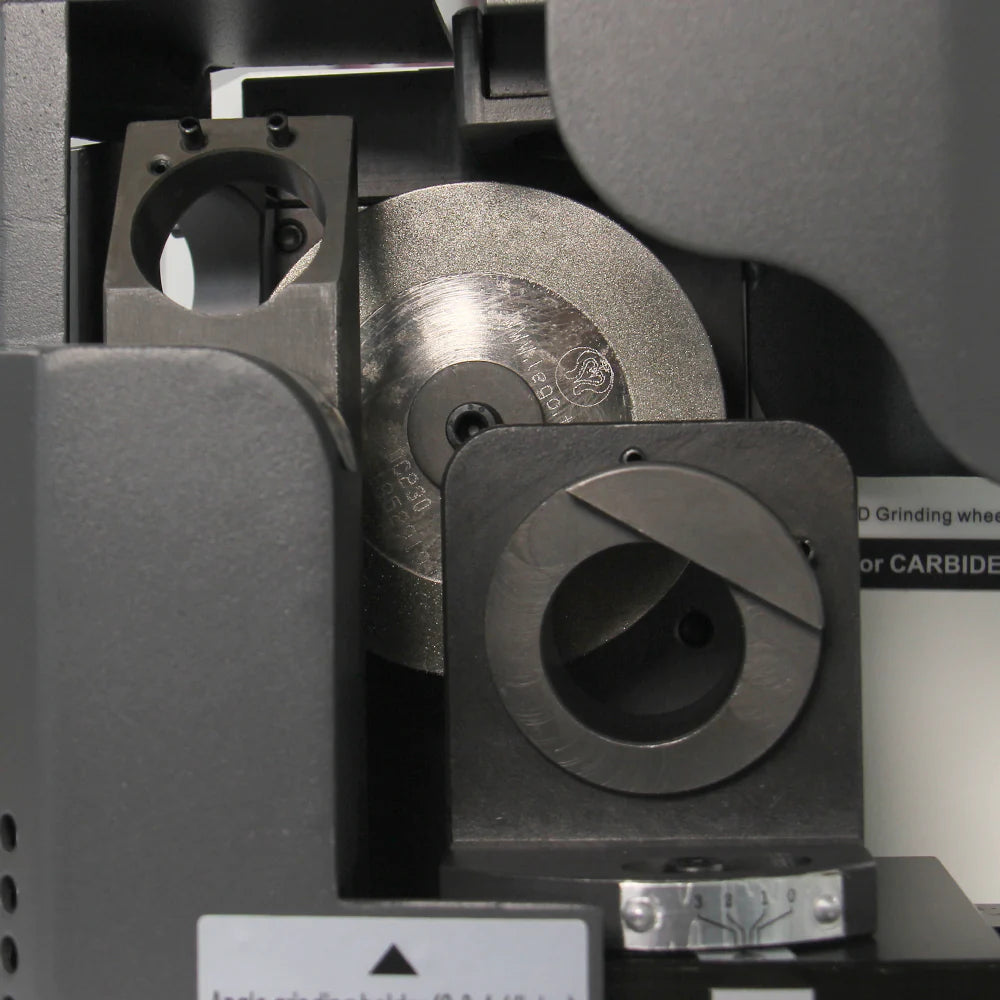

Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.

STANDARD EQUIPMENT

Standard Acessories:

 Hexagon wrench: 4 pcs (3mm, 4mm, 5mm, 6mm)

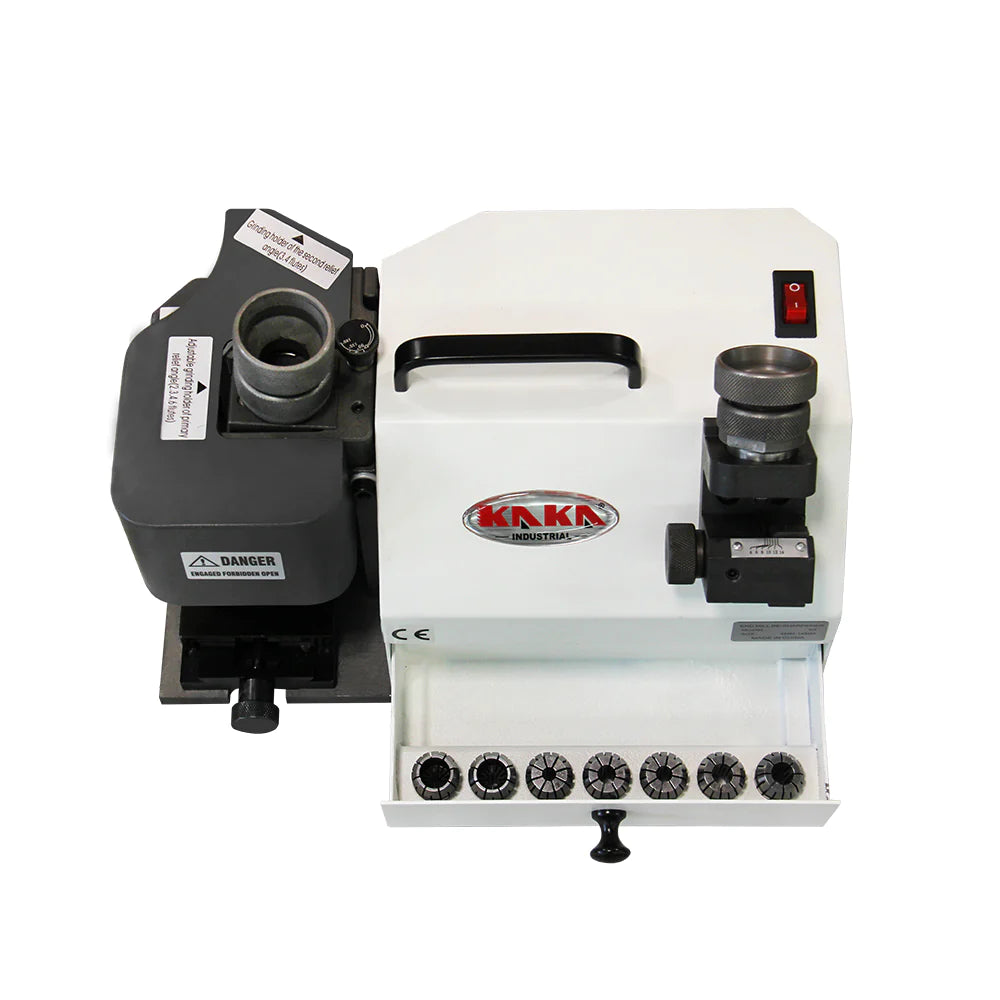

 Collet: 6 pcs (ф4, ф6, ф8, ф10, ф12,ф14)

 Standard grinding wheel: SDC × 1 (for carbide)

Model:

TX-X3

Diameter:

Φ4-Φ14mm

Power:

110V - 60HZ

Speed:

4400rpm

Point angle:

0°-5°

Dimension:

14X10X10 IN

Weight:

31LB

Standard Equipment:

Grinding wheel :SDC (for carbide)×1

Six collets:  Φ4, Φ6, Φ8, Φ10, Φ12, Φ14

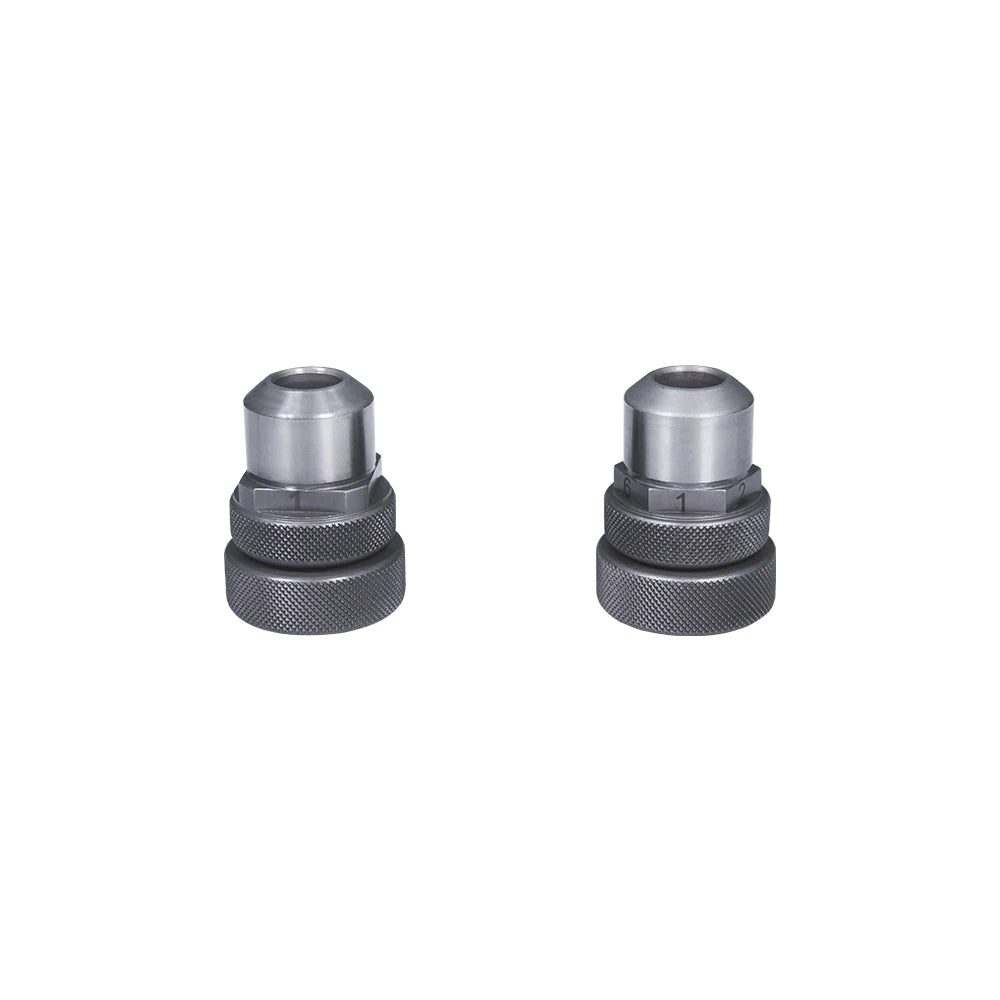

Two collet chucks

2,4flutes*1piece

3,6flutes*1piece

Optional Equipment:

Grinding wheel  : CBN (for HSS)


End Mill Sharpener Parameter

Two -flute, three-flute,four-flute grinding sample

End Mill Sharpener

Details:

More than10 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATION

Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results.

TX-X3 End Mill Sharpener

SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.

TX-X3 End Mill Sharpener

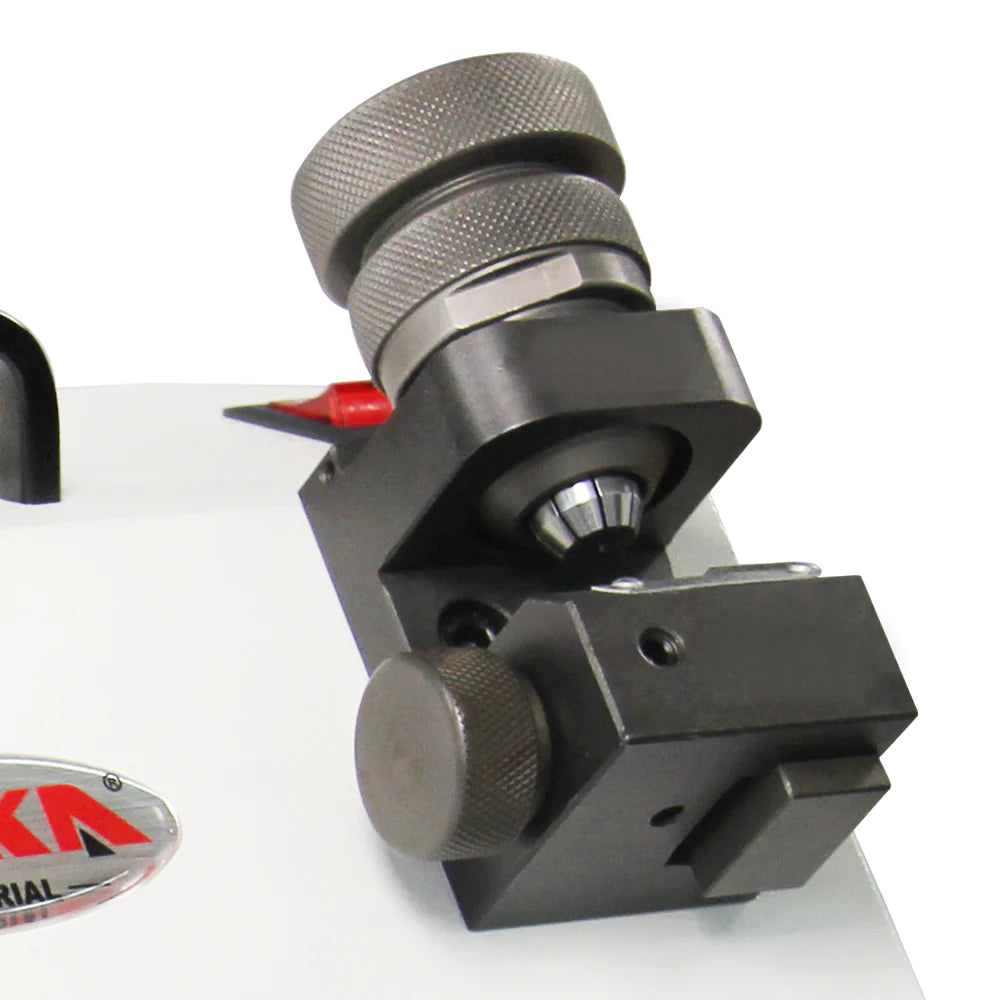

Change the front location to the side location, it can observe the location easier, improve the accuracy of tool setting, and make tool setting more stable and fast, which is essential for accurate grinding

TX-X3 End Mill Sharpener

The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life



1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
KAKA INDUSTRIAL

Kaka Industrial TX-X3 Drill Bits 4-14 mm Sharpener and Grinder, 6 Collects End Mill Re-Sharpener,Portable Grinding Sharpening Machine, CNC Router Bit Sharpener with Adjustable Angle (110V-60HZ-1PH)

C$1,149.99
Description

▲PRODUCT INSTRUCTION

  1. Portable idiot end mill sharpener can grind 2-flute, 3-flute, 4-flute end mill.
  2. Grinding is accurate and rapid, easy operation with no skill to grind.
  3. It can be equipped direy with an accurate angle and long service life.

Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.

STANDARD EQUIPMENT

Standard Acessories:

 Hexagon wrench: 4 pcs (3mm, 4mm, 5mm, 6mm)

 Collet: 6 pcs (ф4, ф6, ф8, ф10, ф12,ф14)

 Standard grinding wheel: SDC × 1 (for carbide)

Model:

TX-X3

Diameter:

Φ4-Φ14mm

Power:

110V - 60HZ

Speed:

4400rpm

Point angle:

0°-5°

Dimension:

14X10X10 IN

Weight:

31LB

Standard Equipment:

Grinding wheel :SDC (for carbide)×1

Six collets:  Φ4, Φ6, Φ8, Φ10, Φ12, Φ14

Two collet chucks

2,4flutes*1piece

3,6flutes*1piece

Optional Equipment:

Grinding wheel  : CBN (for HSS)


End Mill Sharpener Parameter

Two -flute, three-flute,four-flute grinding sample

End Mill Sharpener

Details:

More than10 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATION

Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results.

TX-X3 End Mill Sharpener

SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.

TX-X3 End Mill Sharpener

Change the front location to the side location, it can observe the location easier, improve the accuracy of tool setting, and make tool setting more stable and fast, which is essential for accurate grinding

TX-X3 End Mill Sharpener

The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life
