Our machines do not ship with oil. Please fill the machine with the appropriate hydraulic oil listed in the operation manual. DO NOT OPERATE THE MACHINE WITHOUT OIL OR YOU WILL VOID THE WARRANTY.
Features:
- Mobile 24V foot pedal switch

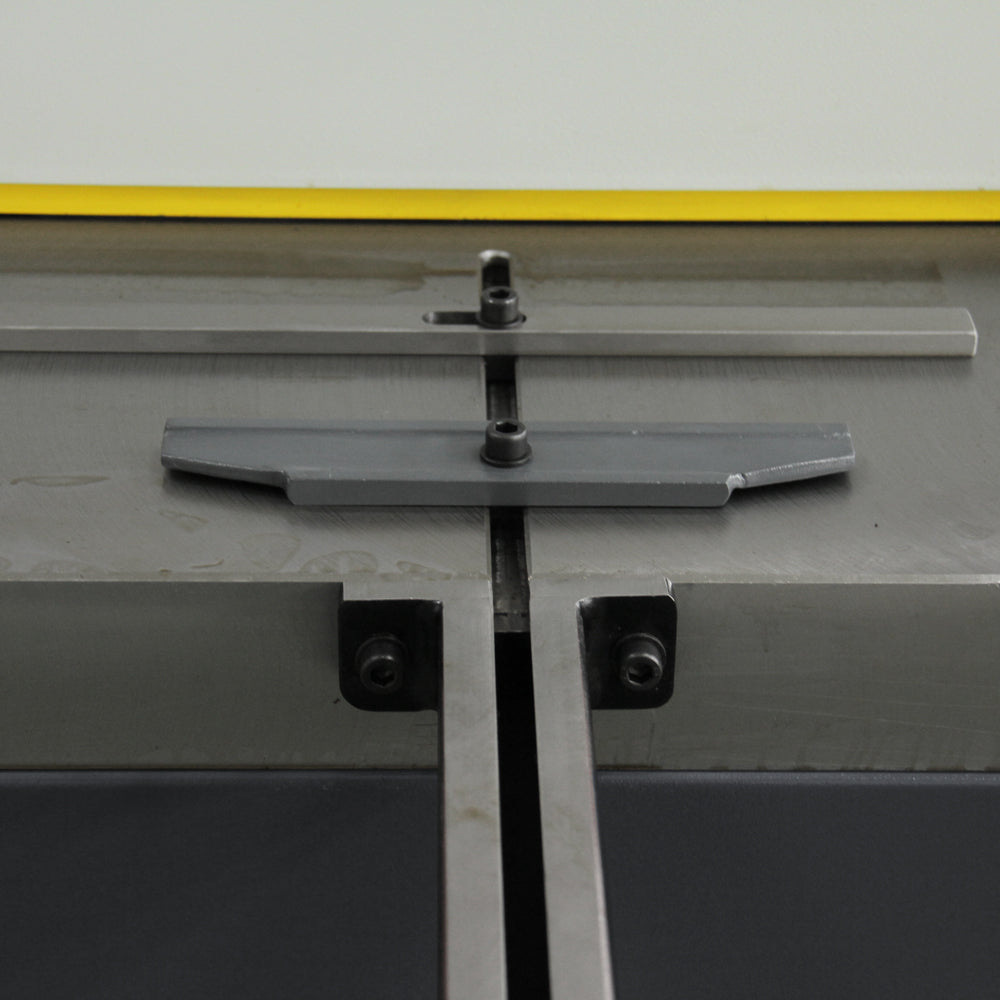

- Front and back gauges is available to give fine adjustment
- With high chromium blades,two sides shearing provides twice the cutting life

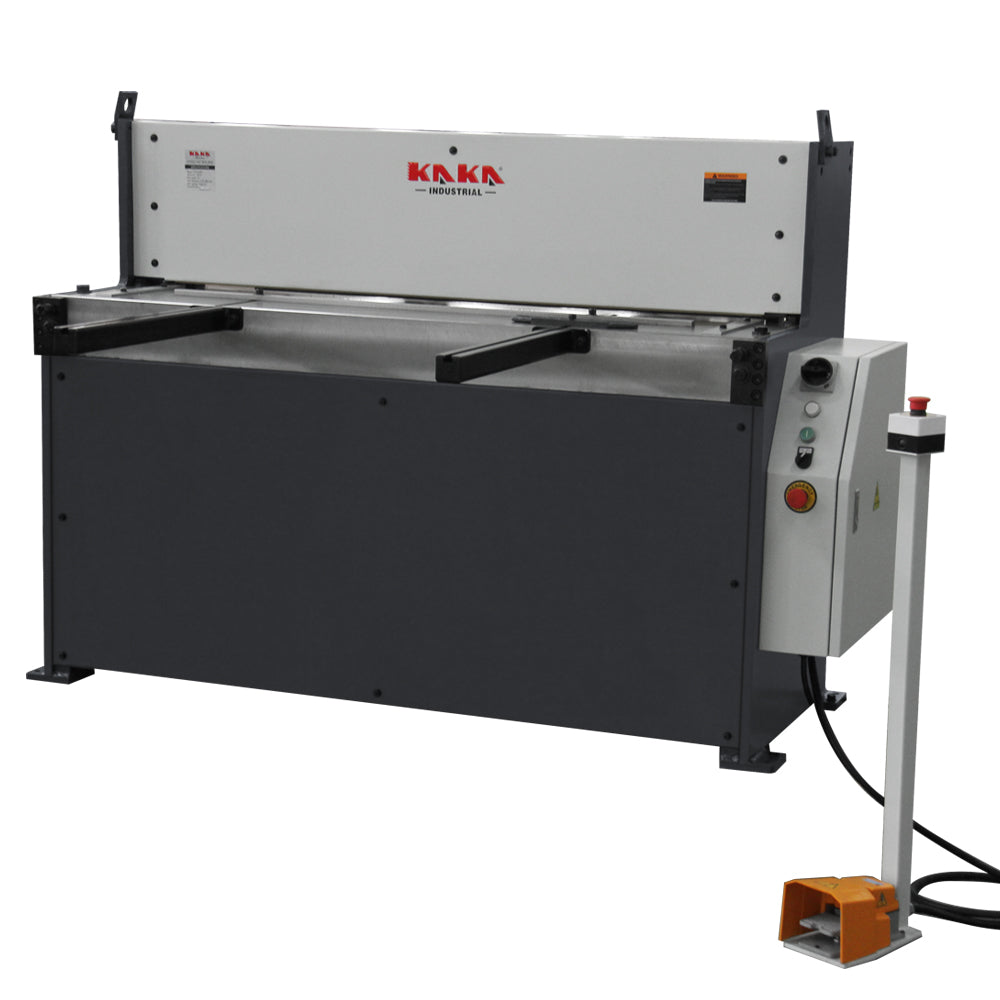

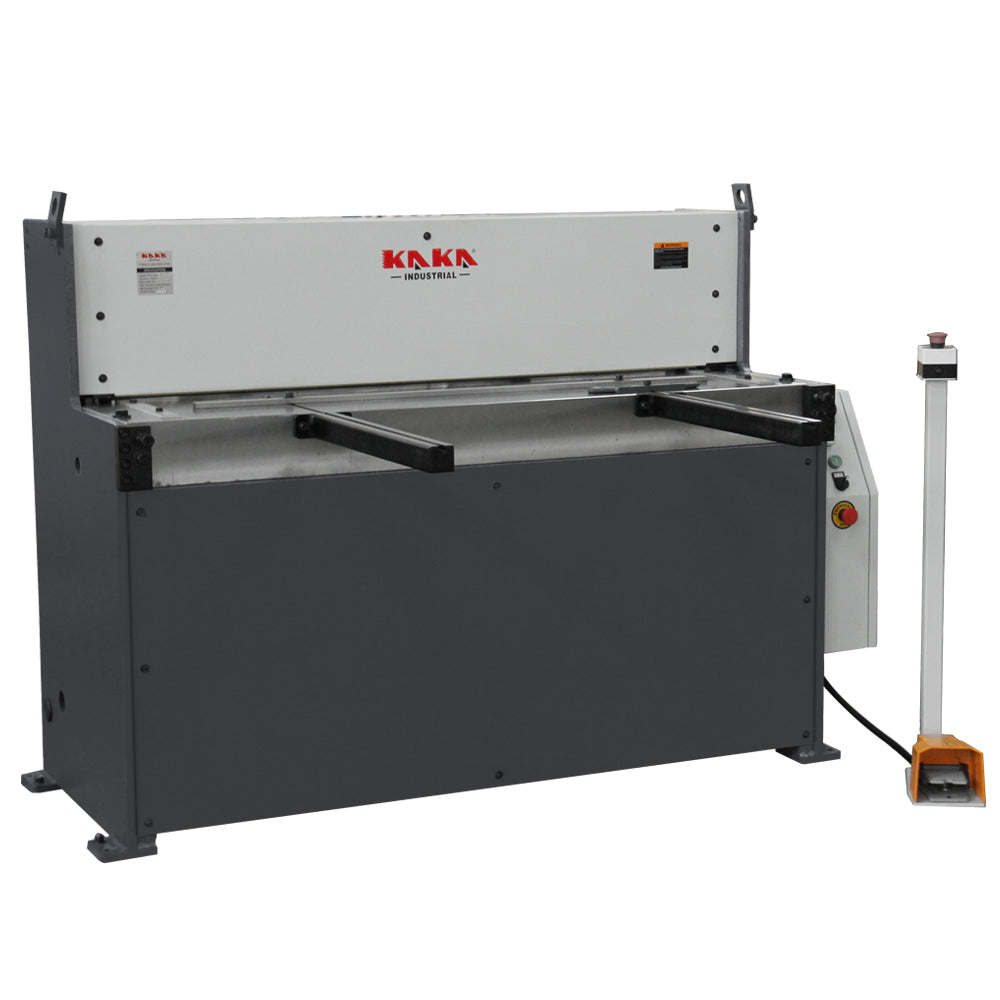

- The steel-welded hydraulic shearing machines are ideals equipment for precision shearing of mild steel
- 230V/460V-60HZ/3PH,prewired 230V
- Heavy-duty steel construction eliminates deflection across the blade span

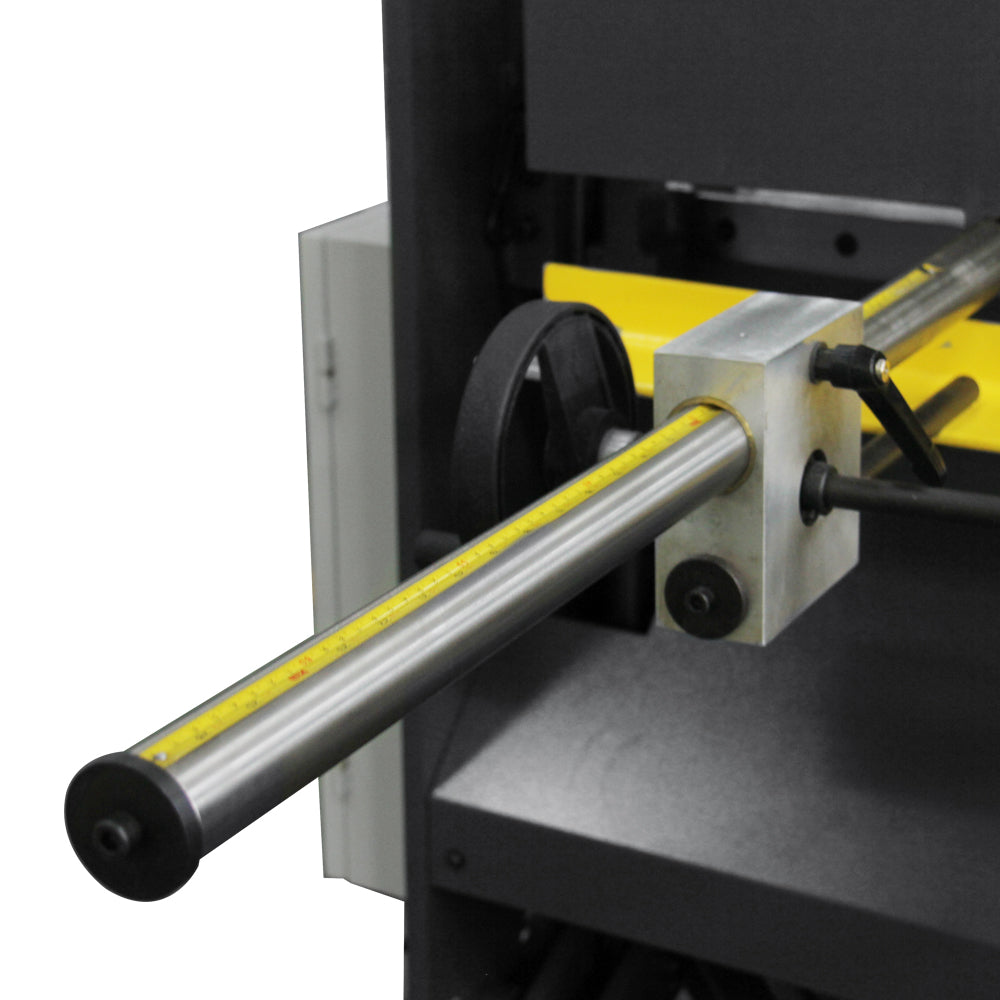

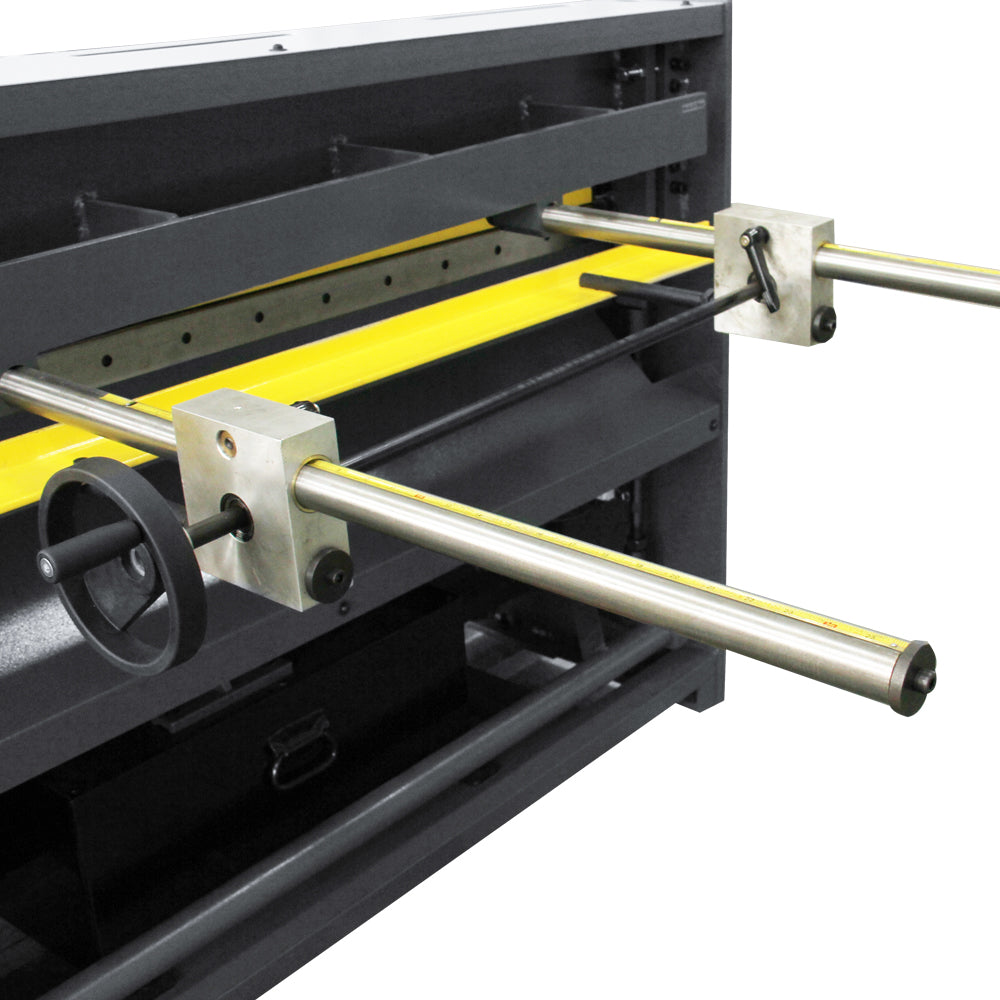

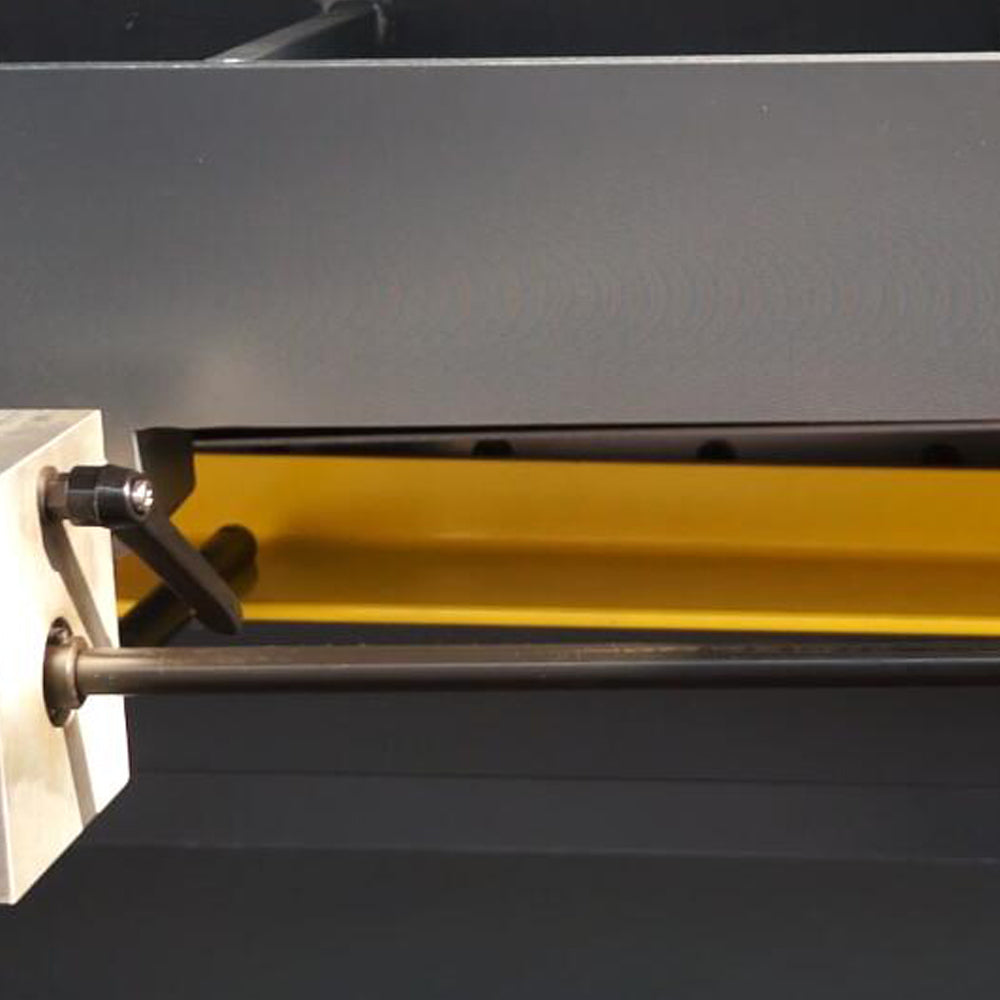

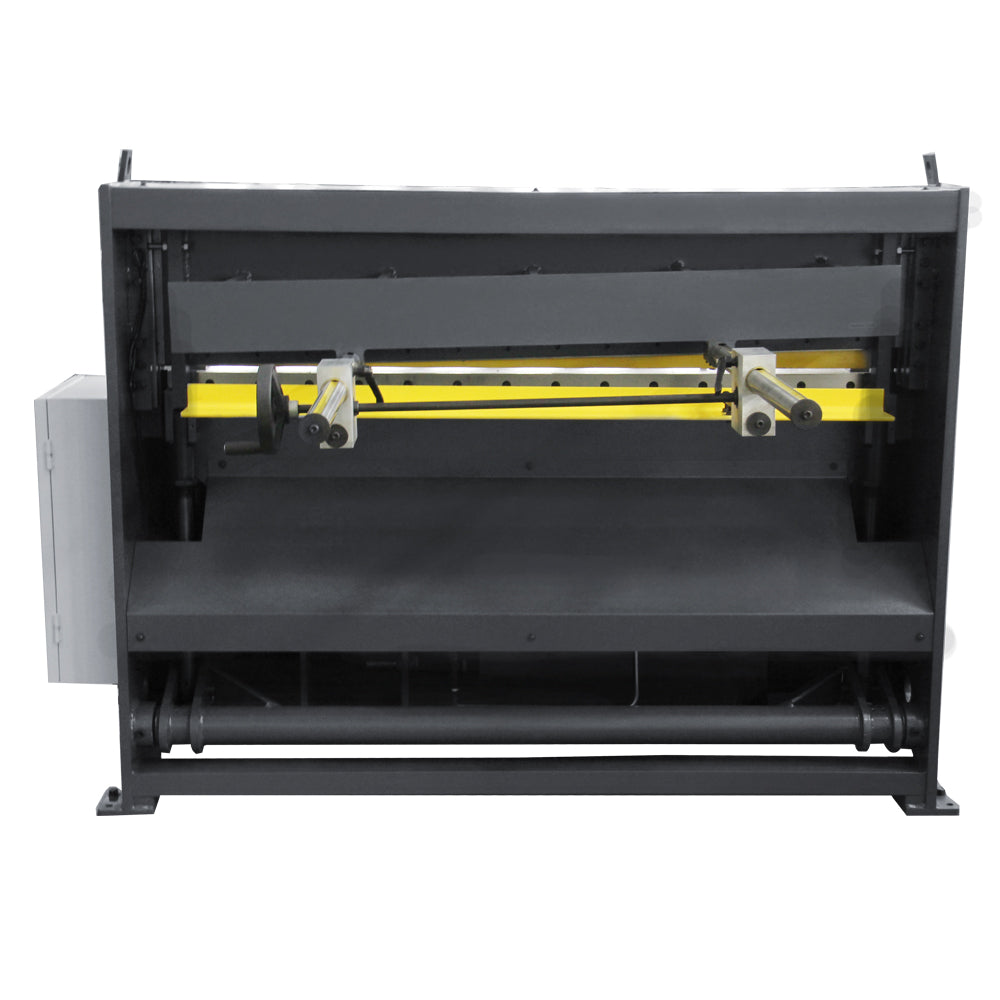

- Hand-wheel controlled back gauge for quick and easy depth adjustments
- Easy to use satellite foot controls with emergency stop button
- Precise bed and beam accuracy assures working accuracy
- Low cutting angle to cut narrow strips without twisting
Specification:
- Item No.:186231

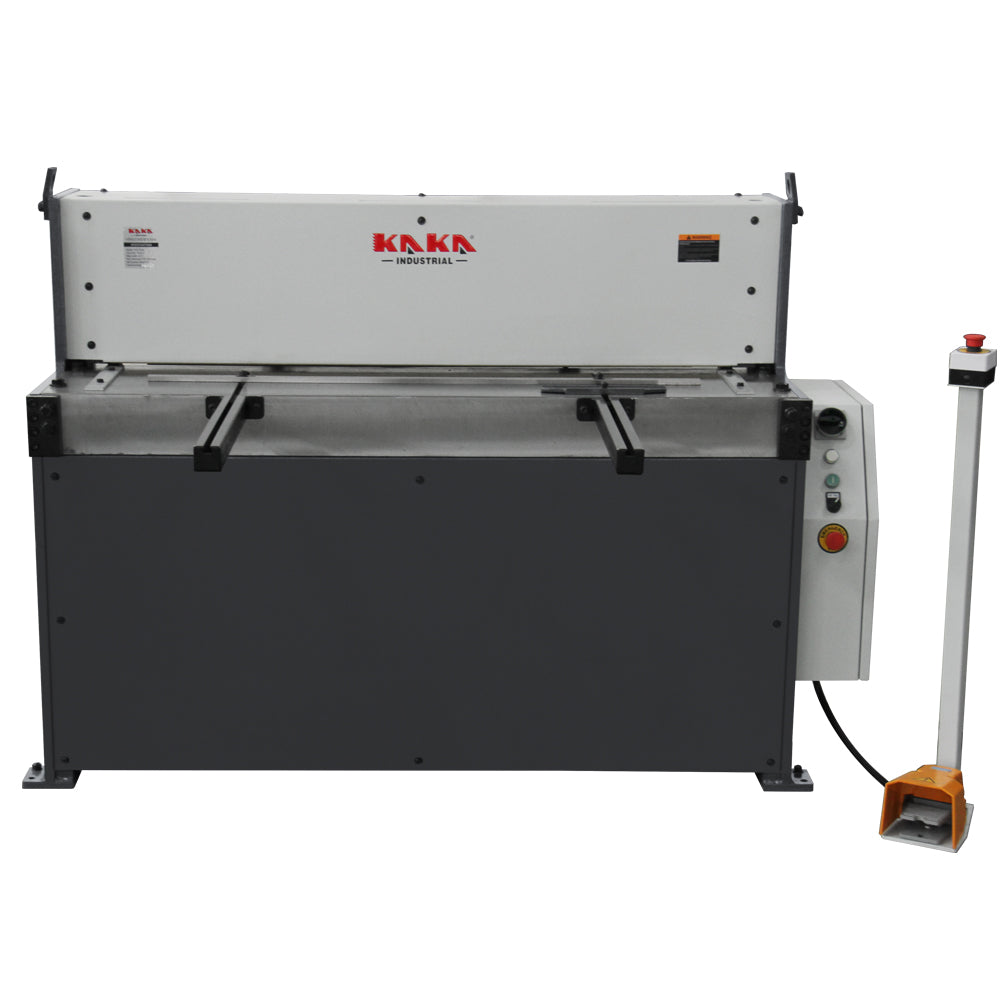

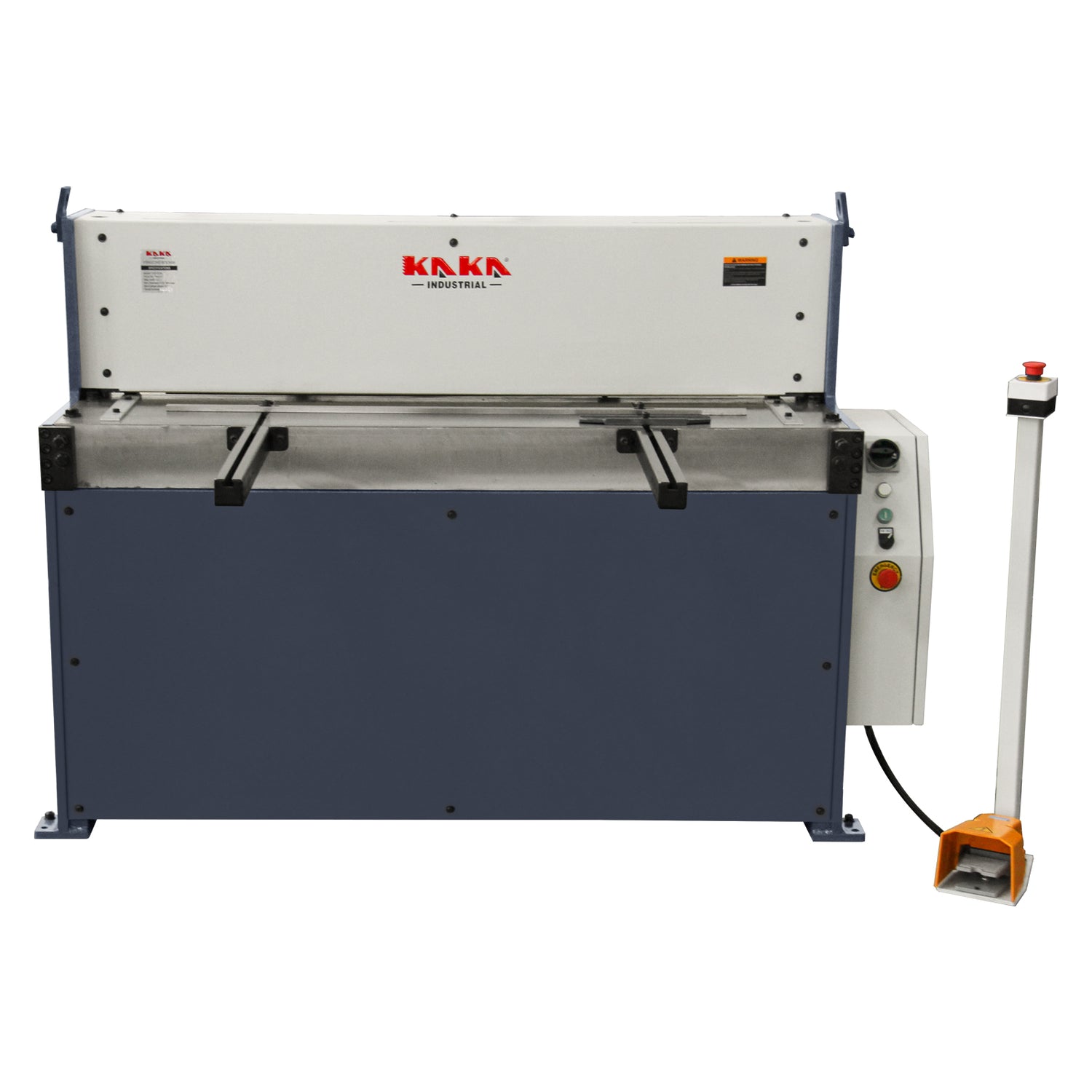

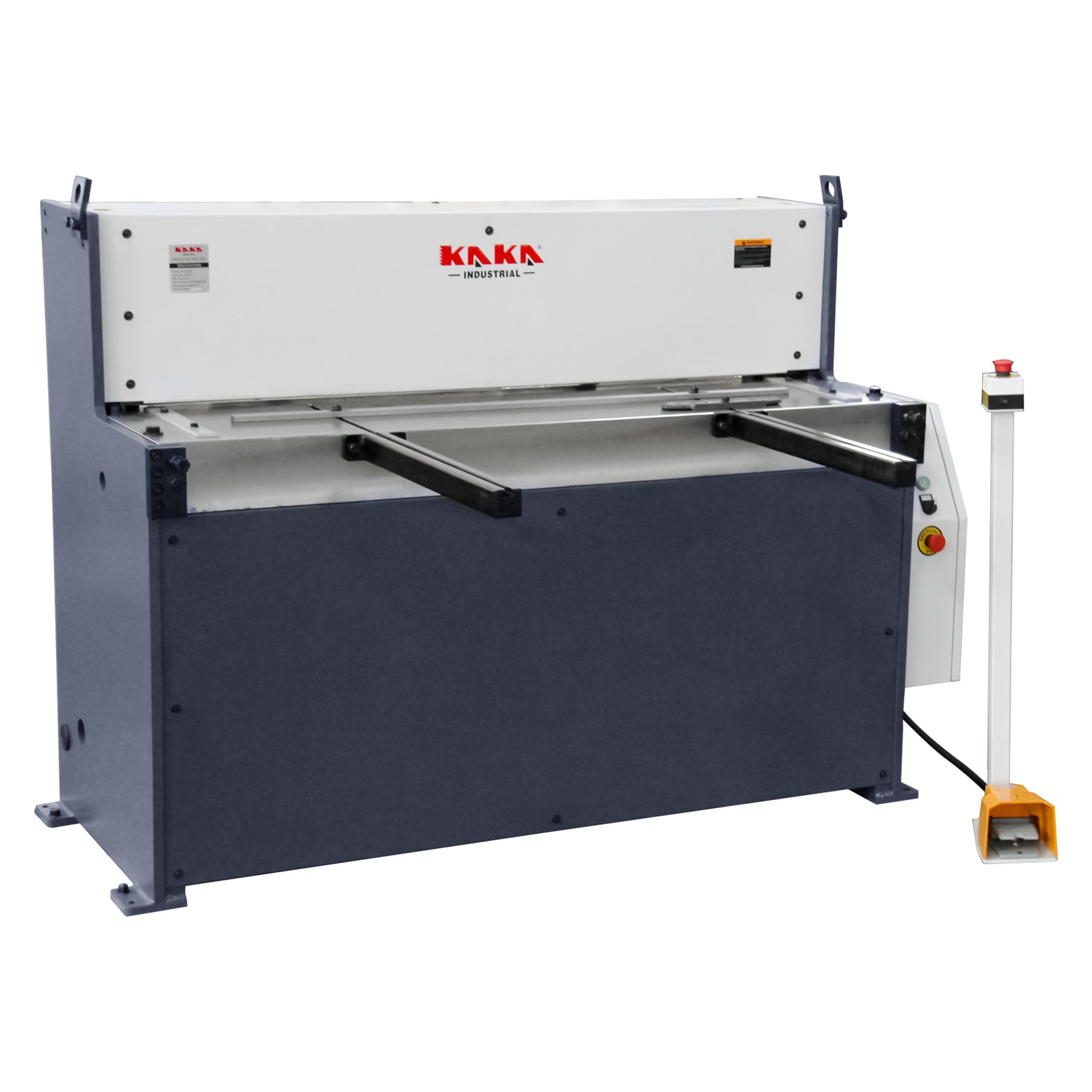

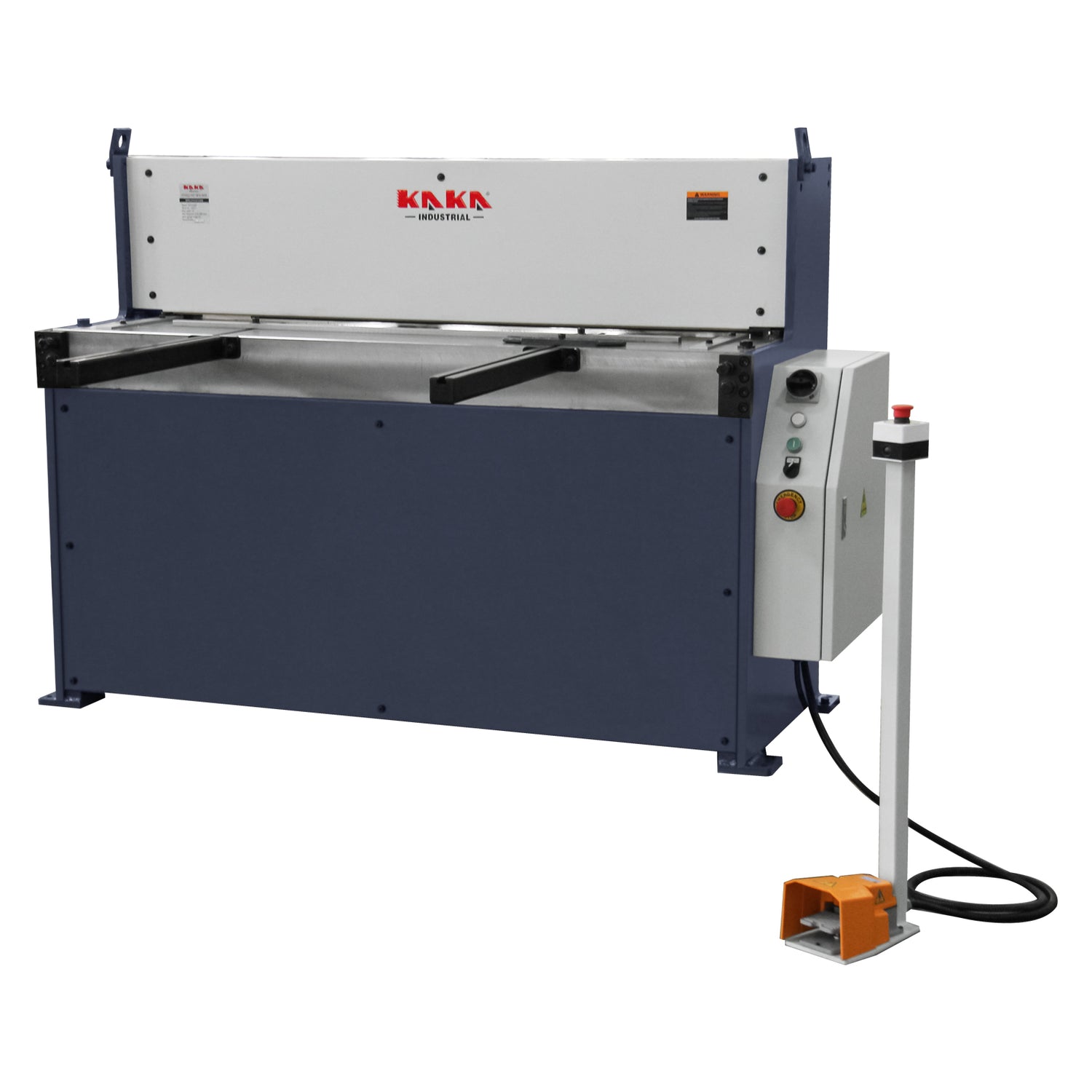

- Model:THS-5208
- Max. shearing thickness:4mm 8Ga
- Max. shearing width:1320mm 52”
- Back gauge:650mm 25”
- Front gauge:600mm 23"
- No. of stroke(per minute) :20
- Motor power:4KW 3HP
- N.W./G.W.:2794/2992lb
- Packing size(in):79x40x63
