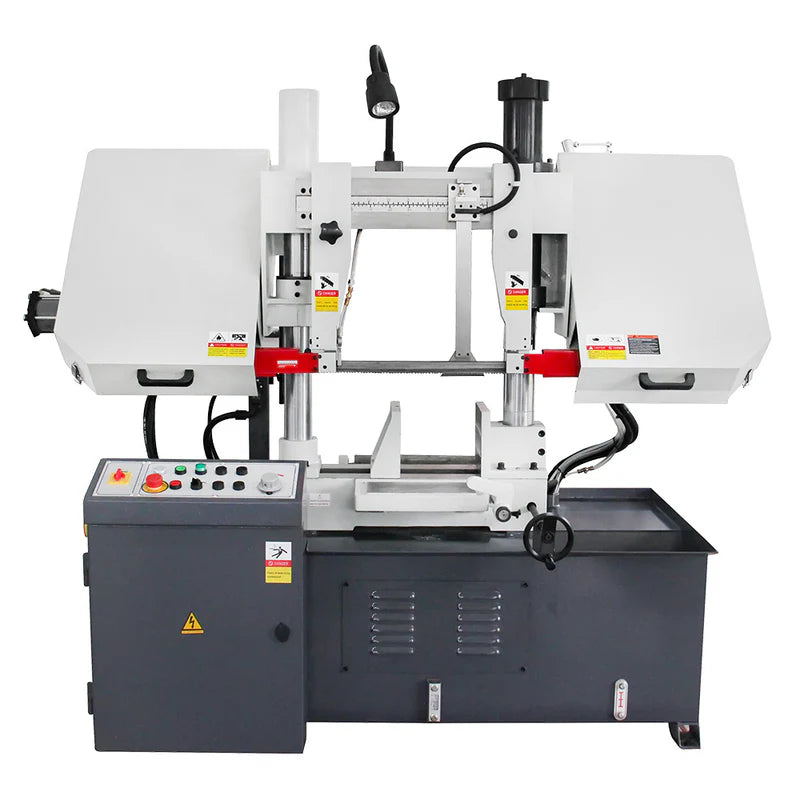

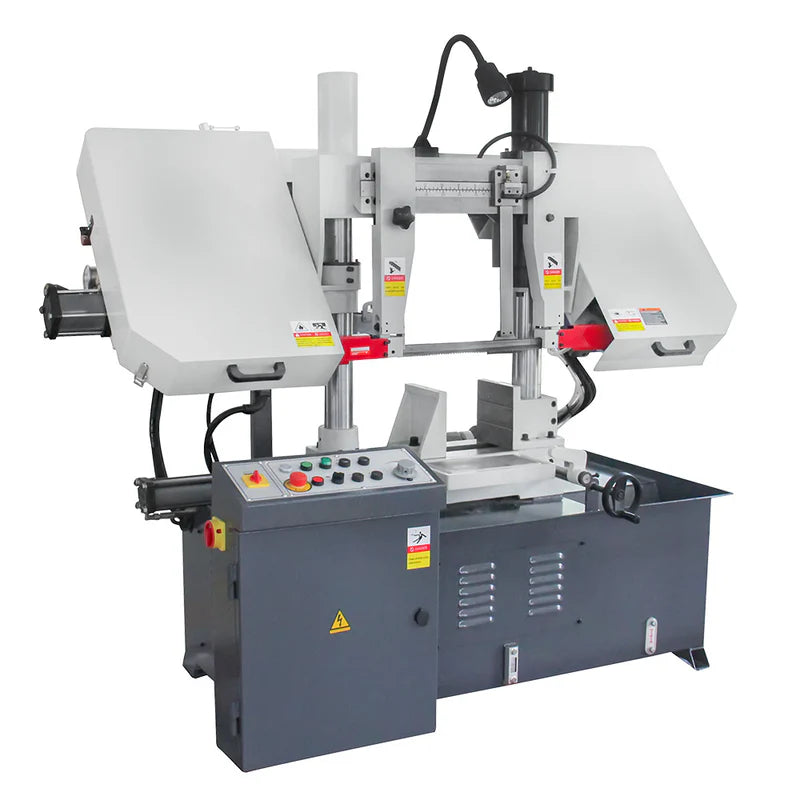

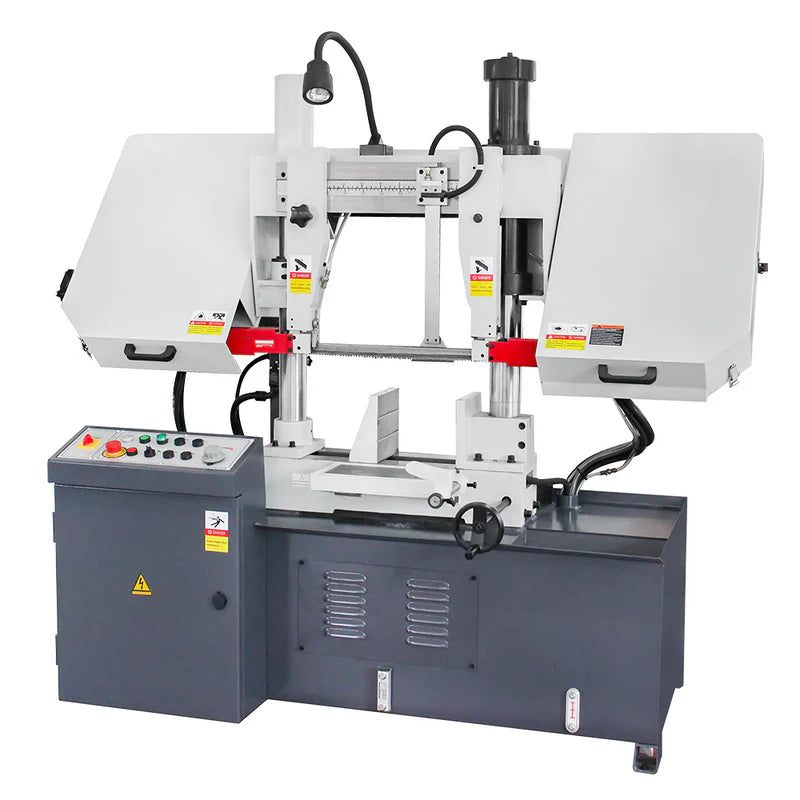

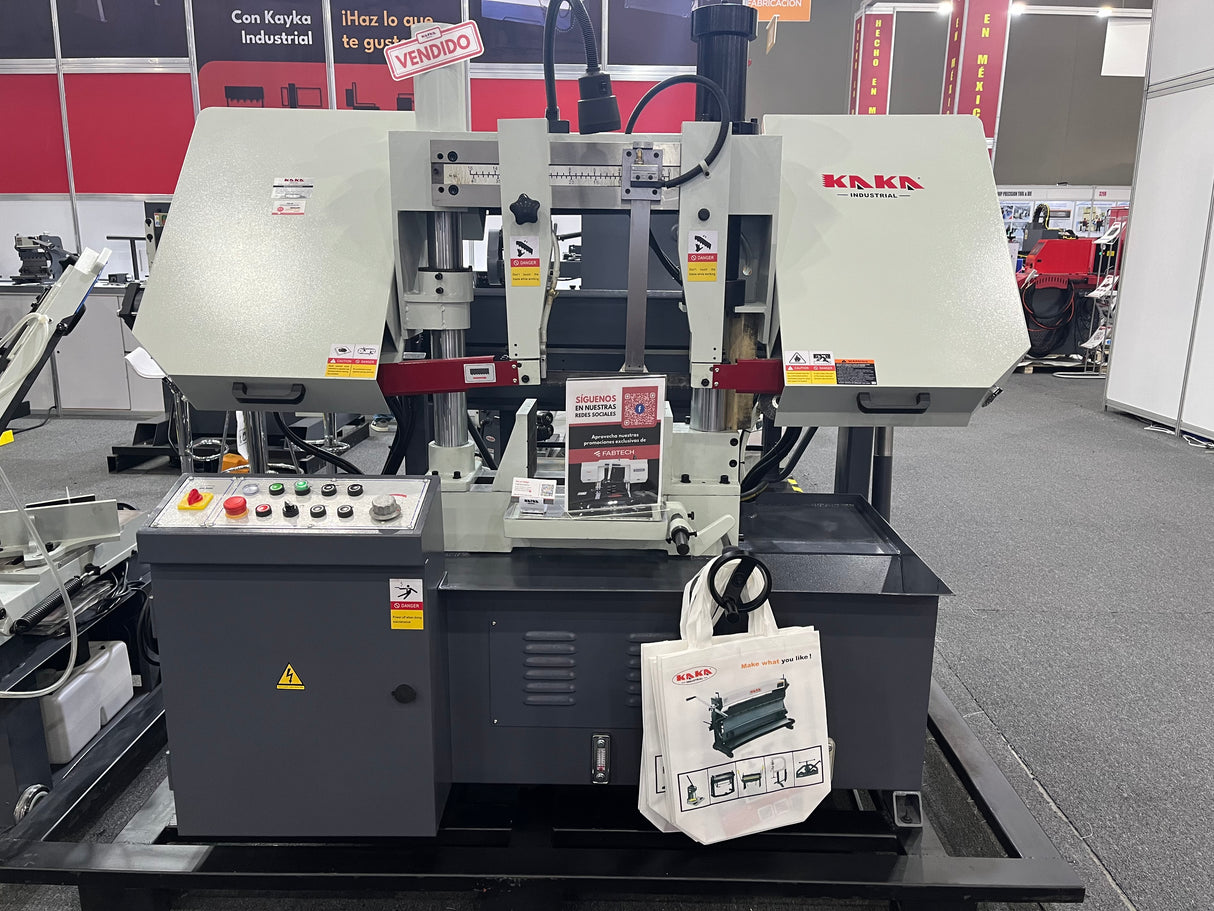

Kaka Industrial TGK-14 Double Column Horizontal Band Saw
230V | 60Hz | 3-Phase
💪 Powerful Cutting Performance

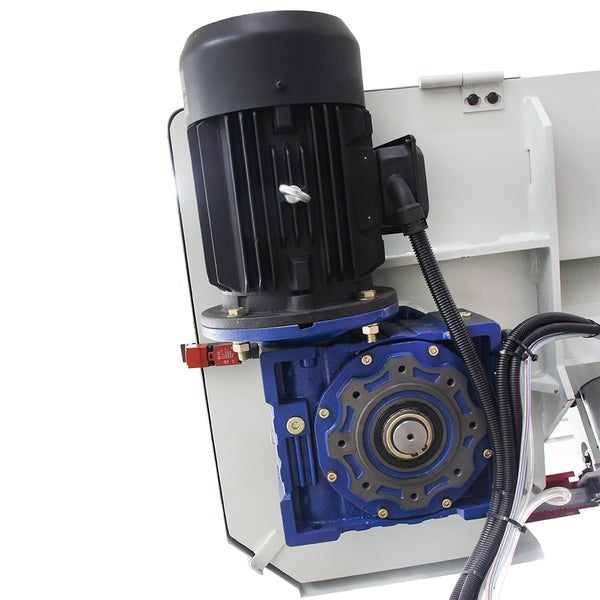

Engineered for industrial applications, the TGK-14 features a double-column structure for maximum cutting stability and accuracy. It’s powered by a 2.2/2.8 kW dual-speed motor with a durable gear drive system, offering two blade speeds (45 and 69 m/min) to accommodate a wide range of materials:
-
Ferrous and Non-Ferrous Metals (Steel, Aluminum, etc.)
-
Plastics and Composites
-
Wood, Rubber, and Foam
-
Ceramics and Glass
⚙️ Flexible & Versatile Operation
Designed for professional-grade performance in demanding environments, the TGK-14 includes:
-
Double-Column Design with Vertical Lifting
Delivers outstanding rigidity and precise alignment for consistent results. -
Two-Speed Blade Control
Optimize cutting speed for different material types and thicknesses. -

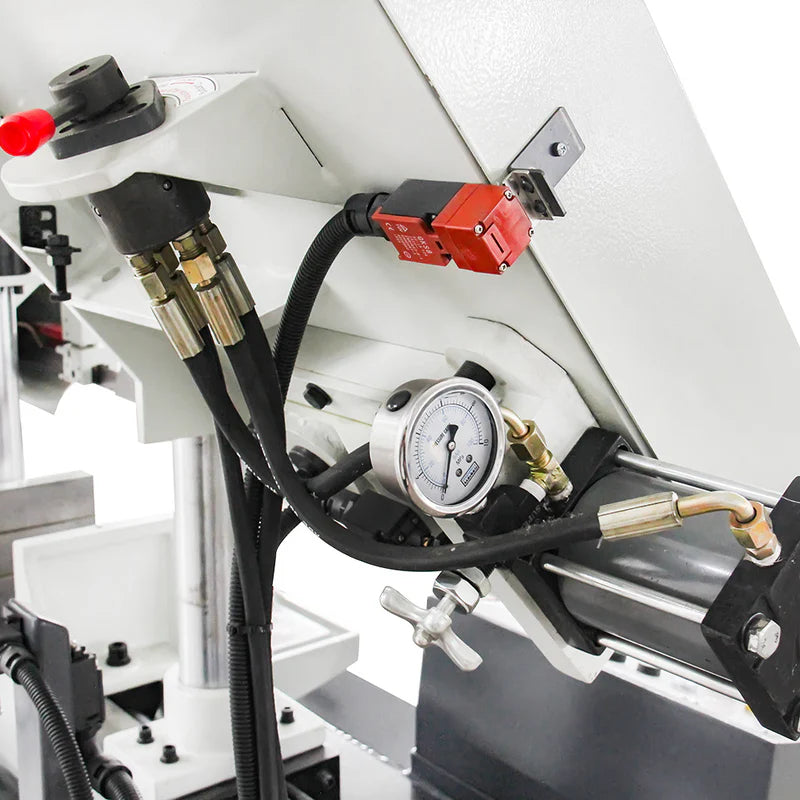

Hydraulic Blade Feed Control
Ensures smooth, uniform feed pressure for clean cuts and extended blade life. -
Built-In Coolant System
Effectively manages heat to protect both the blade and the material.
🛡️ Enhanced Safety Features
Safety is built into every detail:
-

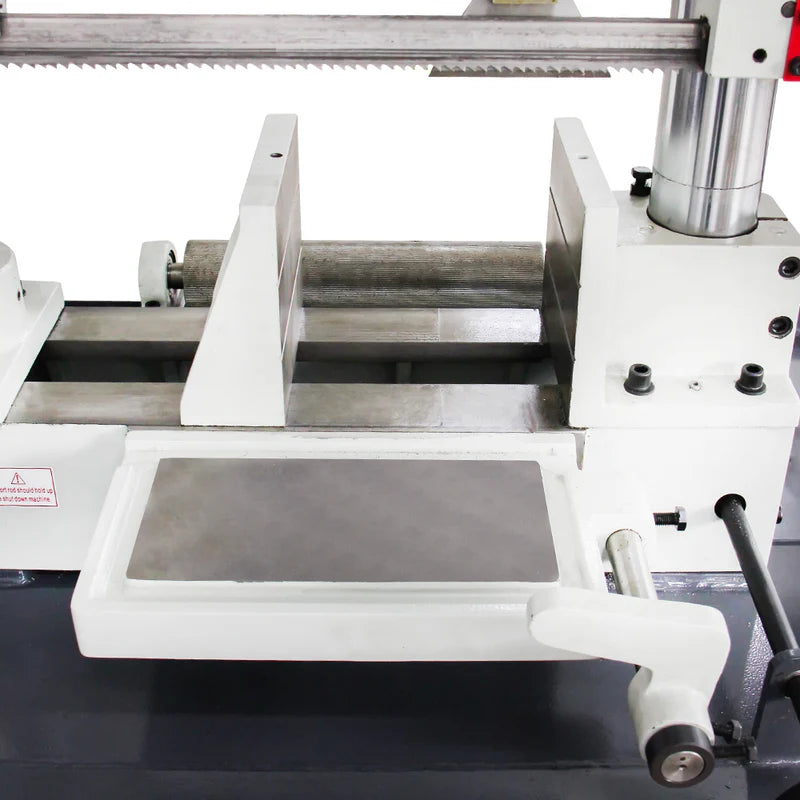

Hydraulic Clamping System
Holds workpieces securely for vibration-free cutting. -
Automatic Shut-Off
Provides safe operation and energy efficiency. -
Heat-Treated High-Carbon Steel Blade
Long-lasting and tough enough for heavy-duty use. -
Full Belt & Blade Guards + Durable Brass Fittings
Protect operators while ensuring long-term machine durability.
🧰 Wide Range of Applications
The TGK-14 is a reliable solution for diverse cutting tasks in:
-
Metalworking and Fabrication Shops
-
Maintenance and Repair Facilities
-
Technical Schools and Training Programs
-
Advanced DIY and Hobbyist Workspaces
Specification:
|
Item No.
|
188302
|
|
Model
|
TGK-14
|
|
Max. cutting capacity
|
φ13.8"-13.8"x13.8"
|
|
Cutting speed @60Hz
|
177,272 ft./min
|
|
Feed speed
|
Hydraulic variable speed
|
|
Blade size
|
4115mm X 34MMX 1.1MM / 162”x1.3”x0.04” 3/4 TPI
|
|
Workpiece clamping
|
Hydraulic
|
|
Blade tensioning
|
Hydraulic (TGK-14 blade tension pressure recommend 2.3-2.5Mpa)
|
|
Main motor power
|
2.2/2.8 kW
|
|
Oil pump motor power
|
0.55kW
|
|
Coolant pump motor power
|
0.04kW
|
|
Drive
|
Gear
|
|

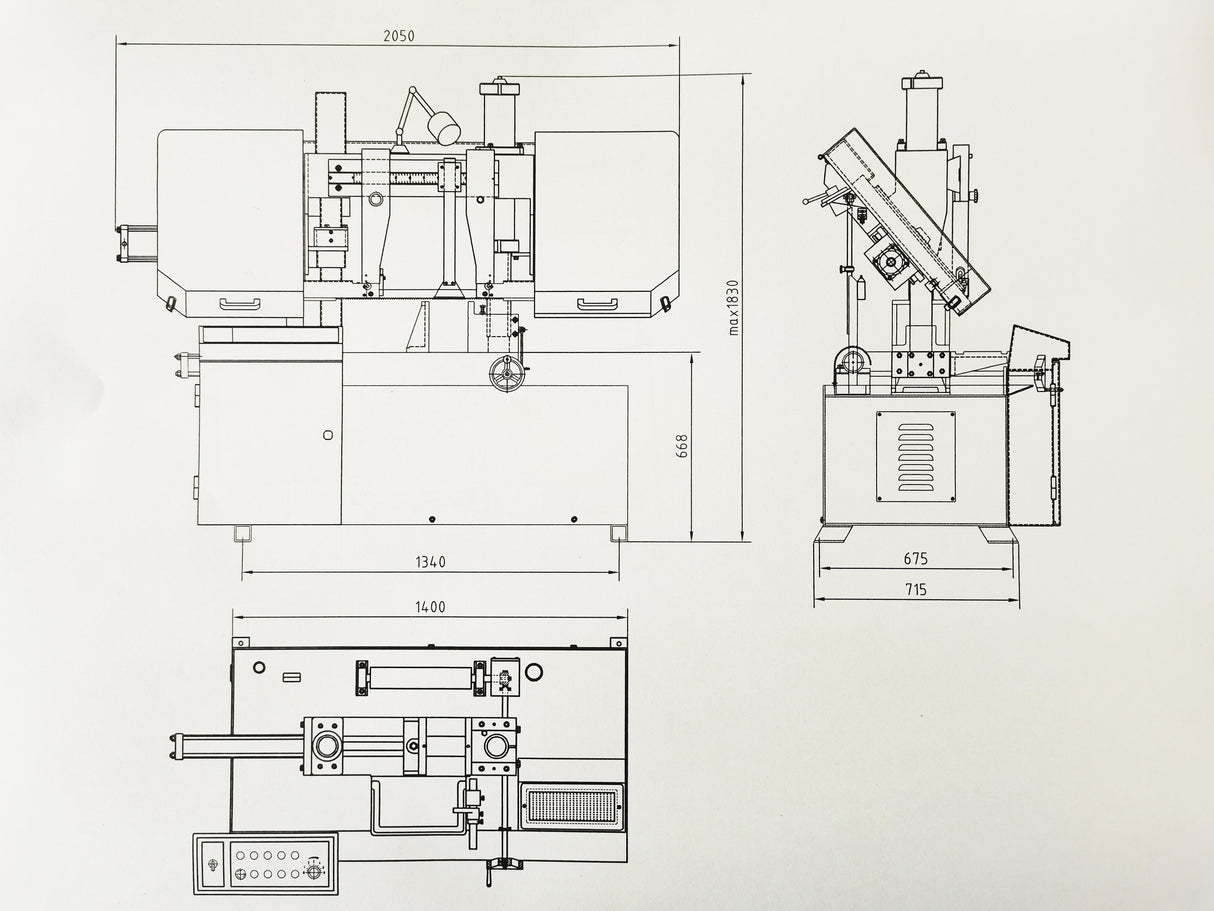

Packing size
|
88"x45"x68"
|
|
N.W./G.W.
|
1940/2183 lbs
|
