Kaka Industrial TB-3B Hydraulic Tube Bender
Kaka Industrial TB-3B Hydraulic Tube Bender is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- If the item weighs less than 145 lbs, it will be delivered by UPS, Purolator, FedEx Ground, Canpar, Canada Post and other couriers to the address you provided as the 'shipping address' when you placed the order. You will receive the tracking number once the carrier picks up.
- If the item weights over 145lbs normally will be delivered by LTL Freight. Please note you may need the optional services if you order these items. For example, if you don’t have a forklift or similar equipment to offload the package, you may need to book the lift gate delivery service when checkout.
SHIPPING OPTIONS:
KAKA INDUSTRIAL uses UPS, Purolator ,Fedex Ground, Canpar, Canada post ,etc and truck freight lines to ship your orders.
KAKA INDUSTRIAL makes every effort to process orders within 24hrs of being placed. You will receive a shipping confirmation email that will confirm which carrier is used for your products.
If your order is less than 145lbs, it could be delivered byUPS, Purolator ,Fedex Ground, Canpar, Canada post and other courier to the address you provided as 'shipping address' when you placed the order. If your order is above 145lbs, it will be delivered by Freight company that has been picked to minimize the cost of delivery to your area. In this case, your delivery address must be accessible by tractor-trailer , and In some cases your shipping fee may be different than displayed online.
Truck drivers are not required to assist with unloading. You are responsible for unloading your freight and for moving it into your shop. For residential delivery and shops without a loading dock, liftgate delivery is available for an additional charge.
You can also arrange to pick up your freight at the carrier's terminal. The carrier will load the item onto your vehicle. If you choose this option, please make sure your vehicle is capable of handling the weight and bring plenty of tie-downs to secure the load properly .
Extra Shipping Service Charges:
1. Residential delivery, includes power lift gate service, call before delivery service Extra charge $120
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/extra-shipping-charge
2. Power tailgate service for business address $50
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/lift-gate-shipping-service
3. Call before delivery for business address
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/appointment-service
REDELIVERY OF FREIGHT
When, through no fault of carrier and after reasonable effort, redelivery is requested, a charge of $99.00 will be assessed against the shipment in addition to accrued charges.
DELIVERY TIMES:
Delivery times are expected, not guaranteed. If payment authorization is delayed, in order to confirm payment or prevent fraud, Kaka Industrial reserves the right to delay shipments. Every effort will be made to ship at the soonest possible time.
THINGS TO KNOW:
- Weather delays and other circumstances may impact delivery time. Estimated arrival dates are not guaranteed.
- Deliveries to New Brunswick, Prince Edward Island, Nova Scotia and Newfoundland/Labrador will take longer.
- All shipping timeframes and/or shipping methods/providers listed on www.kakaindustrial.ca are to be considered estimates and are not guaranteed.
***We automatically email your tracking number when your order ships***
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
(This machine does not come with any dies)
Item No.： 175008
Model： TB-3B
Packing size： 33x15x14 in
N.W./G.W.： 154/165 lbs
Air hydraulic power
10 ton, 12-inch stroke cylinder

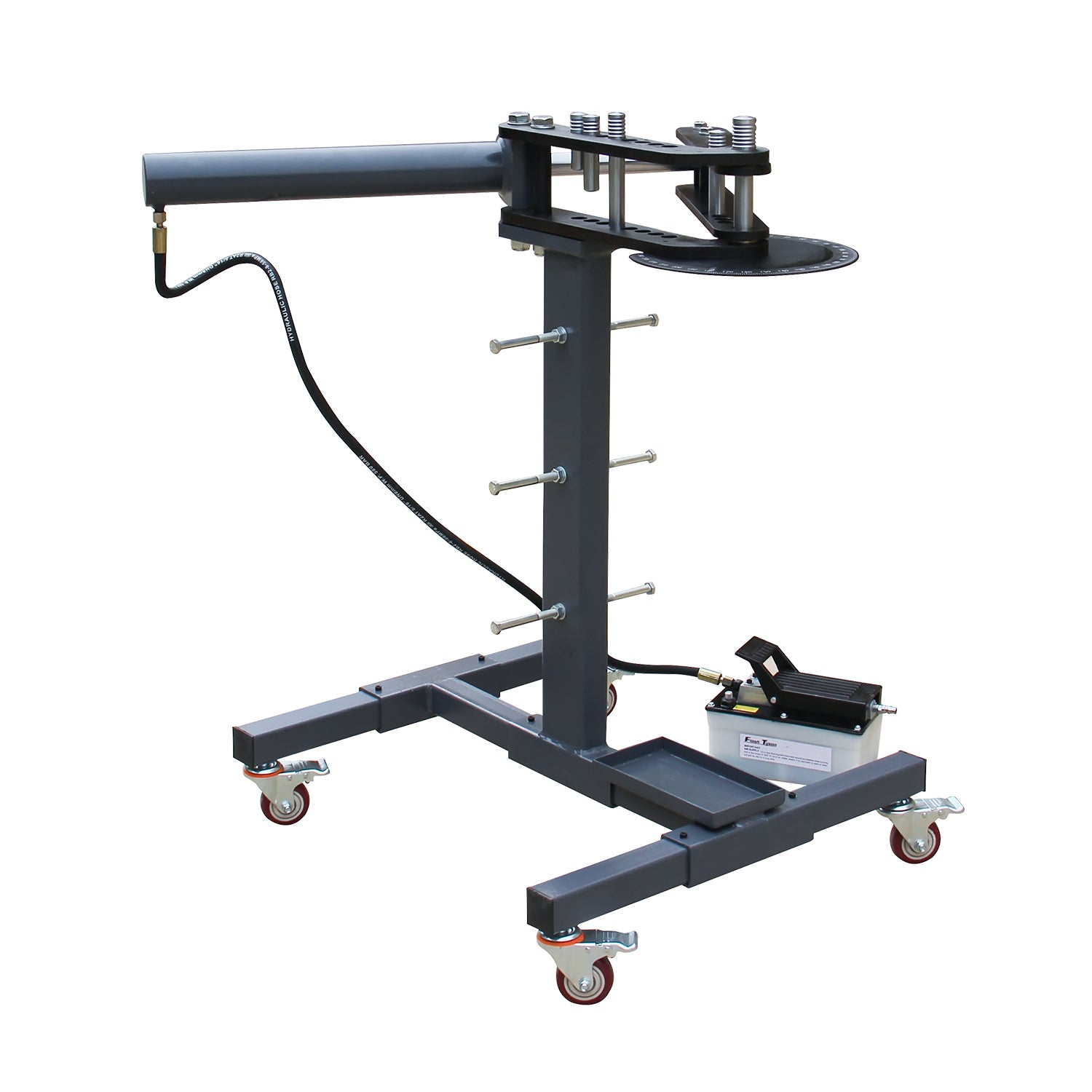

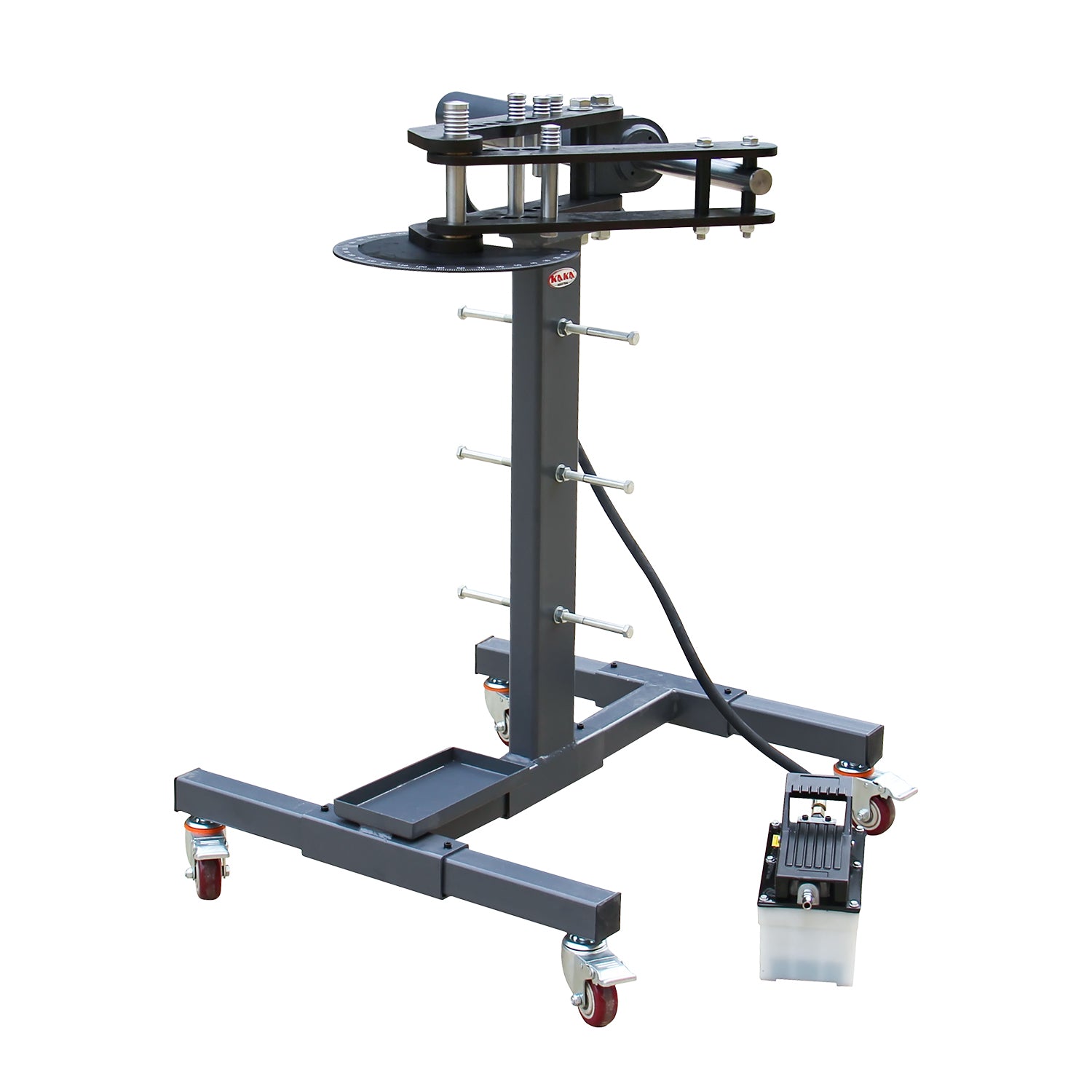

Caster stand with die rack
(hydraulic oil AW 46 )

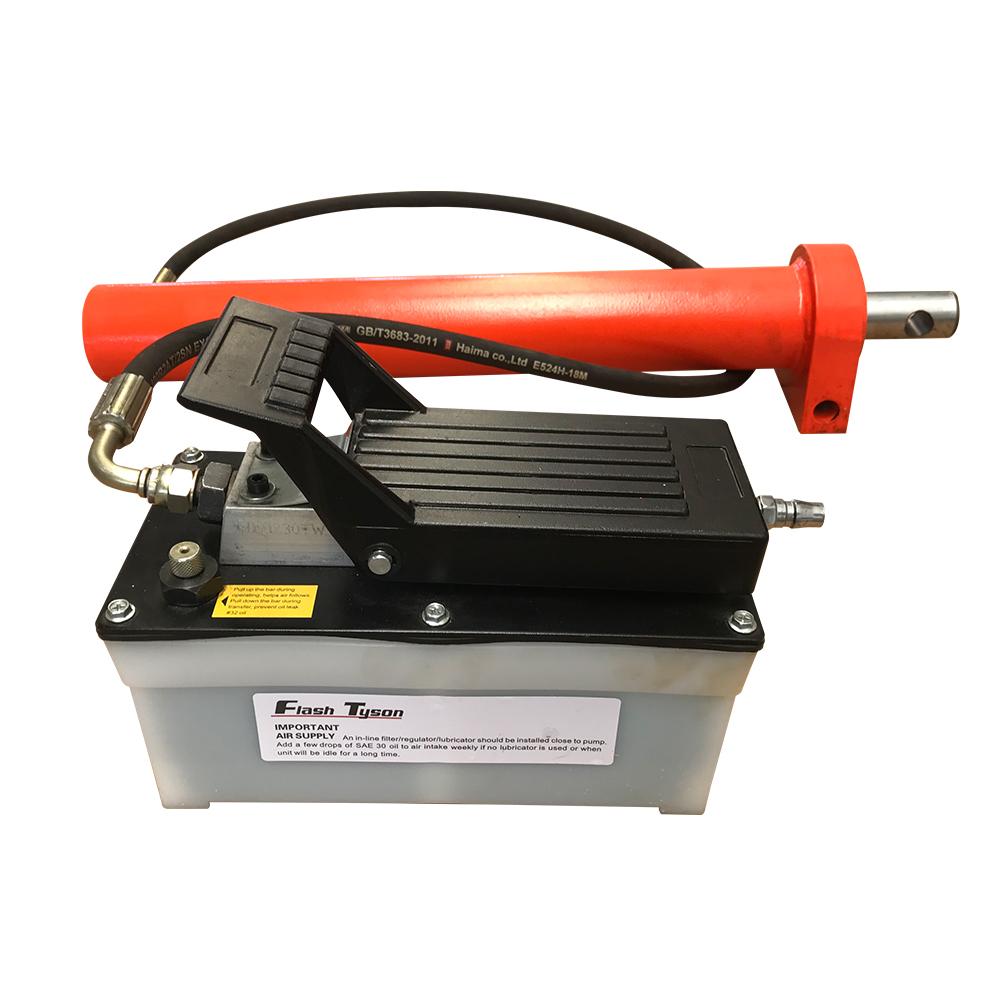

Air-Hydraulic Conversion Kit Specifications
| Working Pressure: | 90 PSI (0.62 MPa) |
| Max Pressure: | 100 PSI (0.7 MPa) |
| Air Input: | 1/4" FNPT |
| Hydraulic Output Pressure: | 1450 psi (10 MPa) |
| Hydraulic Fluid Type / Capacity: | ISO 32 / 0.42 gal (1.6 Liters) |
Tubing Bender Rolling Stand Specifications

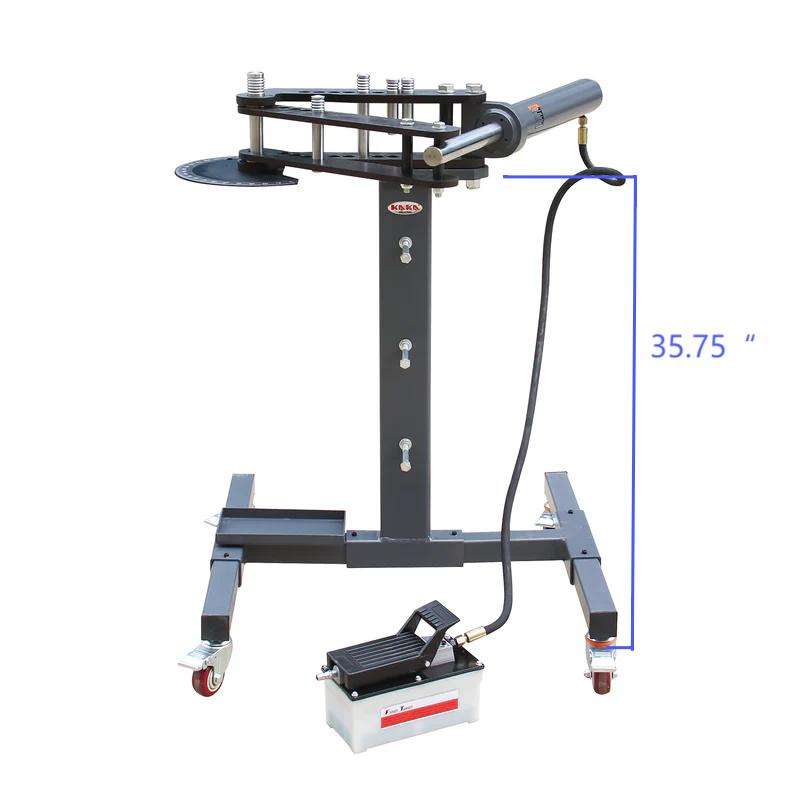

| Height: | 3' |
| Die Storage: | 6 Hangers |
| Frame Construction: | 3mm/4mm Wall thickness telescoping steel tube |
| Top Plate Construction: | 20mm Steel |
Capacity (inches):
1) 2” x 0.188 (Mild Steel)
2) 1-1/2 inch schedule 40 (Nominal PIPE)
3) 1-1/2” x 0.83 (Square Mild Steel)
4) 1-1/8” (Solid Bar Mild Steel)
Optional dies:
Optional 180° Dies for TB-3/TB-3B
1) Round dies:3/4"x3",7/8"x3",1"x3",11/8"x3",11/4"x4",11/2"x4",
11/2"x5",15/8"x5",13/4"x6",2"x6"
2) Square dies:3/4"x3",1"x4",1 1/4"x5",11/2"x6"
3) Dies available in 120°,180°and 240° (special order )
4) Other optional dies can be made according to customer's request
IMPORTANT NOTICE
Shipping only covers Business Addresses with a loading dock or forklift.
Optional shipping charge:
Following Value Added Service in the transportation is at extra charge. Please contact us before you place the order. Thanks.
1. Residential delivery, includes power liftgate service, call before delivery service Extra charge
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/extra-shipping-charge
2. Power tailgate service for public business address
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/lift-gate-shipping-servic
Customer Reviews

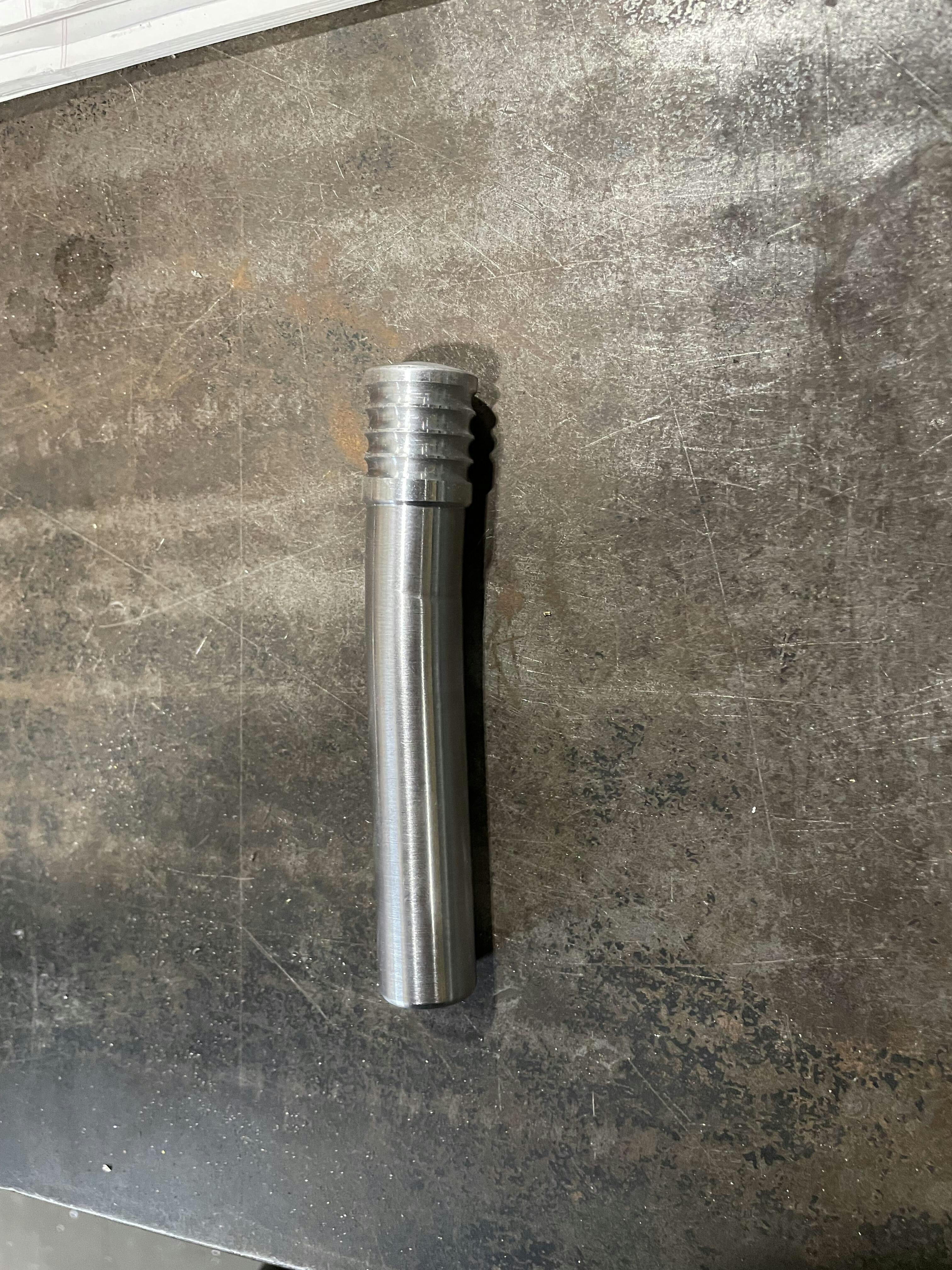

After just over a week of owning the bender it has started to fail . After bending 2 complete roll cages from 2” dom .120 wall , 1 pin has bent and the one hole used on the frame for the 2” die is starting to oval . As a result measured angles are progressively inaccurate. Overall very disappointing!!!
Its my first bending machine and its super great to not struggle with a manuel one were it need to be fixed on somthing. Just move it where you want and start bending! Did a 180 degree bend on a 1.5 don tube and came ou very nice. Works great
Worked well. Could not find the instructions that it said to follow. All worked out.
