Roll Bender Machine PR-5

C$360.00 C$390.00
Shipping calculated at checkout.

Care information

Delivery and Shipping

  1. The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
  2. The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

Payment & Security

Payment methods

  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

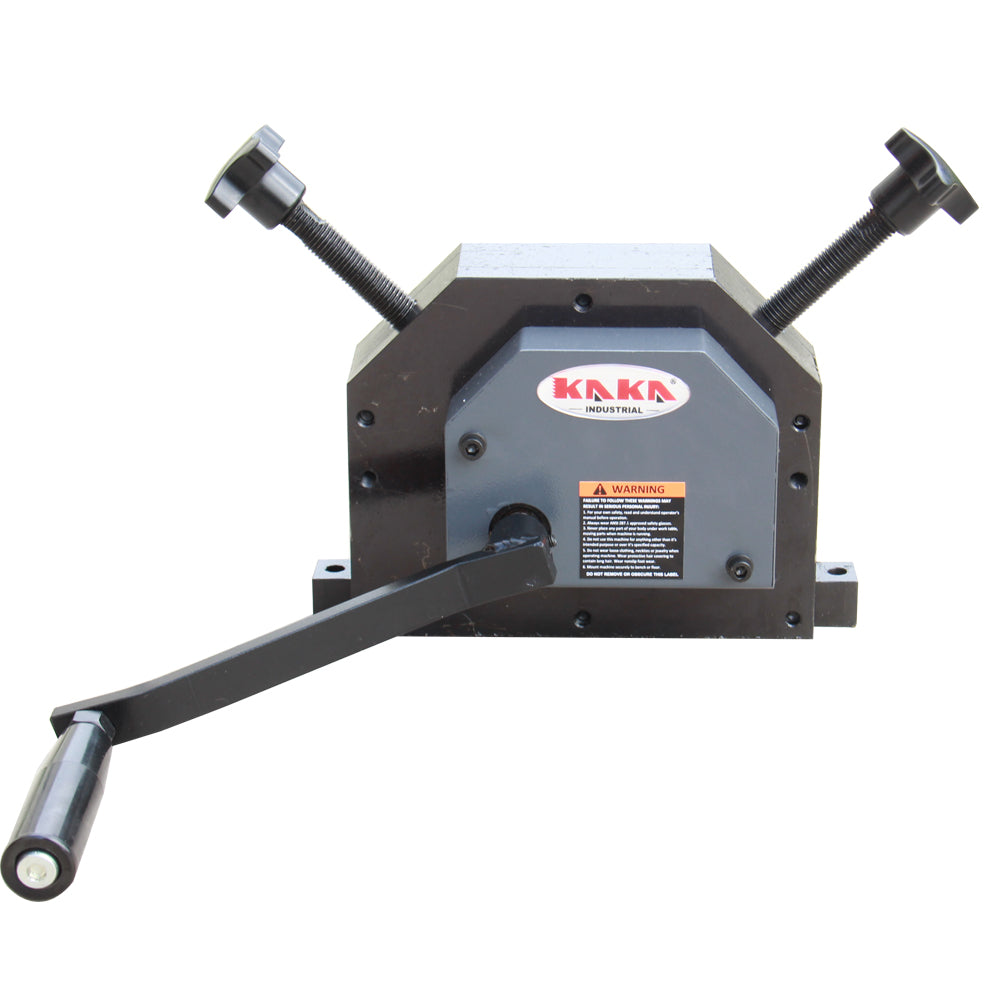

  • Small compact and portable
  • 3 driven rolls Manually powered
  • Includes tooling for flat bar
  • Perfect for doing small circles
  • Optional tooling sets(1/2",1/4",1/8",3/8") for round stock available



Item No. : 176002

Model PR-5

Minimum Diameter : 2. 75"

Capacity Solid Round (optional tooling) 1/2"

Flat Bar Easy Way : 3/16" X1 " mild steel

Packing size : 13x9x7 inch


N.W./G.W. : 30/35 lb



Optional dies:

https://www.kakaindustrial.ca/collections/tube-pipe-roll-bender/products/dies-for-pr-5

Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
0%
(0)
0%
(0)
33%
(1)
F
Francis Mercier
3/16 flat bar? REALLY???

I bought that roller to work with 3/16x3/4 stainless steel flat bar and it's just impossible to do so.
One of my colleagues says he machined the front wheel to be able to work with 3/16 material.

D
Don Parker
Roller Shaft Key Sizes

Follow-up review a month later. Have now made 10-15 additional circles in all four rod sizes, (dies arrived within 5 working days of order) and a couple from thinner flat stock. Still no issues, and I am posting this primarily as a follow-up on the shaft key size for the three roller wheels.

It is 5mm x 5mm x 16mm. (0.1969" x 0.1969 x 0.630).
1/8" is far too sloppy. 3/16" (0.1875) might work, but probably safer/easier to just order the correct size off the web and keep them in reserve since most stores don't carry metric keys.

D
Don Parker
PRETTY GOOD SO FAR!!

Delivery: 5/5 (Ordered on Mon; arrived Ottawa on Fri. Wow!!). Seems pretty good. No instructions but assembly was obvious. One adjuster screw does not grab the wheel axle at full extension/home position so I need to lift it a few mm to catch, but no big deal (will look inside it later to see if I can fix it). The dies are very simple to replace (with your own Allen key), but may want to have a few shaft keys on hand in case you lose the originals. I tested it making some partial circles of 14ga flat to fix a garden planter, and it worked absolutely fine. Did not even need to bolt it to the bench. I also purchased 1/4" and 1/2" dies, and ran 3-4 rods of each diameter through them for fun. Turning 1/2" hot rolled into a complete ring smaller than about 9" diameter is a great workout complete with cursing, but it can be done if you are patient and you clamp/bolt it well. Turning 1/4" into a ring was obviously much easier and I took it down to about 5" with no issues, other than a bit of spiraling/alignment issues which was likely my experience vice a fault of the machine. As a hobbyist, not sure how it compares other brands but I was happy enough that I just ordered the other two round dies to have the full set of four (just in case this becomes discontinued in the future). I think it was a good purchase (especially compared to the smaller PR-3 or the cheaper version of a PR-3 at a certain Cdn tinkerers' store).
