RBM-40HV ELECTRIC ROUND BENDING MACHINE （220V-60HZ-3PH)
2 HP Electric Profile Bender | Horizontal & Vertical Operation
🟦 ELECTRIC • HORIZONTAL / VERTICAL • HEAVY-DUTY

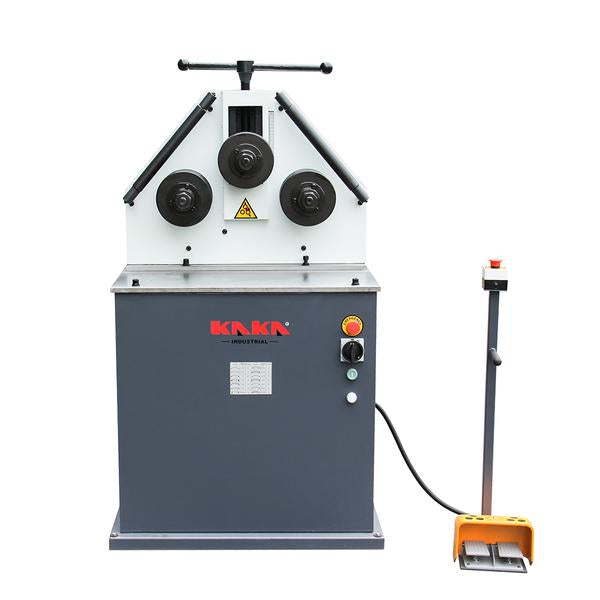

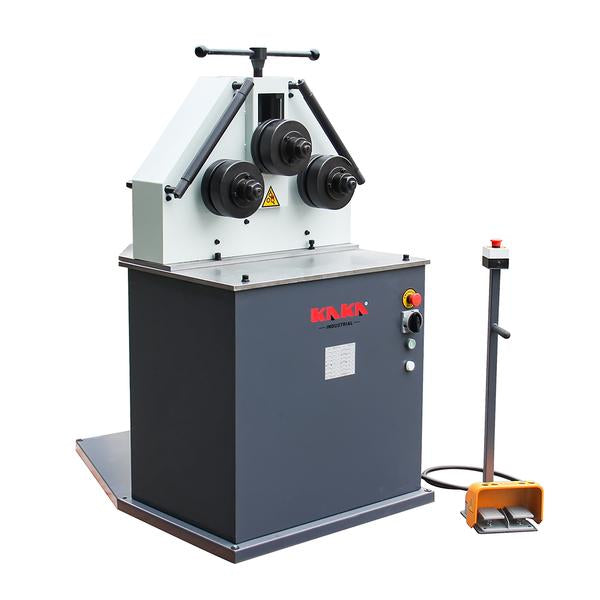

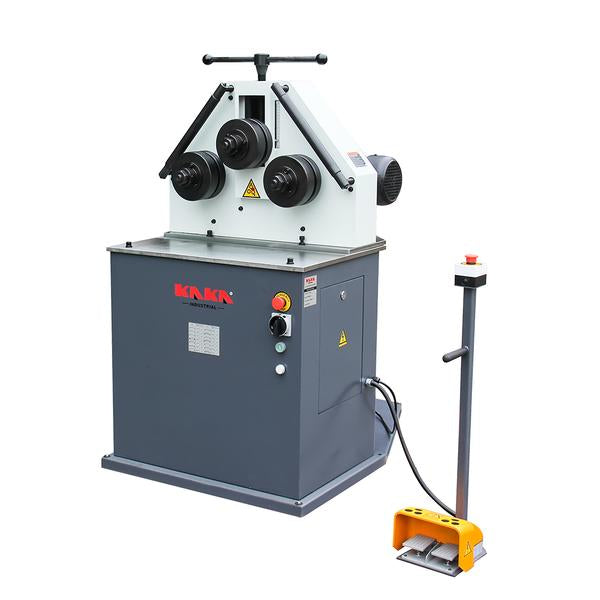

The KAKA INDUSTRIAL RBM-40HV Electric Round Bending Machine is a heavy-duty profile bending machine designed for forming flat bars, square tubes, angle steel, channels, T-sections, solid round bars, and other structural profiles.
Powered by a 1.5 kW (2 HP) motor and equipped with three hardened steel rollers, the RBM-40HV provides reliable and consistent bending performance. Its horizontal and vertical operating positions offer greater flexibility when working with different profiles and applications.
The adjustable top roller allows operators to gradually form material into arcs and rings while maintaining precise control over the bending process.
⚙️ KEY FEATURES
🔹 2 HP Powerful Motor
Equipped with a 1.5 kW (2 HP) motor for reliable bending performance.
🔹 Horizontal & Vertical Operation
Can be operated in both horizontal and vertical positions for greater flexibility when bending different profiles.

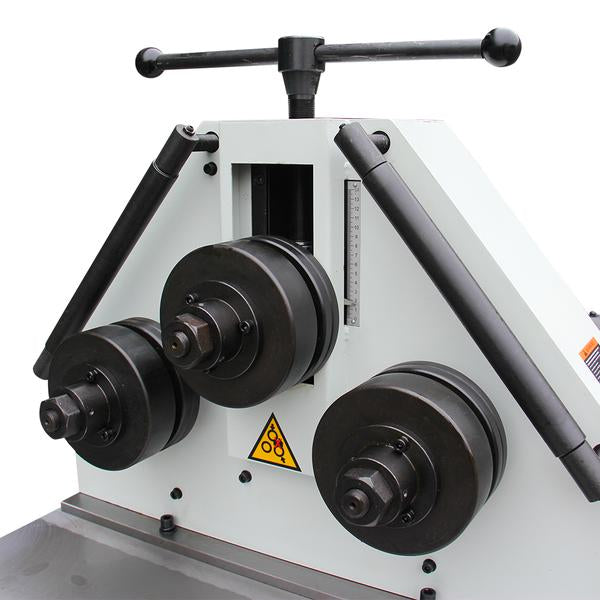

🔹 Three-Roller Bending System
Three hardened steel rollers provide stable material support and consistent bending results.

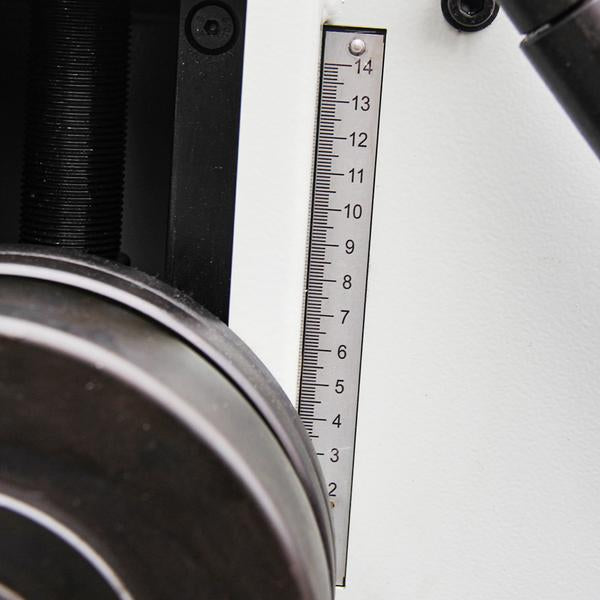

🔹 Adjustable Top Roller
Allows progressive adjustment of the bending radius for accurate forming and repeatable results.
🔹 Wide Profile-Bending Capability
Processes flat bars, square tubes, angle steel, T-sections, C-sections, and solid round bars.
🔹 Heavy-Duty Steel Construction
Reinforced steel frame provides excellent rigidity and stability for demanding workshop applications.
🔹 Reversible Foot Pedal Control
Hands-free forward and reverse operation provides convenient control while positioning the workpiece.
🔹 Emergency Stop Button
Integrated emergency stop provides quick access to machine shutdown during operation.
📐 STANDARD BENDING CAPACITIES
| Material / Profile | Maximum Size | Minimum Bending Diameter |
|---|---|---|
| Flat Bar | 2" ×3/8” (wall) | 23.62"–49.21" |
| Square Tube | 2" × 2" × 0.05" | 28" |
| Angle Steel | 2" × 0.16" | 20" |
| T-Section Steel | 1.97" × 0.24" | — |
| C-Section Steel | 1.97" × 1.46" × 0.18" | — |
| Solid Round Bar | Ø1.18" | 26" |
🔧 OPTIONAL ROUND TUBE ROLLERS — SOLD SEPARATELY
Optional roller sets are available to expand the bending capabilities of the RBM-40HV.
🔹 Round Tube Capacity
Handles round tubes from Ø1.18"–2.76" with wall thickness up to 0.08".
🔹 Minimum Bending Diameter
Approximately 27.56" when using the appropriate optional round tube rollers.
⚠️ Optional rollers are sold separately and are NOT included with the standard RBM-40HV machine.
📊 SPECIFICATIONS
| Specification | RBM-40HV |
|---|---|
| Item No. | 191003 |
| Model | RBM40HV |
| Power Supply | 230V / 3-Phase |
| Motor Power | 1.5 kW / 2 HP |
| Roller Diameter | Ø1.57" |
| Spindle Speed @ 60Hz | 11 RPM |
| Operation | Horizontal / Vertical |
| Drive | Electric |
| Packing Size | 55" × 37" × 52" |
| Net / Gross Weight | 936 / 1,091 lbs |
🛠 APPLICATIONS
🏗 Structural Steel Fabrication
🔩 Flat Bar & Angle Bending
🌀 Pipe & Tube Bending
🏭 General Metal Fabrication
❄️ HVAC & Ductwork Fabrication
🚗 Automotive & Roll Cage Fabrication
⚙️ Construction & Industrial Projects
📦 WHY CHOOSE THE RBM-40HV?
✔ Powerful 2 HP electric motor
✔ 230V 3-phase industrial power
✔ Horizontal and vertical operating positions
✔ Three hardened steel rollers
✔ Adjustable top roller for precise radius control
✔ Wide range of structural profile capabilities
✔ Optional round tube rollers sold separately
✔ Reversible foot pedal for convenient operation
✔ Integrated emergency stop for operator safety
✔ Heavy-duty reinforced steel frame
✔ Suitable for professional fabrication and industrial workshops
