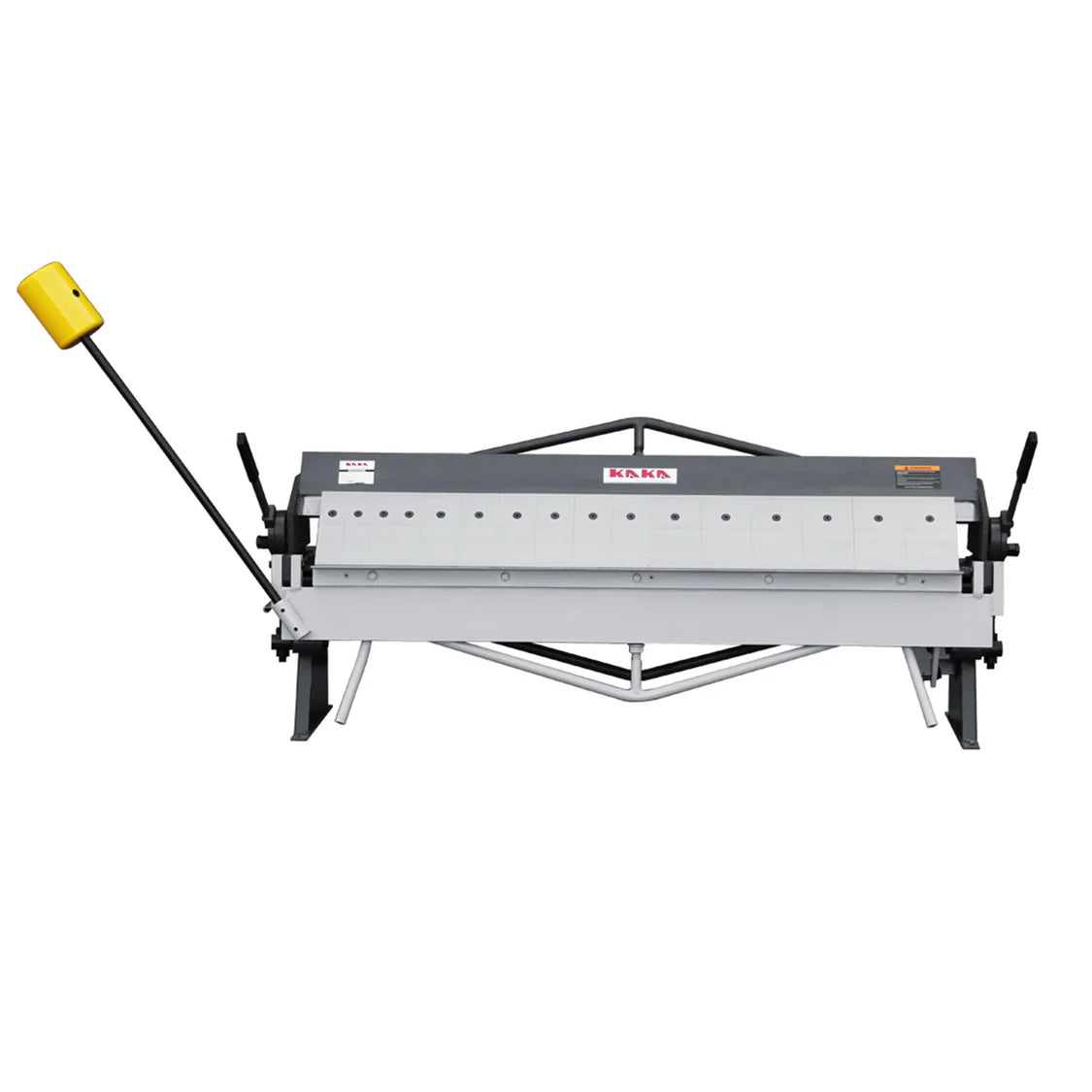

BP-1650 50" 16 Gauge Pan and Box Brake

 KAKA Industrial 50 Inch Pan and Box Brake Overview

Click here for product instructions

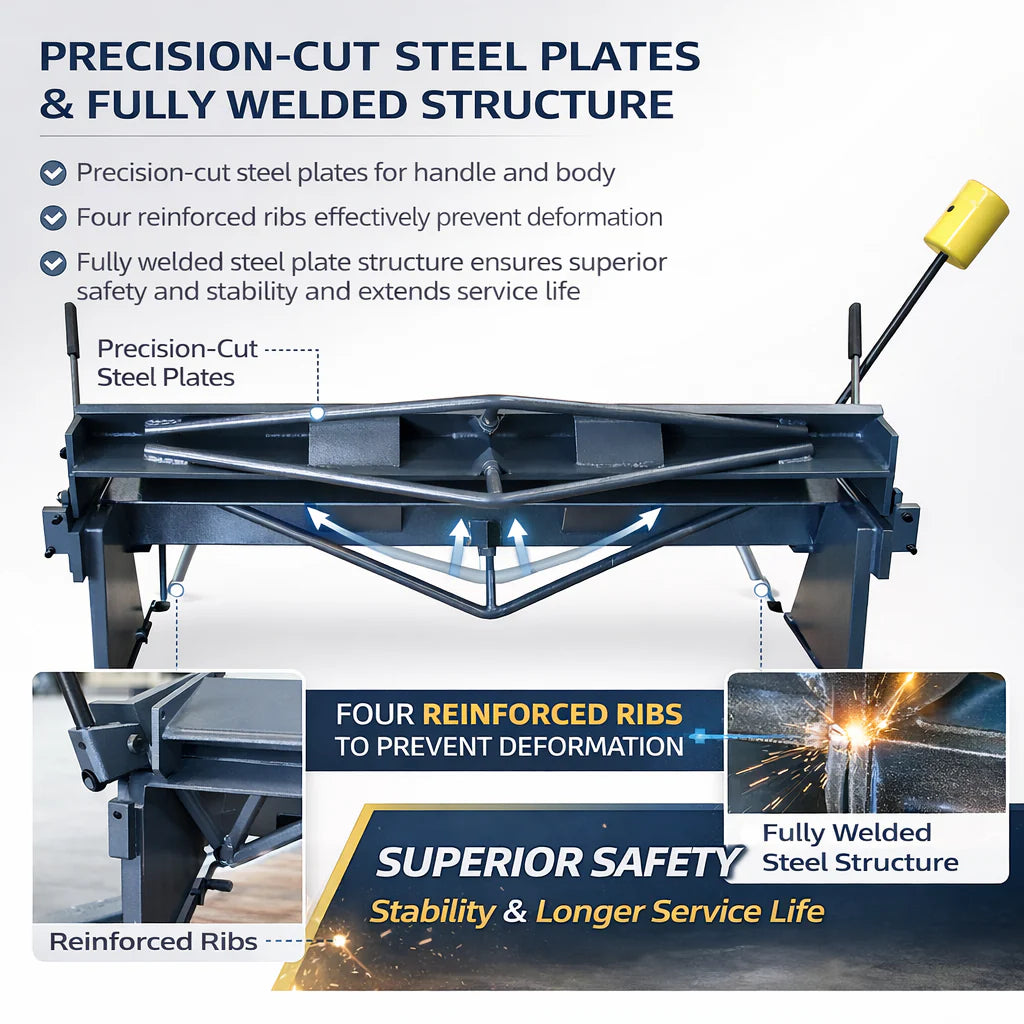

With all the features a sheet metal hand brake possesses, this box and pan brake broads the application to the next level. Solid construction, great capacity, high flexibility and versatility and broad application are the key benefits this box, and pan brake possesses.

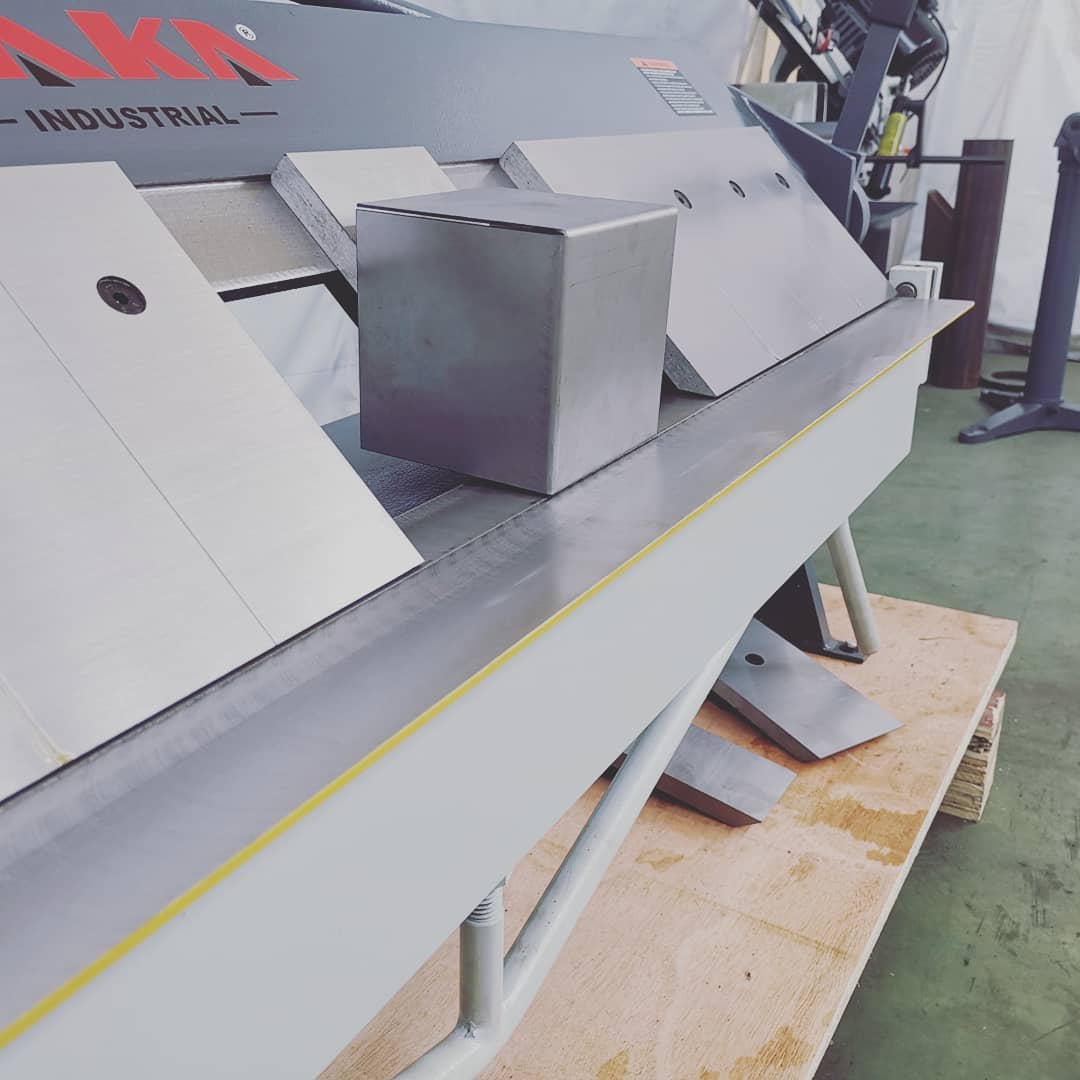

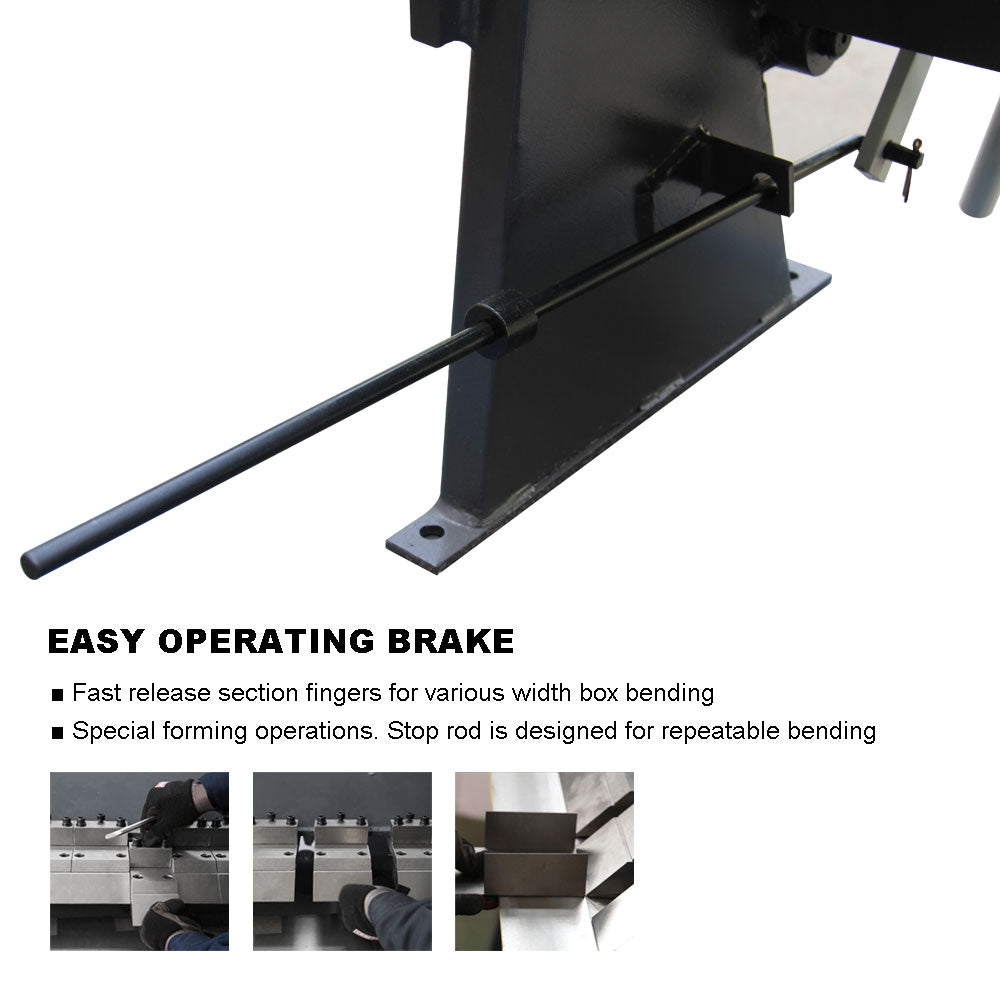

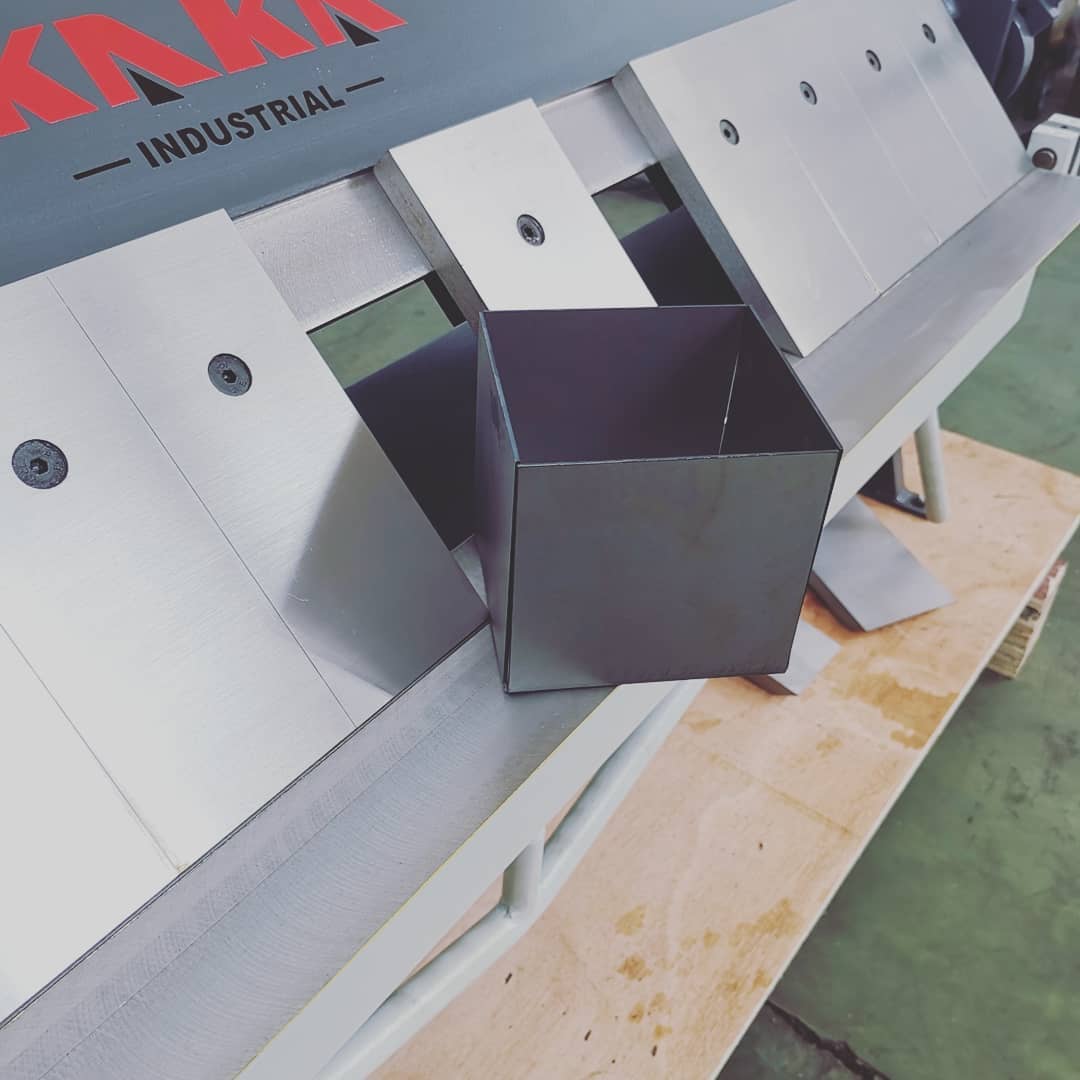

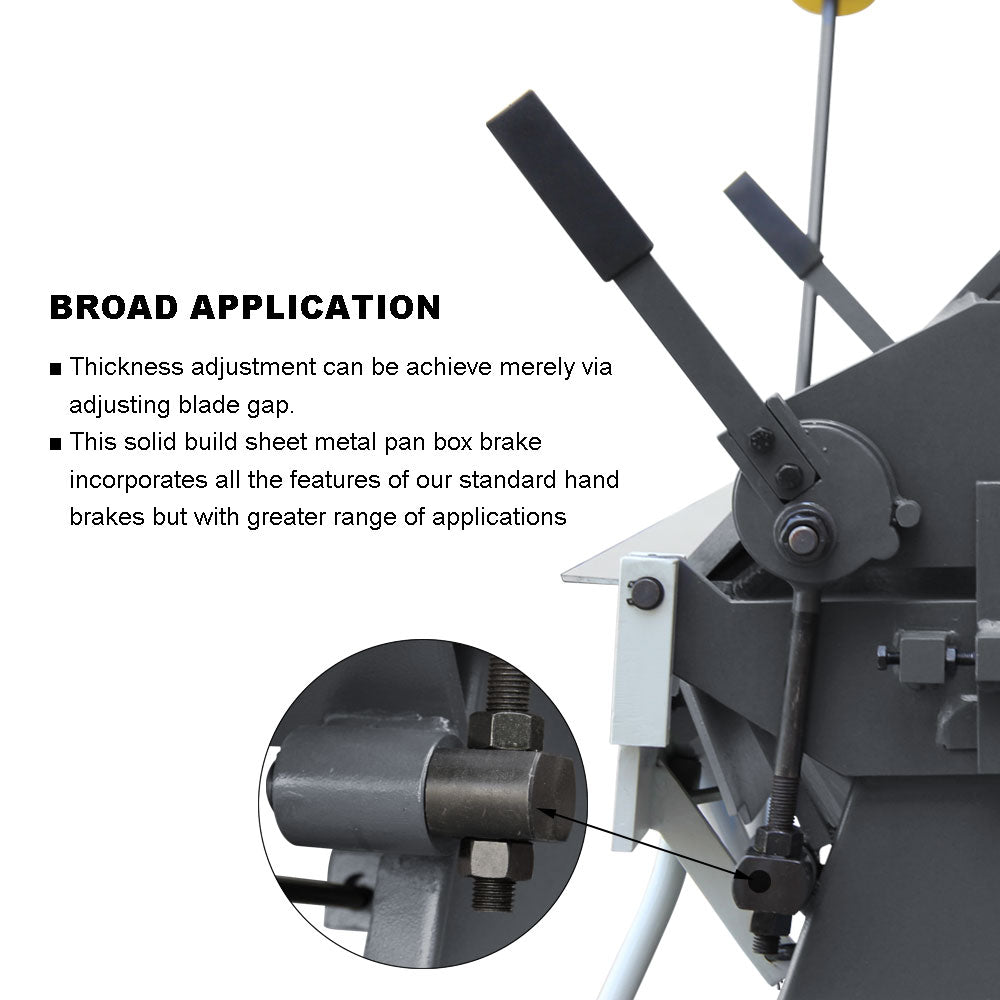

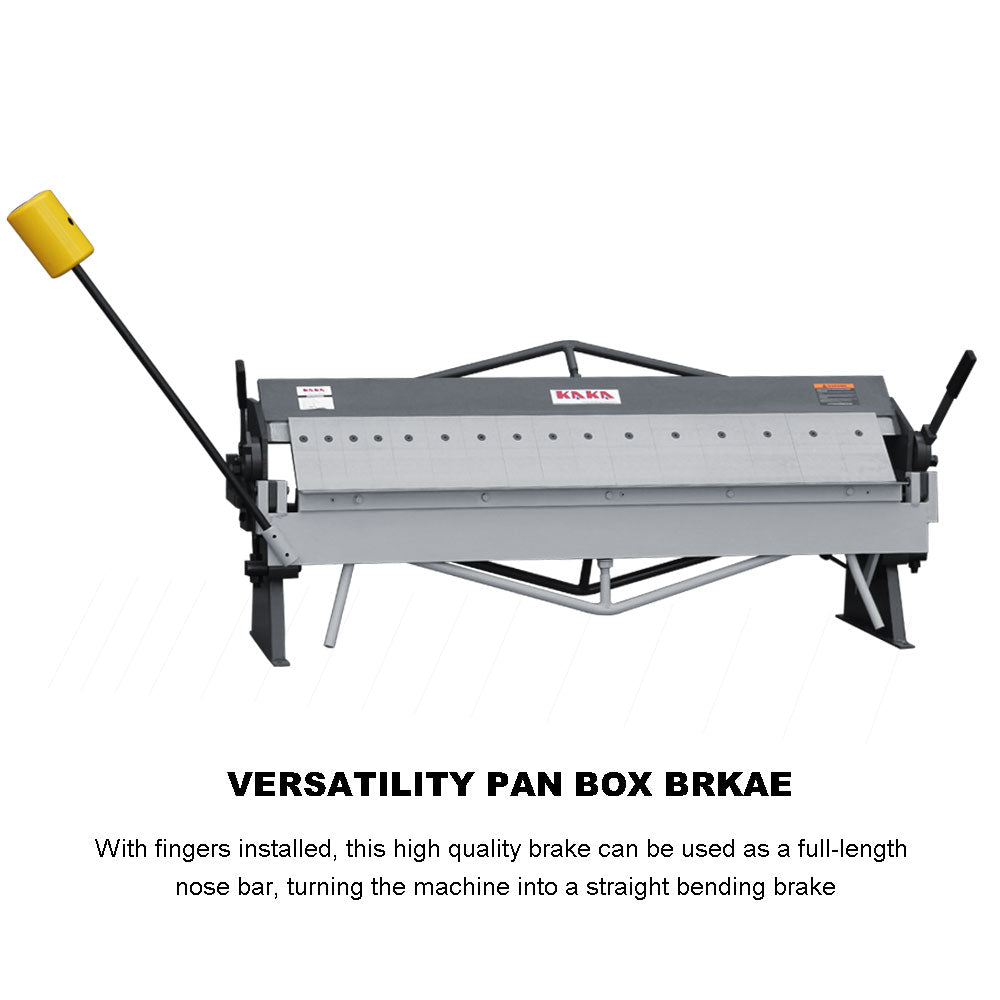

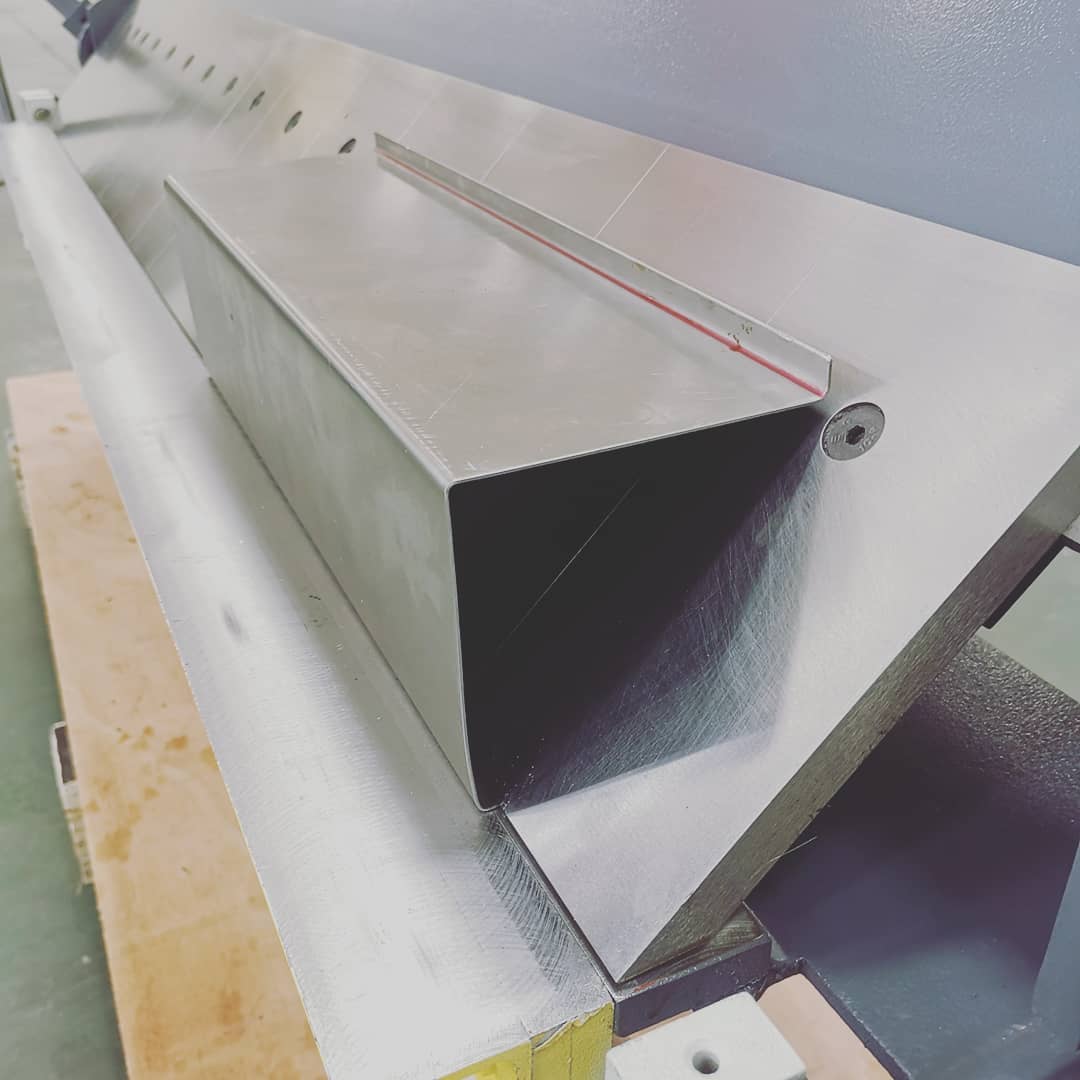

One benefit of this brake is the broad application. This solid build sheet metal pan box brake incorporates all the features of our standard hand brakes but with a greater range of applications. Thickness adjustment can be achieved merely via adjusting the blade gap. Another benefit is the versatility and flexibility this brake owns. This high-quality brake can be used as a full-length nose bar with fingers installed, turning the machine into a straight bending brake. The 16 assorted size section fingers allow producing many sizes of boxed and pans.

• Item No.：173030
• Model：BP-1650

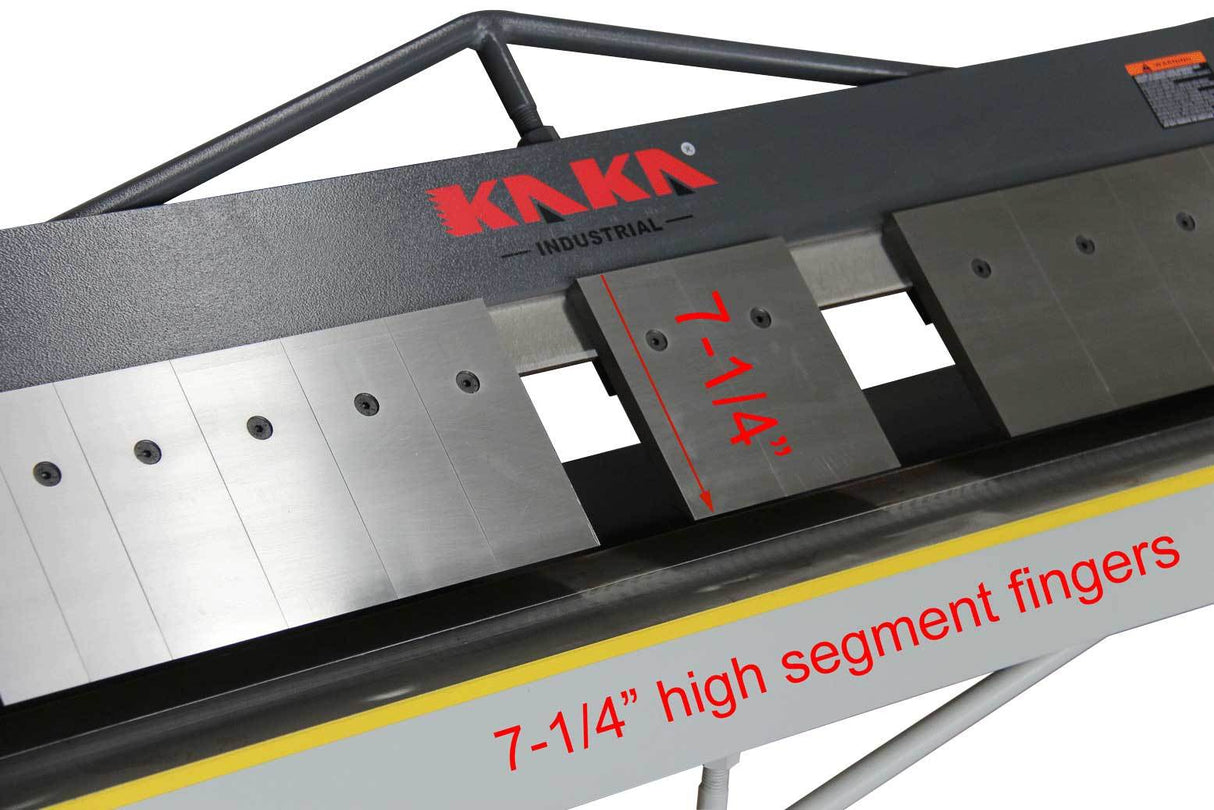

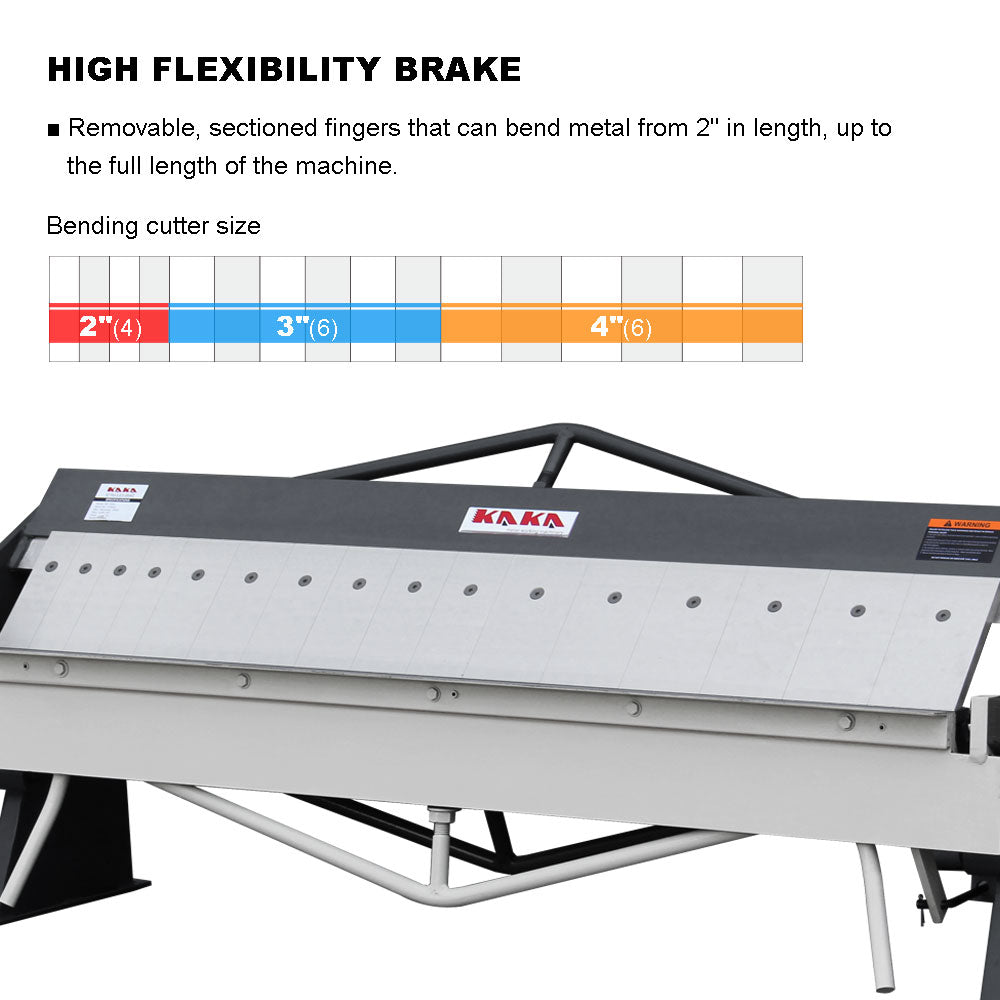

• Finger segments size: 2''x 4pcs, 3''x6pcs, 4''x6pcs

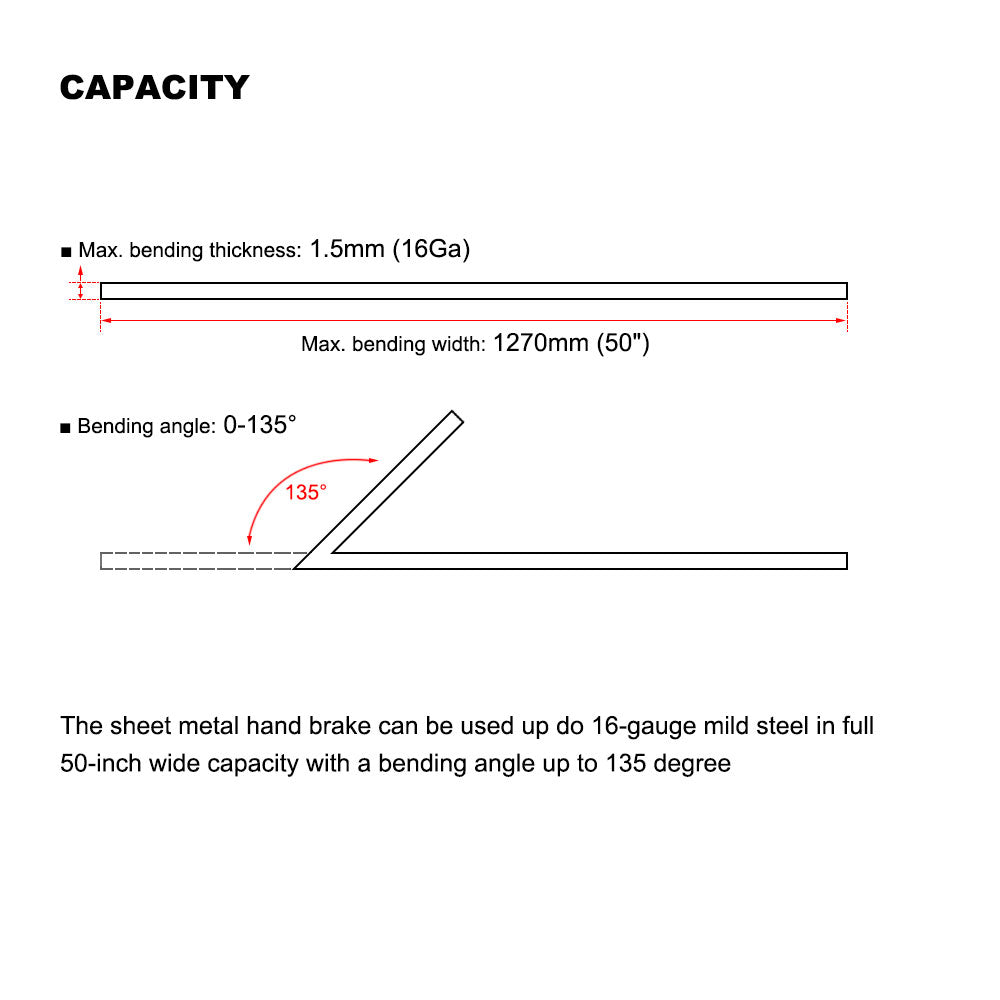

• Max. bending length：50"
• Max. thickness  ：16 Ga (mild steel)

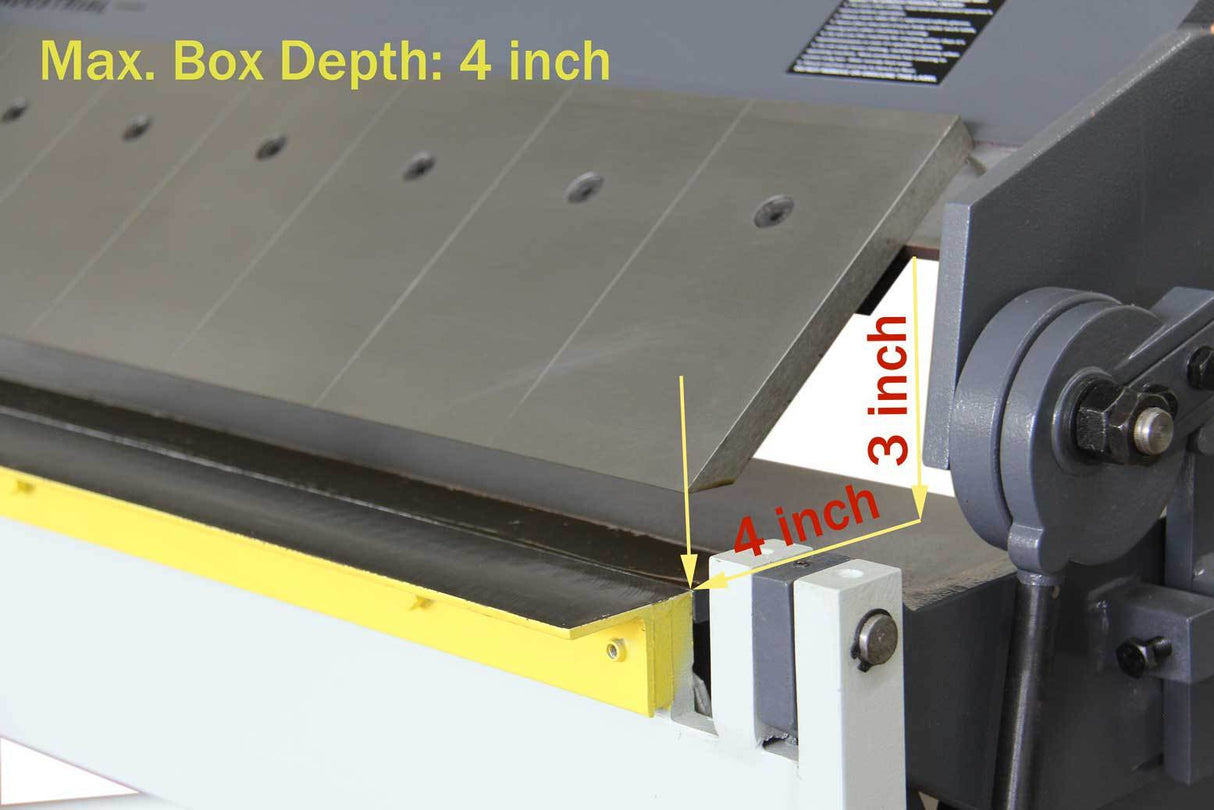

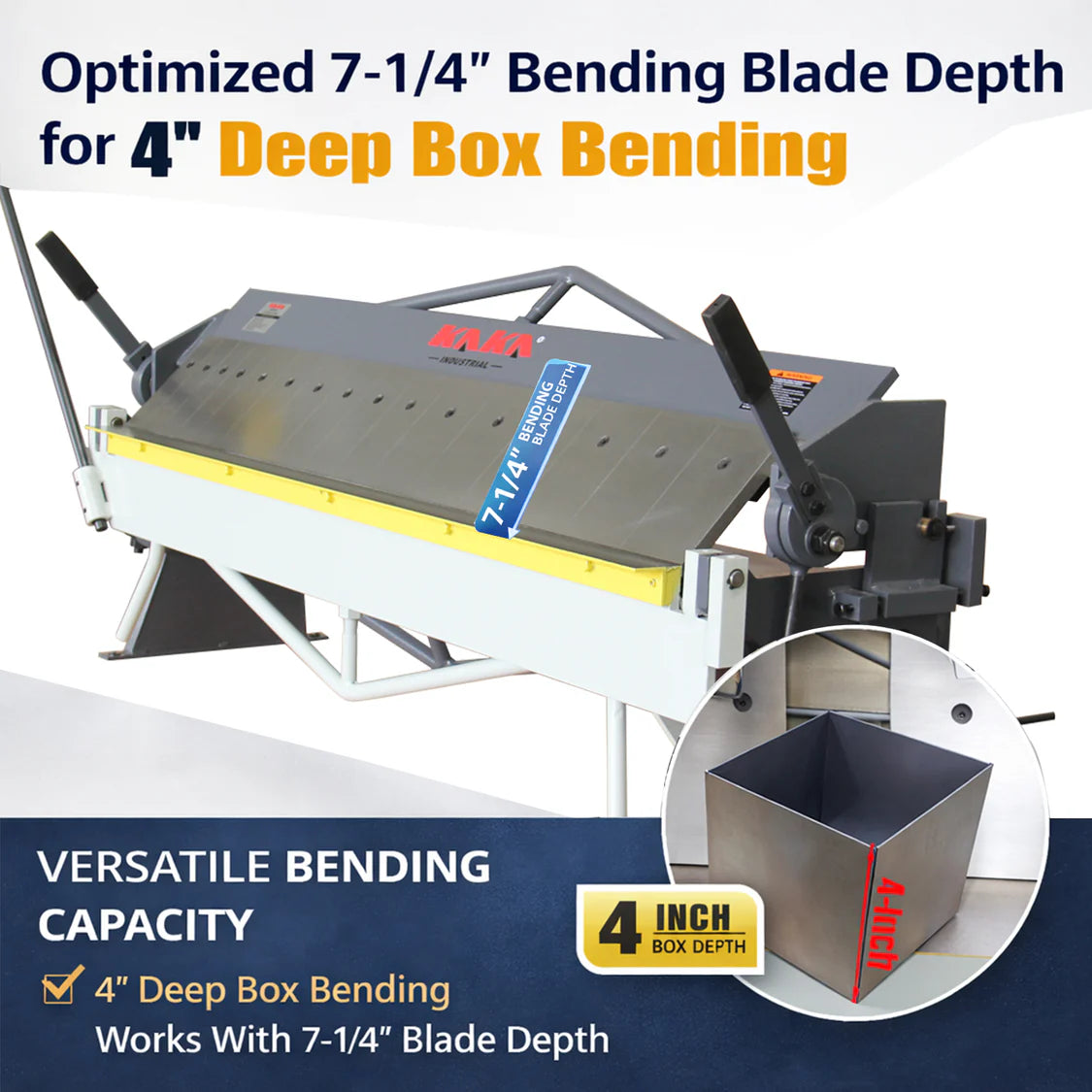

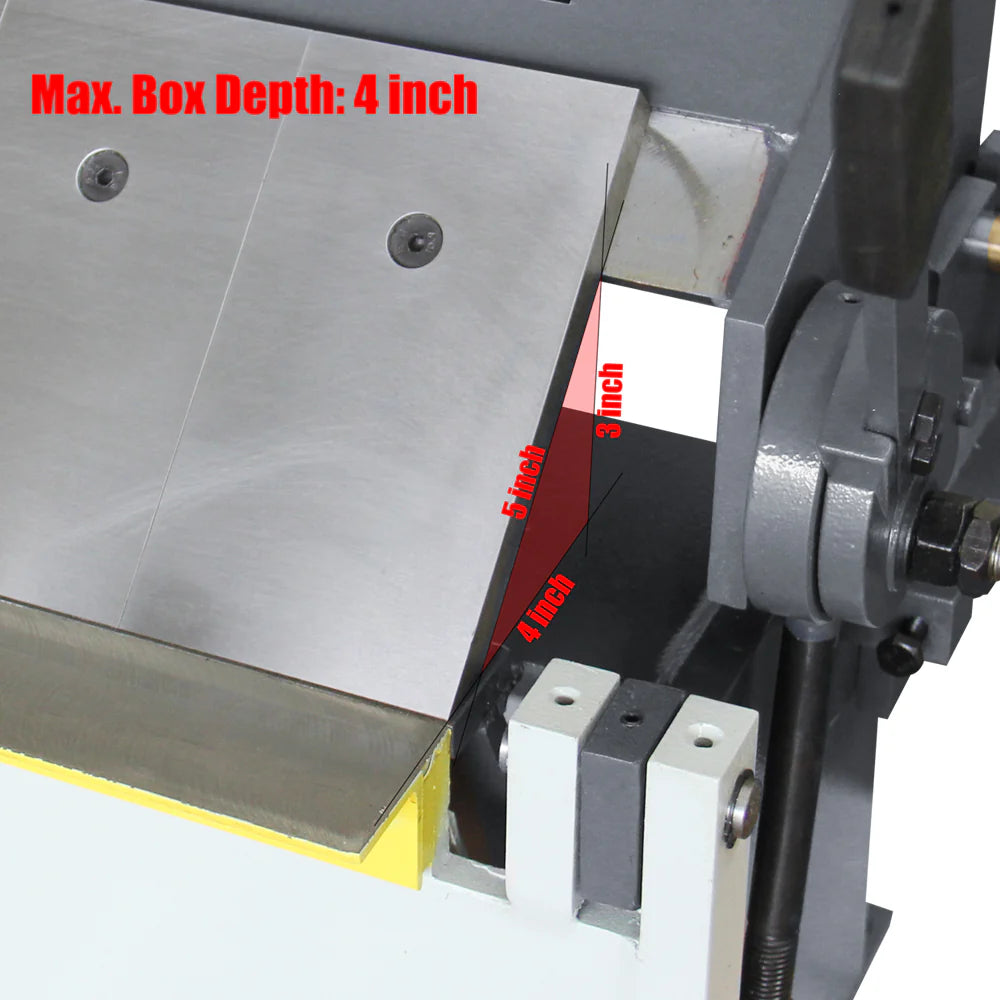

• Max.box depth： 4"
• Max. lift of beam：1-1/4"

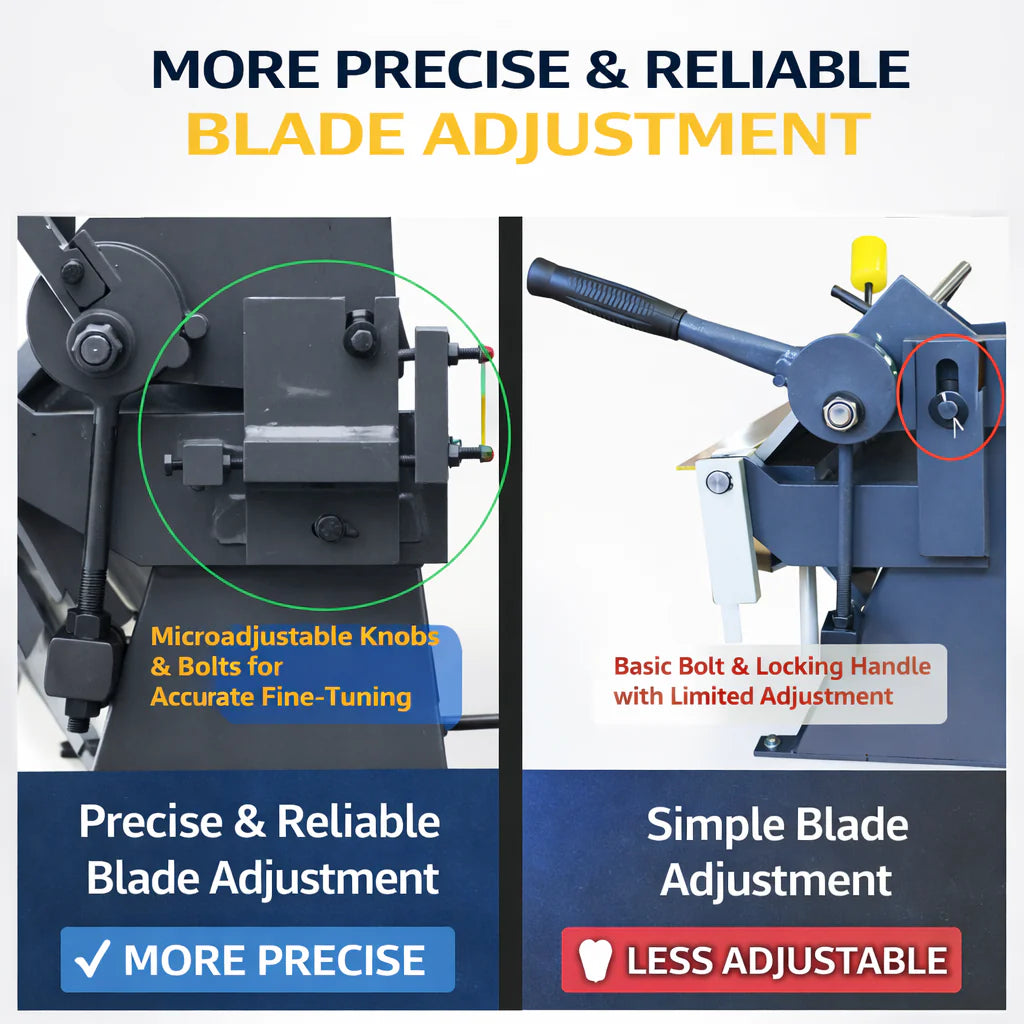

• Beam adjustment：5/8"
• Finger nose angle：45°
• Packing size： 66x23x32in
• N.W/G.W.： 445/540lb
