- The M-55Ironworker is used for Punch,shear, notch and brake mild steel plate,bar-stock and angle.
- A wide range of accessories is available to fabricate rod, square stock, sheet metal and pipe.
Special Order
M-55 Ton Metal Iron Worker
Punching Capacity:
Stock No. :181111
Model: M-55
Punching:Max. Capacity: 1-1/16" Diameter x 5/8" Plate
Flat Bar Shearing:
*Max. Width: 1/2" x 10" or 3/8" x 14"
*Max. Thickness: 3/4" x 4"
Angle Shearing: *Max. Size: 4" x 4" x 1/4" or 3" x 3" x 3/8"
Rated capacity:55 Ton
Throat Depth: 7-1/2"
Open Height: 8"
Shut Height: 6-3/4"
Stroke:1-1/4"
Motor:3.75KW *5 HP
*220 Volt @ 60 Hz
*3-Phase
Packing size : 46" x 45" x 60"
N.W./G.W. : 2,332/2,552 lbs
Shipping Method:
Large Freight (LTL-Trucking)
Standard Tooling :
1. Punch dies: 15/16"
2. Flat sheet shear dies
3. Angle steel shear dies
Optional Tooling :
1.55 ton-2000
Punch Dies 7 Sets :
3/16", 5/16", 7/16", 9/16", 11/16", 13/16", 13/16", 15/16" and 1-1/16"
2. 55 ton-4000.Right angle notcher
3. 55ton-3000.Puch heterotypic hole
4. 55ton-6000.Brake die
5. 55ton-8000.Slot die
6. 55ton-9000:Pipe Notcher Dies :
3/4", 1", 1-1/4", 1-1/2" and 2"
7. 55ton-9100.Round pipe shearing die

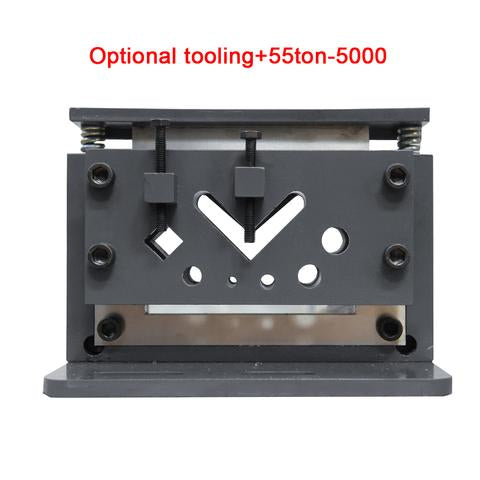

8. 55ton-5000
Angle steel:2”x2”
Square:3/4”x3/4”
Round (O.D):φ3/4”,φ5/8”,φ3/8”,φ1/2”,φ1/4”
Flat steel: width 6”x5/16”
9. 55ton-9200
Gauging table kit and fabricators protector
