KAKA INDUSTRIAL LTD  |  SKU: 190017

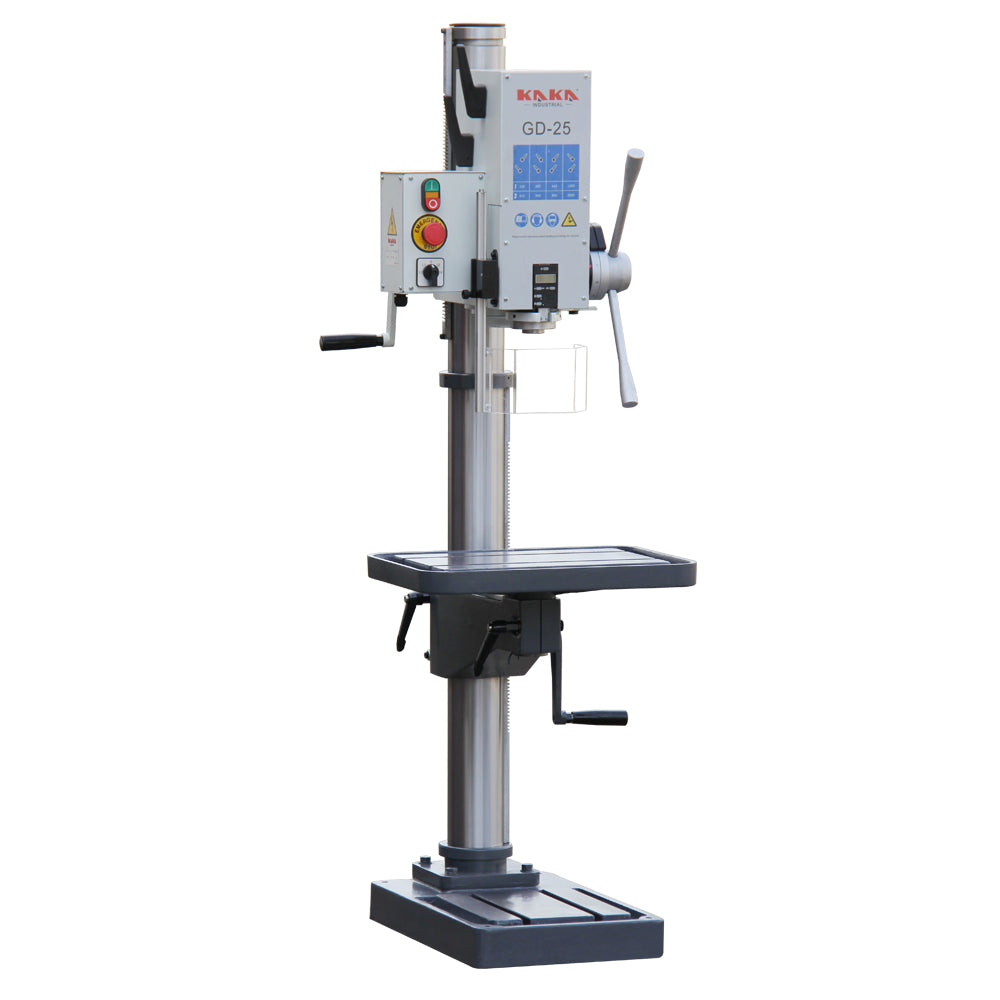

Kaka Industrial GD-25 Vertical Drilling Machinery.220V-60HZ-3PH.

C$3,100.00 CAD
Shipping calculated at checkout.

Care information

Delivery and Shipping

  1. If the item weighs less than 145 lbs, it will be delivered by UPS, Purolator, FedEx Ground, Canpar, Canada Post and other couriers to the address you provided as the 'shipping address' when you placed the order. You will receive the tracking number once the carrier picks up.
  2. If the item weights over 145lbs normally will be delivered by LTL Freight. Please note you may need the optional services if you order these items. For example, if you don’t have a forklift or similar equipment to offload the package, you may need to book the lift gate delivery service when checkout.

SHIPPING OPTIONS:

KAKA INDUSTRIAL  uses UPS, Purolator ,Fedex Ground, Canpar, Canada post ,etc and  truck freight lines to ship your orders.

KAKA INDUSTRIAL  makes every effort to process orders within 24hrs of being placed. You will receive a shipping confirmation email that will confirm which carrier is used for your products.

If your order is less than 145lbs, it could be delivered byUPS, Purolator ,Fedex Ground, Canpar, Canada post and other courier to the address you provided as 'shipping address' when you placed the order. If your order is above 145lbs, it will be delivered by Freight company that has been picked to minimize the cost of delivery to your area.  In this case, your delivery address must be accessible by tractor-trailer , and In some cases your shipping fee may be different than displayed online.

Truck drivers are not required to assist with unloading. You are responsible for unloading your freight and for moving it into your shop. For residential delivery and shops without a loading dock, liftgate delivery is available for an additional charge.

You can also arrange to pick up your freight at the carrier's terminal. The carrier will load the item onto your vehicle. If you choose this option, please make sure your vehicle is capable of handling the weight and bring plenty of tie-downs to secure the load properly .

Extra Shipping Service Charges:

1. Residential delivery, includes power lift gate service, call before delivery service Extra charge $120

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/extra-shipping-charge

2. Power tailgate service for  business address $50

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/lift-gate-shipping-service

3. Call before delivery for business address

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/appointment-service



REDELIVERY OF FREIGHT

When, through no fault of carrier and after reasonable effort, redelivery is requested, a charge of $99.00 will be assessed against the shipment in addition to accrued charges.

DELIVERY TIMES:

Delivery times are expected, not guaranteed. If payment authorization is delayed, in order to confirm payment or prevent fraud, Kaka Industrial reserves the right to delay shipments. Every effort will be made to ship at the soonest possible time.

THINGS TO KNOW:

  • Weather delays and other circumstances may impact delivery time. Estimated arrival dates are not guaranteed.
  • Deliveries to New Brunswick, Prince Edward Island, Nova Scotia and Newfoundland/Labrador will take longer.
  • All shipping timeframes and/or shipping methods/providers listed on www.kakaindustrial.ca are to be considered estimates and are not guaranteed.



 ***We automatically email your tracking number when your order ships***

Payment & Security

Payment methods

  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

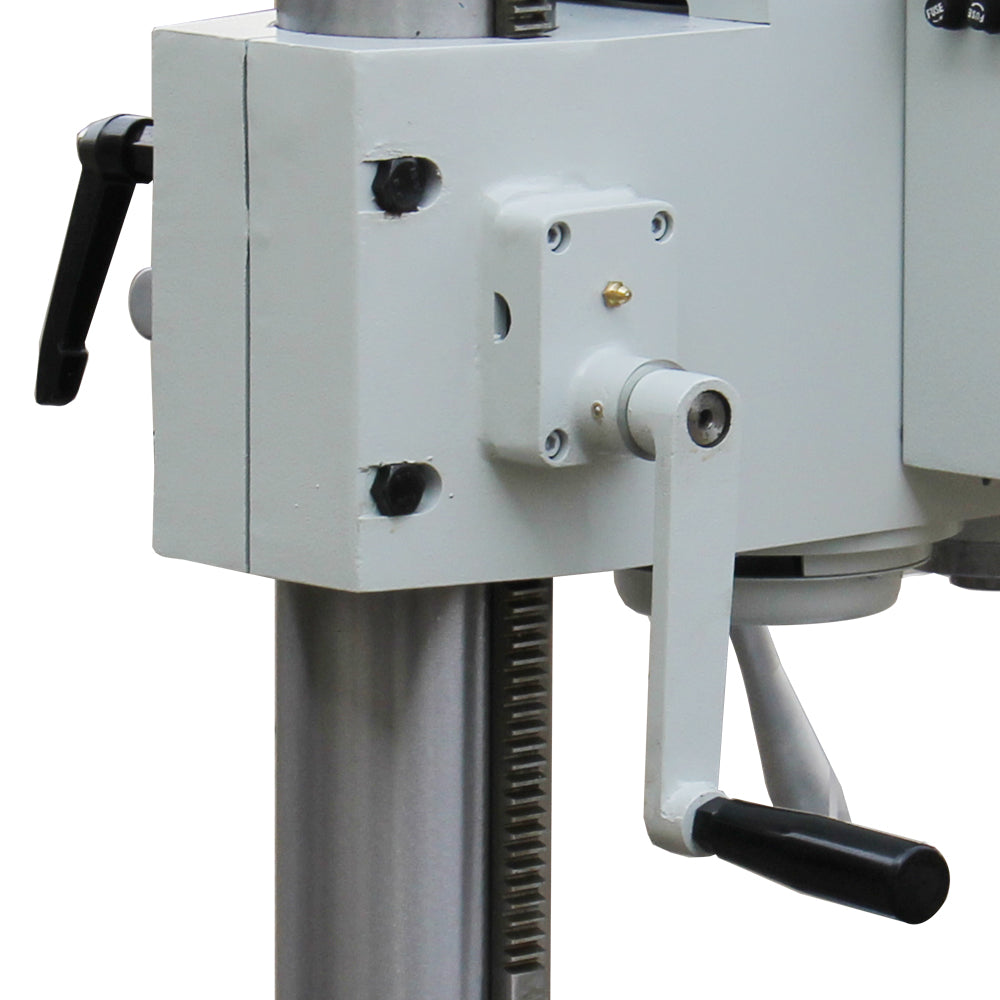

1. Our vertical drilling machines GD-25 have height-adjustable and rotary functions on the head unit and working table, they can provide proper drilling travel for various workpieces in different sizes.

2. The sleeve can be locked at any depth and the high-load tapered roller bearing guarantees the high-speed and smooth running of the main spindle.

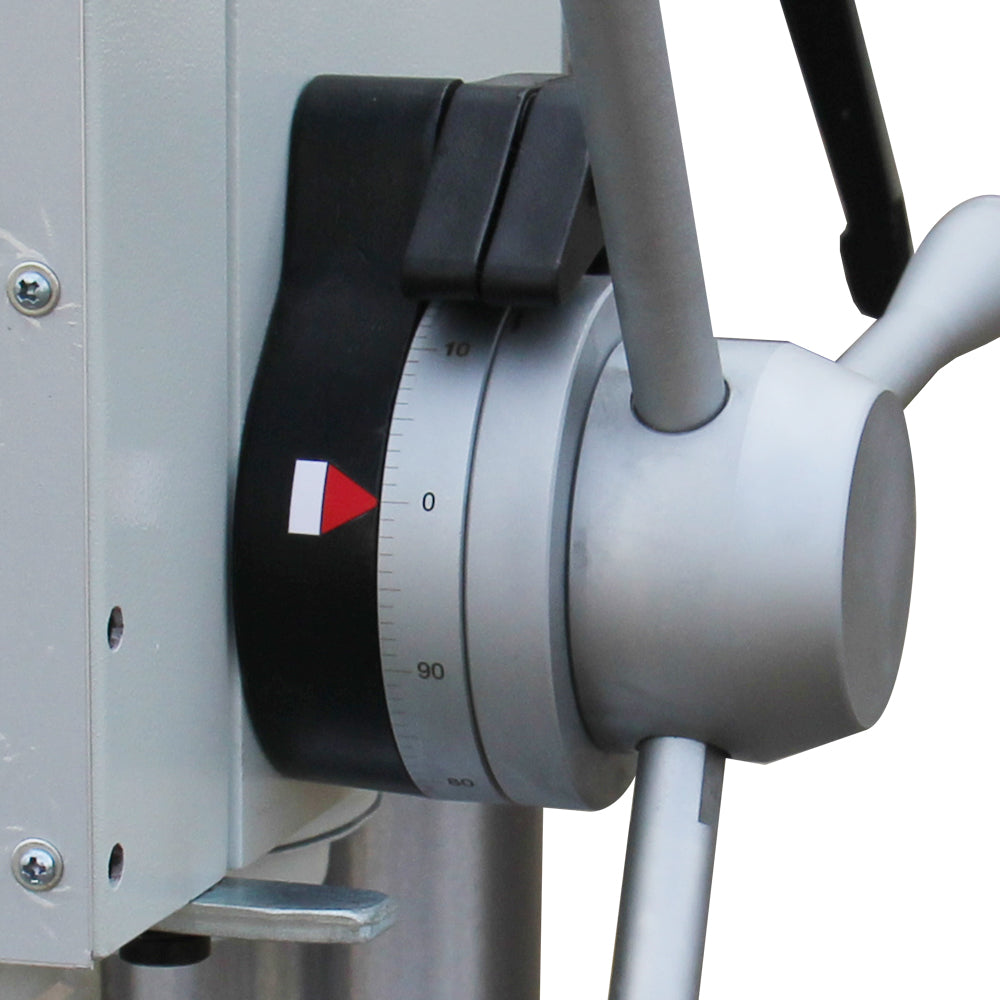

3. The rapid and reliable retracting, clear scale identification and small feeding depth positioning device can improve the drilling efficiency.

4. The power-off shield protection of our vertical drilling machine makes the work safer and more efficient.

Technical Specifications

Item No.

190017

Model

GD-25

Max.drilling dia.(mm)

25

Spindle travel(mm)

125

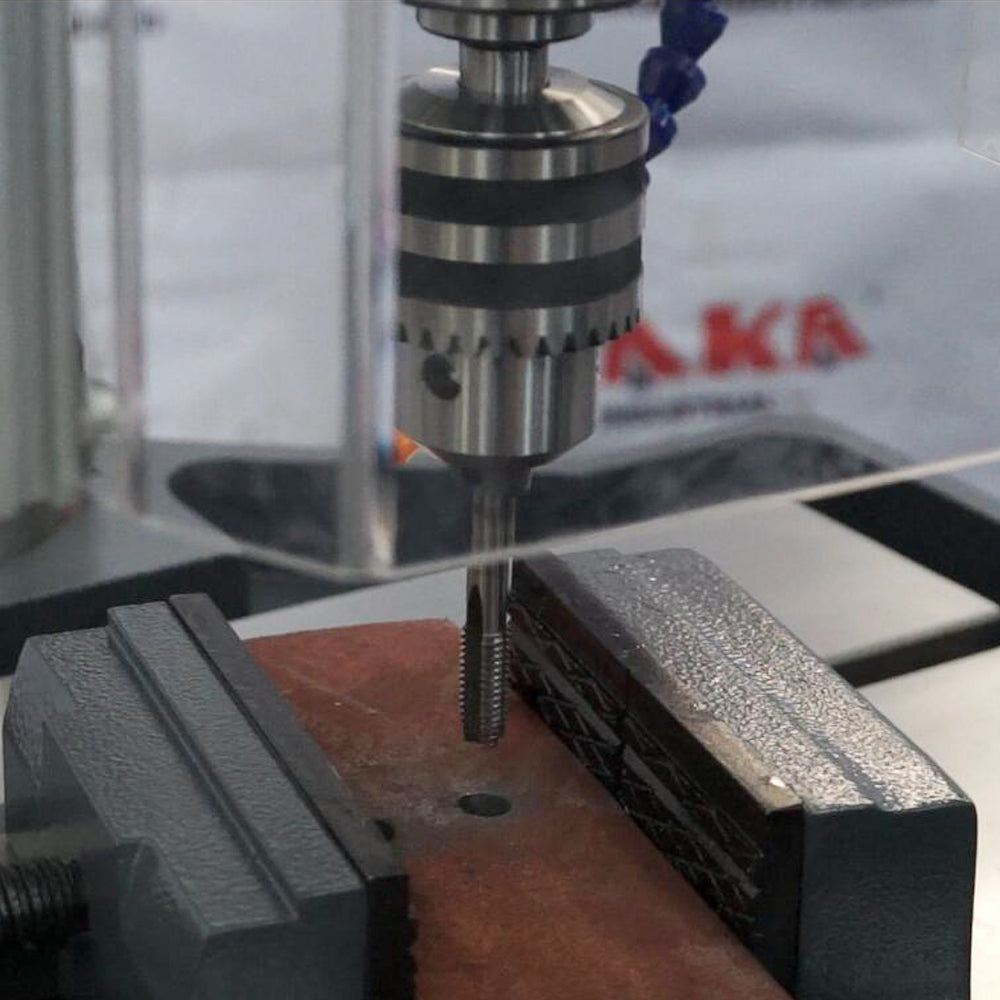

Tapping capacity in steel /cast iron

M10/M16

Morse taper

MT3

Motor power

0.65kW/0.9kW

Spindle speeds at (50Hz)

105-210-350-445-

700-890-1450-2900

Spindle speeds at 60(Hz)

130-260-420-840-535-

1070-1745-3200

Packing size(IN)

66X22X28

N.W./G.W.

419/485 LBS



IMPORTANT NOTICE


Shipping covers only Public Business addresses with a loading dock or forklift.

Optional shipping charge:

Following Value Added Service in the transportation is at an extra charge. Please contact us before you place an order. Thanks.


1. Residential delivery, includes power liftgate service, call before delivery service Extra charge

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/extra-shipping-charge

2. Power tailgate service for business address

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/lift-gate-shipping-service










Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Randy Zimmerman
Good value

I now have unpacked my unit and have it operational. The two speed motor is 3 phase 210 volt. I have installed a VFD in order to power it with 220 volt single phase.
The table is large and very rigid when clamped. The table has a pipe thread drain hole for coolant if you install a pump and coolant.
The drill head is gear driven. The gears are grease lubricated rather than oil bath.
There seems plenty of power for full size one inch drill bits.
