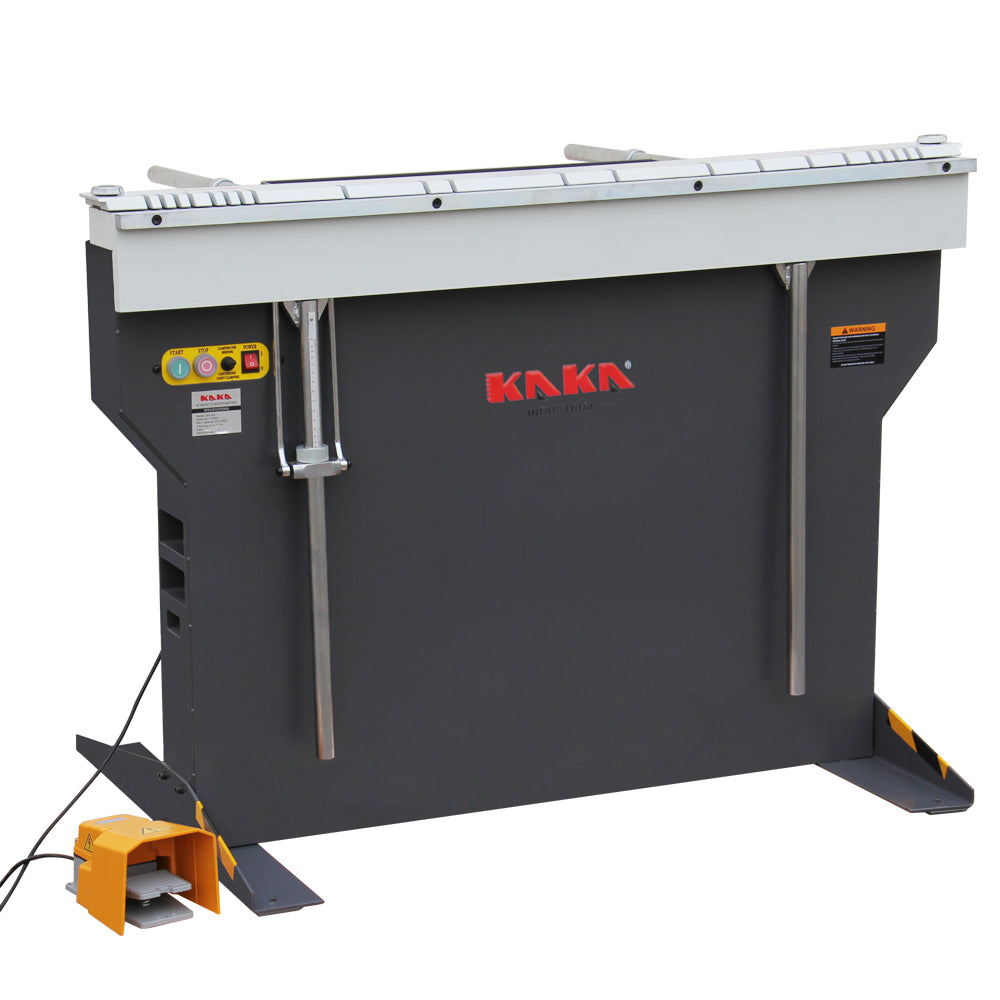

EB-4816B Magnetic Box and Pan Brake

48" Width | 16-Gauge Mild Steel Capacity

Innovative Magnetic Brake for Complex Bending Jobs

Create deep boxes, enclosed ducts, and custom shapes without the limitations of traditional finger brakes. The EB-4816 uses a 6-ton magnetic clamping force to securely hold material along its entire 48-inch length—delivering crisp, consistent bends every time.


 Key Features:

  • 16-Gauge Mild Steel / 20-Gauge Stainless Steel Capacity
    Built to handle a wide range of sheet metals.

  • Open-Ended Design
    Perfect for enclosed boxes, triangles, scrolls, and intricate shapes.

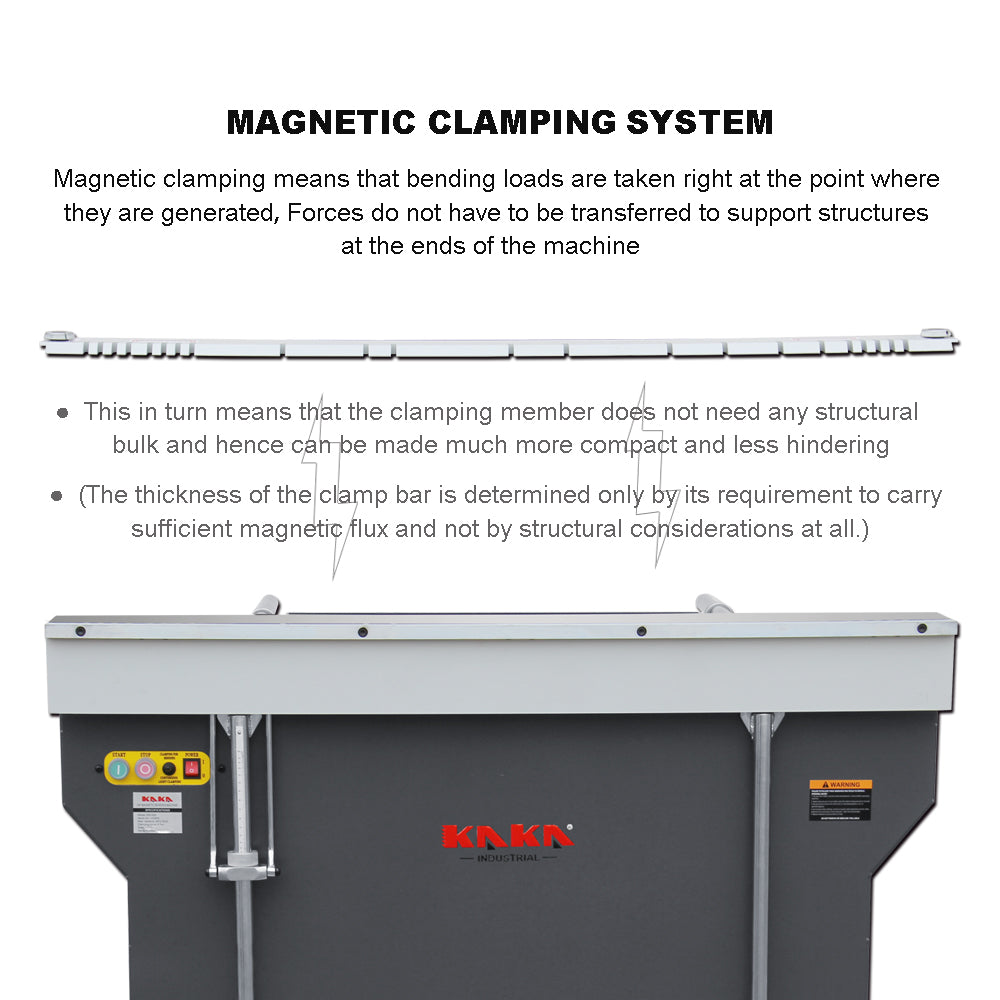

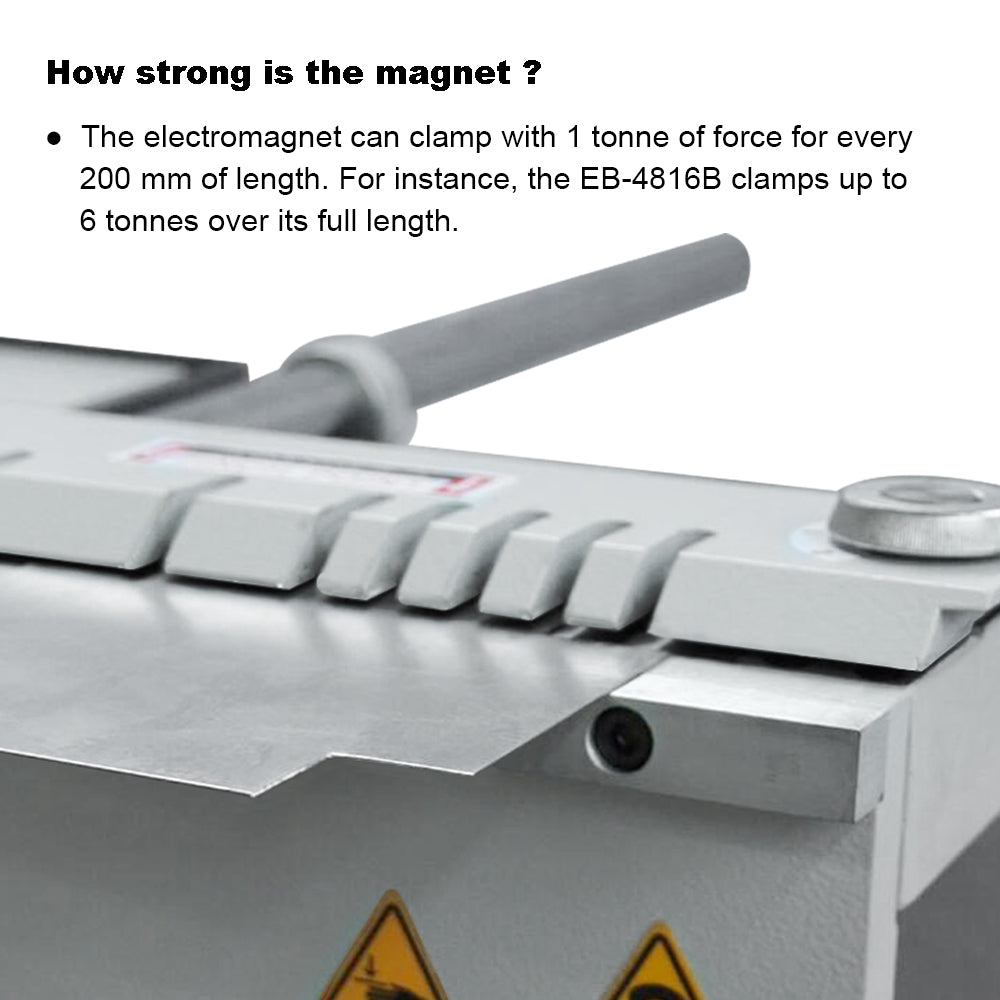

  • 6-Ton Magnetic Clamping
    Uniform force across the beam—even in the center.

  • 220V Single Phase Power
    Requires 209–231VAC for safe operation. Voltage outside this range may damage the machine and void the warranty.

  • Removable Bending Extension
    Bend between flanges as close as 0.625".

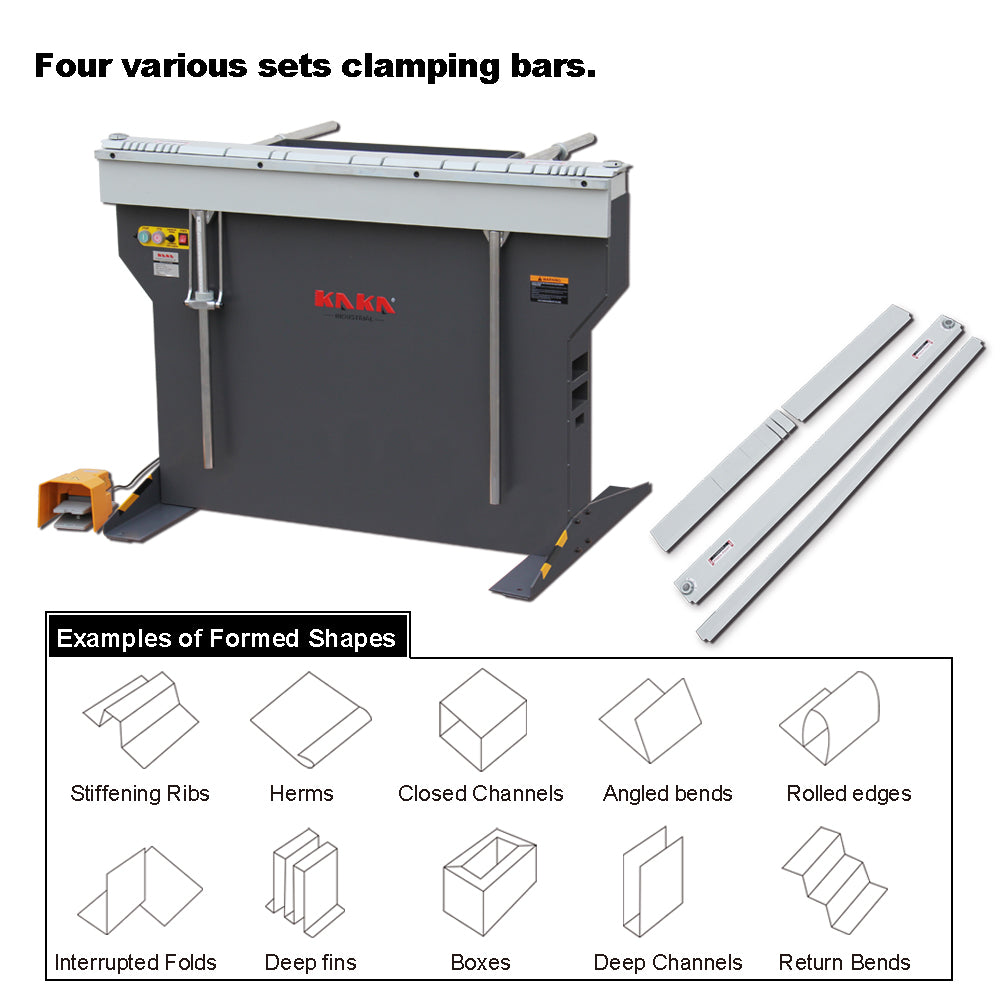

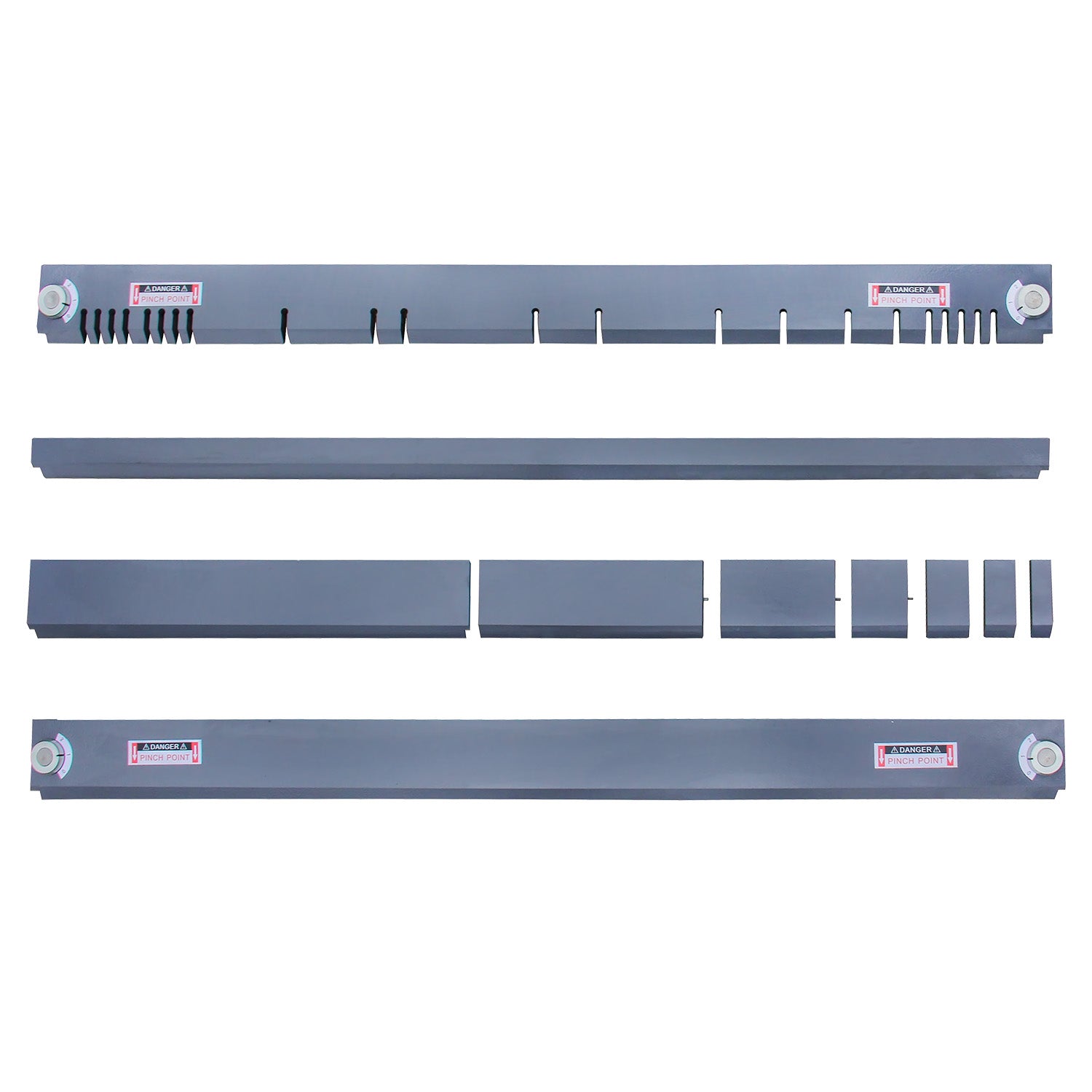

  • Segmented or Straight Clamping Bars
    Configure your setup for tight box sides or long straight bends.

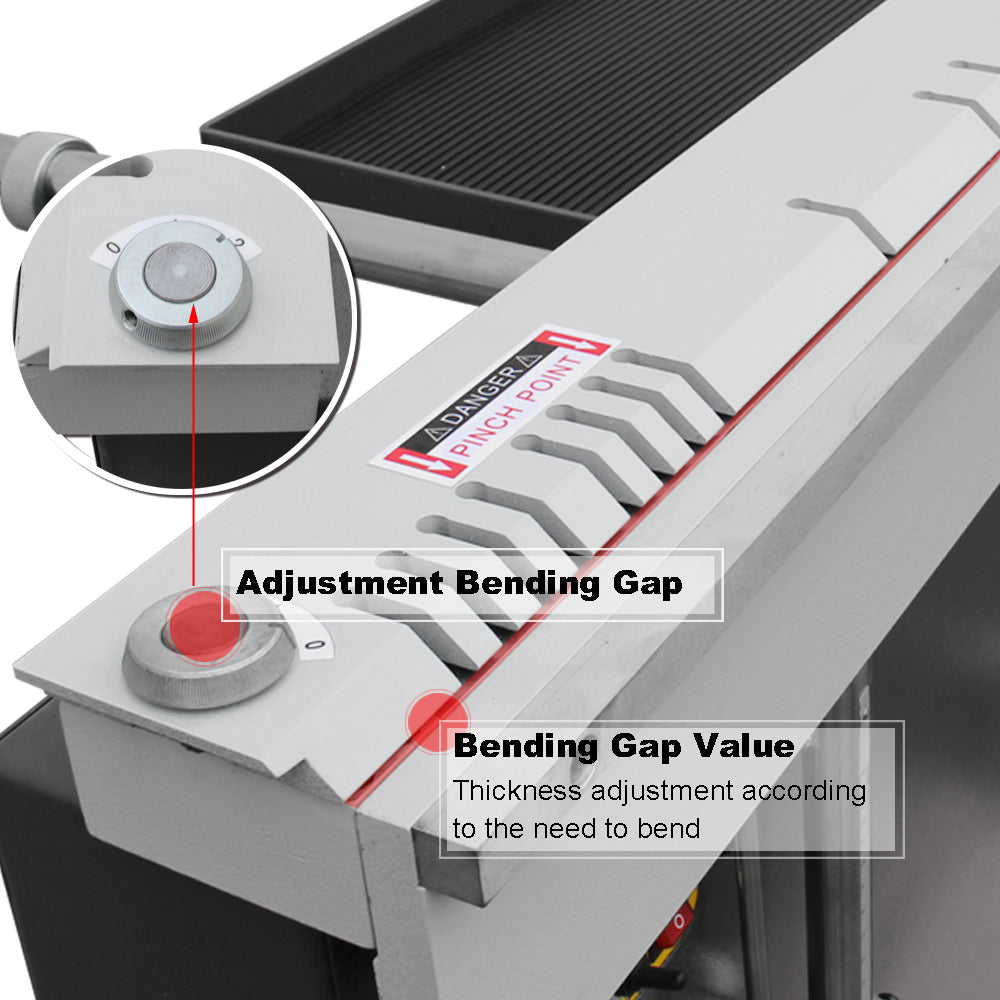

  • Adjustable Blade Gap
    Easily accommodate various material thicknesses.

  • Scaled Stroke Angle Control
    Repeatable, precise bends—ideal for production work.

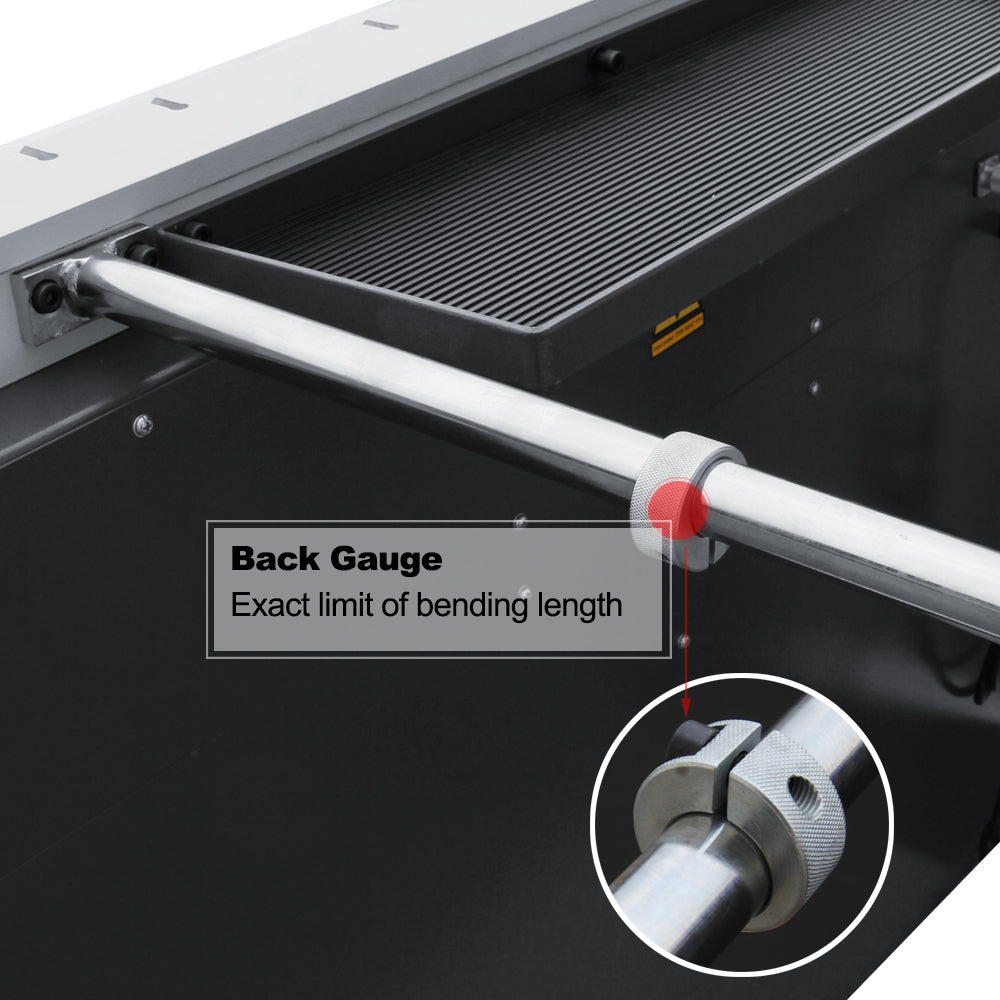

  • Back Gauge Included
    Set stops for efficient, consistent runs.


👣 Hands-Free Operation:

  • Position material to desired depth.
  • Press the magnetic clamping button.
  • Use the foot pedal to softly clamp material.
  • Lift the bottom leaf to complete the bend.

🆚 EB-4816B vs. EB-4816M

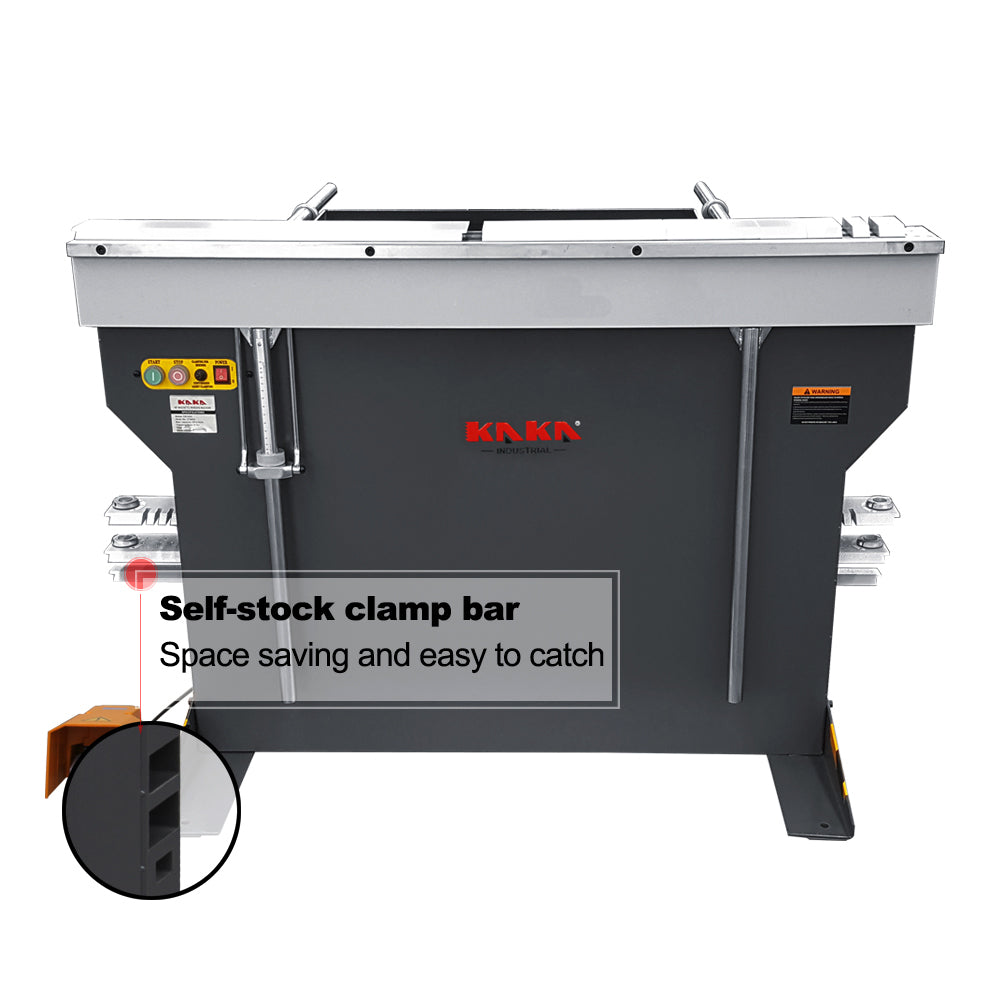

  • EB-4816B includes a built-in storage base for clamp bars—ideal for space-saving and easy access.

  • EB-4816M is the standard version without the storage feature.

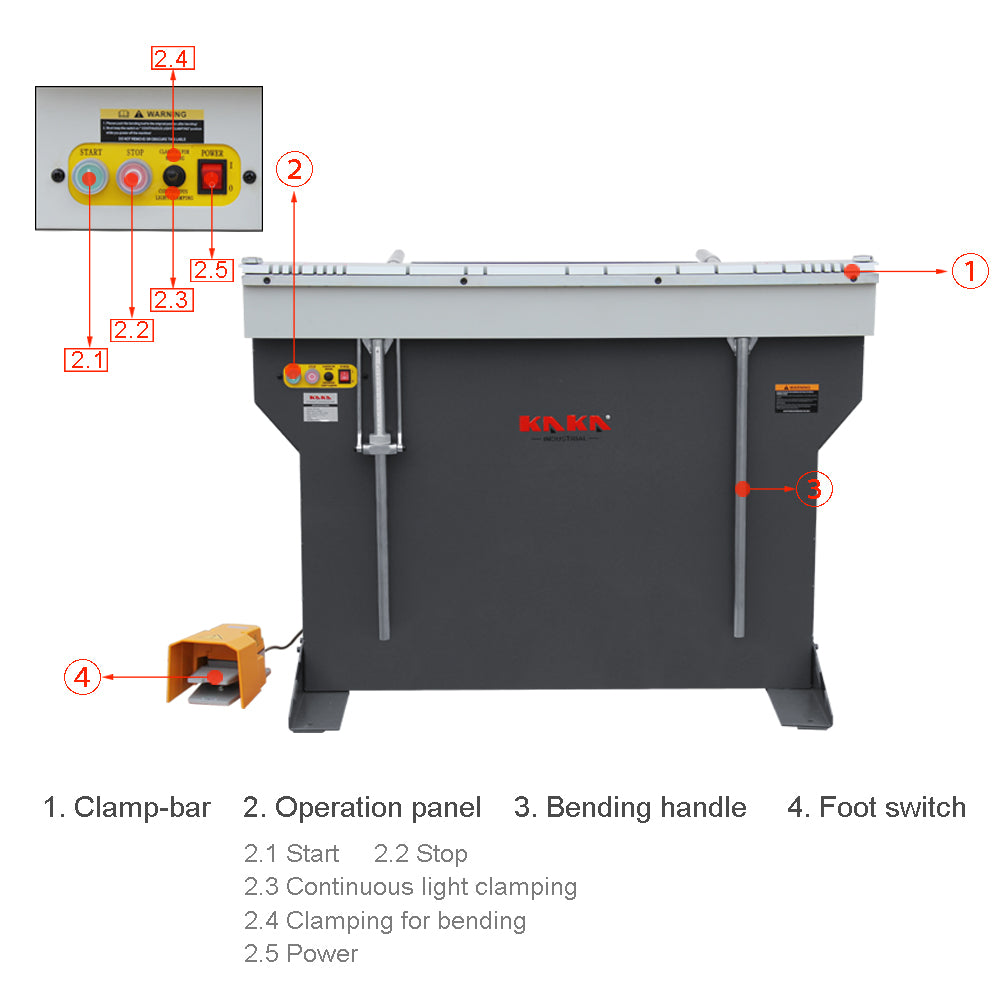

👣 Simple, Hands-Free Operation

  1. Place your material between the clamping bars.

  2. Activate the magnetic clamping with a push button.

  3. Use the foot pedal to softly clamp the workpiece—keeping hands safely out of the way.

  4. Raise the bottom leaf to form the bend.


💼 Recommended For:

  • HVAC Ductwork

  • Industrial Metal Art

  • General Sheet Metal Fabrication

  • Prototyping Shops

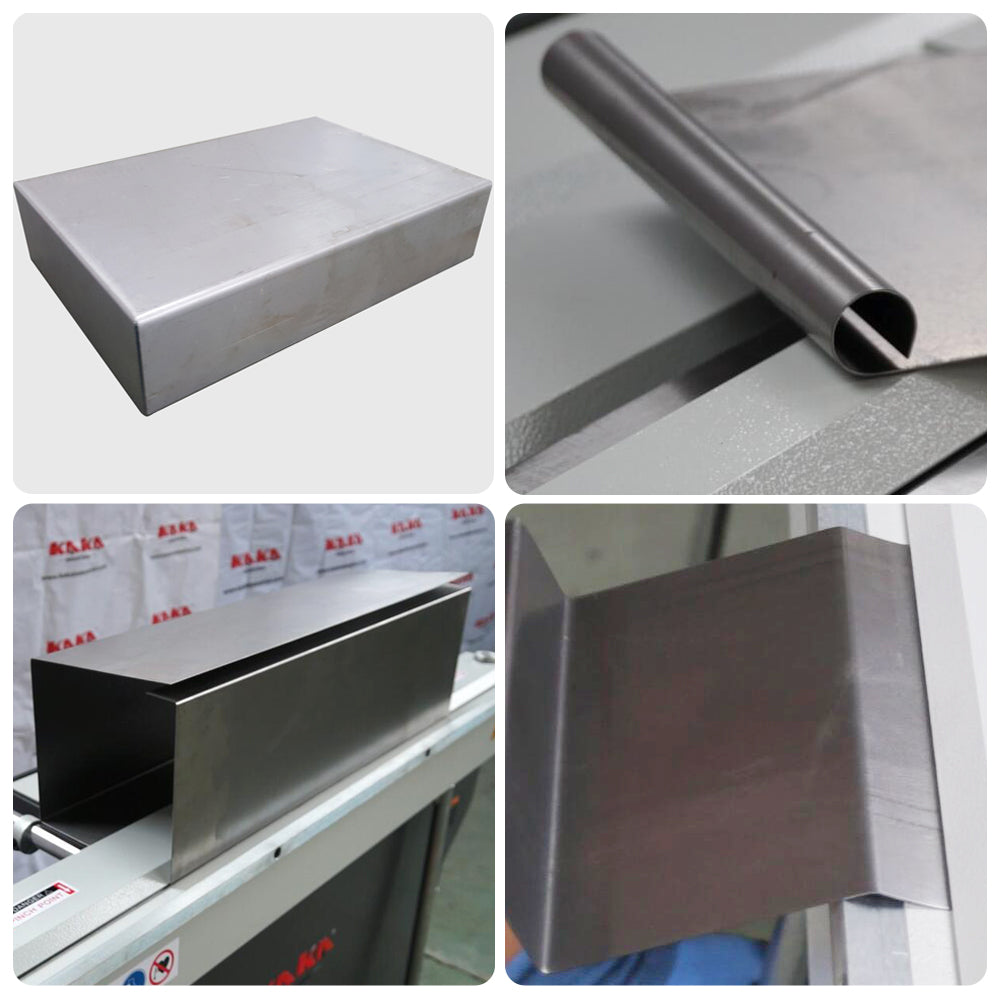

🔄 Applications:

  • Enclosed boxes and deep pans

  • Triangle or alternate plane bends

  • Scrollwork and rolled edges

  • Bending aluminum, stainless, coated metal, heated plastics, and more

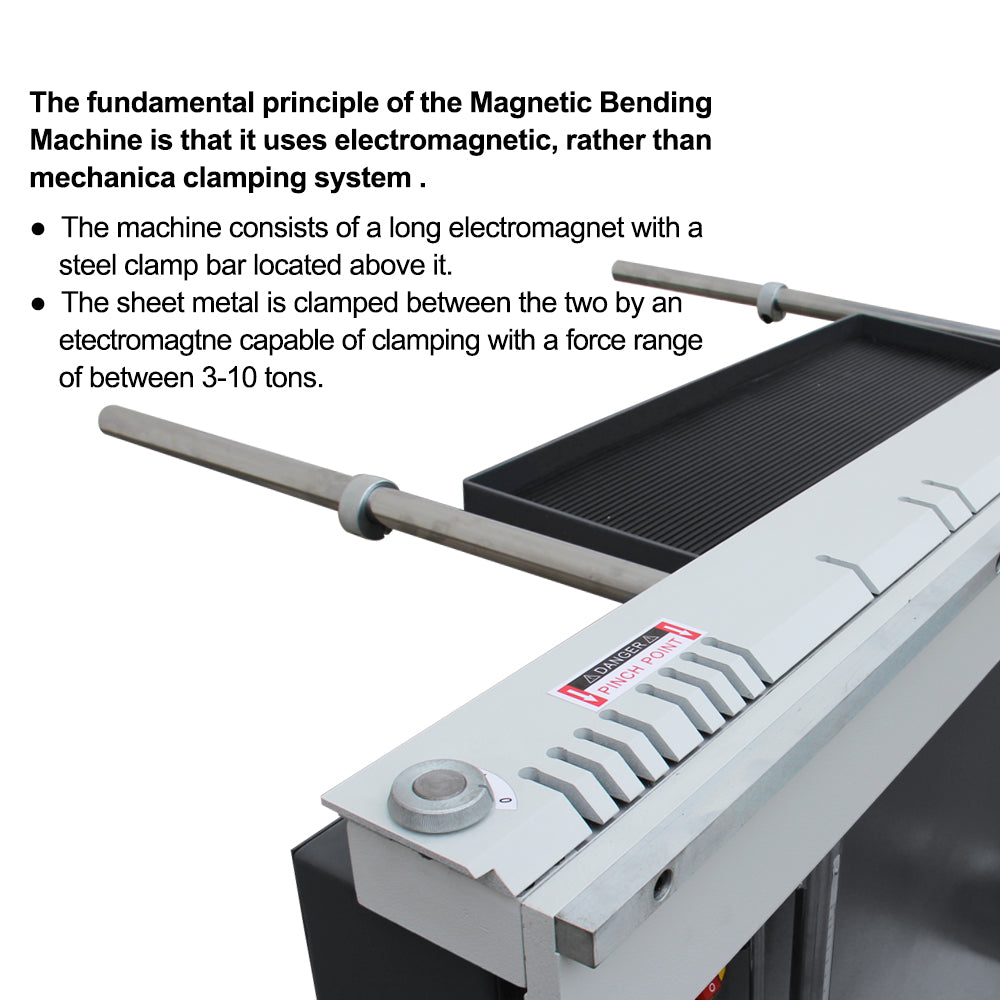

Magnetic Bending Machine with Foot Pedal

NOMINAL CAPACITY
1250 mm x 1.6 mm (4ft x 16g)

CLAMPING FORCE (with standard full-length clampbar)

6 Tonne

 BENDING CAPACITIES (for standard full-length clampbar)

MATERIAL
(yield/ult stress)

THICKNESS
(mm)

LIP WIDTH
minimum (mm)

BEND RADIUS
Typical (mm)

Mild Steel
(250/320 MPa)

1.6

30*

3.5

1.2

15

2.2

1.0

10

1.5

Aluminium
Grade 5005 H34
(140/160 MPa)

1.6

30*

1.8

1.2

15

1.2

1.0

10

1.0

Stainless Steel
Grades 304, 316
(210/600MPa)

1.0

30*

3.5

0.9

15

3.0

0.8

10

1.8



🔎 Special Notes:

  • Capacity depends on whether the bending leaf extension is installed

  • Rule of Thumb for Mild Steel:

    • 16ga  Extension OFF

    • 18ga  Extension ON or OFF

    • 20ga and thinner  Extension ON


⚠️ Important – Power Requirements

To ensure proper performance and avoid permanent damage, the power supply must be:
220VAC ±5% (acceptable range: 209V to 231V)
Failure to meet this requirement will void the warranty.

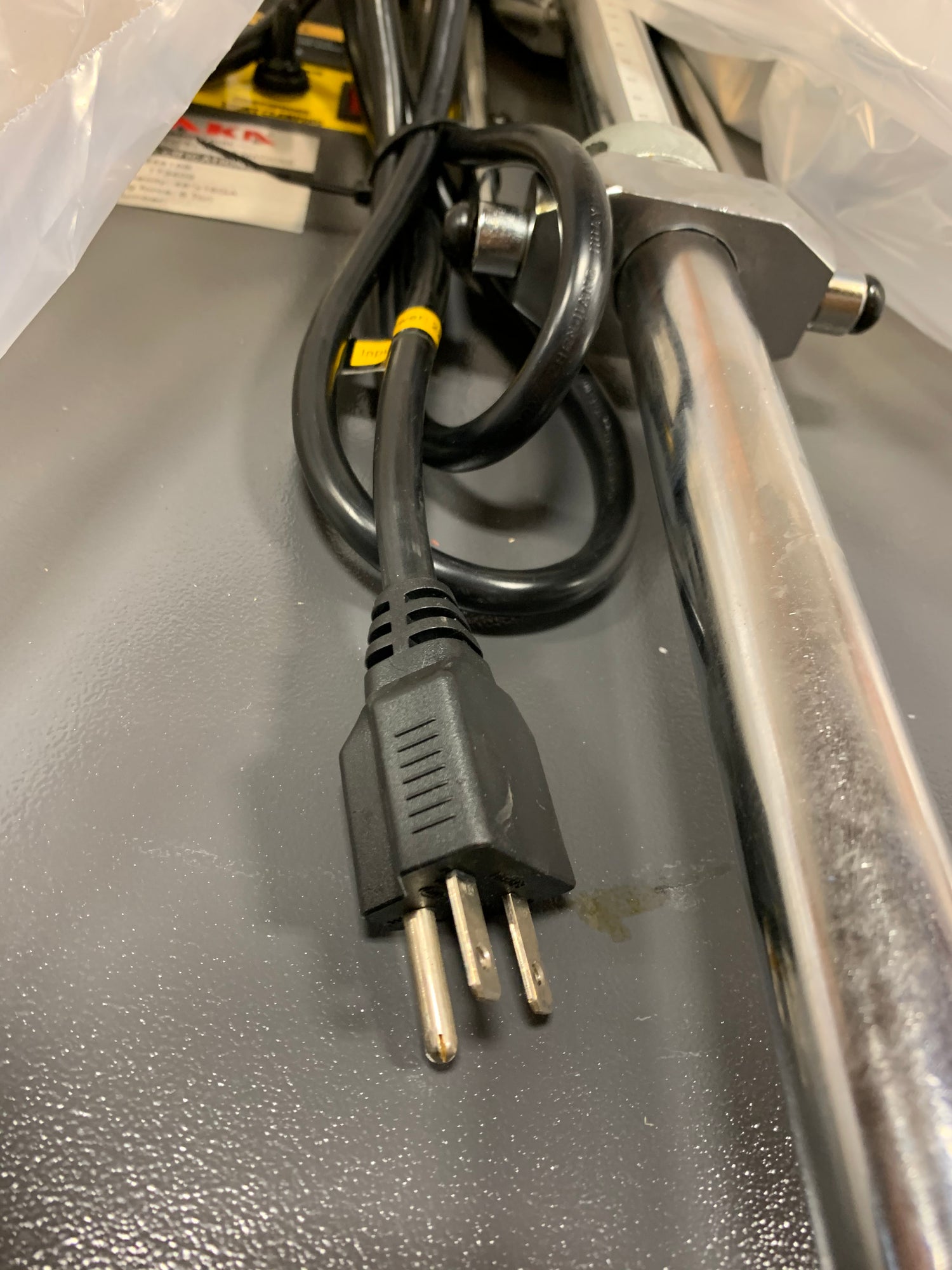

ELECTRICAL
Supply: 1 phase, 220 V ac
Nominal current:  8 Amp
Duty cycle:  30%
Protection: Thermal cut-out, 70°C

Item No.

173409

Model

EB4816B

Max. Capacity
(length x thickness)

1250x1.6mm

48'x16ga

Clamping force

6Ton

Duty cycle

30%

Blade size

5000x41x1.3mm

Back gauge

640mm

Foot switch

Standard

Nominal current

6 Amp

Protection

Thermal cut-out 70°C

Bending-edge length(in)

51"

Distance between lifters(in)

49.6"

Packing size(in)

57"x44"x15"

N.W./G.W.(lb)

407/530lbs
