Features:
1. With variable speed.
2. Driven by gear with high torque.

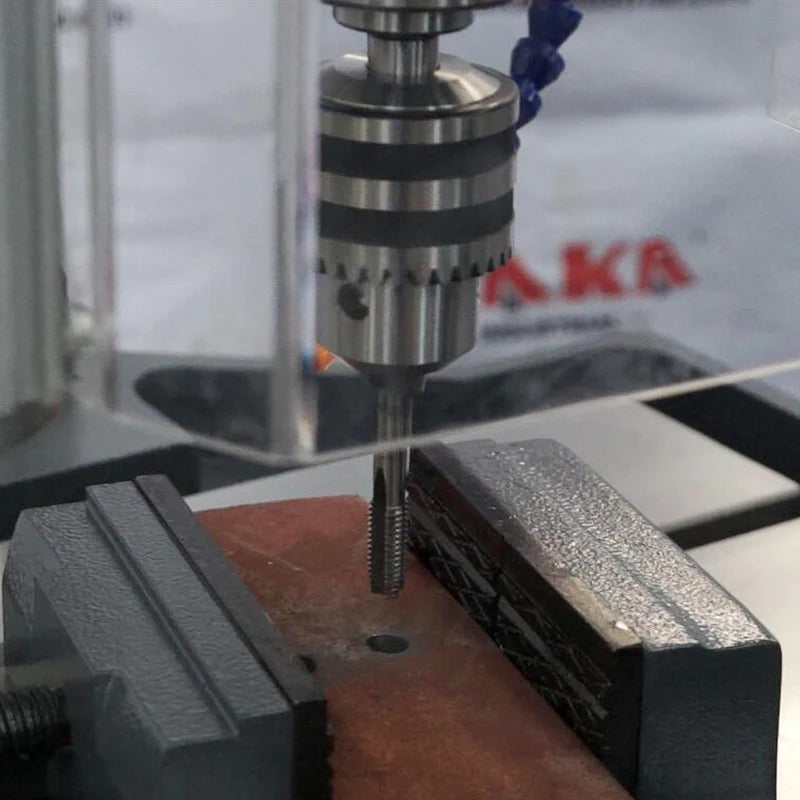

3. Large capacity for drilling and tapping

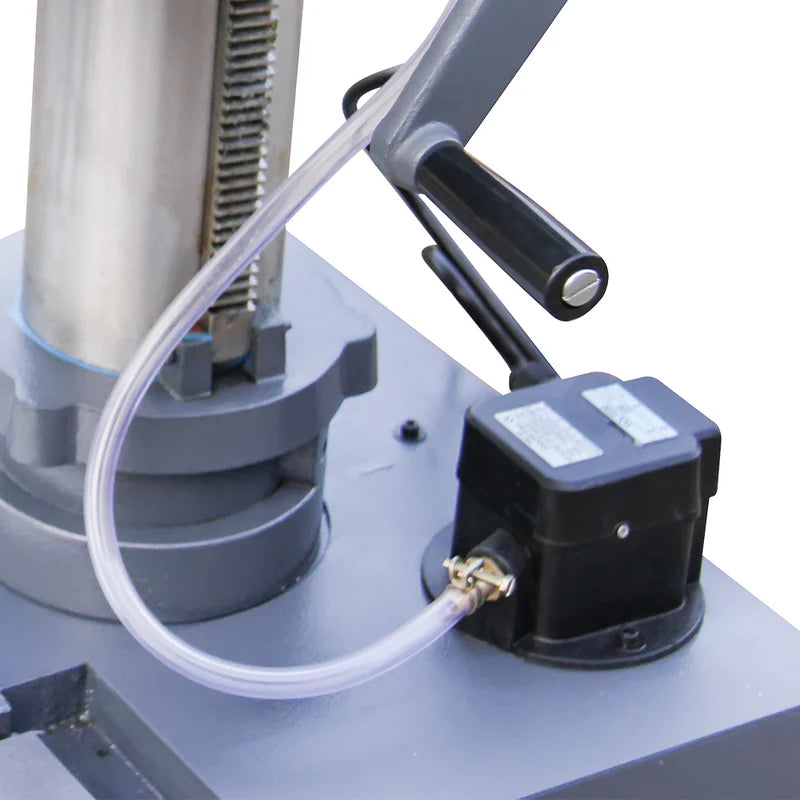

4. Casting iron structure for long durability
5. Coolant as standard

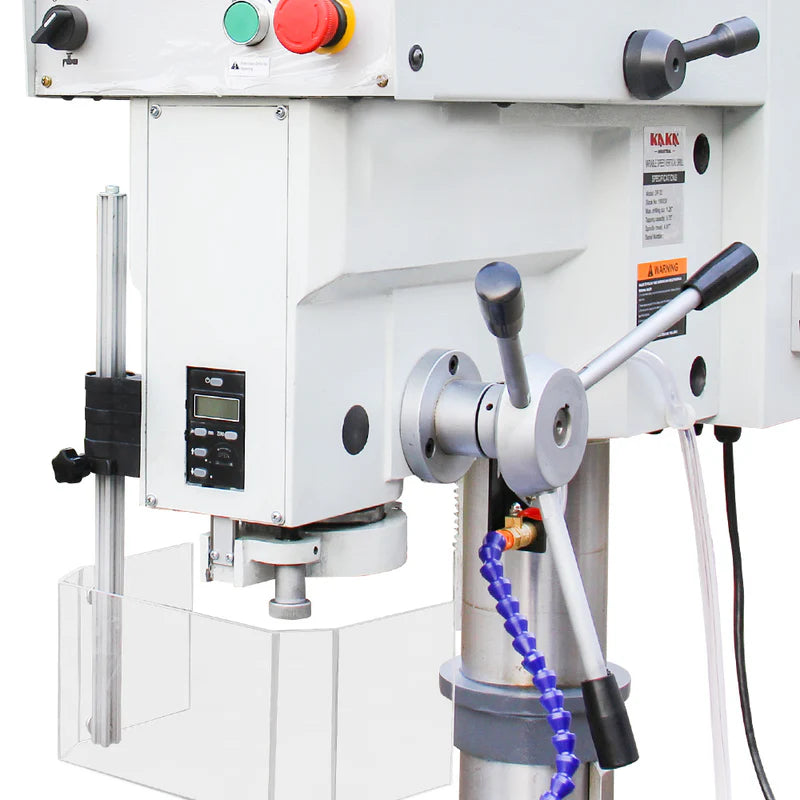

6. Safety guard with Micro switch
7. Variable speed
Specification:
|
Item No. |
190030 |
|
Model |
DP-32 |
|
Max. drilling capacity |
MT3 32mm; MT4 40mm(optional) |
|
Max. taping capacity |
19 mm |
|
Swing |
530 mm |
|
Spindle taper |
MT3, MT4 (optional) |
|
Spindle travel |
150 mm |
|
Spindle speed |
245-2000 rpm 65-540 rpm |
|
Spindle nose to table |
850 mm |
|
Spindle nose to base |
1180 mm |
|
Quill diameter |
75 mm |
|
Column diameter |
115 mm |
|
Motor power |
1.5 kW |
|

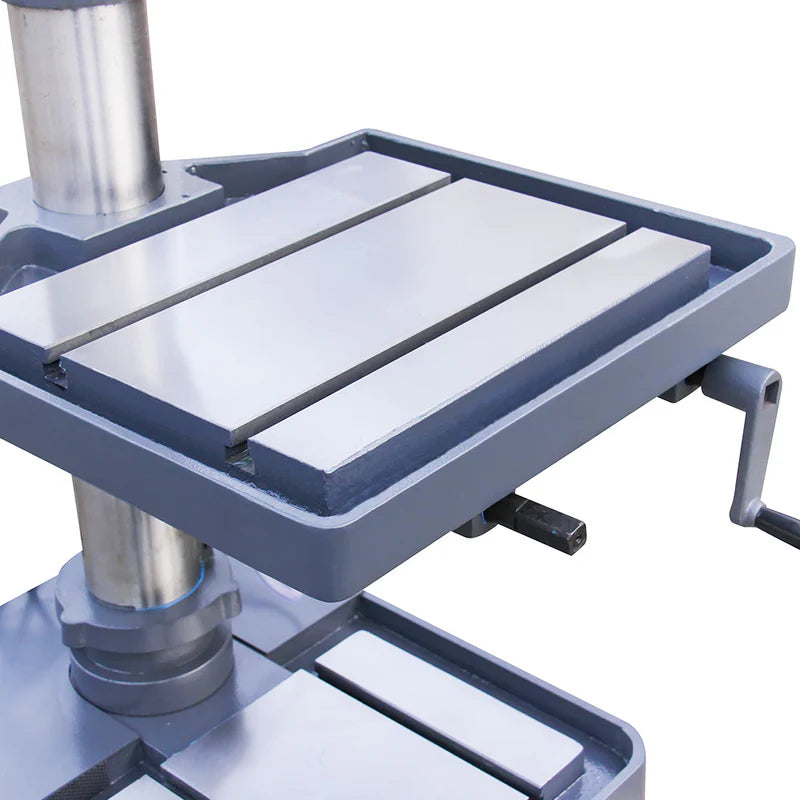

Table size |
560x470 mm |
|
Table slot |
16 mm |
|
Base size |
485x685 mm |
|
Machine size |
37"x25"x79" |
|
Net weight |
750lbs |
Accessories:
Standard accessories:
Coolant
