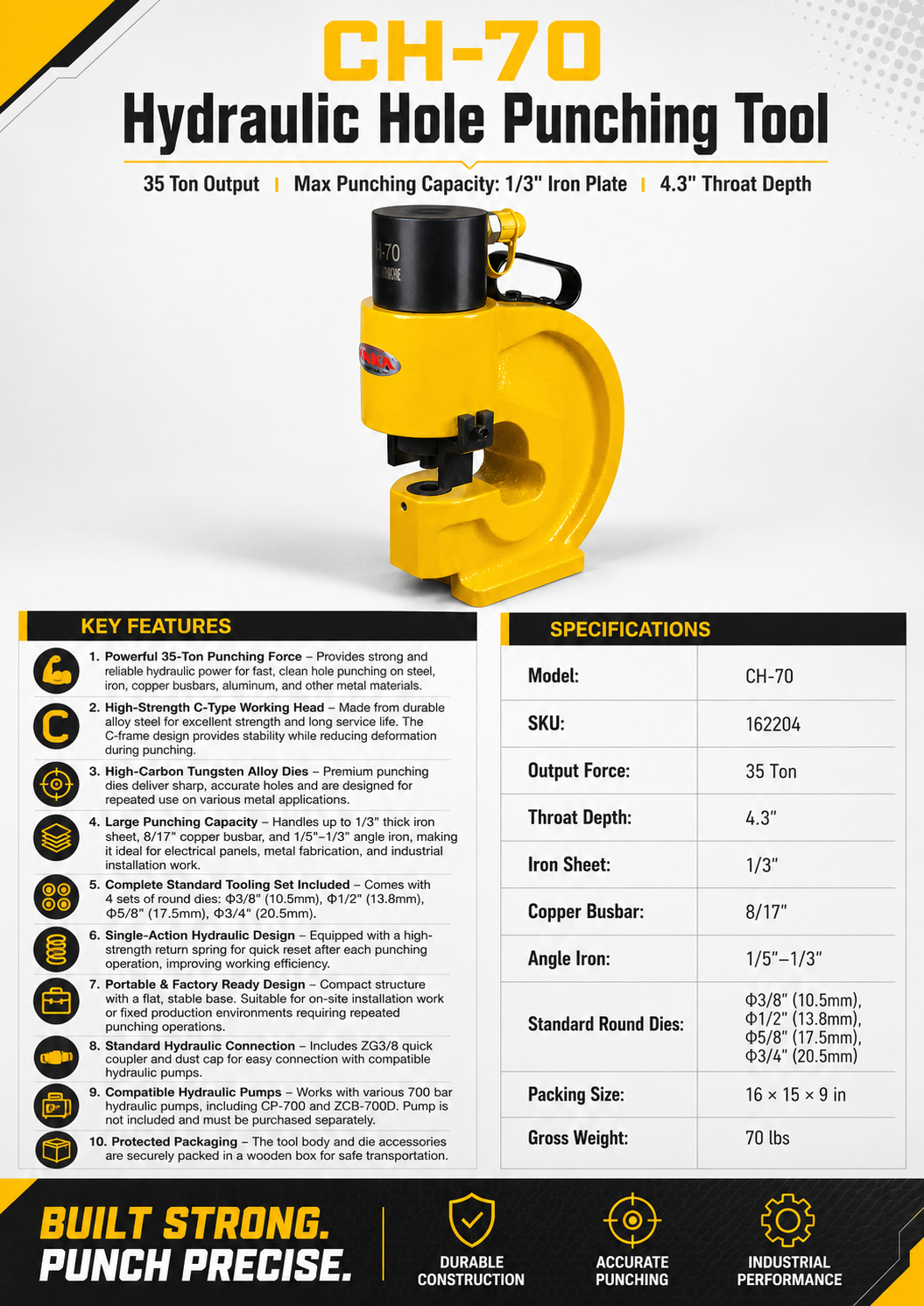

🛠️ CH-70 Hydraulic Hole Punching Tool
35 Ton Output | Max Punching Capacity: 1/3" Iron Plate | 4.3" Throat Depth
💡 Key Features
⚡ Powerful 35-Ton Punching Force
Provides strong and reliable hydraulic power for fast, clean hole punching on steel, iron, copper busbars, aluminum, and other metal materials.
🧱 High-Strength C-Type Working Head
Made from durable alloy steel for excellent strength and long service life. The C-frame design provides stability while reducing deformation during punching.
🎯 High-Carbon Tungsten Alloy Dies
Premium punching dies deliver sharp, accurate holes and are designed for repeated use on various metal applications.
📏 Large Punching Capacity
Handles up to 1/3" thick iron sheet, 8/17" copper busbar, and 1/5"–1/3" angle iron, making it ideal for electrical panels, metal fabrication, and industrial installation work.
🔩 Complete Standard Tooling Set Included
Comes with 4 sets of round dies:
- Ф3/8" (10.5mm)
- Ф1/2" (13.8mm)
- Ф5/8" (17.5mm)
- Ф3/4" (20.5mm)
🔄 Single-Action Hydraulic Design
Equipped with a high-strength return spring for quick reset after each punching operation, improving working efficiency.
🧰 Portable & Factory Ready Design
Compact structure with a flat, stable base. Suitable for on-site installation work or fixed production environments requiring repeated punching operations.
🔌 Standard Hydraulic Connection
Includes ZG3/8 quick coupler and dust cap for easy connection with compatible hydraulic pumps.
💪 Compatible Hydraulic Pumps
Works with various 700 bar hydraulic pumps, including:
- CP-700
- ZCB-700D
(Pump is not included and must be purchased separately.)
📦 Protected Packaging
The tool body and die accessories are securely packed in a wooden box for safe transportation.
📐 Specifications
Model: CH-70
SKU: 162204
Output Force: 35 Ton
Throat Depth: 4.3"
Max Material Thickness:
- Iron Sheet: 1/3"
- Copper Busbar: 8/17"
- Angle Iron: 1/5"–1/3"
Standard Round Dies:
- Ф3/8" (10.5mm)
- Ф1/2" (13.8mm)
- Ф5/8" (17.5mm)
- Ф3/4" (20.5mm)
Packing Size: 16 × 15 × 9 in
Gross Weight: 70 lbs
🔧 Optional Toolings (Special order ONLY)
Round Punches:
Ф5.5mm, Ф6mm, Ф6.5mm, Ф7mm, Ф7.5mm, Ф8.5mm, Ф9mm
Oval Punches:
7×11mm, 9×13mm, 11×17mm, 13×21mm, 17×24mm, etc.
