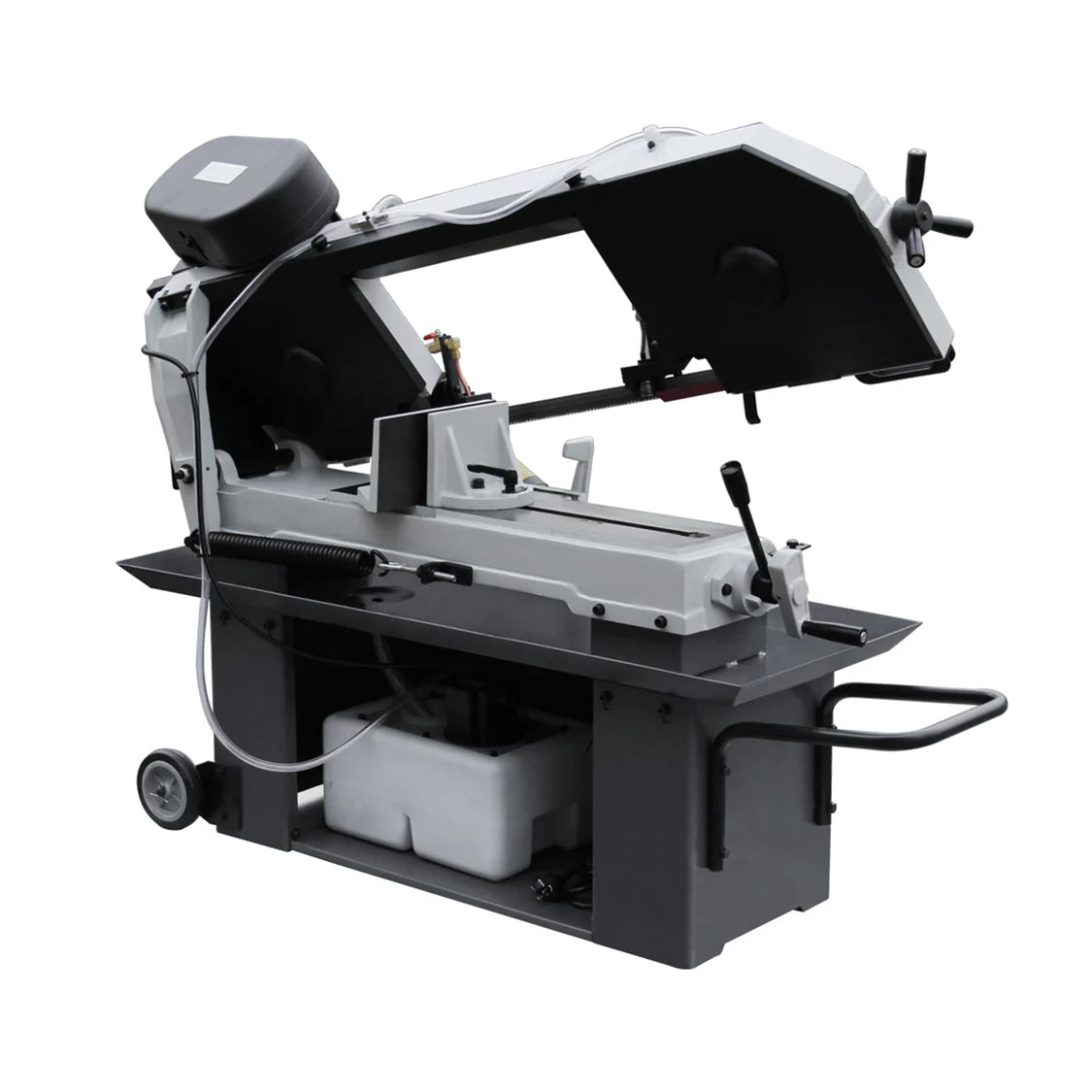

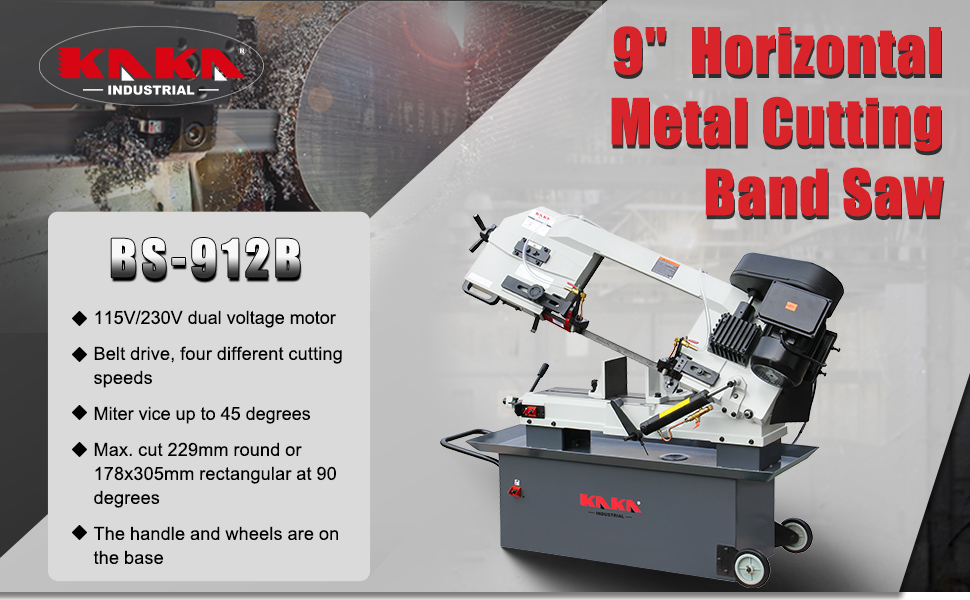

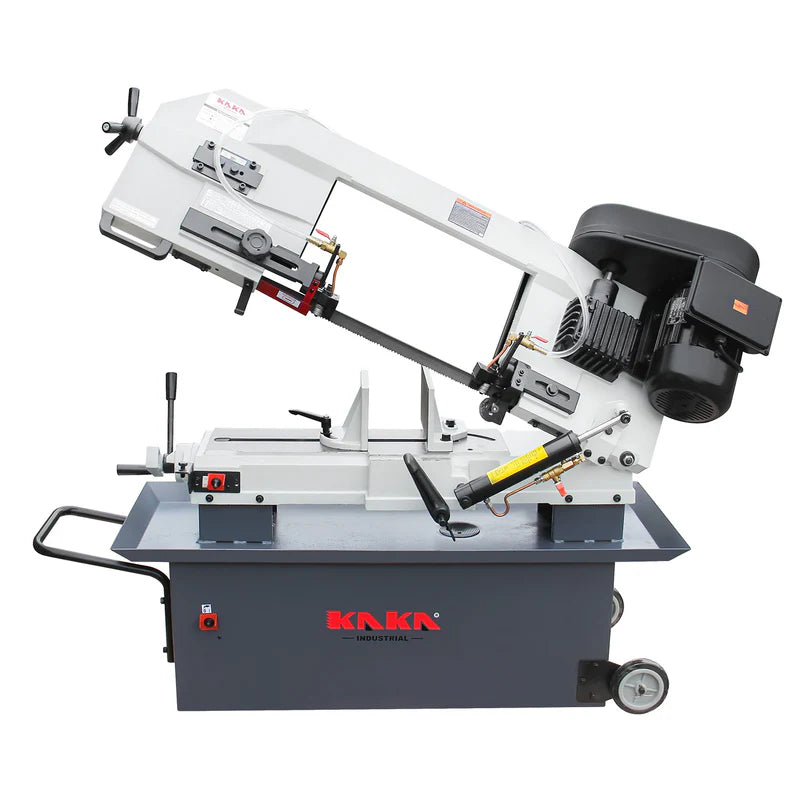

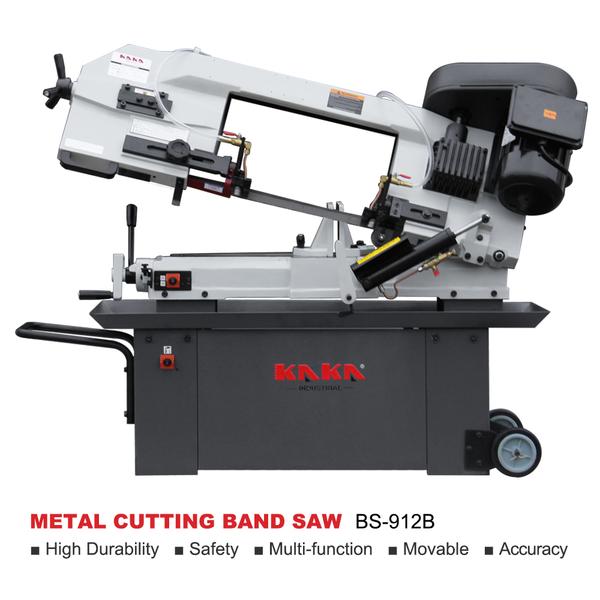

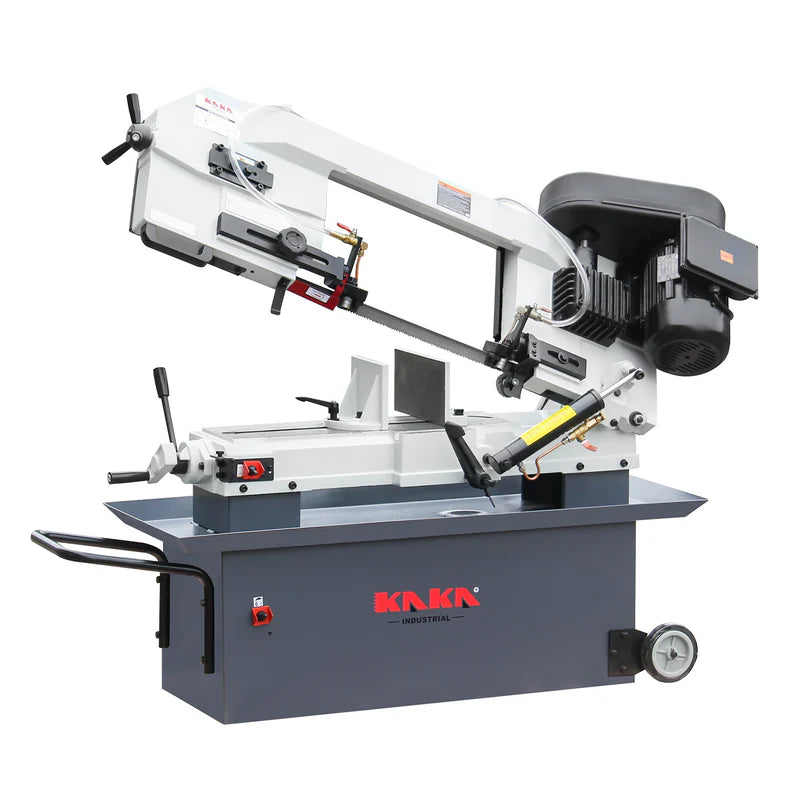

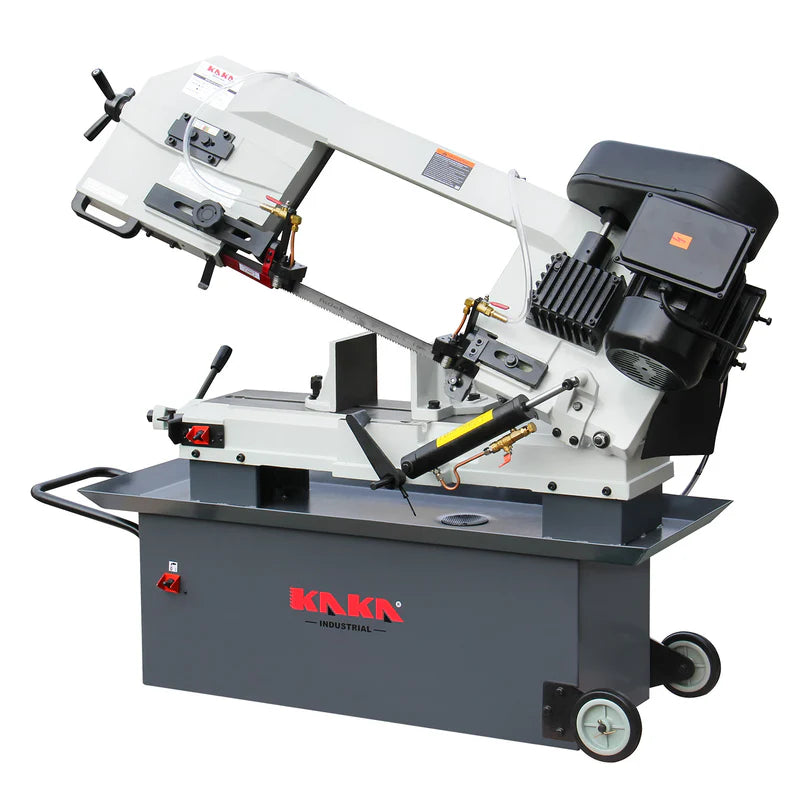

KAKA Industrial BS-912B 9" METAL CUTTING BAND SAW

  • Sale
  • Regular price $1,849.99


1. The maximum processing capability of BAND SAW BS-912B is 9"(229mm)
2. High-capacity due to controlled by motor

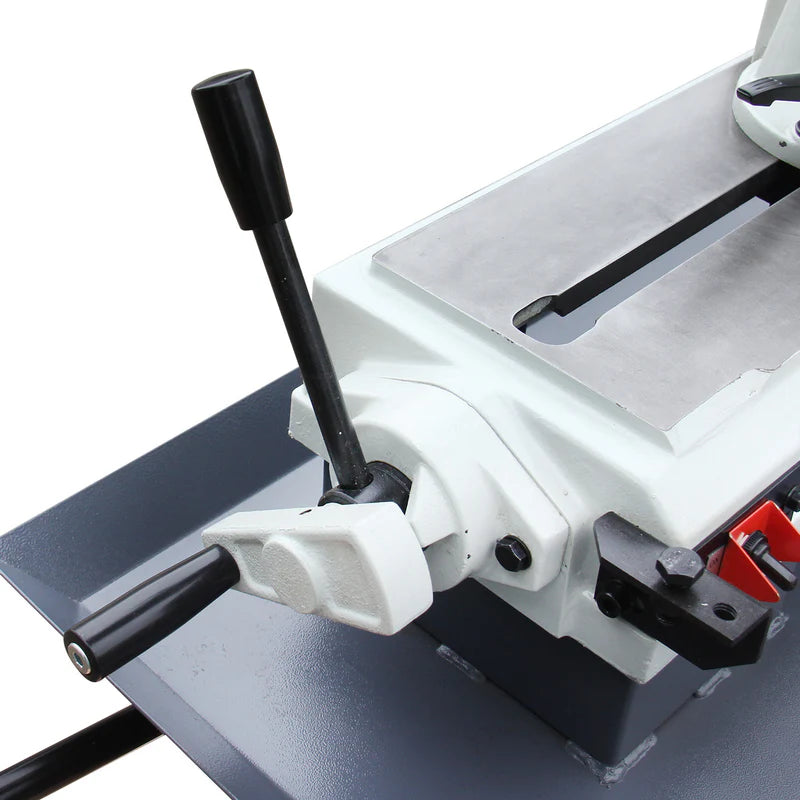

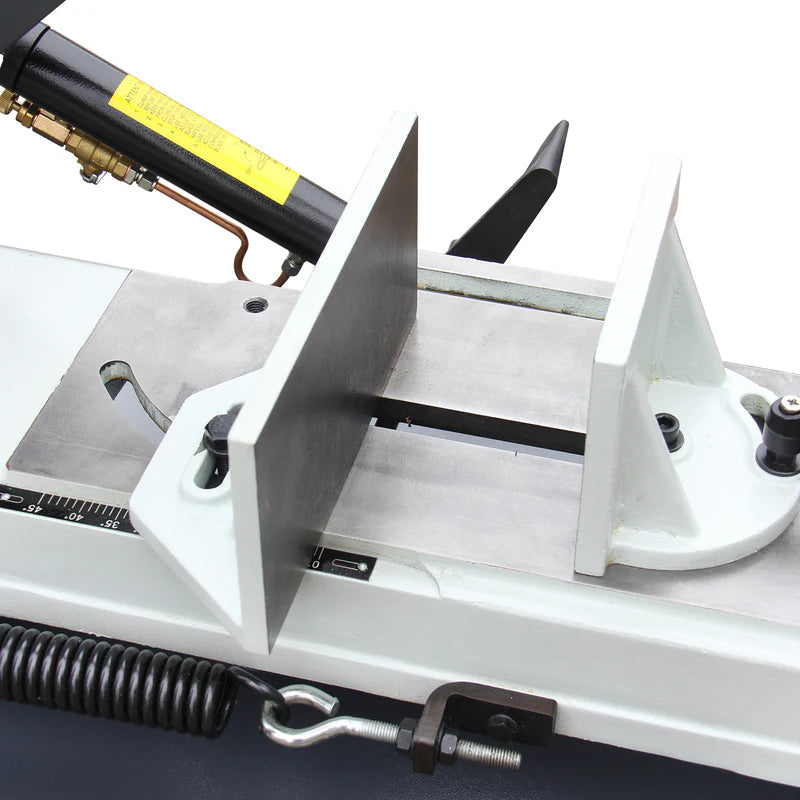

3. Has quick clamps that can be rotated from 0° to 45°

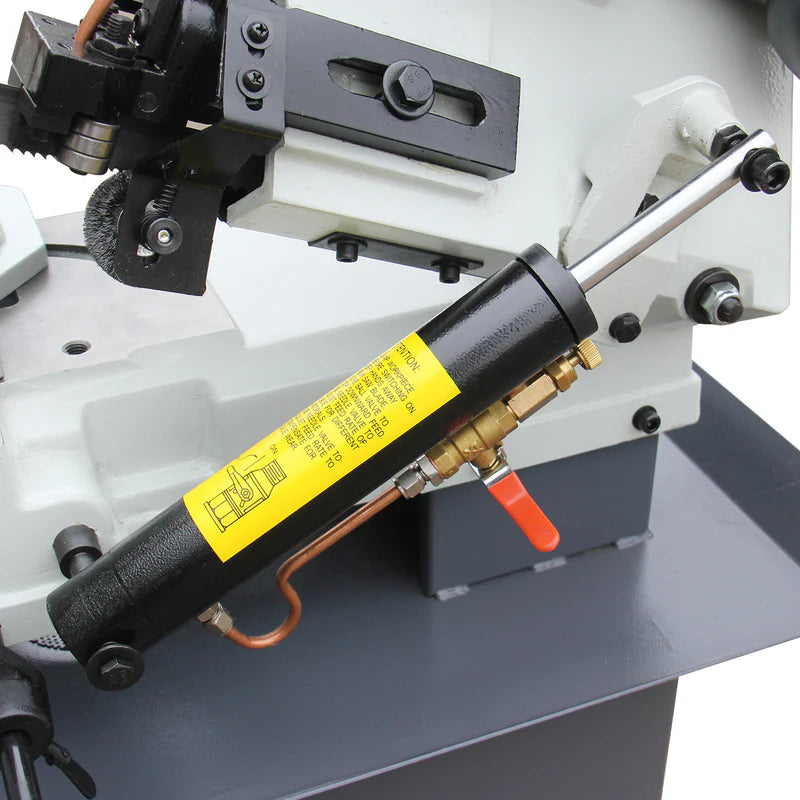

4. The falling speed of saw bow is controlled by hydraulic cylinder

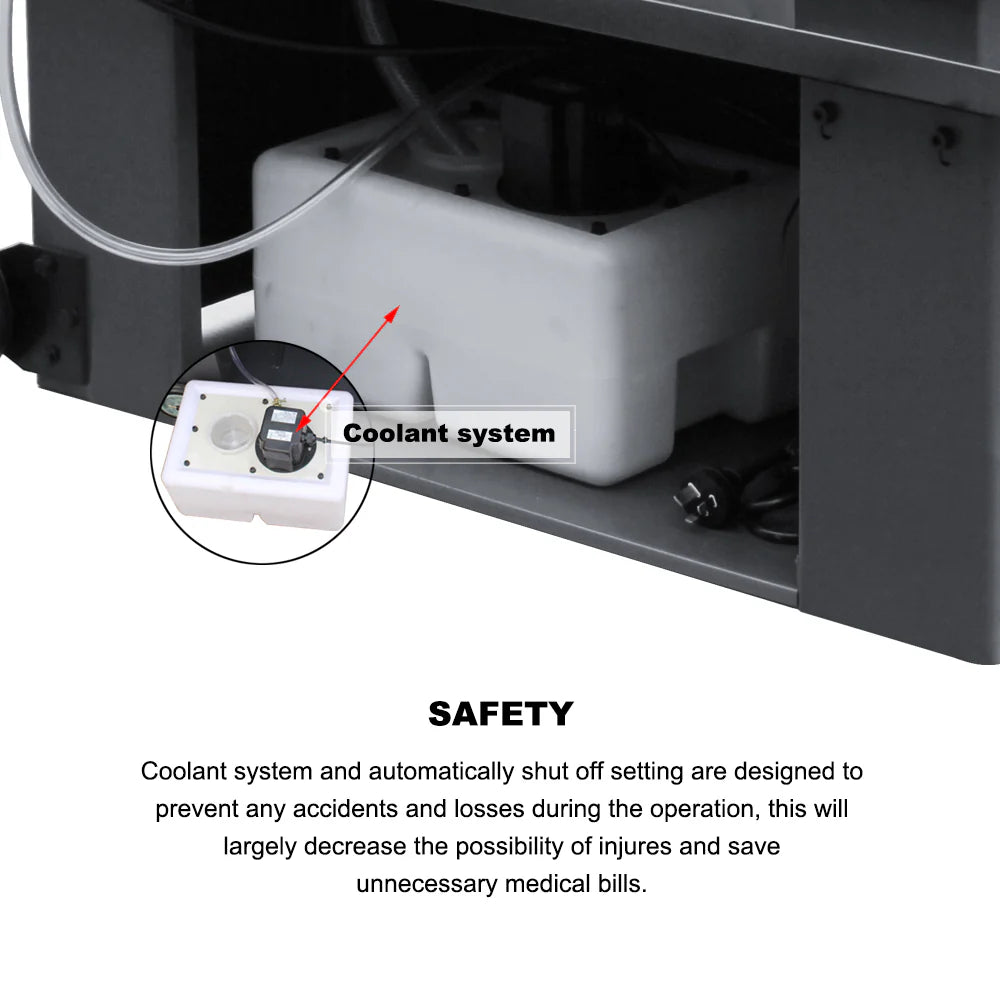

5..With coolant system, can prolong the service life of saw blade and improve the precision of work piece

6. Has a block feeder ( with fixed sawing length)

7.Main technical parameter

Item No.

188010

Model



BS-912B

Capacity

Circular @90°

229mm(9”)

Rectangular @90°

178x305mm (7”x12”)

Circular @45°

150mm(6”)

Rectangular @45°

127x150mm (5”x6”)

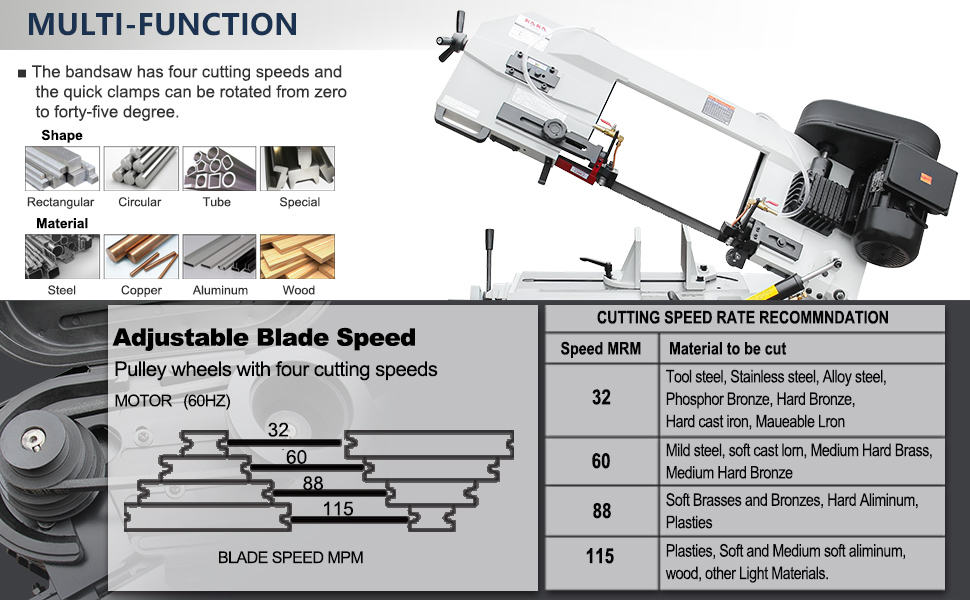

Blade speed

@60Hz

32,60,88,115MPM

@50Hz

26,50,73,95MPM

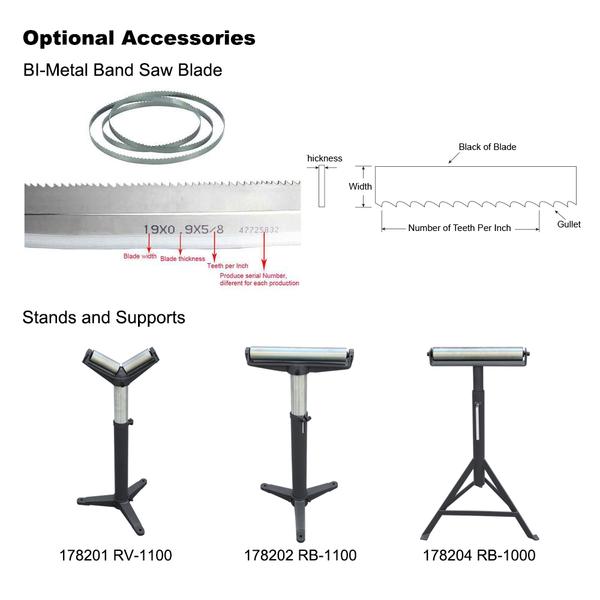

Blade size

27x0.9x2655mm

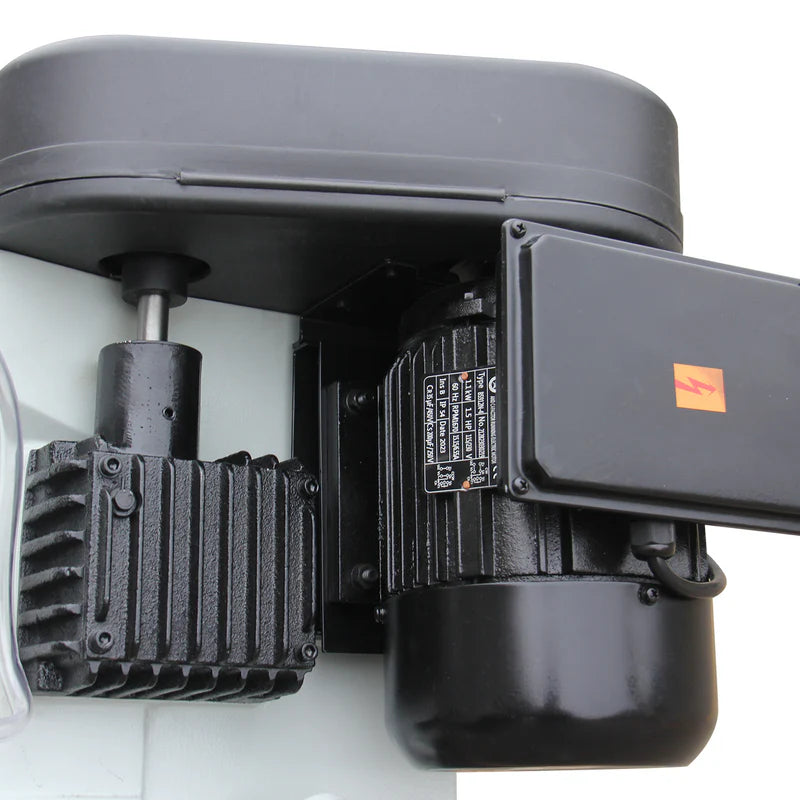

Motor power

1.1kw 1.5HP(3PH),1.5kw 2HP(1PH)

Drive

V-belt

Packing size(in)

60x23x45

N.W./G.W.(lb)

507/573









IMPORTANT NOTICE Shipping covers only Public Business Address with dock or forklift.

Optional shipping charge: Following Value Added Service in the transportation is at extra charge. Please contact us before you place order. Thanks.

1. Residential delivery, includes power lift gate service, call before delivery service Extra charge $99

2. Lift Gate service for business address $50

3. call before delivery for business address $35
