KAKA INDUSTRIAL  |  SKU: 188016V115

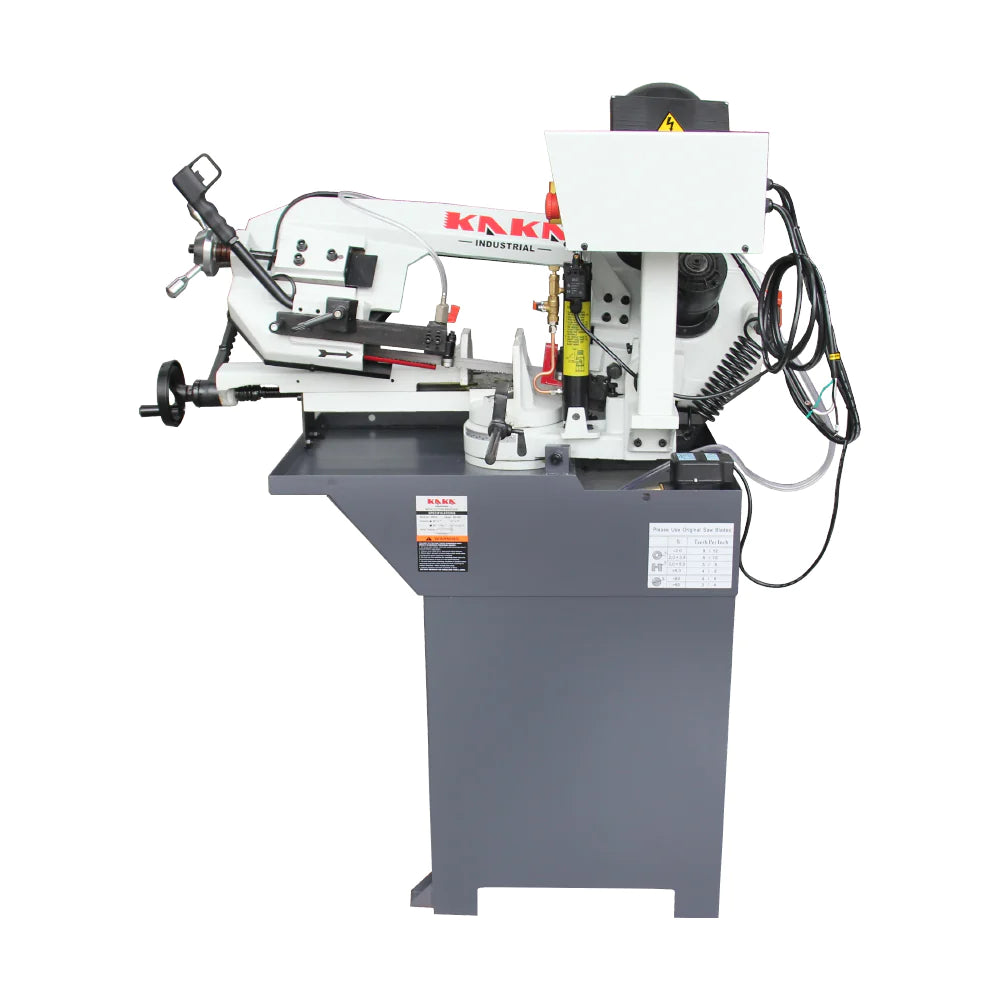

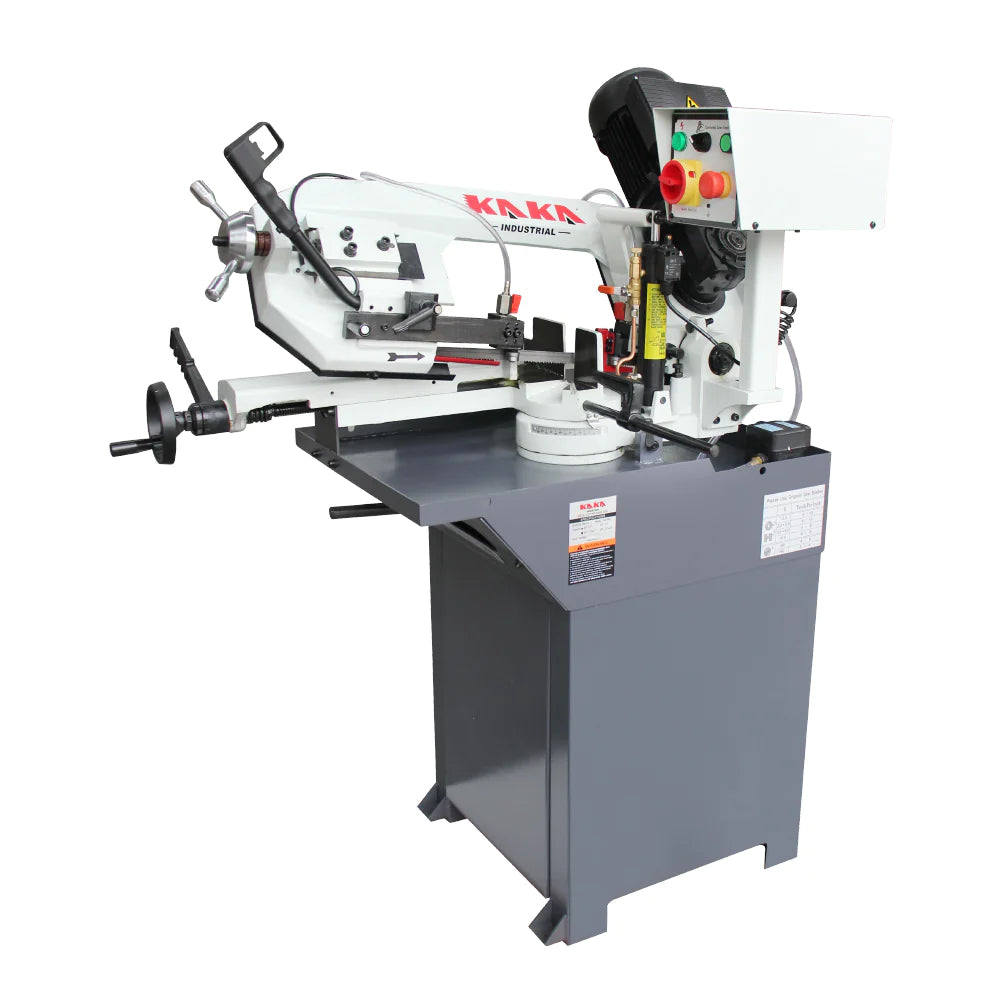

(Pre-order) Kaka Industrial BS-76G, 7.8"x6.7" horizontal bandsaw, 115V-60HZ-1PH Metal Cutting Band Saw, Solid Design Metal Bandsaw, High Precision Metal Band Saw, Space Saver Metal Cutting Band Saw

C$2,611.99
Shipping calculated at checkout.

(Pre-order) Kaka Industrial BS-76G, 7.8"x6.7" horizontal bandsaw, 115V-60HZ-1PH Metal Cutting Band Saw, Solid Design Metal Bandsaw, High Precision Metal Band Saw, Space Saver Metal Cutting Band Saw is backordered and will ship as soon as it is back in stock.

Care information

Delivery and Shipping

Payment & Security

Payment methods

  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

1. Rigid cast-iron design with steel base serving as the utility shelf
2. Coolant pump ensures the longer service life of saw blade and improve the precision of workpiece
3. Scale on the vise allows easy adjustments for angle cuts
4. Quick adjusting vise for angular cuts—the saw frame swivels, not the material.
5. Hydraulic cylinder for controlled descent
6. Accident preventing devices on the fly wheel casing and on the blade
7. Vertical rotation on bolt with adjustable tapered bearings without backlash
8. Band stretching is obtained by electro-mechanical blade tension with micro switch
9. European design, dovetail-type clamp movement and locking mechanism
10. Worm gear box transmission structure
11. The calibration of the jaw is convenient for adjustment and positioning at any angle (Scale on
the vise allows easy adjustments for angle cuts)
12. The falling speed of saw bow is controlled by hydraulic cylinder
13. The European design band saw has a sizing device (machine will stop automatically after sawing
materials)
14. The European design band saw has power break protection device (machine will power off
automatically when the rear protective cover is opened)
15. It is equipped with a block feeder (with fixed sawing length)
16. The European design band saw has a sizing device (machine will stop automatically after sawing
materials)
17. The European design band saw has power break protection device (machine will power off
automatically when the rear protective cover is opened)
18. It is equipped with a block feeder (with fixed sawing length)
Item No.
188016V115
Model
BS-76G
Capacity
Circular @90°
170 mm (6.7”)
Rectangular @90°
200x170 mm (7.8”x6.7”)
Circular @60°(right)
70 mm (2.7”)
Rectangular @60°(right)
60x60 mm (2.3”x2.3”)
Circular @45° (right)
120 mm (4.7”)
Rectangular @45°(right)
110x110 mm (4.3”x4.3”)
Blade speed @ 50Hz
2P,80 MPM 262 FPM
Blade speed @ 60Hz
4P,40 MPM 131 FPM
Blade size
20X0.9X2085 mm
Motor power
1.5 HP / 1100w,  115V Single phase
Drive
Gear
Packing size (body)
49x28x40 in
Packing size (stand)
Together with in body
N.W./G.W.
381 / 496 lb

1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
KAKA INDUSTRIAL

(Pre-order) Kaka Industrial BS-76G, 7.8"x6.7" horizontal bandsaw, 115V-60HZ-1PH Metal Cutting Band Saw, Solid Design Metal Bandsaw, High Precision Metal Band Saw, Space Saver Metal Cutting Band Saw

C$2,611.99
Description
1. Rigid cast-iron design with steel base serving as the utility shelf
2. Coolant pump ensures the longer service life of saw blade and improve the precision of workpiece
3. Scale on the vise allows easy adjustments for angle cuts
4. Quick adjusting vise for angular cuts—the saw frame swivels, not the material.
5. Hydraulic cylinder for controlled descent
6. Accident preventing devices on the fly wheel casing and on the blade
7. Vertical rotation on bolt with adjustable tapered bearings without backlash
8. Band stretching is obtained by electro-mechanical blade tension with micro switch
9. European design, dovetail-type clamp movement and locking mechanism
10. Worm gear box transmission structure
11. The calibration of the jaw is convenient for adjustment and positioning at any angle (Scale on
the vise allows easy adjustments for angle cuts)
12. The falling speed of saw bow is controlled by hydraulic cylinder
13. The European design band saw has a sizing device (machine will stop automatically after sawing
materials)
14. The European design band saw has power break protection device (machine will power off
automatically when the rear protective cover is opened)
15. It is equipped with a block feeder (with fixed sawing length)
16. The European design band saw has a sizing device (machine will stop automatically after sawing
materials)
17. The European design band saw has power break protection device (machine will power off
automatically when the rear protective cover is opened)
18. It is equipped with a block feeder (with fixed sawing length)
Item No.
188016V115
Model
BS-76G
Capacity
Circular @90°
170 mm (6.7”)
Rectangular @90°
200x170 mm (7.8”x6.7”)
Circular @60°(right)
70 mm (2.7”)
Rectangular @60°(right)
60x60 mm (2.3”x2.3”)
Circular @45° (right)
120 mm (4.7”)
Rectangular @45°(right)
110x110 mm (4.3”x4.3”)
Blade speed @ 50Hz
2P,80 MPM 262 FPM
Blade speed @ 60Hz
4P,40 MPM 131 FPM
Blade size
20X0.9X2085 mm
Motor power
1.5 HP / 1100w,  115V Single phase
Drive
Gear
Packing size (body)
49x28x40 in
Packing size (stand)
Together with in body
N.W./G.W.
381 / 496 lb
