Product Description
Specification:
Features:
- Rigid cast-iron design with steel base serving as the utility shelf

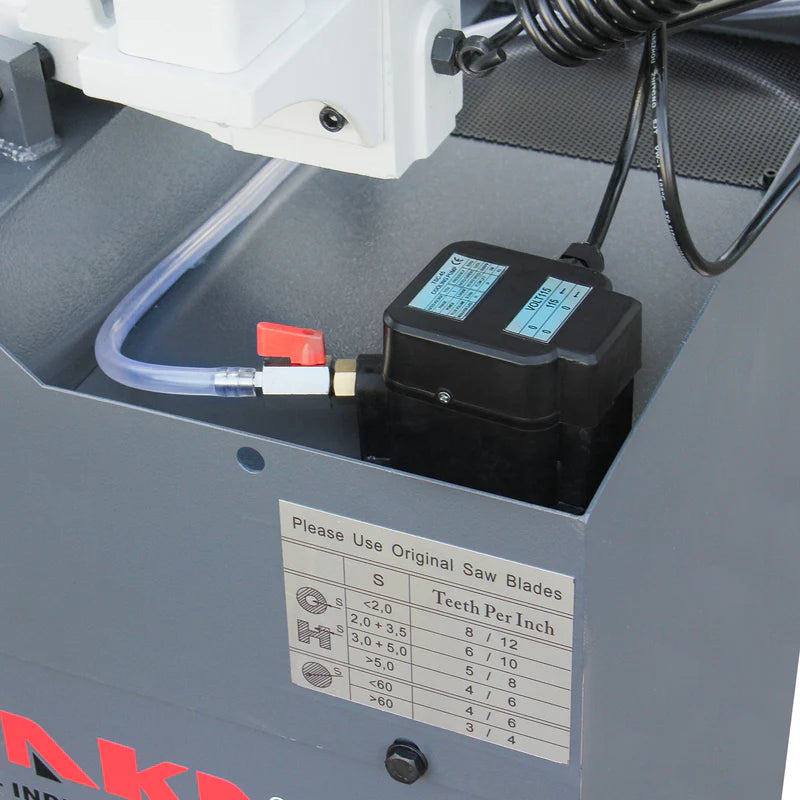

- Coolant pump ensures the longer service life of the saw blade and improves the precision of the workpiece

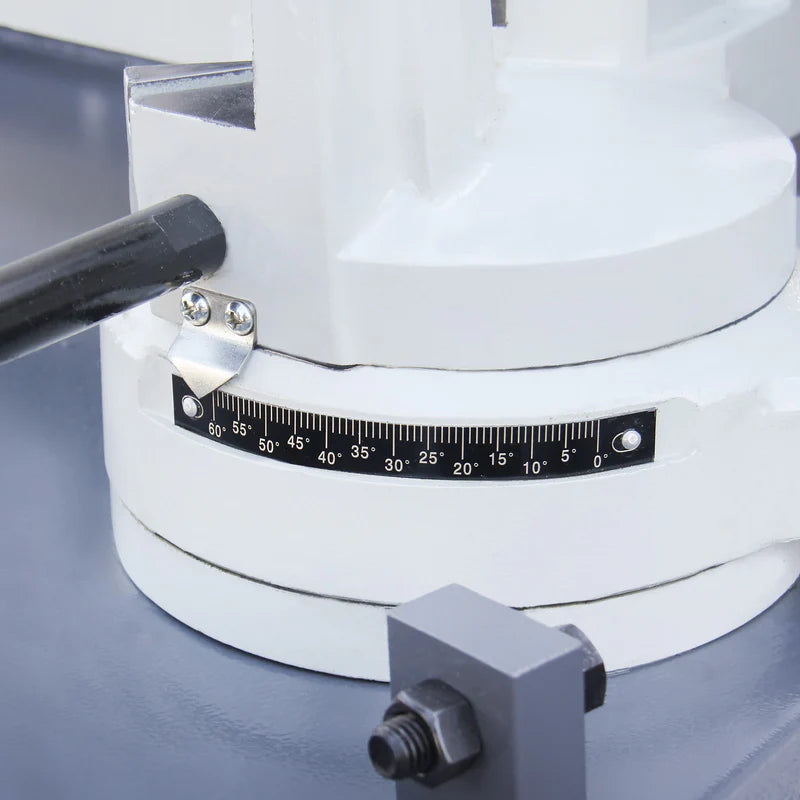

- The scale on the vise allows easy adjustments for angle cuts

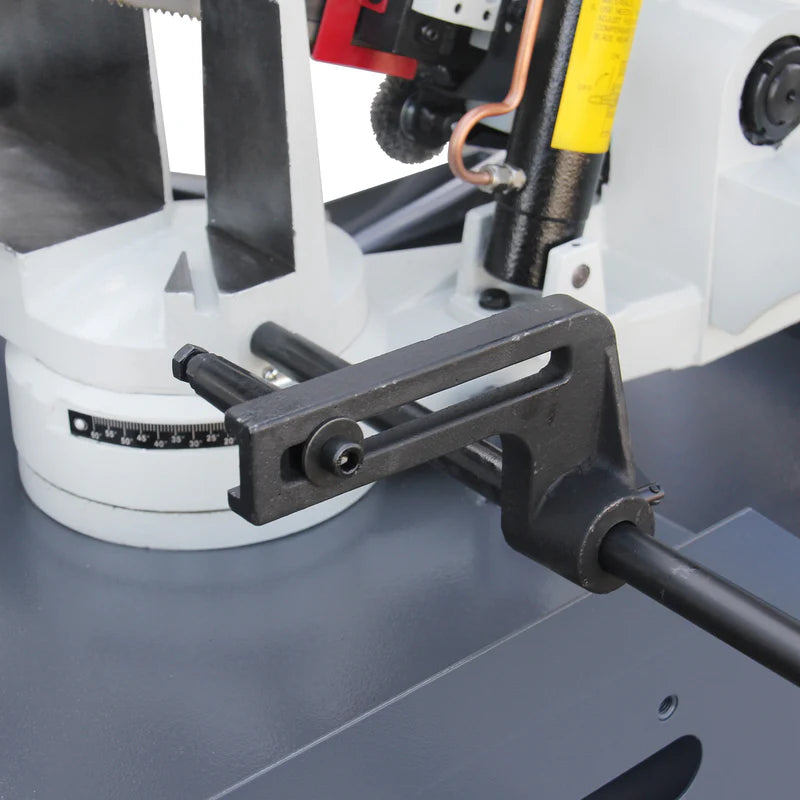

- Quick adjusting vise for angular cuts—the saw frame swivels, not the material.

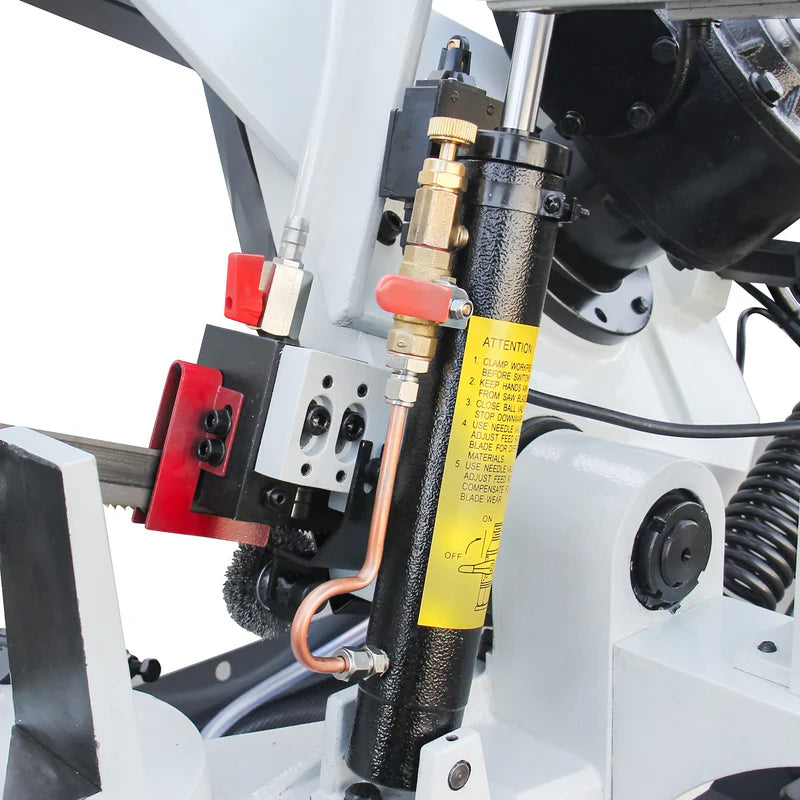

- Hydraulic cylinder for controlled descent
- Accident preventing devices on the flywheel casing and on the blade
- Vertical rotation on the bolt with adjustable tapered bearings without backlash
- Band stretching is obtained by electro-mechanical blade tension with micro switch

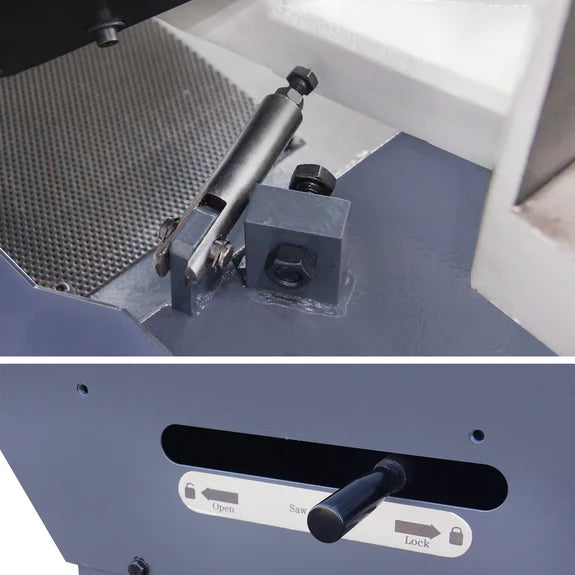

- European design, dovetail-type clamp movement, and locking mechanism
- Worm gearbox transmission structure

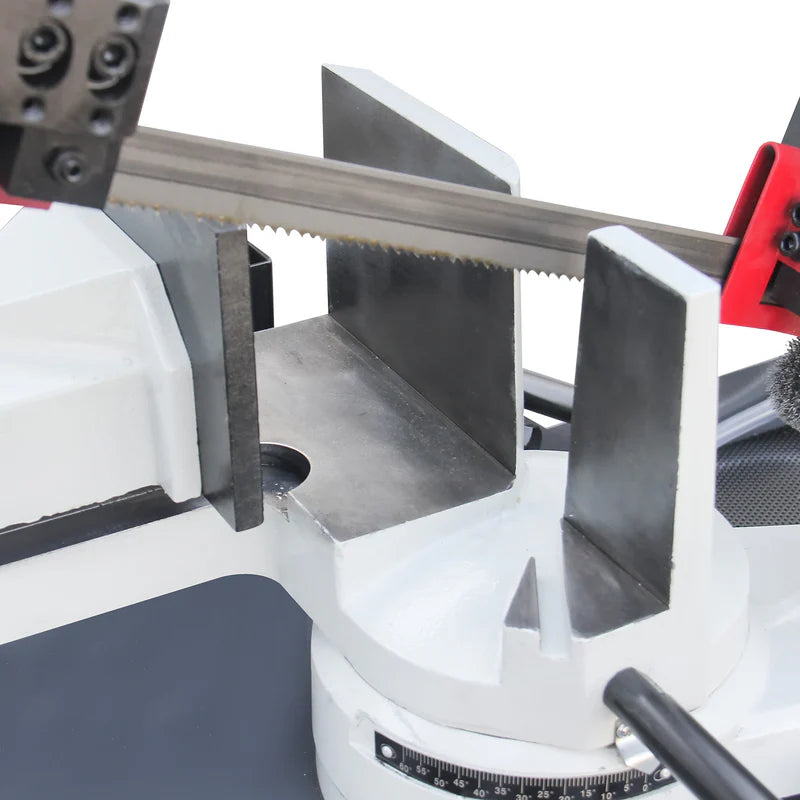

- The calibration of the jaw is convenient for adjustment and positioning at any angle (Scale on the vise allows easy adjustments for angle cuts)
- The falling speed of the saw bow is controlled by a hydraulic cylinder
|
Item No. |
188017 |
|
|
Model |
BS-108G (BS-260G) |
|
|
Capacity |
Circular @90° |
227 mm (9”) |
|
Rectangular @90° |
260x110 mm (10”x7.8”) |
|
|
Circular @60°(right) |
90 mm (3.5”) |
|
|
Rectangular @60°(right) |
85x85 mm (3.3”x3.3”) |
|
|
Circular @45° (right) |
150 mm (6”) |
|
|
Rectangular @45°(right) |
150x125 mm (5.9”x5”) |
|
|
Blade speed @ 60Hz |
4P, 36MPM 118 FPM |
|
|
Blade size |
1x0.035x96 IN 4/6 TPI |
|
|

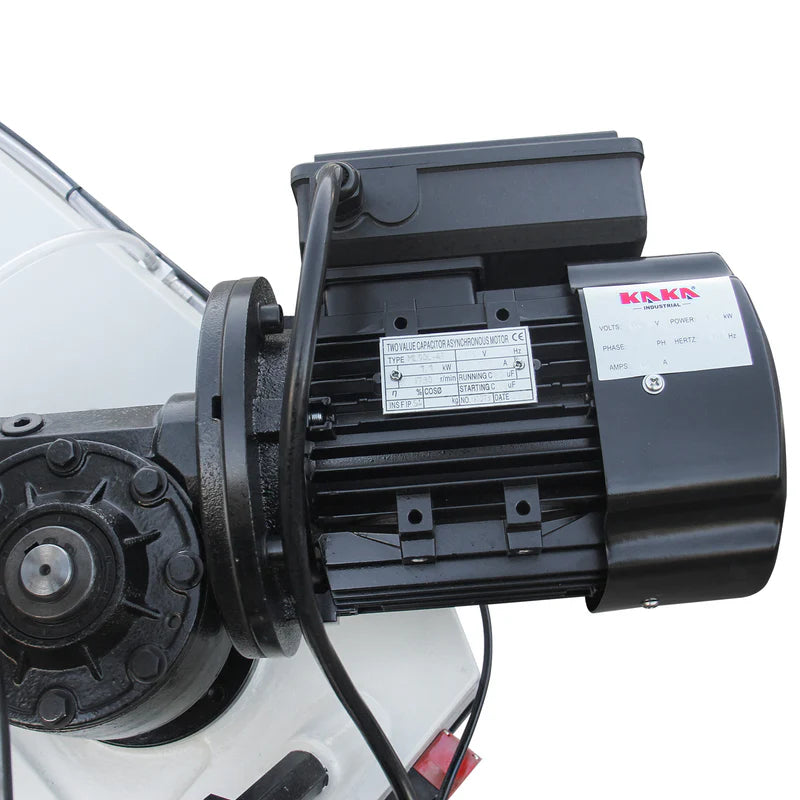

Motor power |
1.5HP(Single Phase) |
|
|
Drive |
Gear |
|
|
Packing size |
55x28x43 in |
|
|
N.W./G.W. |
418/579lbs |
|
Accessories:
Standard accessories:
Electric coolant system
Optional accessories:
No.
