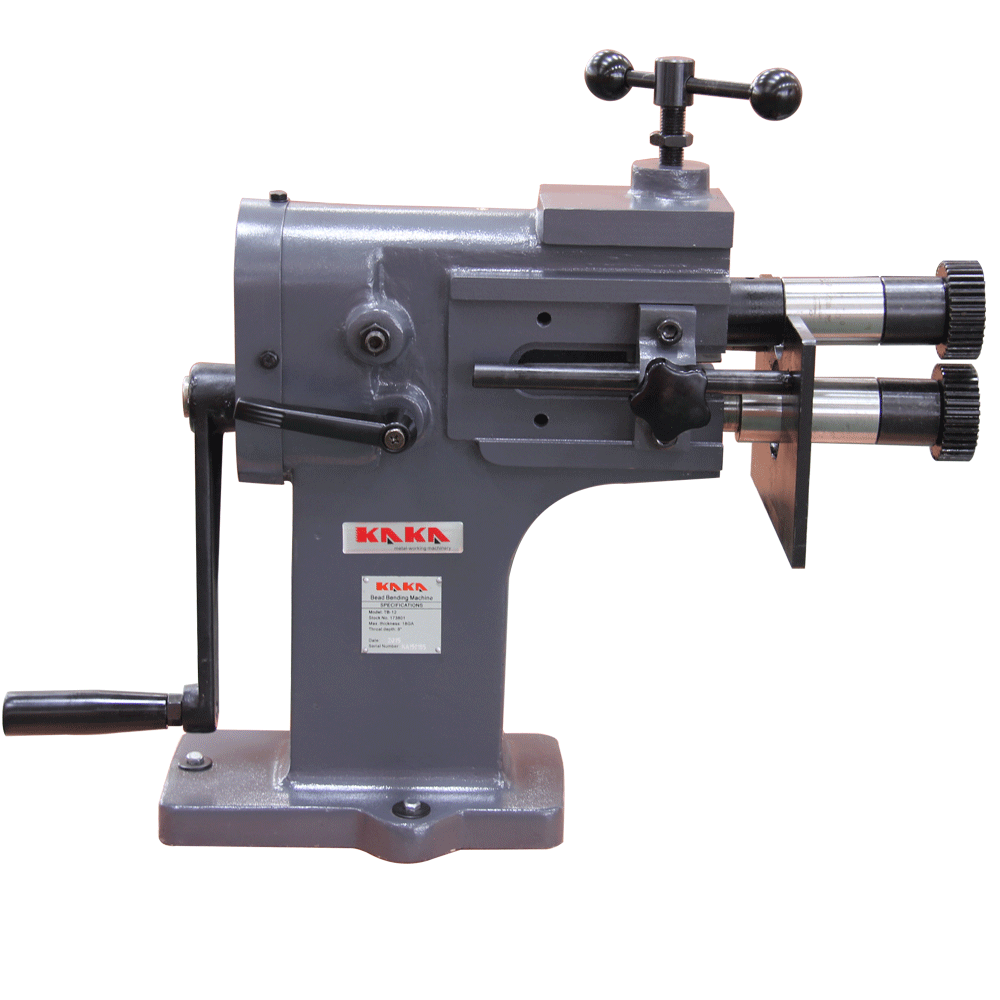

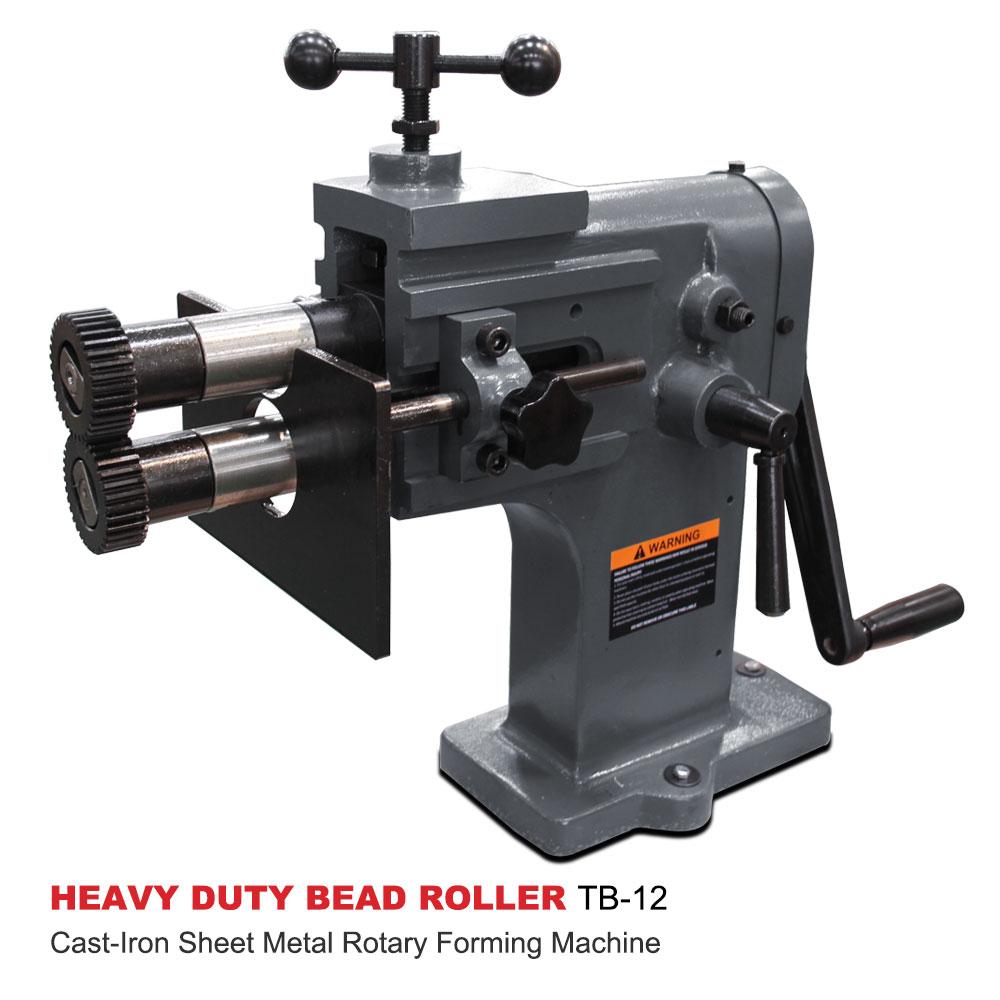

Kaka Industrial 8-In Heavy-Duty Bead Bender, Sheet Metal Rotary Forming Machine

  • Sale
  • Regular price $885.99


Bead Bending Machine

1. The Bead bending machine makes swaged plate, connection and so on of circular pipes, which refer to crushing the thin plates into the ribs in certain shapes.

2. The rigidity of the plates, pipes or metal components is strengthened.

3. Heavy and solid cast iron construction

4. Special steel adjustable bottom spindle

5. Complete with stand 4 sets standard rollers

6. Self-braking motor with subframe (E-type model ETB-12)

7. Easy to operate with foot pedal control (E-type model ETB-12)

 Specification:

Item No.

173801

Model

TB-12

Thickness max

18Ga

Cylinder length

5-1/2”

Throat depth

8”

Motor power

0.75kW /1HP

Net weight(lbs)

106/120

Packing size (in)

26-1/2x12-3/4x23-3/4

Standard accessories:

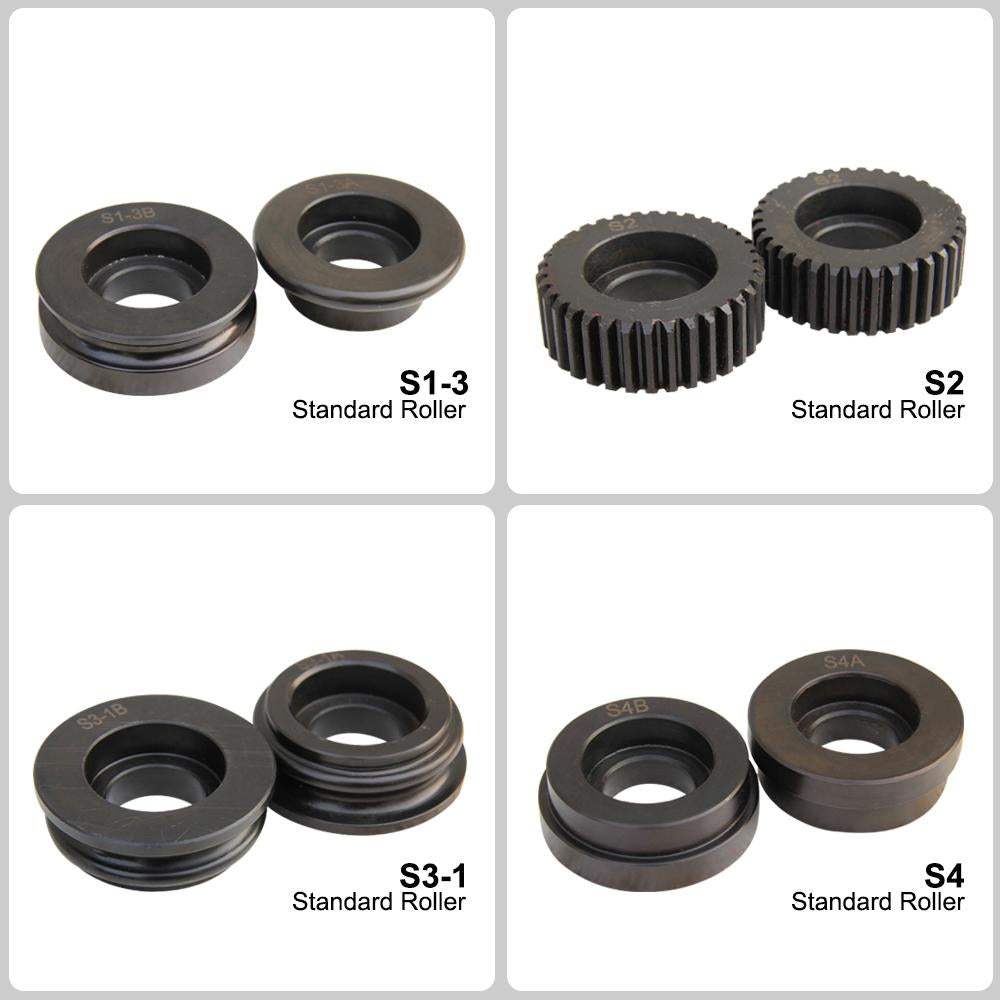

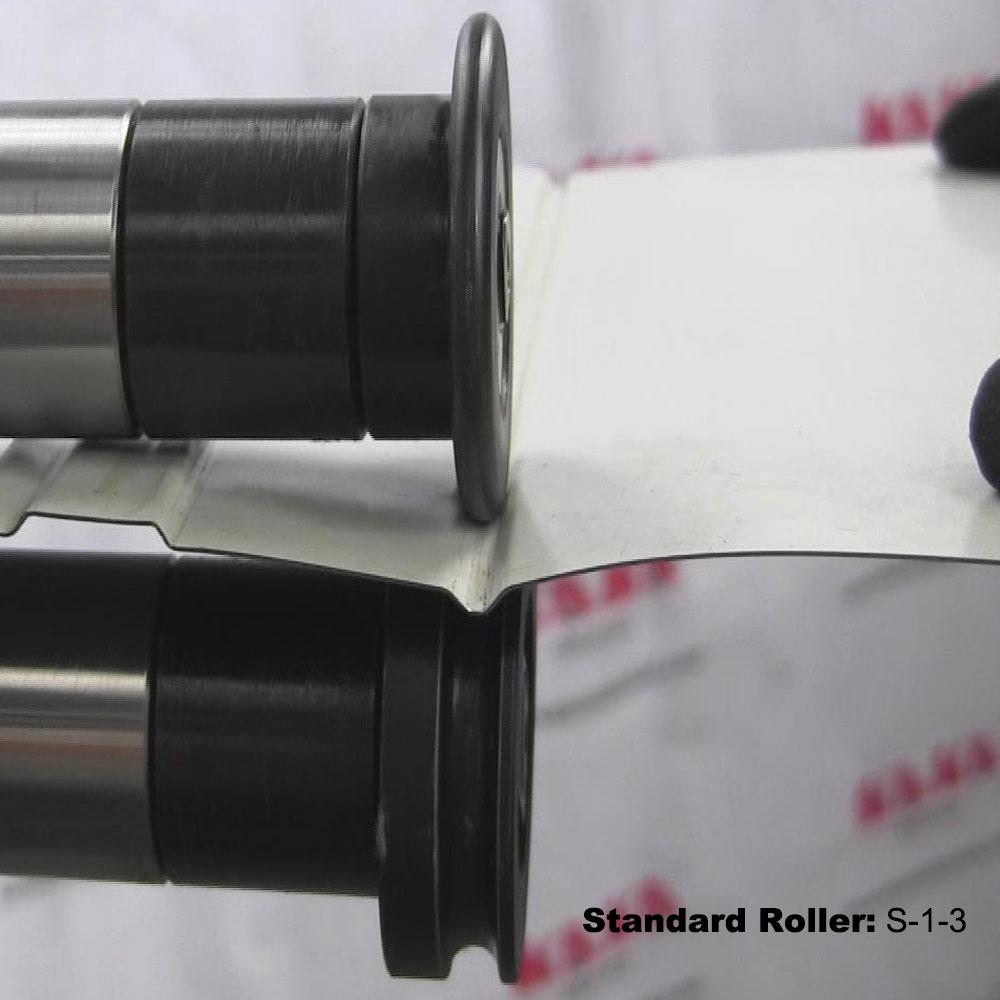

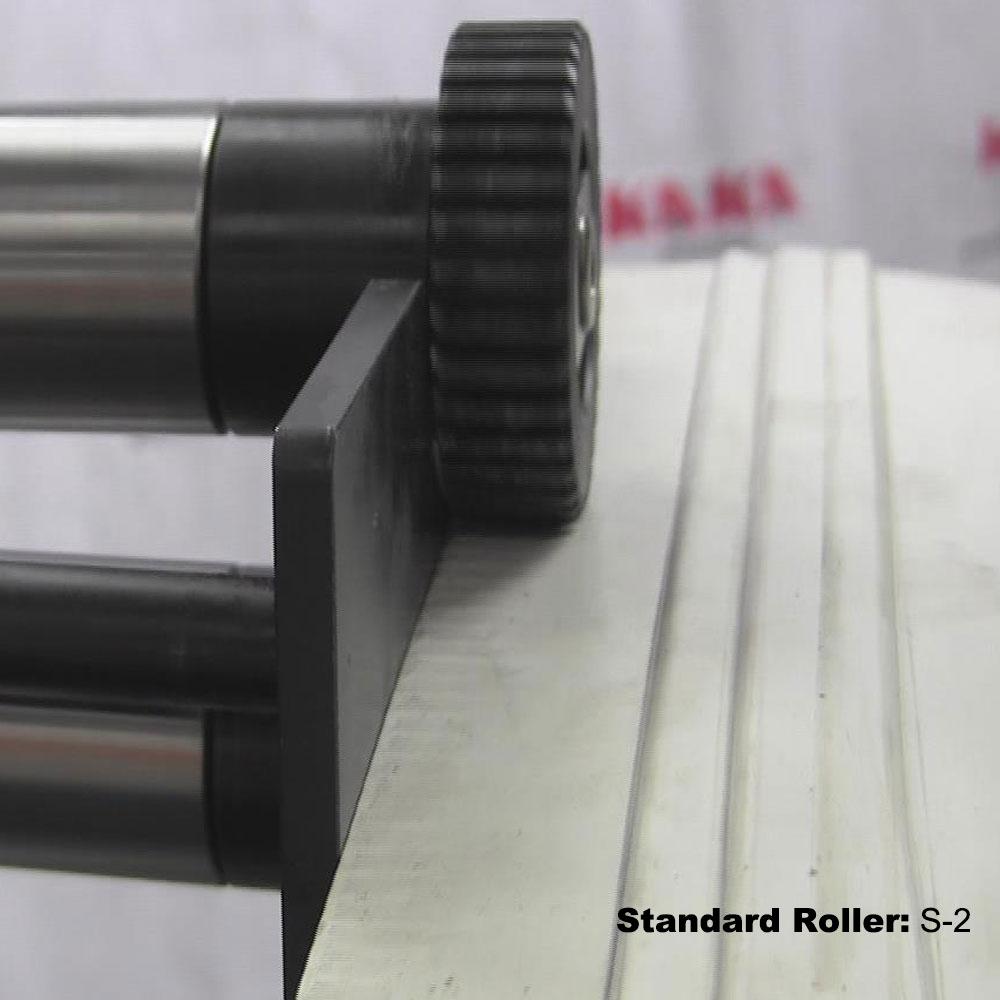

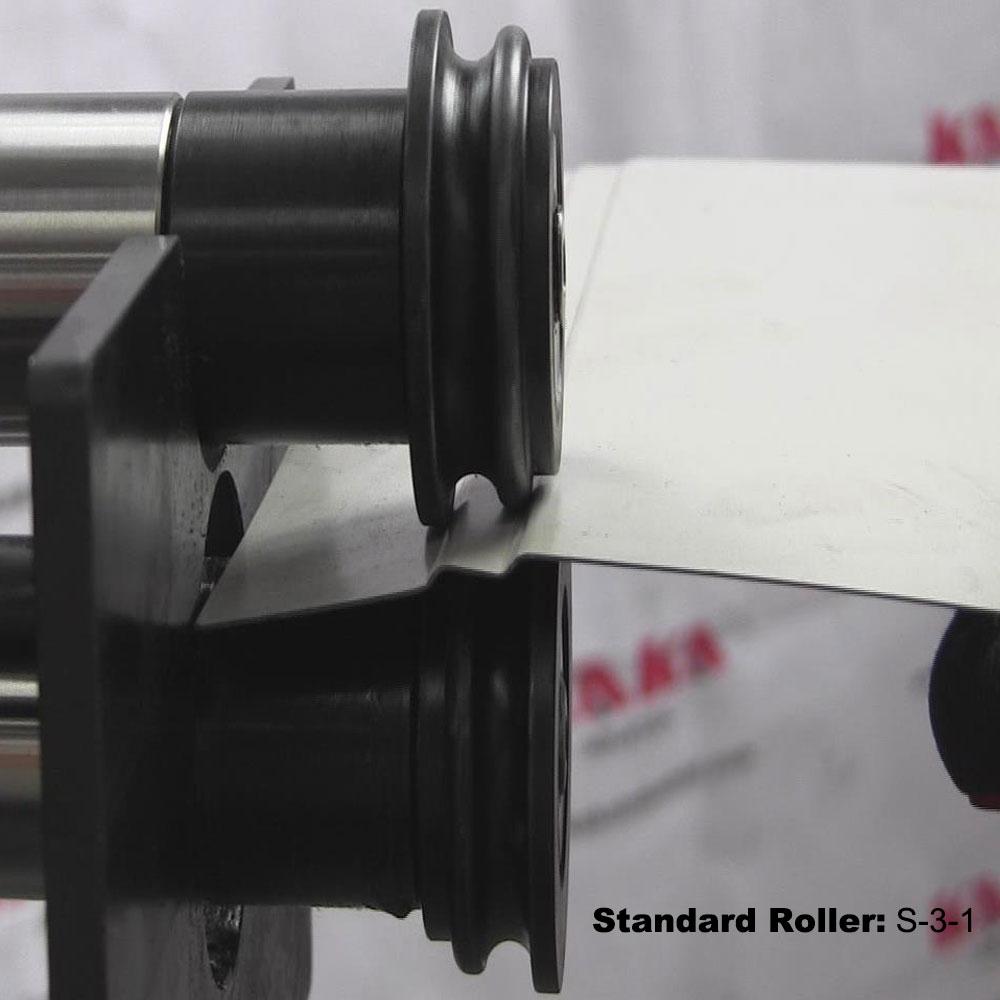

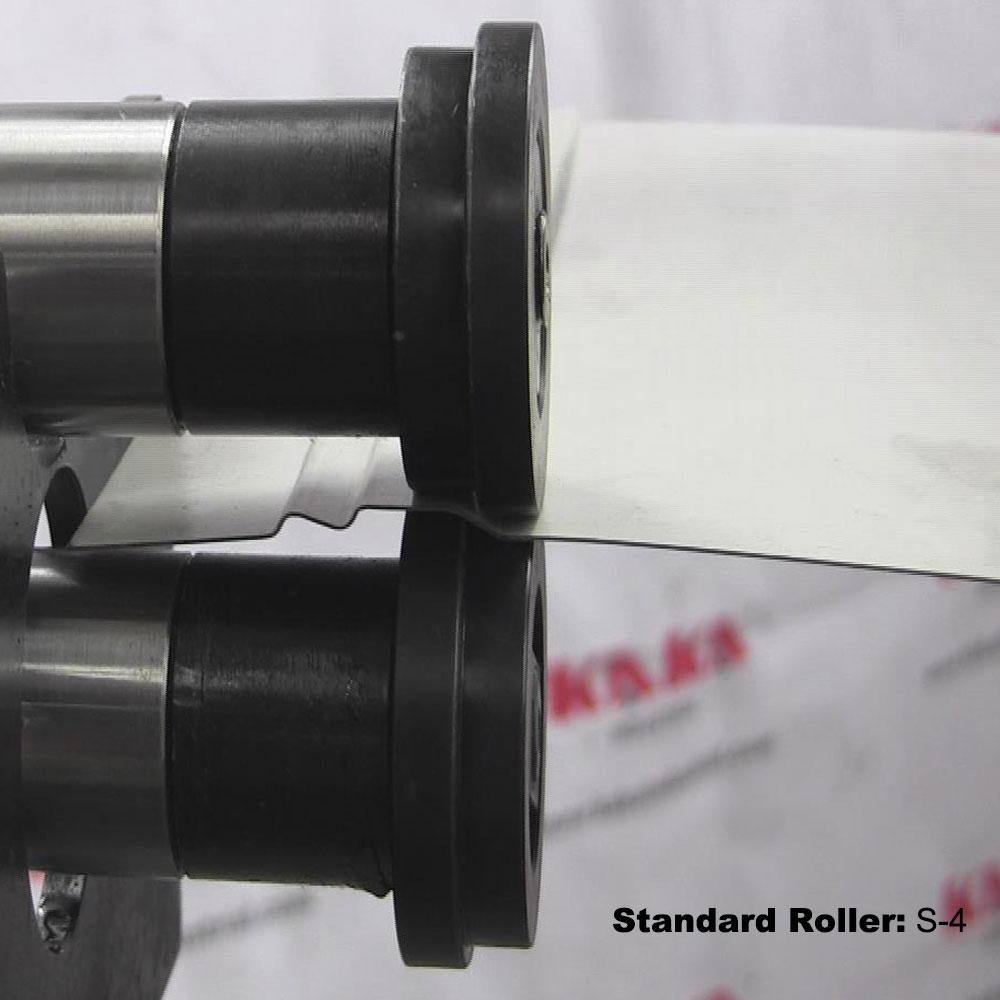

  1. 4 sets of standard rollers

Optional accessories:

8 kinds of rollers
