3-IN-1/305 12 Inch Shears & Slip Roll Machine

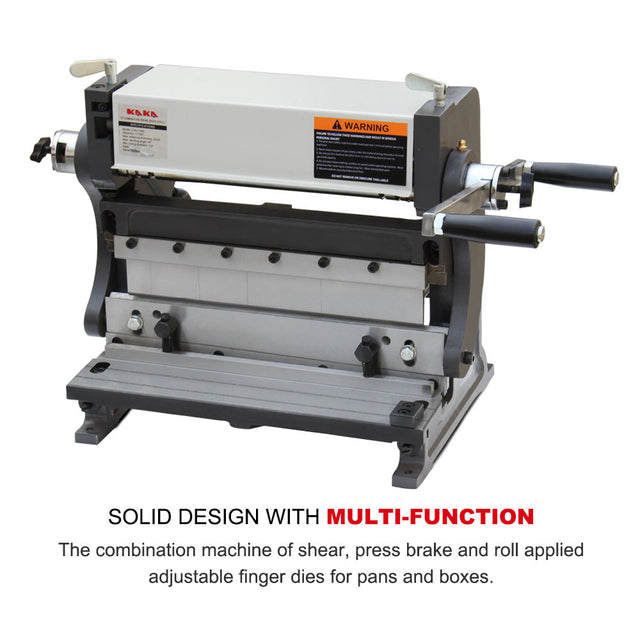

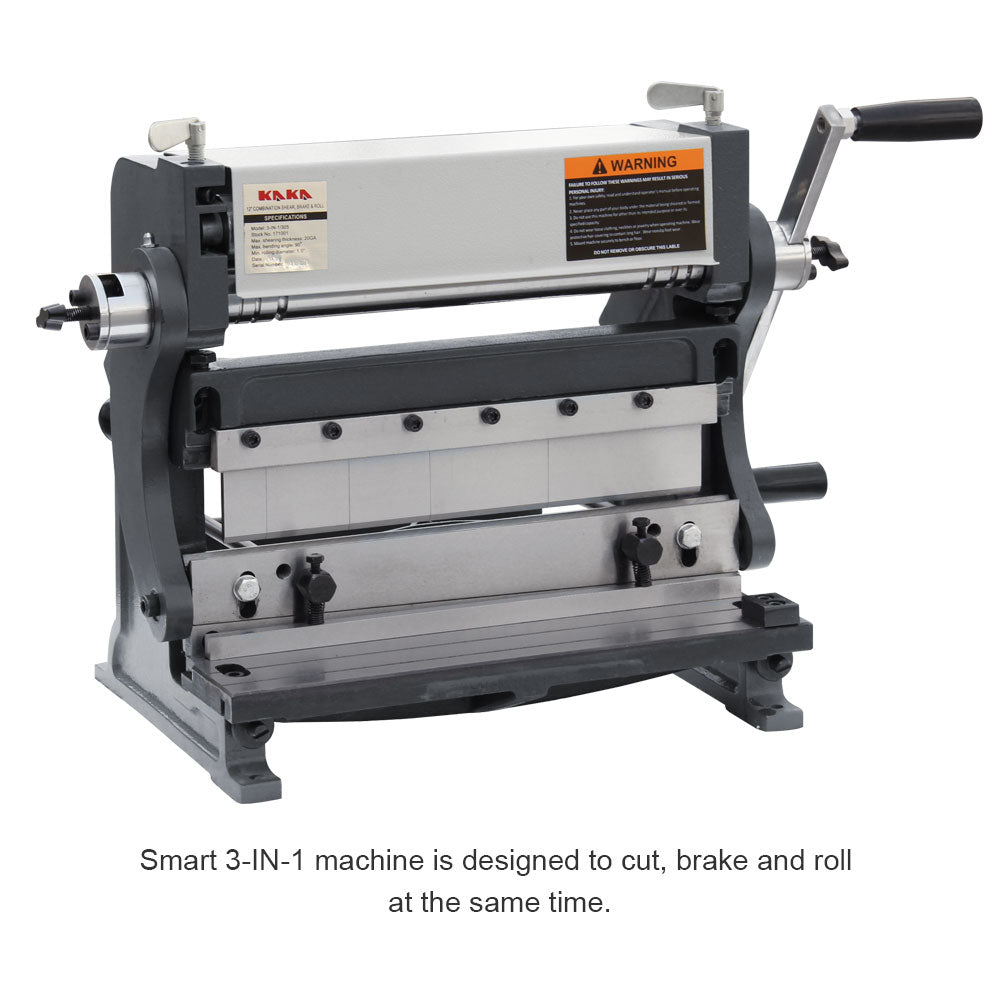

Kaka 12 Inch smart 3-IN-1 machine is designed to cut, brake and roll at the same time. It equips with a combination of shear, press brake and roll. The shear makes straight cuts up to 12" while the press brake can bend to 90 degrees of material up to 12" wide, and it has the capacity of up to 20 gauge mild steel and 18 gauge aluminum in widths up to 12-inches wide. The combination machine of shear, press brake and roll applied adjustable finger dies for pans and boxes. It is a smart choice for any metalworking shop.
Finger size :
Features
1. Ideal combination machine for sheet metal machining to length of 305mm and thickness of 1.0mm cutting stop
2. Roll bending starting with a diameter of 39mm
3. Folding with max. angle of 90°
4. Adjustable rear stop
5. Heavy Cast Iron Frame
Specification
|
Item No. |
171001 |
|
Model |
3-IN-1/305 |
|
Bed width (in) |
12" |
|
Max. shearing thickness (in) |
0.039 |
|
Max. bending thickness (in) |
0.039 |
|
Max. Bending angle |
90° |
|
Max. Rolling thickness (in) |
0.039 |
|
Min. Rolling dia. (in) |
1.6" |
|
Packing size (in) |
19x13x16 |
|
N.W. / G.W. (lb) |
92/97 |
Standard Accessories

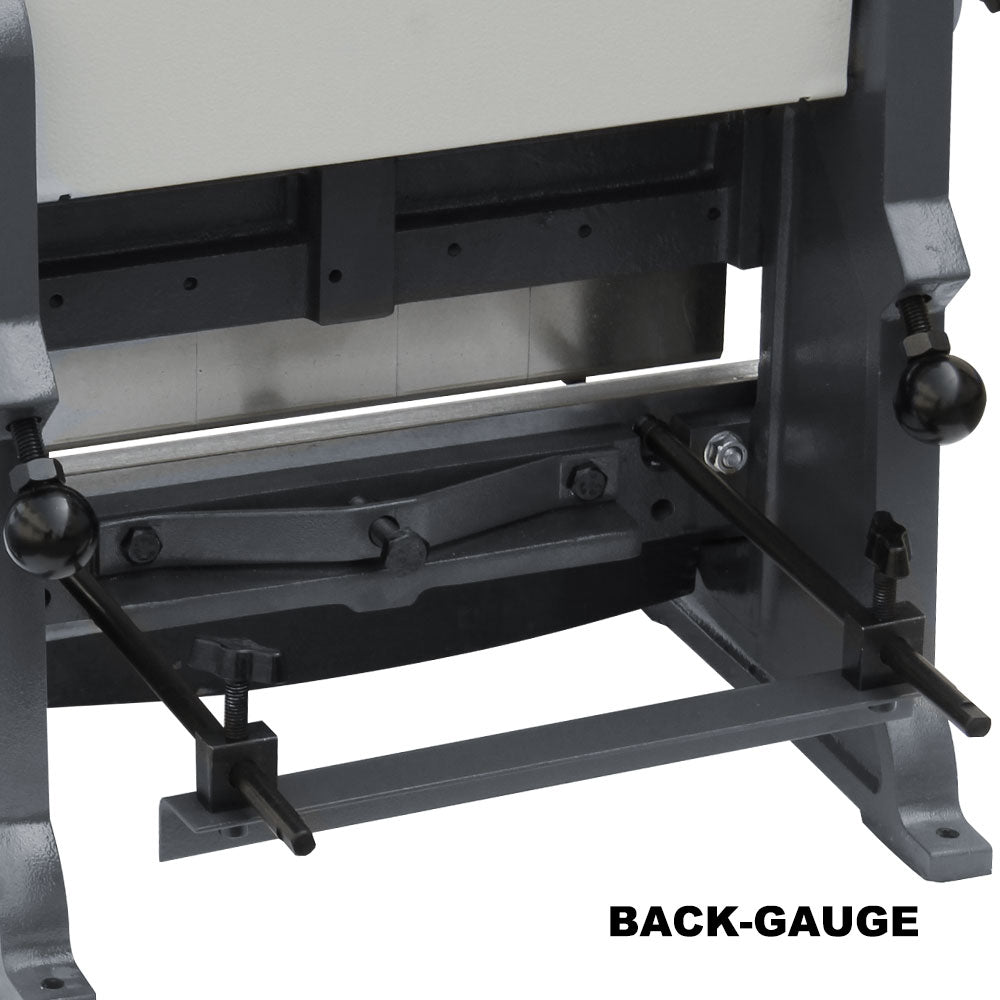

- Back gauge
- Handle
