KAKA 3-IN-1/200 8 Inch Sheet Metal Machine, Sheet Metal Brake, Shears & Slip Roll Machine

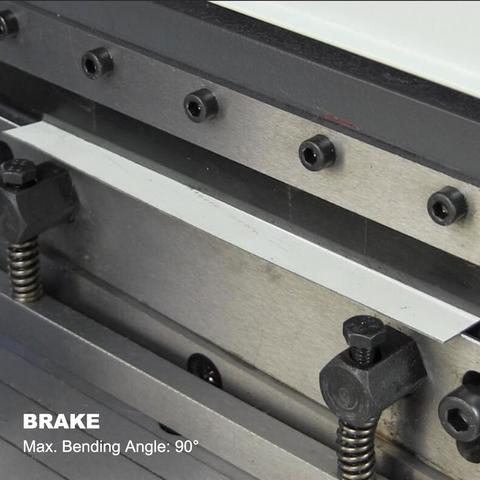

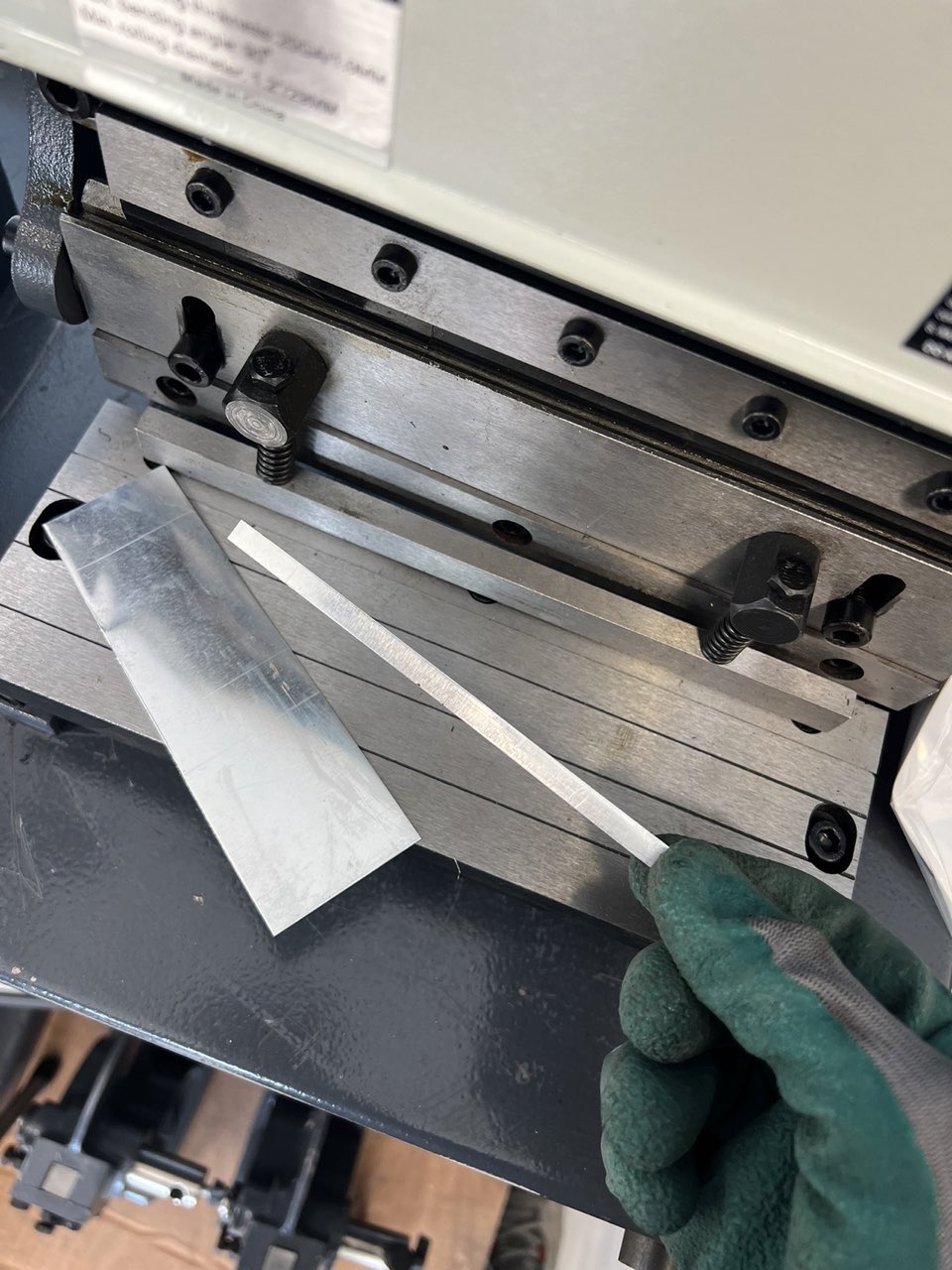

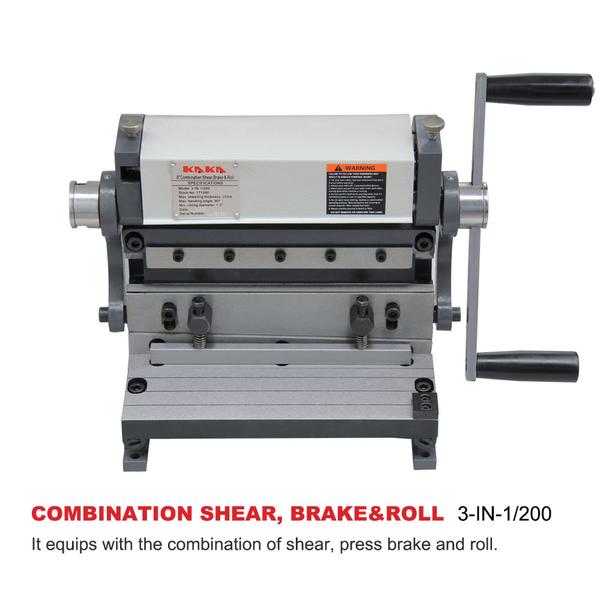

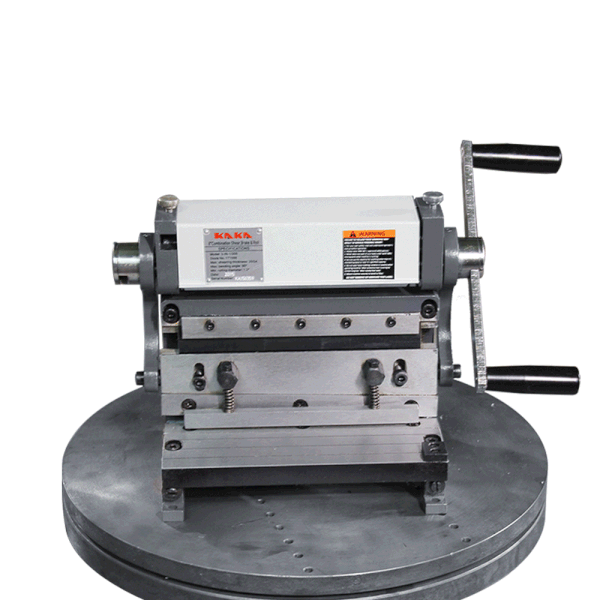

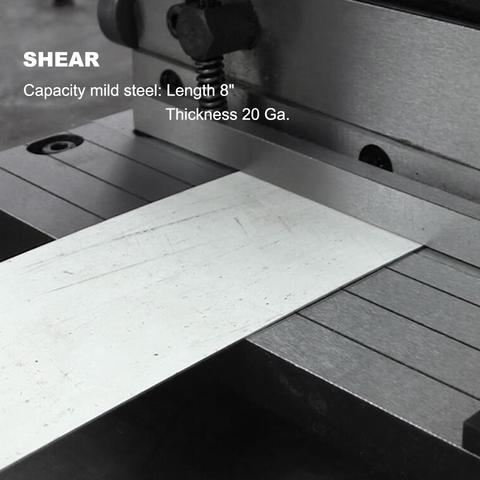

Kaka 8 Inch smart 3-IN-1 machine is designed to cut, brake and roll at the same time. It equips with a combination of shear, press brake and roll. The shear makes straight cuts up to 8" while the press brake can bends to 90 degrees of material up to 8" wide, and it has the capacity of up to 20 gauge mild steel and 18 gauge aluminum widths up to 8-inches wide. The combination machine of shear, press brake and roll applied adjustable finger dies for pans and boxes. It is a smart choice for any metalworking shop.
Specification:
Item No. |
171000 |
Model |
3-IN-1/8 |
Bed width (in) |
8" |
Max. shearing thickness (in) |
0.039 |
Max. bending thickness (in) |
0.039 |
Max. Bending angle |
90° |
Max. Rolling thickness (in) |
0.039 |
Min. Rolling dia. (in) |
1-1/8" |
Packing size (in) |
21x9x11 |
N.W. / G.W. (lb) |
42/44 |
Standard accessories:
- Back gauge
- Handle
