KAKA Industrial GD-25B Heavy Duty Gear Head Vertical Bench Drilling.220V-60HZ-3PH.

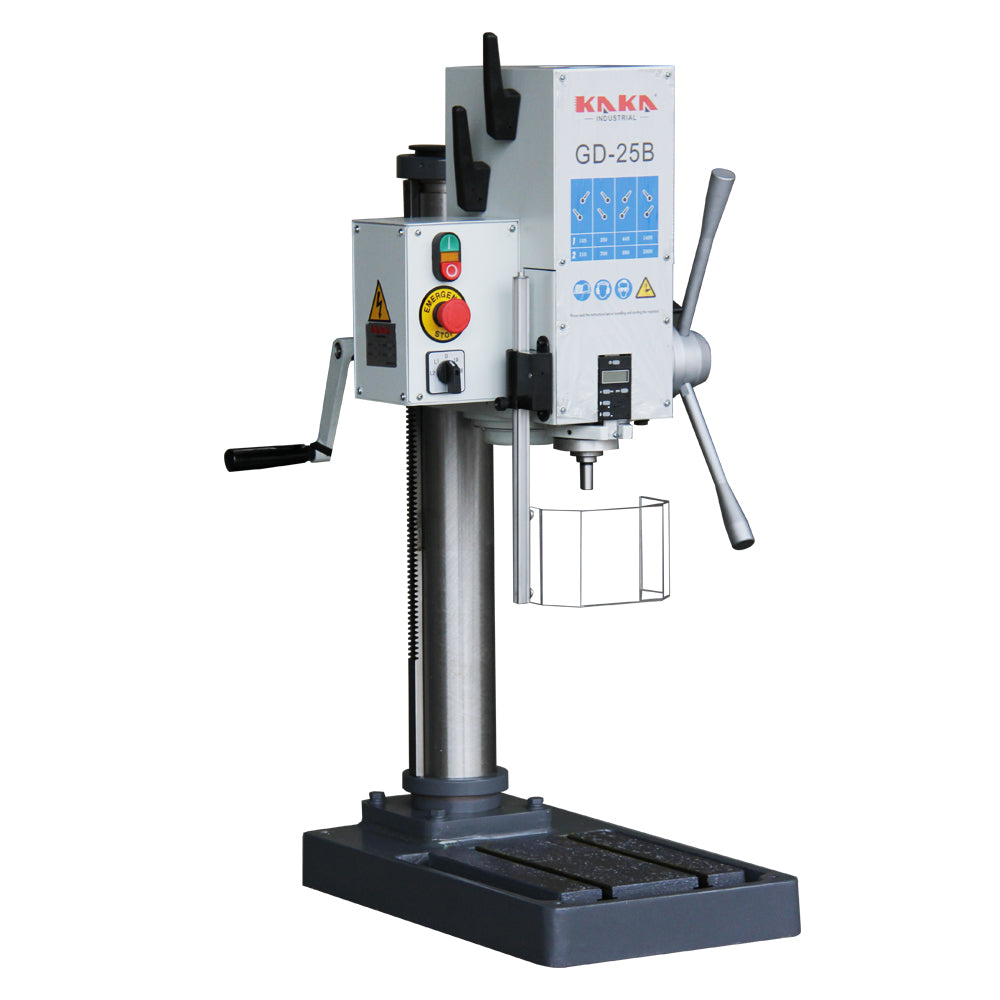

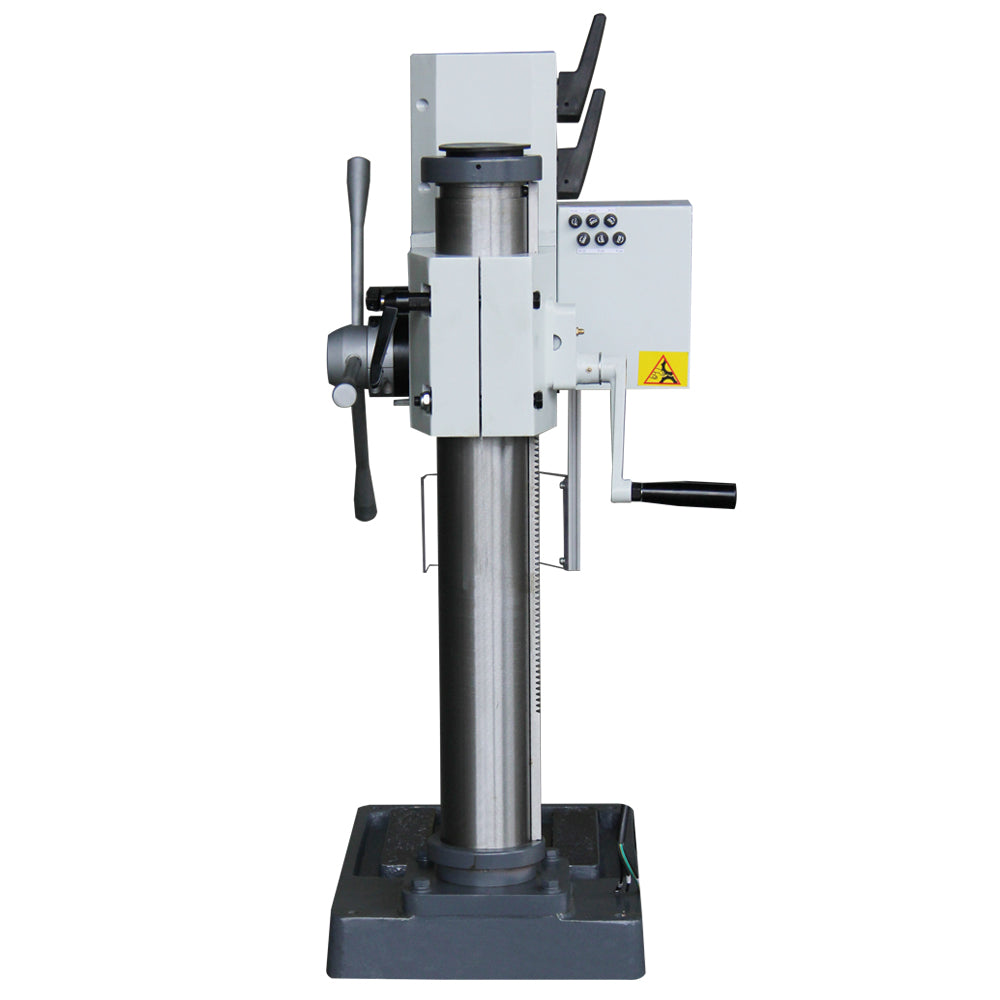

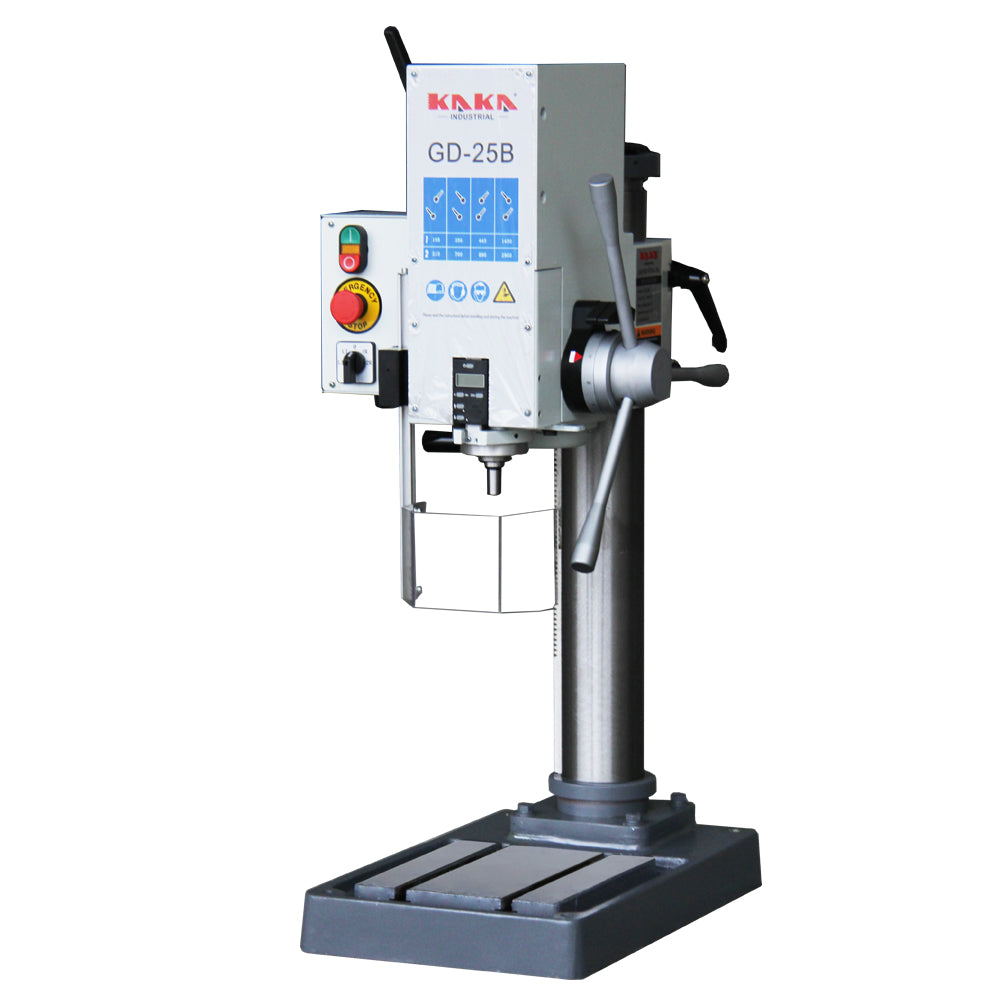

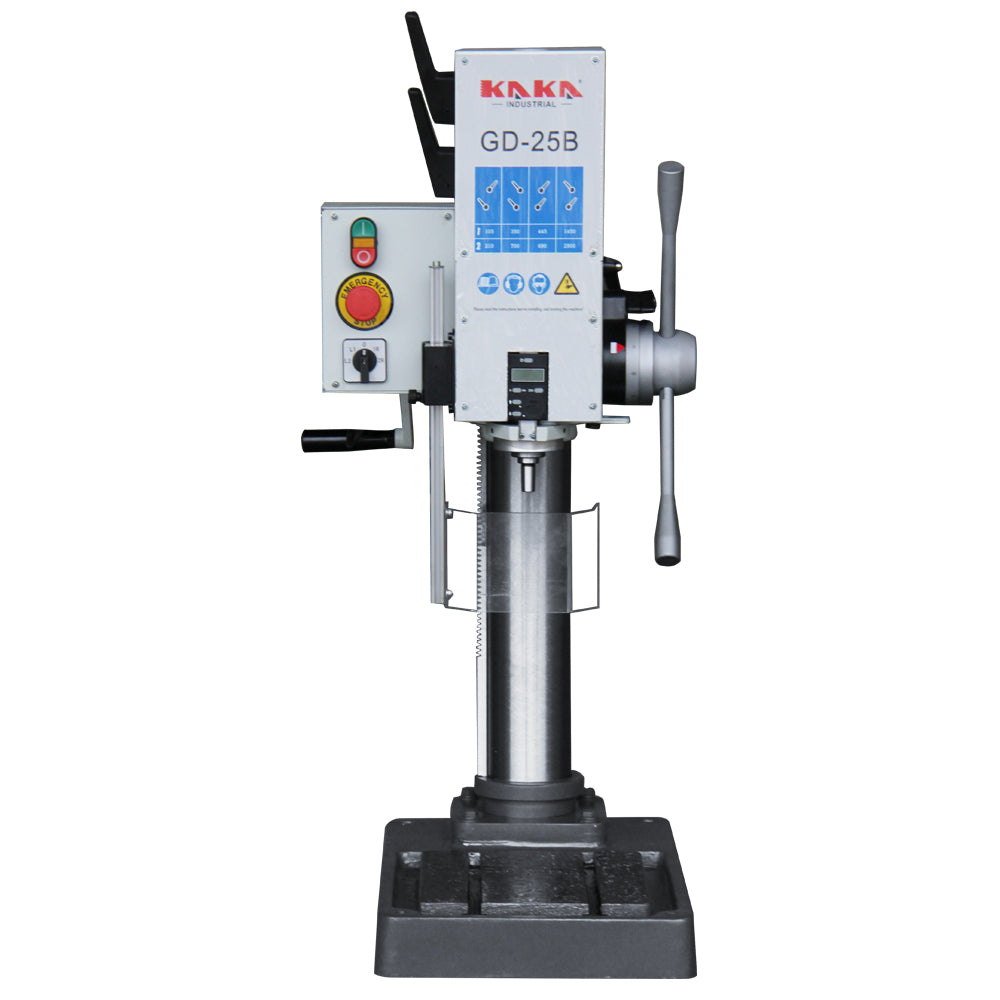

Vertical Drilling Machine GD-25B

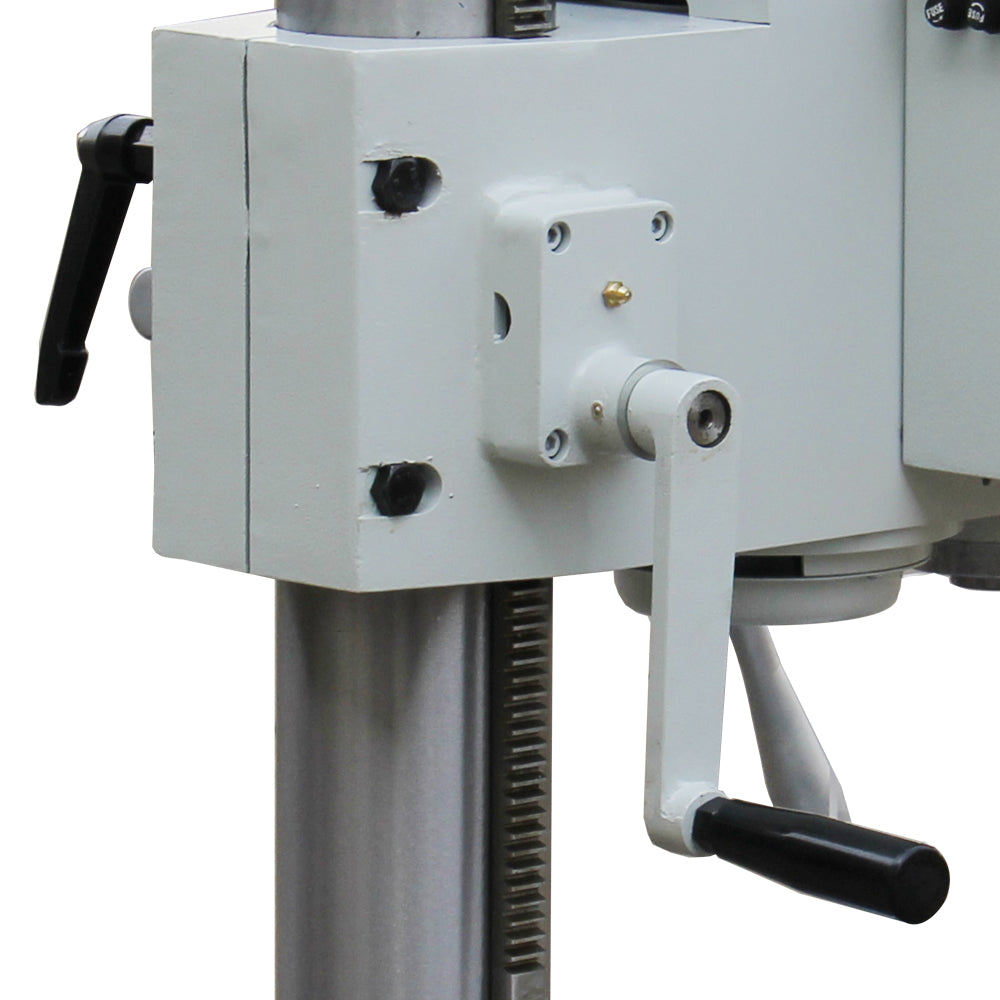

Our vertical drilling machines GD-25B have height adjustable and rotary function on head unit and working table, they can provide proper drilling travel for various workpieces in different sizes.
The sleeve can be locked at any depth and the high-load tapered roller bearing guarantees the high-speed and smooth running of the main spindle.

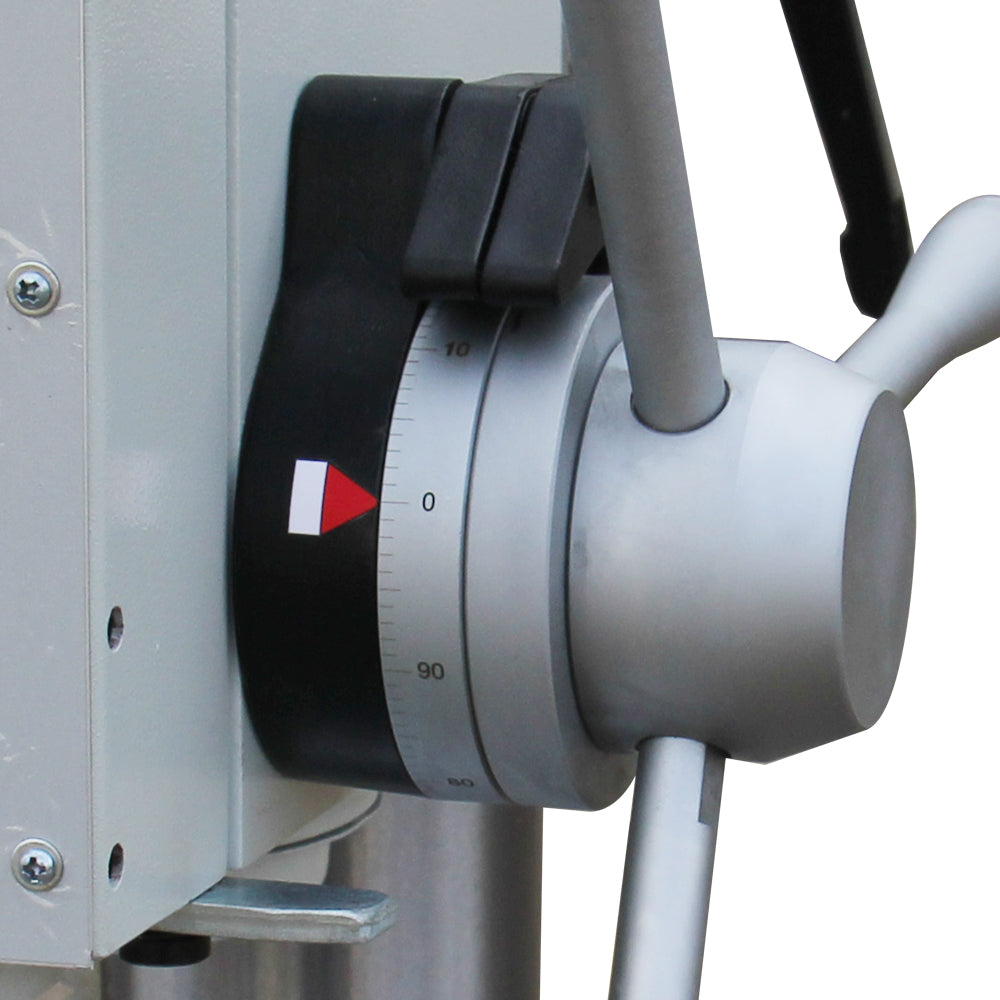

The rapid and reliable retracting, clear scale identification and the small feeding depth positioning device can improve the drilling efficiency.
The power-off shield protection of our vertical drilling machine makes the work safer and efficient.
Main technical parameter

Item No.	190018
Model	GD-25B
Max.drilling dia.(mm)	25
Spindle travel(mm)	125

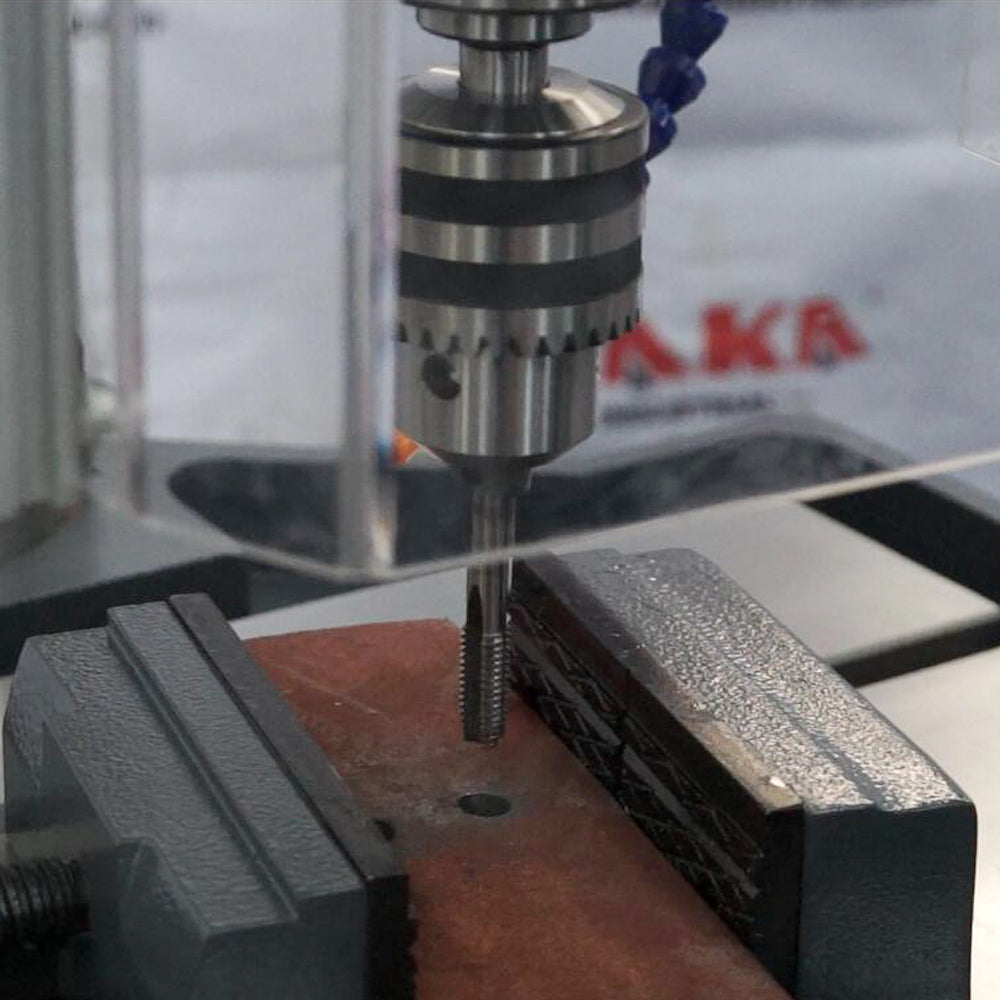

Tapping capacity in steel /cast iron	M10/M16
Morse taper	MT3
Motor power(50Hz)	0.65kW/0.9kW
Motor power(60Hz)	0.8kW/1.1kW

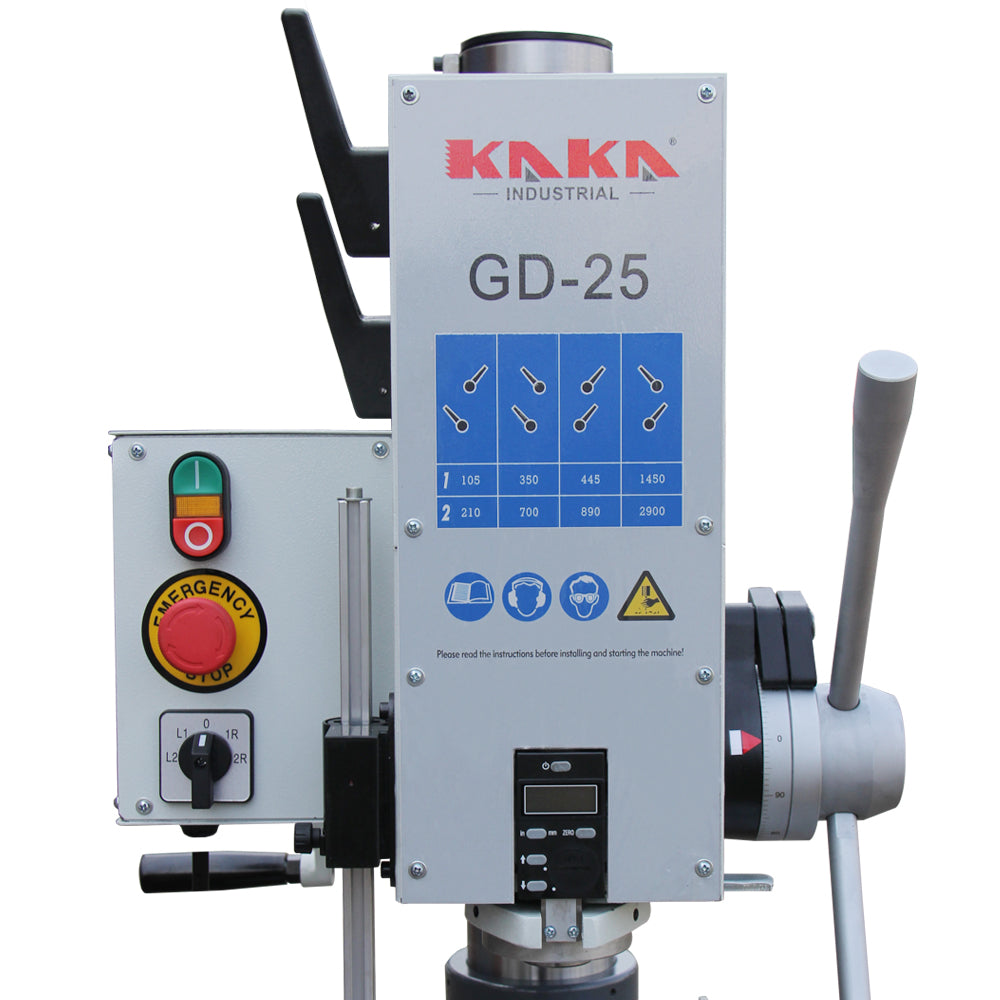

Spindle speeds at (50Hz)	105-210-350-445- 700-890-1450-2900
Spindle speeds at 60(Hz)	130-260-420-840-535- 1070-1745-3200
Packing size	37" X18" X29 "
N.W./G.W.	330/370lbs
