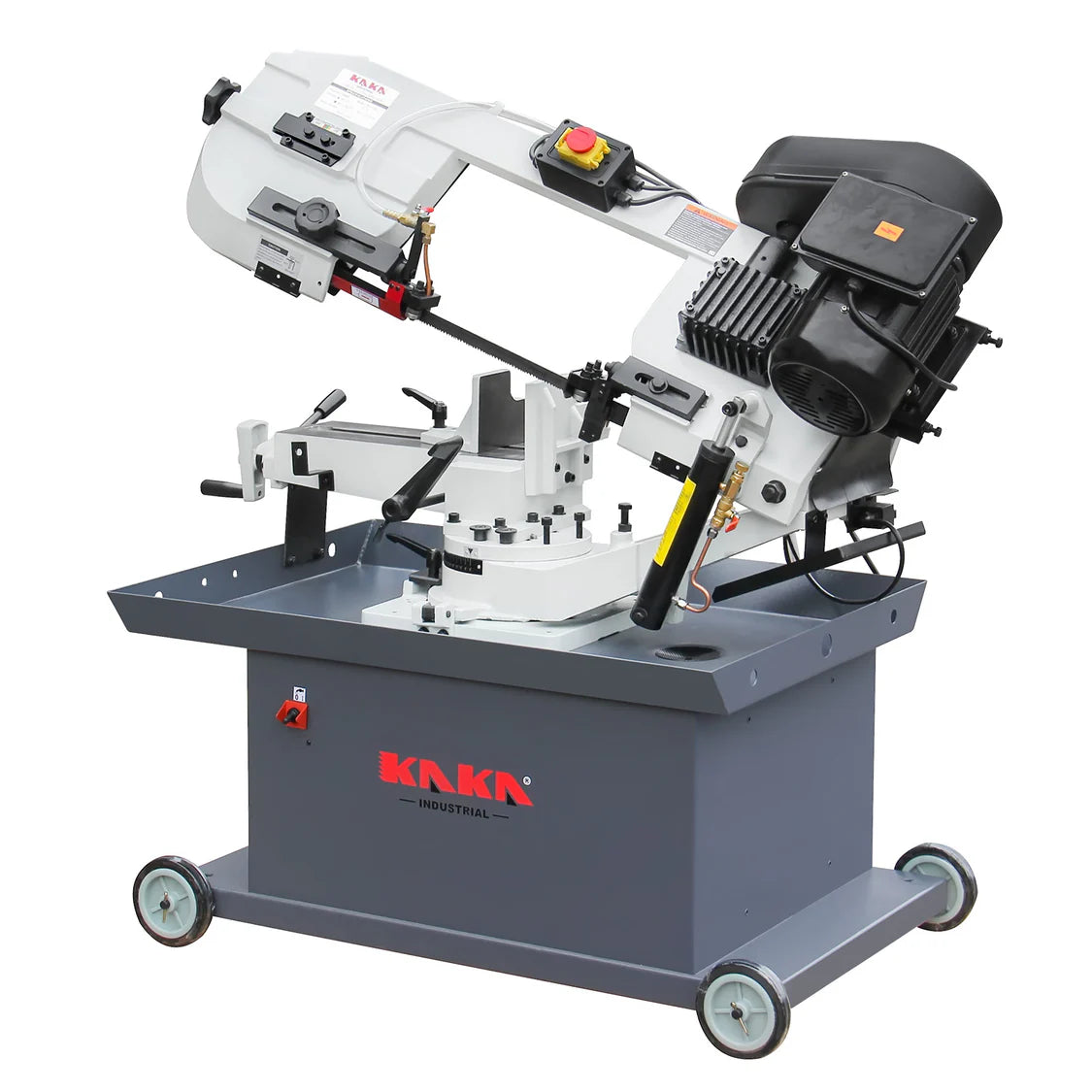

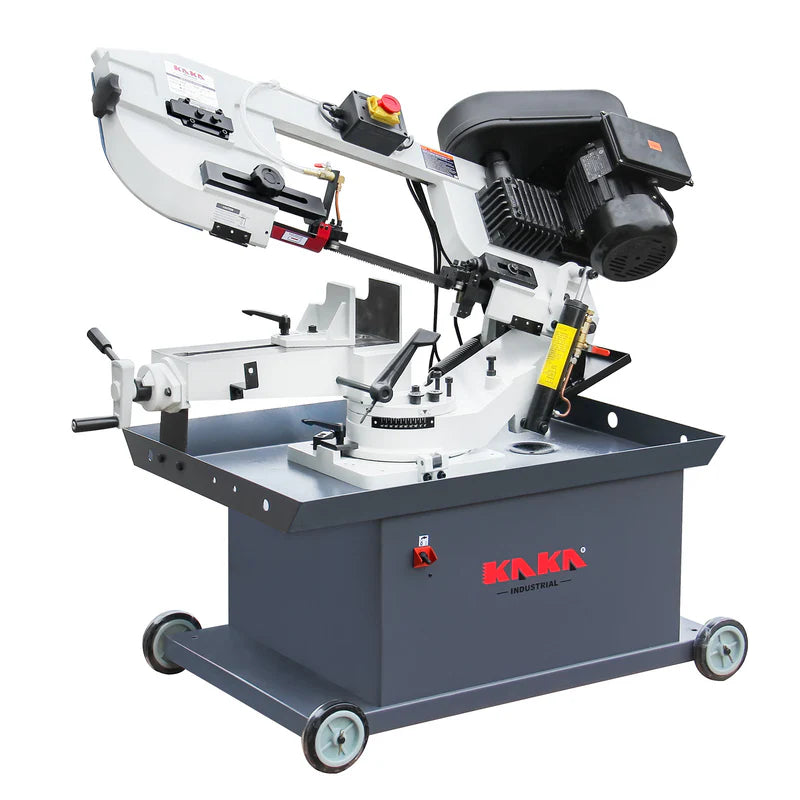

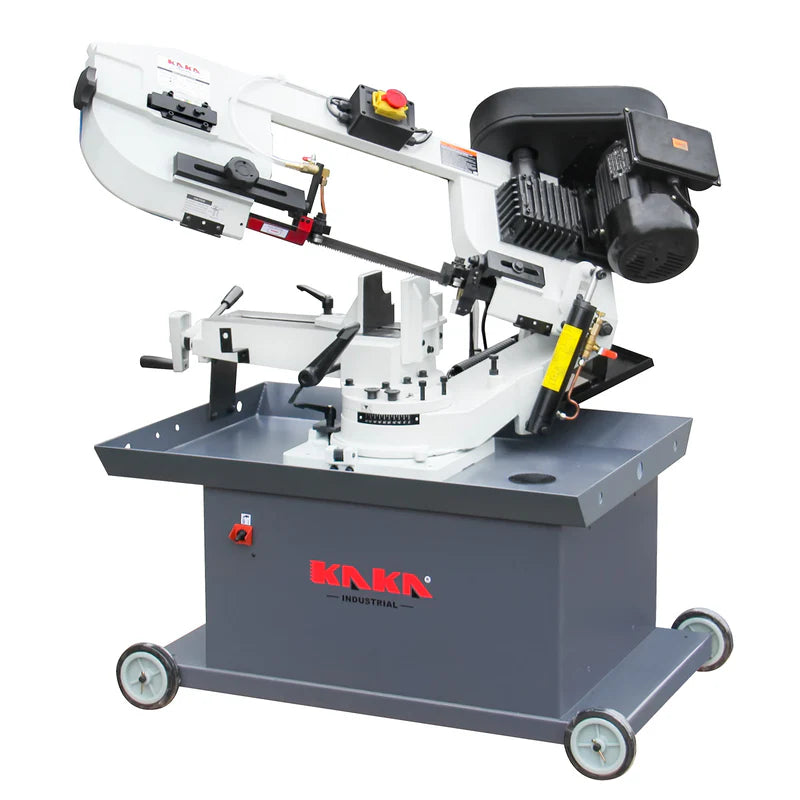

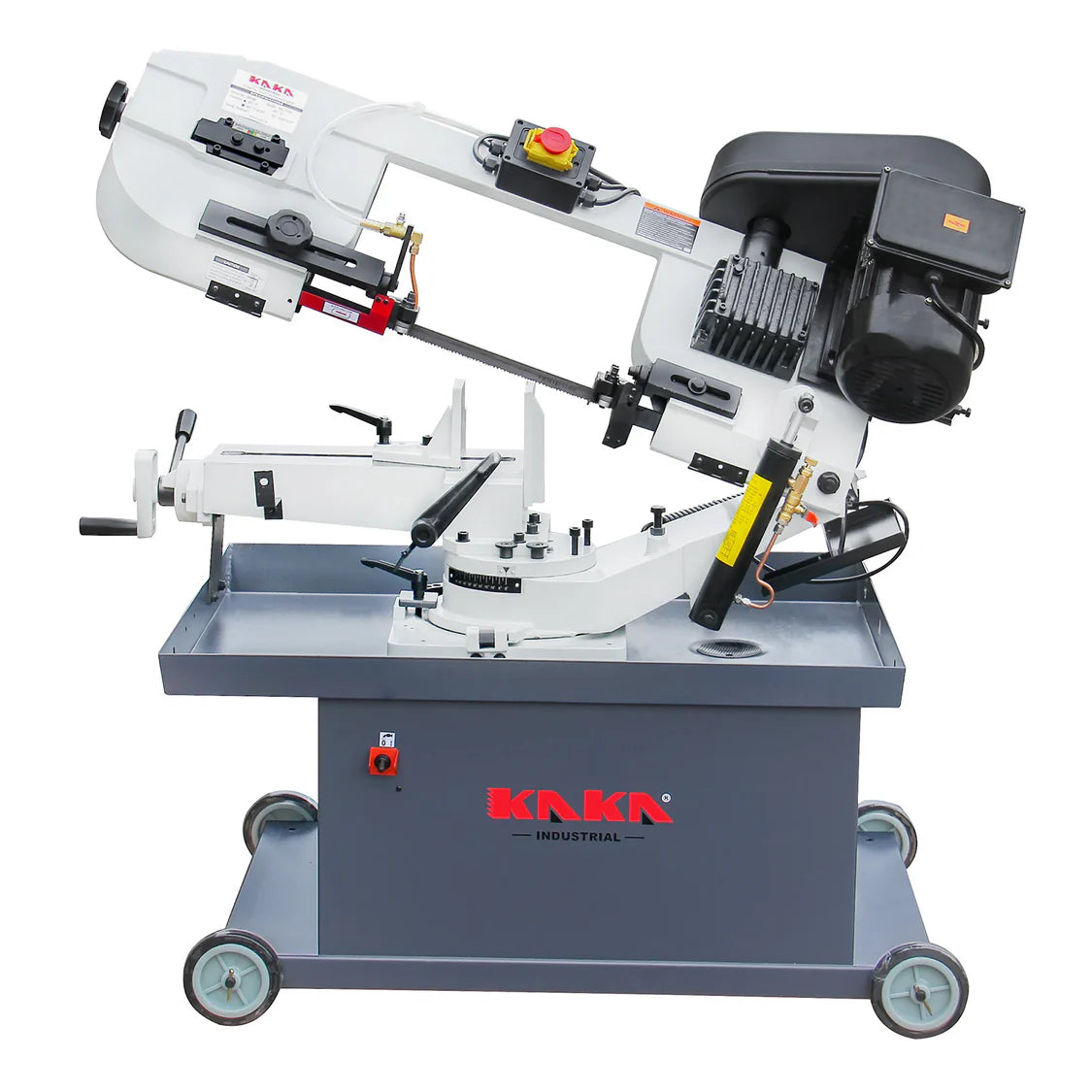

1. 7" Metal Band Saw Machine

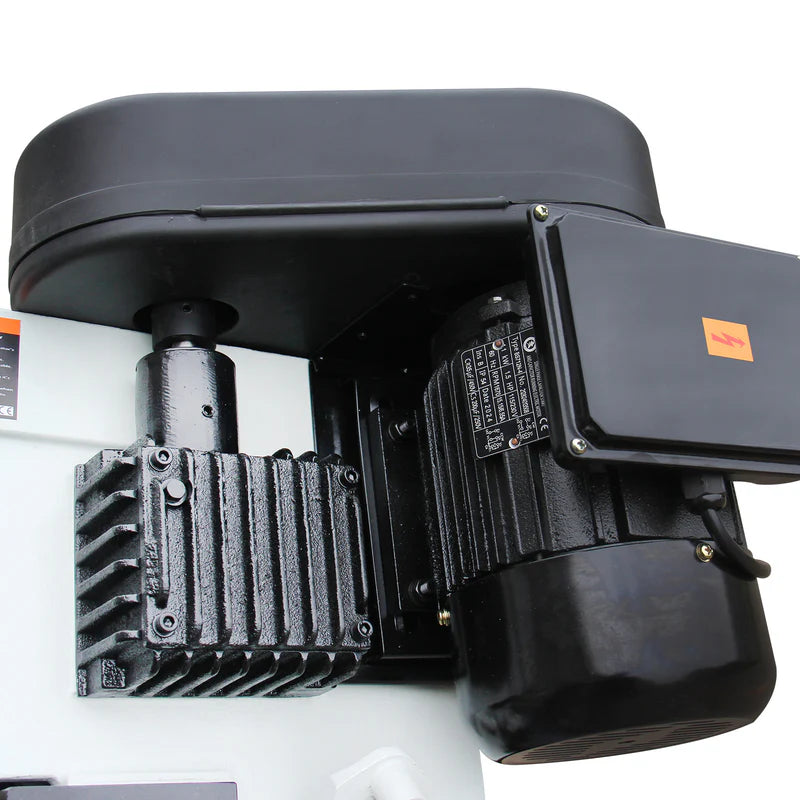

2. V-belt drive
3. Can be swivelled
The bow can be rotated, which can cut 30°，45°，60°，90°.
4. With 4 different speed

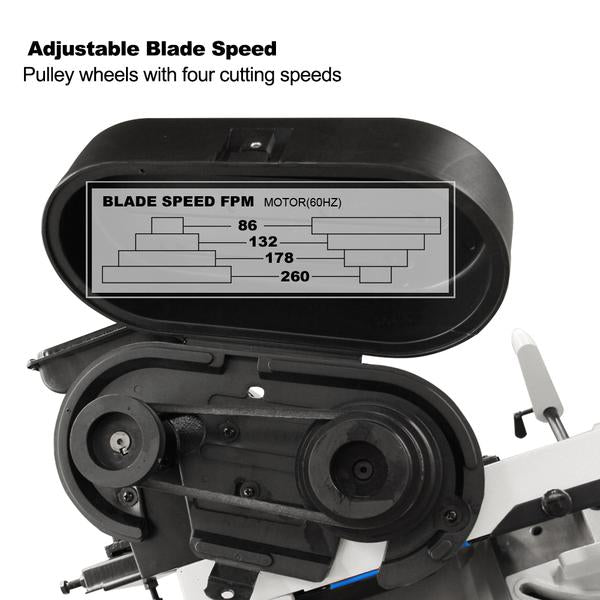

5. The maximum processing capability of BAND SAW BS-712R is 7"(178mm)
6. The belt gear of it has four cutting speeds

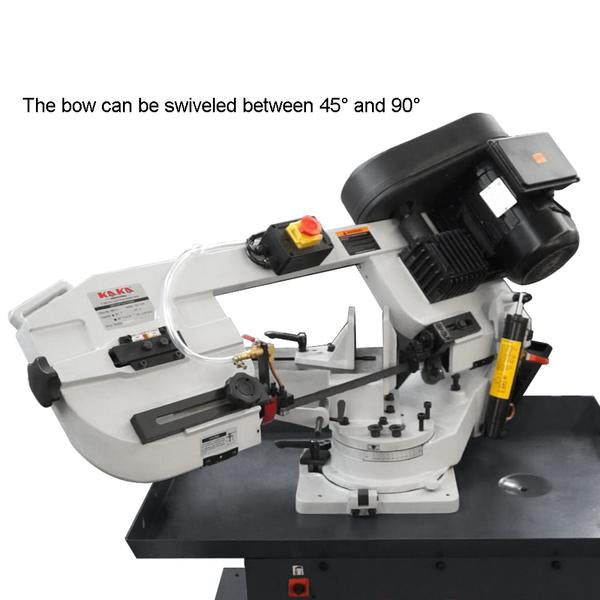

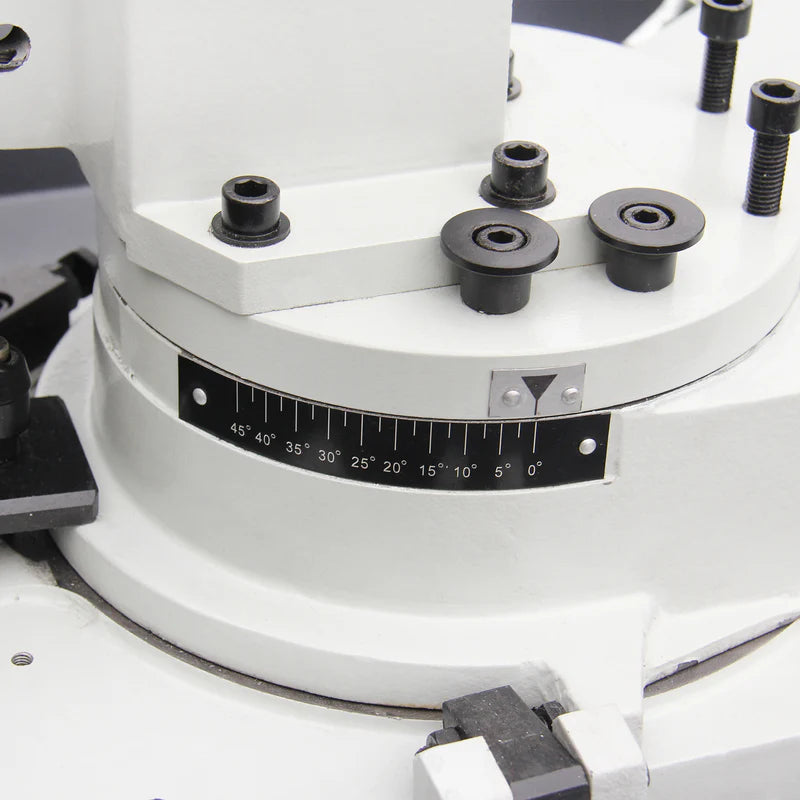

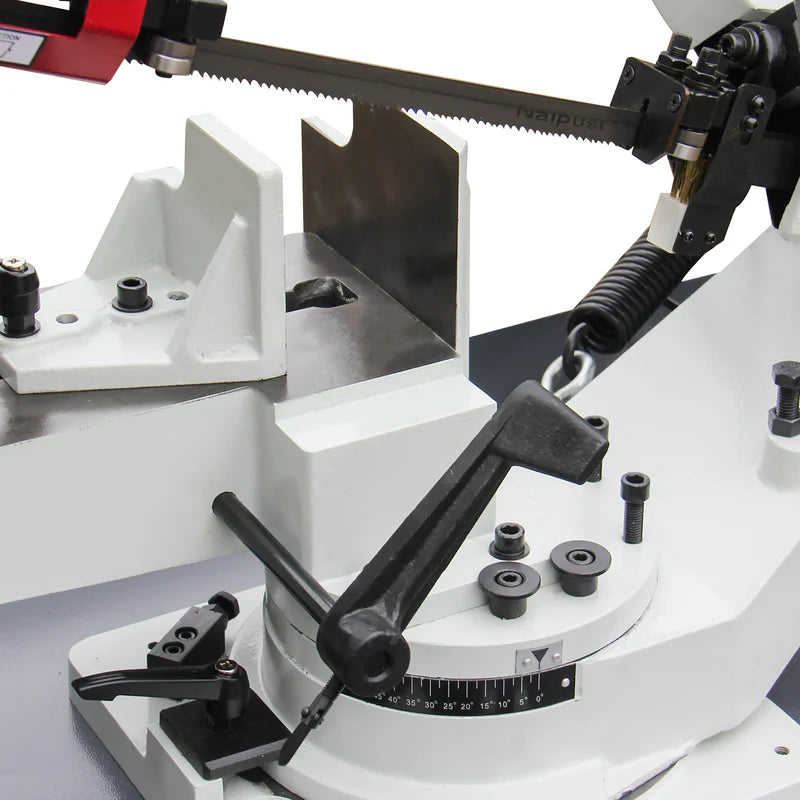

7. The saw bow can be swivelled between 45° and 90°

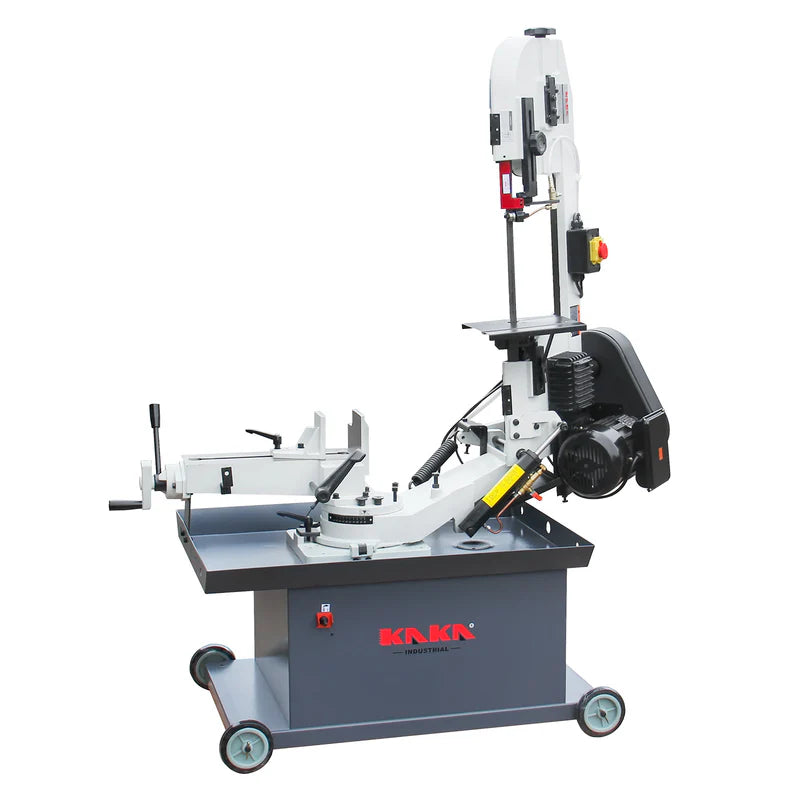

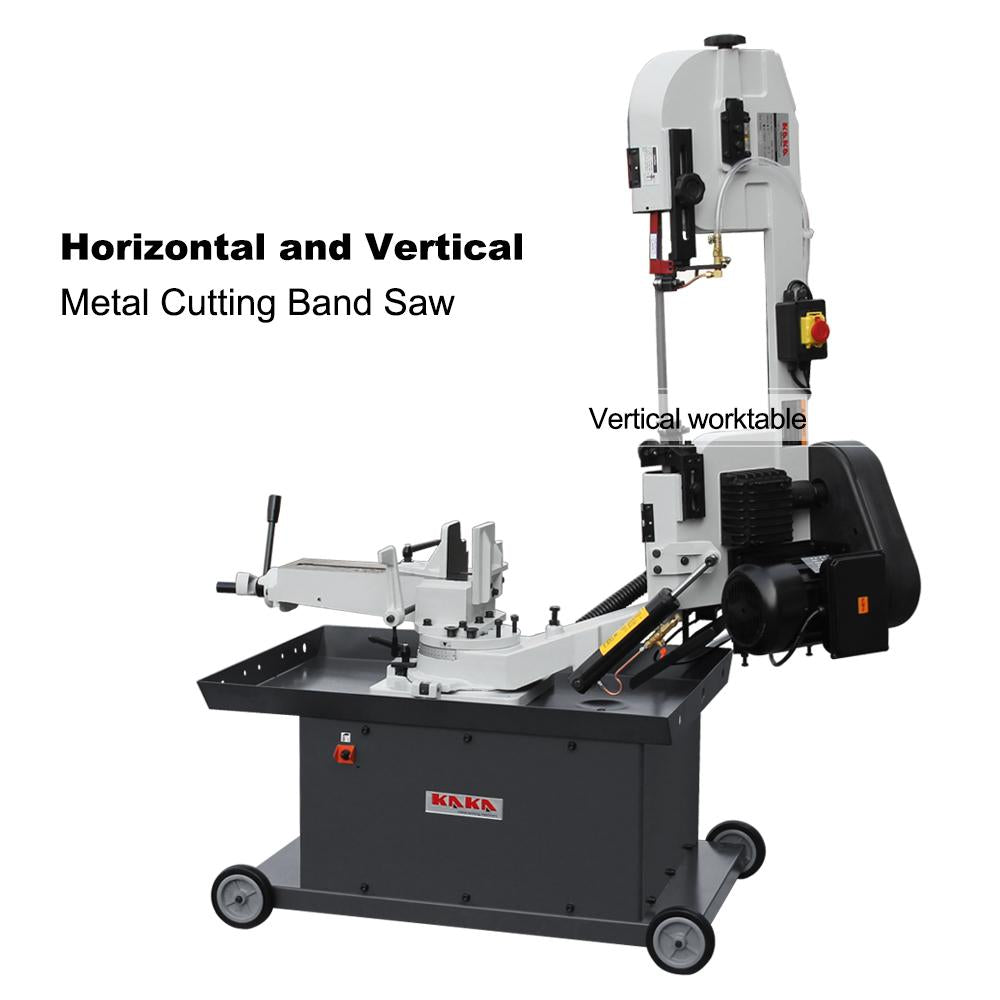

8. Can be used both vertically and horizontally
9. High capacity due to controlled by motor

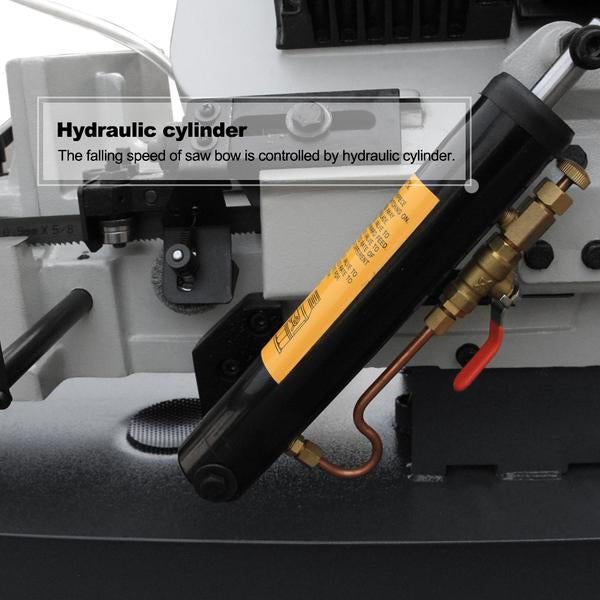

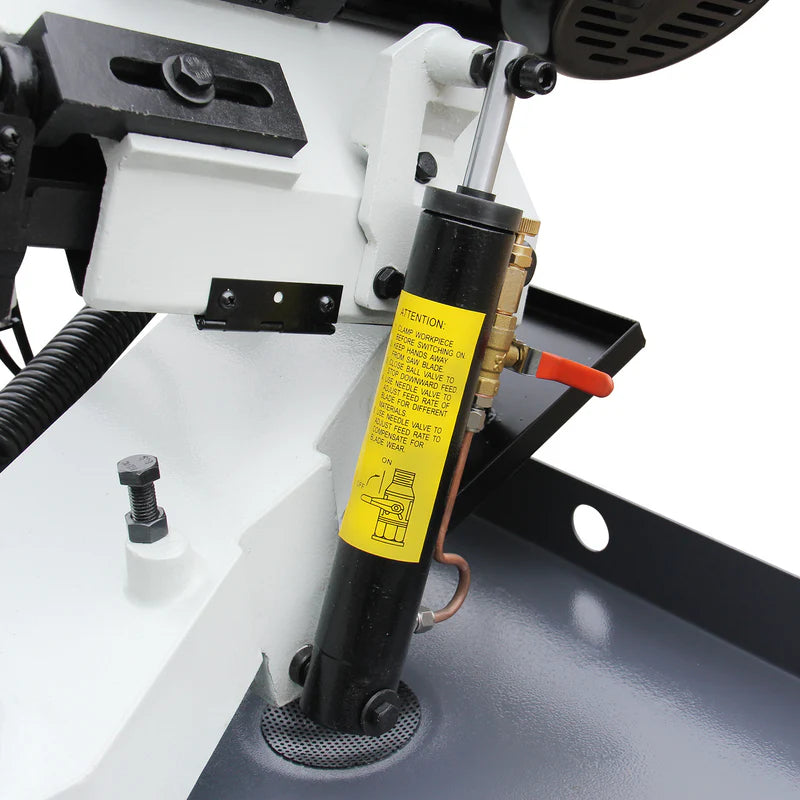

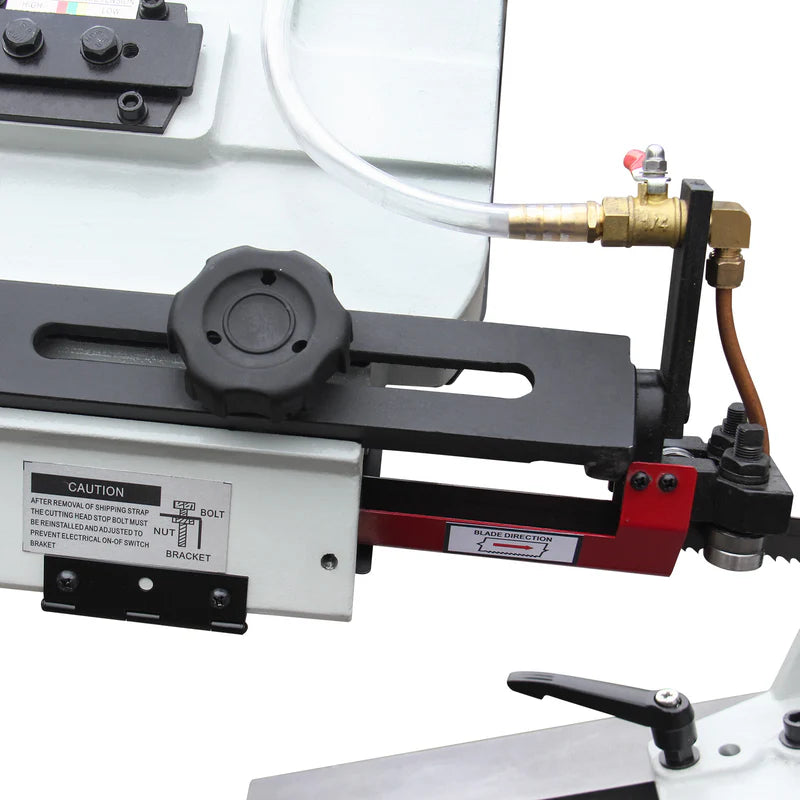

10. The falling speed of the saw bow is controlled by a hydraulic cylinder. The base of the roller can be moved freely.
11. Has a sizing device (the machine will automatically stop after sawing materials)
12. With a power break protection device, the machine will power off automatically when the rear protective cover is opened

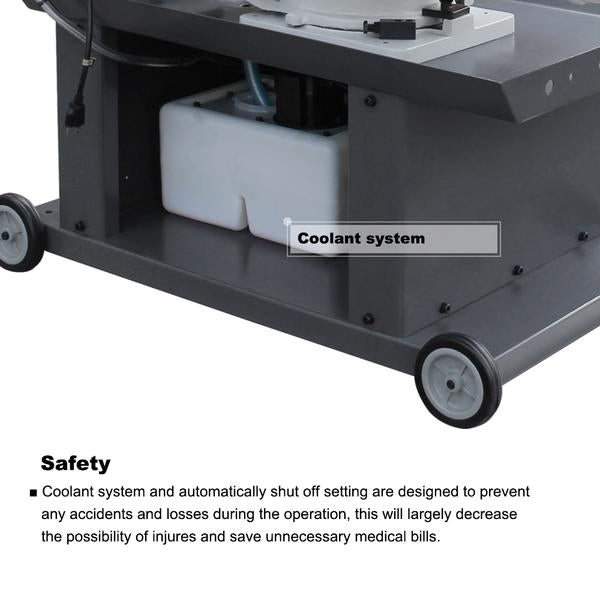

13. With cooling system can prolong the service life of the saw blade and improve the precision of the workpiece

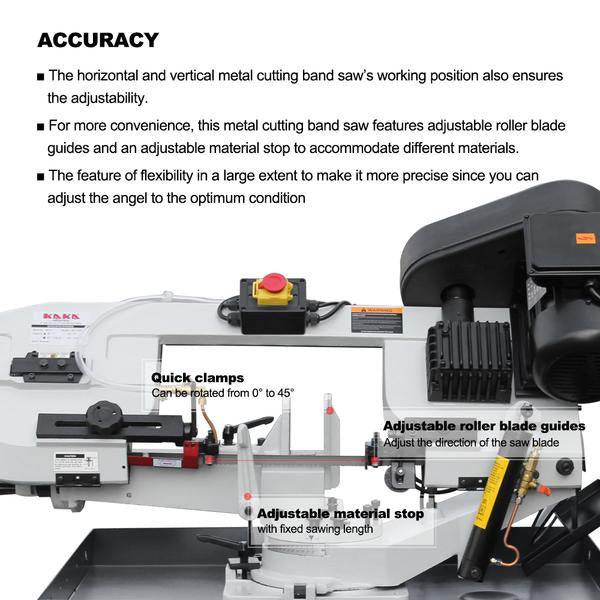

14. Is equipped with a block feeder (with fixed sawing length)
15. Main technical parameter
- Item No.:188008
- Model:BS-712R
- Voltage : 115V&230V/60HZ/1PH，Prewired 115V .
- Capacity Circular: @90° 178mm(7”)
- Rectangular: @90° 178x210mm (7”x8.25”)
- Circular: @45° 127mm(5”)
- Rectangular: @45° 85x140mm (3.33”x5.5”)
- Blade speed: @60Hz 27,41,59,78MPM
- @50Hz 22,34,49,64MPM
- Blade size: 20x0.9x2362mm 5/8TPI
- Motor power: 750W 1HP(3PH), 1.1KW 1.5HP(1PH)
- Drive:V-belt
- Packing size(in):50x28x45
- N.W./G.W(lb).:407/525

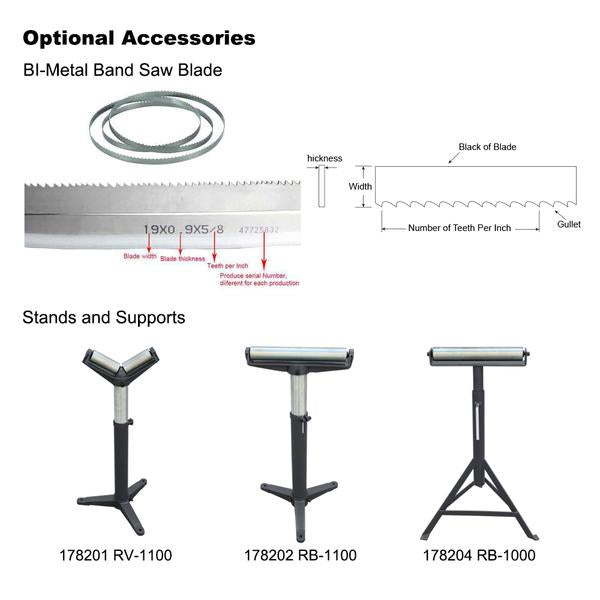

Optional Accessories (need to buy separately):
1. vertical working table
https://www.kakaindustrial.ca/products/203-vertical-table-for-bs-712n-bs-712r
2.Replacement Blade：
