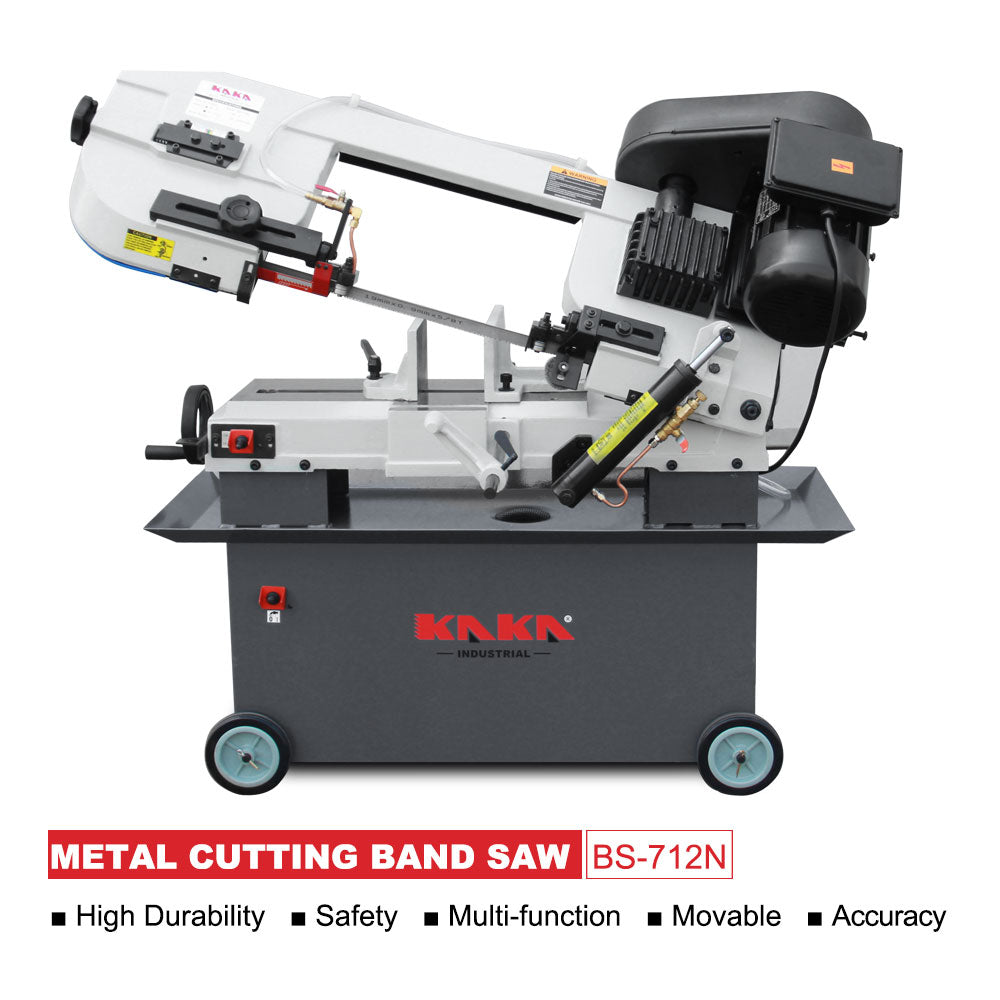

BS-712N 7x12 Inch Metal Cutting Bandsaw . 115V&230V/60HZ/1PH,Prewired 115V.

  • Sale
  • C$1,700.00
  • Regular price C$1,849.99




Kaka Industrial BS-712N Metal Cutting Bandsaw Overview

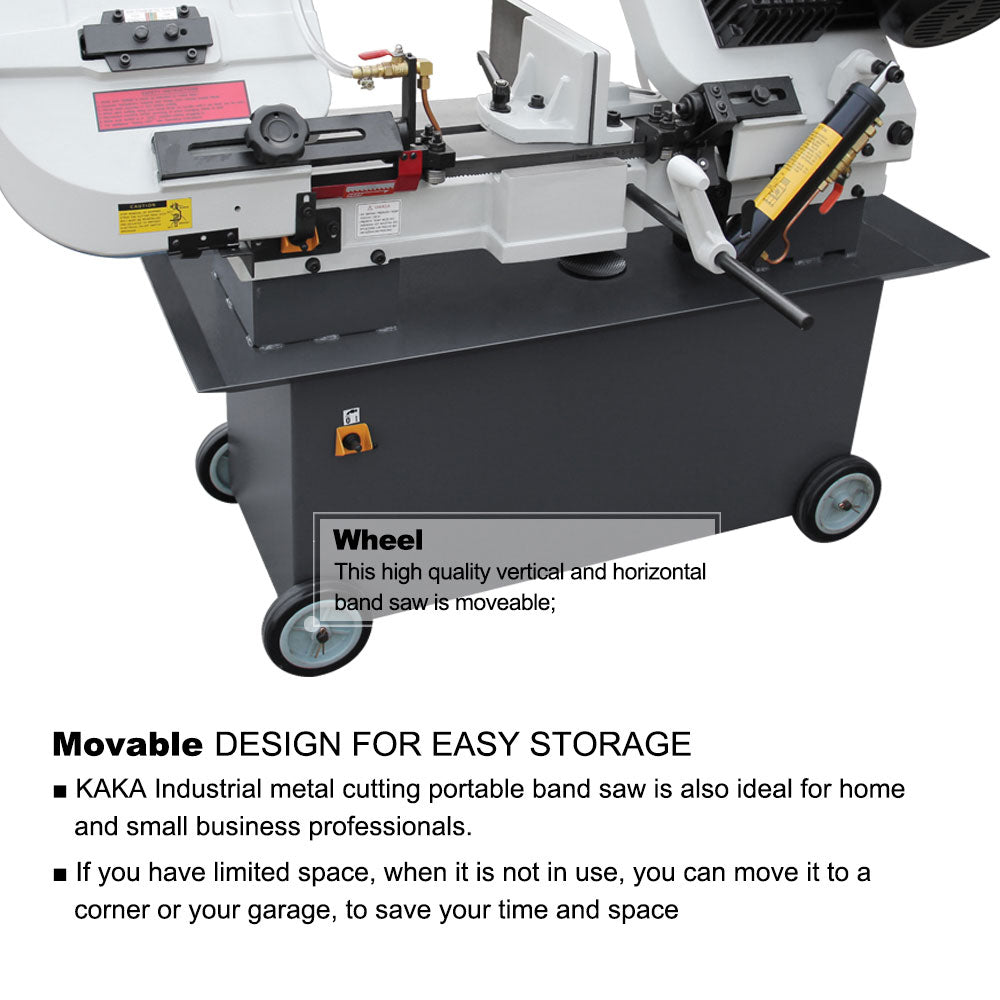

This horizontal/vertical band saw has all the features needed for professional results when it comes to metal cutting. The band saw features a built-in coolant system, a heat-treated high carbon steel blade, brass fittings and ball valves, a durable polypropylene tank fully shielded guide bearings and a full complement of belt and blade guards for safety. The metal cutting band saw includes a convenient roller cabinet for easy storage and an automatic shut off when your cut is complete for safer cutting

The metal cutting band saw has features suitable for professional metalworking craft. This horizontal/vertical band saw owns a coolant system, bimetal steel blade, precision brass ball valves, a durable polypropylene cooling tank, a full complete protection guard of belt and blades, two pulleys to change blade speed. This 7” metal cutting band saw includes a convenient roller cabinet for easy storage and automatic power off when the cut is finished for safety.

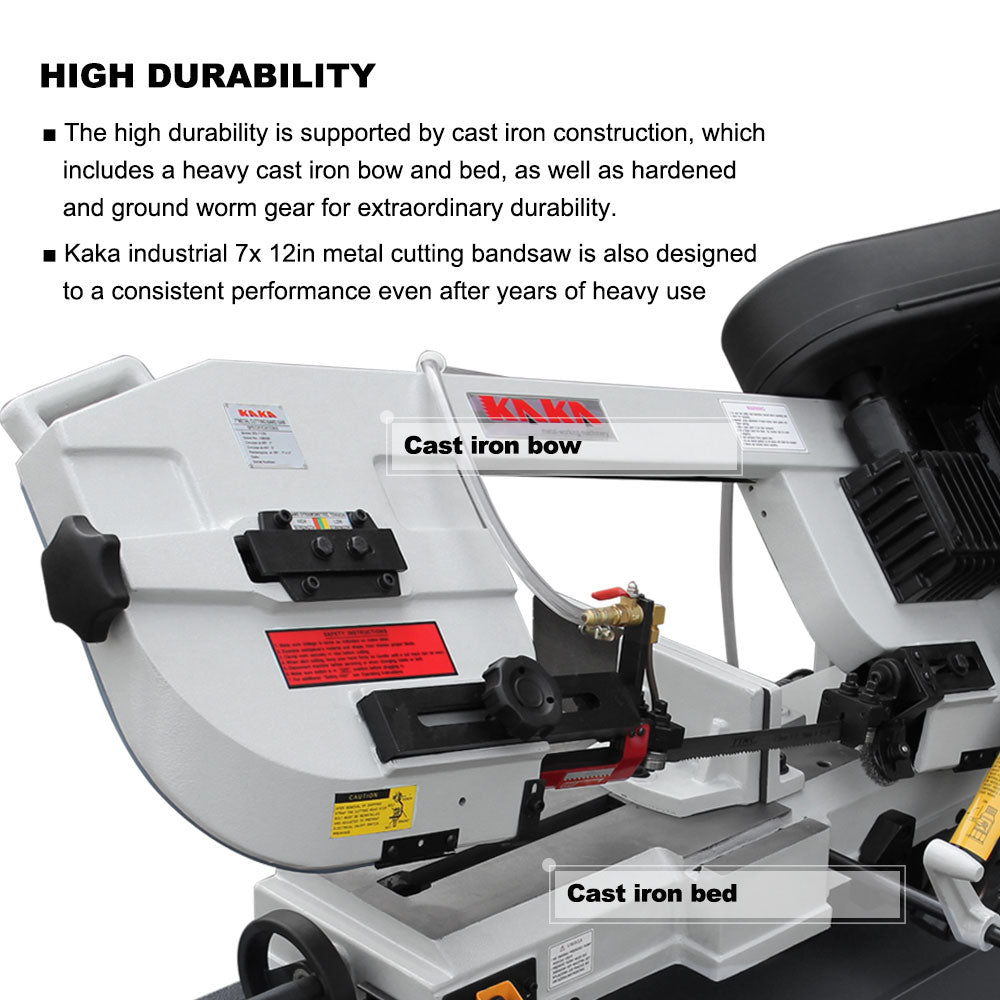

Cast Iron Construction, High Capacity, Improved Safety Design

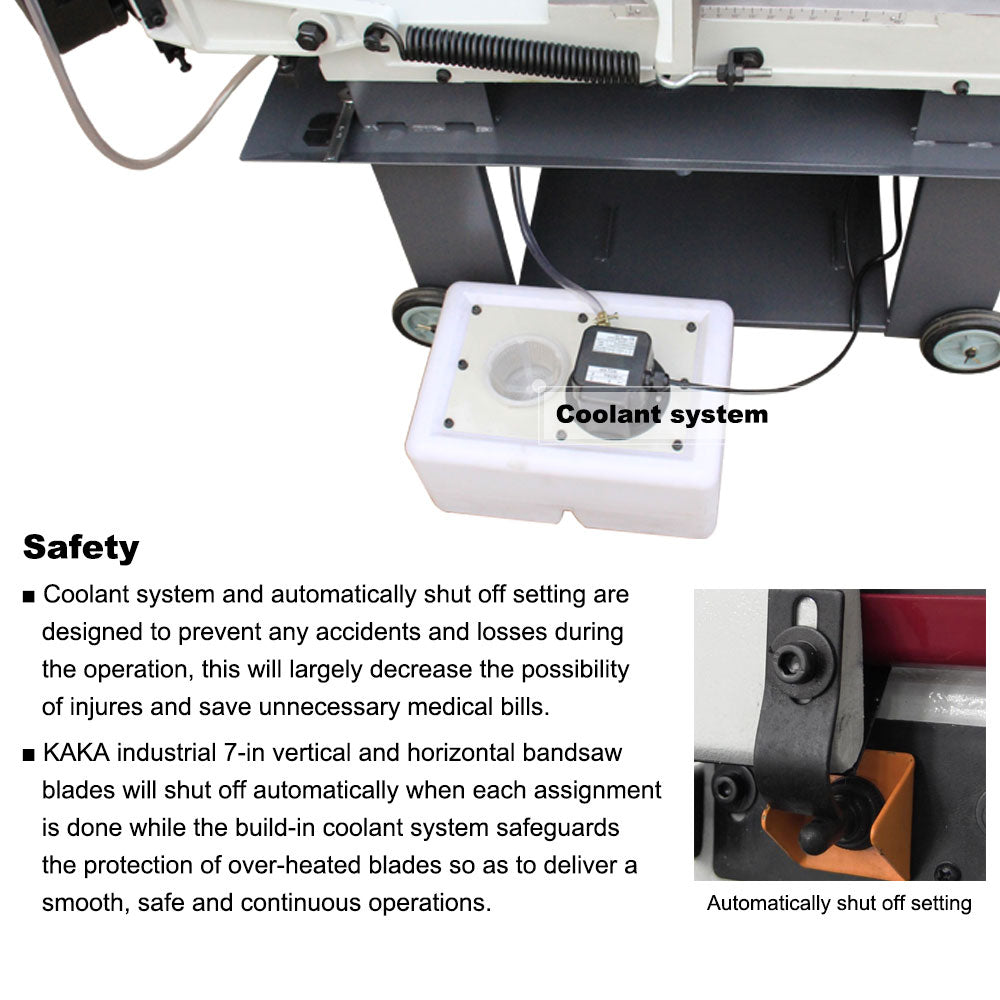

Kaka Industrial horizontal vertical metal cutting bandsaw equips with a capacity of 7 x 12 inches, this heavy metal bandsaw can handle materials from aluminum to steel. The cast iron construction builds to have consistent performance even after years of heavy use. Coolant systems and automatically shut-off setting are designed to prevent any accidents and losses during the operation, this will largely decrease the possibility of injures and save unnecessary medical bills.

Key Features

1. Maximum capability 7"

2. The belt gear of it has four cutting speeds

3. The quick clamps can be rotated from 0° to 45°

4. Can be used both vertically and horizontally

5. High-capacity due to controlled by motor

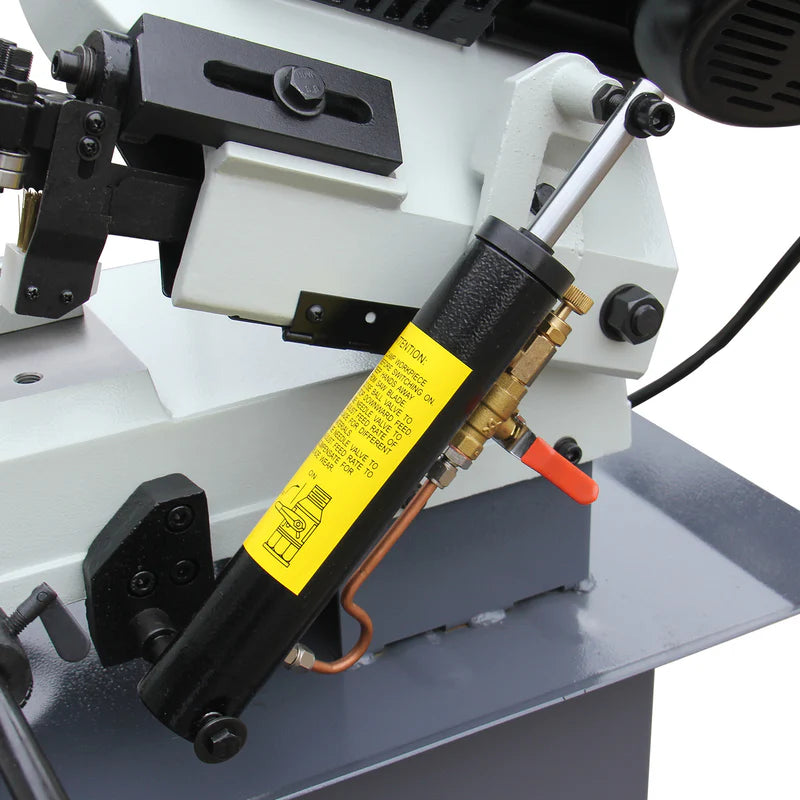

6. The falling speed of the saw bow is controlled by a hydraulic cylinder. The base of the roller can be moved freely.

7. Has a sizing device (the machine will automatically stop after sawing materials)

8. With a power break protection device, the machine will power off automatically when the rear protective cover is opened

7. With cooling system, can prolong the service life of saw blade and improve the precision of work piece

9. Equipped with a block feeder (with fixed sawing length)



Specification



Item No.

188006

Model

BS-712N

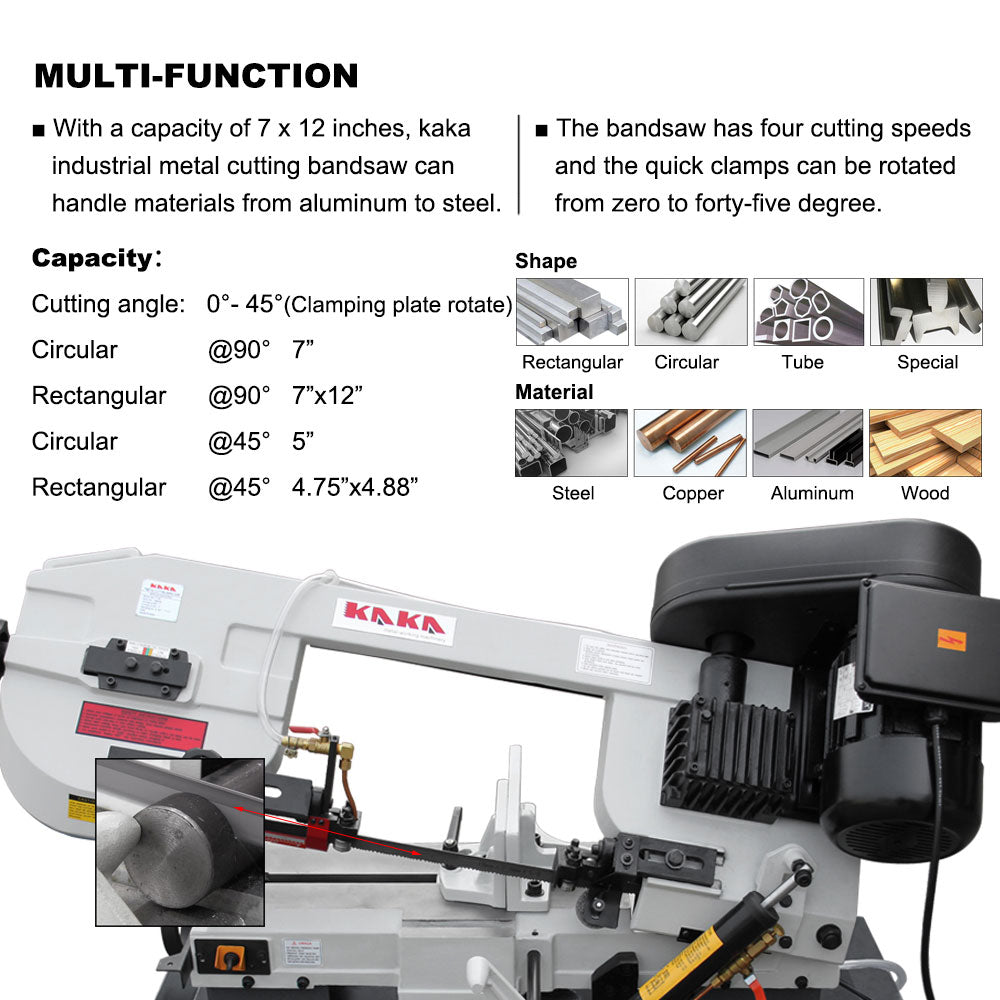

Capacity

Circular @ 90°

178mm(7”)

Rectangular @90°

178x305mm(7”x12”)

Circular @45°

127mm(5”)

Rectangular @45°

120x125mm (4.75”x4.88”)

Blade speed

@60Hz

27,41,59,78MPM

@50Hz

22,34,49,64MPM

Blade size(in)

0.75”x0.035“x93” 5/8 TPI

Motor power

1.1KW 1.5HP(1PH)

Drive

V-belt

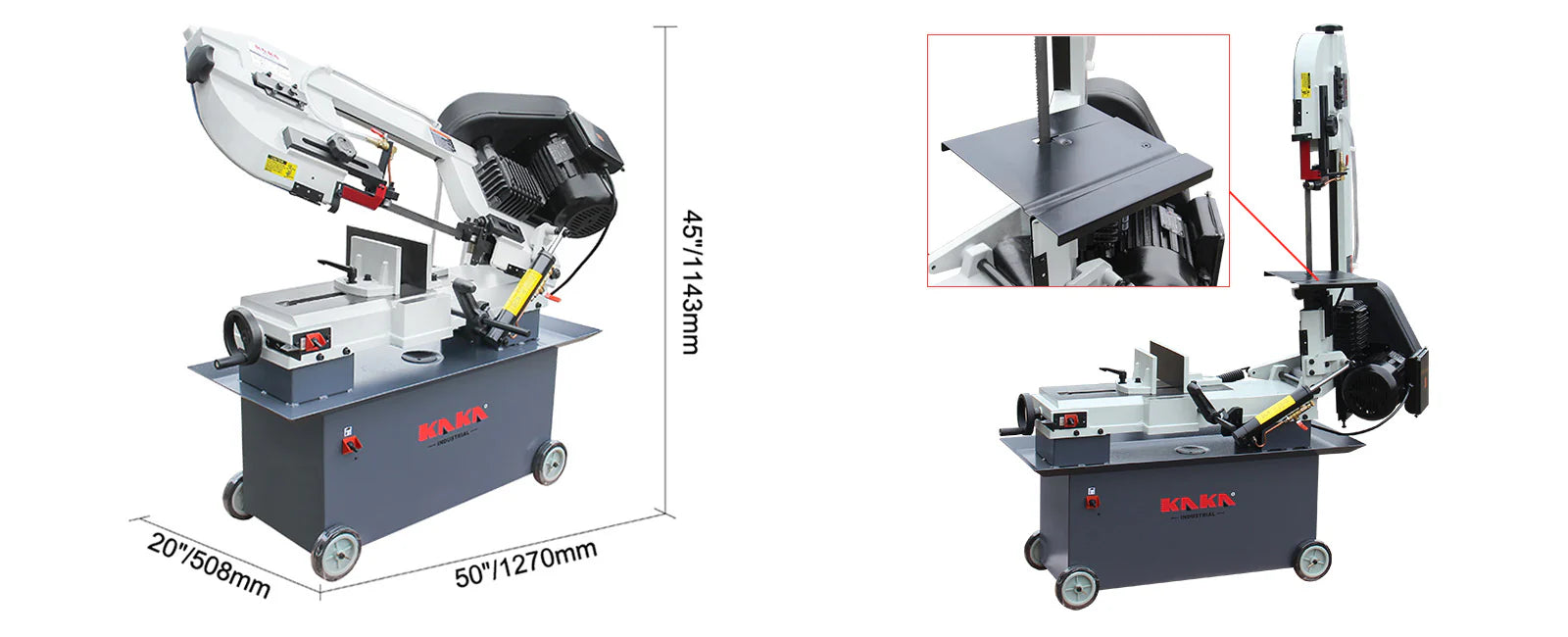

Packing size(in)

50"x20"x45"

N.W./G.W.

320/392 lbs



Standard Accessories

  1. Back gauge
  2. Tools.

Optional Accessories (need to buy separately):

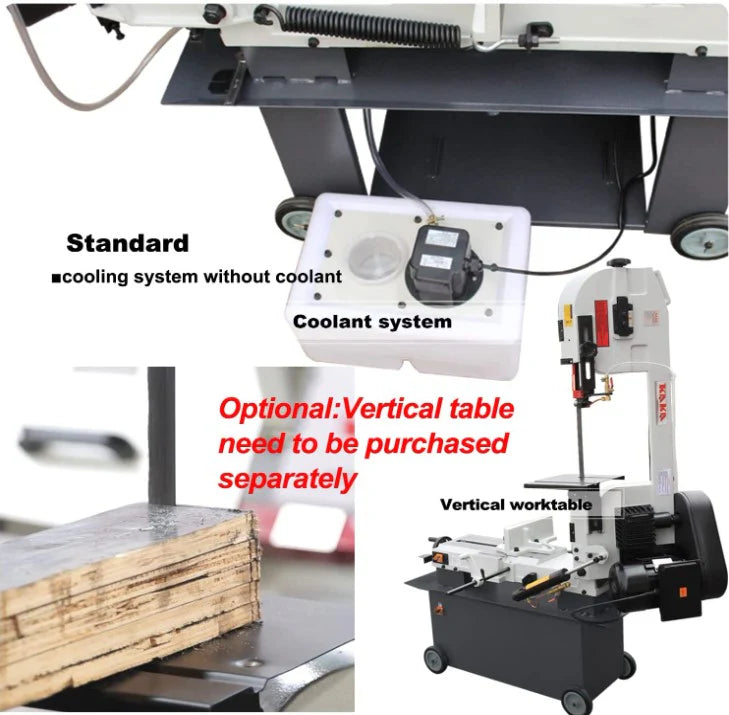

1. vertical working table

https://www.kakaindustrial.ca/products/203-vertical-table-for-bs-712n-bs-712r

Replacement Blade:

https://www.kakaindustrial.ca/collections/band-saw/products/kaka-industrial-19x0-9x2362-bi-metal-bandsaw-blade

Bichamp FICUT Replacment Blade for BS-712 SAW
