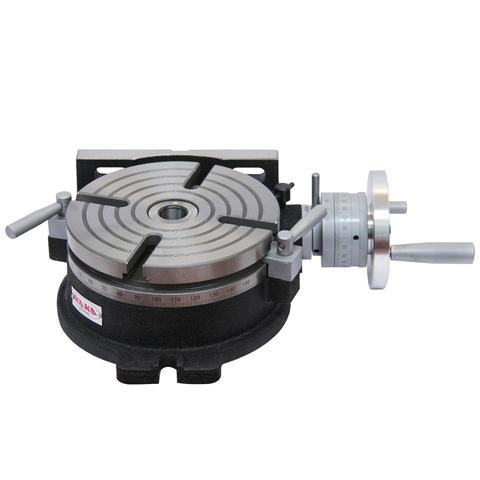

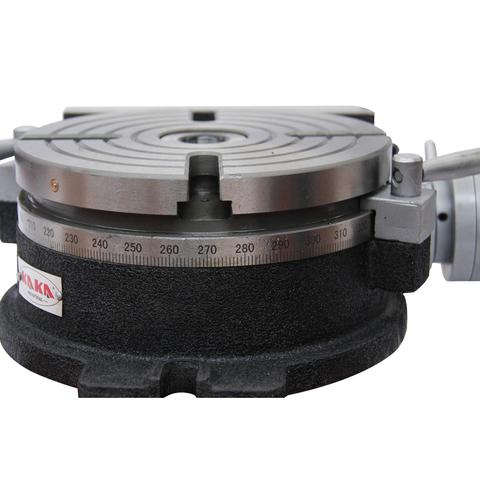

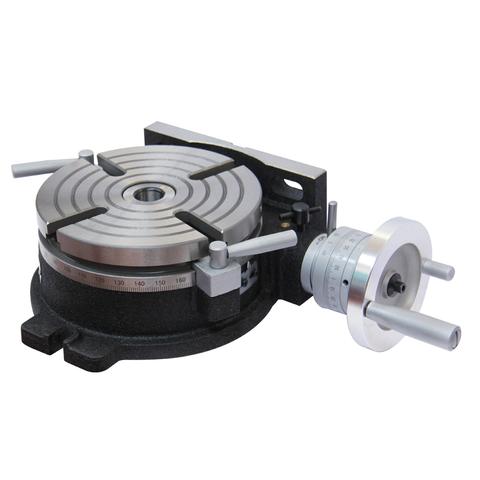

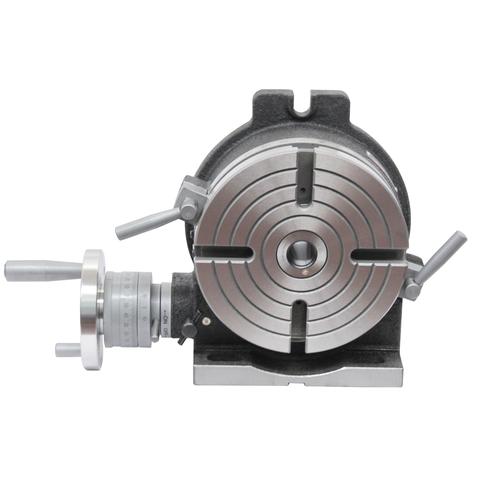

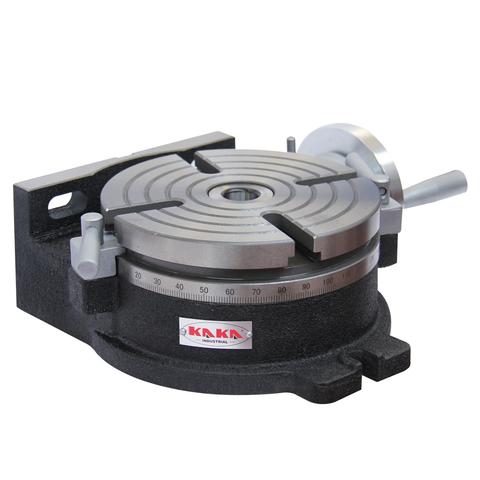

HV-8 TSL Vertical & Horizontal Rotary Table

  • Sale
  • Regular price C$479.99


TSL vertical&horizontalrotary table is one of the main accessories of milling machine, it is used for index boring, milling, circle cutting, spot facing and boring hole etc on the milling machine. The rotary table in vertical with working together can be used on complex work for circle index boring and milling.

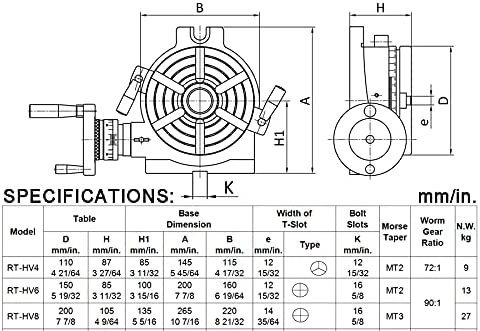

SKU: 161108

MODEL: HV-8

Diameter of table (in): φ7.8

Morse taper of the center hole: MT3

Height of center  for vertical mounting (in): 5.3"

Width of T-slot(in): 0.472"

Adjacent angle of T-slot: 90"

Width of the locting key (in): 0.62

Modules of worm and worm gear: 1.5

Transmission ratio of the worm gear  1:90

Graduation of the table:360°

Rotating angle of table with one revolution of the worm: 4"(1' Per graduation)

Minimum value  of vernier: 10"

Indexing accuracy: 80"

Max.bearing(With table Hor.): 330 lbs

Max.bearing(With table ver.)lb: 165 lbs

N.W./G.W.  :62/67 lb

Case dimensions:15x12x7 in
