HV-4 TSL Vertical & Horizontal Rotary Table
HV-4 TSL Vertical & Horizontal Rotary Table is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

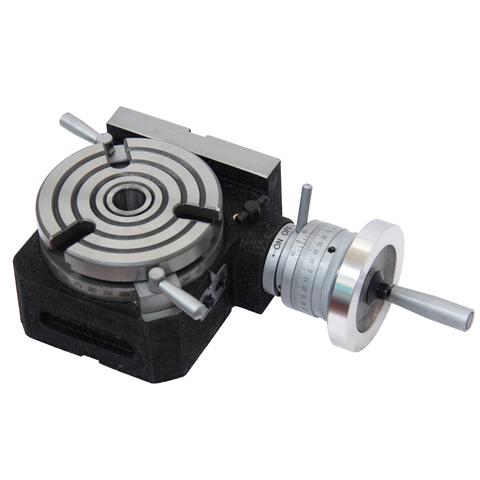

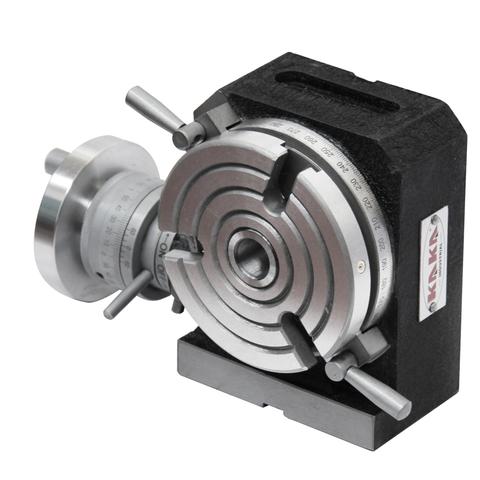

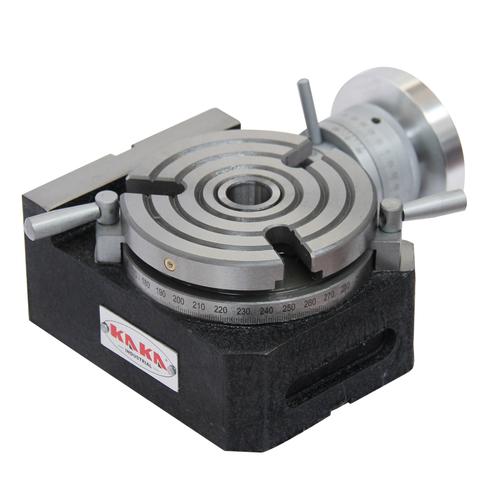

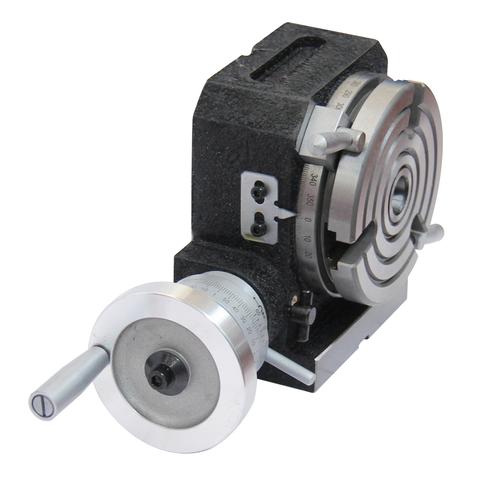

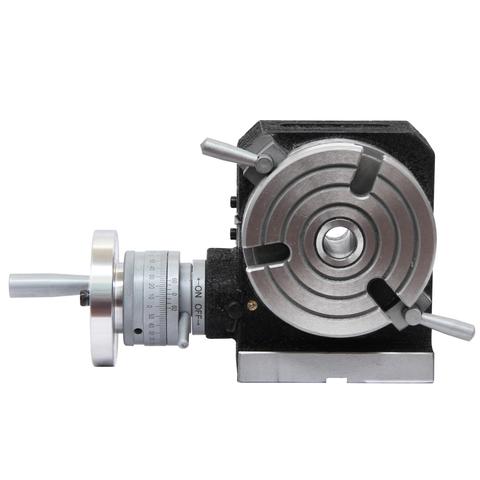

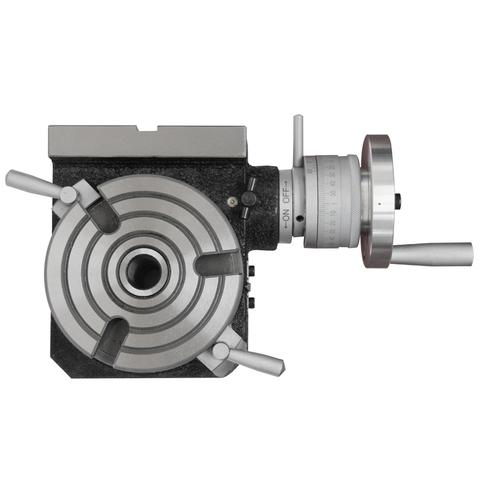

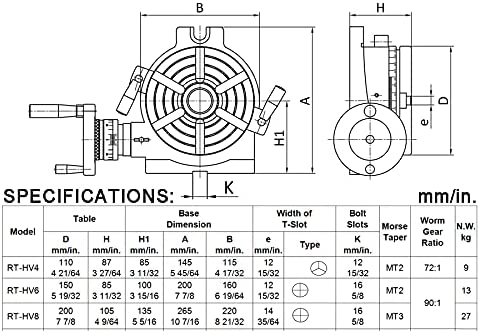

TSL vertical&horizontalrotary table is one of the main accessories of milling machine, it is used for index boring, milling, circle cutting, spot facing and boring hole etc on the milling machine. The rotary table in vertical with working together can be used on complex work for circle index boring and milling.
SKU: 161104
MODEL: HV-4
Diameter of the table (in): φ3
Morse taper of the center hole: MT2
Height of center for vertical mounting (in): 2.32 "
Width of T-slot(in): 0.314 "
Adjacent angle of T-slot: 90"
Width of the locting key (in): 0.472
Modules of worm and worm gear: 1
The transmission ratio of the worm gear 1:36

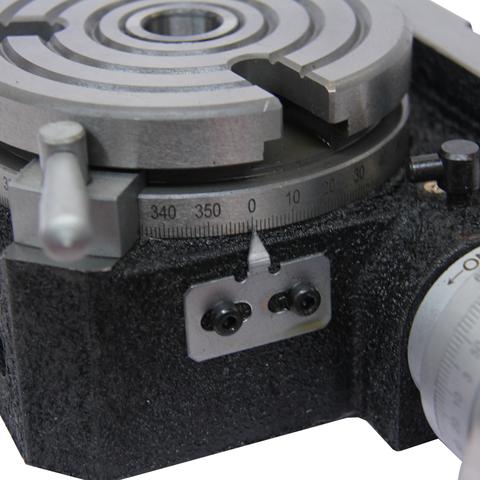

Graduation of the table:360°
Rotating angle of table with one revolution of the worm: 10
Max. bearing(With table Hor.)lb: 220
Max. bearing(With table ver.)lb: 100
N.W./G.W. :17/19 lb
Case dimensions: 7.3x3.7x4.4 in
