HP-50F ELECTRIC HYDRAULIC SHOP PRESS
50-Ton H-Frame Double-Acting Hydraulic Press with Foot Pedal
🟦 HEAVY-DUTY • POWERFUL • PRECISION CONTROL
The HP-50F Electric Hydraulic Shop Press is a professional-grade 50-ton pressing solution designed for demanding fabrication, repair, maintenance, and manufacturing applications.
Featuring a heavy-duty H-frame construction, electric hydraulic power unit, and double-acting cylinder, this press delivers smooth, controlled operation with exceptional pressing force. Whether you're bending, straightening, pressing bearings, forming metal, or performing assembly work, the HP-50F provides the strength and precision required for industrial-level performance.
An adjustable work table, foot pedal operation, and fluid-filled pressure gauge make this machine easy to operate while ensuring accurate and repeatable results. Built with thick steel columns and a durable corrosion-resistant finish, the HP-50F is engineered for years of reliable service in workshops, garages, and production facilities.
⚙️ KEY FEATURES
🔹 Powerful 50-Ton Capacity
Delivers up to 50 tons of pressing force for heavy-duty industrial applications
🔹 Electric Hydraulic Operation
Provides effortless operation and increased productivity compared to manual presses
🔹 Double-Acting Cylinder Design
Smooth ram movement in both directions allows precise positioning and control
🔹 Heavy-Duty H-Frame Construction
Industrial-grade steel frame offers exceptional rigidity and durability
🔹 Adjustable Work Table
Multiple height positions allow quick setup for different workpiece sizes
🔹 Precision Pressure Gauge
Fluid-filled dual-scale gauge provides accurate and reliable pressure readings
🔹 Foot Pedal Control Included
Hands-free operation improves efficiency and operator convenience
🔹 Corrosion-Resistant Finish
Industrial spray-painted surface protects against rust and wear
🔹 Large Working Capacity
Accommodates a wide range of pressing, forming, and straightening applications
🔹 Built for Professional Use
Ideal for workshops, maintenance facilities, fabrication shops, and industrial operations
📊 SPECIFICATIONS
| Model | HP-50F |
|---|---|
| Frame Type | H-Frame |
| Press Capacity | 50 Ton |
| Pump Type | Electric Hydraulic Gear Pump |
| Cylinder Type | Double Acting |
| Reservoir Capacity | 12 L |
| Ram Maximum Force | 50 Ton |
| Ram Stroke | 8.66" |
| Ram Diameter | 3.15" |
| Ram Speed (Down) | 0.24 in/sec |
| Ram Speed (Up) | 0.31 in/sec |
| Maximum Distance to Table | 25.98" |
| Minimum Distance to Table | 0" |
| Base Length | 18.9" |
| Base Width | 14.17" |
| Bed Support Pin Diameter | 1.57" |
| Bed Adjustment Hole Spacing | 5.31" |
| Overall Height | 69" |
| Overall Width | 53" |
| Overall Depth | 20.5" |
| Packing Size | 58" × 25" × 87" |
| Net Weight | 1,350 lbs |
| Gross Weight | 1,477 lbs |
🔧 ADDITIONAL DETAILS
🔹 Hydraulic Hoses Included:
- M18 × 1.8 × 15.75" (1 pc)
- M18 × 1.8 × 17.72" (1 pc)
- M18 × 1.8 × 19.69" (1 pc)
🔹 Includes Heavy-Duty Gear Pump Hydraulic System
🔹 Double-Acting Cylinder for Enhanced Precision and Control
🛠 APPLICATIONS
🏭 Manufacturing & Fabrication
🔩 Bearing & Bushing Installation
🚗 Automotive Repair & Maintenance
📏 Metal Straightening & Alignment
⚙️ Pressing & Assembly Operations
🔨 Bending, Forming & Punching
🏗 Industrial Maintenance & Repair
📦 WHY CHOOSE HP-50F?
✔ Powerful 50-ton industrial pressing capacity
✔ Electric hydraulic operation for maximum efficiency
✔ Double-acting cylinder for smooth and precise control
✔ Heavy-duty H-frame construction built for long-term use
✔ Adjustable work table for versatile applications
✔ Accurate pressure monitoring with fluid-filled gauge
✔ Ideal for professional workshops, fabrication facilities, and maintenance operations
❓ FREQUENTLY ASKED QUESTIONS

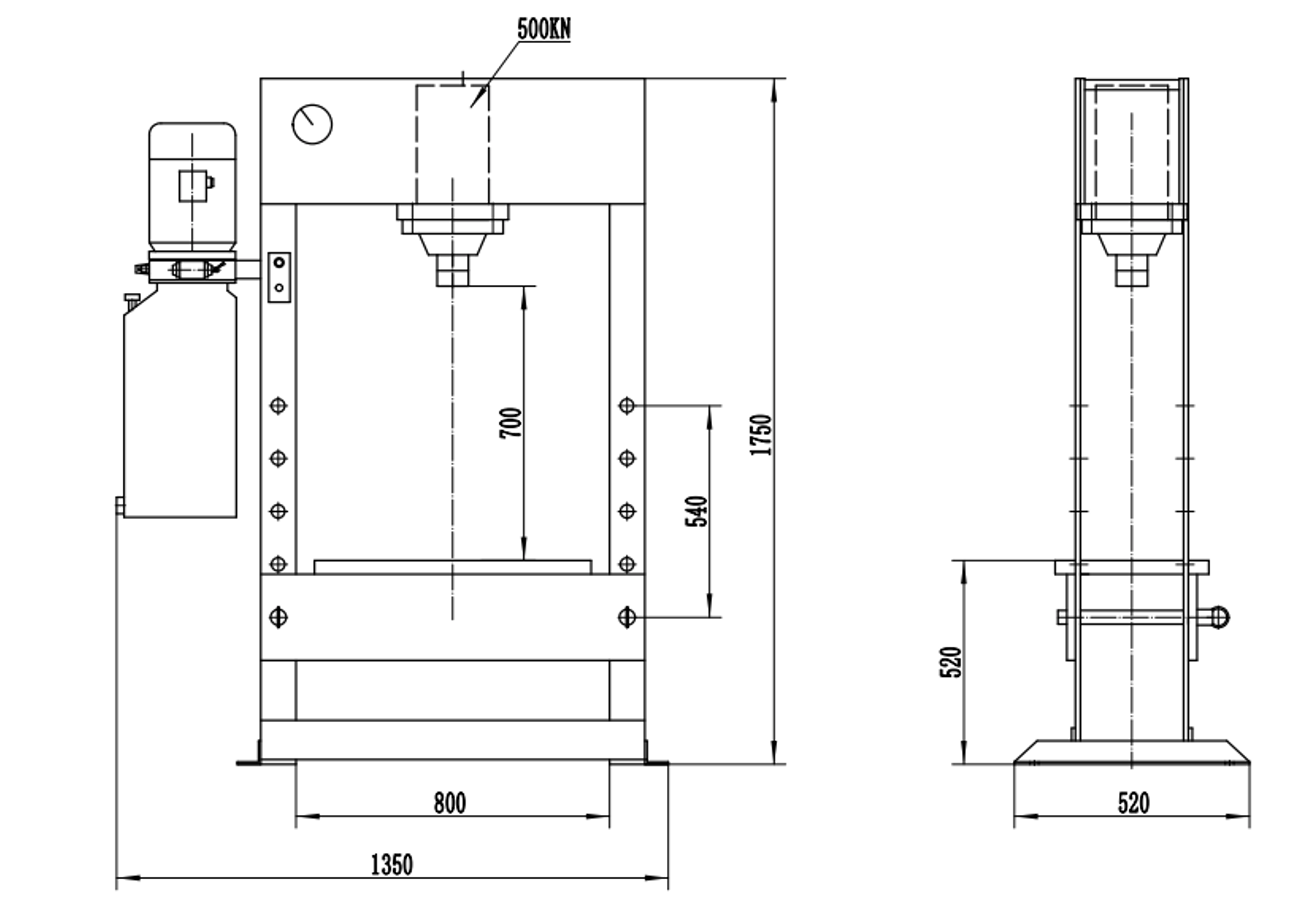

1. What are the overall dimensions of the press?
The overall machine dimensions are approximately:
- Length: 53.1" (1350 mm)
- Width: 20.5" (520 mm)
- Height: 68.9" (1750 mm)
2. The press has five bed adjustment positions spaced 5.31" apart. If the bed is mounted in the highest position, what is the distance from the table to the floor?
The adjustable work table can be positioned between approximately:
- 20.5" (520 mm) from the floor at the lowest position
- 41.7" (1060 mm) from the floor at the highest position
This provides flexibility for different tooling heights and workpiece sizes.
3. My tool is 14" tall. Which bed position should I use, and do I need to raise the machine for comfortable operation?
For a tooling height of approximately 14", the recommended setup is:
- Position the work table in the second adjustment hole from the bottom.
- In this position, the table height is approximately 31.1" (790 mm) from the floor.
Most users find this height comfortable for operation without requiring an additional stand or platform. However, operator preference and application requirements may vary.
4. Will my die shoe measuring 19-7/8" × 10-1/8" fit inside the press?
Yes.
A die shoe measuring 19-7/8" × 10-1/8" can be installed in the HP-50F without modification. No reduction in length is required.
