Industrial 8 Ton Tubing Bender Overview

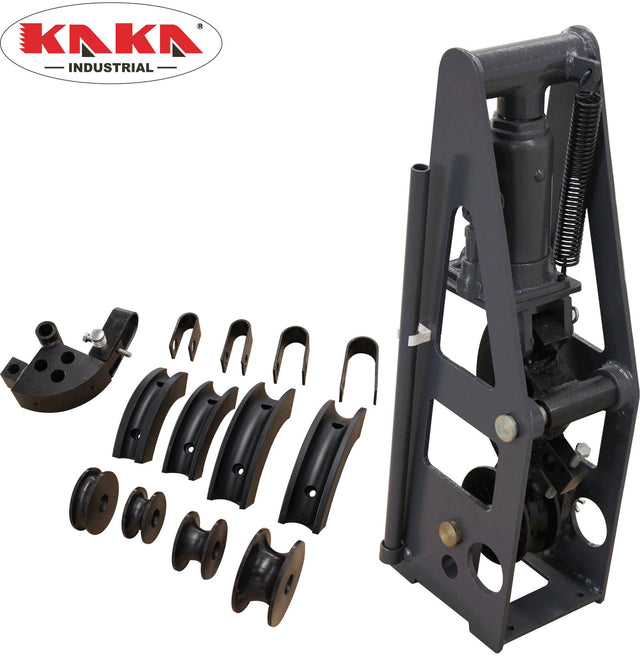

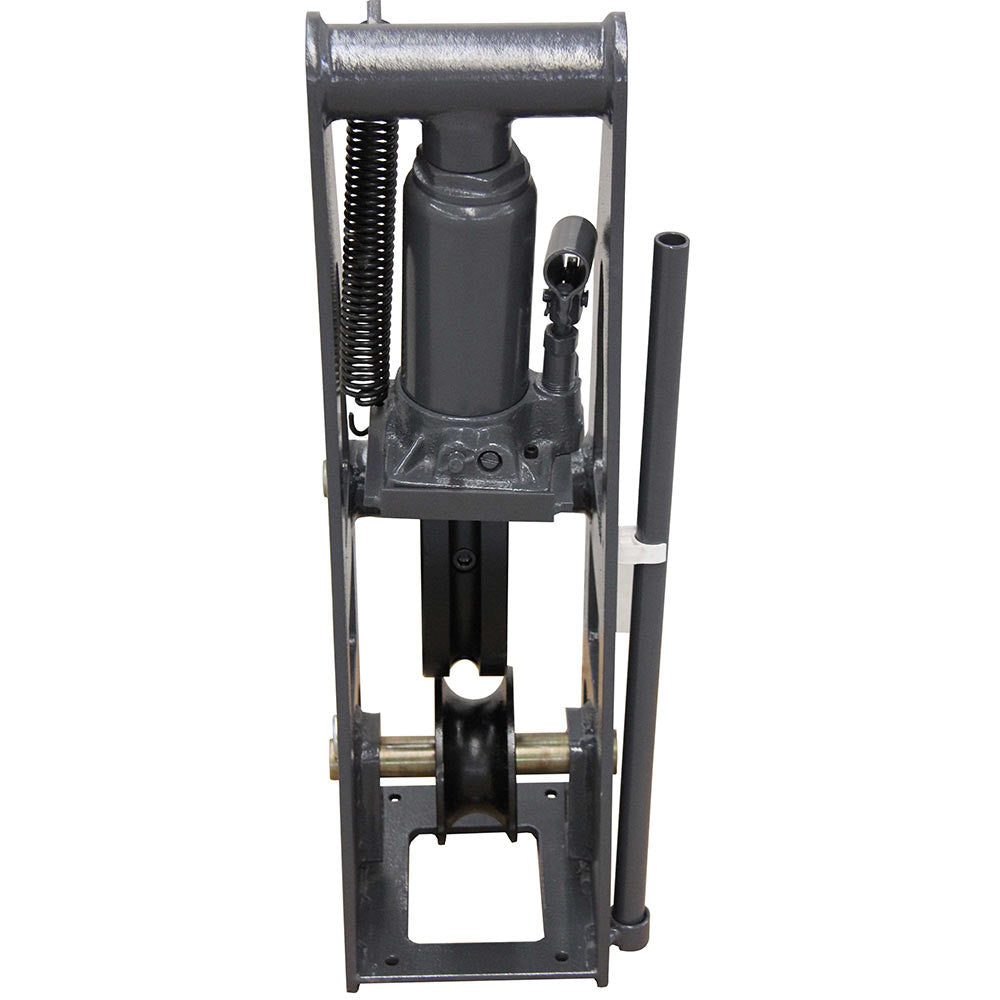

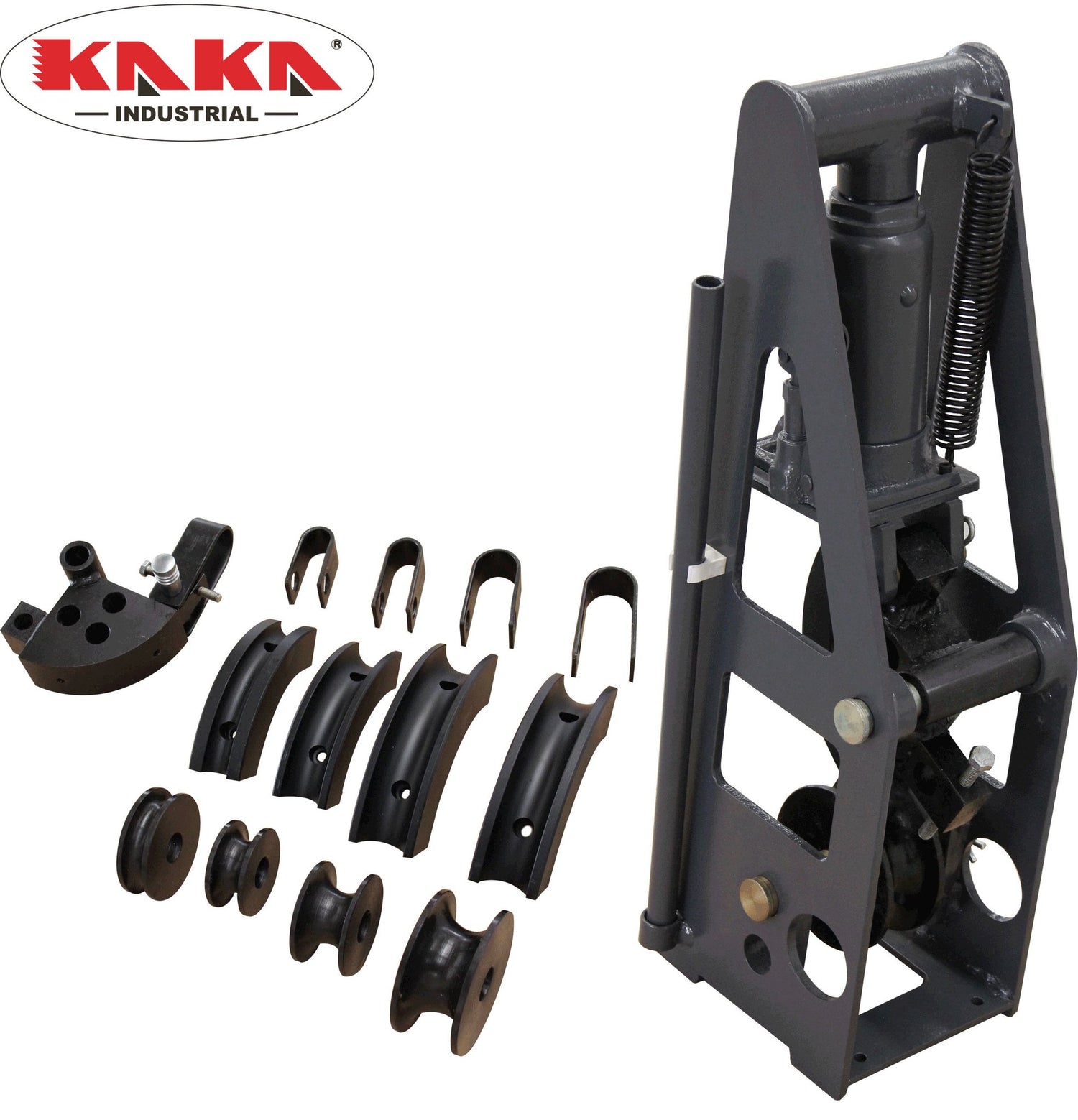

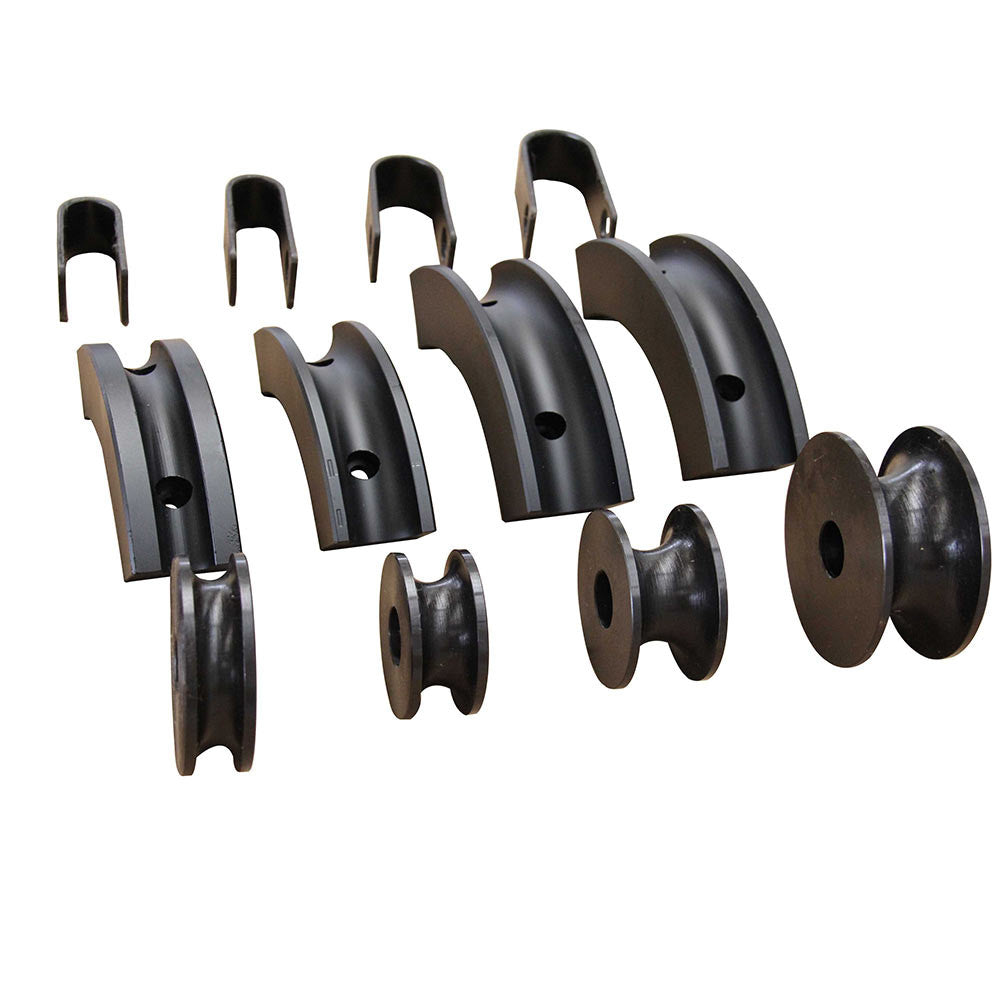

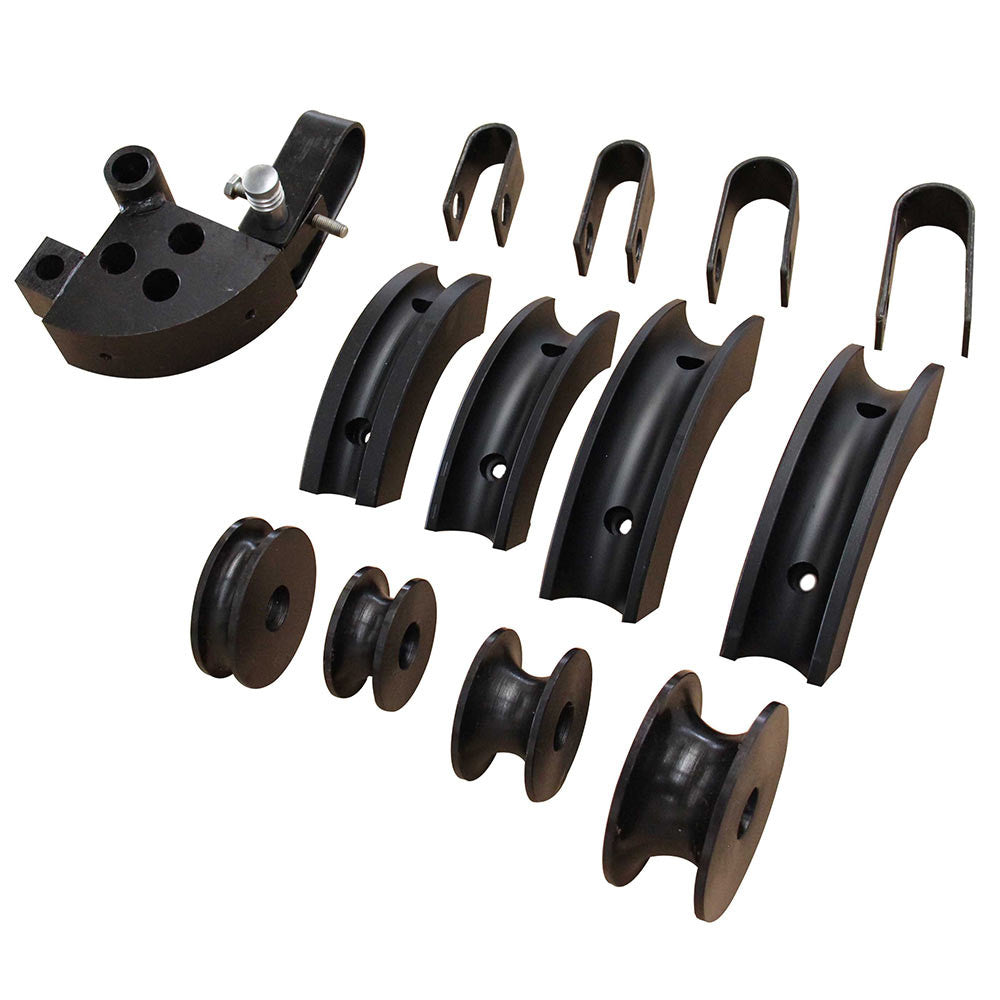

Kaka Industrial 8 ton tubing bender is designed to bend steel and chrome-molybdenum tubing in a range from 3/4” to 1-3/4”. With the cylinder, it can bender pipe easily. The stability of the bending process can be achieved through the sturdy steel frame and 8-ton forming jack, making sure the safe bending process. One thing to be noted is that this bender delivers with five different dies, which are 3/4", 1", 1-1/2", 1-5/8", 1-3/4" diameter for round tubing.
High Precision, Quality Construction, Easy Operation, and High Flexibility Kaka Industrial Metal Tubing Bender
This metal tubing bender is also a high precise bending machine with the support of steel forming dies and cast followers, bending the material without flattening or deforming the edges. This quality construction tubing bending would be a smart purchase for small shops in which want to customize the tube components and transmission mounts. The hydraulic backed and hand-operated system allow an easy bending process. It also can bend up to 90 degrees. Quick changes ensure flexibility that can be achieved through changing different dies.
Specification
|
Item No. |
175005 |
|
Model |
HB-8 |
|
Maximum Pressure (ton) |
8 Ton |
|
Maximum Ram Strike (in) |
4.7" |
|
Packing dimension (in) |
28x14x11 |
|
N.W./G.W.(lbs) |
102/107 |
|
Chromoly Tubing (90 Degrees) |
Bends up to 90 Degrees in 3/4”, 1”, and 1-1/2” diameter with wall thickness up to 0.040” |
|
Mild Steel Tubing (90 Degrees) |
Bends up to 90 Degrees in 3/4” and 1” diameter with wall thickness from 0.049” to 0.090” |
|
Chromoly Tubing (60 Degrees) |
Bends up to 60 Degrees in 3/4”,1.0”, 1-1/2”, 1-5/8” and 1-3/4” diameter with wall thickness up to 0.040” |
|
Mild Steel Tubing (60 Degrees) |
Bends up to 60 Degrees in 3/4”, 1.0”, 1-1/2”, 1-5/8” and 1-3/4” diameter with wall thickness from 0.049” to 0.090” |
