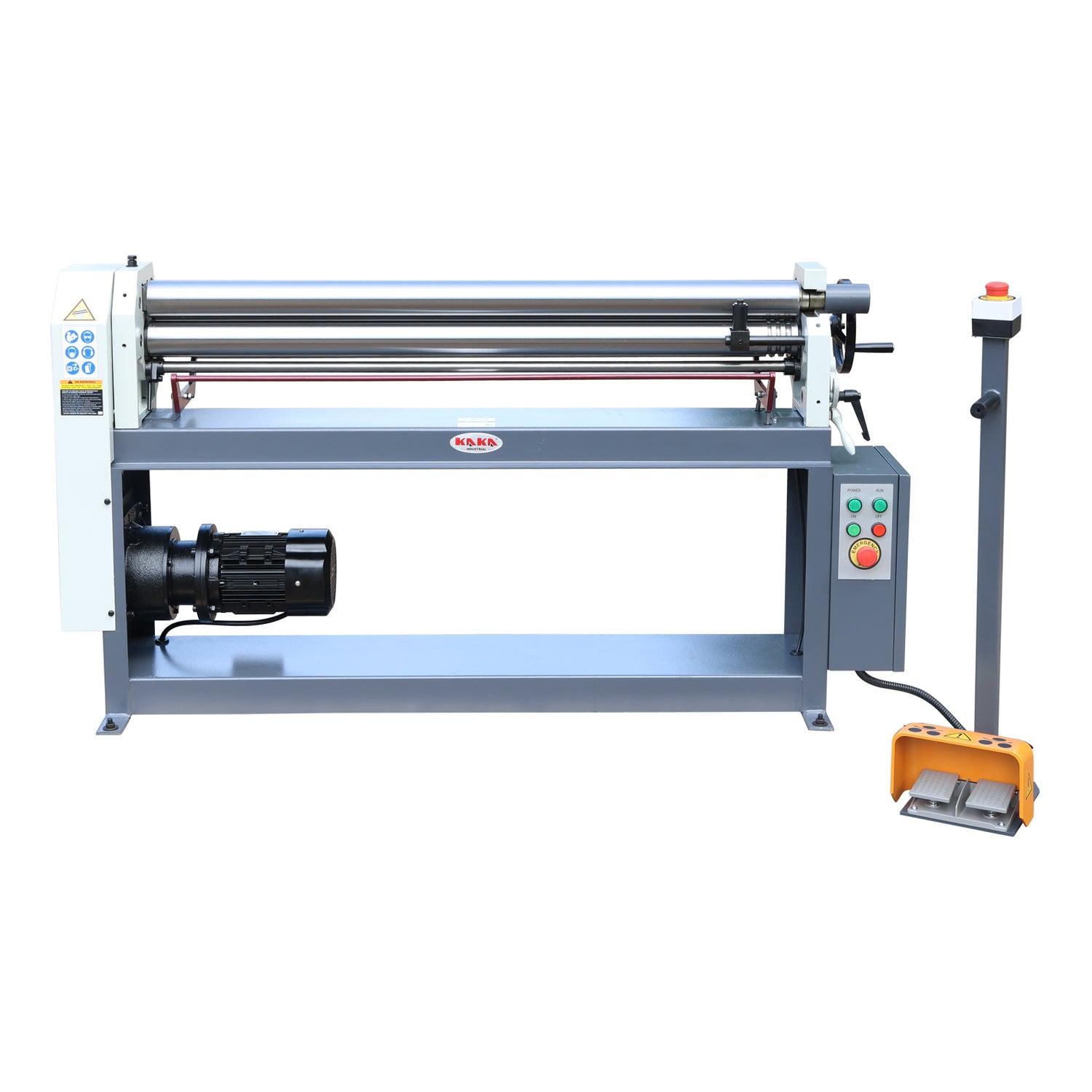

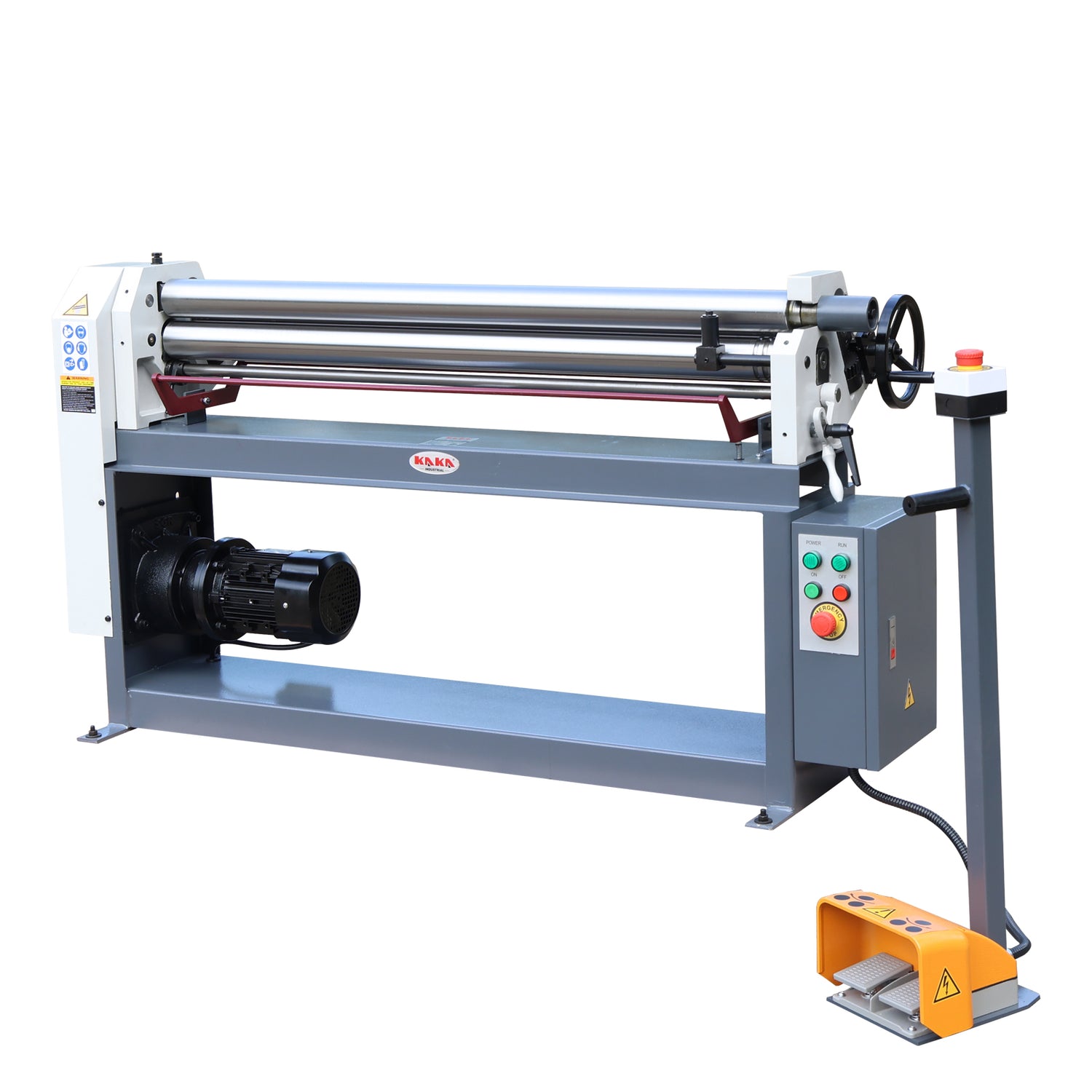

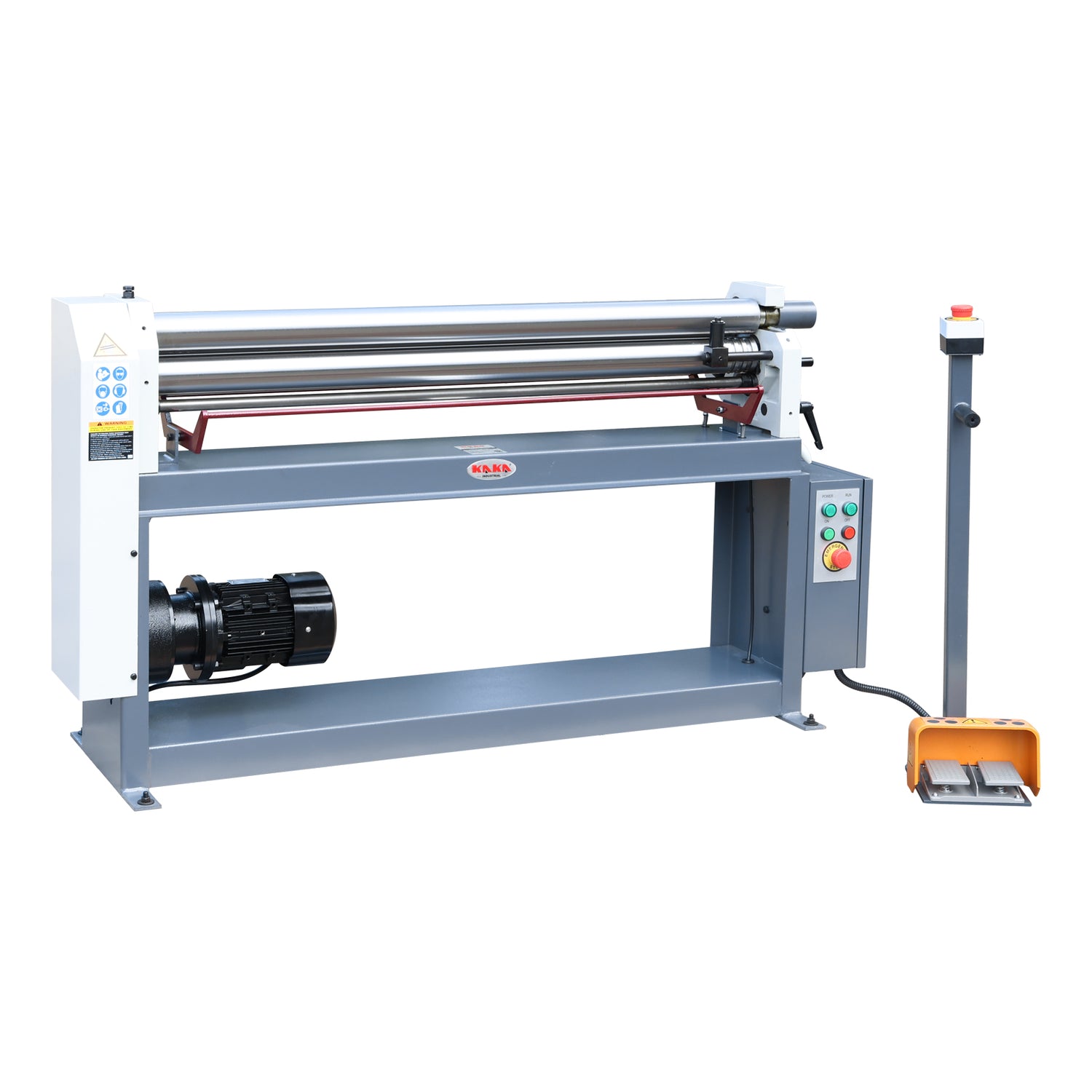

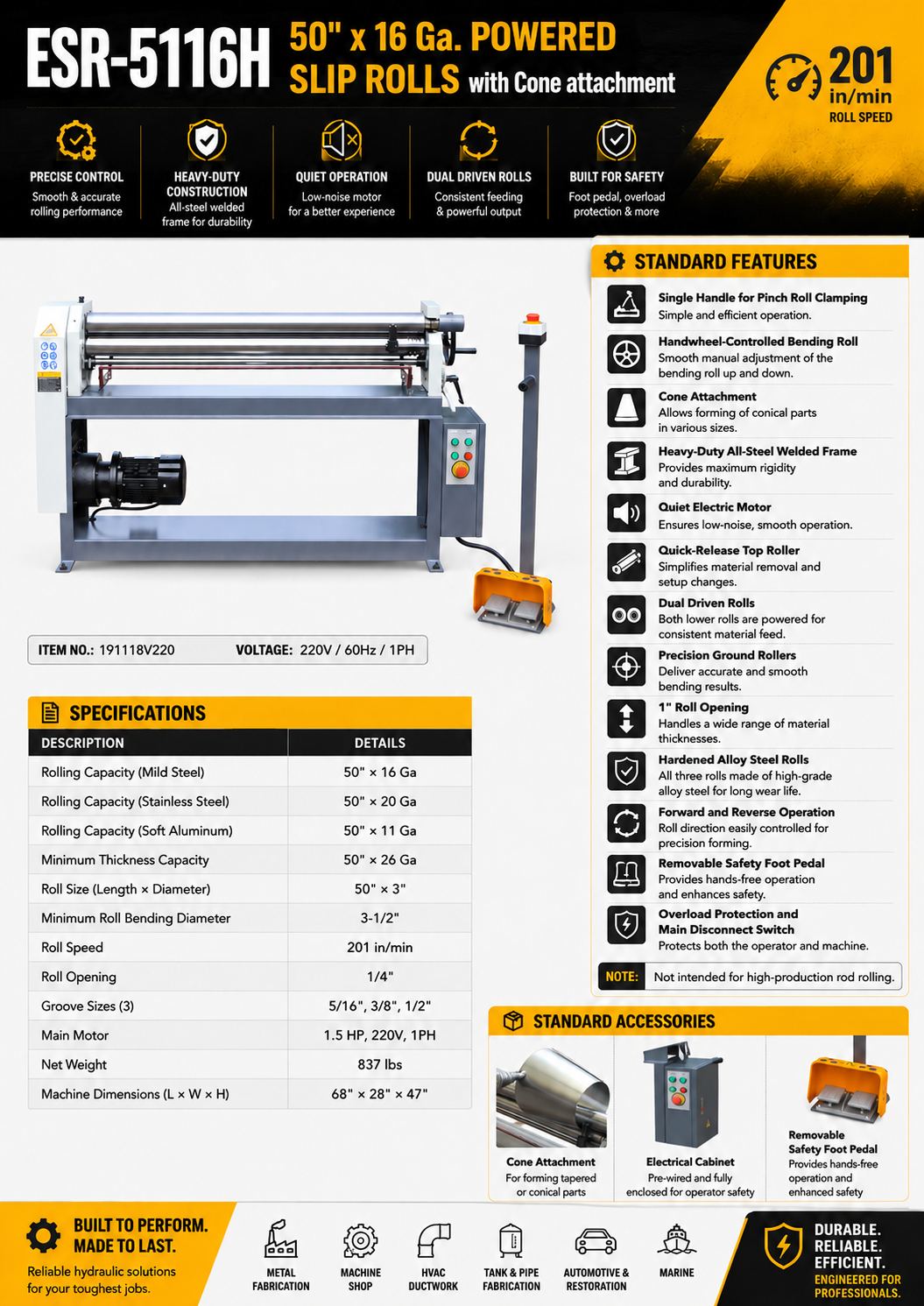

ESR-5116H, 50" x 16 Ga. POWERED SLIP ROLLS
Item No.: 191118V220
Voltage: 220V / 60Hz / 1PH
⚙️ Standard Features
-
Single Handle for Pinch Roll Clamping – Simple and efficient operation.
-

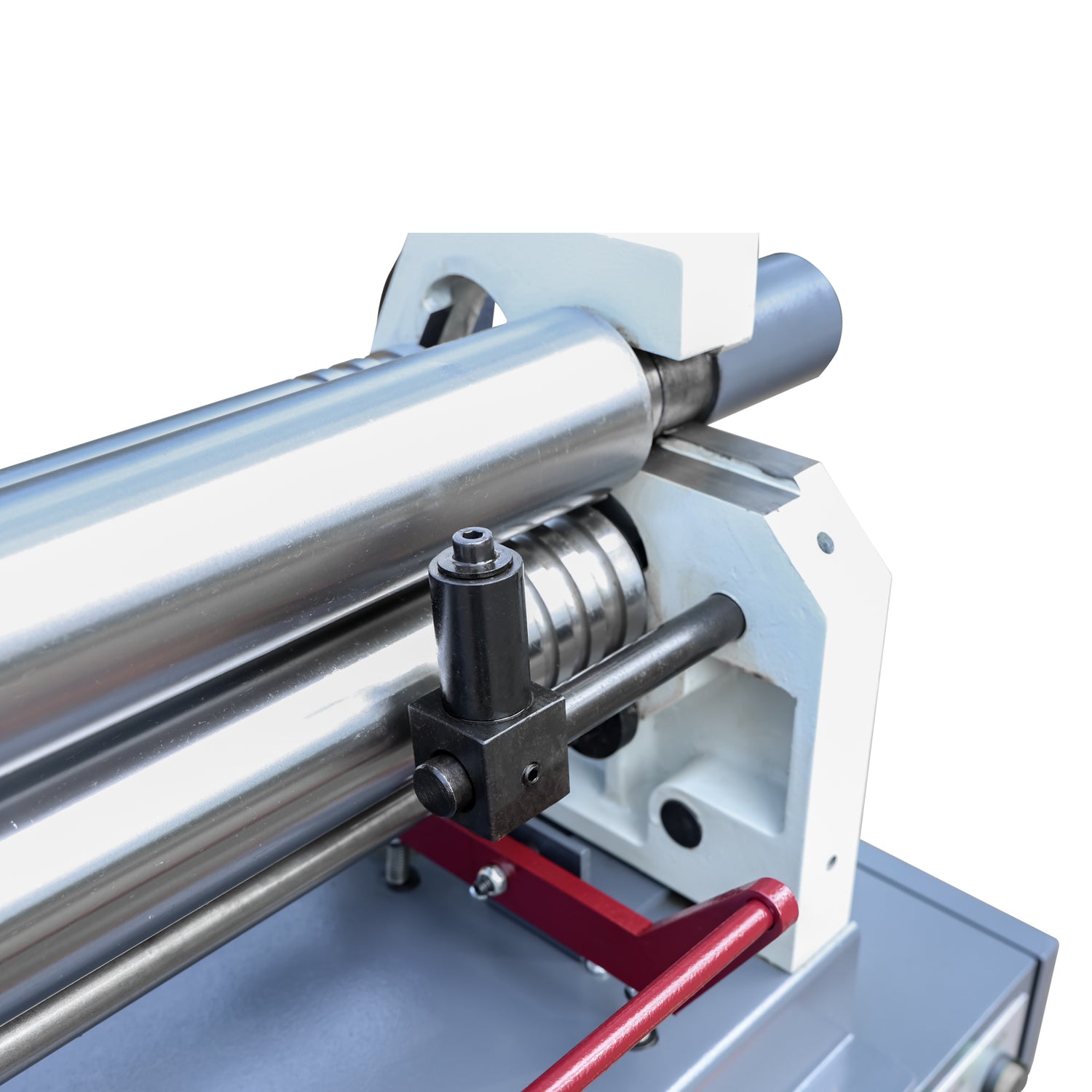

Handwheel-Controlled Bending Roll – Smooth manual adjustment of the bending roll up and down.
-

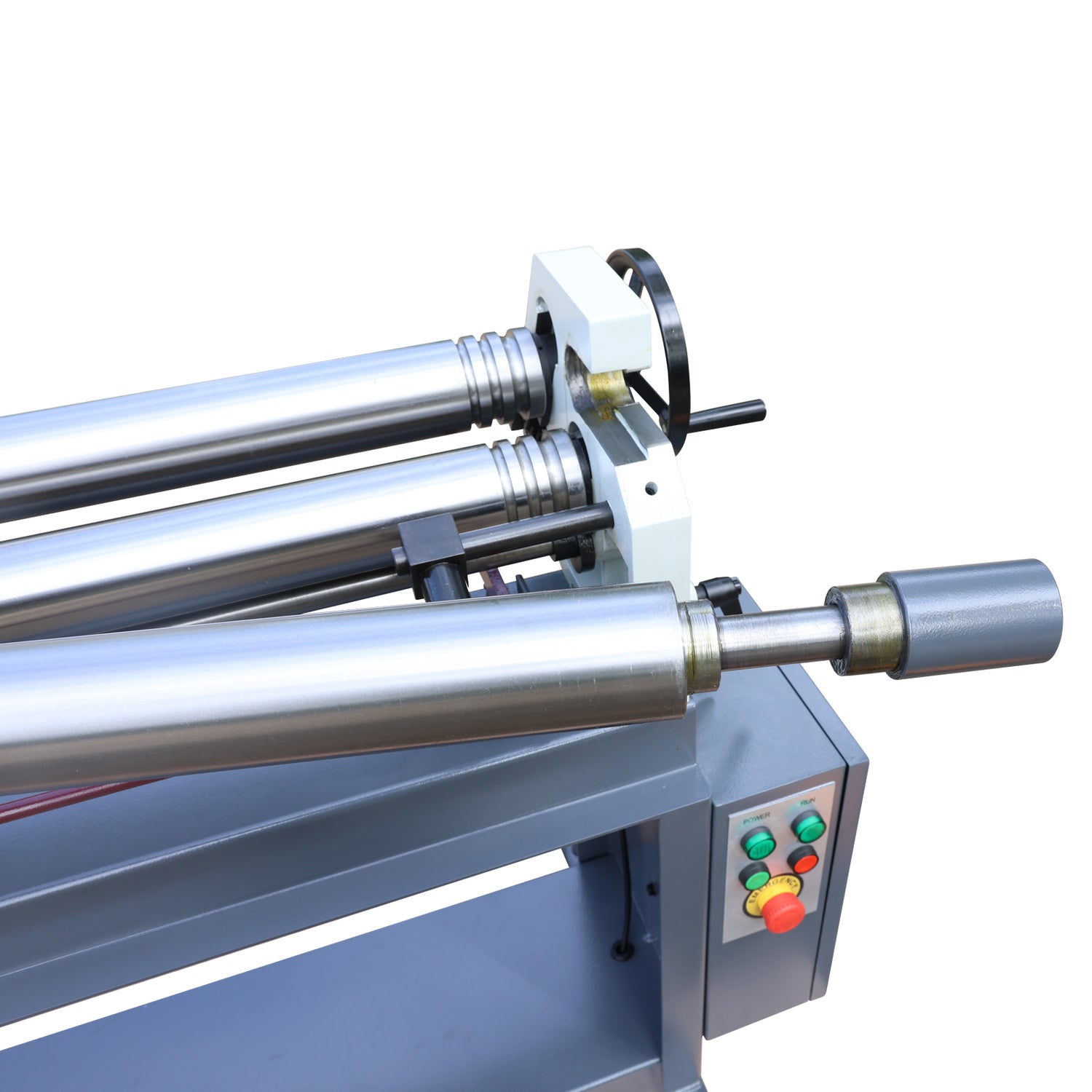

Cone Attachment – Allows forming of conical parts in various sizes.
-
Heavy-Duty All-Steel Welded Frame – Provides maximum rigidity and durability.
-

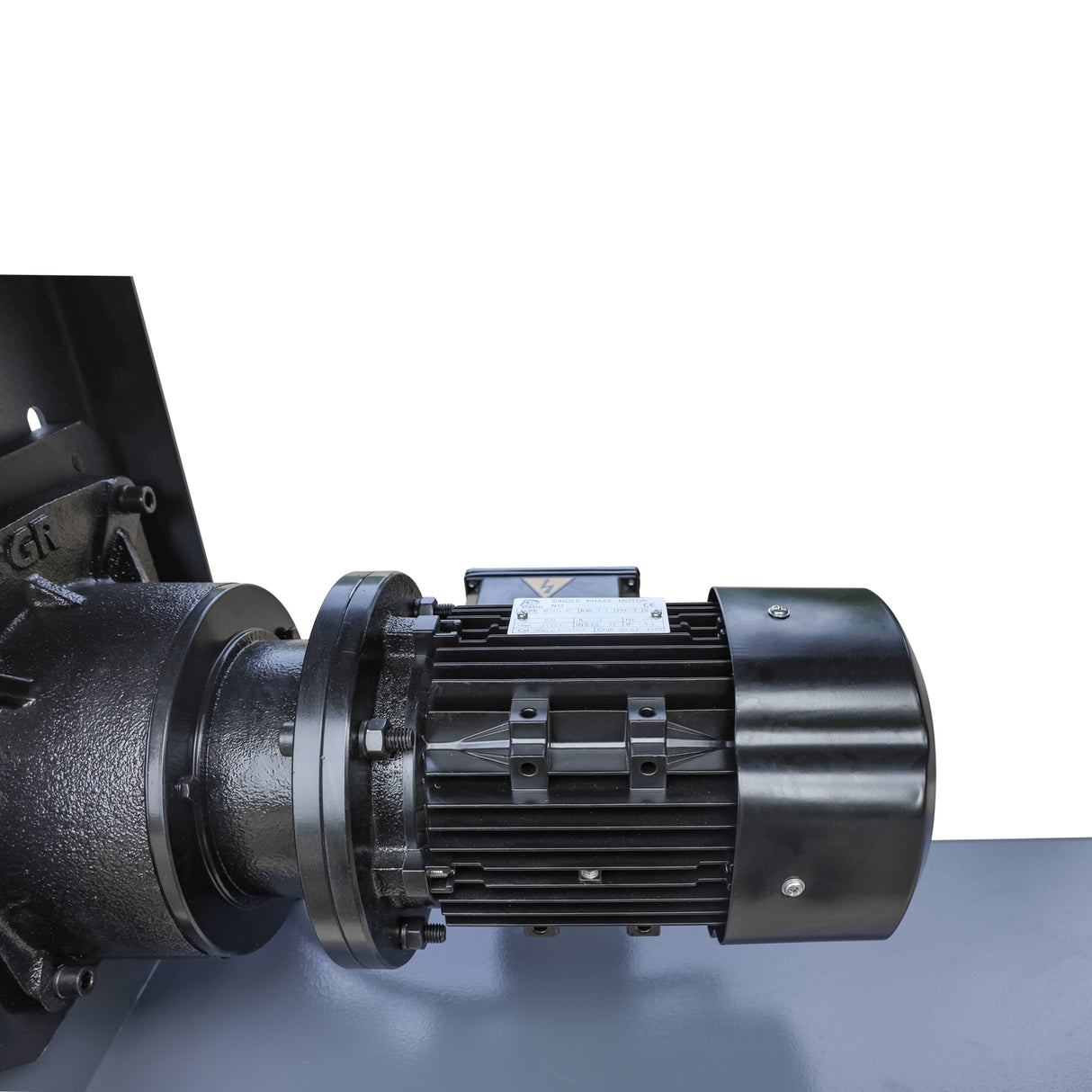

Quiet Electric Motor – Ensures low-noise, smooth operation.
-
Quick-Release Top Roller – Simplifies material removal and setup changes.
-
Dual Driven Rolls – Both lower rolls are powered for consistent material feed.
-
Precision Ground Rollers – Deliver accurate and smooth bending results.
-
1” Roll Opening – Handles a wide range of material thicknesses.
-
Hardened Alloy Steel Rolls – All three rolls made of high-grade alloy steel for long wear life.
-
Forward and Reverse Operation – Roll direction easily controlled for precision forming.
-
Removable Safety Foot Pedal – Provides hands-free operation and enhances safety.
-

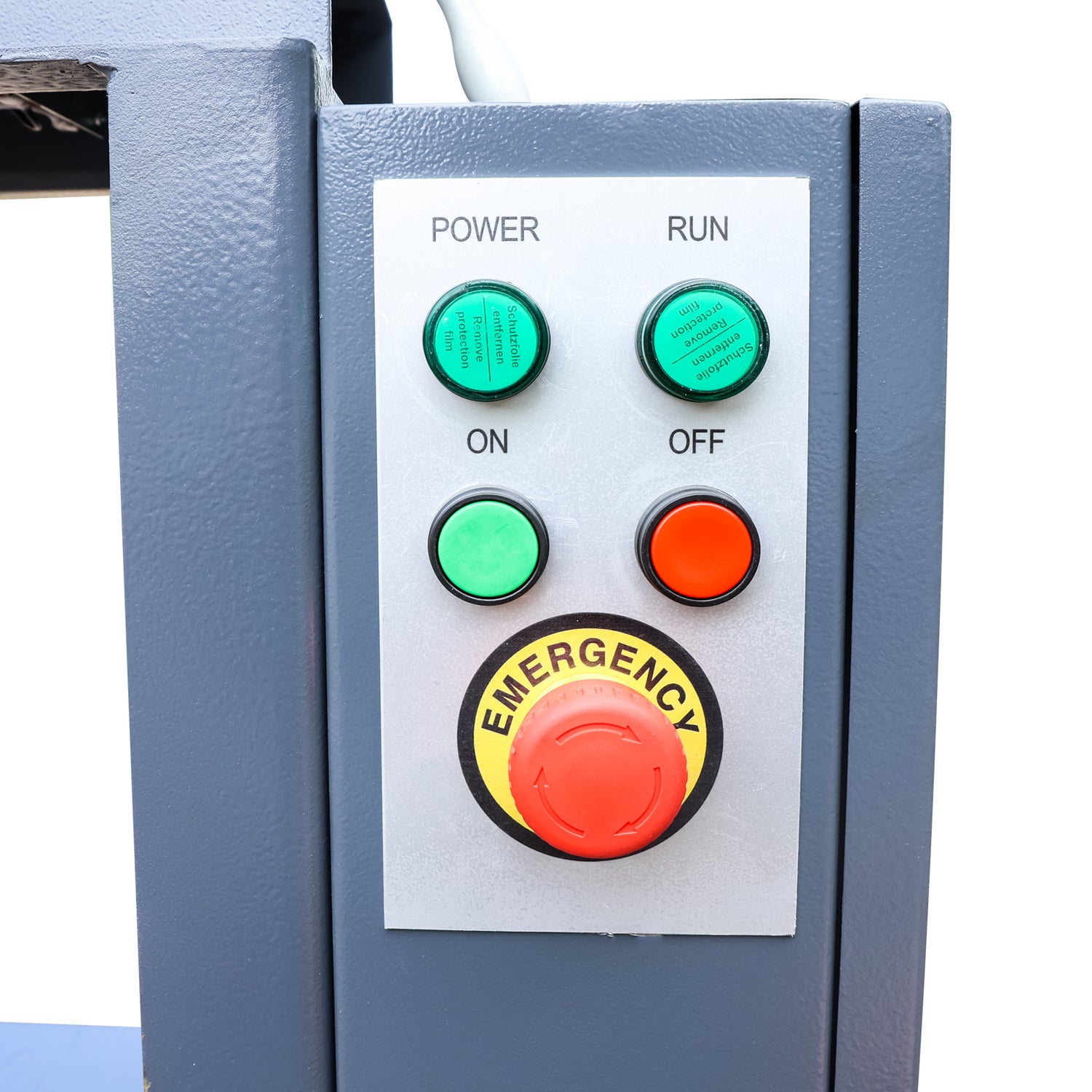

Overload Protection and Main Disconnect Switch – Protects both the operator and machine.
- Note: Not intended for high-production rod rolling
⚙️ Standard Equipment
-
Cone Attachment – For forming tapered or conical parts
-
Electrical Cabinet – Pre-wired and fully enclosed for operator safety
-
Removable Safety Foot Pedal – Provides hands-free operation and enhanced safety
📐 Specifications
| Description | Details |
|---|---|
| Rolling Capacity (Mild Steel) | 50" × 16 Ga |
| Rolling Capacity (Stainless Steel) | 50" × 20 Ga |
| Rolling Capacity (Soft Aluminum) | 50" × 11 Ga |
| Minimum Thickness Capacity | 50" × 26 Ga |
| Roll Size (Length × Diameter) | 50" × 3" |
| Minimum Roll Bending Diameter | 3-1/2" |
| Roll Speed | 201 in/min |
| Roll Opening | 1/4" |
| Groove Sizes (3) | 5/16", 3/8", 1/2" |
| Main Motor | 1.5 HP, 220V, 1PH |
| Net Weight | 837 lbs |
| Machine Dimensions (L × W × H) | 68" × 28" x 47" |
