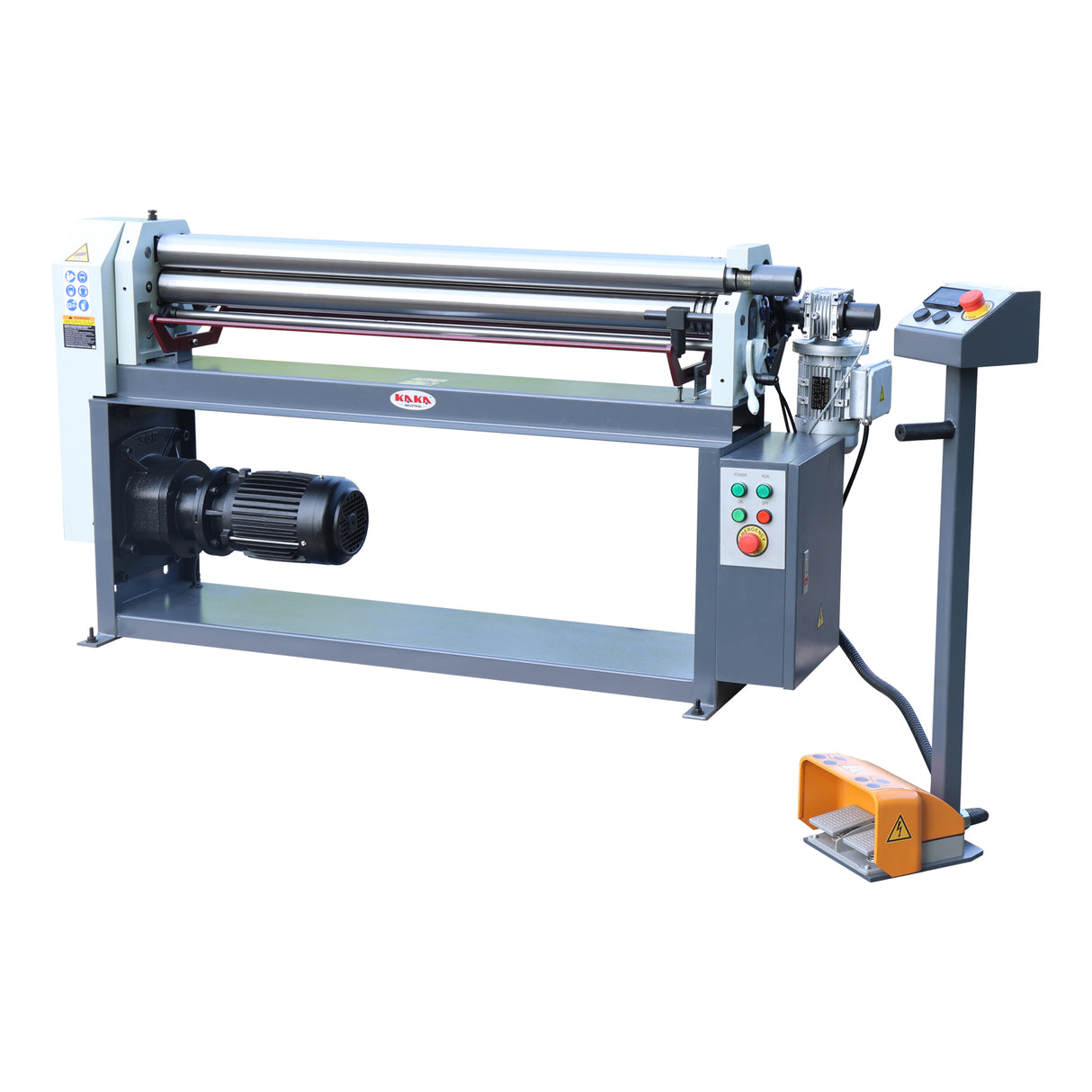

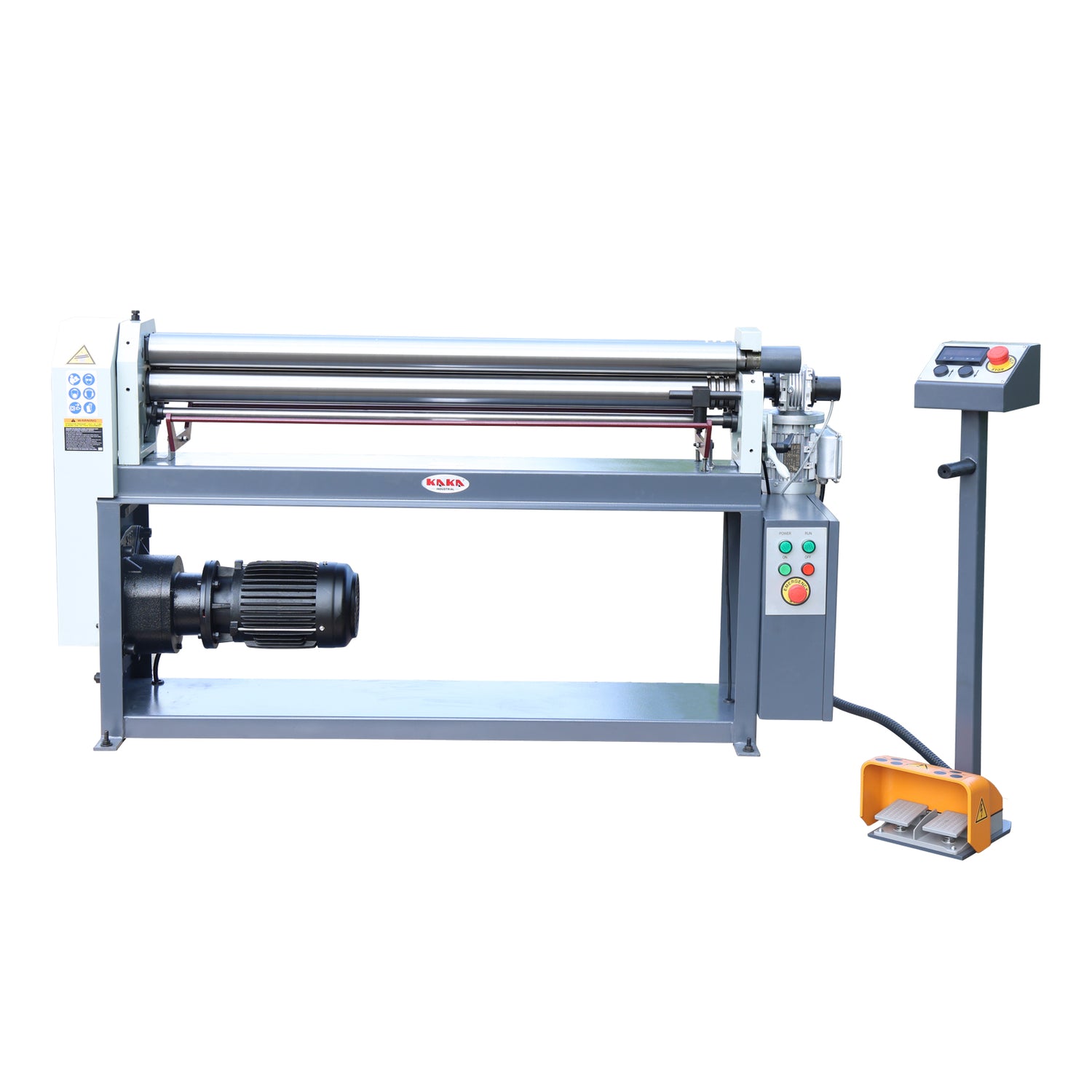

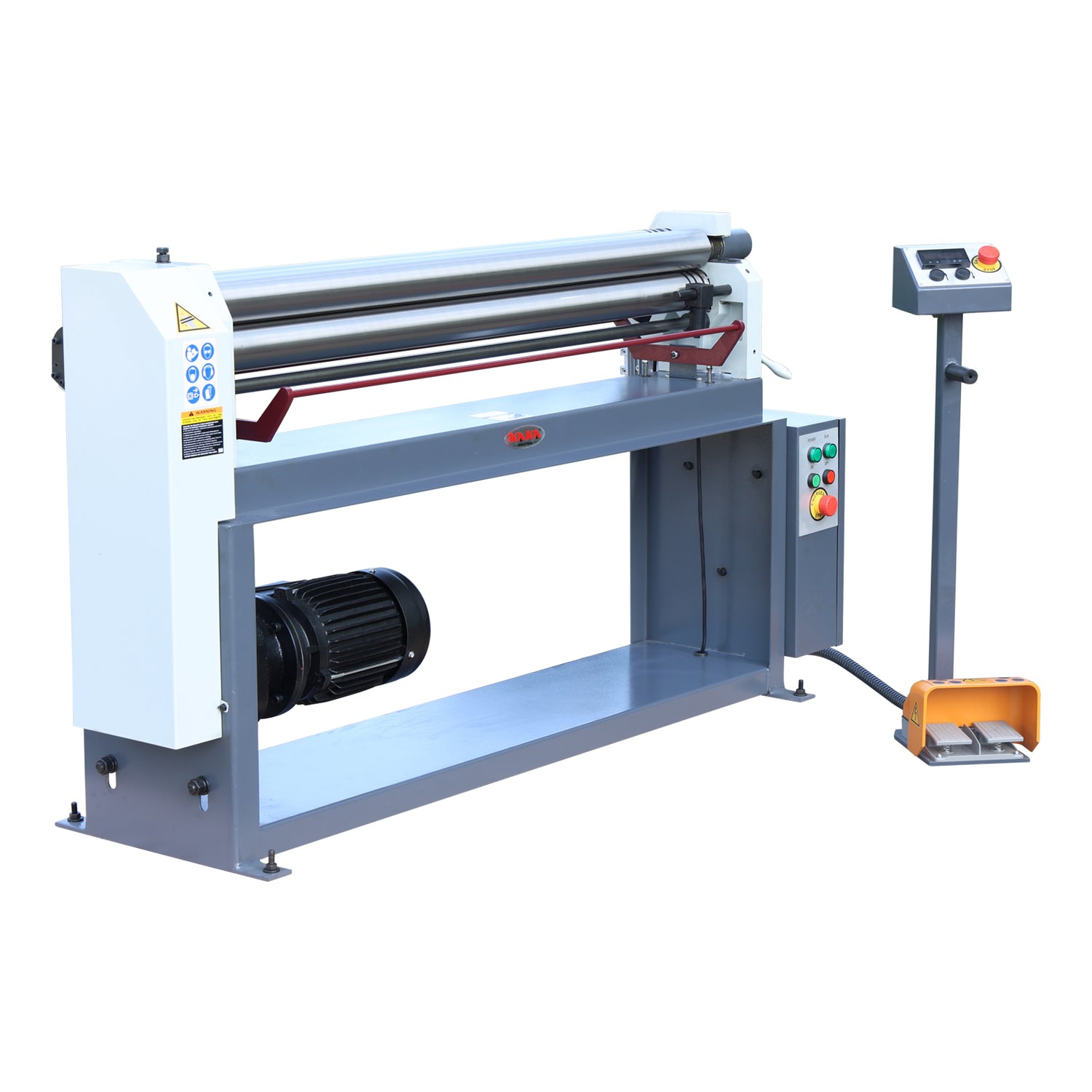

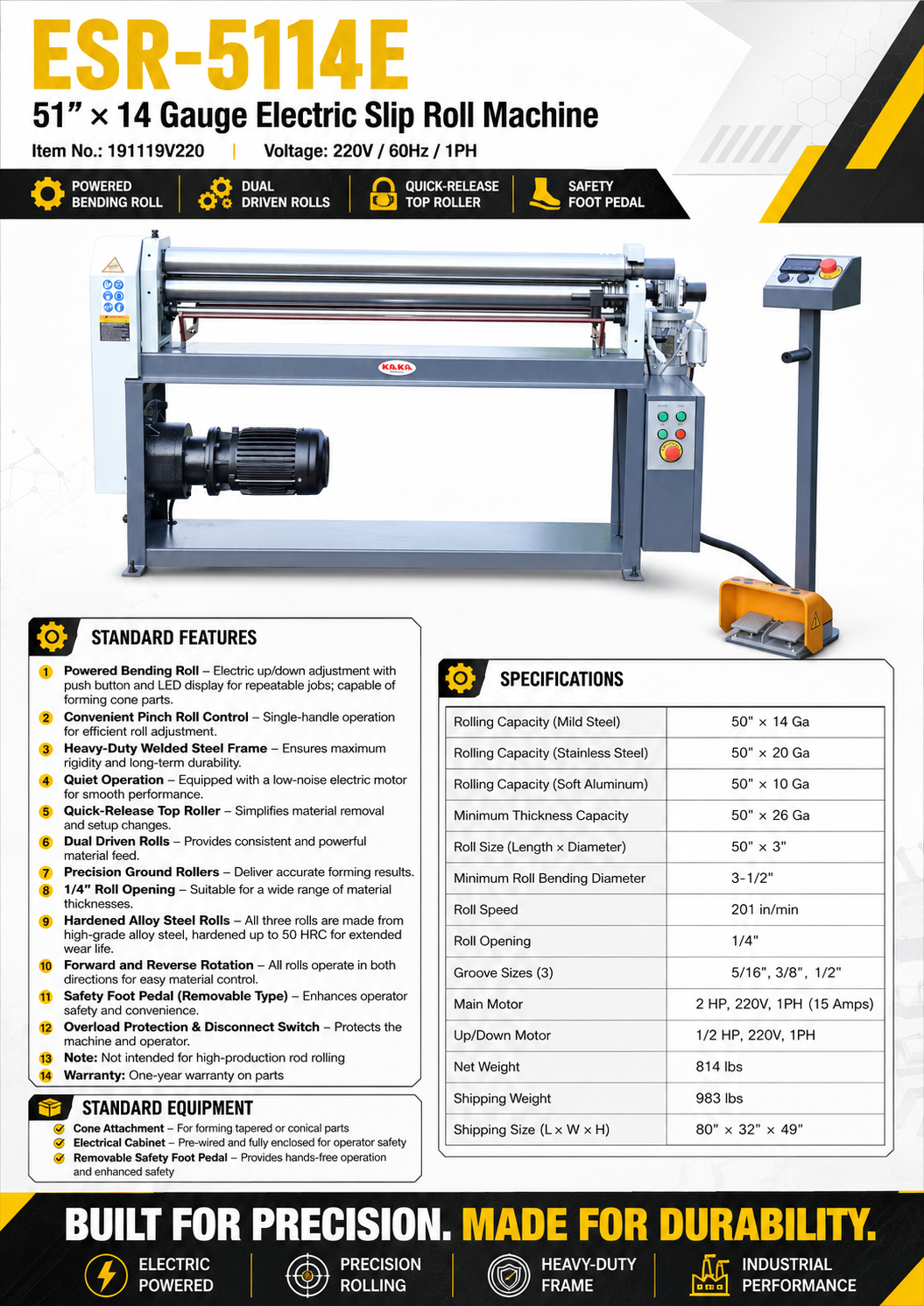

ESR-5114E, 51″ x 14 Gauge Electric Slip Roll Machine
Item No.: 191119V220
Voltage: 220V / 60Hz / 1PH
⚙️ Standard Features
-

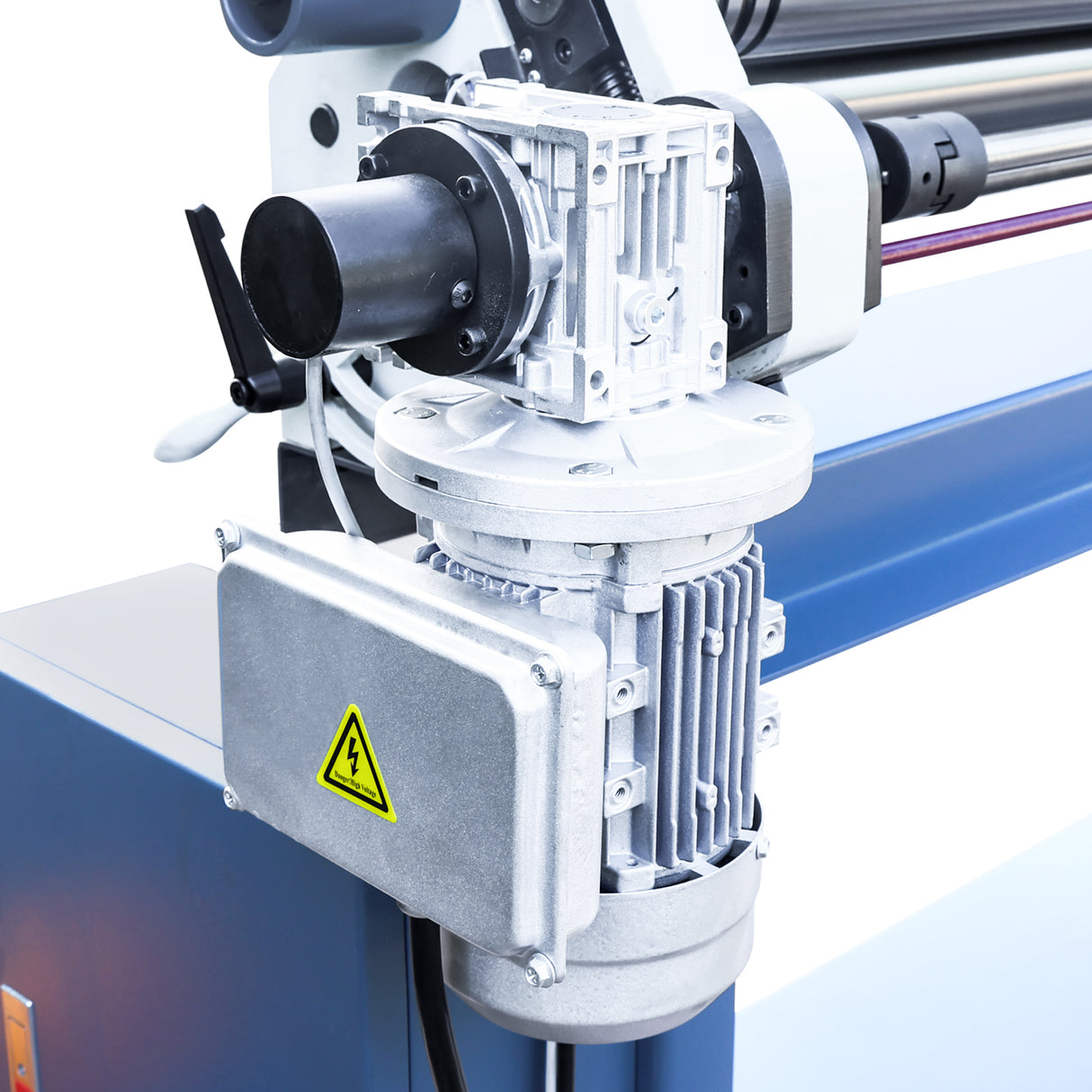

Powered Bending Roll – Electric up/down adjustment with push button and LED display for repeatable jobs; capable of forming cone parts.
-
Convenient Pinch Roll Control – Single-handle operation for efficient roll adjustment.
-
Heavy-Duty Welded Steel Frame – Ensures maximum rigidity and long-term durability.
-
Quiet Operation – Equipped with a low-noise electric motor for smooth performance.
-
Quick-Release Top Roller – Simplifies material removal and setup changes.
-
Dual Driven Rolls – Provides consistent and powerful material feed.
-
Precision Ground Rollers – Deliver accurate forming results.
-
1/4” Roll Opening – Suitable for a wide range of material thicknesses.
-
Hardened Alloy Steel Rolls – All three rolls are made from high-grade alloy steel, hardened up to 50 HRC for extended wear life.
-
Forward and Reverse Rotation – All rolls operate in both directions for easy material control.
-
Safety Foot Pedal (Removable Type) – Enhances operator safety and convenience.
-
Overload Protection & Disconnect Switch – Protects the machine and operator.
-
Note: Not intended for high-production rod rolling
-
Warranty: One-year warranty on parts
⚙️ Standard Equipment
-
Cone Attachment – For forming tapered or conical parts
-
Electrical Cabinet – Pre-wired and fully enclosed for operator safety
-
Removable Safety Foot Pedal – Provides hands-free operation and enhanced safety
📐 Specifications
| Description | Details |
|---|---|
| Rolling Capacity (Mild Steel) | 50" x 14 Ga |
| Rolling Capacity (Stainless Steel) | 50" x 20 Ga |
| Rolling Capacity (Soft Aluminum) | 50" x 10 Ga |
| Minimum Thickness Capacity | 50" x 26 Ga |
| Roll Size (Length × Diameter) | 50" × 3" |
| Minimum Roll Bending Diameter | 3-1/2" |
| Roll Speed | 201 in/min |
| Roll Opening | 1/4" |

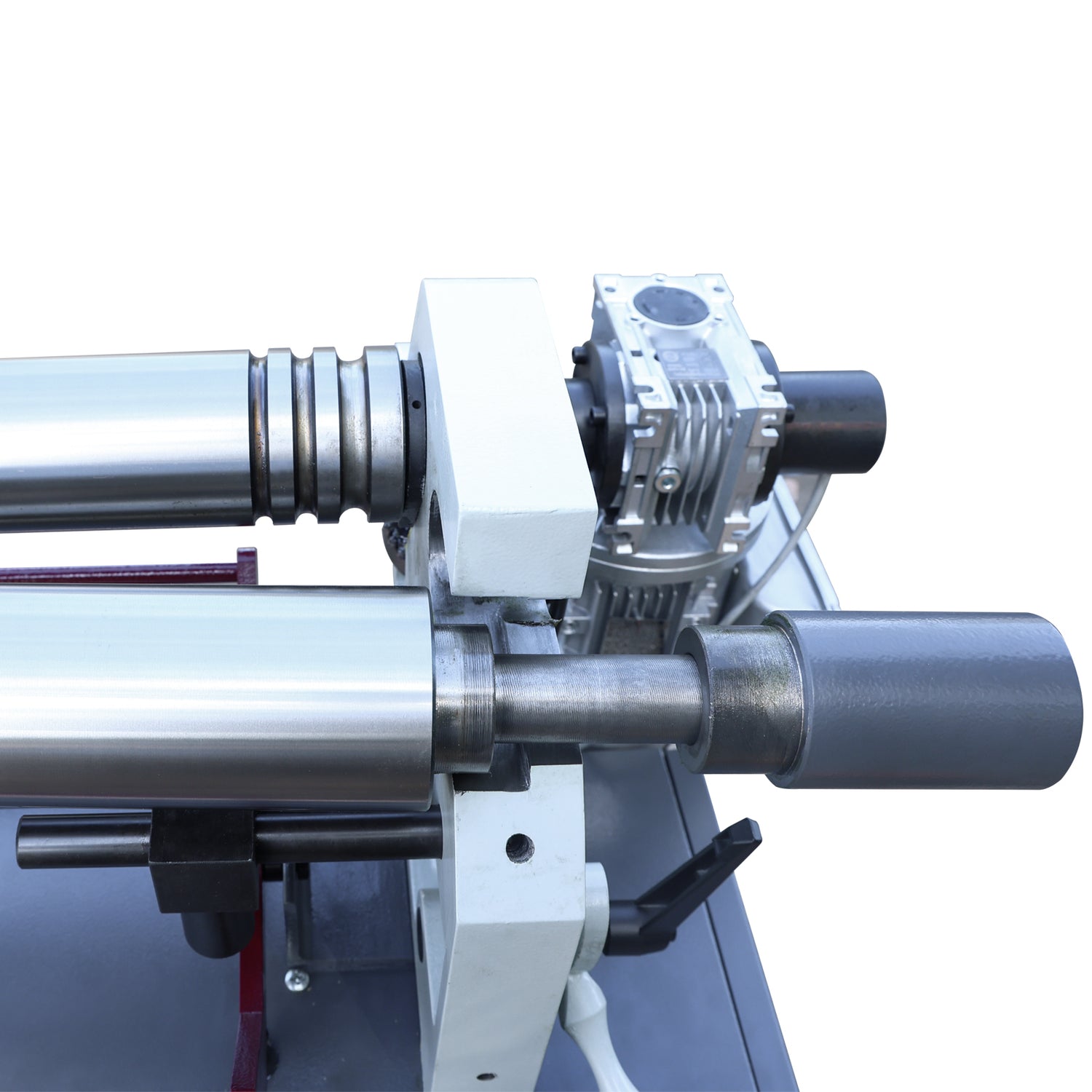

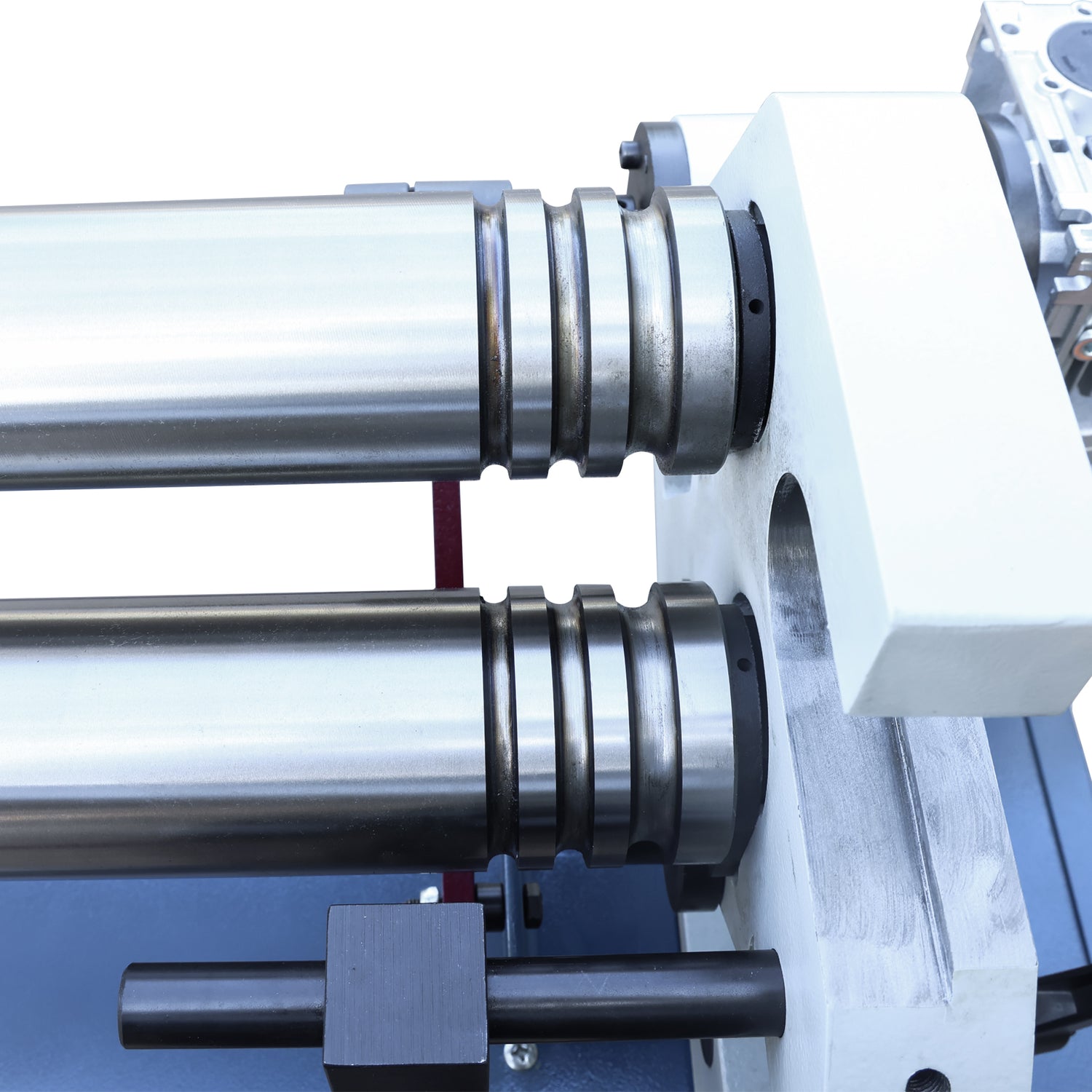

| Groove Sizes (3) | 5/16", 3/8", 1/2" |

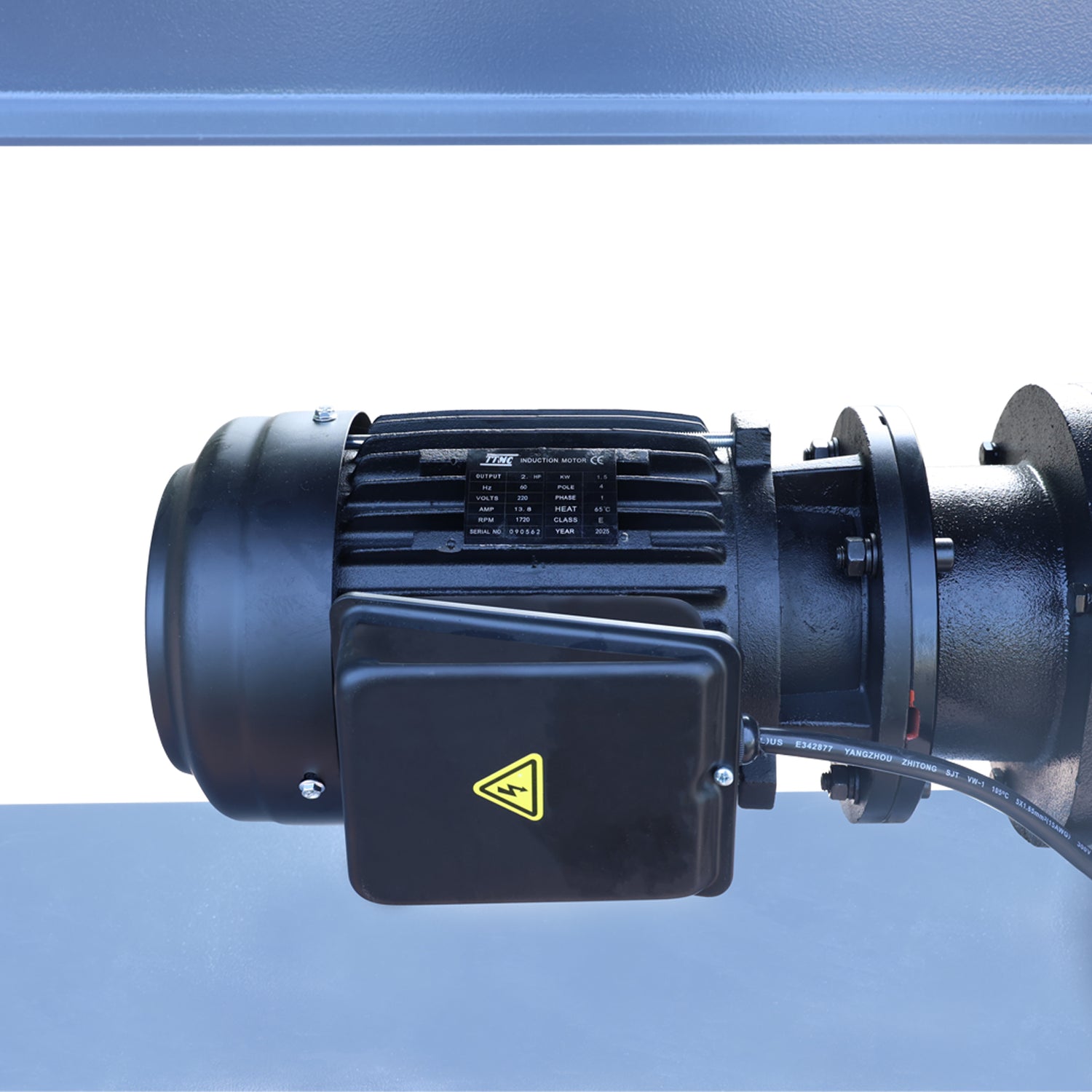

| Main Motor | 2 HP, 220V, 1PH (15 Amps) |
| Up/Down Motor | 1/2 HP, 220V, 1PH |
| Net Weight | 985 lbs |
| Machine Dimensions (L×W×H) | 68" × 32" × 49" |
