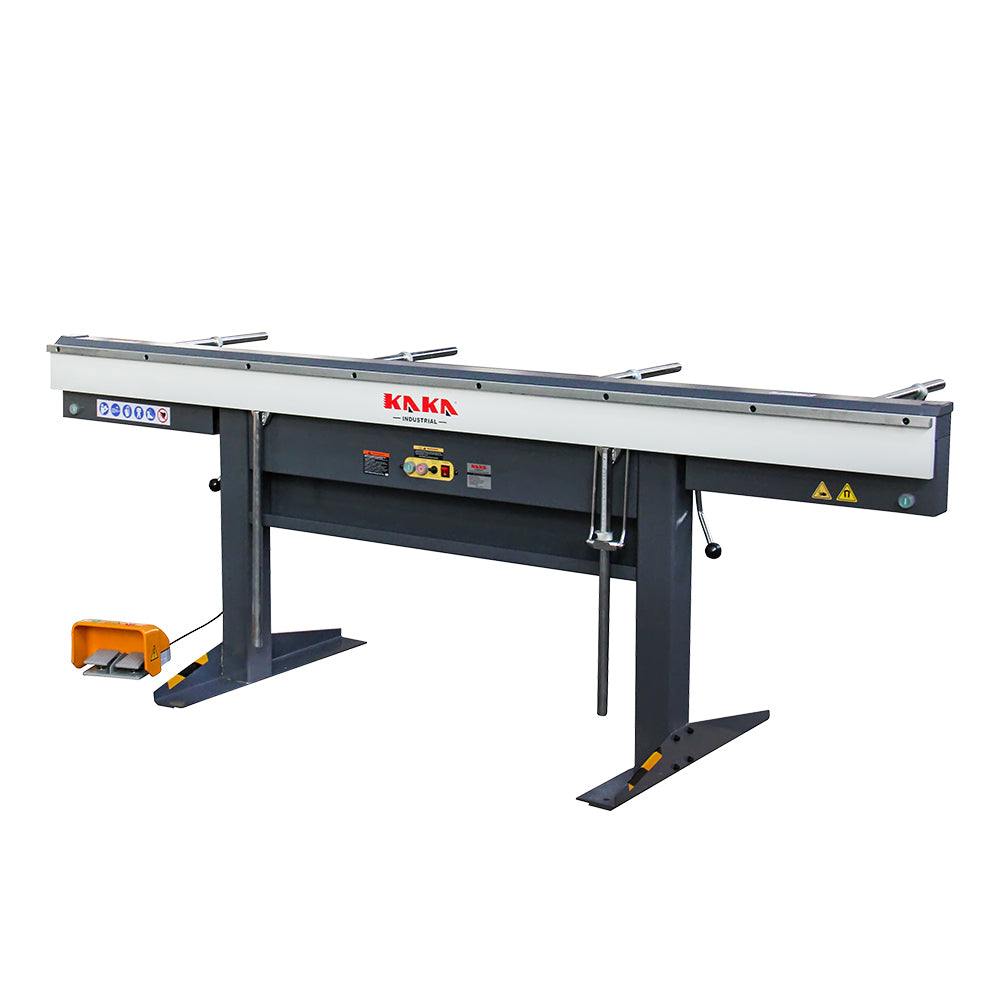

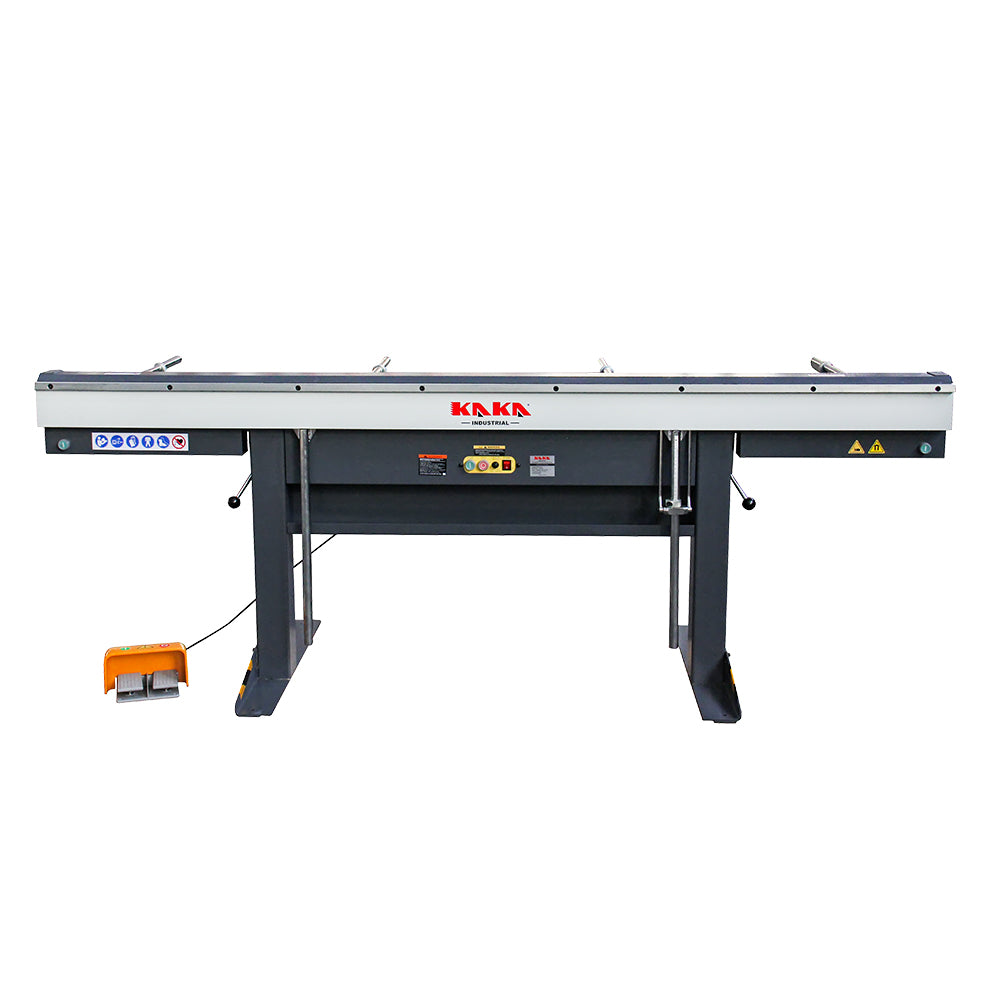

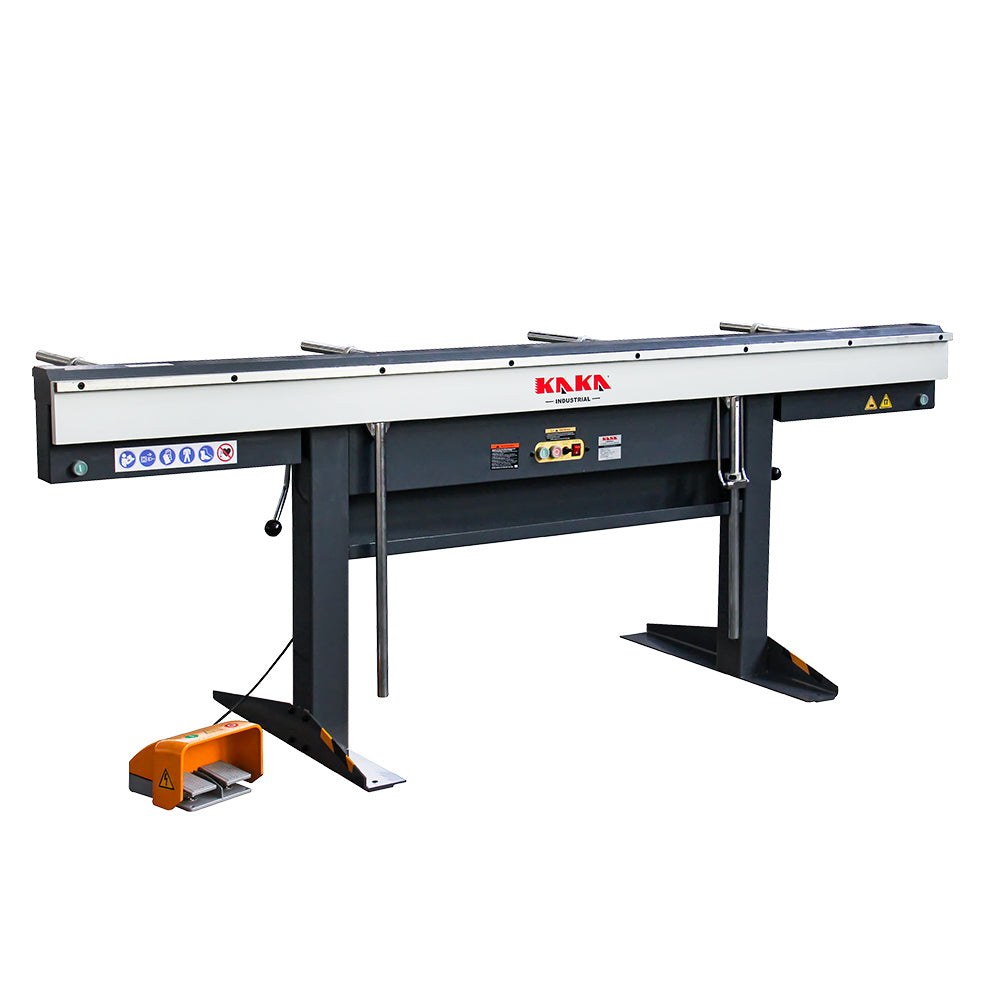

Kaka Industrial EB-9816 96" Magnetic Sheet Metal Box and Pan Brake
Kaka Industrial EB-9816 96" Magnetic Sheet Metal Box and Pan Brake is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- If the item weighs less than 145 lbs, it will be delivered by UPS, Purolator, FedEx Ground, Canpar, Canada Post and other couriers to the address you provided as the 'shipping address' when you placed the order. You will receive the tracking number once the carrier picks up.
- If the item weights over 145lbs normally will be delivered by LTL Freight. Please note you may need the optional services if you order these items. For example, if you don’t have a forklift or similar equipment to offload the package, you may need to book the lift gate delivery service when checkout.
SHIPPING OPTIONS:
KAKA INDUSTRIAL uses UPS, Purolator ,Fedex Ground, Canpar, Canada post ,etc and truck freight lines to ship your orders.
KAKA INDUSTRIAL makes every effort to process orders within 24hrs of being placed. You will receive a shipping confirmation email that will confirm which carrier is used for your products.
If your order is less than 145lbs, it could be delivered byUPS, Purolator ,Fedex Ground, Canpar, Canada post and other courier to the address you provided as 'shipping address' when you placed the order. If your order is above 145lbs, it will be delivered by Freight company that has been picked to minimize the cost of delivery to your area. In this case, your delivery address must be accessible by tractor-trailer , and In some cases your shipping fee may be different than displayed online.
Truck drivers are not required to assist with unloading. You are responsible for unloading your freight and for moving it into your shop. For residential delivery and shops without a loading dock, liftgate delivery is available for an additional charge.
You can also arrange to pick up your freight at the carrier's terminal. The carrier will load the item onto your vehicle. If you choose this option, please make sure your vehicle is capable of handling the weight and bring plenty of tie-downs to secure the load properly .
Extra Shipping Service Charges:
1. Residential delivery, includes power lift gate service, call before delivery service Extra charge $120
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/extra-shipping-charge
2. Power tailgate service for business address $50
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/lift-gate-shipping-service
3. Call before delivery for business address
https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/appointment-service
REDELIVERY OF FREIGHT
When, through no fault of carrier and after reasonable effort, redelivery is requested, a charge of $99.00 will be assessed against the shipment in addition to accrued charges.
DELIVERY TIMES:
Delivery times are expected, not guaranteed. If payment authorization is delayed, in order to confirm payment or prevent fraud, Kaka Industrial reserves the right to delay shipments. Every effort will be made to ship at the soonest possible time.
THINGS TO KNOW:
- Weather delays and other circumstances may impact delivery time. Estimated arrival dates are not guaranteed.
- Deliveries to New Brunswick, Prince Edward Island, Nova Scotia and Newfoundland/Labrador will take longer.
- All shipping timeframes and/or shipping methods/providers listed on www.kakaindustrial.ca are to be considered estimates and are not guaranteed.
***We automatically email your tracking number when your order ships***
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Features:
1.Easy raise clamping car.
2. Unlimited box depth.

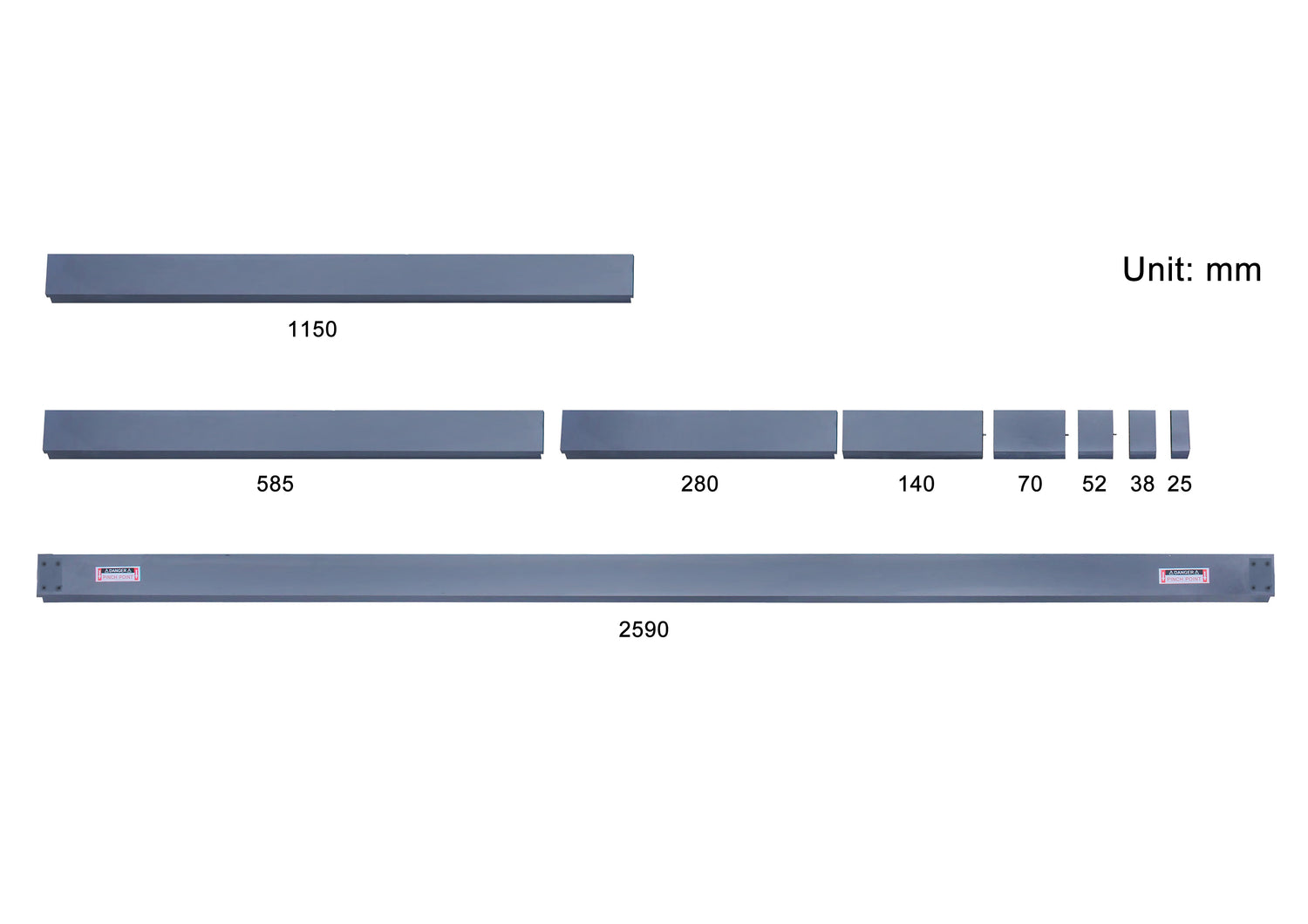

3. Include multiple finger lengths.

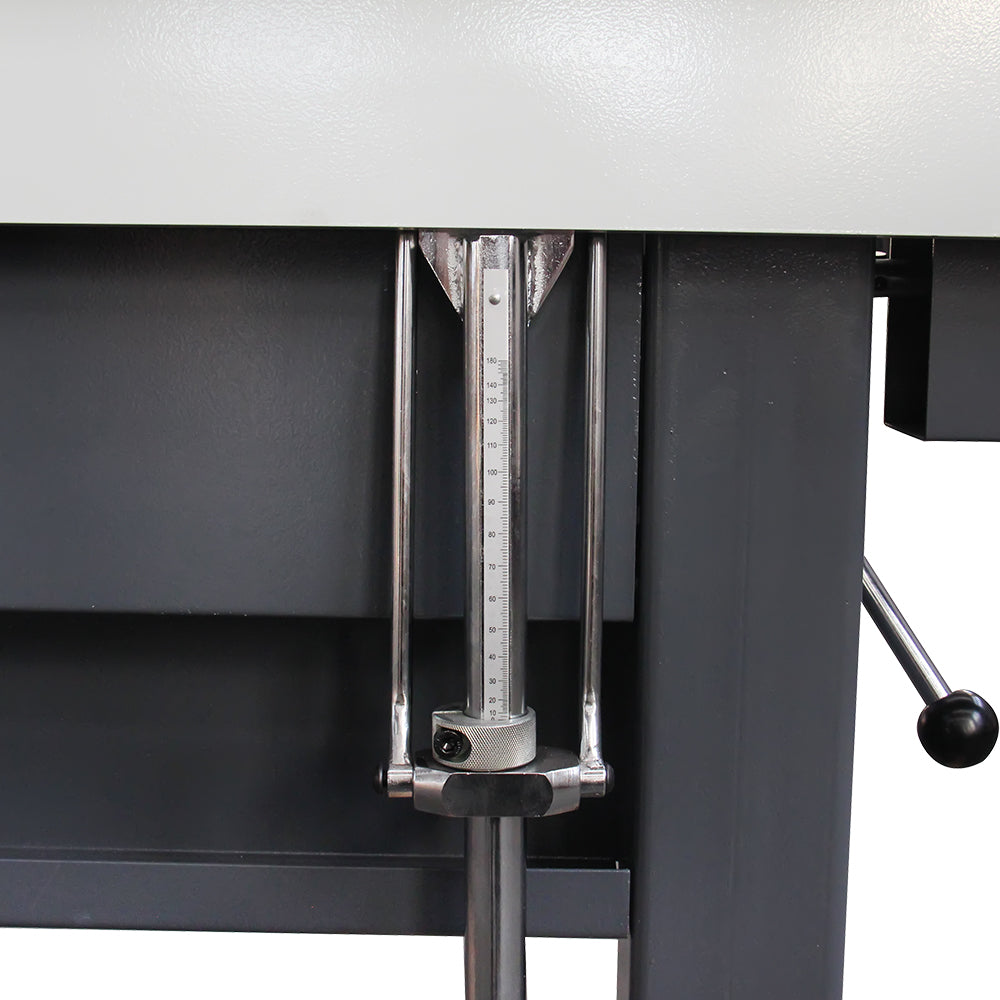

4 Bending stop included.
5. The fundamental principle of the Magnetic Bending Machine is that it uses an electromagnetic, rather than mechanical, clamping system.

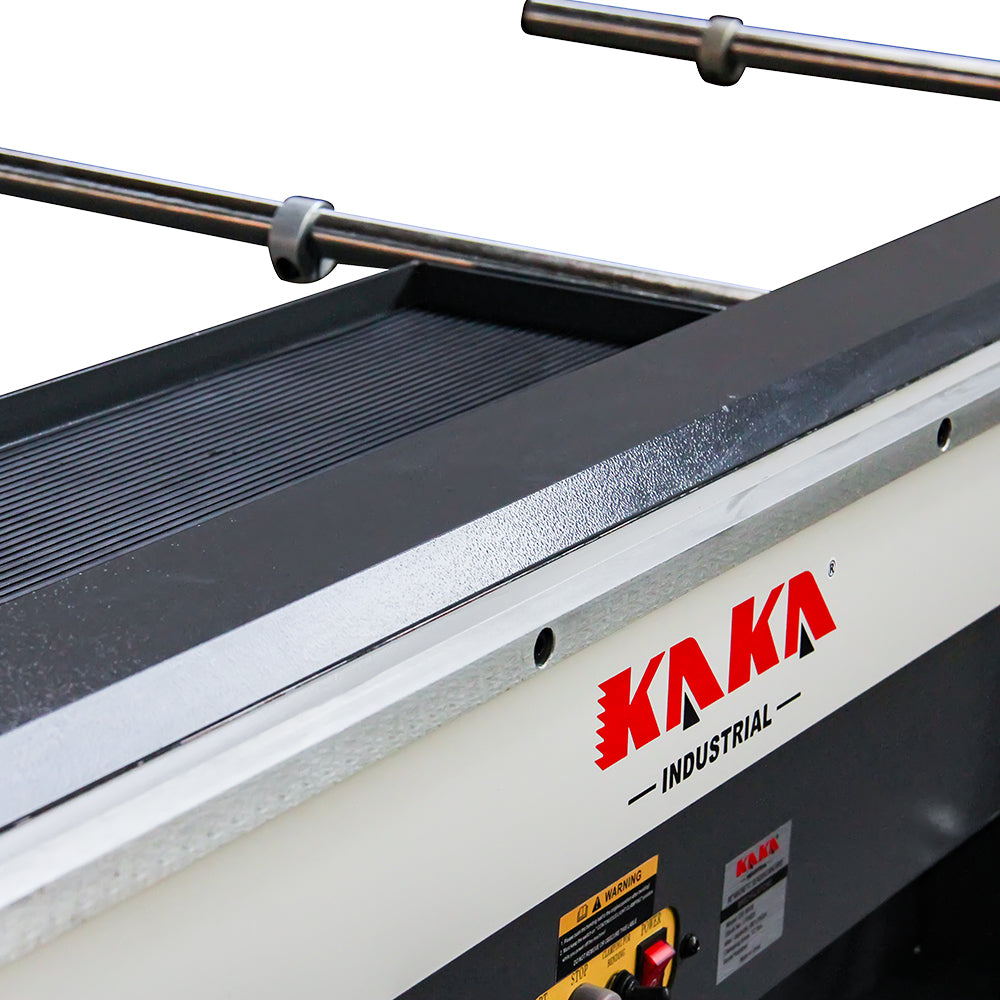

6. The machine consists of a long electromagnet with a steel clamp bar located above it.
7. The sheet metal is clamped between the two by an electromagnet capable of clamping with a force range of between 3-10 tons.
| Item No. | 173405 |
| Model | EB-9816/ EB-2500 |
| Max. bending length | 8’ |
| Max. thickness | 1.6 mm / 16Ga Mild Steel |
| Power | 220V (±5%), 60HZ,1PH, 15A |
| Clamping force | 6 Ton |
| Duty cycle | 30% |
| Back gauge | 640 mm / 25 " |
| Footswitch | standard |
| Nominal current | 15 Amp |
| Protection | Thermal cut-out 70°C |
| Bending edge length | 2590 mm / 101" |
| Distance between lifters | 2528 mm / 99" |
| Packing size | 106x44x15 IN |
| N.W./G.W. | 640/887 LBS |
⚠️ Important – Power Requirements
To ensure proper performance and avoid permanent damage, the power supply must be:
220VAC ±5% (acceptable range: 209V to 231V)
Failure to meet this requirement will void the warranty.
Magnetism Notes
Overview
Heat affects magnetic field strength. Excessive coil temperature will reduce the holding force of the magnetic brake and may cause long-term damage. Proper cooling and adherence to the duty cycle are required for safe and reliable operation.
Duty Cycle and Heating
30% Duty Cycle (Critical)
This magnetic brake is designed for a 30% duty cycle.
-
If the bending bed (magnet surface) becomes too hot to touch, the machine must be shut down immediately.
-
Allow the brake to cool fully before resuming operation.
-
Operating beyond the duty-cycle limit can cause overheating and permanent coil damage.
Heat Generation
When the magnet coils are energized, electrical current produces heat.
To reduce heat buildup:
-
Energize the coils only for the duration needed to hold and bend the material.
-
Avoid leaving the magnet energized between bends.
-
In areas with high ambient temperature or poor airflow, use an external fan to improve cooling.
Residual Magnetism
Magnetization of Clamping Bars
Steel components such as clamping bars will become weakly magnetized after repeated exposure to the magnetic bed.
This is normal and does not affect machine performance.
Behavior Over Time
-
With regular daily use, the residual magnetic field remains stable and consistent.
-
If the brake is not used for an extended period, the residual magnetism will gradually dissipate on its own.
Important Notes
-
Overheating reduces magnetic strength and increases the risk of coil failure.
-
Always avoid continuous energizing beyond what is required for the bending operation.
-
Use external airflow when possible to maintain safe operating temperature.
