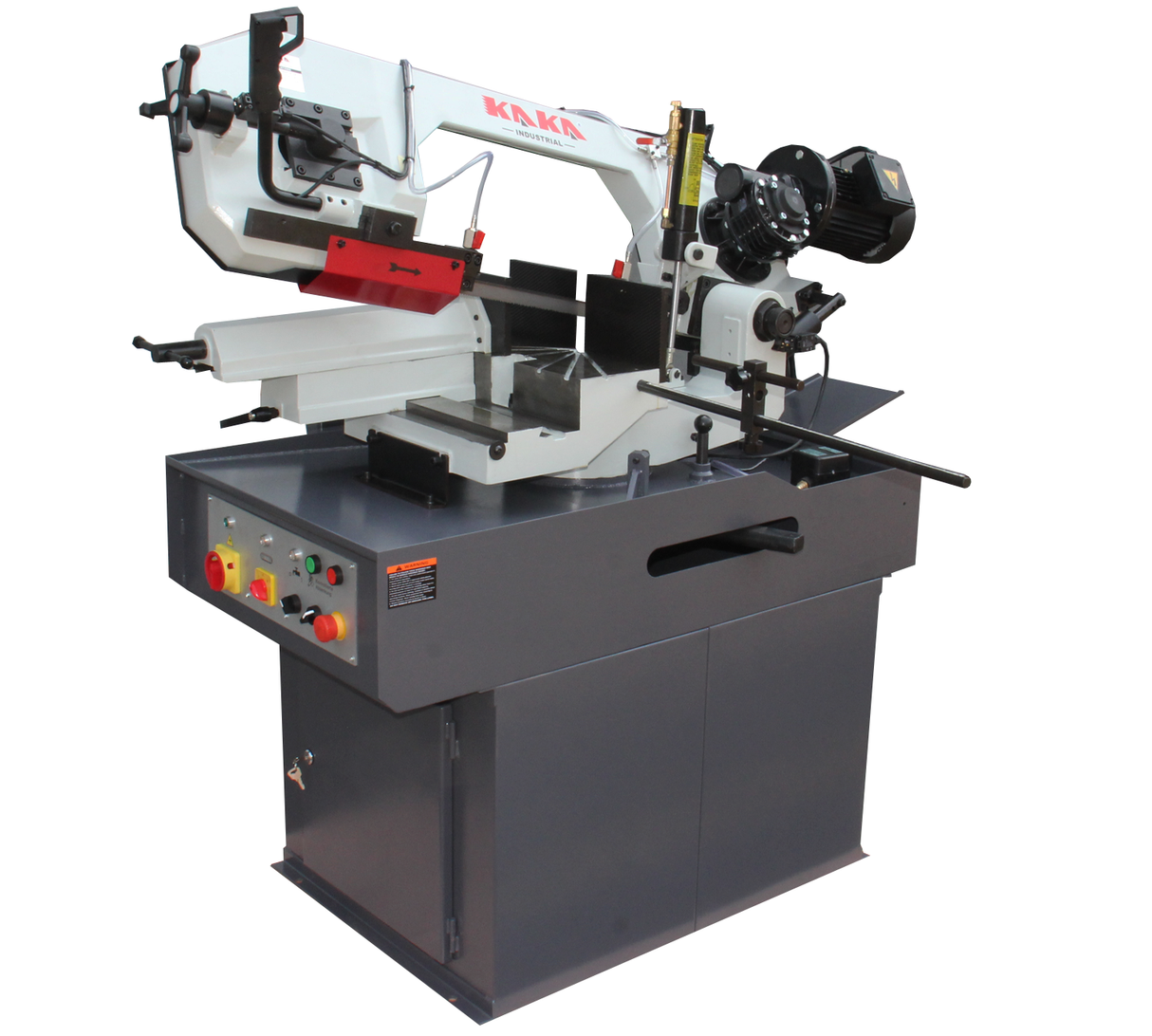

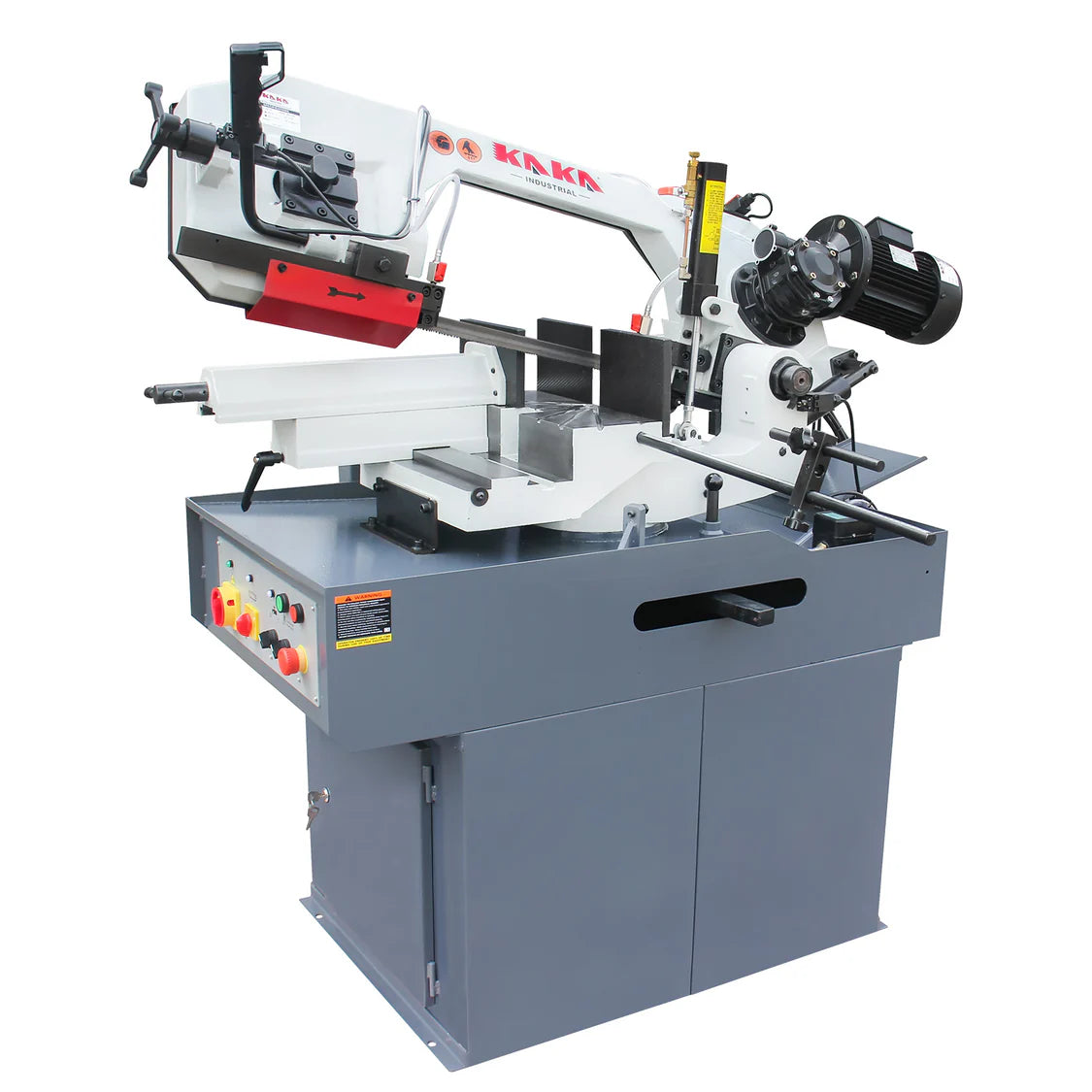

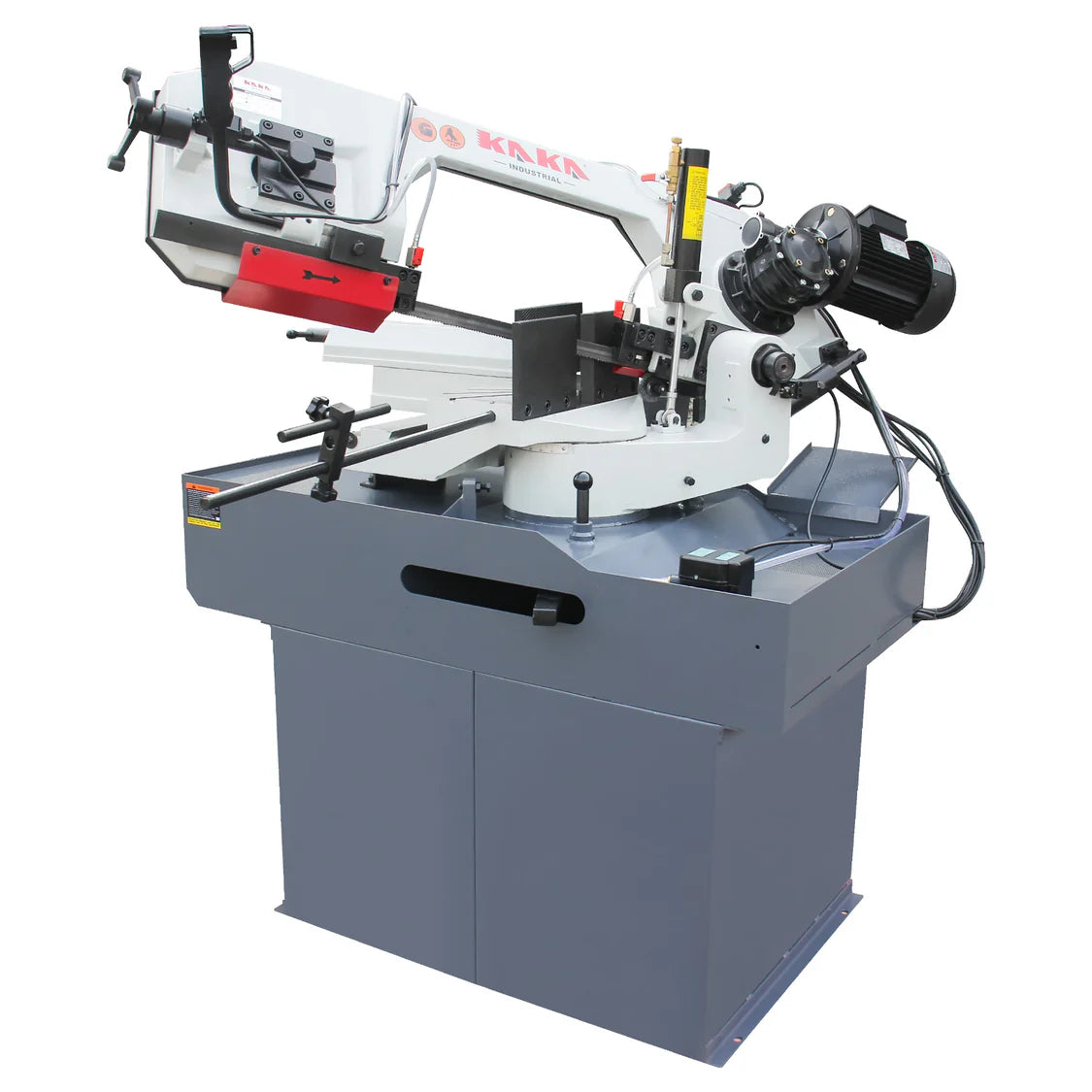

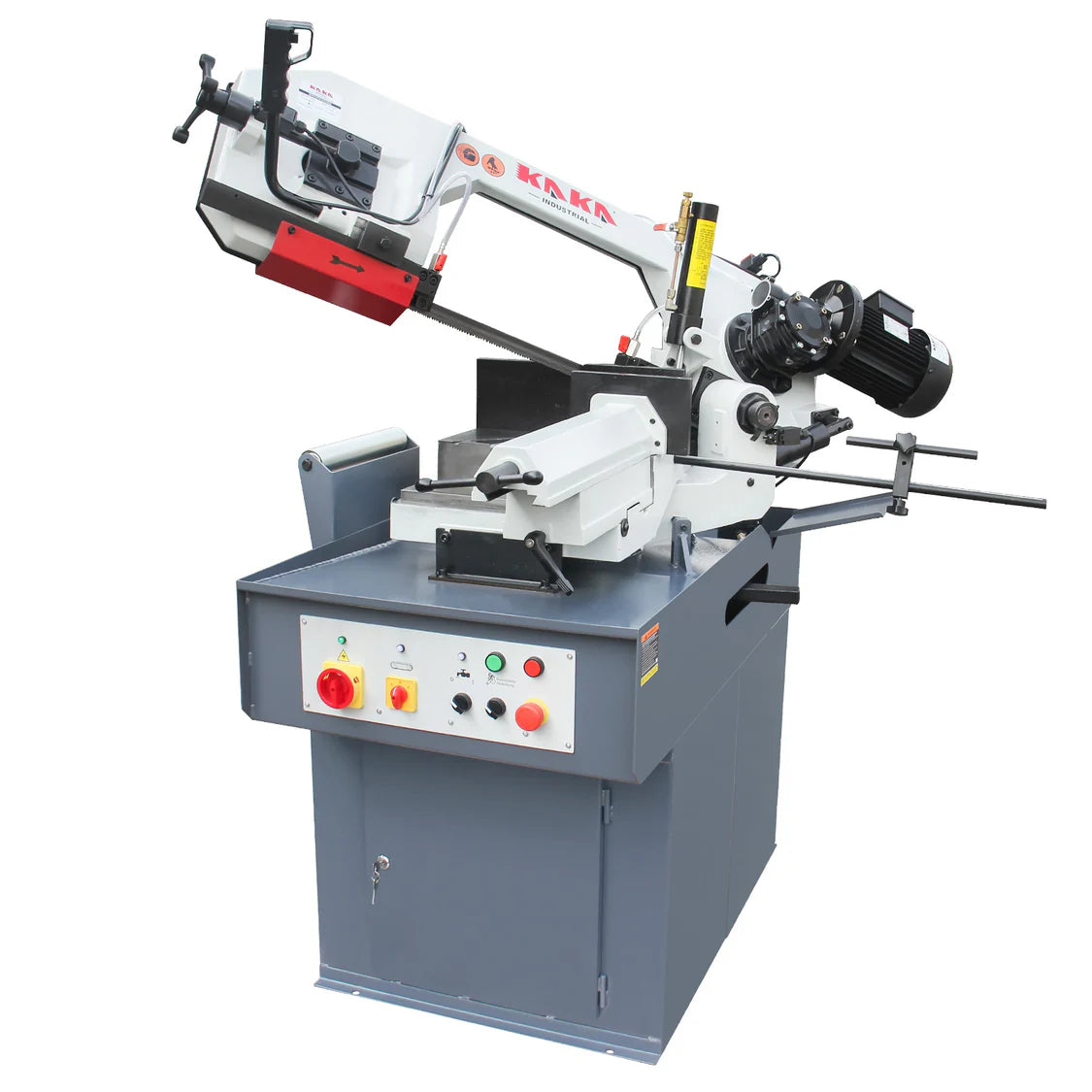

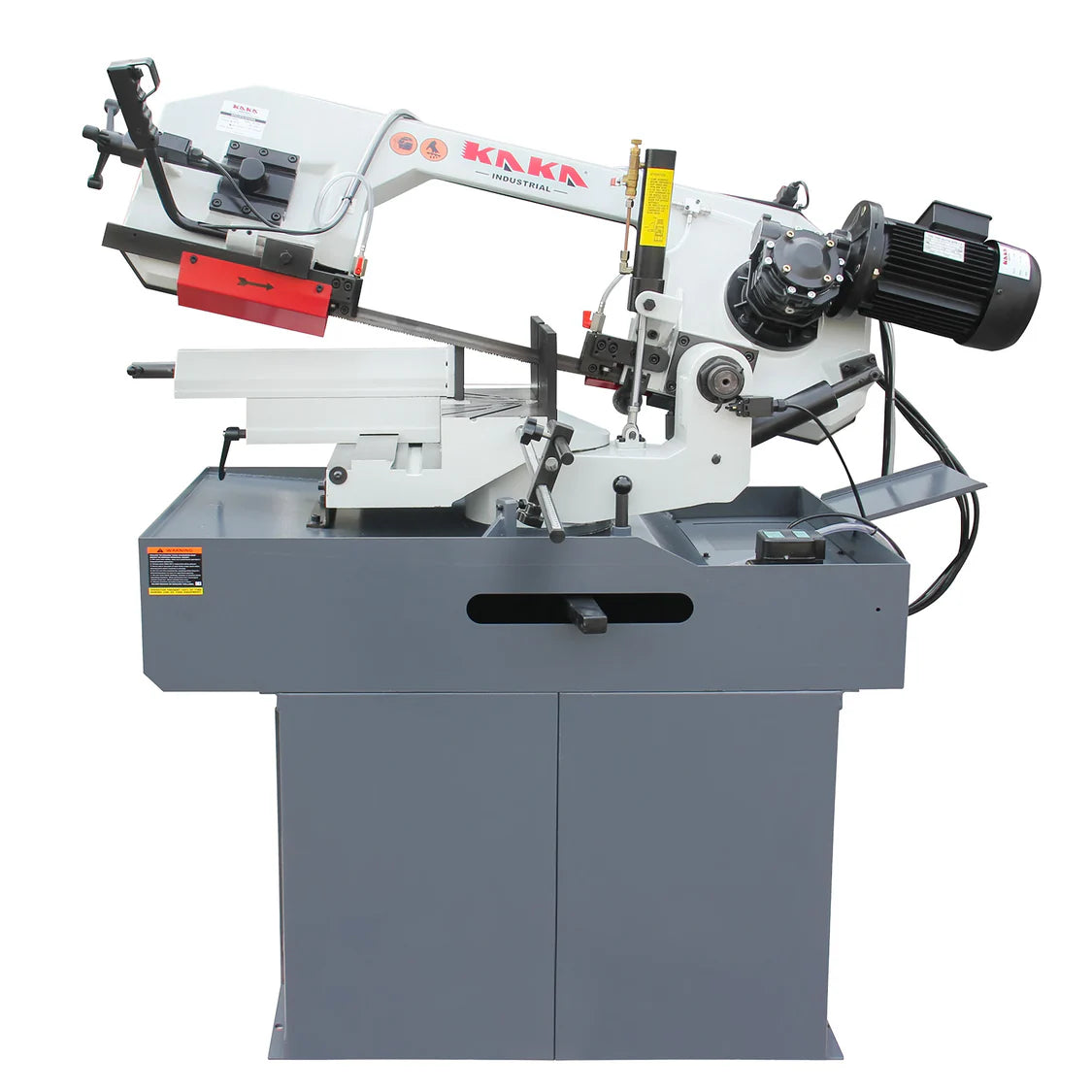

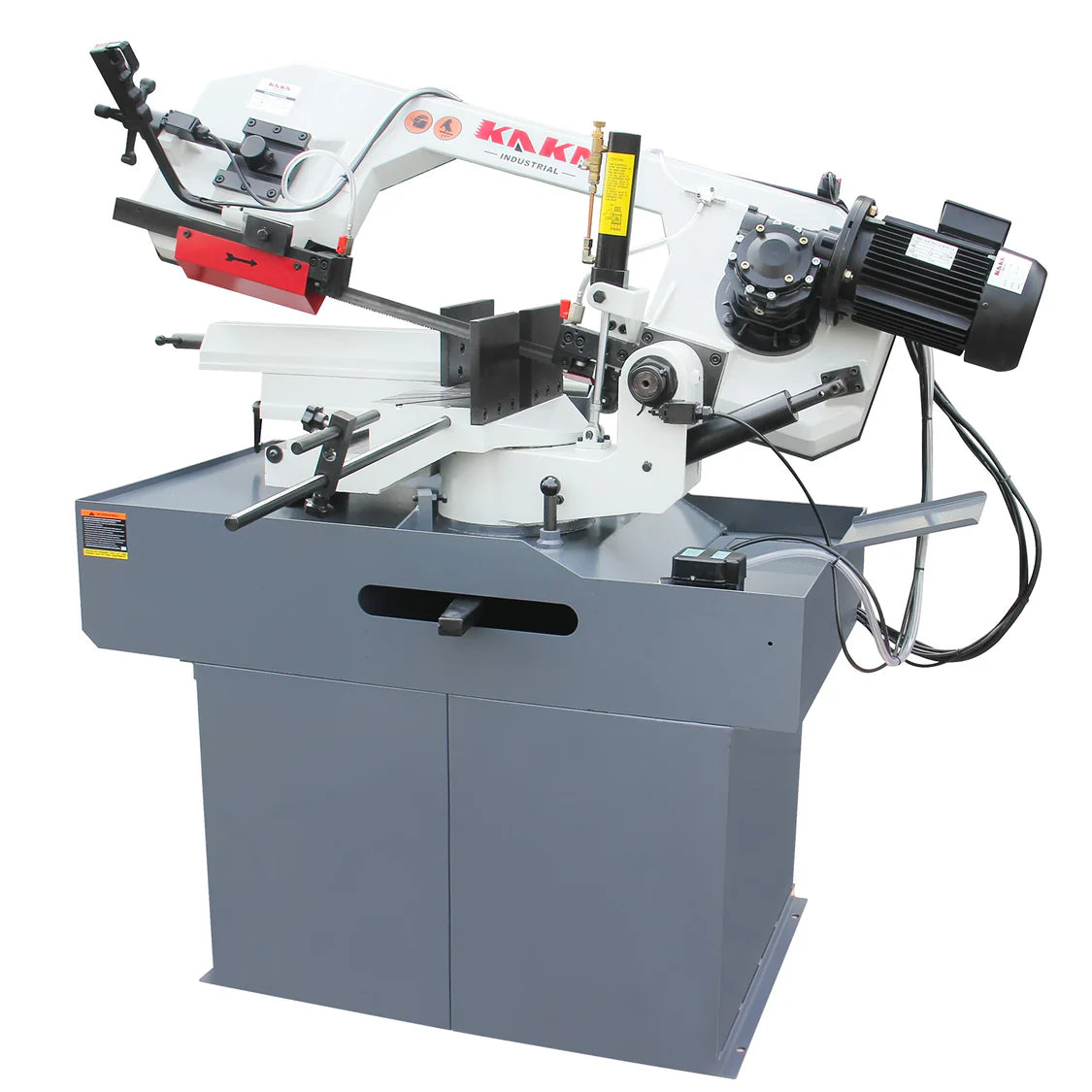

(PRE-ORDER)BS-126G Metal Cutting Band saw 230V-60HZ-3PH
(PRE-ORDER)BS-126G Metal Cutting Band saw 230V-60HZ-3PH is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Features

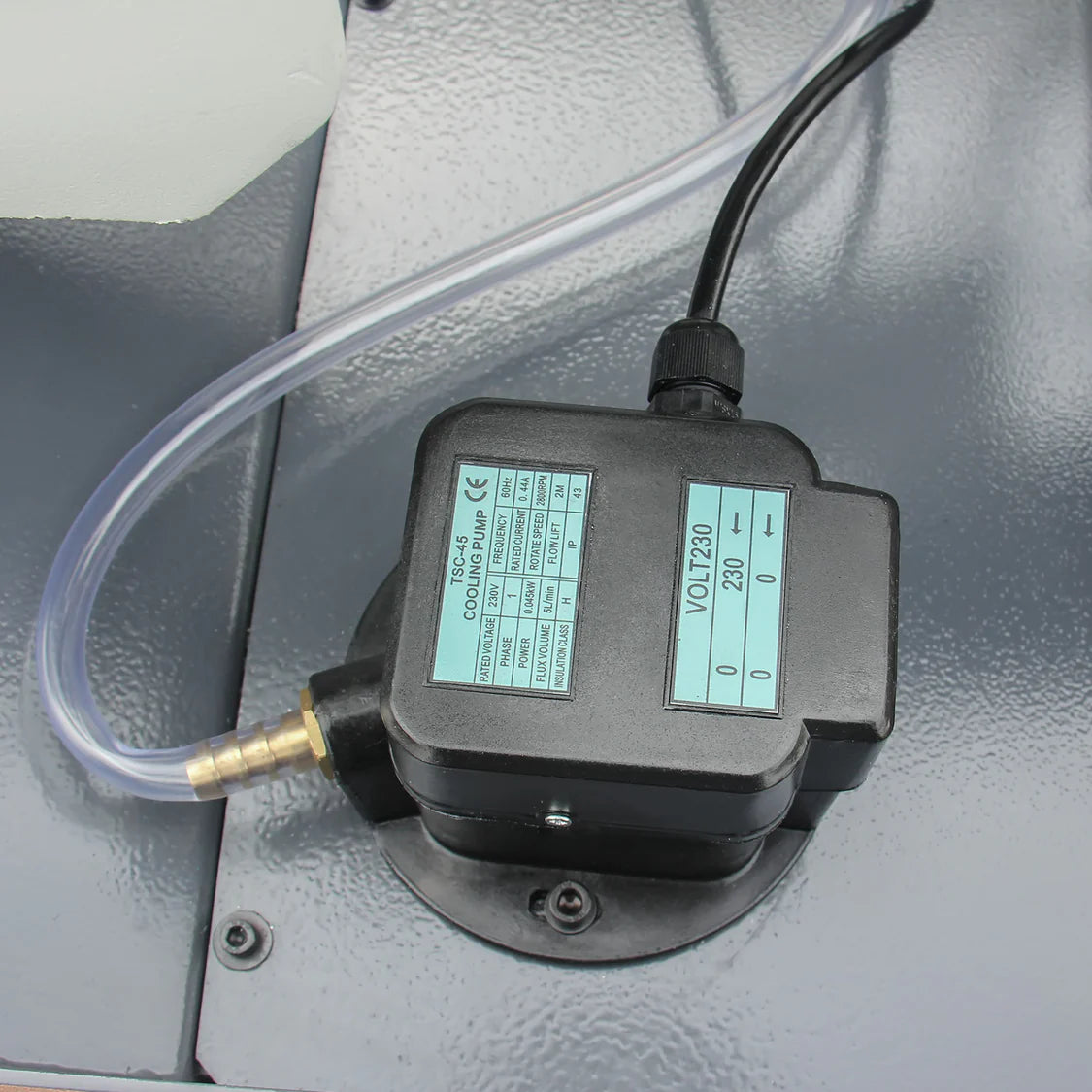

1. Electric coolant system
2. Accident preventing devices on the fly wheel casing and on the blade
3. Vertical rotation on bolt with adjustable tapered bearings without backlash
4. Band stretching is obtained by electro-mechanical blade tensioner with microswitch

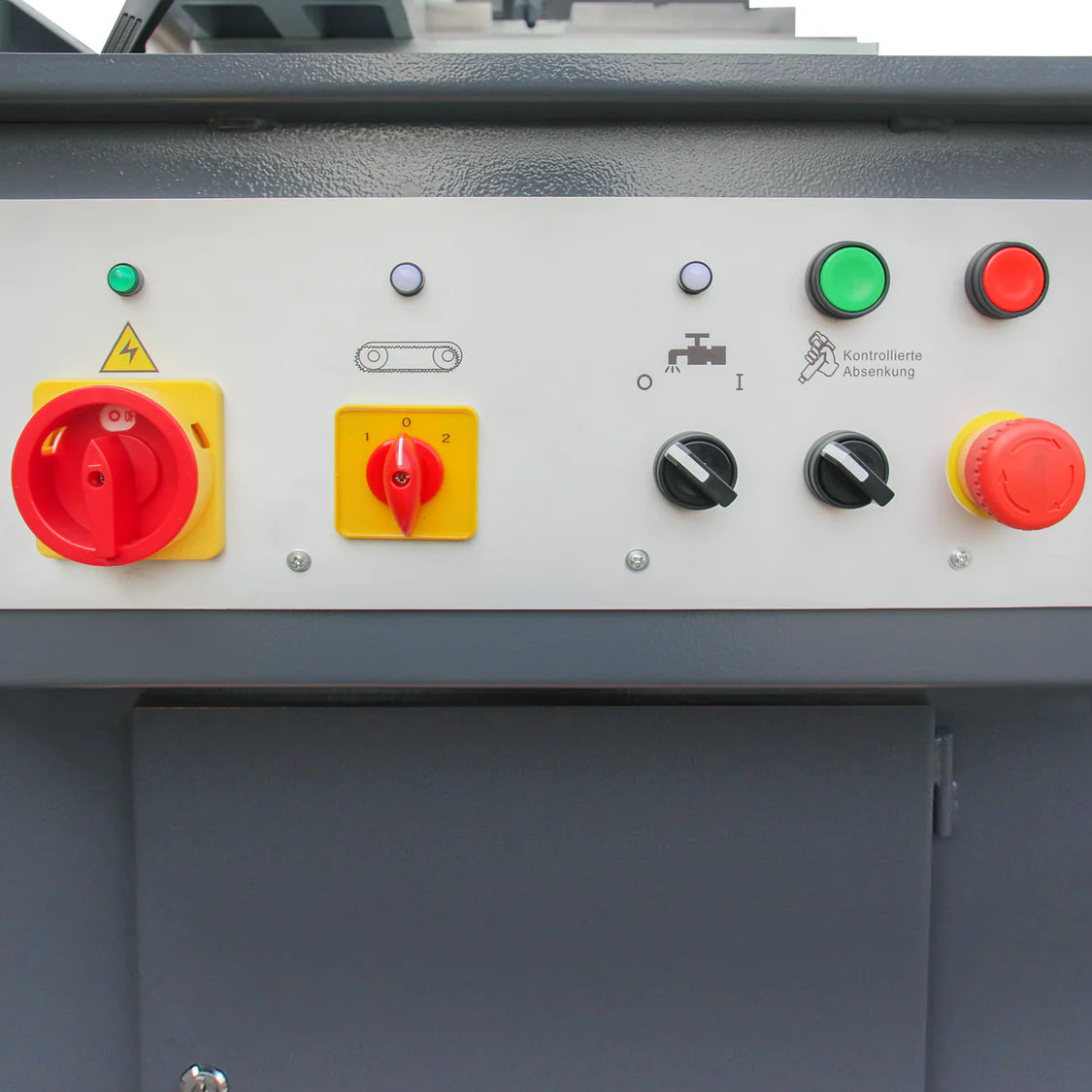

5. It is characterized by manual operation mode.
6. The saw bow can rotate around.
7. The European design band saw has power break device (the machine will automatically power off when the rear protective cover is opened).

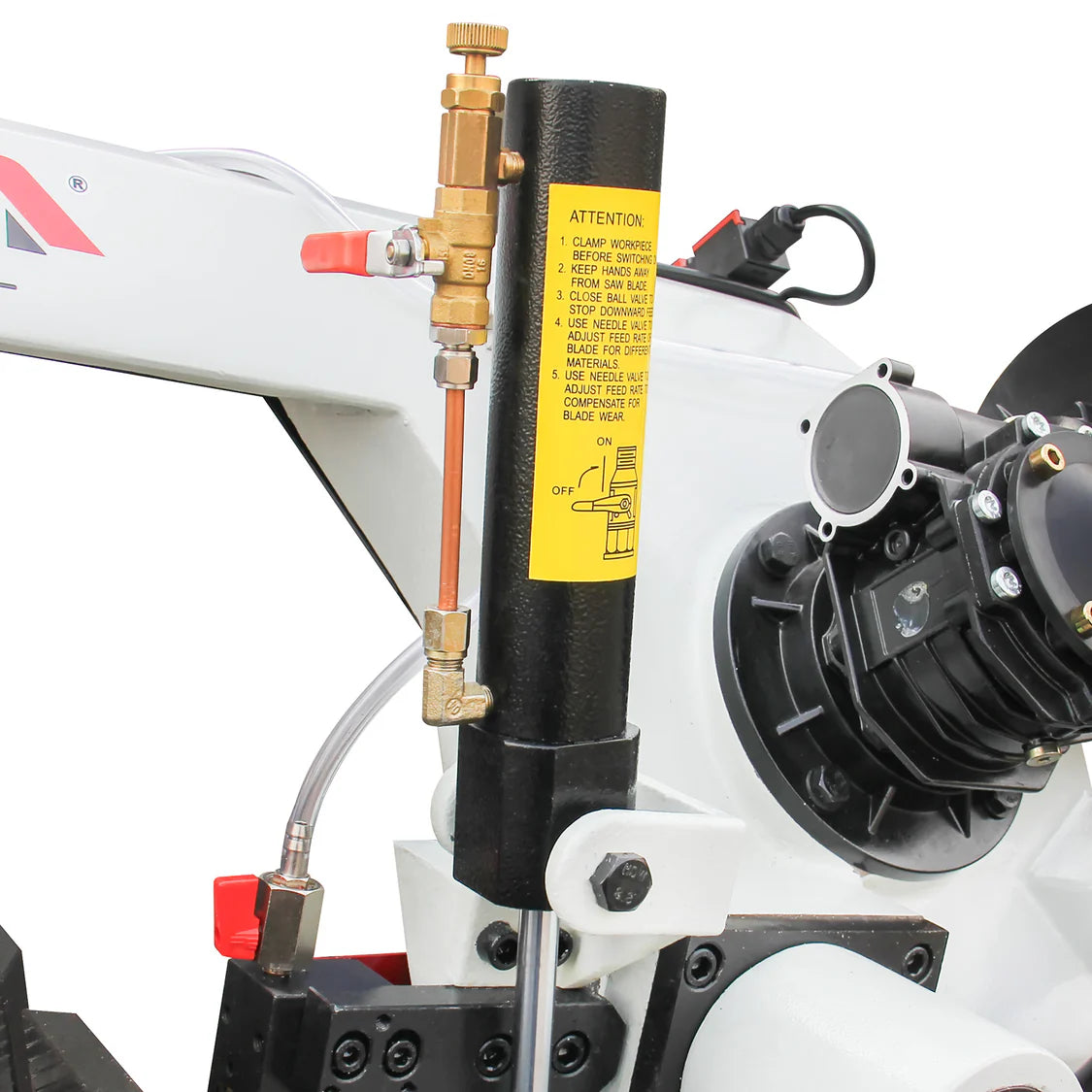

8. The falling speed of saw bow is controlled by hydraulic cylinder.

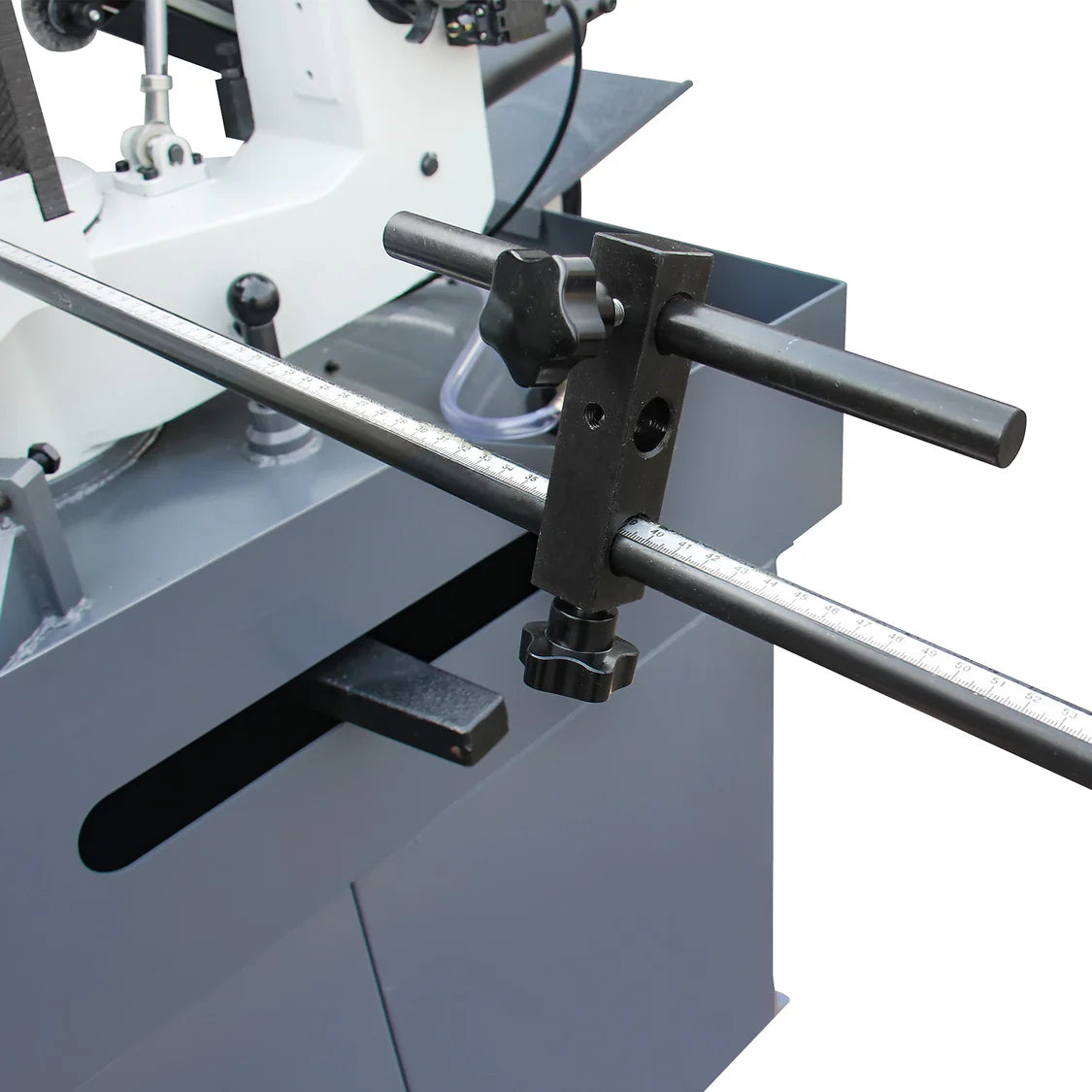

9. It is equipped with a block feeder (with fixed saw length).
10. Hydraulic cylinder for controlled descent
11. High-capacity band control by two-speed motor
12. Swivel on both sides
Specification:
Item:188122
Model:BS-126G
Capacity : Circular @90°230mm(9”)
Rectangular @90°12.4"x6.7"
Circular @60°(Right)5"
Rectangular @60°(Right)5"x5"
Circular @45°(Left & Right)8.25"
Rectangular @45°(Left & Right)8.25"x6.7"
Blade speed@50Hz40/80MPM
@60Hz48/96MPM
Blade size: 27X0.9X2825mm 5/8 TPI ( 1.06"X0.035"X111.22")

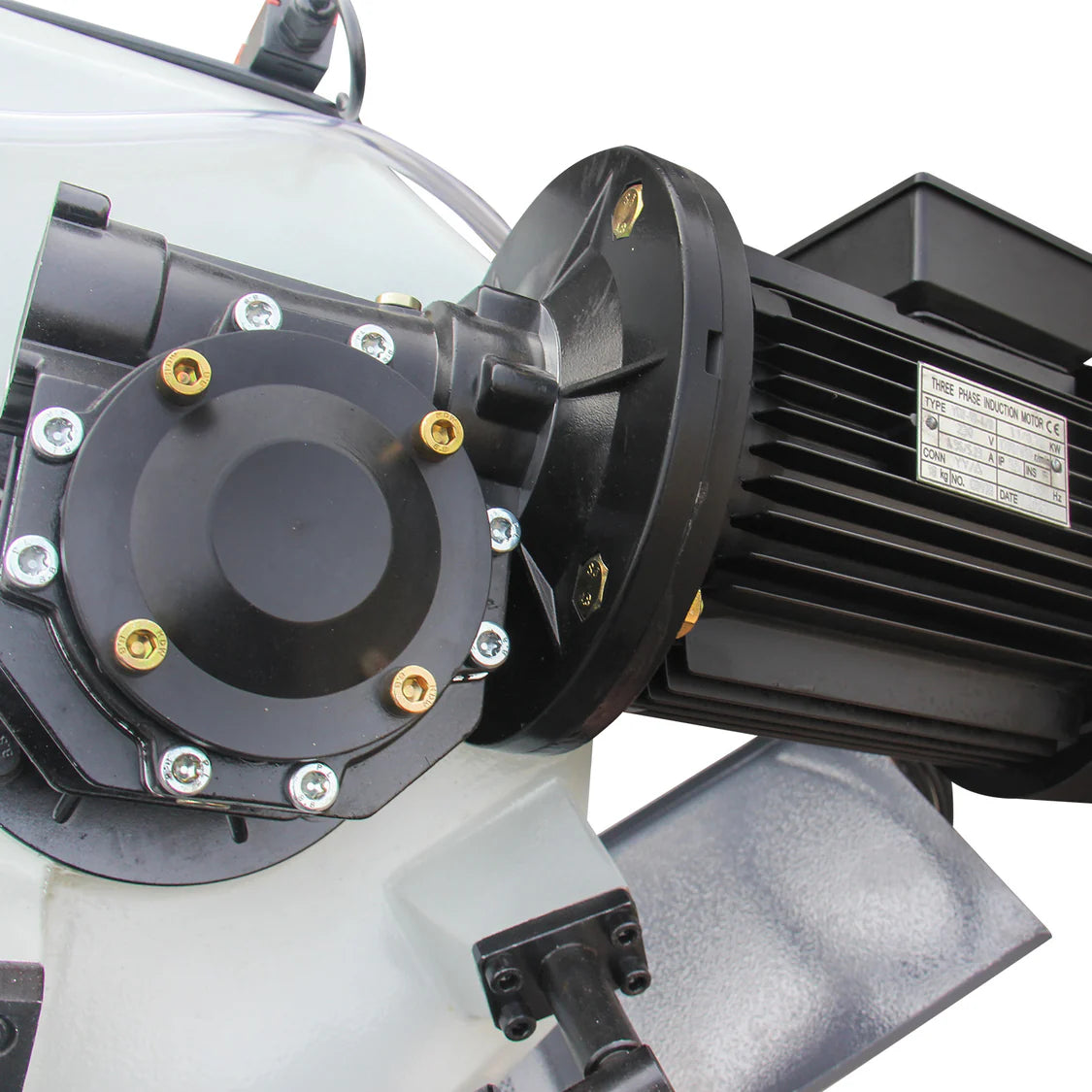

Motor :0.75/1.1kW
Drive : Gear
Packing size: crate :64"x32”x38" (body)
box: 28"x22"x23" (stand)
N.W/G.W. : 771/859LB (body)
85 lbs (stand)
