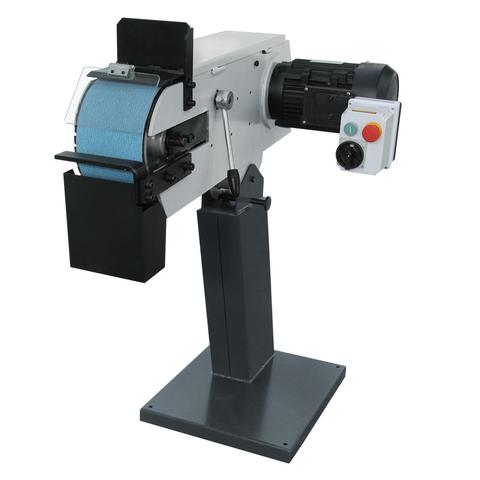

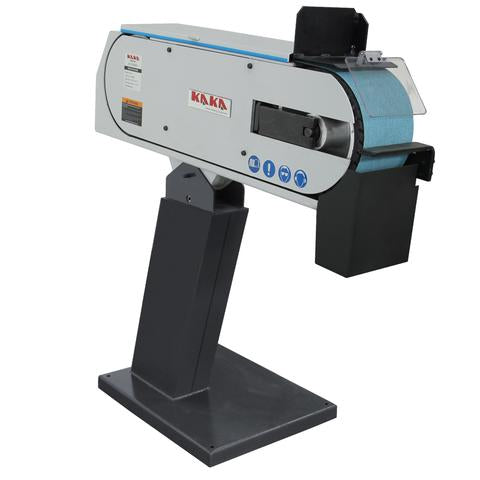

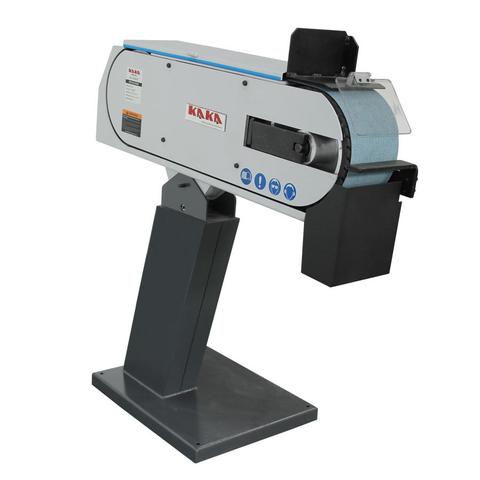

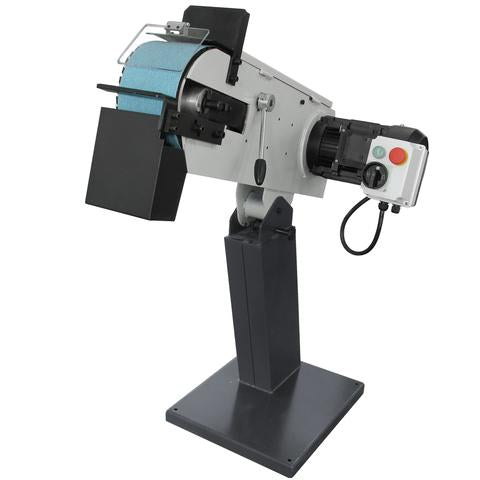

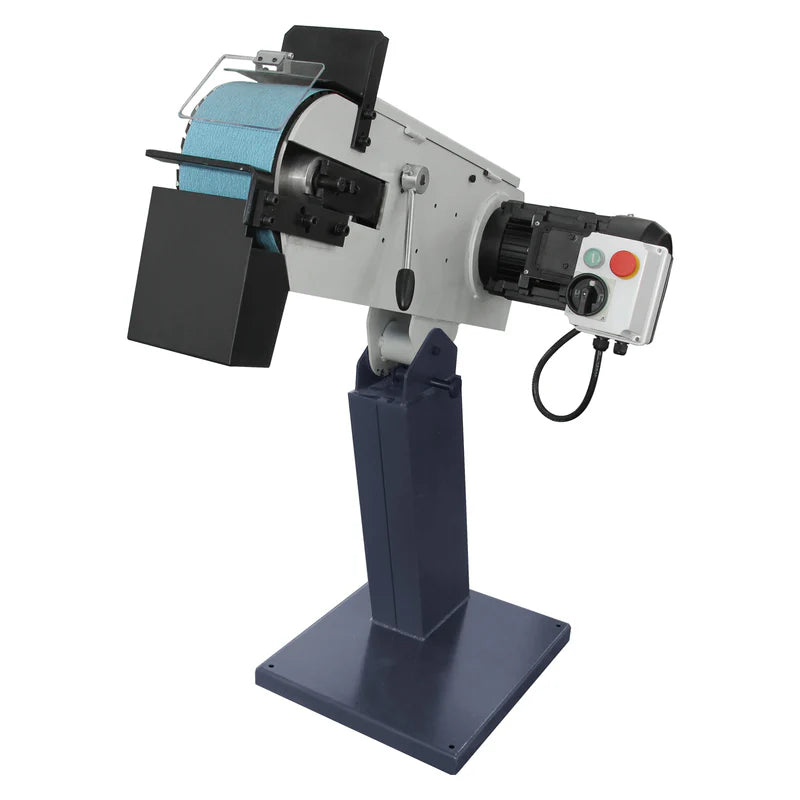

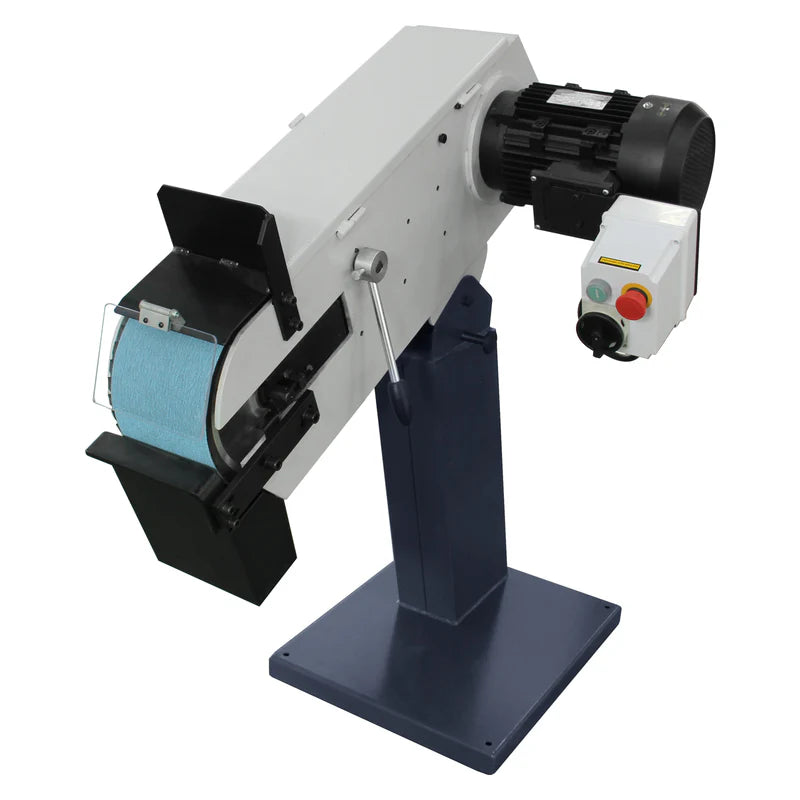

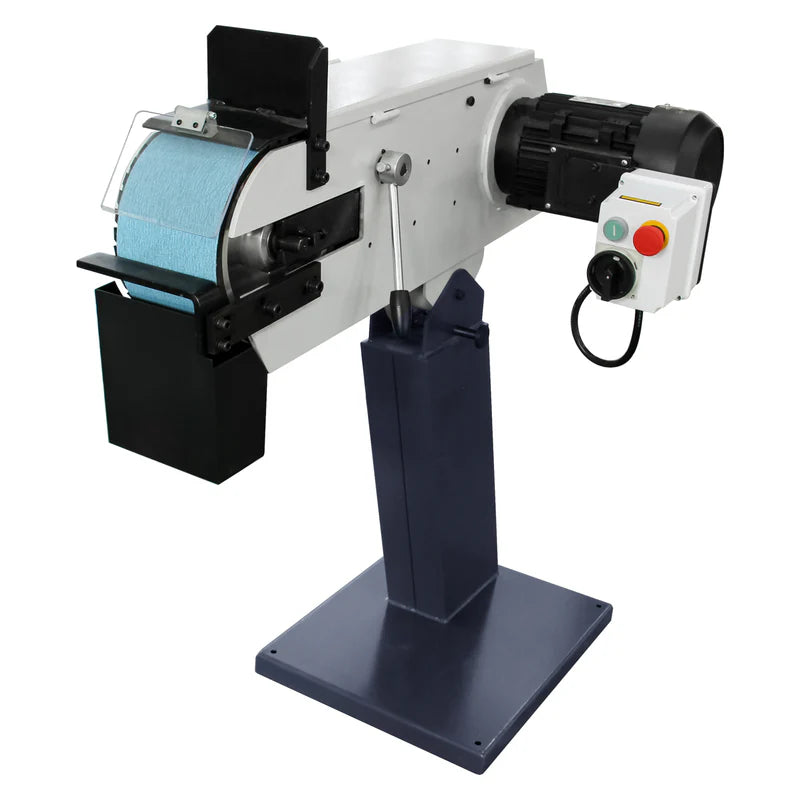

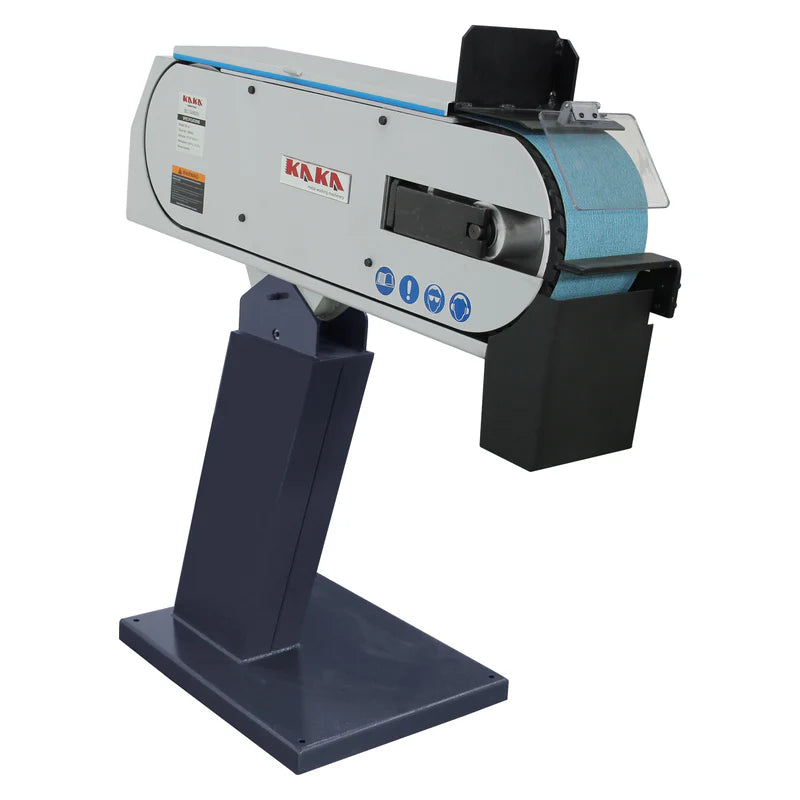

BG-6 Features
1. Our belt grinder features high efficiency and precision, less dust and low noise.
2. The abrasive band is convenient for replacement and adjustment.
3. The angle of belt grinder head can be adjusted up and down.
4. Our belt grinder is equipped with a vibration-proof protective device and has an optional vacuum cleaner.

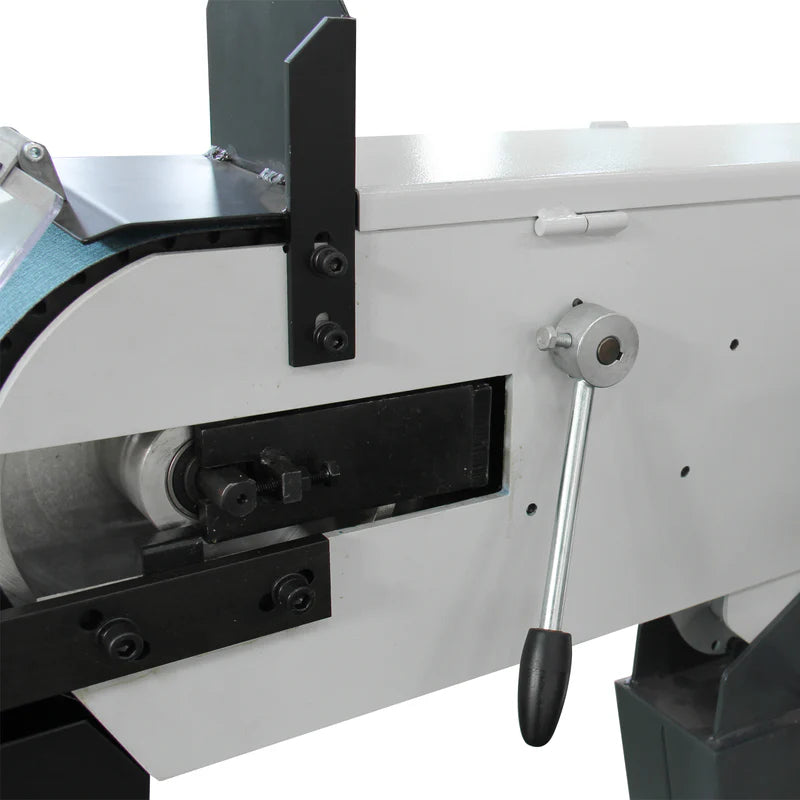

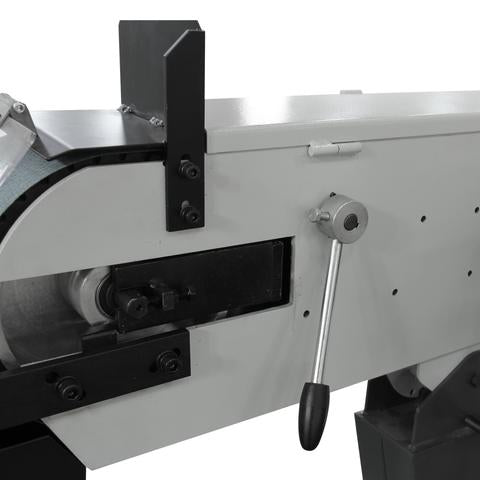

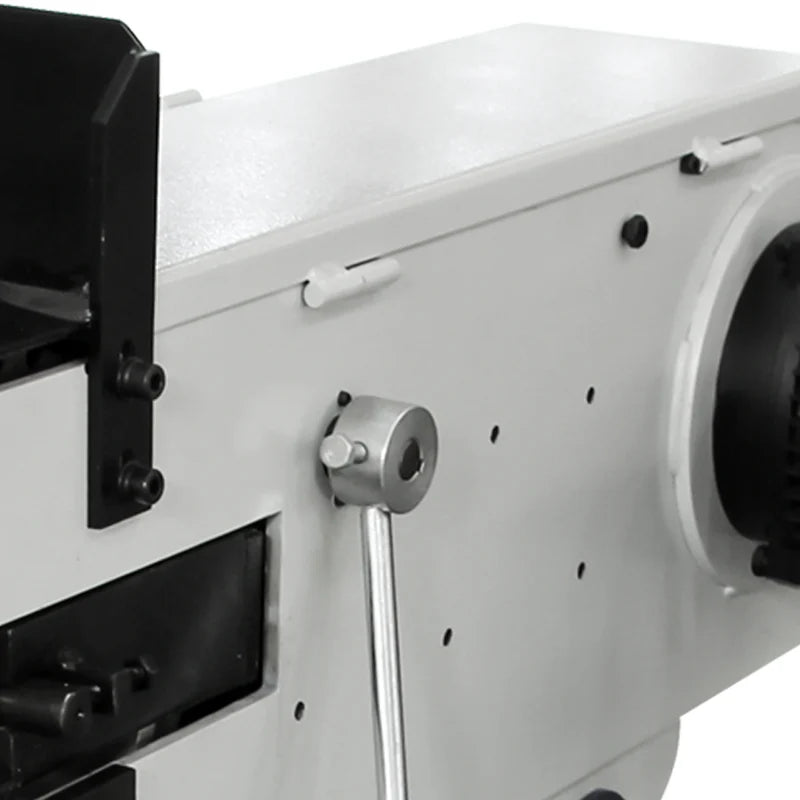

A: the handle is used to extend the belt, up position is loosened and down position is Extension.

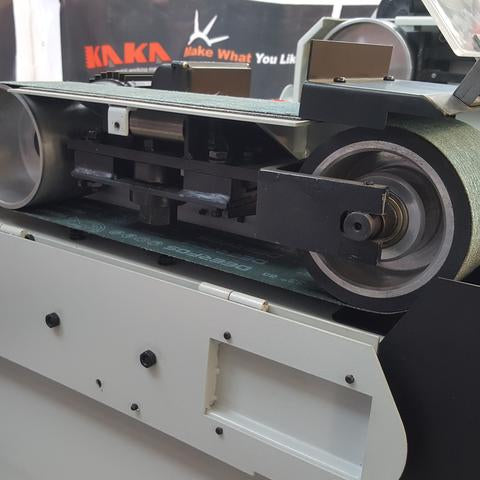

B: Sometimes when new belt is extended, it is not parallel to the frame head. The bolt can be used to adjustment the parallelism. Please adjust it SLIGHTLY, since the belt speed is high.

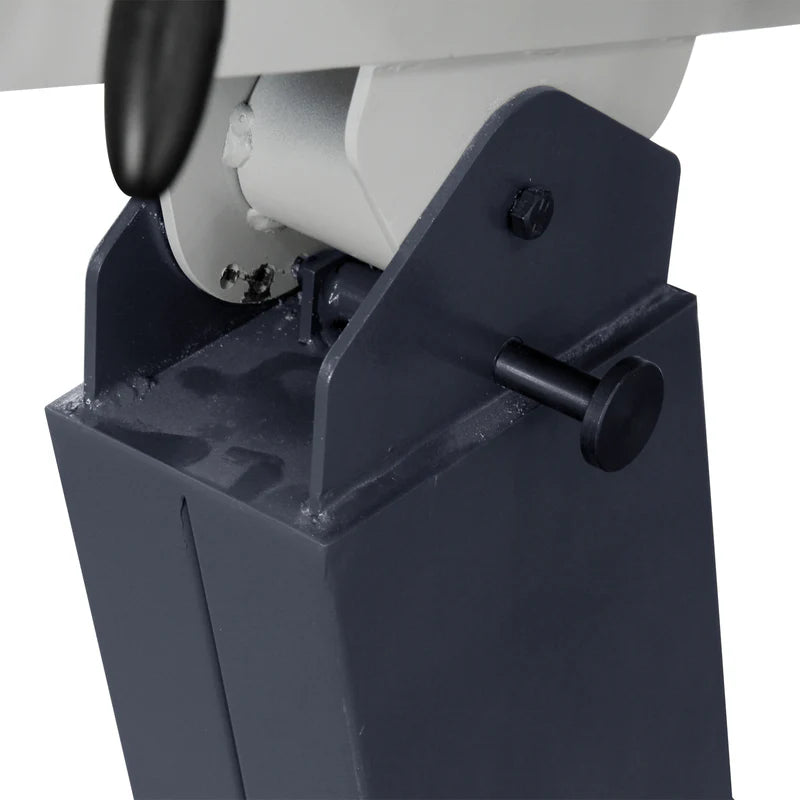

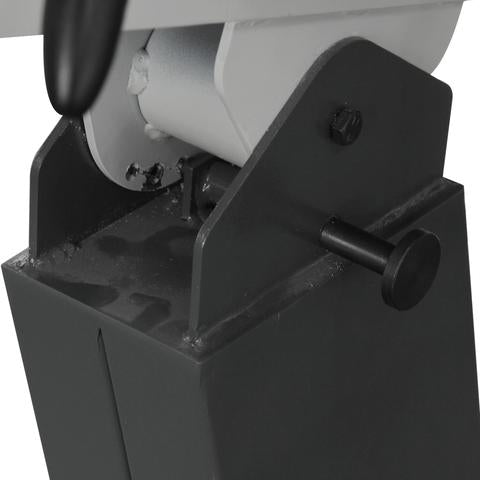

C: One of the features of BG-6 is that the head has difference hight position, so that the operator can set a comfortable working hight. Pull out the knob to adjust the head position, and push it in to lock the position.
Specifications
Item No. |
189002 |
Model |
BG-6 |

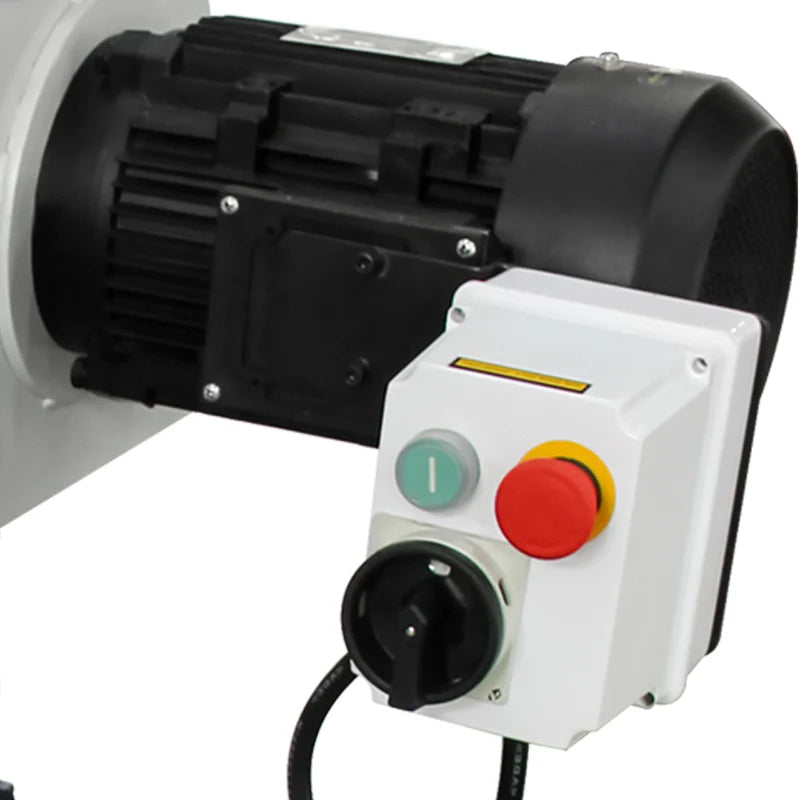

Motor power |
2.2/2.8kW |
Contact wheel |
250x150mm |
Belt size |
2000x150mm |
Belt speed |
18m/sec. 37m/sec. |
Packing size |
115x65x65cm 45 " X 25" X 27" |
N.W/G.W. |
105/130kg 242/304 lbs |
