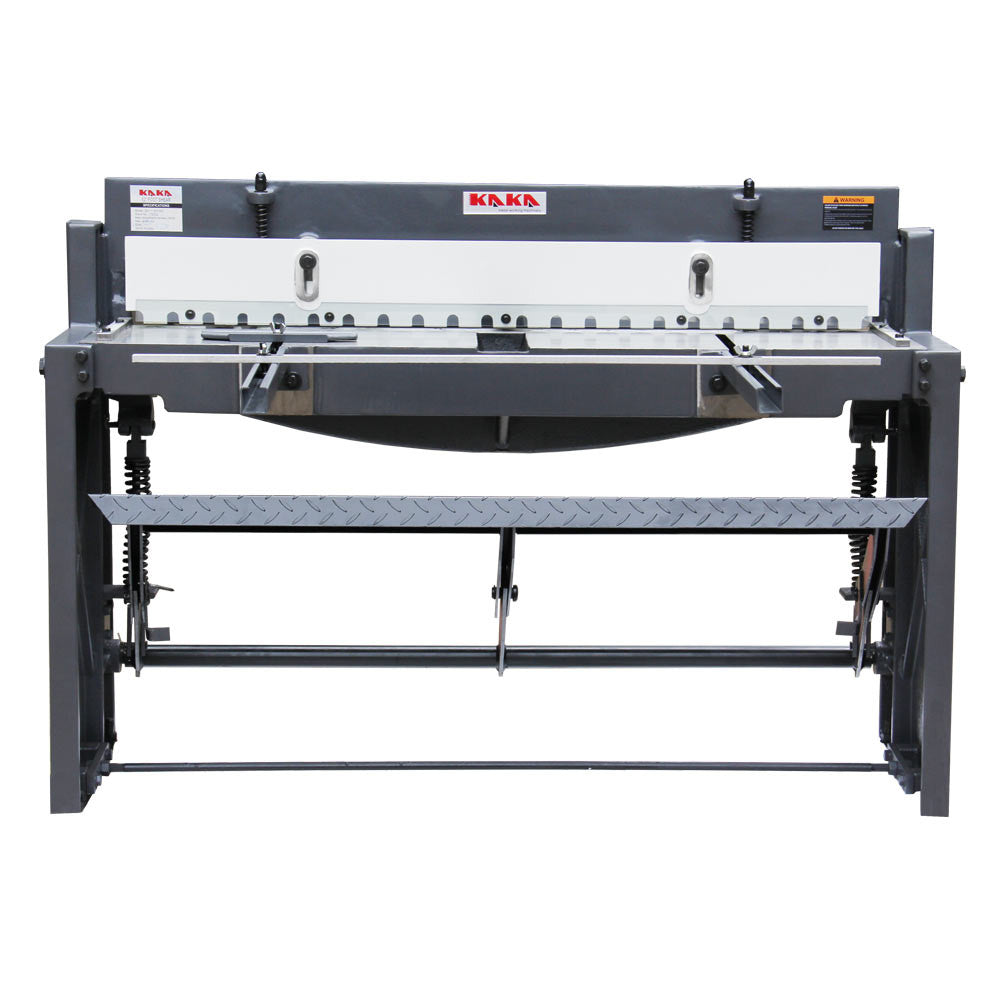

KAKA Industrial 52-Inch Sheet Metal Foot Shear Overview
High Precision, Easy Operation, Solid Construction, Great Shearing Capacity Sheet Metal Foot Shear
One benefit of this foot shear is the precise shearing ability. The precise bed and beam alignment ensures shearing accuracy while the adjustable hold-down clamp guarantees materials securing during operation so as to prevent errors. Another benefit of this metal foot stomp shear is the easy operation. The easy working application can be achieved via compound leverage which allows the user to perform work within the machine's rated capacity. Purchase one today to try this great metal foot shear!
- Hi-quality cast-iron grade frame to eliminate deflection across the blade-span and blade framework
- Adjustable clamping bar keeps material secured during operation

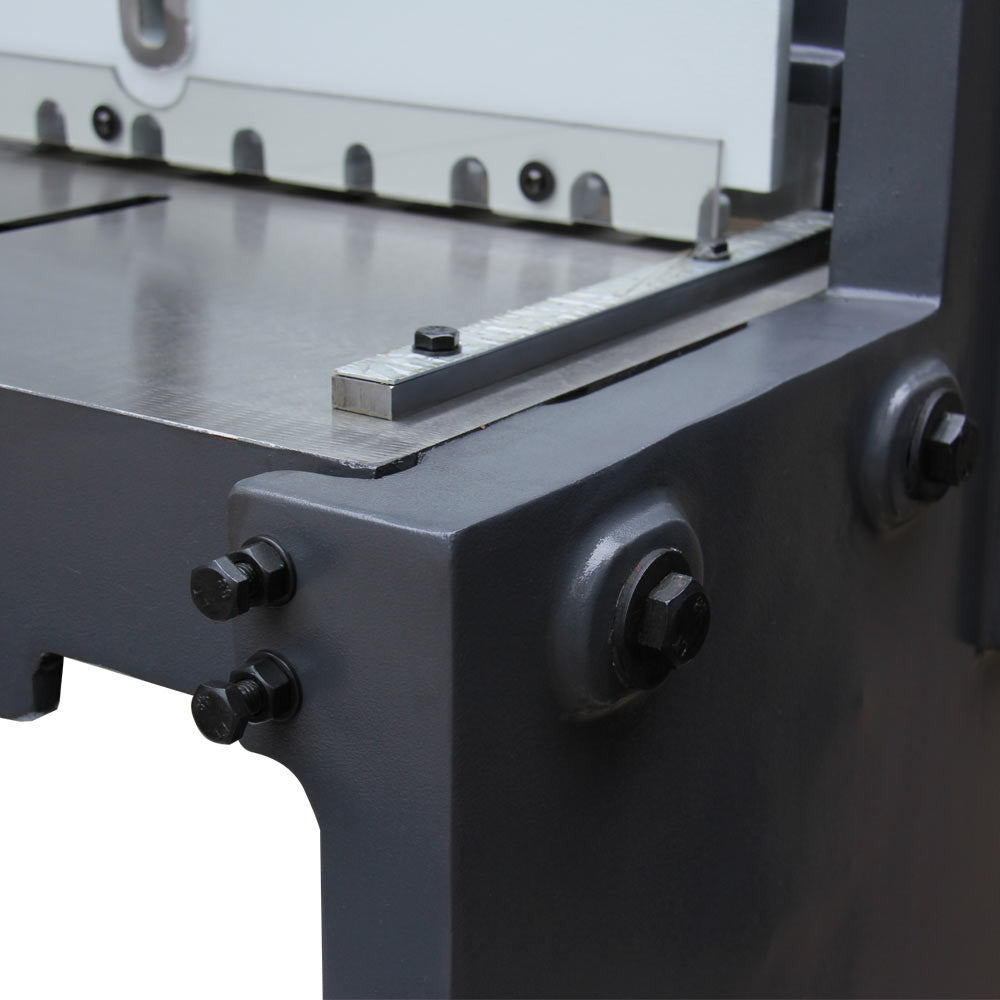

- Precise bed and beam alignment assures working accuracy
- The upper blade is a four-way; the bottom blade is two-way

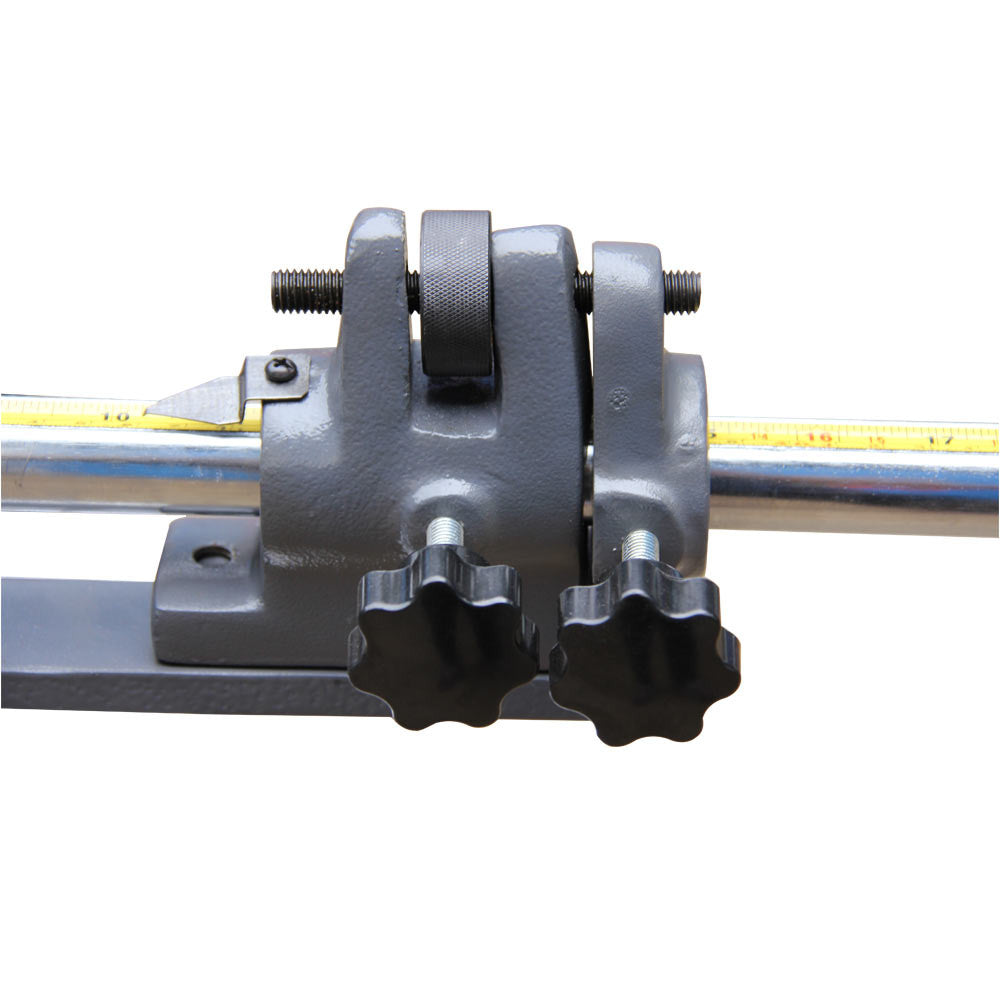

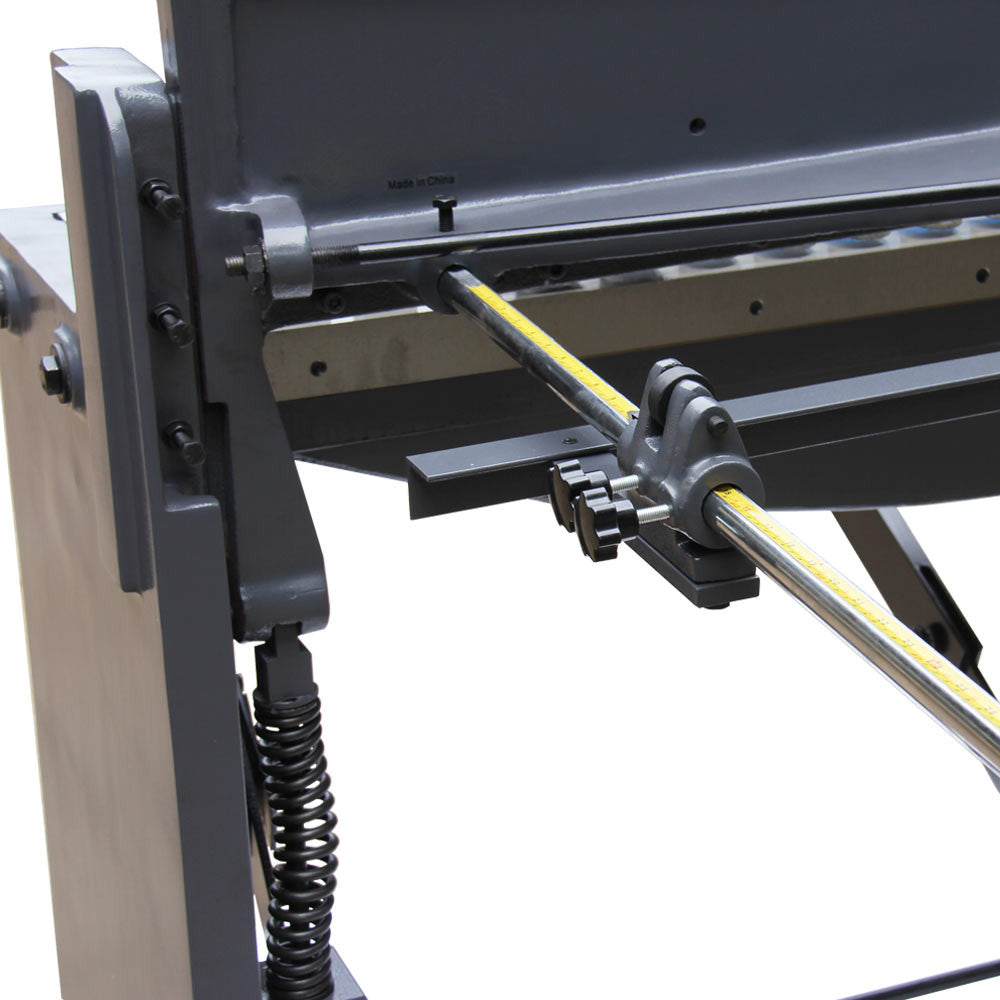

- Rear depth gauges with micro-adjustment for precise measurements
- 16 gauge maximum capacity for mild-steel
- 14 gauge maximum capacity for aluminum and copper alloys
- 20 gauge maximum capacity for stainless steel
Specification:
|
Item No.1 |
172002 |
|
Model |
Q01-5216 |
|
Bed width (Inch) |
52-Inch |
|
Max. shearing thickness (mild Steel) |
16 Gauge |
|
Back gauge range (mm) |
0-700 |
|
Packing size (inch) |
66x30x45 |
|
N.W. / G.W. (lb) |
999/1118 |
Standard accessories:
- Back gauge
- Front gauge
- Foot pedal
Replacement Blades (Special order )
