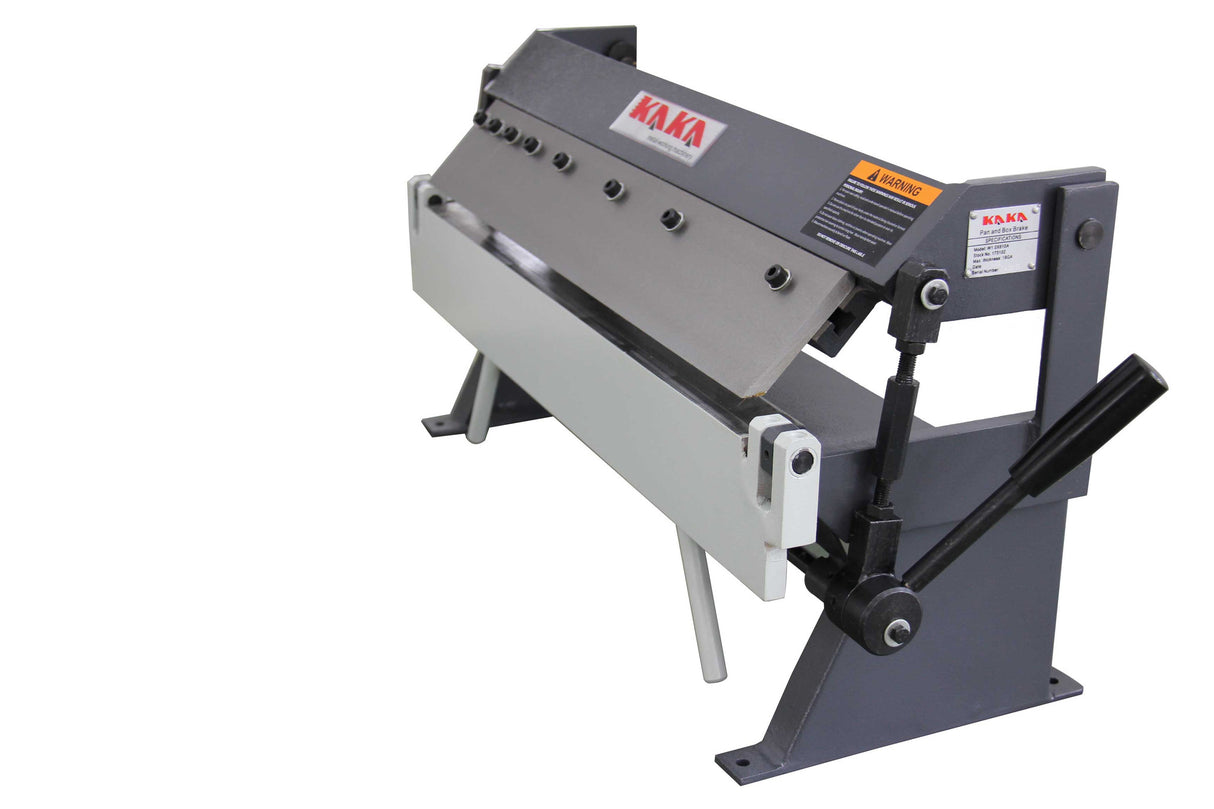

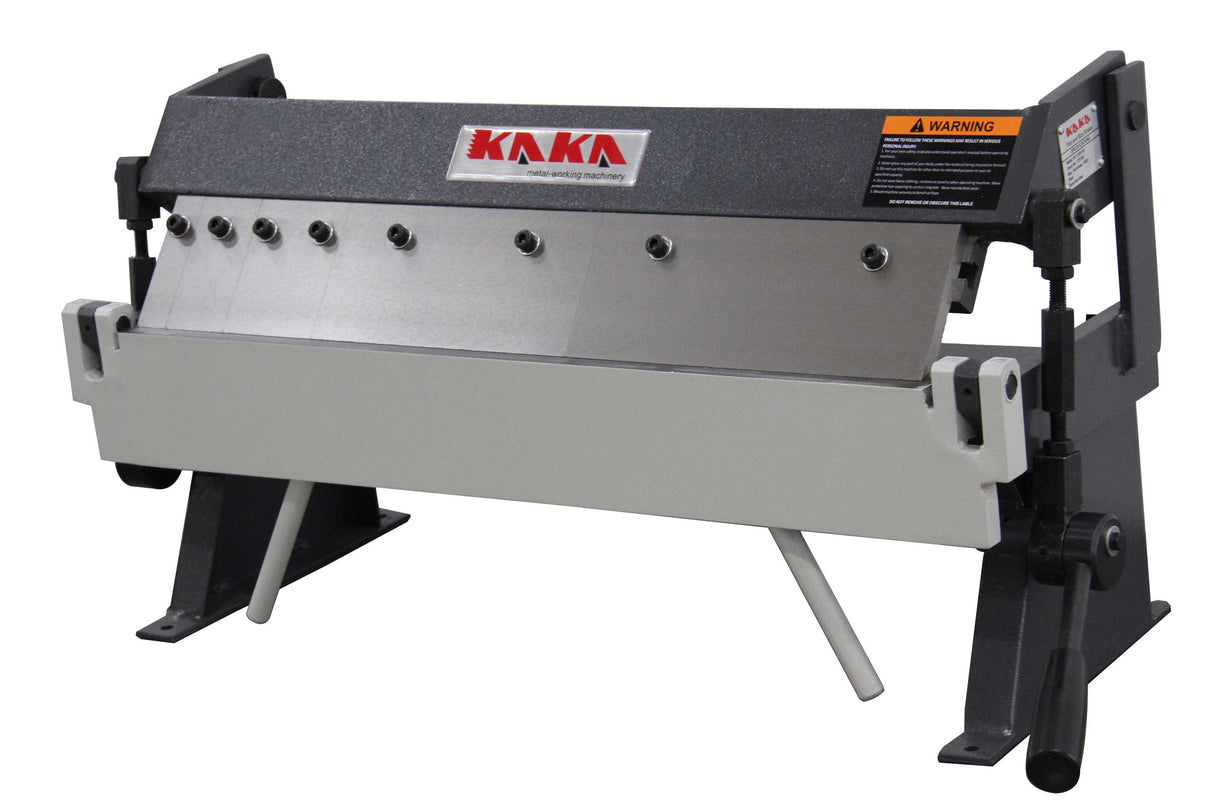

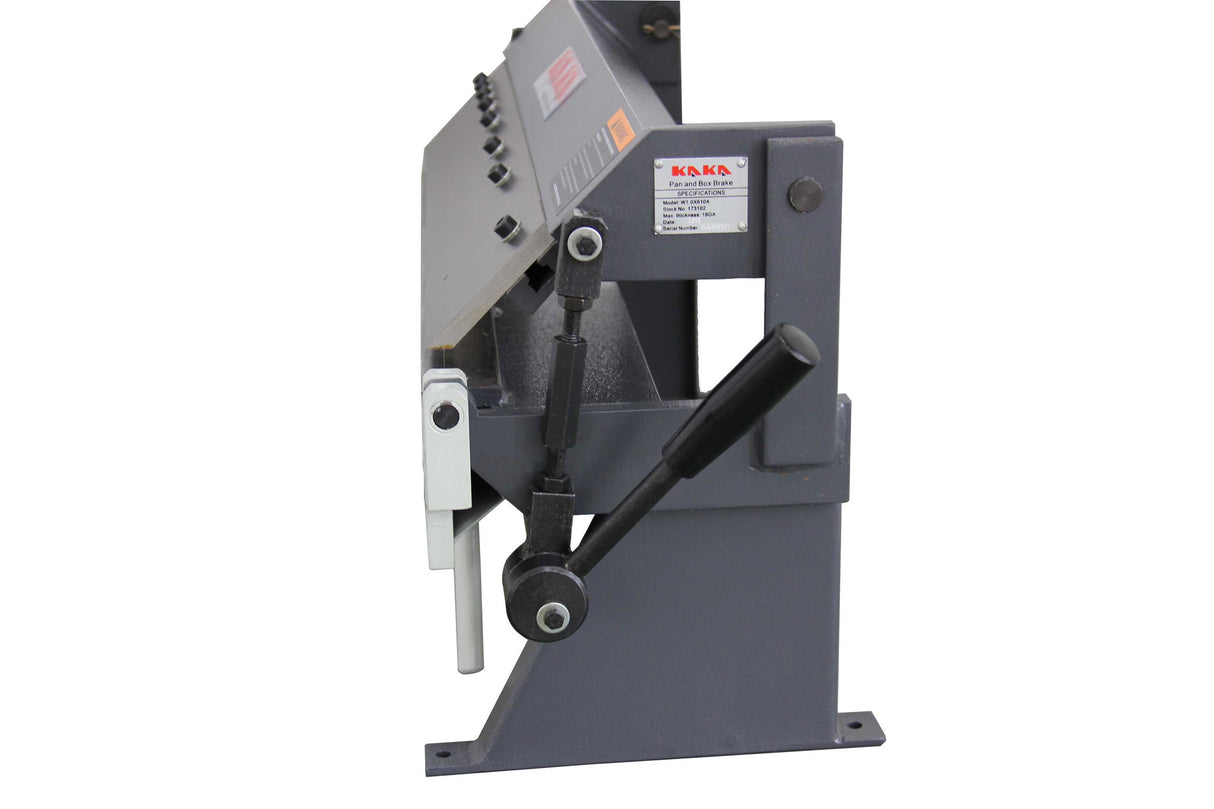

W-2420A 24'' 20 Gauge Pan and Box Description
W-2420A sheet metal box and pan brake is an ideal tool if you need to increase the strength of sheet metal plates with bends or intend on fabricating more complicated brackets, such as gussets, boxes, or fixtures. It can bend mild steel up to 20 gauge thick, 24 inches wide, with an angle of 0-135 degrees.
W-2420A box and pan have 5 removable and adjustable fingers to make various depths and sizes of boxes and pans. It is easy to adjust the needed size to ensure accuracy and lightweight, and easy to handle.
Specification
Item No. |
173102 |
Model |
W-2420A |
Width(in.) |
24" |
Thickness(in.) |
20 Gauge |
Angle |
0-135° |
Max. box depth | 2" |
Finger Sizes(in) |
1,2,3,8,10 |
Packing size(in.) |
32x21x14 |
N.W./G.W.(lb) |
95/101 |
