KAKA INDUSTRIAL  |  SKU : 162320

KAKA INDUSTRIAL Semi-Universal Dividing Head Sets BS-0 Dividing Head Set 5"/6",with 5"/6" Chuck, Tailstock, Dividing Plates, 3-jaw Chuck Semi Universal Milling Set

C$399.99
Frais de livraison calculés lors du paiement.

Care information

Delivery and Shipping

Payment & Security

Payment methods

  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

   Function Indication

1、The universal dividing head is a simple indexing center, which can directly and simply index and complete the face groove and tooth processing without accessories. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing.

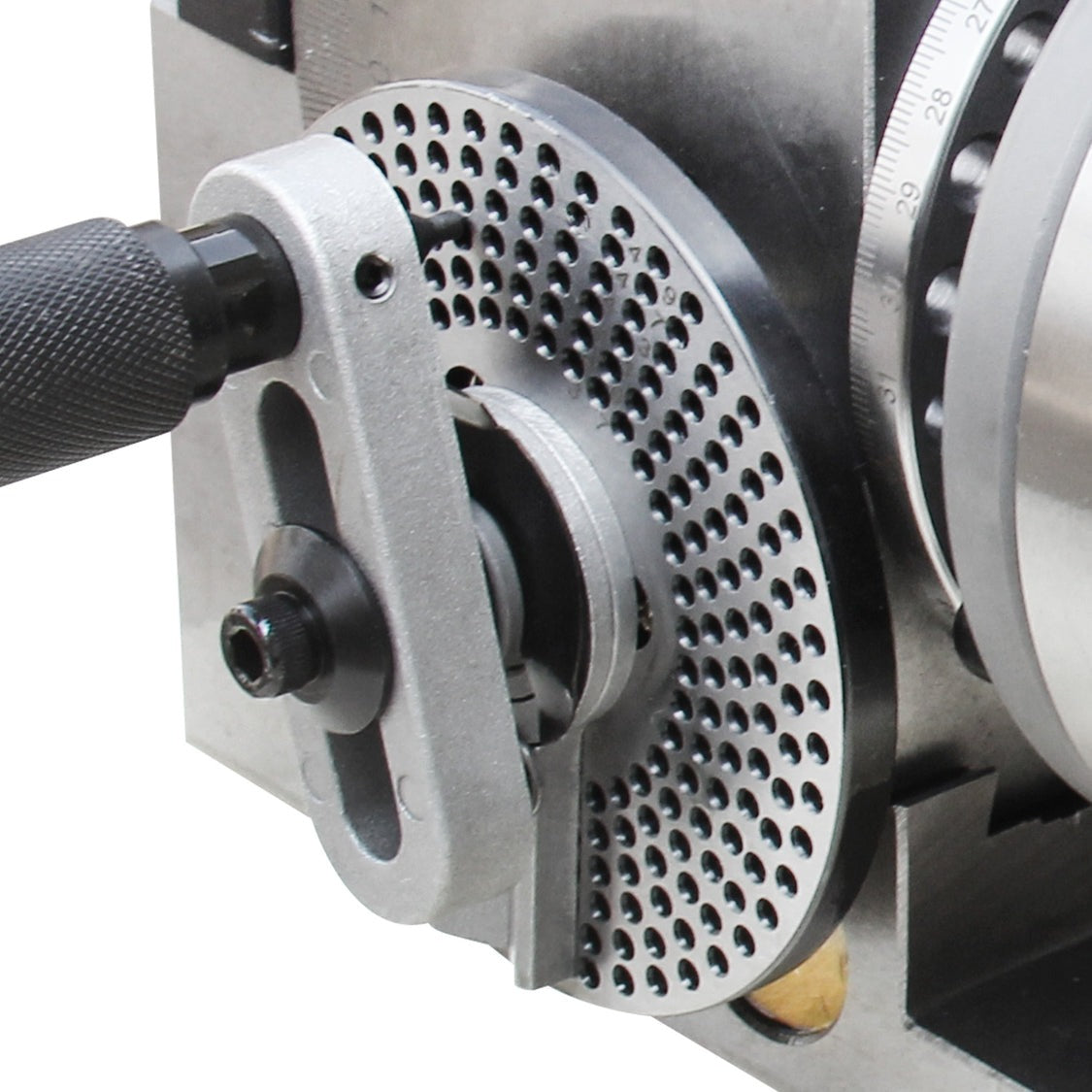

2、The high precision performance of the indexing head is achieved with indirect indexing plates A, B, and C. You can achieve divisions 2-50, 51-380 except prime numbers and certain other numbers.

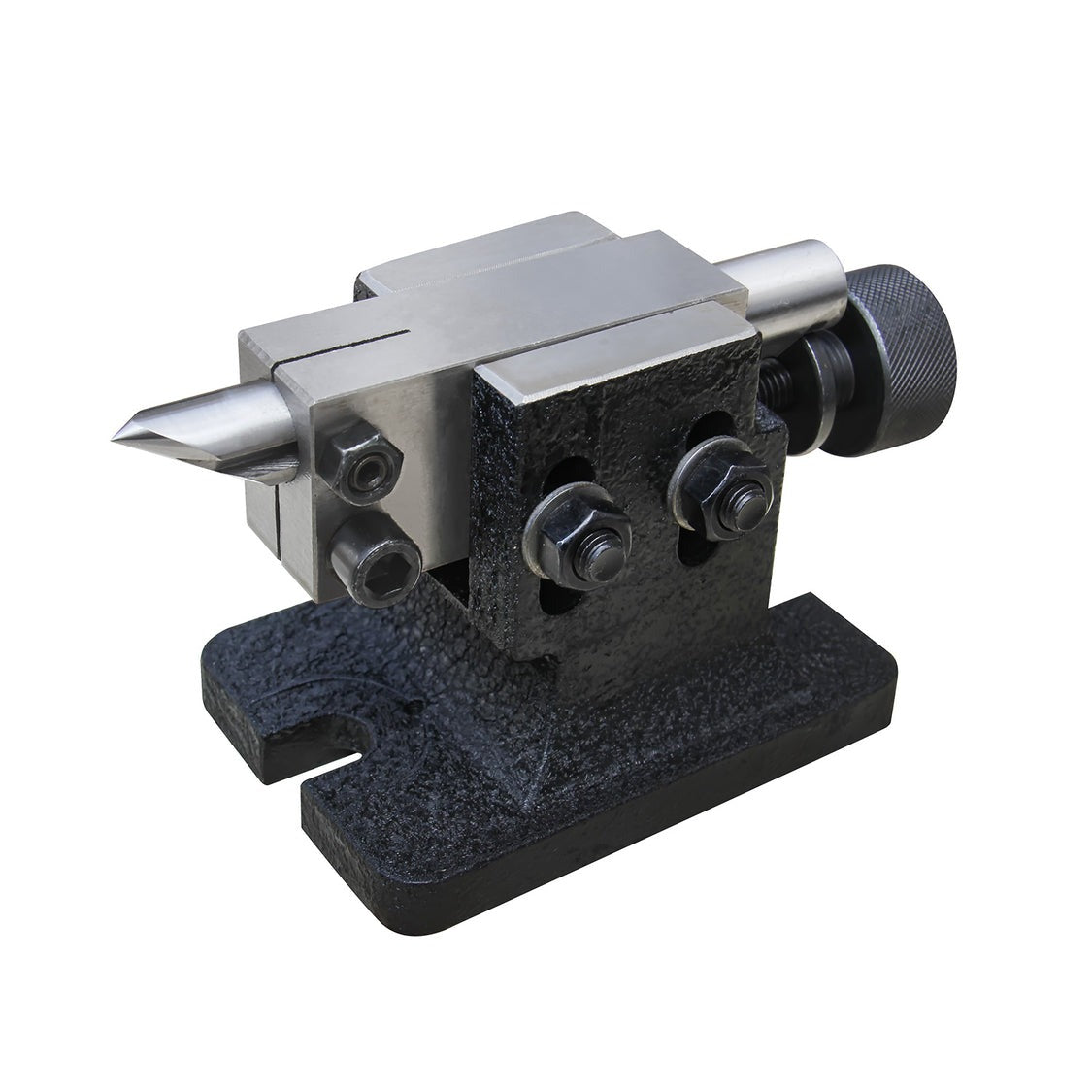

3、The MT2 tailstock gives strong support to the workpiece being machined.

4、It will be your perfect assistant to machine the flutes of a milling cutter, cut the teeth of a gear, curved mill slots, or drill a bolt hole circle around the circumference of a part.

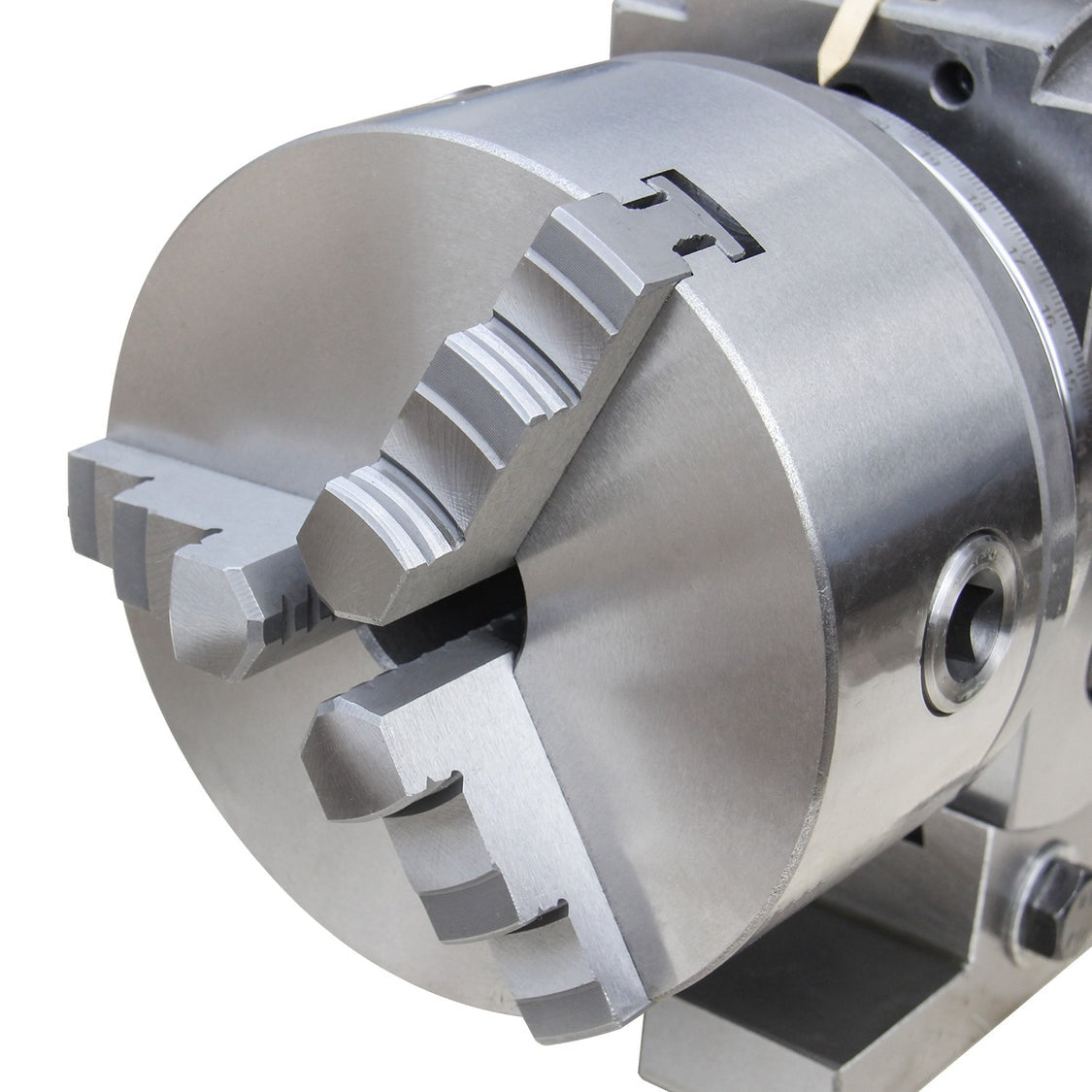

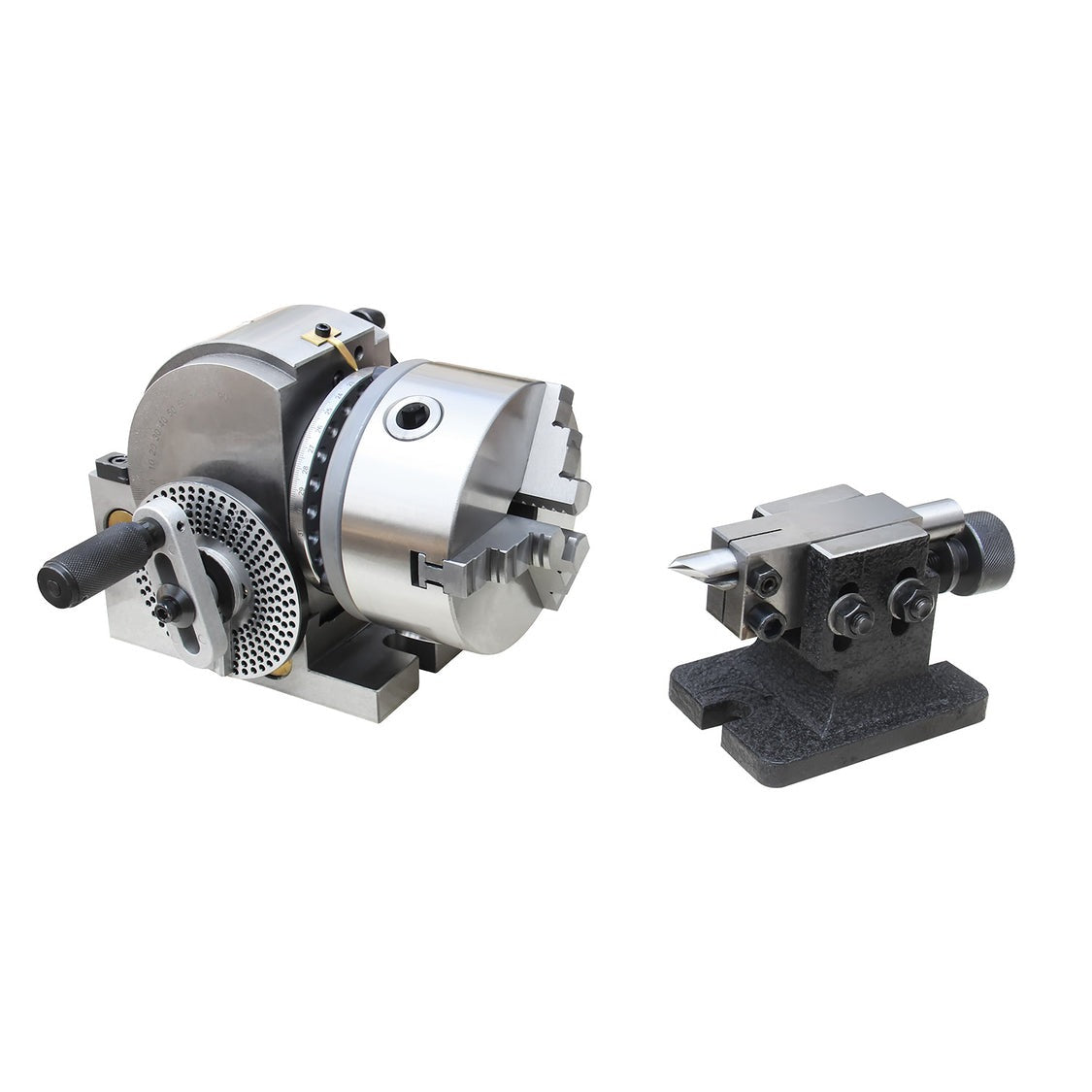

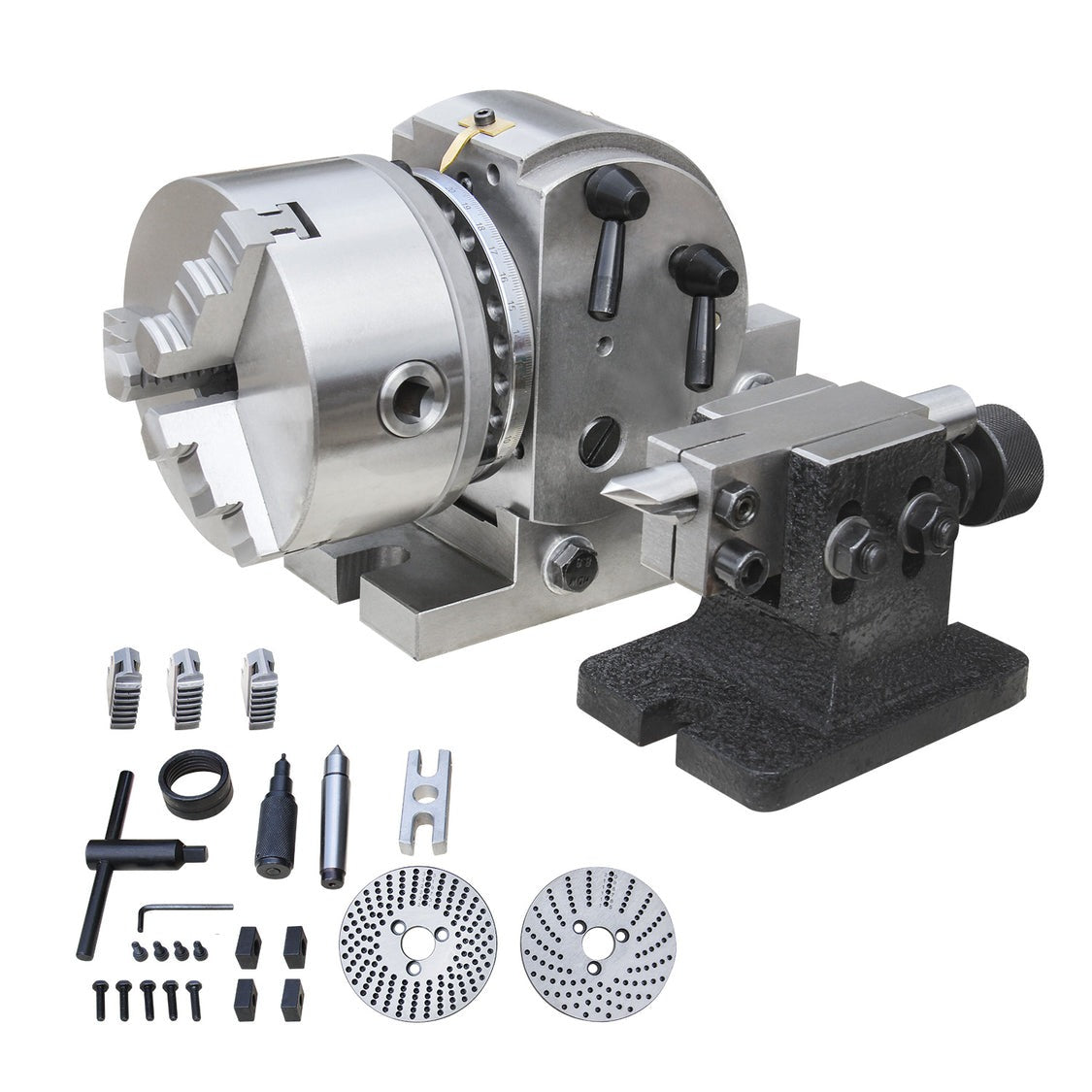

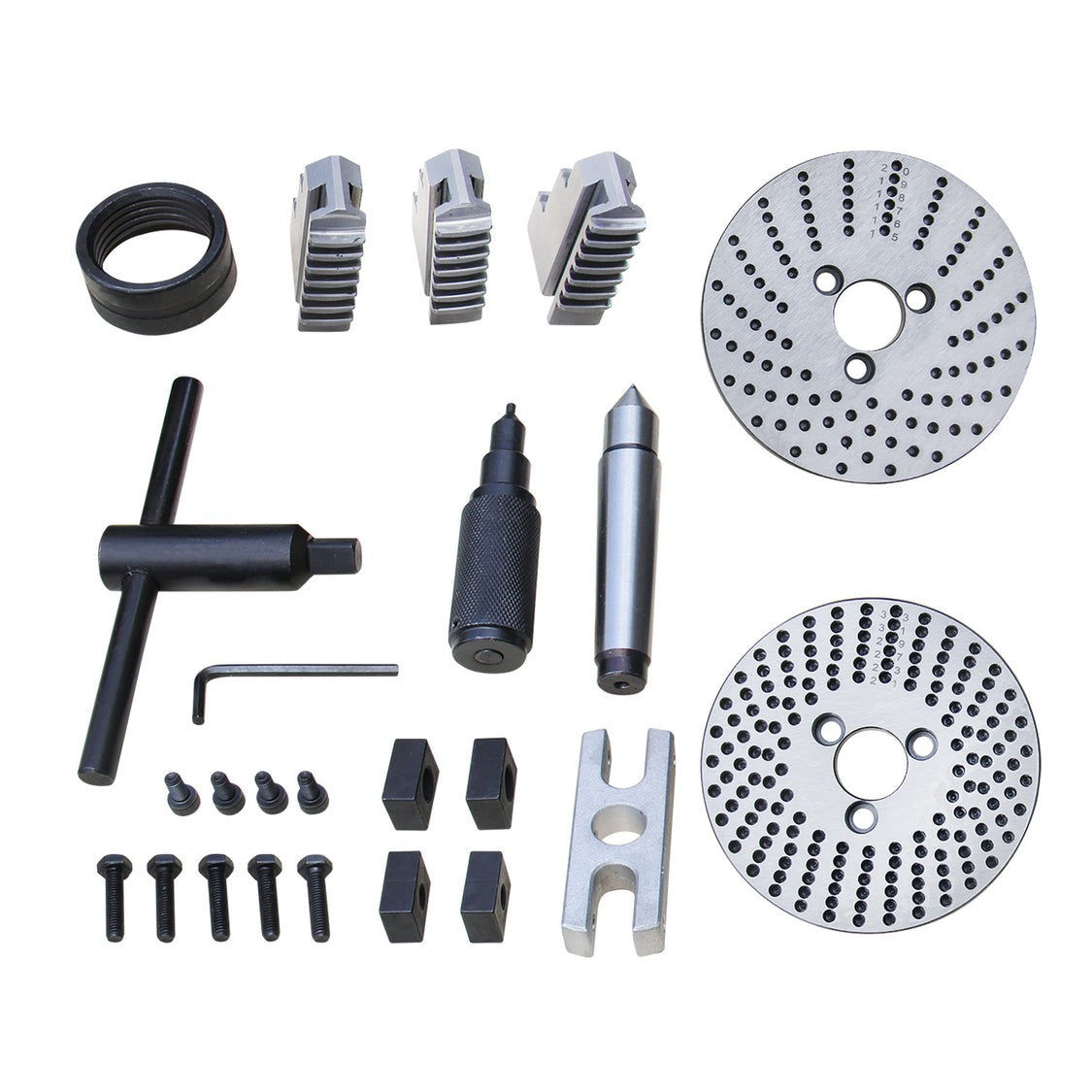

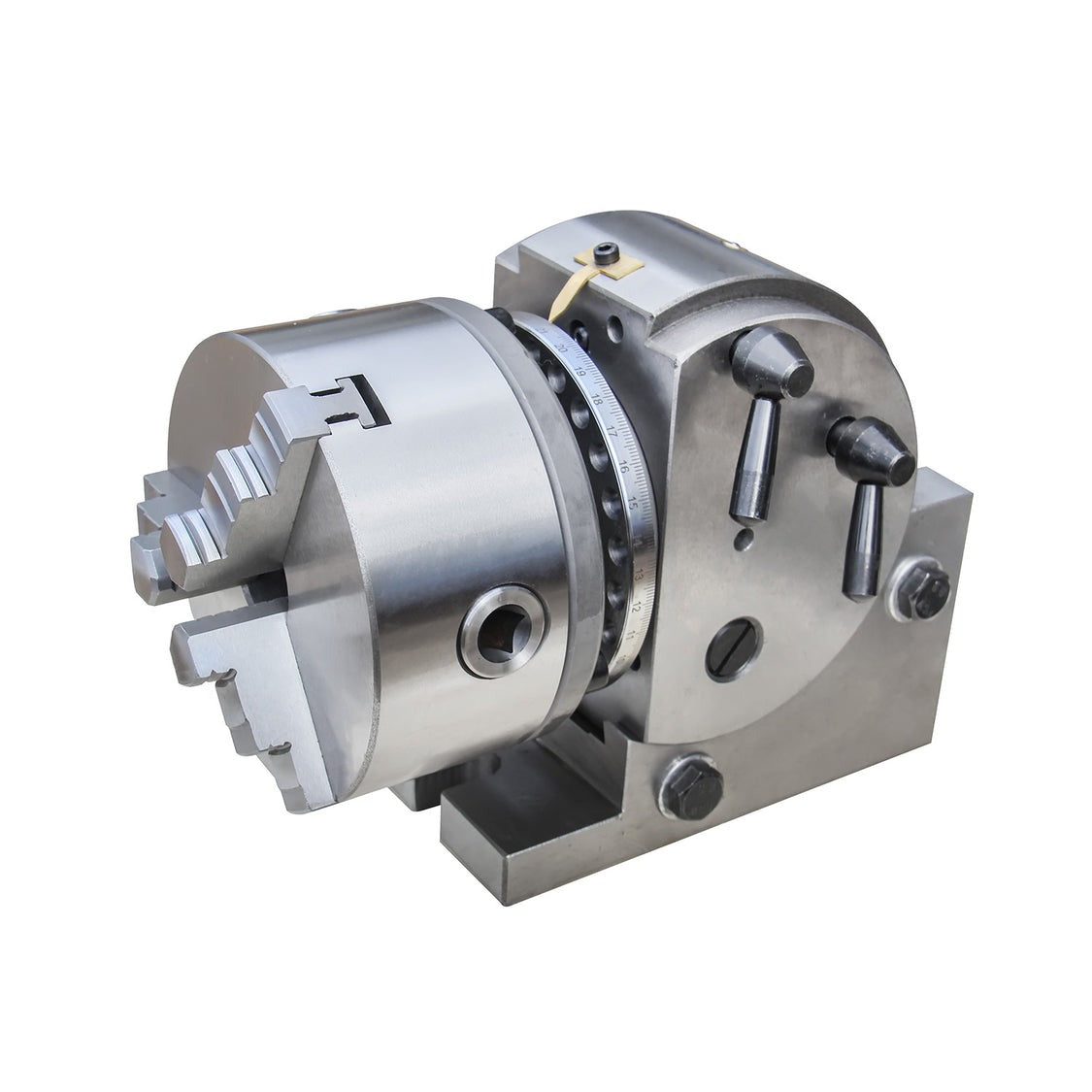

5、The BS-0 dividing head includes headstock, 5" 3-jaw lathe chuck, tailstock, center and driving dog, threaded back plate & 3 dividing plates. 1:40 worm ratio.

  Item No.   162320
  Model   BS-0
  Center Height   3.93"
  Spindle Bore (Clear Through)   0.55"
  Spindle Mount   1-1/2" x 8 TPI
  Spindle Taper Runout   0.0006"
  Gear Ratio   40:1
  Spindle Taper    MT2
  Packing Size   16.8"x9.6"x9.6"
  N.W/G.W   49/51 lbs
