KAKA INDUSTRIAL LTD  |  SKU : 176002

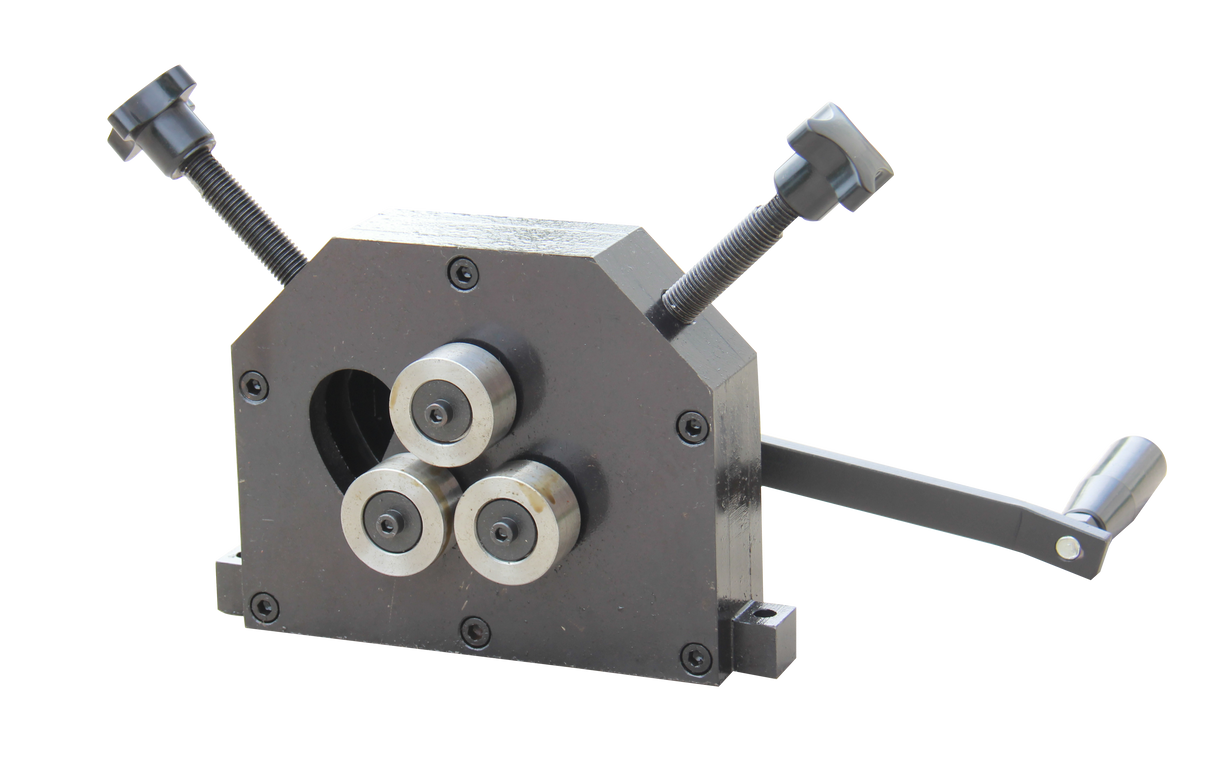

Cintreuse à rouleaux PR-5

C$370.00 C$390.00
Frais de livraison calculés lors du paiement.

Care information

Delivery and Shipping

Payment & Security

Payment methods

  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • Petit compact et portable
  • 3 rouleaux entraînés Alimenté manuellement
  • Comprend l'outillage pour barre plate
  • Parfait pour faire de petits cercles
  • Ensembles d'outils en option (1/2", 1/4", 1/8", 3/8") pour le stock rond disponible

Numéro d'article : 176002

Modèle PR-5

Diamètre minimum : 2. 75"

Capacité Solid Round (outillage en option) 1/2"

Barre plate Easy Way : 3/16" X1 " acier doux

Taille de l'emballage : 13 x 9 x 7 pouces


NW/GW : 30/35 lb

Matrices optionnelles :

https://www.kakaindustrial.ca/collections/tube-pipe-roll-bender/products/dies-for-pr-5

Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
0%
(0)
0%
(0)
33%
(1)
F
Francis Mercier
3/16 flat bar? REALLY???

I bought that roller to work with 3/16x3/4 stainless steel flat bar and it's just impossible to do so.
One of my colleagues says he machined the front wheel to be able to work with 3/16 material.

D
Don Parker
Roller Shaft Key Sizes

Follow-up review a month later. Have now made 10-15 additional circles in all four rod sizes, (dies arrived within 5 working days of order) and a couple from thinner flat stock. Still no issues, and I am posting this primarily as a follow-up on the shaft key size for the three roller wheels.

It is 5mm x 5mm x 16mm. (0.1969" x 0.1969 x 0.630).
1/8" is far too sloppy. 3/16" (0.1875) might work, but probably safer/easier to just order the correct size off the web and keep them in reserve since most stores don't carry metric keys.

D
Don Parker
PRETTY GOOD SO FAR!!

Delivery: 5/5 (Ordered on Mon; arrived Ottawa on Fri. Wow!!). Seems pretty good. No instructions but assembly was obvious. One adjuster screw does not grab the wheel axle at full extension/home position so I need to lift it a few mm to catch, but no big deal (will look inside it later to see if I can fix it). The dies are very simple to replace (with your own Allen key), but may want to have a few shaft keys on hand in case you lose the originals. I tested it making some partial circles of 14ga flat to fix a garden planter, and it worked absolutely fine. Did not even need to bolt it to the bench. I also purchased 1/4" and 1/2" dies, and ran 3-4 rods of each diameter through them for fun. Turning 1/2" hot rolled into a complete ring smaller than about 9" diameter is a great workout complete with cursing, but it can be done if you are patient and you clamp/bolt it well. Turning 1/4" into a ring was obviously much easier and I took it down to about 5" with no issues, other than a bit of spiraling/alignment issues which was likely my experience vice a fault of the machine. As a hobbyist, not sure how it compares other brands but I was happy enough that I just ordered the other two round dies to have the full set of four (just in case this becomes discontinued in the future). I think it was a good purchase (especially compared to the smaller PR-3 or the cheaper version of a PR-3 at a certain Cdn tinkerers' store).

KAKA INDUSTRIAL LTD

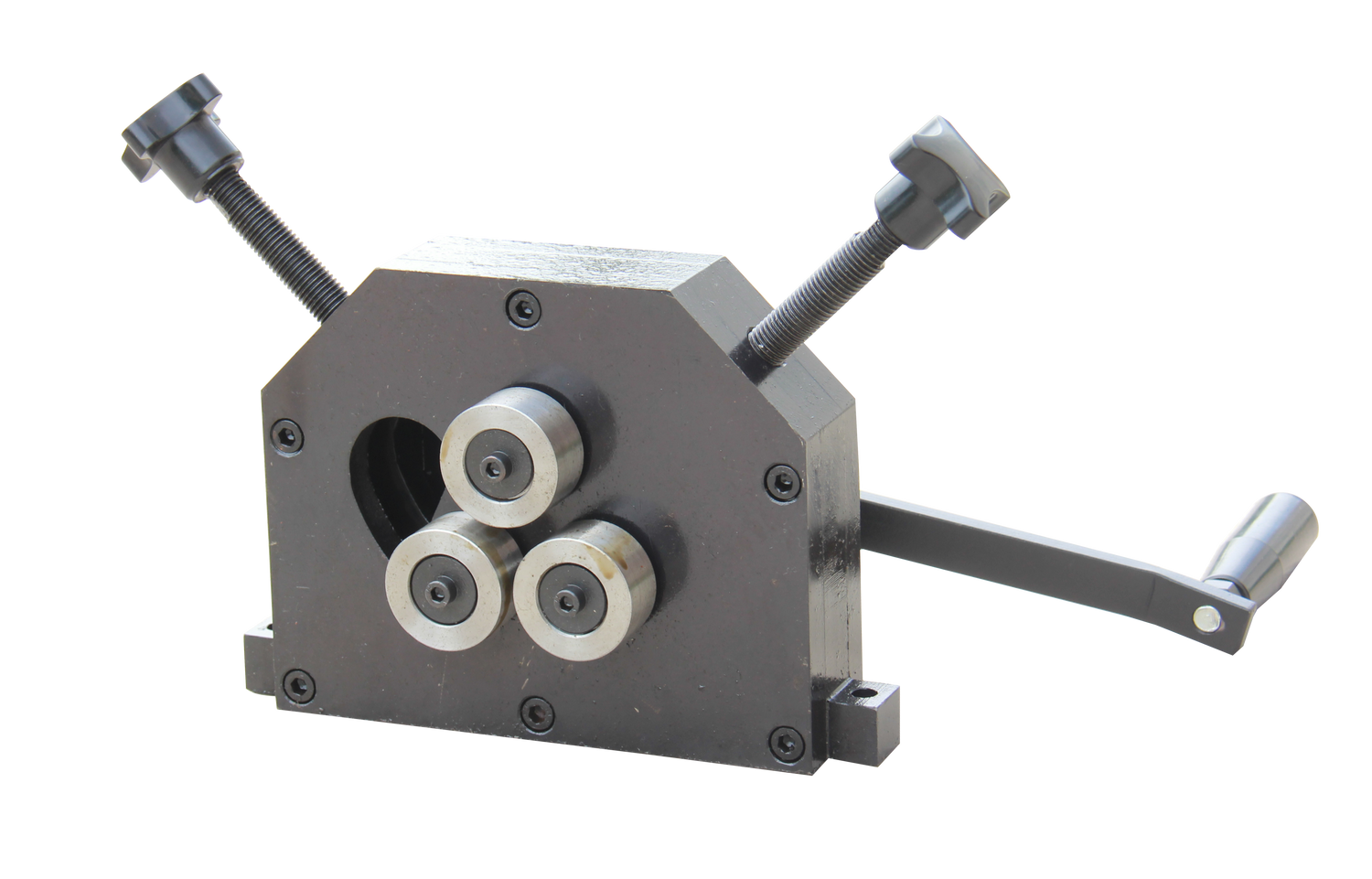

Cintreuse à rouleaux PR-5

C$370.00 C$390.00

Numéro d'article : 176002

Modèle PR-5

Diamètre minimum : 2. 75"

Capacité Solid Round (outillage en option) 1/2"

Barre plate Easy Way : 3/16" X1 " acier doux

Taille de l'emballage : 13 x 9 x 7 pouces


NW/GW : 30/35 lb

Matrices optionnelles :

https://www.kakaindustrial.ca/collections/tube-pipe-roll-bender/products/dies-for-pr-5
