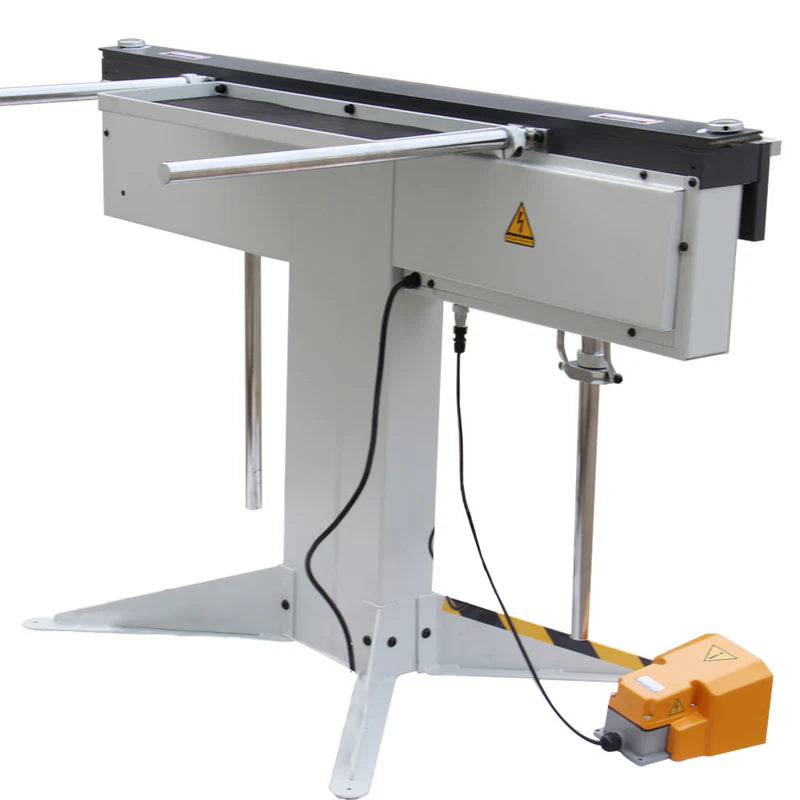

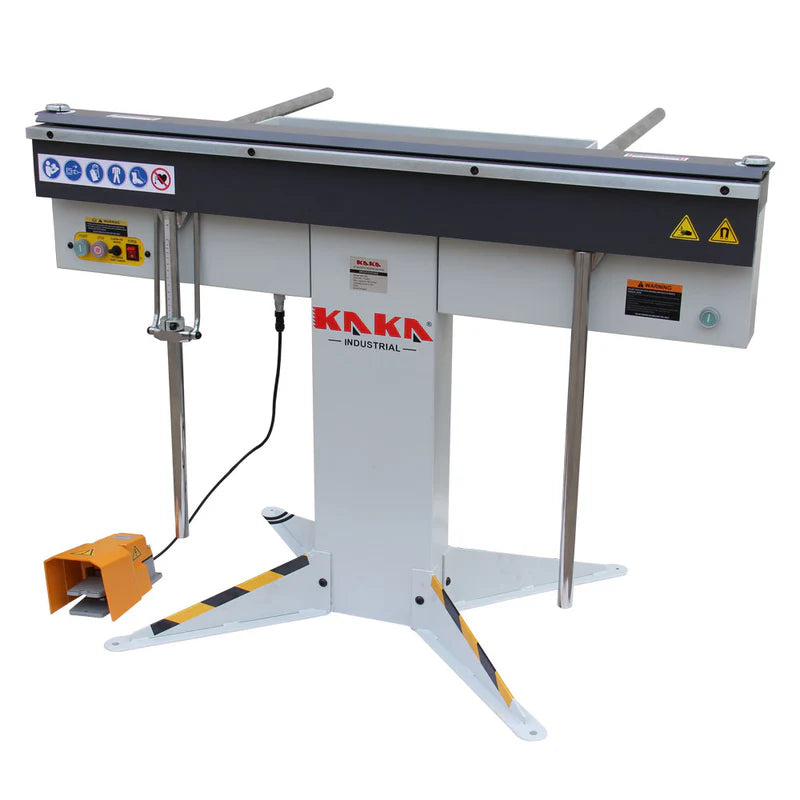

EB-4816M 48" Magnetic Sheet Metal Box and Pan Brake, 220V-60HZ-1PH
  • Customer Service

  • 778-379-8688

  • info@kakaindustrial.ca

  • Contact Us

Kaka Industrial  |  SKU : 173408V220

EB-4816M 48" Magnetic Sheet Metal Box and Pan Brake, 220V-60HZ-1PH

C$3,299.99 C$4,299.99
Frais de livraison calculés lors du paiement.

Care information

Delivery and Shipping

  1. If the item weighs less than 145 lbs, it will be delivered by UPS, Purolator, FedEx Ground, Canpar, Canada Post and other couriers to the address you provided as the 'shipping address' when you placed the order. You will receive the tracking number once the carrier picks up.
  2. If the item weights over 145lbs normally will be delivered by LTL Freight. Please note you may need the optional services if you order these items. For example, if you don’t have a forklift or similar equipment to offload the package, you may need to book the lift gate delivery service when checkout.

LES OPTIONS D'EXPÉDITION:

KAKA INDUSTRIAL utilise Fedex Ground, Canpar, Postes Canada, etc. et la ligne de fret par camion pour expédier vos commandes.

KAKA INDUSTRIAL met tout en œuvre pour traiter les commandes dans les 24 heures suivant leur passation. Vous recevrez un e-mail de confirmation d'expédition qui confirmera quel transporteur est utilisé pour vos produits.

Si votre commande pèse moins de 150 lb, elle pourrait être livrée par Canpar, FedEx et un autre service de messagerie à l'adresse que vous avez fournie comme «adresse de livraison» lorsque vous avez passé la commande. Si votre commande est supérieure à 150 lb, elle sera livrée par une société de transport qui a été choisie pour minimiser les frais de livraison dans votre région. Dans ce cas, votre adresse de livraison doit être accessible par camion semi-remorque, et Dans certains cas, vos frais d'expédition peuvent être différents de ceux affichés en ligne.

Les camionneurs ne sont pas tenus d'aider au déchargement. Vous êtes responsable du déchargement de votre fret et pour le déplacer dans votre boutique. Pour la livraison résidentielle et les magasins sans quai de chargement, la livraison par hayon est disponible moyennant des frais supplémentaires.

Vous pouvez également prendre des dispositions pour récupérer votre fret au terminal du transporteur. Le transporteur chargera l'article dans votre véhicule. Si vous choisissez cette option, assurez-vous que votre véhicule est capable de supporter le poids et apportez de nombreuses attaches pour fixer correctement la charge .

Frais de service d'expédition supplémentaires :

1. Livraison résidentielle, comprend le service de hayon électrique, appelez avant le service de livraison Supplément de 99 $

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/extra-shipping-charge

2. Service de hayon électrique pour adresse professionnelle 50 $

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/lift-gate-shipping-service

3. Appelez avant la livraison pour l'adresse commerciale 35 $

https://www.kakaindustrial.ca/collections/extra-shipping-charge/products/appointment-service

LIVRAISON DE FRET

Lorsque, sans faute du transporteur et après un effort raisonnable, une nouvelle livraison est demandée, des frais de 99,00 $ seront appliqués à l'envoi en plus des frais accumulés.

LES DÉLAIS DE LIVRAISON:

Les délais de livraison sont attendus, non garantis. Si l'autorisation de paiement est retardée, afin de confirmer le paiement ou de prévenir la fraude, Kaka Industrial se réserve le droit de retarder les expéditions. Tous les efforts seront faits pour expédier le plus tôt possible.

CHOSES À SAVOIR :

  • Les retards météorologiques et d'autres circonstances peuvent avoir un impact sur le délai de livraison. Les dates d'arrivée estimées ne sont pas garanties.
  • Les livraisons au Nouveau-Brunswick, à l'Île-du-Prince-Édouard, en Nouvelle-Écosse et à Terre-Neuve/Labrador prendront plus de temps.
  • Tous les délais d'expédition et/ou méthodes/fournisseurs d'expédition répertoriés sur www.kakaindustrial.ca doivent être considérés comme des estimations et ne sont pas garantis.

*** Nous envoyons automatiquement votre numéro de suivi par e-mail lorsque votre commande est expédiée ***

Payment & Security

Payment methods

  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

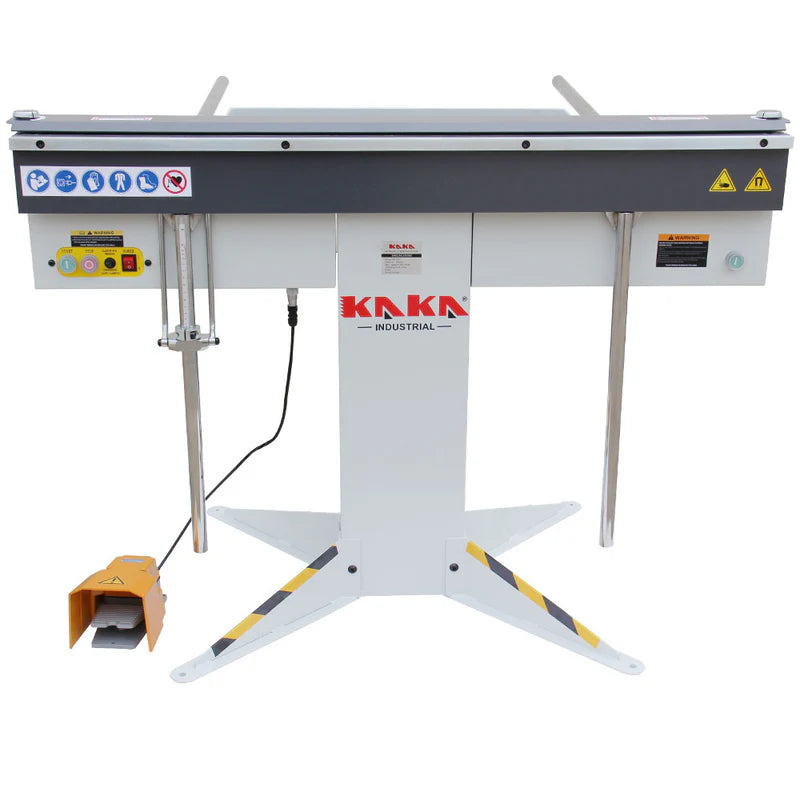

KAKA Industrial EB-4816 Manual Magnetic Sheet Metal Brake, Box and Pan Brake



      •  EB-4816 can bend boxes or pans to almost any depth since it doesn’t rely on conventional finger depths.
      • 48-Inch Magnetic clamping Pan and Box Bending Brake,16-Gauge Mild Steel Capacity
      •  6-ton magnetic power is consistent across the entire beam, allowing for crisp bends even in the middle of the brake.
      • To achieve proper performance and prevent damage to the machine, the power supplied must be 220VAC . Failure to comply will damage the machine and void the warranty.
      • The breakthrough open-ended design allows you to create enclosed ducts and shapes impossible to make with a traditional box and pan brake.

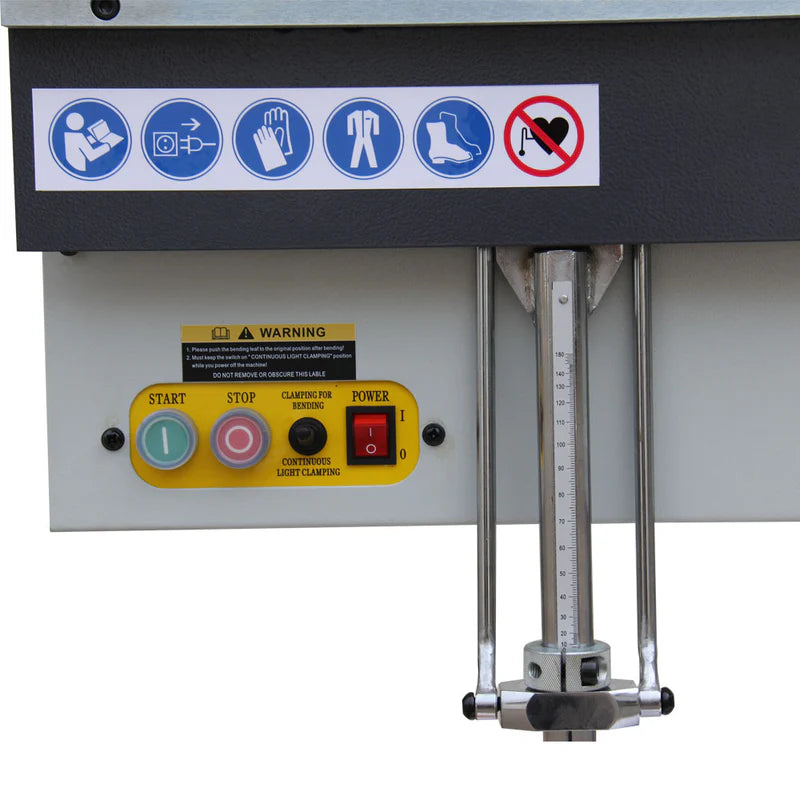

      • Scaled stroke angle control lets you deliver repeatable bends time after time.

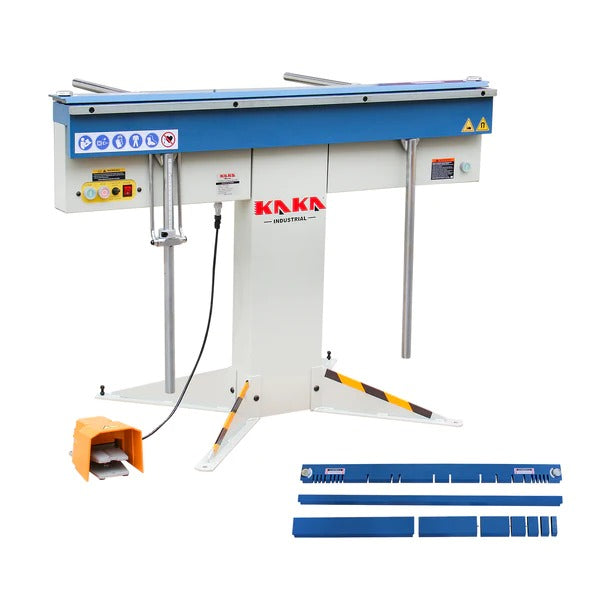

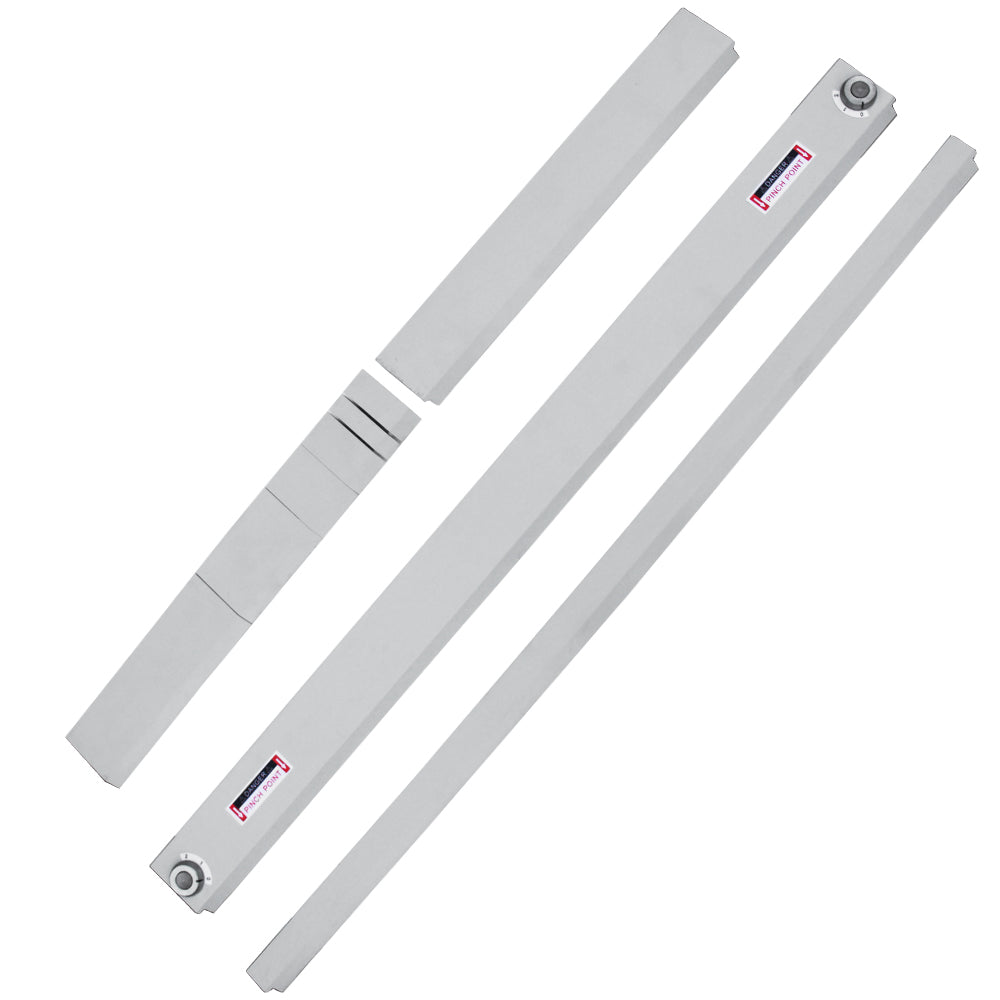

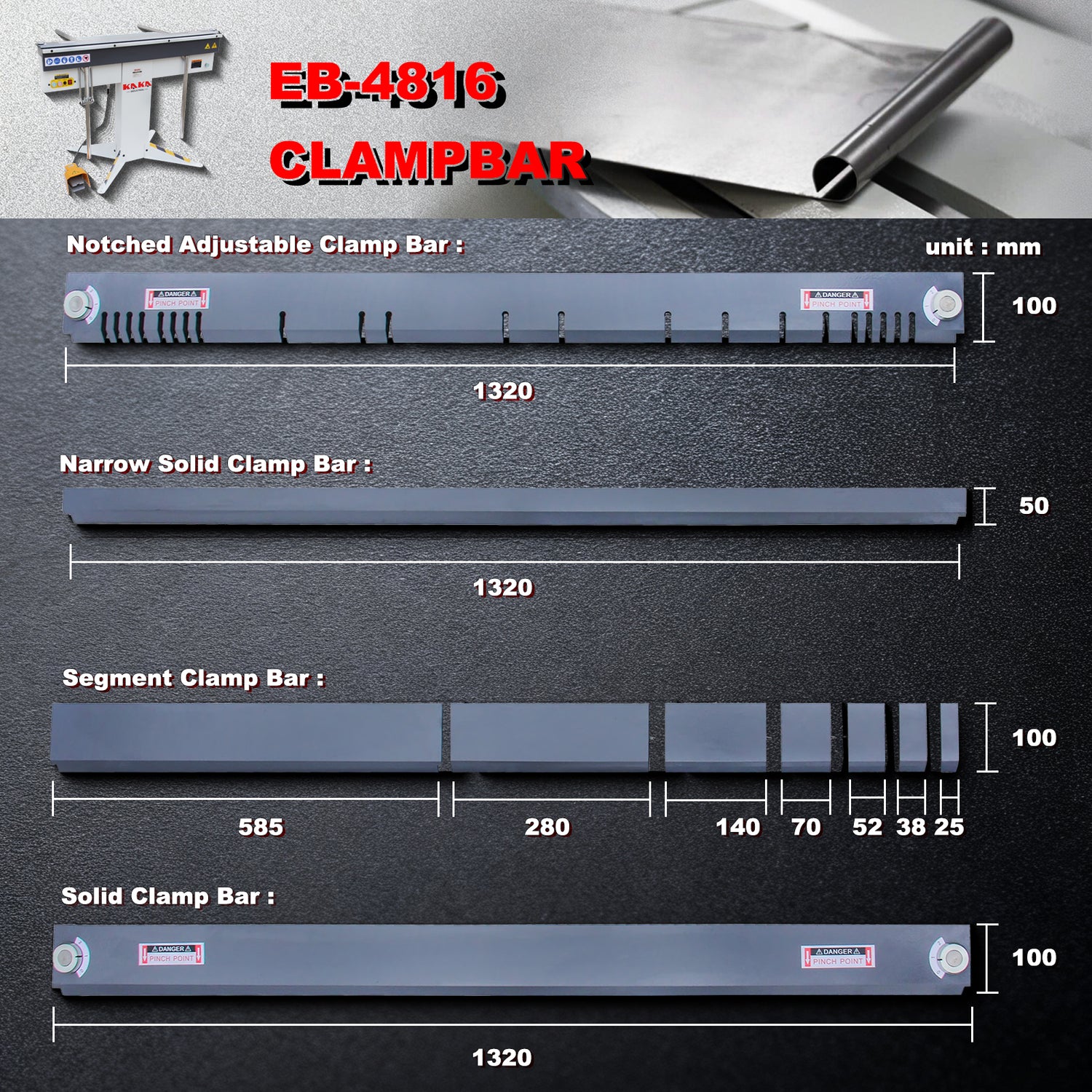

      • You can set up the mild steel clamping bar with straight bars (of various widths if you had very tight boxes to make) for straight bends or segmented clamping bars for box and pan applications.
      • Blade gap adjustment on the clamping bars lets you work with sheet metal of different thicknesses.
      • You can remove the bottom leaf's bending extension for the tightest bend dimension between bends of .625”.
      • Comes with product supports and adjustable back gauges for production runs.
      • Kaka industrial covers this box brake with a 2-year parts warranty

Easy, hands-free operation:

    Put a piece of material between the clamping bar to the depth required.

    Engage the powerful magnet in the bending bed with push button control.

    Hit the foot pedal that softly clamps the material. This foot control keeps your fingers safely out of the machine and you to reposition the material.

    Lift the the bottom bending leaf to complete the bend.

Recommended for:

HVAC shops, industrial art shops, and general sheet metal fabrication shops.

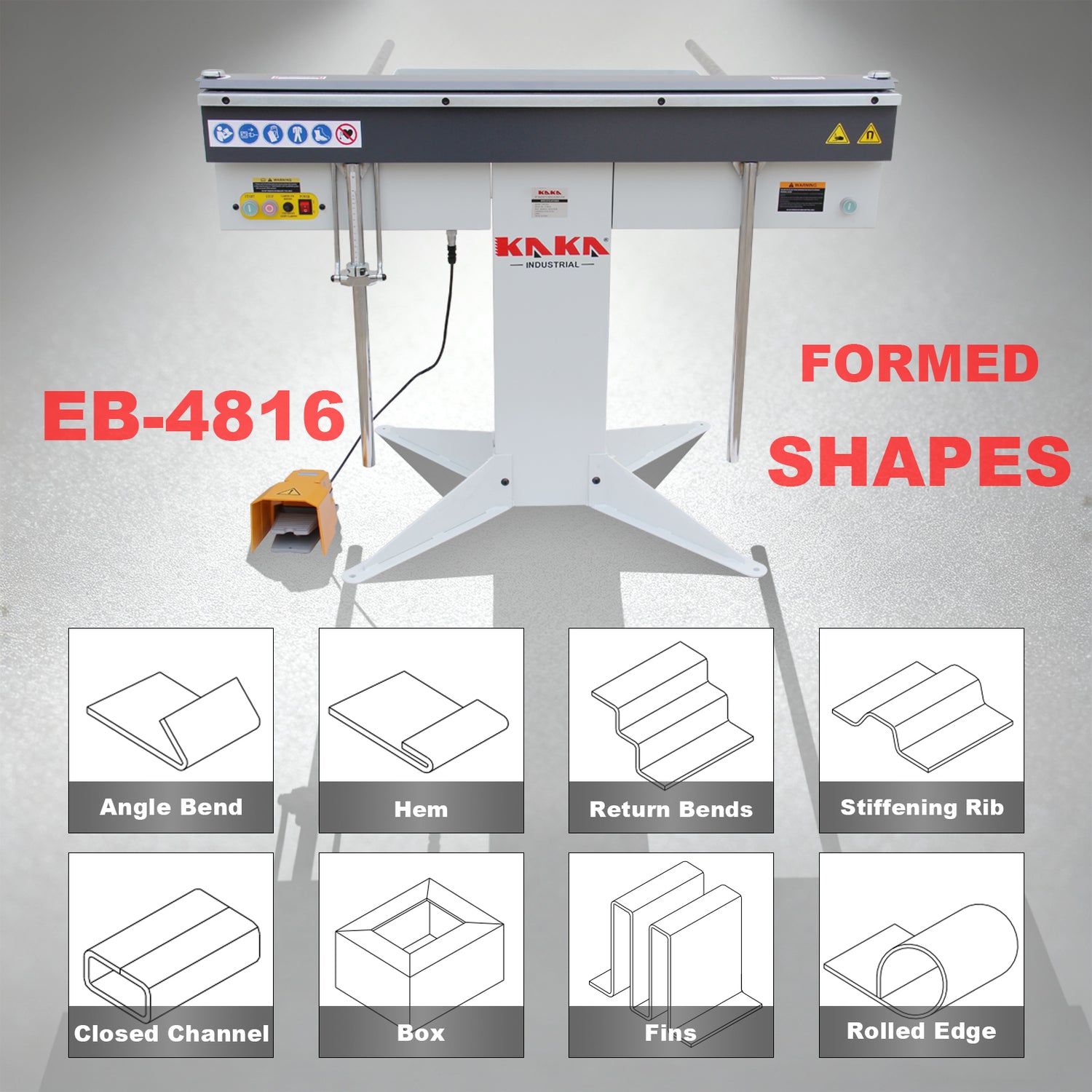

Making enclosed boxes, triangles, alternate bends on varying planes, and round items such as scrolling applications.

Bending a variety of materials, including sheets of mild steel, stainless steel, aluminum, coated materials, heated plastics, and more.

Max. Capacity with Extension     18ga. (1.21mm) mild steel / 21ga. (0.83mm) stainless steel

Max. Capacity without Extension     16ga. (1.51mm) mild steel / 20ga. (0.91mm) stainless steel








tem No.

173408V220

Model

EB4816M

Max. Capacity
(length x thickness)

1250x1.6mm

48'x16ga

Clamping force

6Ton

Duty cycle

30%

Back gauge

25"

Foot switch

Standard

Nominal current

6 Amp

Protection

Thermal cut-out 70°C

Bending-edge length(in)

51"

Distance between lifters(in)

49"

Packing size(in)

57"x44"x15"

N.W./G.W.(lb)

390lbs / 485lbs


 Special Notes: Capacities can change depending on set up leaf extension. Rule of thumb for mild steel, 16ga., extension OFF. 18ga. extension On or Off, 20ga. and thinner, extension On.

Things to Know Before Purchase To achieve proper performance and prevent damage to the machine, the power supplied must be 220VAC +/-5% (209VAC to 231VAC). Failure to comply will damage the machine and void the warranty.

The working principle of Sheet Metal Brake

NOMINAL CAPACITY
1250 mm x 1.6 mm (4ft x 16g)

CLAMPING FORCE (with standard full-length clamp bar)

6 Tonne

ELECTRICAL
Supply: 1 phase, 220V ac
Nominal current:  8 Amp
Duty cycle:  30%
Protection: Thermal cut-out, 70°C



BENDING CAPACITIES (for standard full-length clamp bar)

MATERIAL
(yield/ult stress)

THICKNESS
(mm)

LIP WIDTH
minimum (mm)

BEND RADIUS
Typical (mm)

Mild Steel
(250/320 MPa)

1.6

30*

3.5

1.2

15

2.2

1.0

10

1.5

Aluminium
Grade 5005 H34
(140/160 MPa)

1.6

30*

1.8

1.2

15

1.2

1.0

10

1.0

Stainless Steel
Grades 304, 316
(210/600MPa)

1.0

30*

3.5

0.9

15

3.0

0.8

10

1.8

* With Standard bending beam extension fitted. For most non-ferrous metals (copper, brass, zinc) refer to Aluminium above.
