BOMAR ProfiCut 275.230 DG - Manual Band Saw

  • Sale
  • Regular price C$9,350.00


Description

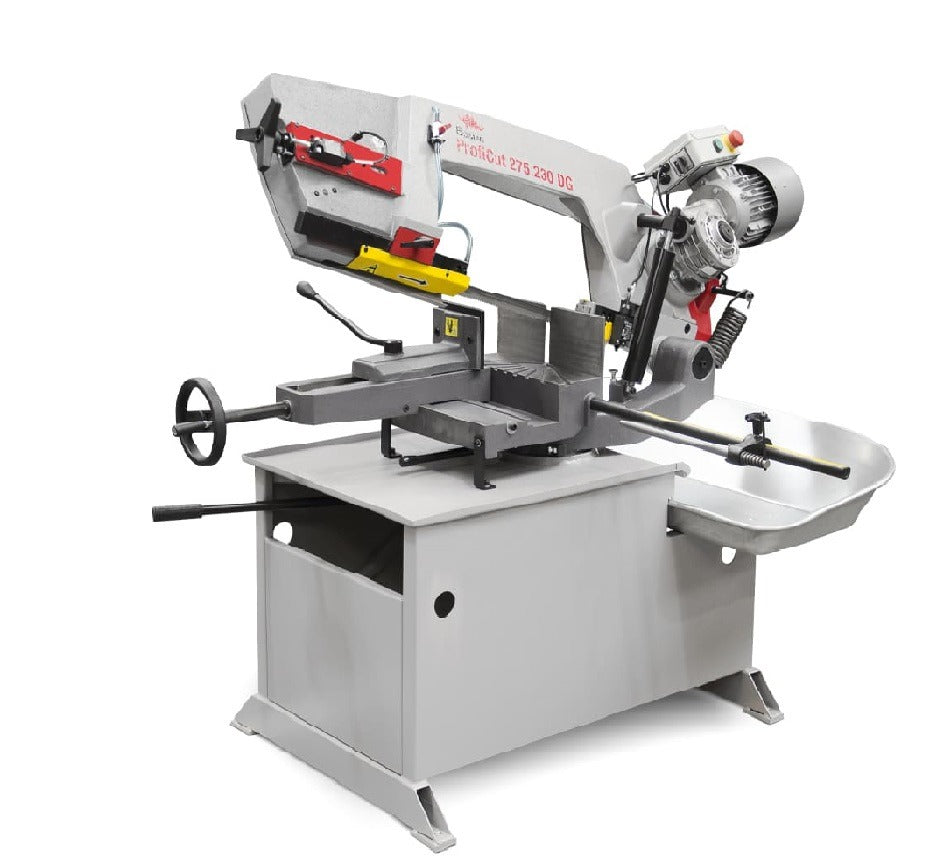

The model Proficut 275.230 DG manual band saw features a vibration damping cast iron heavy-duty saw frame with with a powerful 2-speed industrial saw drive. The ability to miter cut in both directions makes this the ideal workshop machine. The clamping vise can be moved left and right depending on the direction of the miter cut. The cutting force is achieved by the weight of the saw-head while the feed rate can be adjusted via the conveniently located flow-control valve on the control panel.

  • Rigid Cast Iron Saw Head.
  • 2 Speed Saw Drive.

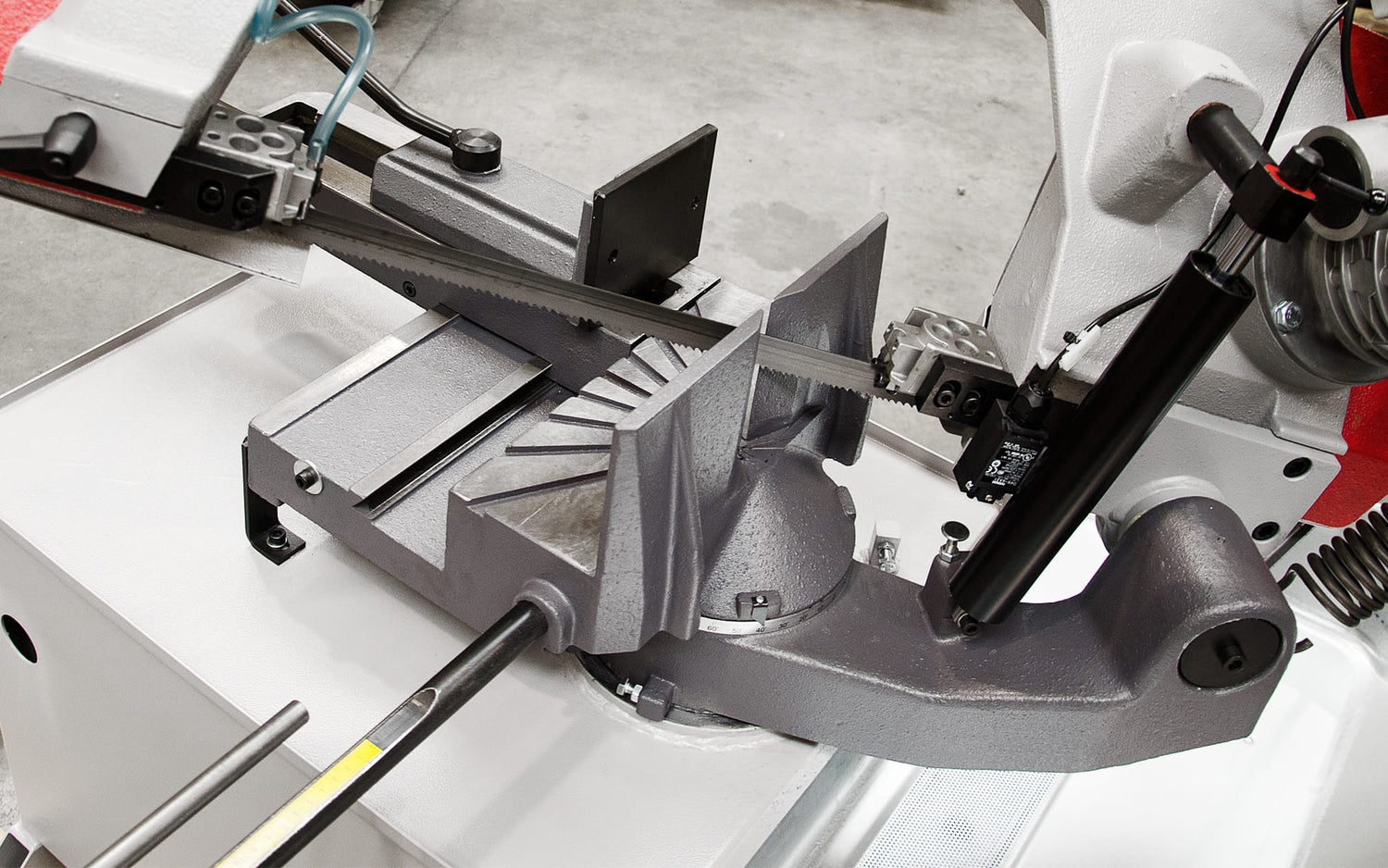

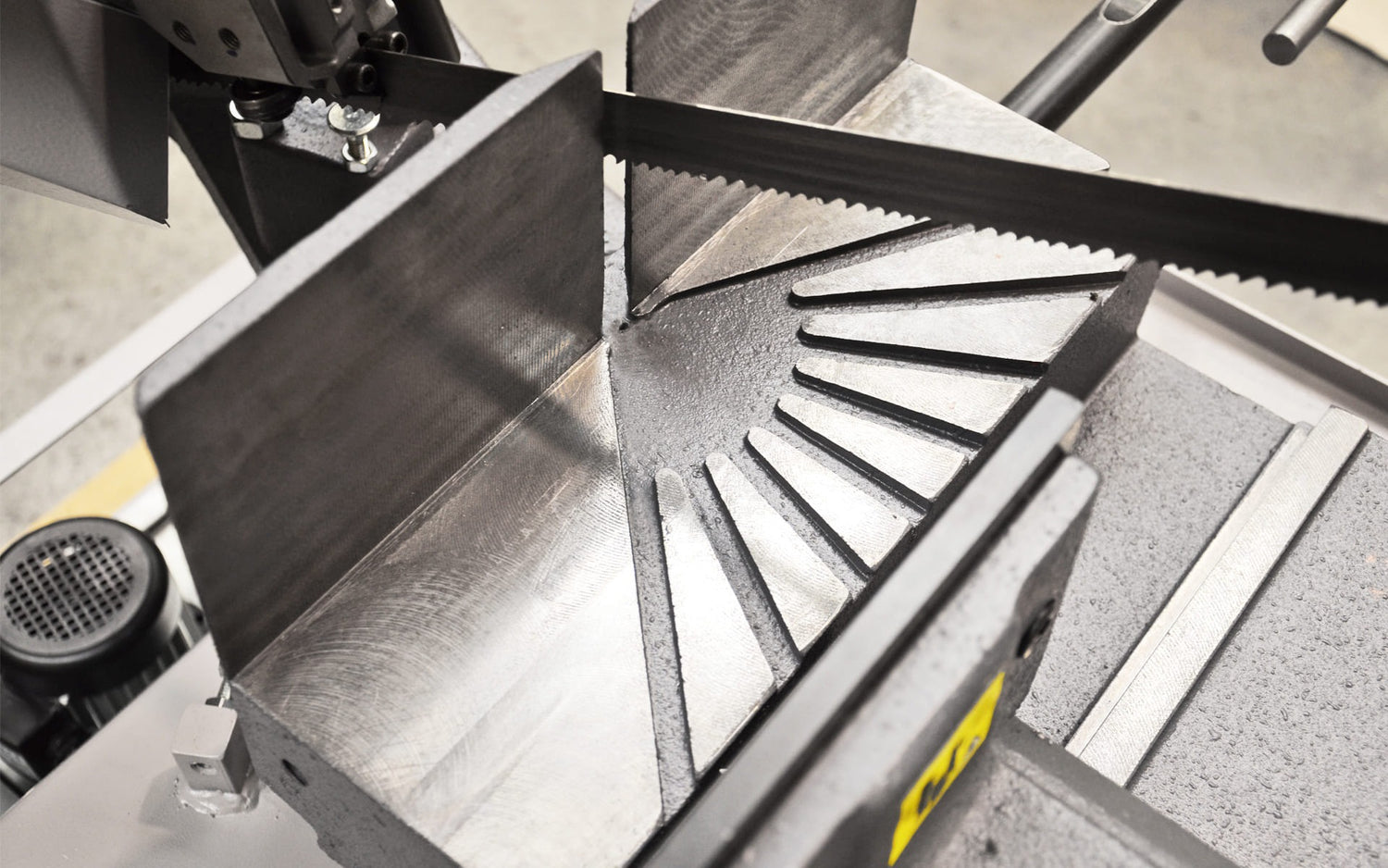

  • Miter Cutting from -45° to 60°.

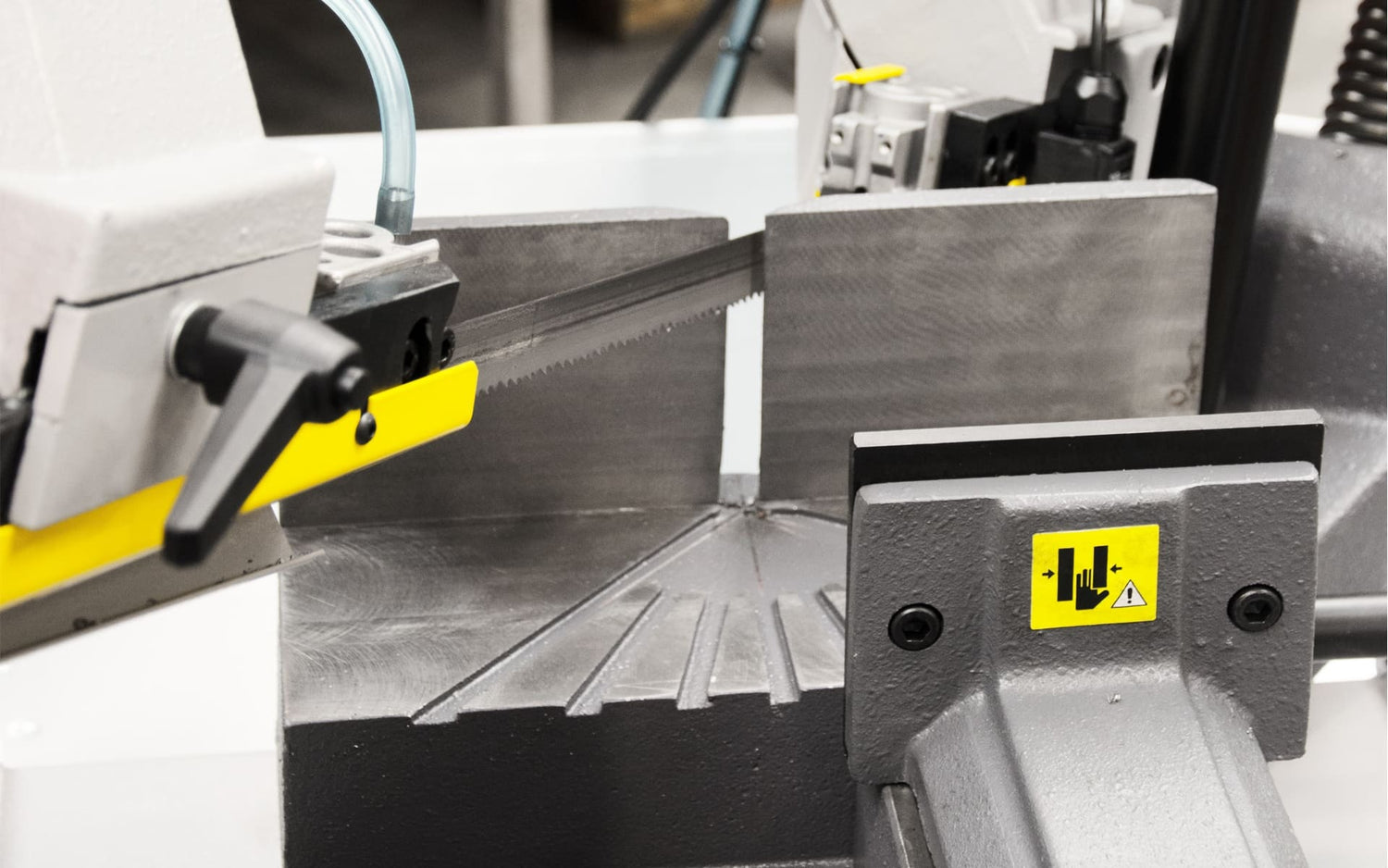

  • Carbide Saw Blade Guides.
  • Safety Switches on Band-wheel Door.
  • Blade Tension and Breakage Switch.
  • Integrated Coolant System.

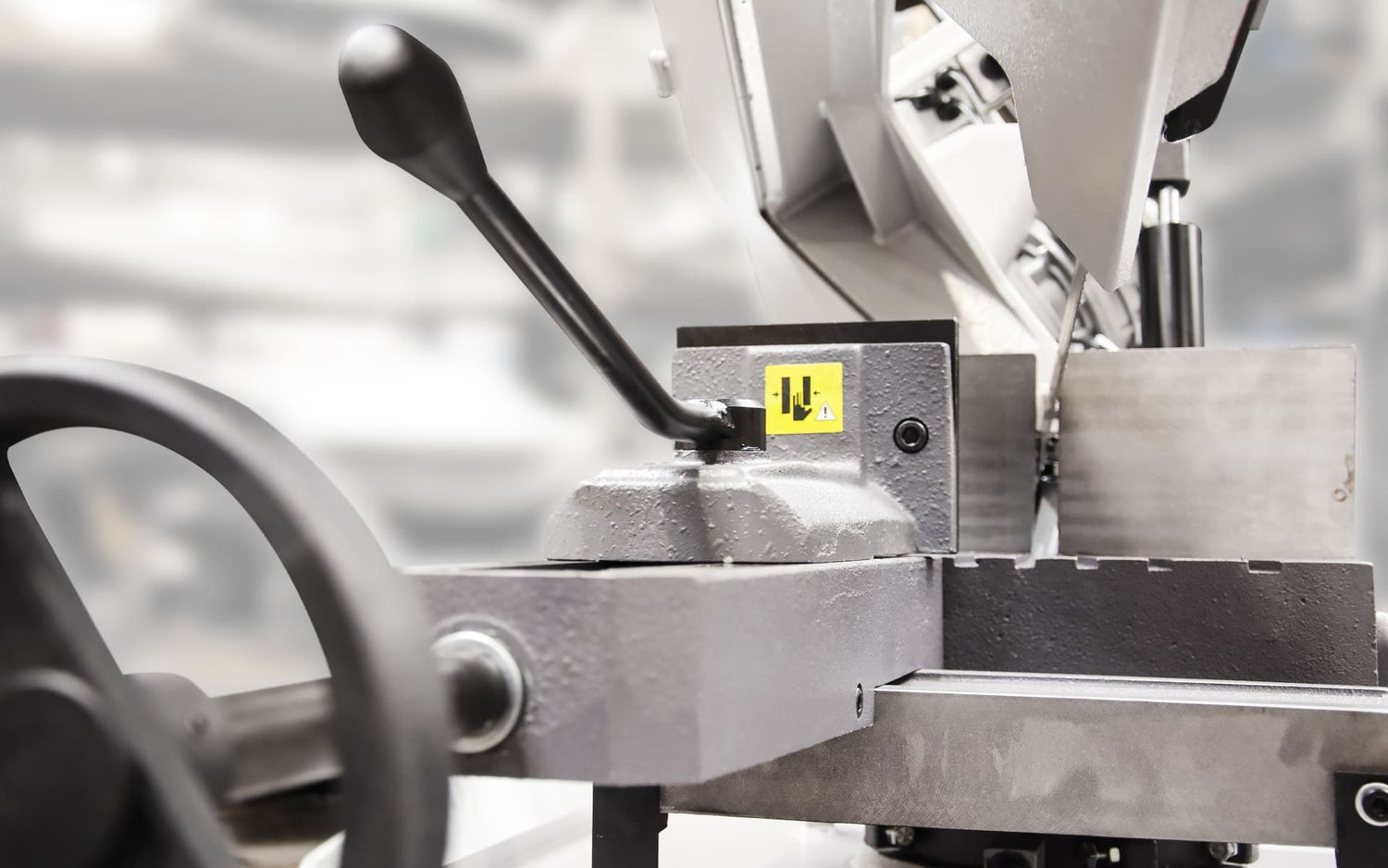

  • Quick-Clamping Vise.
  • Mechanical Length Stop.
  • CSA Approved.

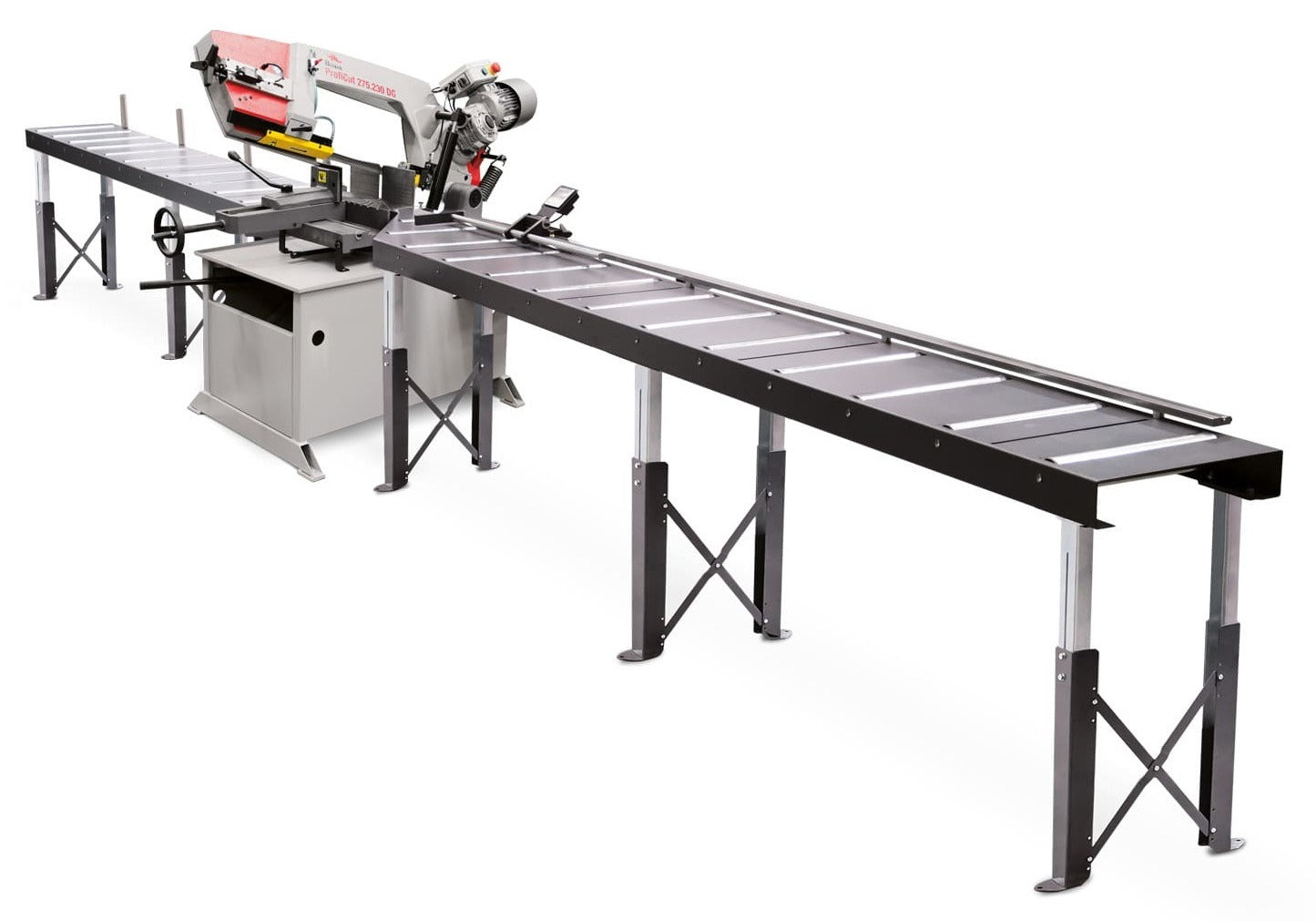

Roller Tables (optional):

The BOMAR M-type roller conveyor system is an inexpensive, modular system that comes in   6‘ 7“ (2,000 mm) and 9‘ 10“ (3,000 mm) long sections.The legs are height-adjustable from 29“ (730 mm) to 44-1/2“ (1,130 mm). Multilple sections can be connected to each other via the legs.



Description

Type

Length

Width

Rollers

Legs

Load Capacity

Roller table

M 330-2

6' 7"

13"

7

2

100 lbs. / ft.

Roller table

M 330-3

10'

13"

11

2

100 lbs. / ft.
